Flashforge Adventurer 5M Pro: 10 Known Issues and Step-by-Step Fixes

This guide focuses on issues that are unique to the Flashforge Adventurer 5M Pro: the built-in camera, HEPA filter, LED strip, auxiliary chamber fan and Pro extruder board. Common FDM problems (first layer, clogs, stringing, warping) are covered in dedicated guides linked at the end, so this article doesn't repeat Flashforge AD5M: Known Issues.

If you own the plain Adventurer 5M (no camera, no HEPA) — read the sibling article Flashforge AD5M: Known Issues: 60% of those issues are shared, but the Pro has its own failure modes tied to the enclosed chamber and extra electronics.

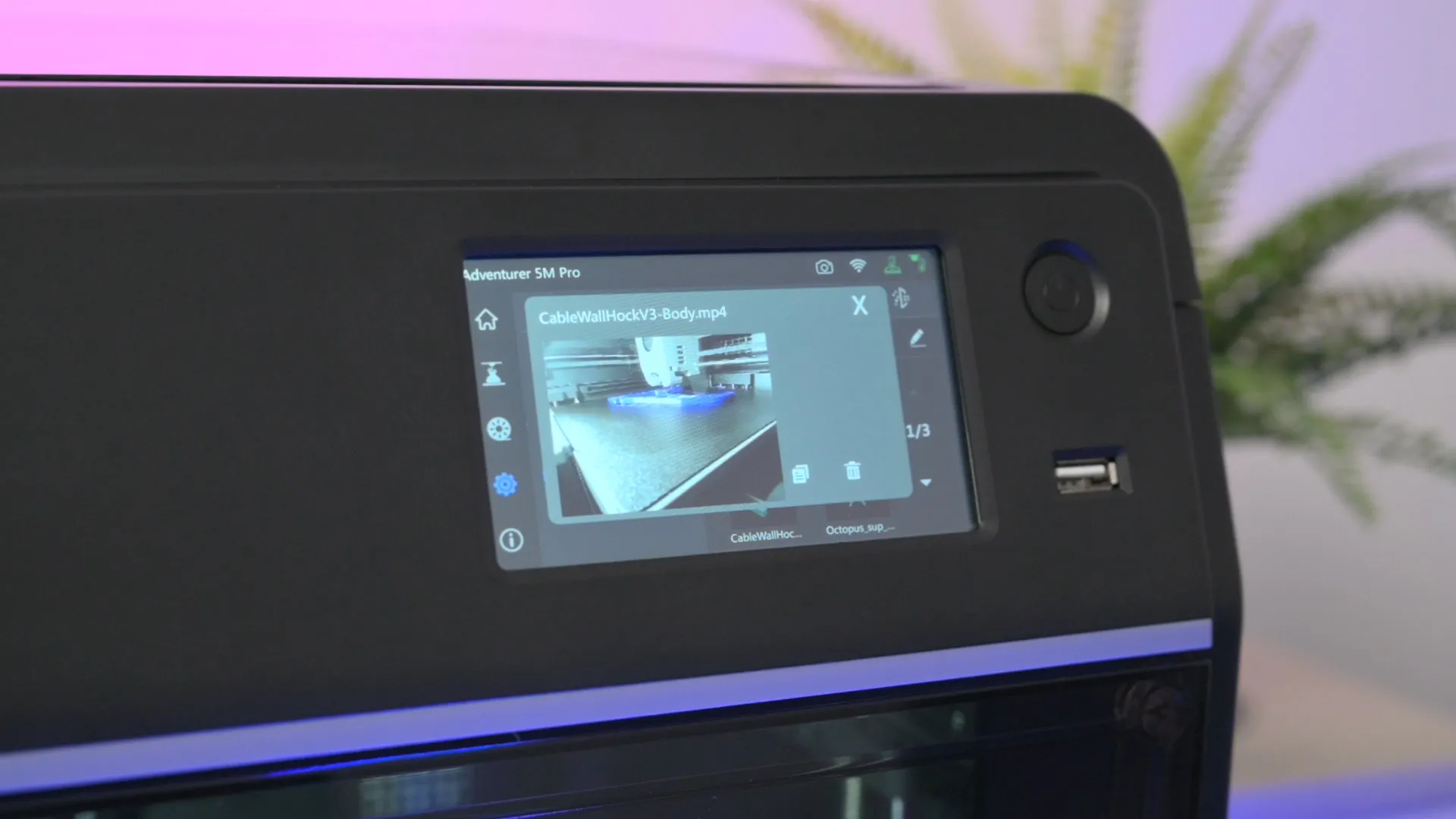

"Failed to Enable the Camera" error

What happens: The screen shows 'Failed to Enable the Camera'. Live preview is broken, time-lapse doesn't record.

Cause: Loose FFC cable inside the door or a dead camera module. Vibrations from ABS prints and shipping shocks often knock the connector loose.

1. Restart the printer — often enough after a firmware update.
2. Update firmware to the latest release: newer builds auto-detect both built-in and external cameras.
3. Power down, open the door, remove the inner panel and reseat the camera's FFC cable.
4. If the error persists, copy logs via Settings → Machine Info → Copy logs and send them to support.
5. Last resort: replace the camera module (AD5M/AD5X Camera Kit part).

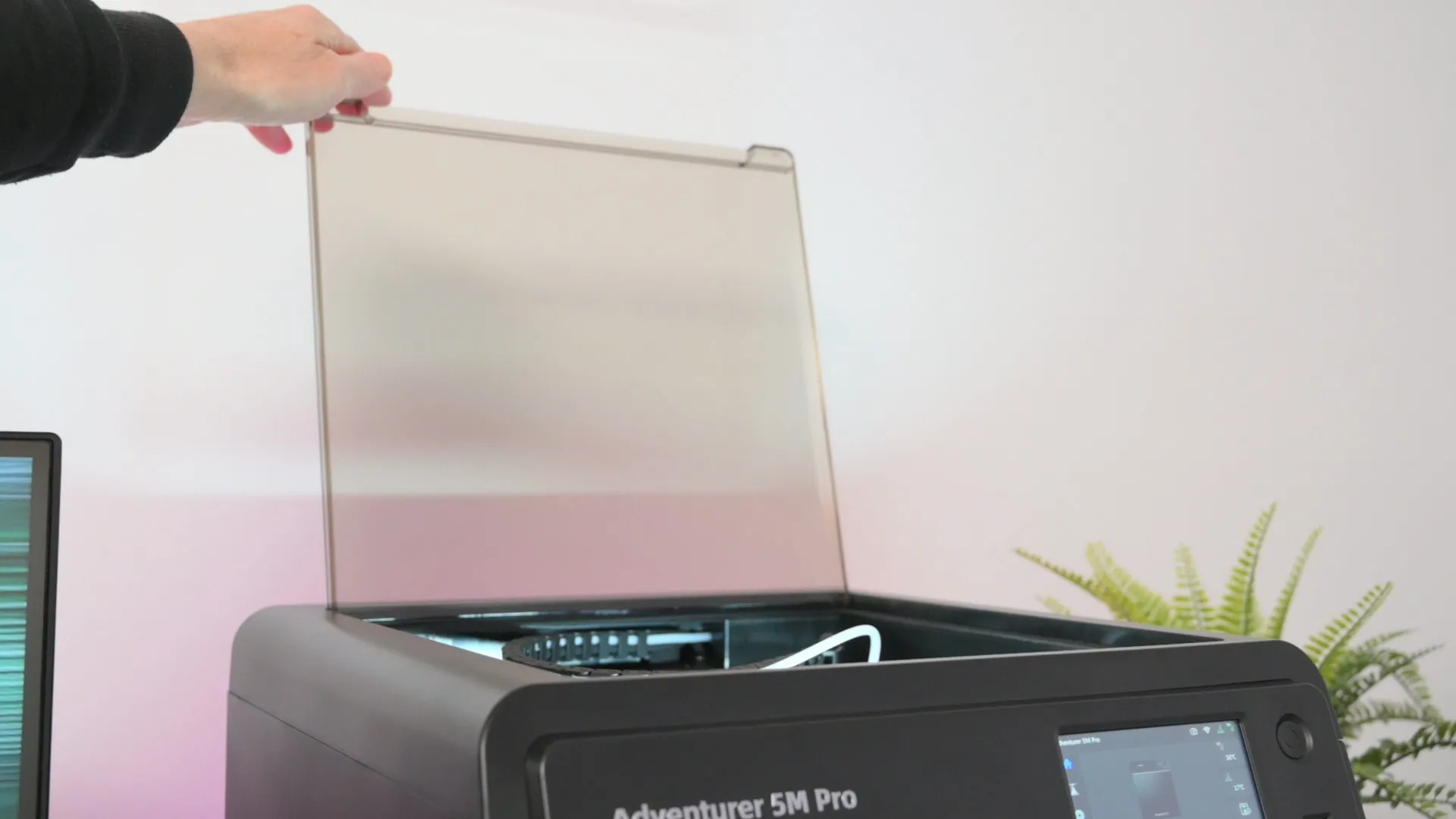

Loud auxiliary chamber cooling fan

What happens: In enclosed mode noise tops 50 dB: a low-frequency drone and a rattling bracket. Sitting next to a desk it sounds like a washing machine.

Cause: The stock auxiliary fan bracket is bolted rigidly to the frame and resonates. The fan itself is a generic 4020 with inconsistent balance batch-to-batch.

1. Enable Low-Noise Mode in Settings → Print Settings: auxiliary fan drops to 60%.
2. Print the Fan Noise Reducer shim (Printables #641257) and install it between the bracket and the frame.
3. Swap the stock fan for a Noctua NF-A4x20 24V using a pin adapter.
4. If the drone remains, pop the cover and check whether the impeller is scraping the shroud — common on early batches.

TVOC sensor stuck on orange

What happens: The fan icon in the bottom corner glows orange while printing plain PLA with the door closed. Air smells fine, yet the printer thinks pollution is critical.

Cause: The metal-oxide TVOC sensor calibrates its baseline at first power-on. If acetone, perfume or alcohol vapors were nearby on boot, the baseline is shifted and the sensor thinks clean air is polluted. Second cause — a saturated or damp HEPA/carbon cassette.

1. Pull the HEPA cassette, open the door and vent the chamber with room air for 20–30 minutes.
2. Full power-off for 10 minutes, then boot in a clean room with no household solvents nearby.
3. If the alert doesn't clear after 2–3 hours of printing, replace the HEPA+carbon cassette (~$18).
4. If a fresh cassette still doesn't help, the sensor itself is due for replacement (TVOC Sensor Assembly via Flashforge after-sales).

Camera invisible in Orca-Flashforge

What happens: Printer is online, G-code streams fine, but the Device panel shows an empty rectangle or a "camera unavailable" icon instead of the stream.

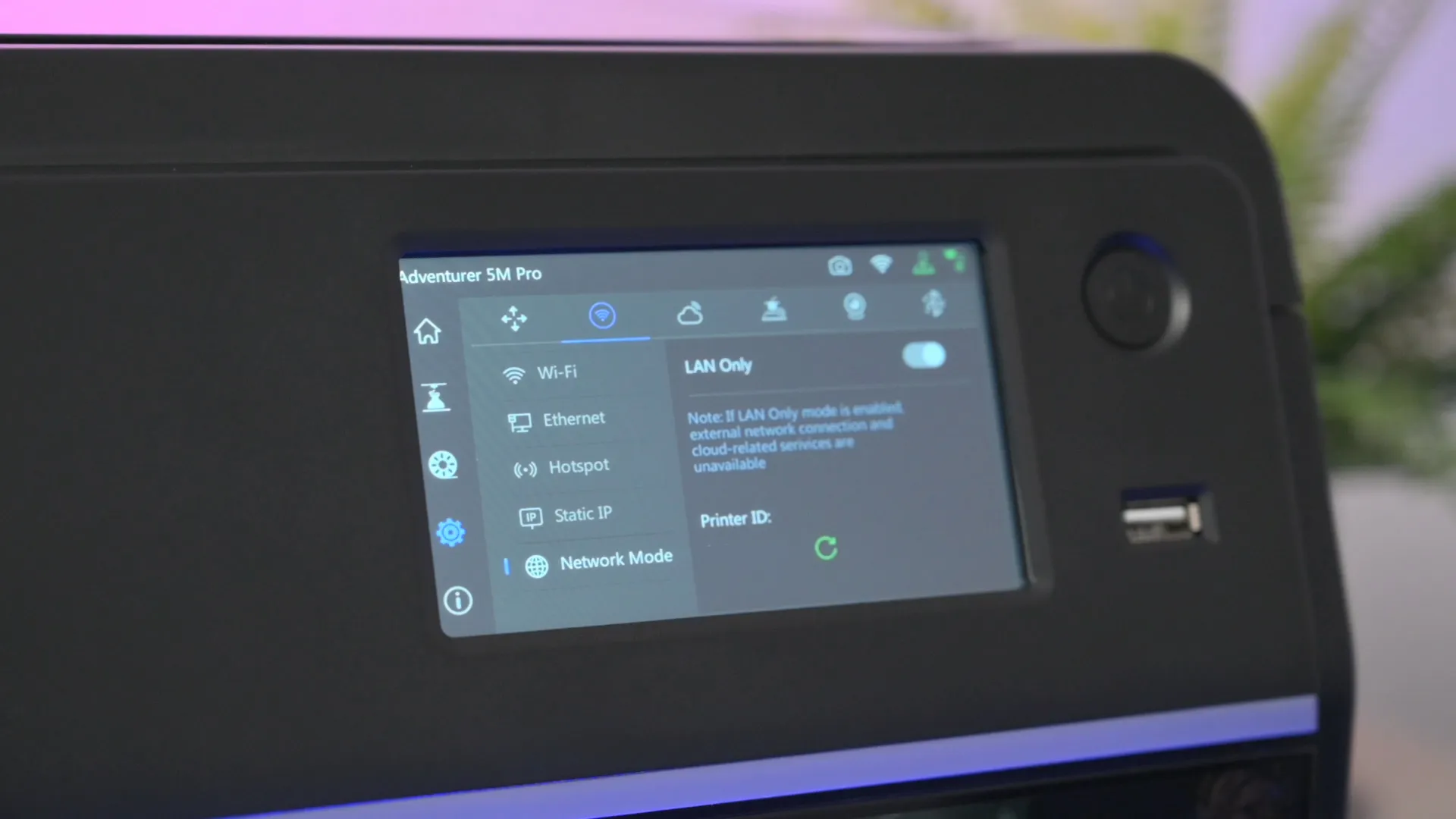

Cause: Orca-Flashforge < 1.3 paired with firmware < 3.1.6 can't stream the built-in 5M Pro camera. On top of that, "LAN Only" mode or a firewall can block the MJPEG port.

1. Update Orca-Flashforge from the Flashforge site (not upstream OrcaSlicer — built-in camera only works in the fork).
2. Update printer firmware via Wi-Fi or USB.
3. Make sure the PC and printer are on the same subnet (not VLAN/guest network).
4. In Orca: Device → remove the printer → Add → Manual Input → enter IP manually.
5. If an antivirus blocks it, whitelist outbound ports 8080 and 8989 from the printer's IP.

Plastic smell leaks out — HEPA saturated

What happens: After 300–500 print hours the enclosed chamber starts smelling like an open printer. ABS/ASA prints leak odor into the room within 20–30 minutes.

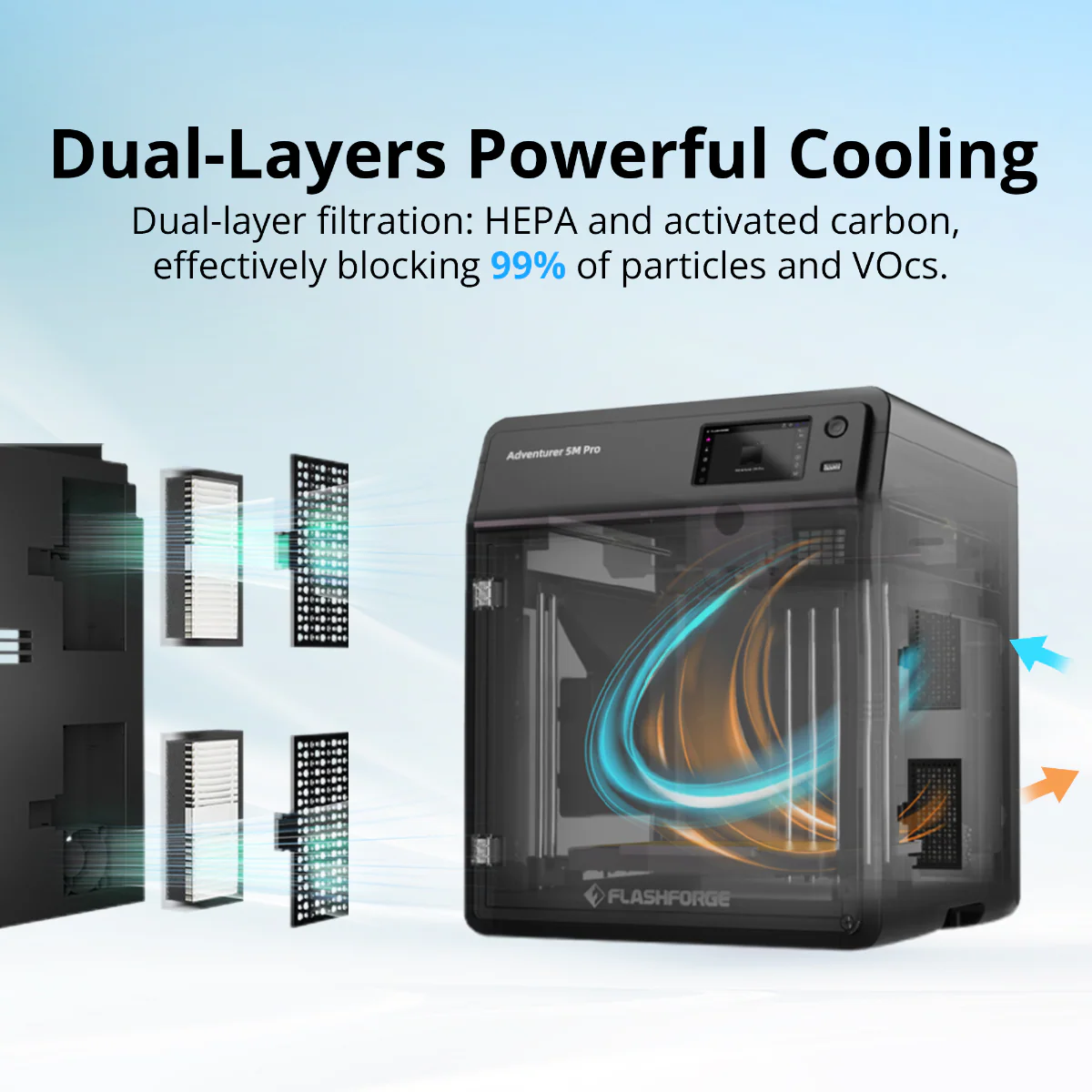

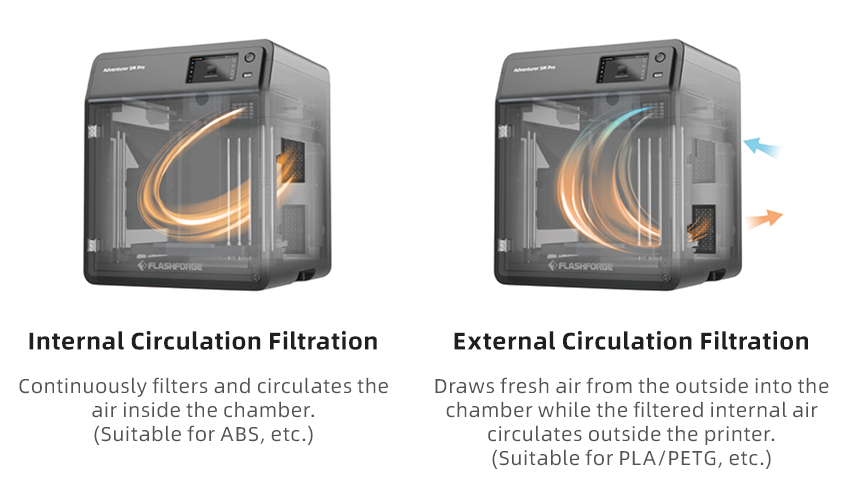

Cause: The HEPA+activated-carbon cassette saturates: carbon absorbs a finite amount of VOCs and the HEPA mat clogs with ultrafine dust. Flashforge recommends replacement every ~3 months of heavy use or ~500 print hours.

1. Pop the HEPA bay cover (3 screws on the top).
2. Pull the cassette and inspect it — darkened carbon or a plastic smell from the cassette itself means it's due.
3. Install a fresh Flashforge HEPA Air Filter Set or an aftermarket H13 + activated carbon replacement.
4. Reset the filter-hour counter in Settings → Maintenance → Filter (if available in your firmware).
5. For heavy ABS/ASA use, add an external carbon filter or vent to an exhaust duct.

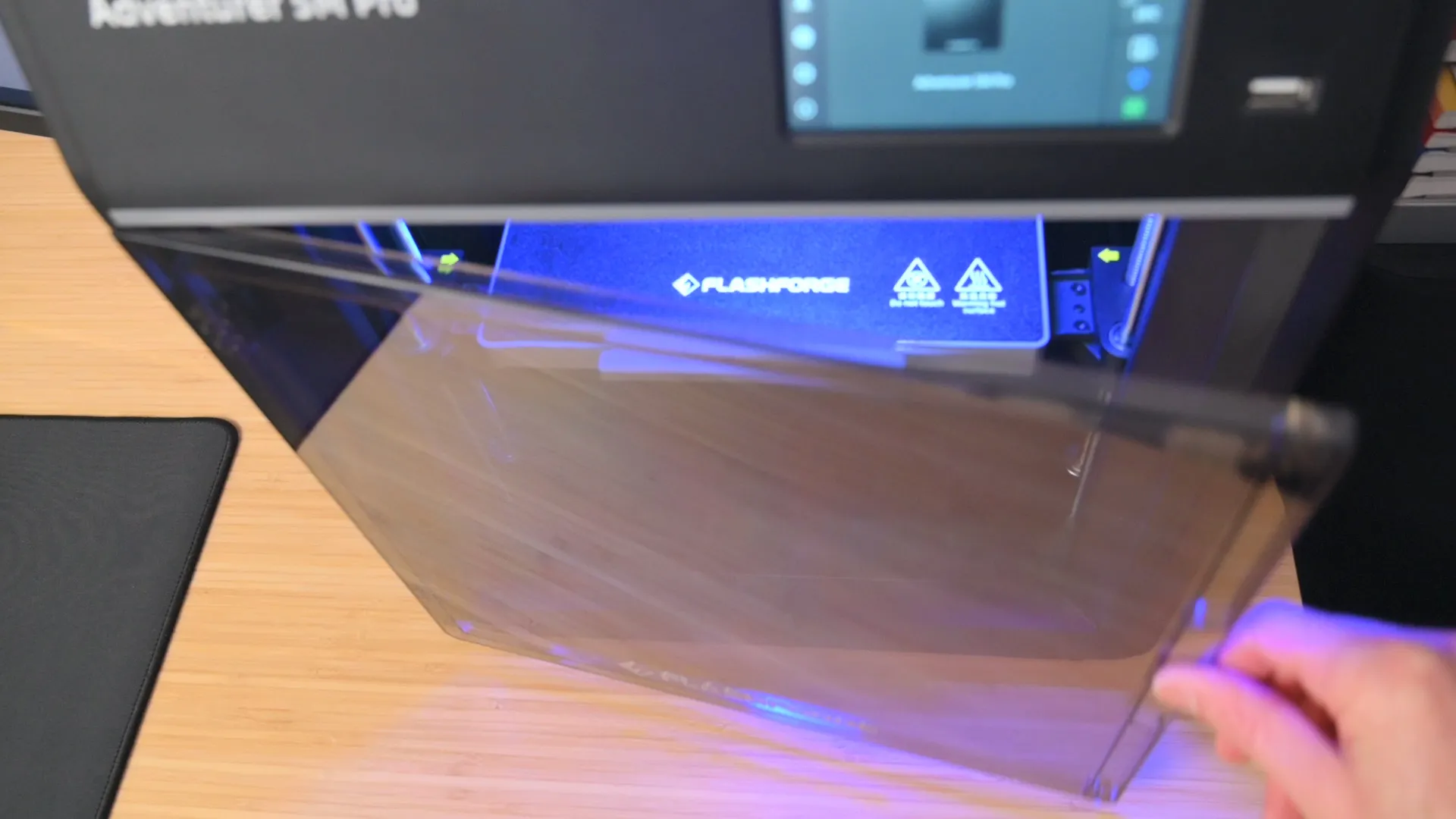

Chamber LED strip dead or flickering

What happens: The lamp icon on the screen toggles fine but the strip stays dark. Or it flickers between cool and warm, especially when the auxiliary fan ramps up.

Cause: Two common scenarios: (1) the JST-XH 2.54 mm connector on the right front pillar worked loose during camera install or cable routing, (2) the 24 V / 0.2 A LED driver on the mainboard is overloaded by an aftermarket strip.

1. Power down. Open the rear cover, trace the LED cable from the mainboard to the right front pillar and reseat every JST-XH connector.
2. If contacts look oxidized, clean with isopropyl and reinsert.
3. Check 24 V on the strip connector with a multimeter while the lamp is toggled on. No voltage → mainboard/firmware issue.
4. 24 V present but the strip stays dark → replace the strip (Original Flashforge Adventurer 5M Pro LED Light, 7 LED, JST-XH).

"Host Error, please Restart!" mid-print

What happens: A red 'Host Error' banner pops up mid-print, the job halts, sometimes the hotend and bed stay hot while frozen.

Cause: Several internal controller processes desync at once. On the Pro the usual suspects are: overheating of the Cortex-A7 SoC in the enclosed chamber with poor electronics airflow, or an older firmware with a memory leak.

1. Power-cycle the printer and let it boot fully (a white screen up to 40 seconds is normal).
2. Update firmware: Settings → System → Firmware Upgrade — recent releases fix known Host Error patterns.

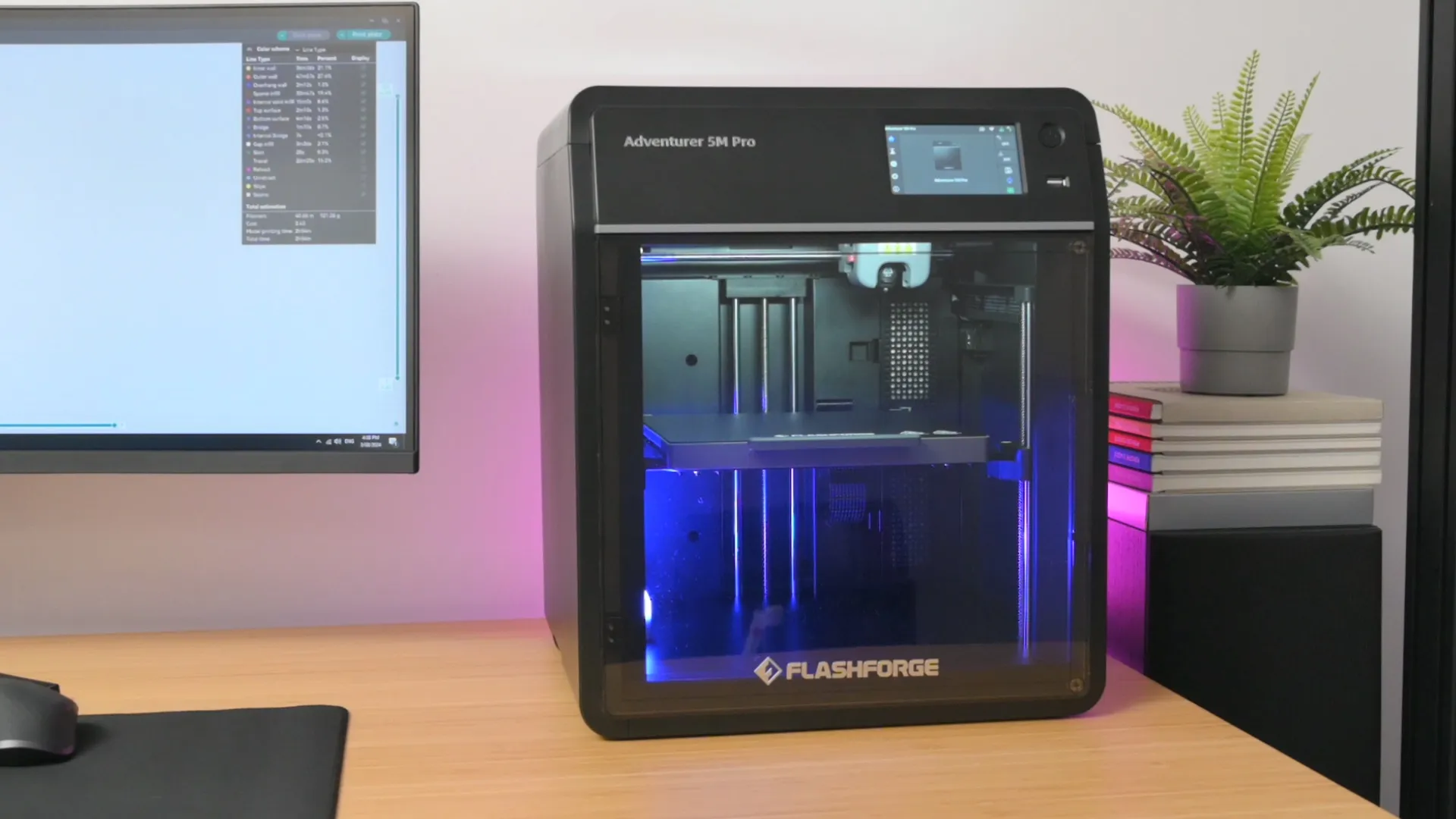

3. If the error comes back on long ABS/ASA jobs, improve airflow at the back panel: leave at least 15 cm between the printer and the wall.
4. Copy logs (Machine Info → Copy logs) to USB and send to Flashforge after-sales — they can't help without logs.

FlashCloud never shows the registration code

What happens: In Settings → FlashCloud you flip the toggle but the Registration Code field stays blank forever. Without the code you can't bind the printer to the cloud or print from the mobile app.

Cause: Two causes in order of frequency: Static IP is enabled in network settings (common on corporate networks), or the DNS server blocks the Flashforge domain.

1. Settings → Network → disable Static IP, stick with DHCP.
2. Toggle FlashCloud off and on.
3. Still no code → set DNS manually (8.8.8.8 / 1.1.1.1) and retry.
4. On a corporate network → hop to a phone hotspot: if the code appears there, the issue is your firewall/DNS.

White boot screen

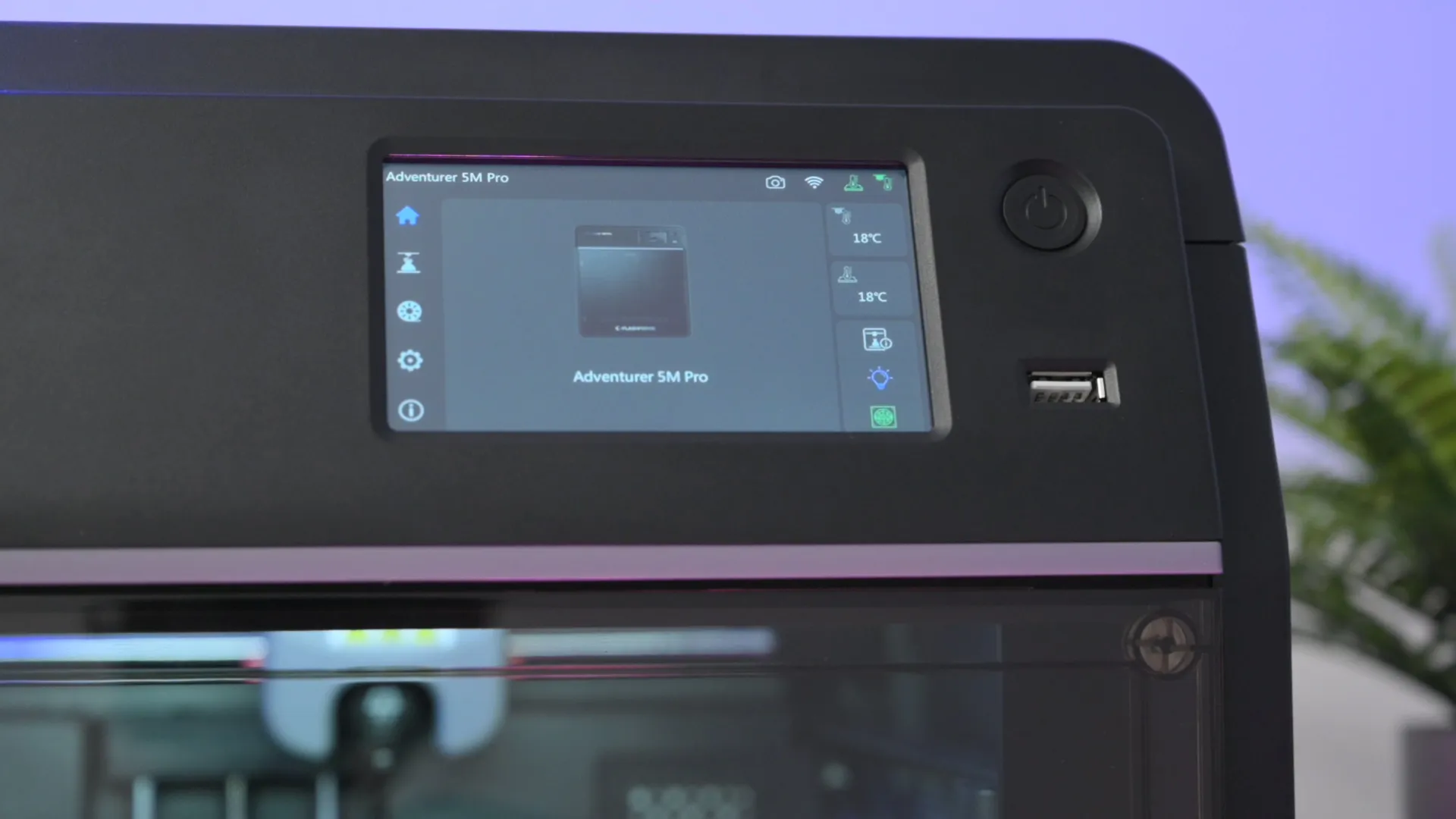

What happens: The printer beeps on power-up, fans spin, but the display stays milky white. You can't even start a USB print without the screen.

Cause: The Pro uses a dedicated screen board (different from the regular 5M). The Display-to-Mainboard ribbon usually dies after a couple of top-cover removals.

1. Listen to the boot chime: if you hear it, the screen/cable is to blame and the mainboard is fine.

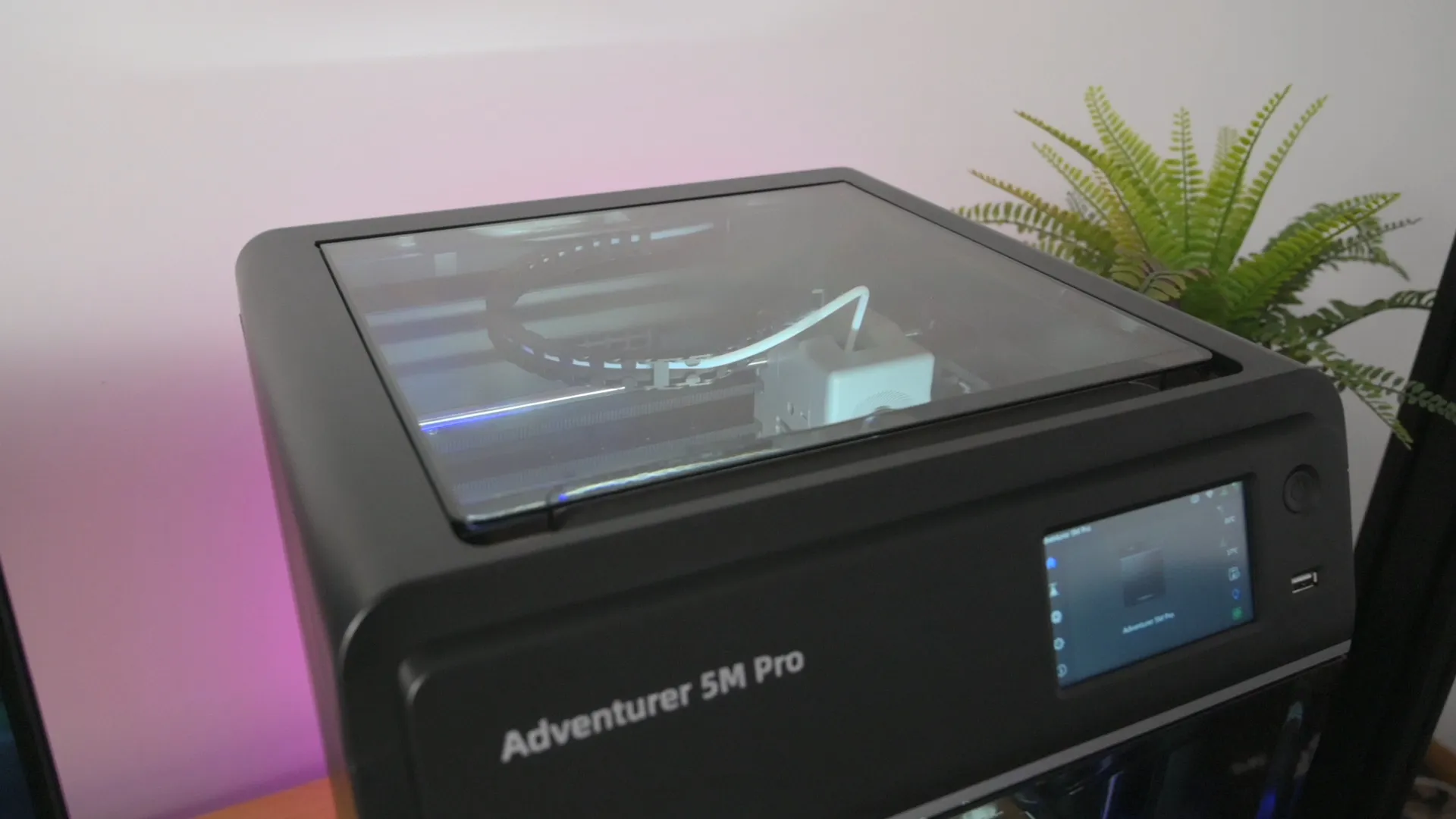

2. Power off, remove the top cover, unplug and reseat the flat screen ribbon.
3. If that fails, replace the 5M Pro-specific Screen & Screen Cable kit (different part from plain 5M!).
4. No boot chime → contact support with your serial number.

Pro extruder board comms: nozzle shows -40 °C or 0 °C

What happens: Main screen shows a negative or zero nozzle temperature, heating never starts, Host Error pops up repeatedly.

Cause: Key difference from the plain 5M — the Pro has a dedicated extruder board. The extruder bus cable is longer (enclosed chamber), flexes harder during travel moves and connectors gradually wiggle loose.

1. Power off. Open the extruder rear cover (2 screws plus top clips).
2. Unplug and reseat the 24-pin bus connector on the extruder board.
3. Inspect the cable end-to-end — look for kinks in the drag chain.
4. If it comes back after 10–20 print hours, replace the Extruder Bus Cable (Pro version differs from plain 5M!).
5. If a fresh cable still fails, swap the whole extruder board.

Adventurer 5M Pro error reference

The table below covers 95% of tickets that land at Flashforge service. If you see an error that's not listed, dump the logs via Machine Info → Copy logs and send them to support.

General 3D printing problems (not Pro-specific)

Beyond the Pro-specific failures above, you'll hit the usual FDM problems — they're shared with the plain 5M and other printers. Rather than bloat this article, we broke each down in a dedicated guide:

• first layer not sticking — adhesion, Z-offset, bed prep
• full nozzle clog guide — clogs, cold pull, heat creep
• warping & lifting fix — ABS/ASA lifting or warping
• stringing fix — webs and strings between parts
• flow rate / under-over extrusion fix — flow rate calibration
• layer shifting & ghosting fix — layer shifting, belts, calibration
• how to dry filament — how to dry your filament
• filament guide — PLA, PETG, ABS, ASA, TPU
• 3D printing safety: fumes & ventilation — fumes, ventilation, health
• 3D printer maintenance guide — monthly cleaning and preventive care

Targeted nozzle-assembly guides for the Adventurer 5M family: clogged nozzle cleaning guide and nozzle scraping during gap fill — they apply to the Pro without changes since the nozzle module is shared.

If you're planning upgrades (textured PEI, Noctua fans, screen bracket) — check our roundup of best Adventurer 5M mods. Most AD5M mods drop into the Pro unchanged, but the auxiliary fan drone is a Pro-only problem.
