Your printer started spitting out thin, broken lines, the extruder is clicking, and a half-finished print has turned into a pile of spaghetti. Classic nozzle clog. The good news: 90% of clogs get fixed in 15 minutes without disassembly. In this guide we break down every cause, walk you through cold pull step by step, give you material settings, and cover printer-specific quirks — from Bambu Lab P1S to Prusa MK4 and Creality K1.

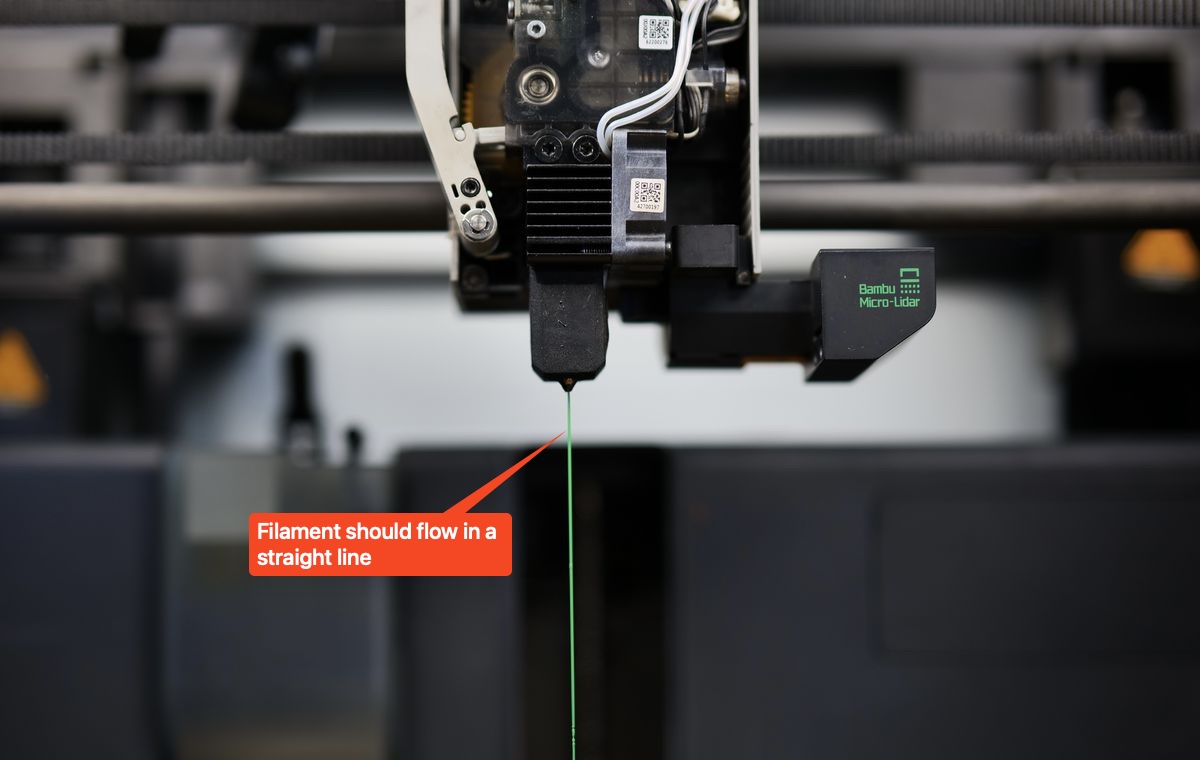

What a nozzle clog is and how to spot one
A clog is any obstruction in the filament path between the melt zone and the nozzle tip. Two flavors: partial (filament still comes out but weak) and complete (extruder clicks, filament doesn't move). Partial clogs are sneakier — the printer keeps running, but parts come out brittle and full of gaps.

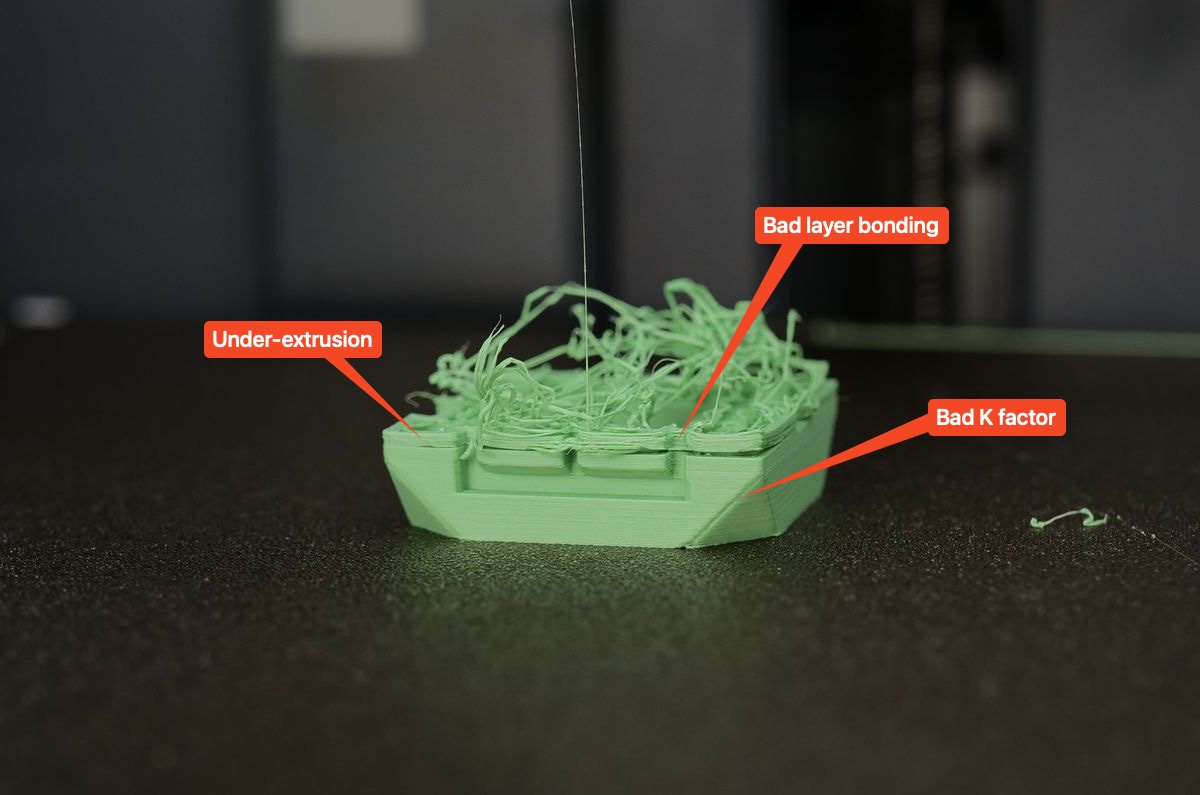

• Thin layers, gaps in walls → partial clog
• Loud extruder clicks, filament slips → complete clog
• Extrusion curling or shooting sideways → worn or bent nozzle
• Steam and crackling at the tip → wet filament (usually precedes a clog)
• Extruder Overload error on Bambu Lab → almost always a full jam
Why your nozzle clogs
A clog is almost always a symptom, not the root cause. If you just clean the nozzle and keep going, the problem comes back within a week. Here are the culprits, ordered by how often they show up in 2026.
| Cause | Frequency | Tell-tale sign |
|---|---|---|

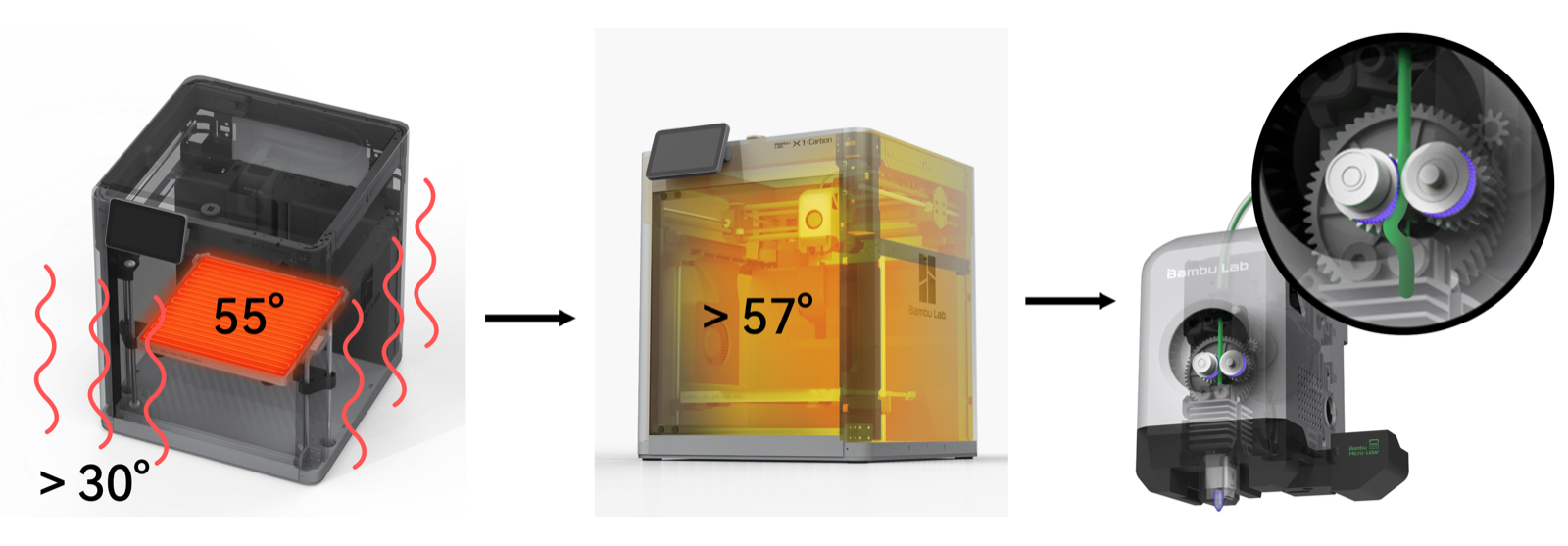

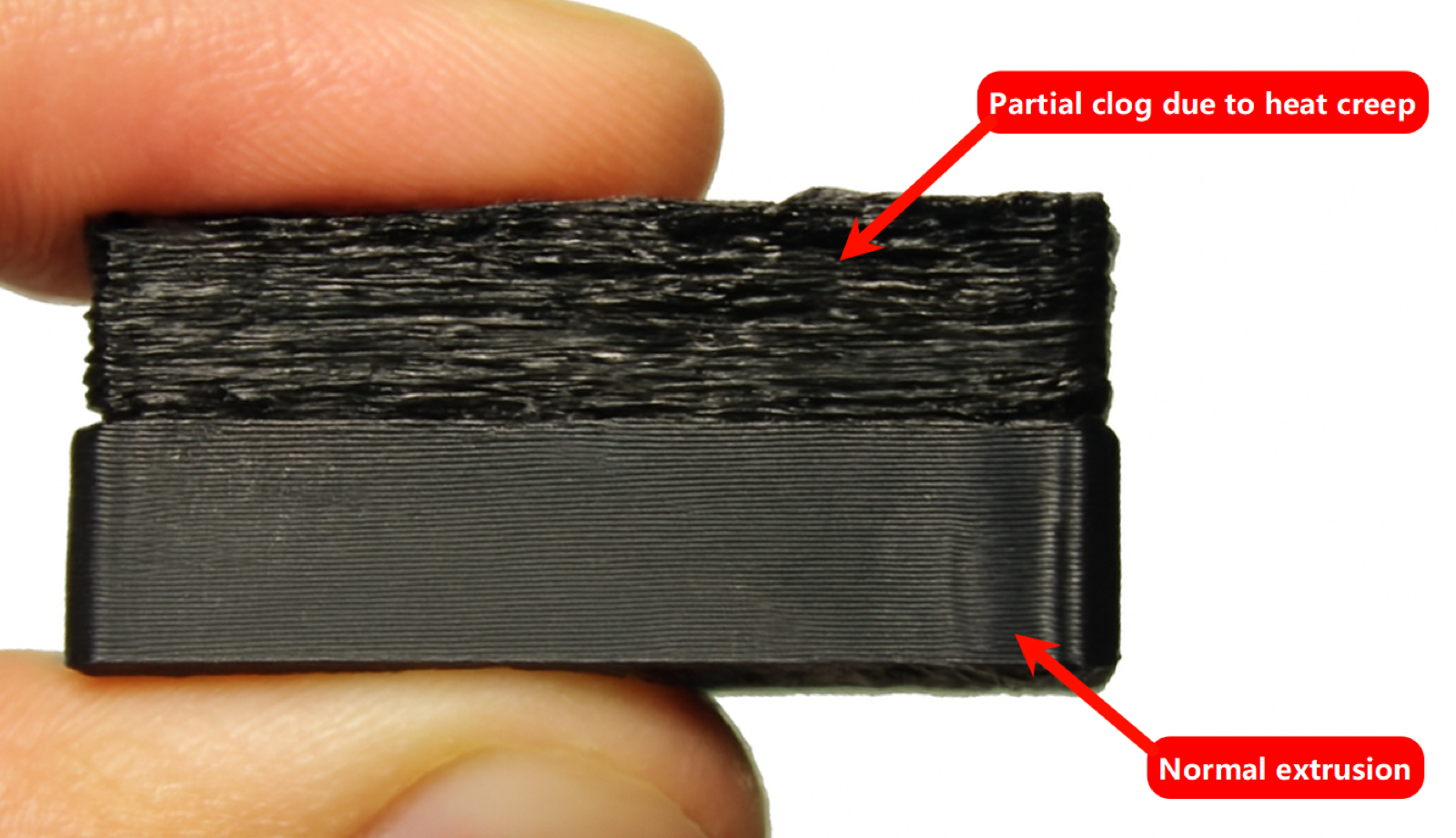

| Heat creep (heat climbs into heatsink) | very common | Jams early in a print, especially PLA and TPU |
| Wet filament | very common | Crackling, steam, stringing, clog after 20-60 min |
| Carbonized residue from material swaps | common | Dark specks in extrusion, flow drops over time |
| Dirty hotend fan | common | Random clogs during long prints |
| Nozzle temp too low | common | Extruder clicks above 150 mm/s |
| Abrasive filament (CF, GF, glow) | medium | Gradual flow loss, nozzle wears out |
| Long retraction on direct drive | medium | PETG jams after 1-2 hours |
| Worn PTFE coupler | rare (Bambu, Bowden) | Leak into heatbreak, burning smell |
Fix 1: Cold Pull — the main method
A cold pull (atomic method) is when you melt fresh PLA in the nozzle, let it partially solidify, and yank it out. The stiff filament grabs debris and carbonized gunk, dragging it out. Works on 80% of clogs with zero disassembly.

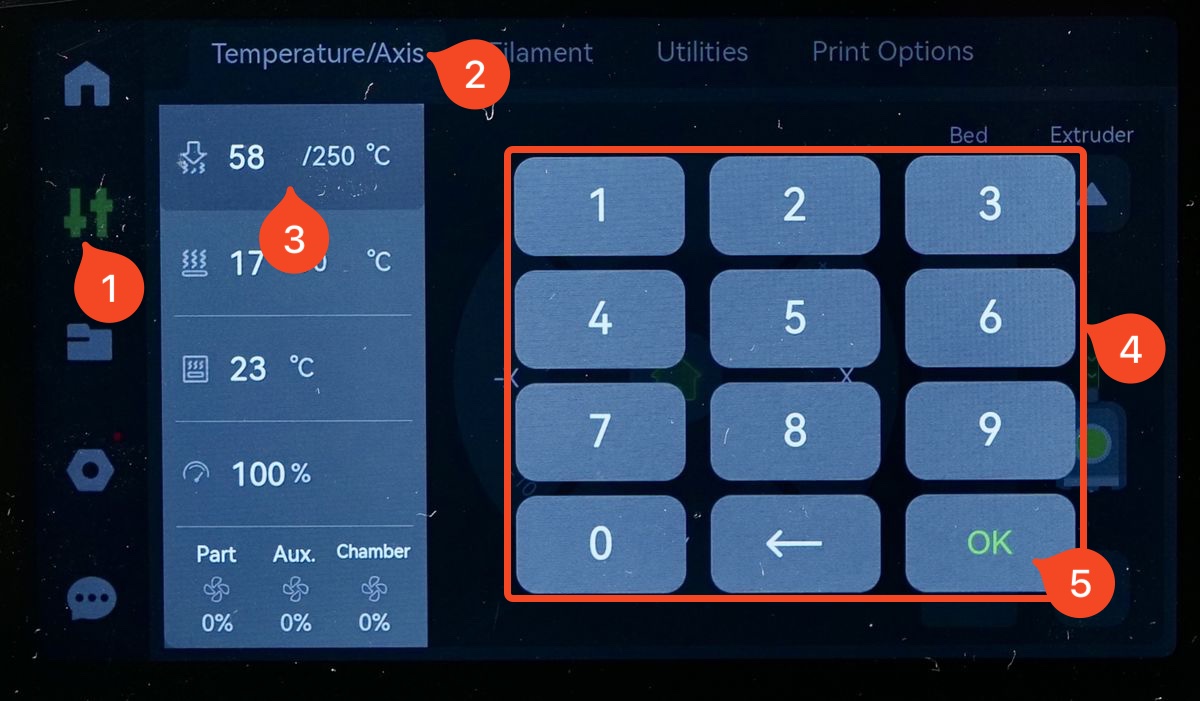

- Heat the nozzle to 250°C — above normal PLA temp to fully melt any residue.

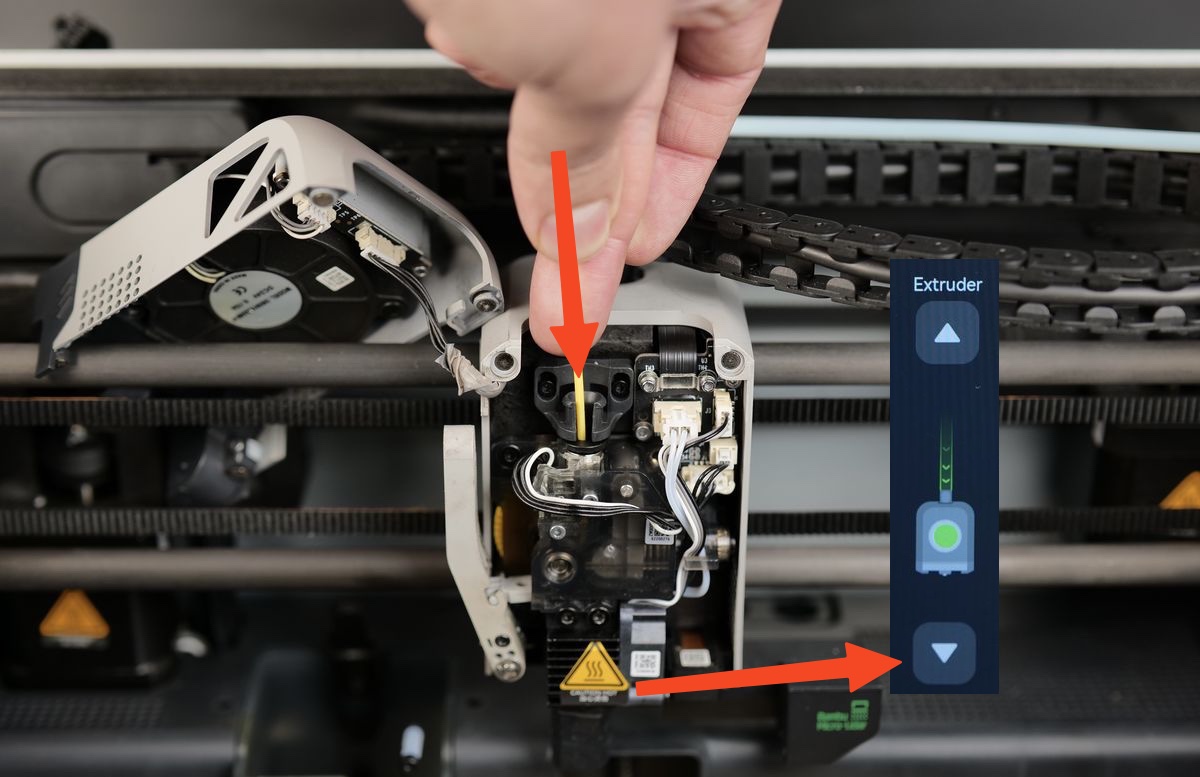

- Manually push 30-50 mm of PLA through the extruder until clean filament flows out.

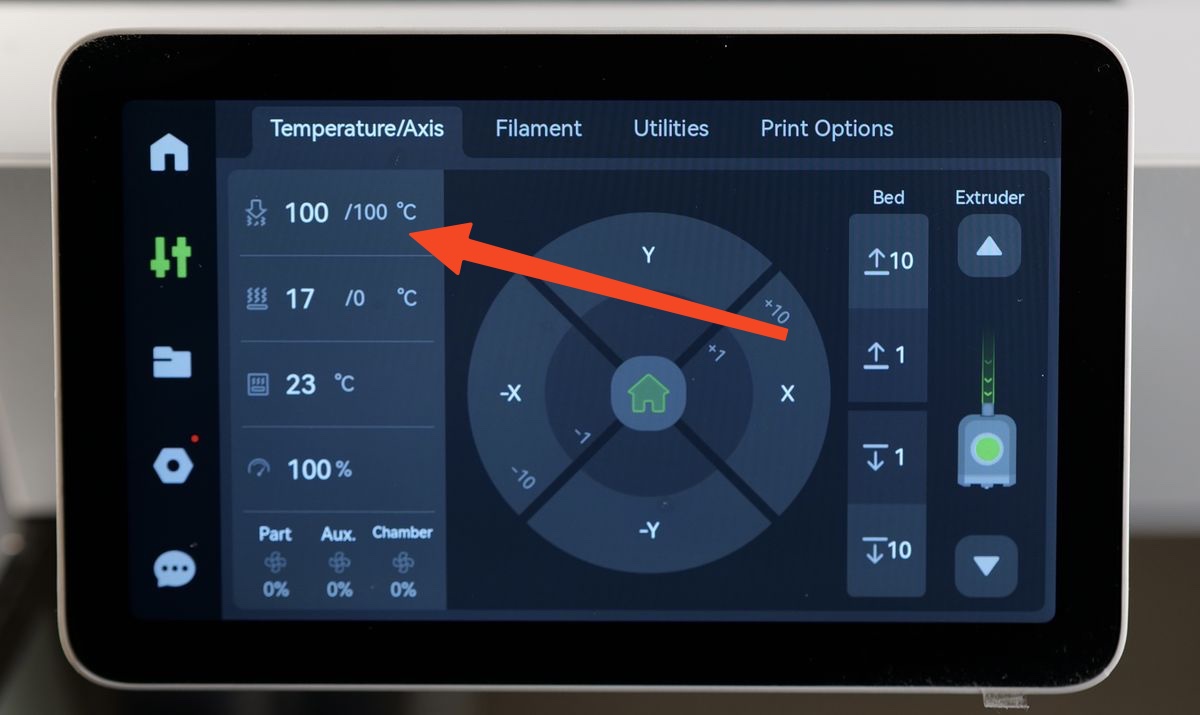

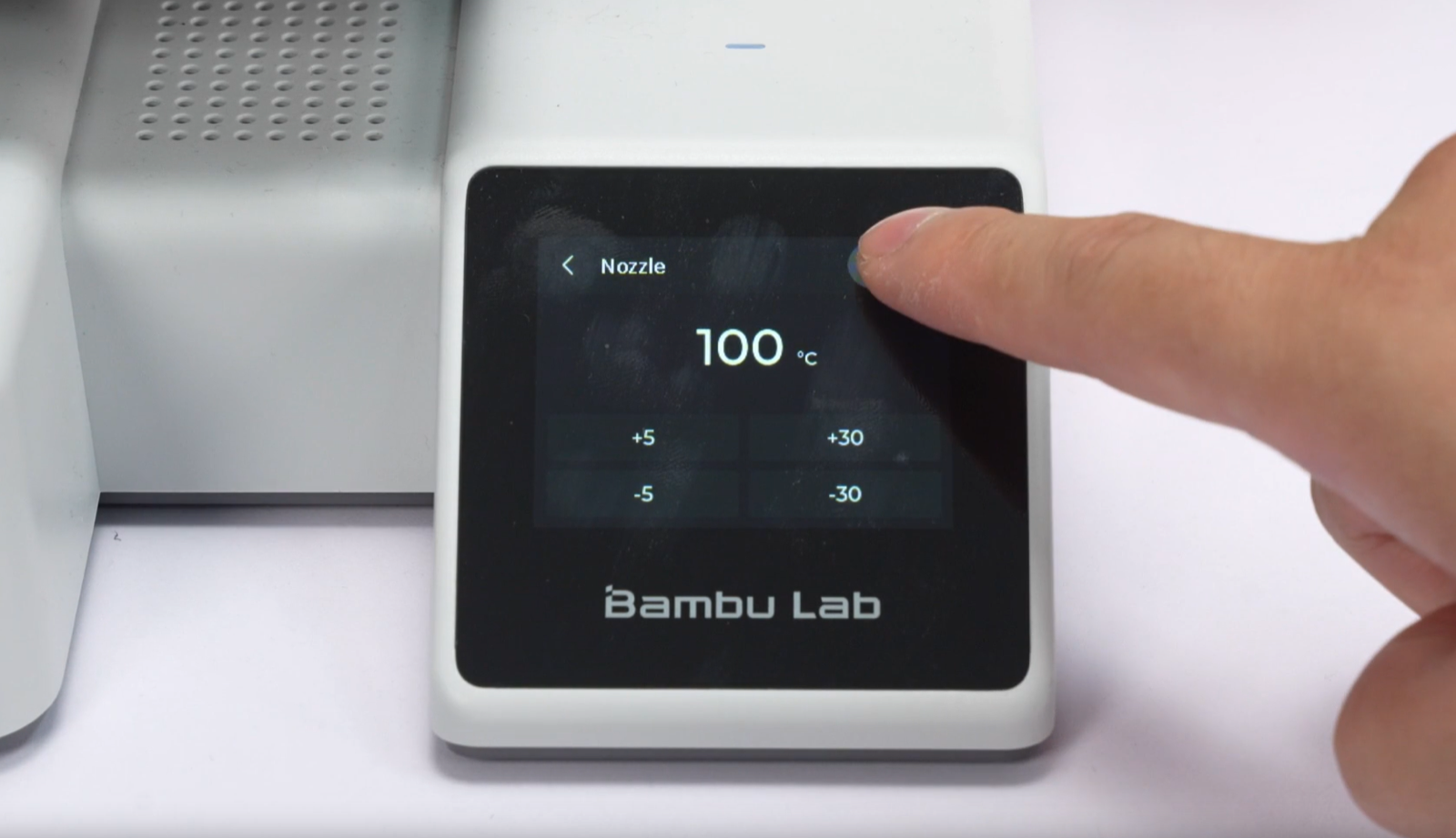

- Set the temperature to 100°C and let it cool slowly. Don't blast with a fan — smooth cooldown.

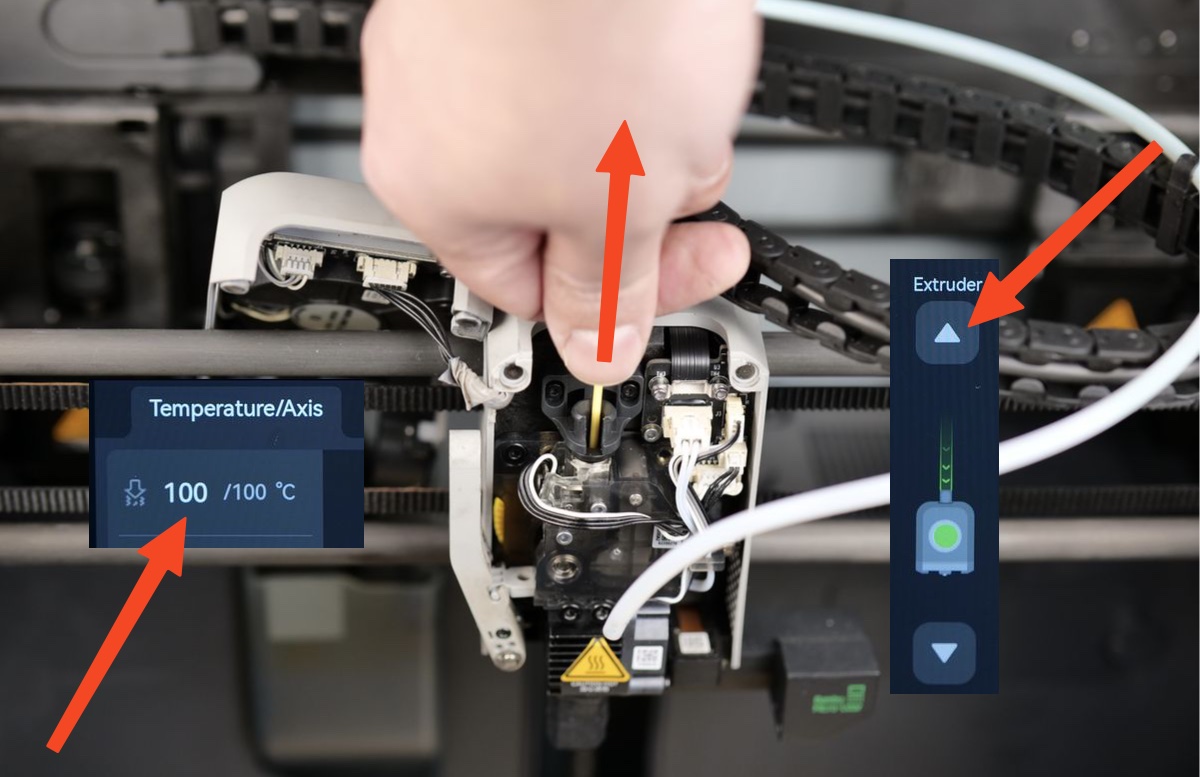

- Once it hits 100°C, grip the filament with pliers above the extruder and yank it straight up in one firm motion.
- Inspect the tip. You should see a clean imprint of the nozzle interior (cone shape, tiny hole). Any dirt? Repeat.
- Do it 2-4 times until the tip comes out completely clean.
Fix 2: Pin push — mechanical poke
If cold pull didn't work, the clog is right at the nozzle tip. Straightforward mechanics: heat the nozzle and push a thin needle (0.35-0.4 mm) up from below, or a 2 mm Allen key down from the top.

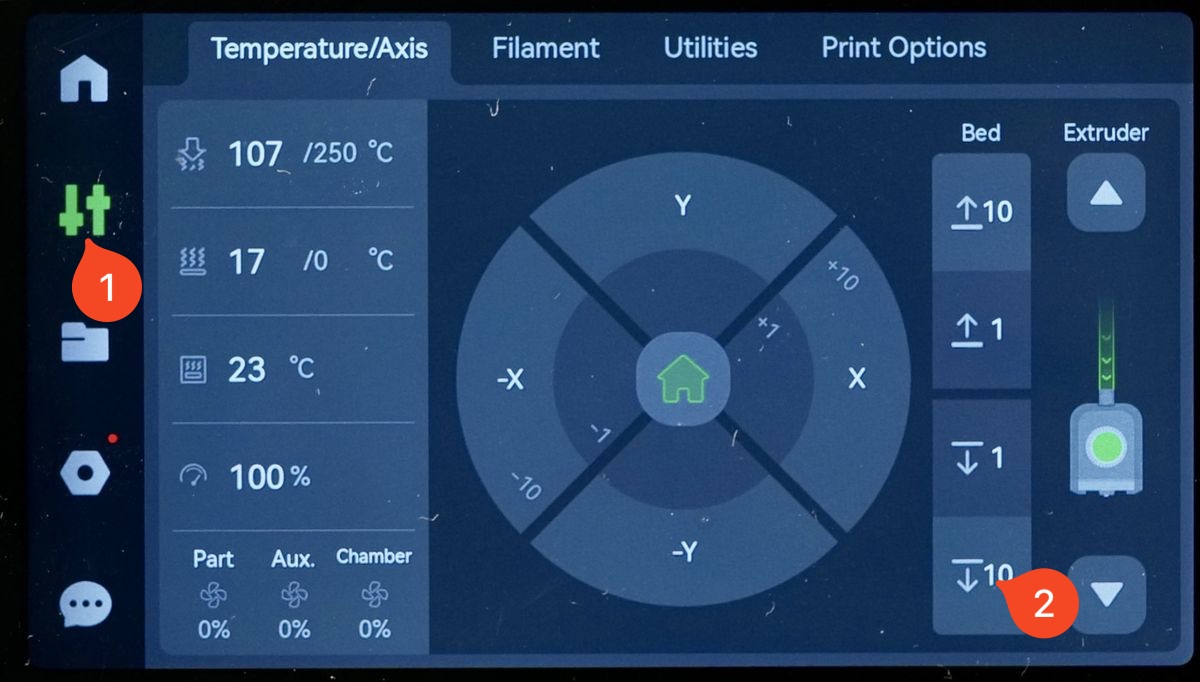

- Move the bed to its lowest position (on Bambu Lab — via the Control menu).
- Remove the silicone sock so you can see the nozzle from below.
- Heat the nozzle to the operating temp of the stuck material (220°C for PLA, 250°C for PETG).

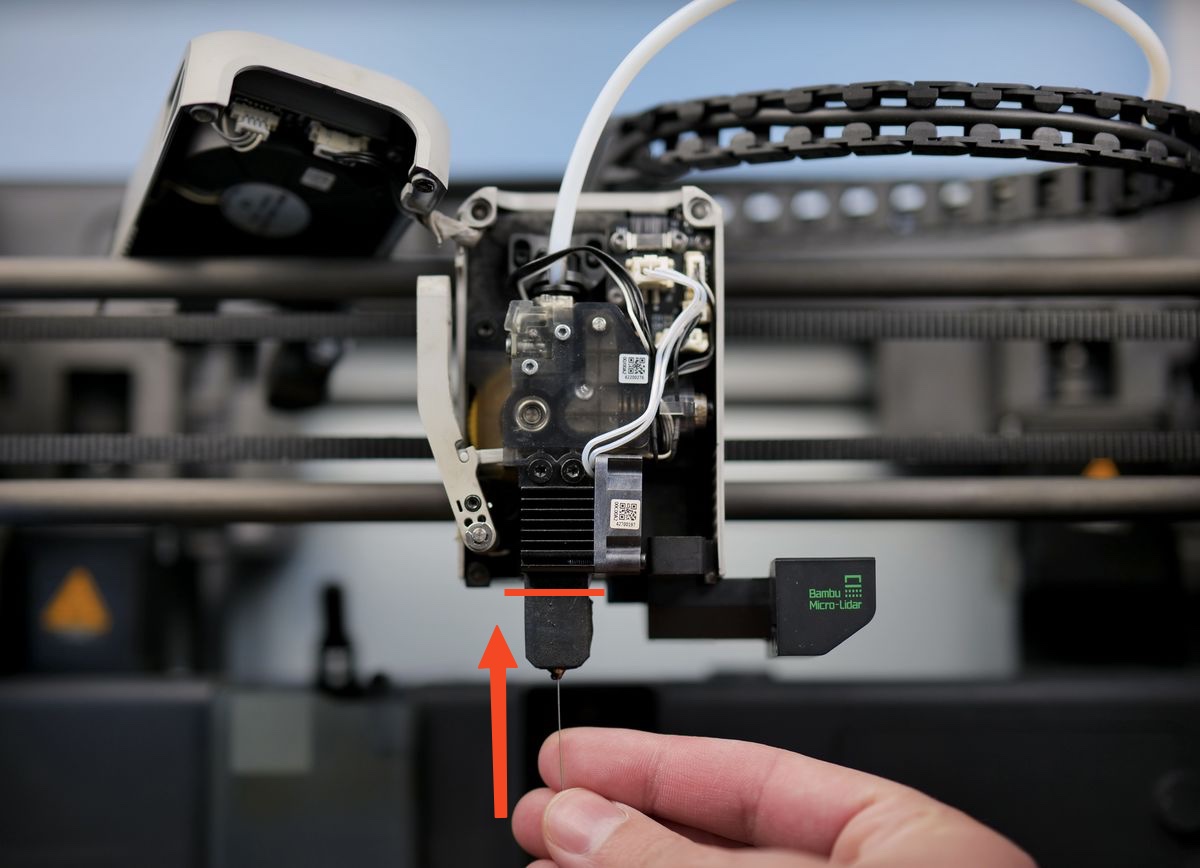

- Grab a needle 0.05 mm smaller than your nozzle: for 0.4 mm → 0.35 mm needle. Larger = widened hole.
- Gently push the needle up 3-5 mm max. Deeper risks bending the heatbreak.
- After the poke, push 100-150 mm of PLA through to flush, then cold-pull one more time.
Fix 3: Disassemble the hotend (last resort)
If both cold pull and the pin method failed, the clog is either in the heatbreak or the heat block. Only option: pull the hotend. On a Bambu Lab P1S / X1C it's 4 screws and 3 connectors, about 15 minutes of work.
- Power off the printer and let it cool to room temperature.
- Disconnect the fan, thermistor, and heater connectors (thermistor is separate on Bambu).

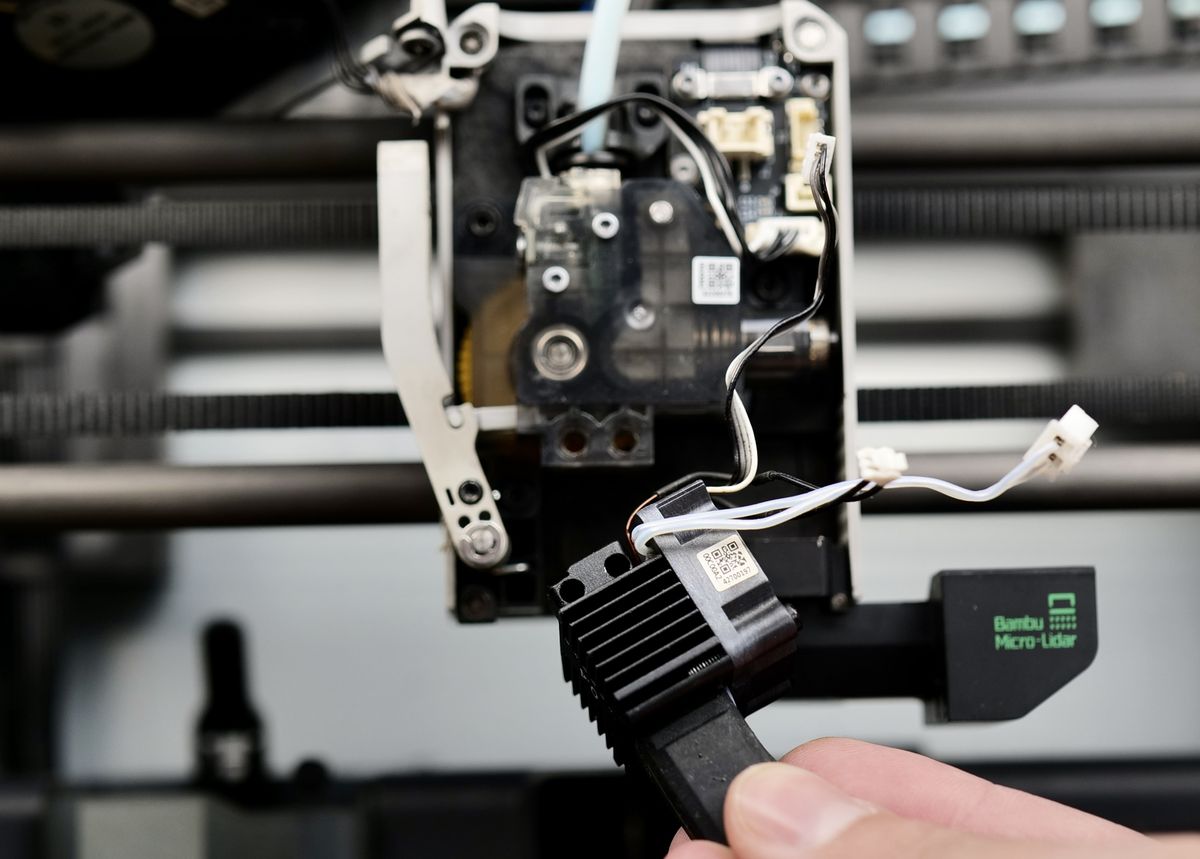

- Unscrew the 4 hotend mounting screws from the carriage.
- Heat the bare hotend to ~200°C with a lighter or small torch — away from the printer.

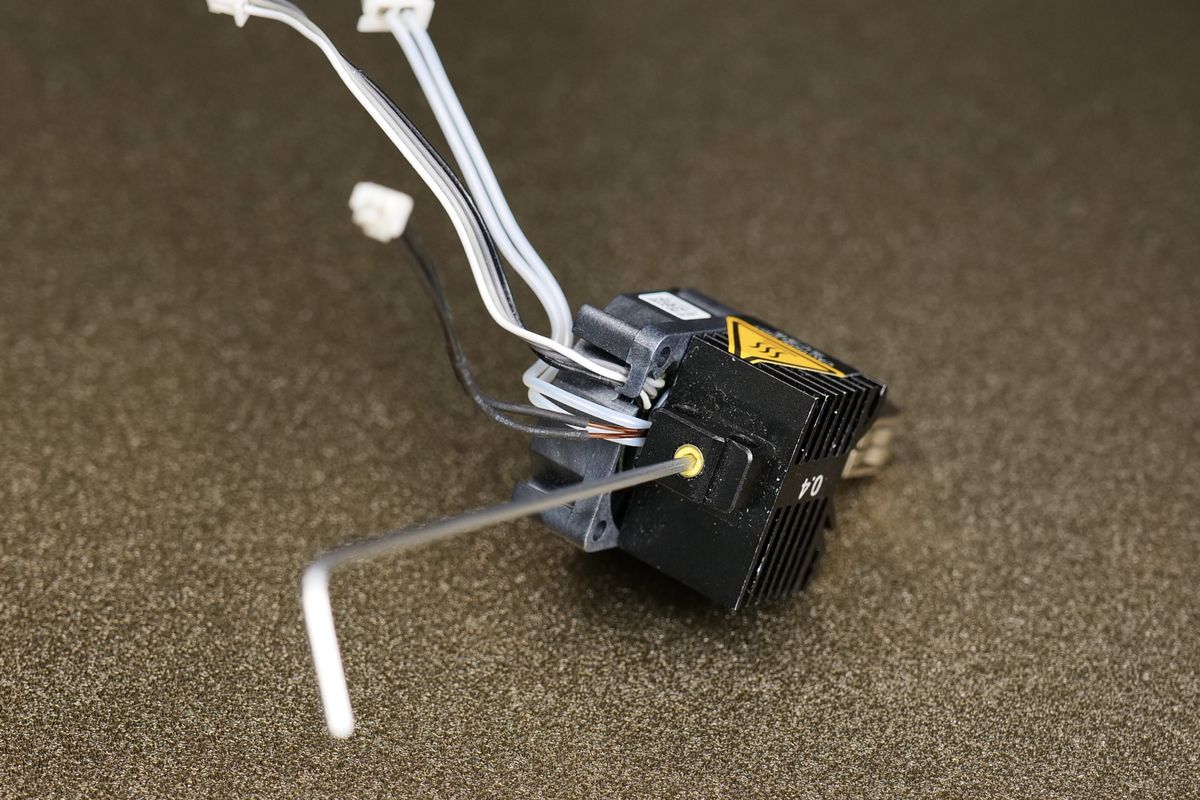

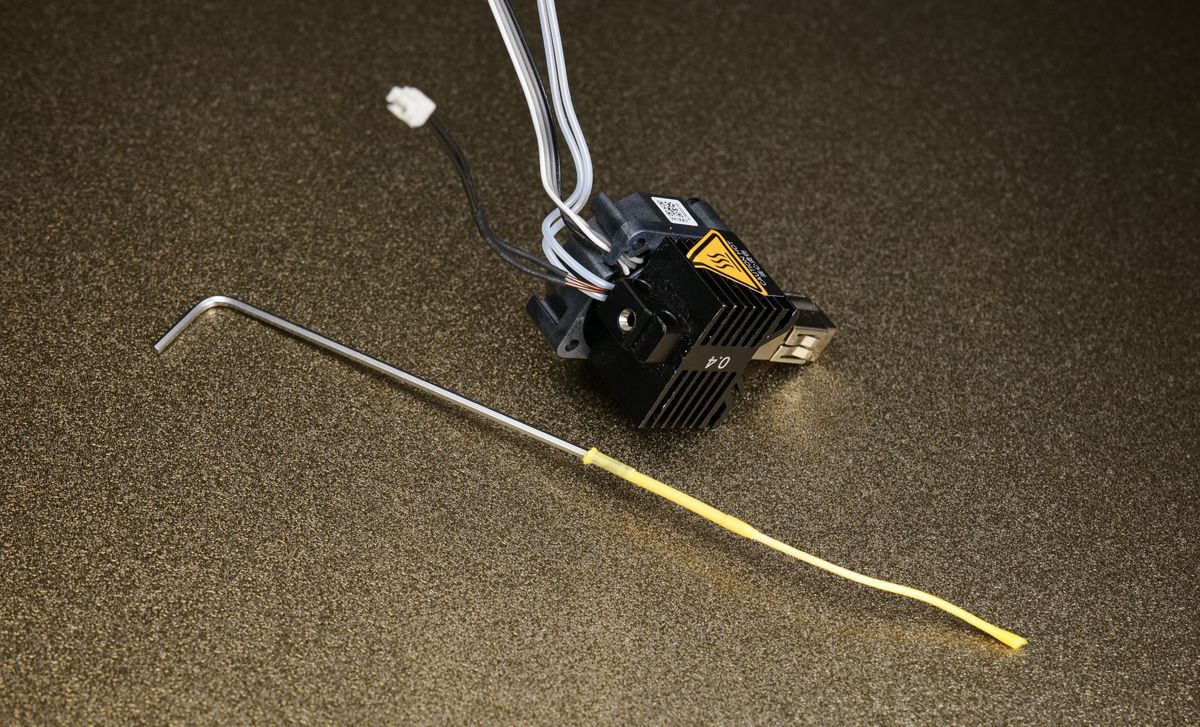

- Insert a 2 mm Allen key into the nozzle throat and push out the clog.
- After cleaning, inspect the heatbreak. Scratches or residue? Replace it.
Fix 4: Dry your filament
Wet plastic is behind half of all "sudden" clogs. Water in the filament flashes to steam at 250°C, creates bubbles, hydroshocks the melt zone, and forms uneven plugs. If the spool has been sitting open for 2+ days, dry it before printing — see our filament drying guide for details.
| Material | Drying temp | Time | Wet symptom |
|---|---|---|---|
| PLA | 45°C | 6-8 h | Light crackling, matte spots |
| PETG | 65°C | 6-8 h | Steam, heavy stringing, bubbles |
| ABS / ASA | 80°C | 4-6 h | Crackle, smell, delamination |
| TPU | 50-55°C | 6-8 h | Guaranteed clog within an hour |
| Nylon (PA) | 80°C | 12 h | Most hygroscopic — never skip drying |
| PA-CF / PAHT-CF | 80°C | 12-16 h | Clog + abrasive wear simultaneously |
Fix 5: Swap to hardened or bi-metal
Printing carbon fiber, fiberglass, or glow-in-the-dark? A brass nozzle dies in 200-500 g. Once the hole opens up, flow drops and clogs start. Hardened steel survives 10-20 kg of abrasives but needs +5-10°C because of lower thermal conductivity.
| Nozzle material | CF lifespan | Temp offset | Use for |
|---|---|---|---|
| Brass | ~200 g | — | Clean PLA / PETG only |
| Hardened steel | ~10 kg | +5°C | CF, GF, glow, metal-filled |
| Stainless | ~1 kg | +5°C | Food-safe applications |
| Copper + coating (ObXidian/Revo) | ~20 kg | none | High-speed + abrasive allrounder |
| Tungsten carbide | ~50 kg | +10°C | Industrial workloads |

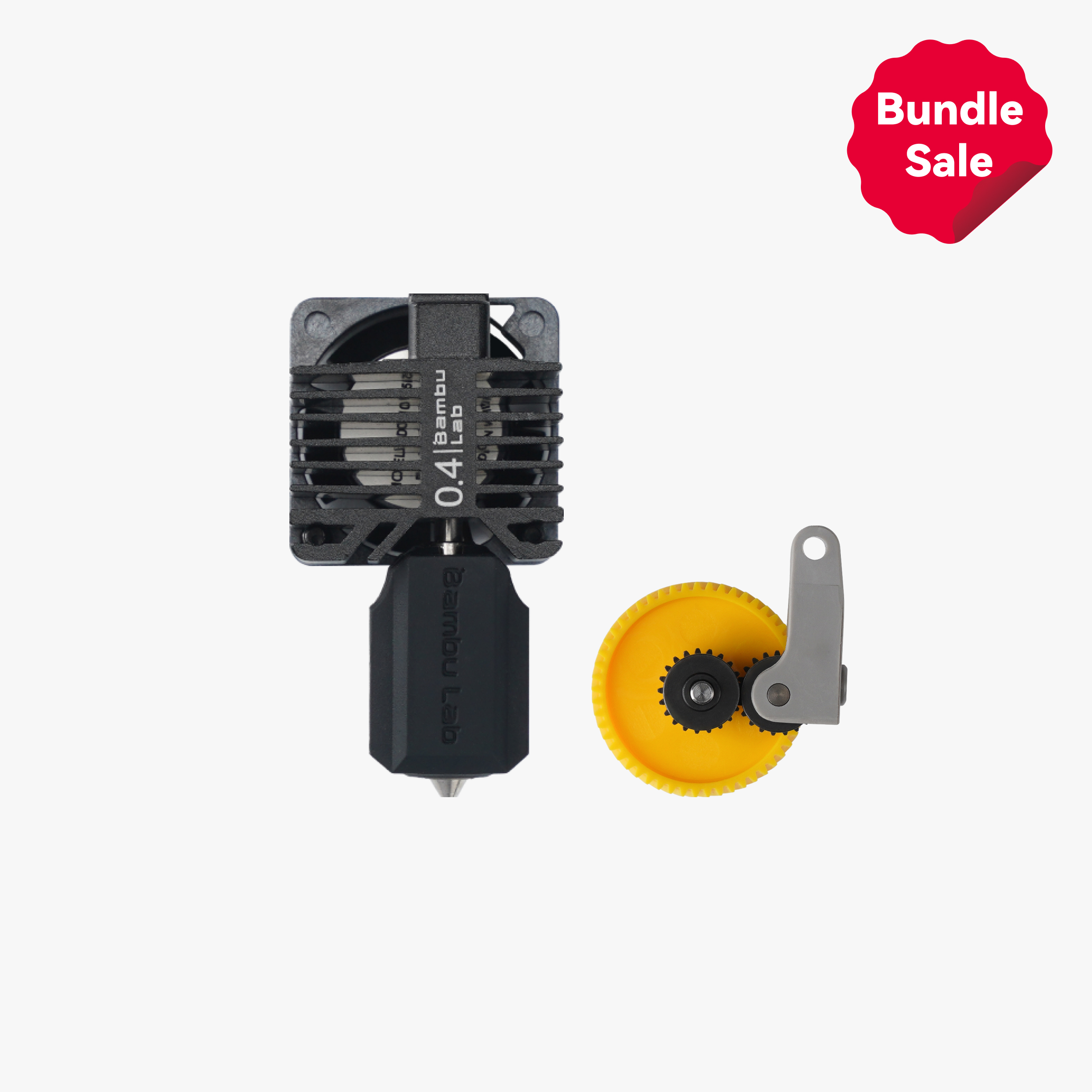

For Bambu Lab P1S / X1C there are solid upgrade paths — a hardened steel combo and the E3D ObXidian hotend. The ObXidian works as a drop-in replacement for the stock Bambu hotend, but with a copper body and nanodiamond coating.
Per-material settings
Every filament behaves differently: PLA hates heat creep, PETG hates moisture, TPU hates everything at once. Here are the numbers that minimize clog risk on a typical direct drive rig in 2026.
| Material | Nozzle °C | Bed °C | DD retraction | Part cooling | Notes |
|---|---|---|---|---|---|
| PLA | 200-215 | 55-60 | 0.8 mm @ 30 mm/s | 100% | Don't exceed 220°C — heat creep |
| PLA+ / Silk | 210-225 | 55-60 | 1.0 mm @ 30 mm/s | 80-100% | Silks love to string |
| PETG | 235-245 | 70-80 | 1.5 mm @ 25 mm/s | 30-50% | Always dry first |
| ABS / ASA | 240-255 | 95-105 | 0.5 mm @ 40 mm/s | 0-20% | Enclosure required |
| TPU 95A | 220-235 | 45-55 | 0.5 mm @ 20 mm/s | 50-70% | Slow prints, dry filament |
| PA / Nylon | 260-280 | 80-110 | 1.5 mm @ 25 mm/s | 0-30% | 12 h drying mandatory |
| PA-CF | 280-295 | 85-110 | 1.5 mm @ 25 mm/s | 30-50% | Hardened nozzle only |
If PETG clogs repeatedly — check retraction. Anything above 2 mm on direct drive is a heat-creep trap: filament retracts into the cold zone, solidifies, and clogs in 10-15 minutes. Stay at 0.8-1.5 mm.
Printer-specific quirks
Most advice here is universal, but every printer has its own hotend design, nozzle accessibility, and built-in automation. Let's walk through the popular models.
Bambu Lab P1S / X1C / P2S
- Hotend is a modular swap: 4 screws, 3 connectors, 10-minute job. Keep a spare.
- P1S enemy #1 is a clogged hotend fan. Clean the carbon / hotend filter every 2 weeks on daily-print duty.
- Extruder Overload on the P-series almost always means a jam. Run the Nozzle/Hotend Unclogging Procedure in Bambu Studio.
- After switching from PETG/ABS to PLA, always purge 100 mm of PLA — residue gets stuck in the heatbreak.
- Model-specific bugs: P1S troubleshooting, X1C known issues, P2S known issues.
Bambu Lab A1 / A1 mini (quick-swap nozzle)
A1 and A1 mini use a tool-free quick-swap nozzle. That changes the whole unclog workflow — the nozzle comes off the head and gets serviced separately.
- Remove the quick-swap nozzle with tweezers (careful, flex cable runs nearby).
- If you need a cold pull — do it only on the removed nozzle, heating it with a soldering iron or hot-air gun.
- Do NOT cold-pull on an assembled A1 head — yanking can damage the flexible cable.
- Keep 2-3 spare nozzles in different sizes (0.2, 0.4, 0.6 mm) — swapping beats cleaning.
- A1-specific bugs: A1 troubleshooting.
Prusa MK4 / MK4S / CORE One / XL

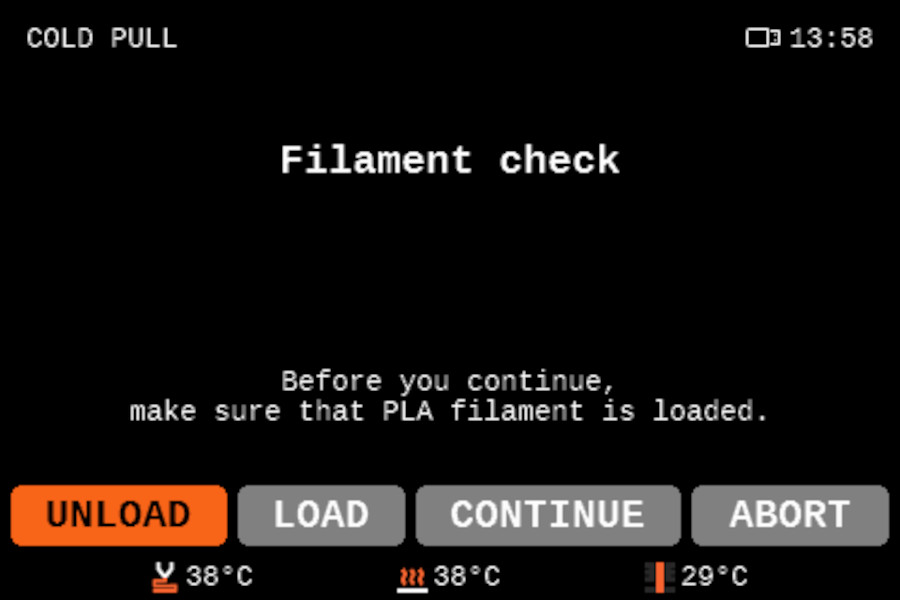

Starting with MK3.9 Prusa has a built-in automatic cold pull right on the printer: Control → Cold Pull. The firmware cools to 36°C, reheats to 80°C, and unloads the filament for you.

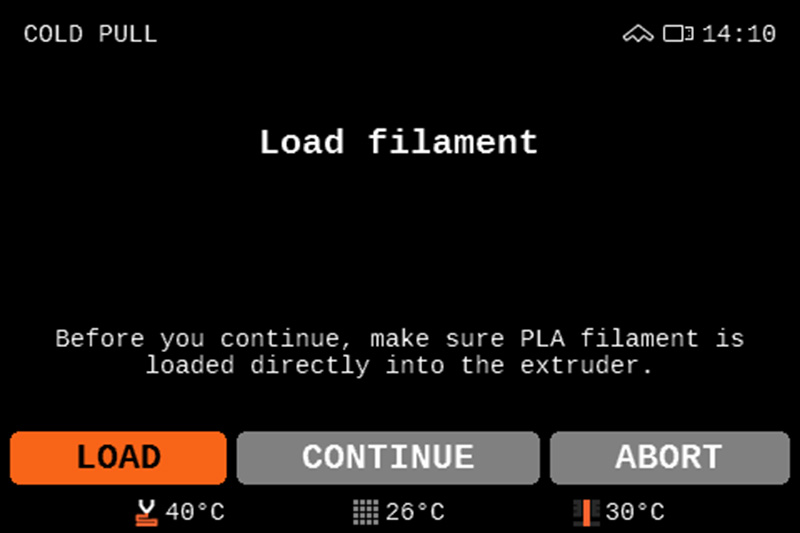

- Control → Cold Pull → unload current filament, load clean PLA (min 30 cm).
- Wait for the cycle to finish (3-5 minutes).

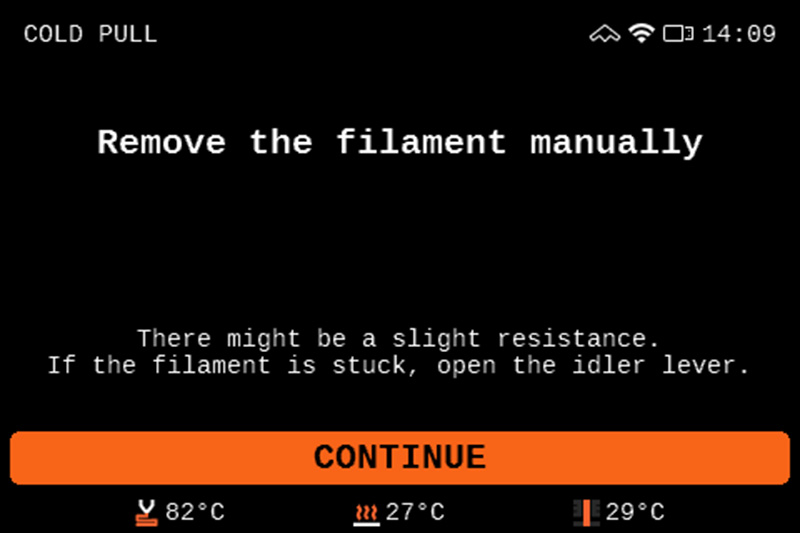

- Pull the filament straight up by hand — it should come out with a nozzle imprint.
- Important: Cold pull is not allowed on the Nozzle X (SiC) — use cleaning filament only.

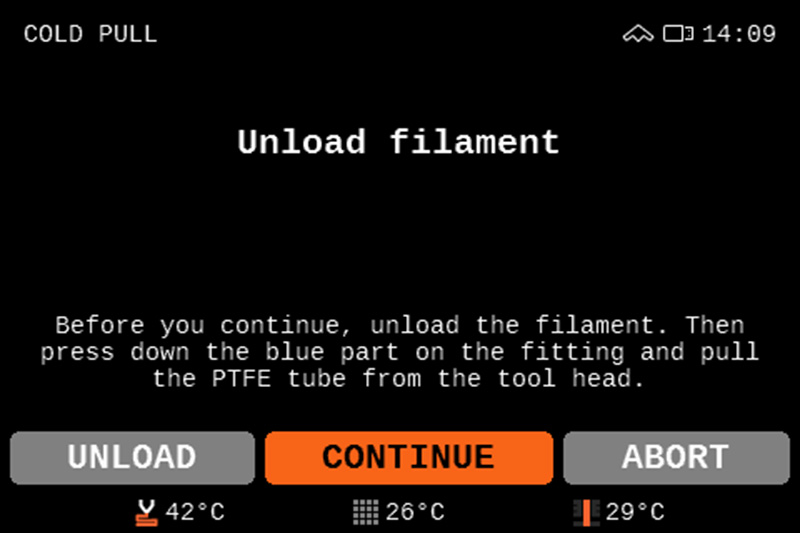

- On XL and CORE One the procedure is identical, but pull the PTFE tube first (see photo).
- After switching from PETG/ASA to PLA, purge 50 cm of PLA to flush out residue.
Creality K1 / K1 Max / Ender-3 family
- K1 uses threaded M6 nozzles — if you print CF or glow-in-the-dark, go hardened steel from day one.
- On Ender-3 Bowden the worn PTFE coupler is the #1 villain. Replace every 500 hours.
- K1 extruder clicks are often caused by weak tension spring — check the tensioner before blaming the nozzle.
- On hot nozzle swaps, hold the heatblock with a wrench — otherwise you'll strip the heatbreak thread.
- On a K1 Max with a 0.6 mm hotend, hardened steel is basically mandatory, especially for fast PLA+.
Snapmaker U1 (toolchanger)
U1 is a 4-tool toolchanger with swappable hotend modules. When one clogs you usually just replace the entire module — faster than cleaning.
- Keep at least one spare hotend module in the size you use most.
- For CF / GF / PA, hardened steel 0.6 mm is non-negotiable. Stock stainless dies within 1-2 spools of abrasives.
- If one tool clogs, the others keep working — U1 auto-flags the tool as failed.
- After switching materials in a tool, always purge 30-50 mm of fresh filament.
FlashForge Adventurer 5M / AD5X
- AD5M and AD5X use an integrated nozzle assembly: nozzle + heatbreak + thermistor in one block.
- For a full jam, it's usually easier to swap the whole nozzle assembly than to disassemble it.
- The hardened nozzle kit solves 90% of CF / glow clog problems.
- Model-specific bugs: AD5M known issues, AD5X known issues.
Calibration after an unclog
Never start a 24-hour print immediately after cleaning — verify everything first. Skipping this = wasted print overnight.
- Run flow calibration in your slicer and make sure the flow is stable.
- Print a retraction test tower (6 pins at different heights).
- Print a temperature tower — no underextrusion in your operating range.
- Print a 20×20×20 mm calibration cube — check first layer and wall quality.
- All good? Queue up the real job.
- Still clogging? Root cause is deeper — probably clogged hotend fan or worn PTFE coupler.
If cleaning fixed the clog but now you see underextrusion or stringing, it's not a new problem — it's leftover residue. Run cold pull 1-2 more times.
Quick diagnostic table
| Symptom | Likely cause | 5-minute action |
|---|---|---|
| Extruder clicks, filament frozen | Full clog or grinding | Unload → cold pull |
| Thin, broken lines | Partial clog / residue | Cold pull ×2 |
| Steam and crackling while printing | Wet filament | Remove spool → dry 6 h |
| Flow dropped gradually over a week | Worn nozzle (abrasive) | Measure bore → swap to hardened |
| Clogs only at start of a print | Heat creep / weak cooling | Clean hotend fan, check thermal paste |
| Clogs after material switch | Residue from previous filament | 100 mm PLA purge + cold pull |
| Extruder Overload error (Bambu) | Full jam / seized extruder gear | Run Unclogging Procedure in Studio |
| Filament comes out sideways | Bent or partially clogged tip | Replace the nozzle |
If you've tried everything and clogs keep coming back, the problem isn't the nozzle — it's the system. Wet filament, dying hotend fan, or a worn heatbreak. See our 3D printer maintenance guide for a full checklist.
Prevention: never see a clog again
Proper prevention takes 5 minutes a week and saves dozens of hours of reprints. Here are the habits every long-term user builds.
- Store filament in airtight boxes with silica gel. PETG and Nylon — always.
- Clean the hotend fan with compressed air or a brush weekly. Dust on the heatsink adds 10°C.
- Purge 50-100 mm of fresh filament after every material swap.
- Do a preventive cold pull once a month — even without symptoms.
- For CF/GF/glow — hardened steel only. Brass dies in one spool.
- Replace PTFE couplers (Bowden and Bambu hotends) every 500-800 hours.
- Watch your nozzle temp: >215°C on PLA risks heat creep.
- Keep 1-2 spare nozzles / hotend modules on hand. $15-30 saves 4 hours of teardown.
