32 Elegoo Saturn 4 Ultra 16K Mods That Actually Matter

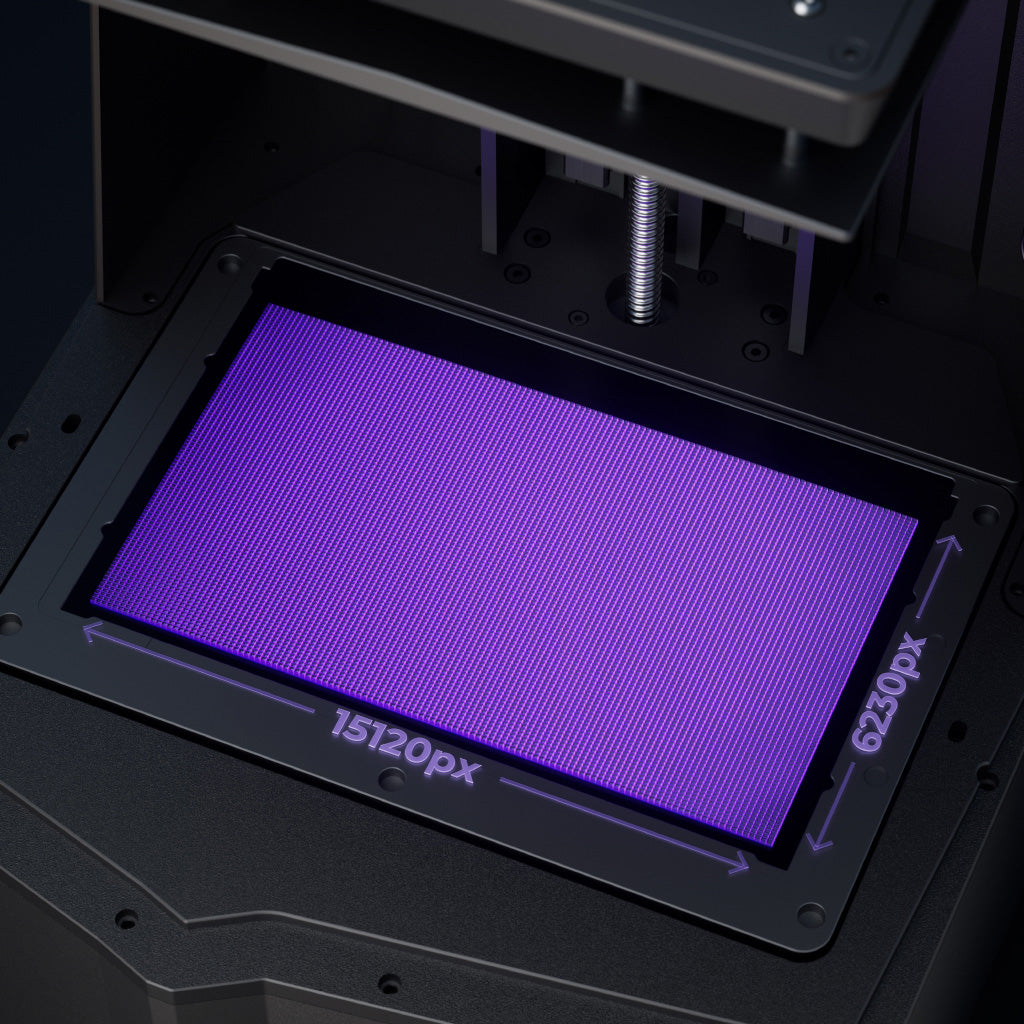

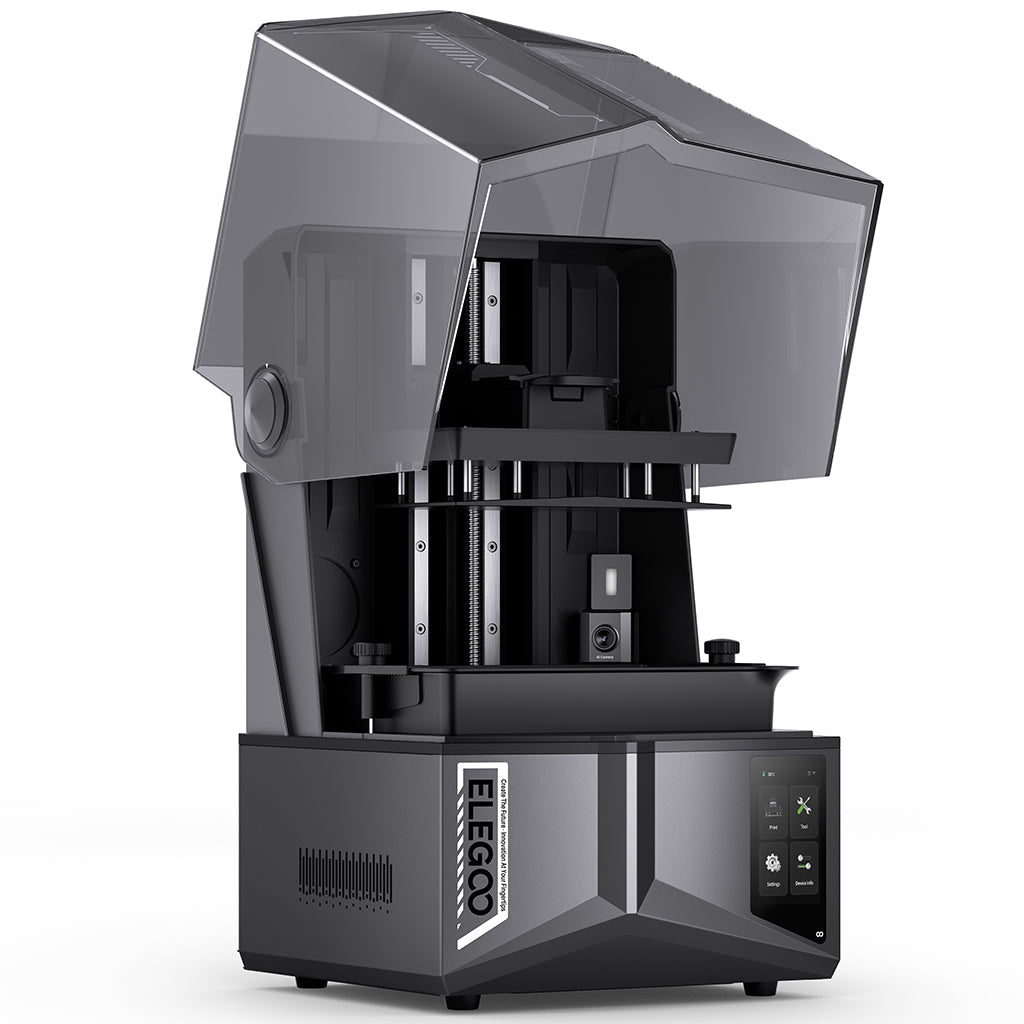

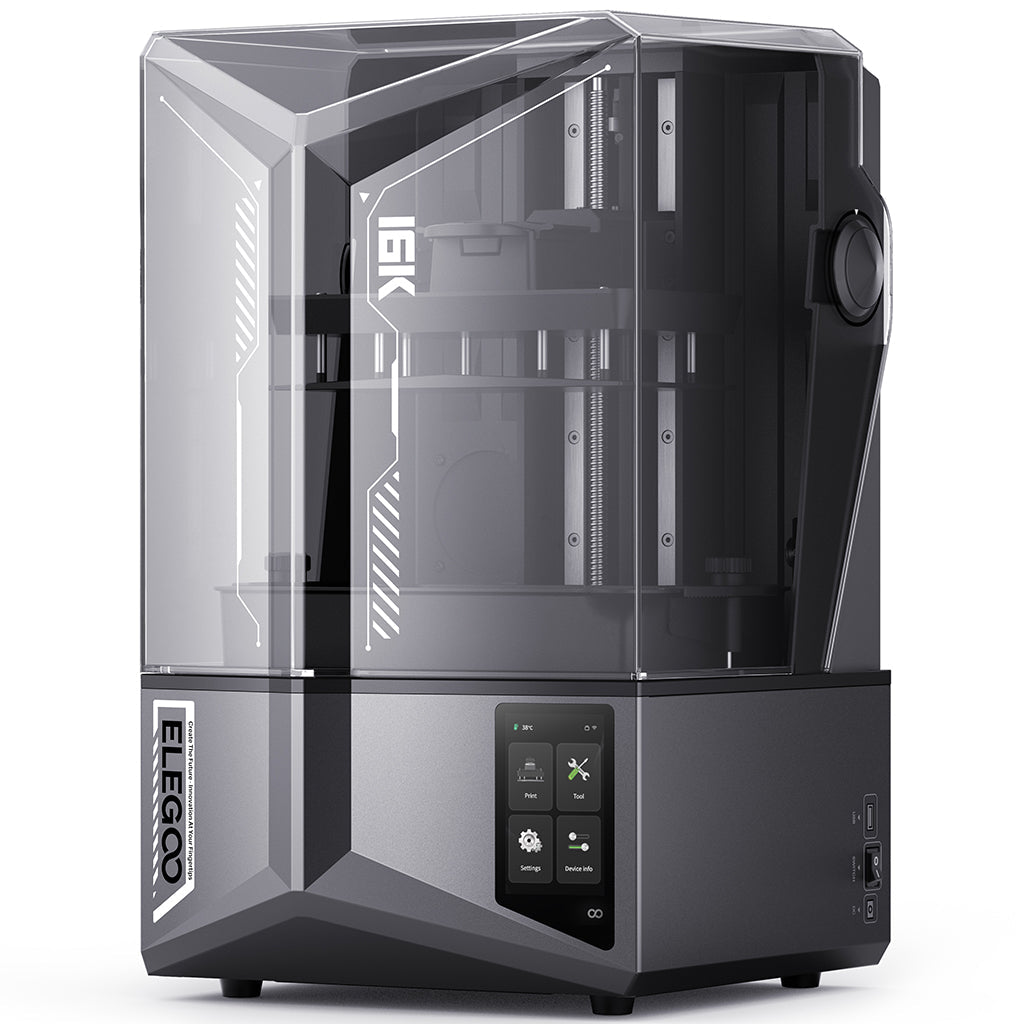

The Elegoo Saturn 4 Ultra 16K is a resin printer built around a 10-inch 15120 × 6230 mono panel with a 14 × 19 μm pixel, a 211.68 × 118.37 × 220 mm build volume, tilt release and print speeds up to 150 mm/h and a vat that heats resin to 30 °C on its own. Everything below is specific to that machine — not a generic "buy a scraper and some rubber feet" list, but what owners actually change once they run into how this printer behaves out of the box.

The 16K differs from the 12K far more than the name suggests: different panel and pixel, a vat with a heater and thermistor instead of a plain one, a camera with a light, built-in Wi-Fi instead of a screw-on antenna, a build plate with ears, and 1.6 kg more weight. Half the advice from 12K mod lists simply doesn't transfer, and some of it becomes pointless. Bugs and self-test errors have their own writeup — 45 known issues on the Saturn 4 Ultra 16K. This one is mods only. On a 12K? Go to the Saturn 4 Ultra mod list instead.

Day one: five things to do before the first print

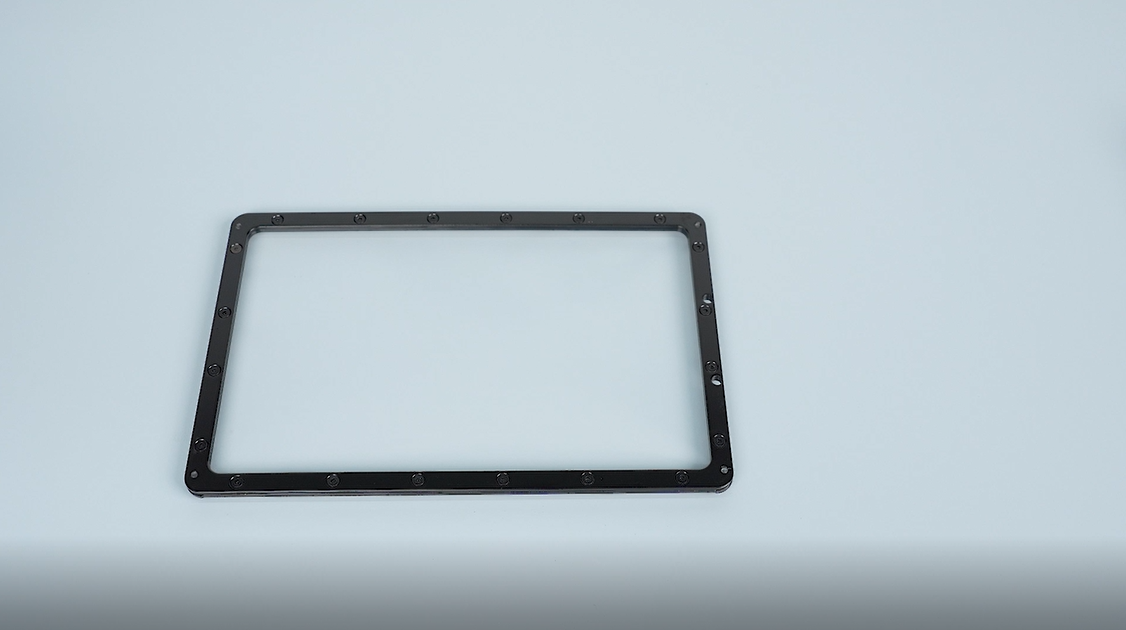

1. Water-test the vat and retighten its screws

You don't find a leaking vat by spotting a puddle — you find it as a patch of cured resin on the masking LCD, and that's a $91 part. Elegoo says as much in its own screen-cleaning guide: cured resin on the panel is usually the result of a vat leak. One owner running four Saturn 4 Ultras found the film clamp screws loose on all four machines, and only noticed because one started weeping around the seal. Another had three of four vats shipped by Elegoo leaking at the corners straight out of the box, outside the area the plate ever reaches.

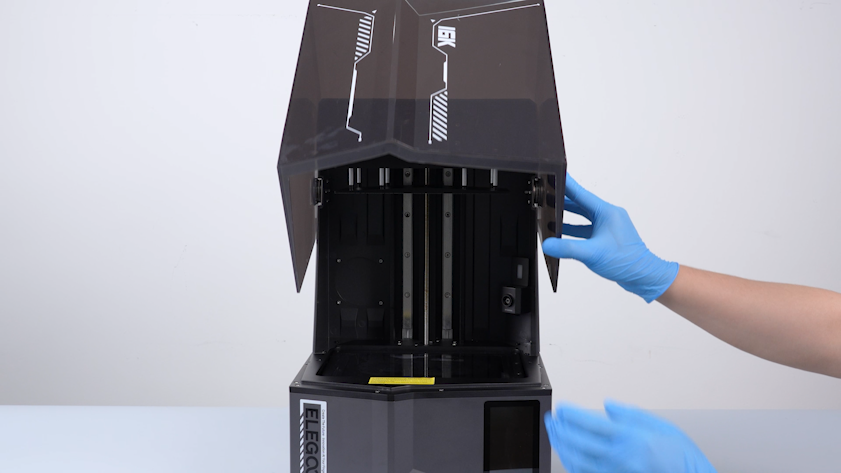

• Five minutes with a screwdriver instead of replacing a masking LCD
• A water test on paper towel catches factory defects before resin ever touches the vat

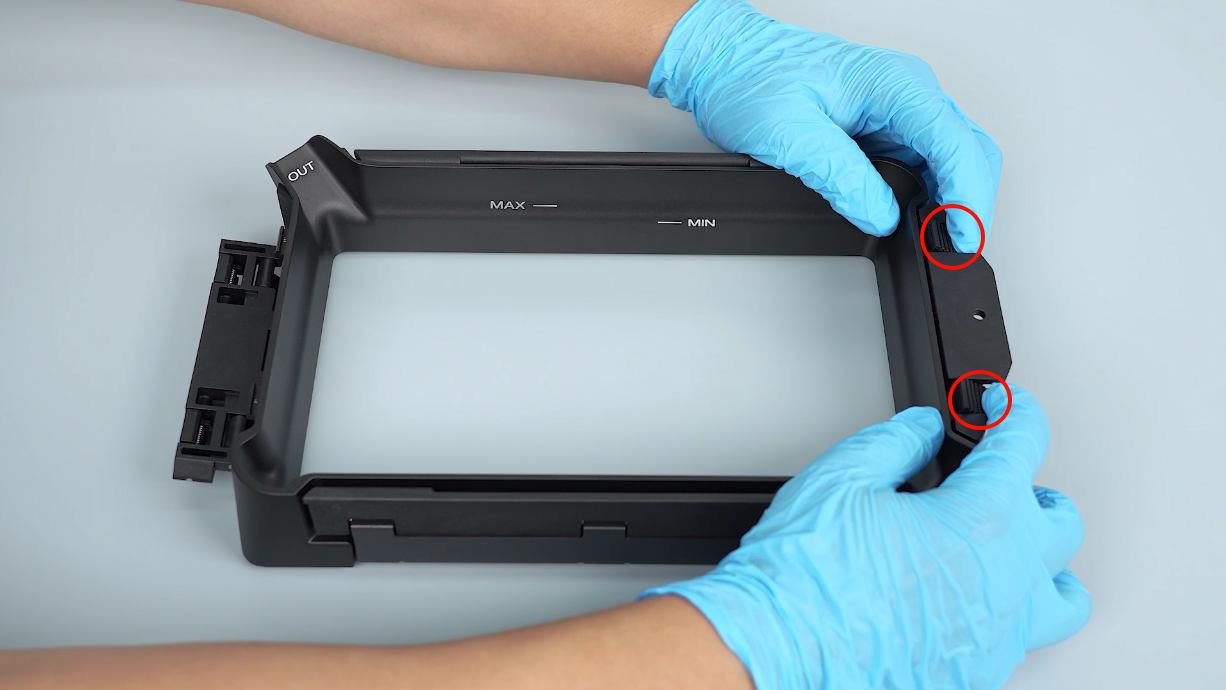

• You also learn how the clamp frame comes apart, which pays off at the first film change
• Repeat it for every new vat, including the spare you bought ahead

Difficulty: easy. Cost: nothing. Procedure: snug the film clamp screws evenly in a cross pattern, set the vat on folded paper towel, fill with water to the MAX line and leave it half an hour. Wet spots on the towel mean you email support before you've poured in a litre of resin. Source: owner threads in r/ElegooSaturn.

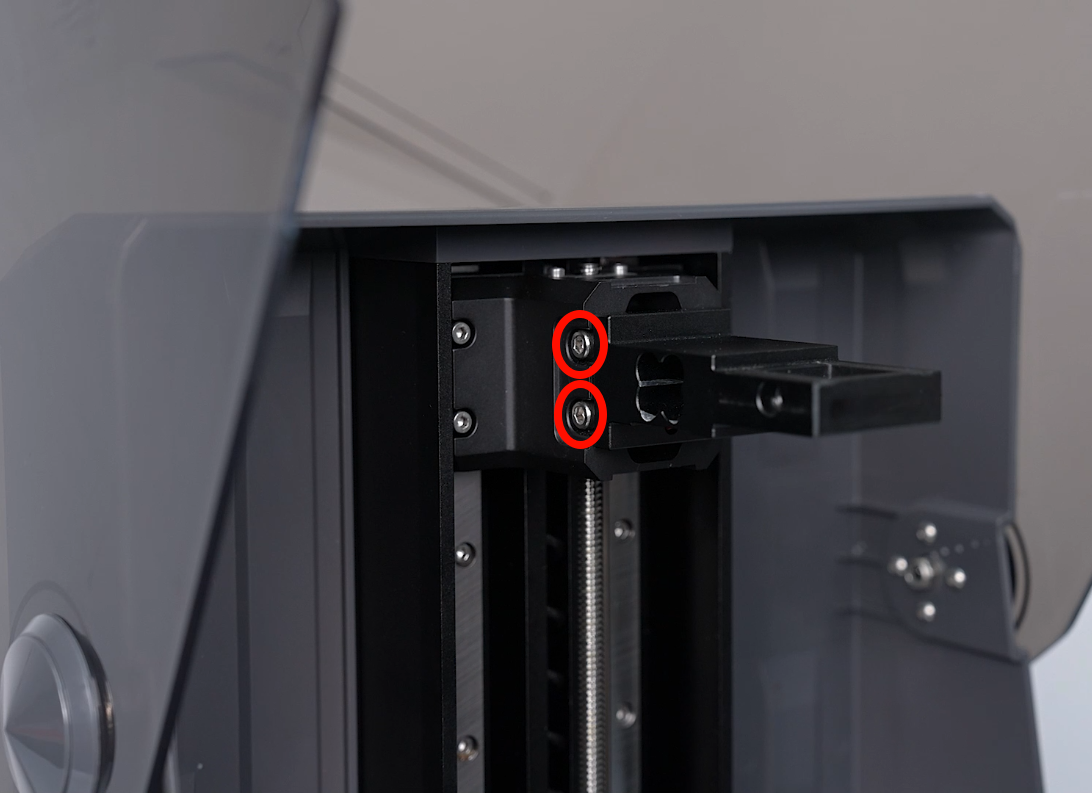

2. Washers under the build plate adjustment screws

Auto leveling on the Saturn 4 Ultra isn't leveling in the usual sense — it's a force sensor. The plate drops until it hits a set pressure and stops there. If the plate itself sits out of parallel with the panel, no sensor fixes that. Elegoo's own guide has you fine-tune by hand against four sheets of paper, but plenty of owners run out of screw travel before the plate sits flat. The author of the printable washer for those screws puts it plainly: the adjustment ran out while the paper under one corner was still either loose or pinched solid.

• Extends the adjustment range when the stock screw travel isn't enough
• Prints in ten minutes and goes under all four screws at once
• Paired with threadlocker, the level stops drifting every time you pry prints off
• Cheaper and far more reversible than sanding the plate, which owners of concave units resort to

Difficulty: moderate — set aside a calm hour and know what you're doing. Cost: nothing plus a tube of threadlocker. Fits Saturn 4, 4 Ultra and 4 Ultra 16K, since they share the plate. Model: Build Plate Leveling washer on Printables; the official fine-tune procedure lives in the Elegoo wiki. If prints aren't sticking at all, start with our first layer adhesion guide before touching screws.

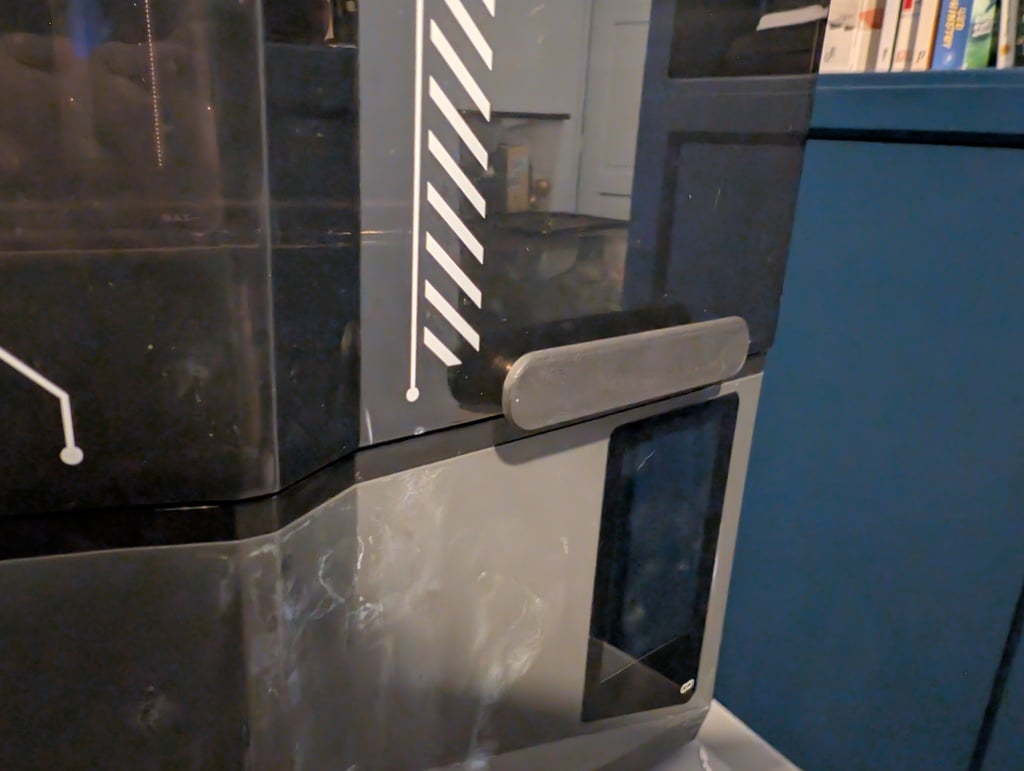

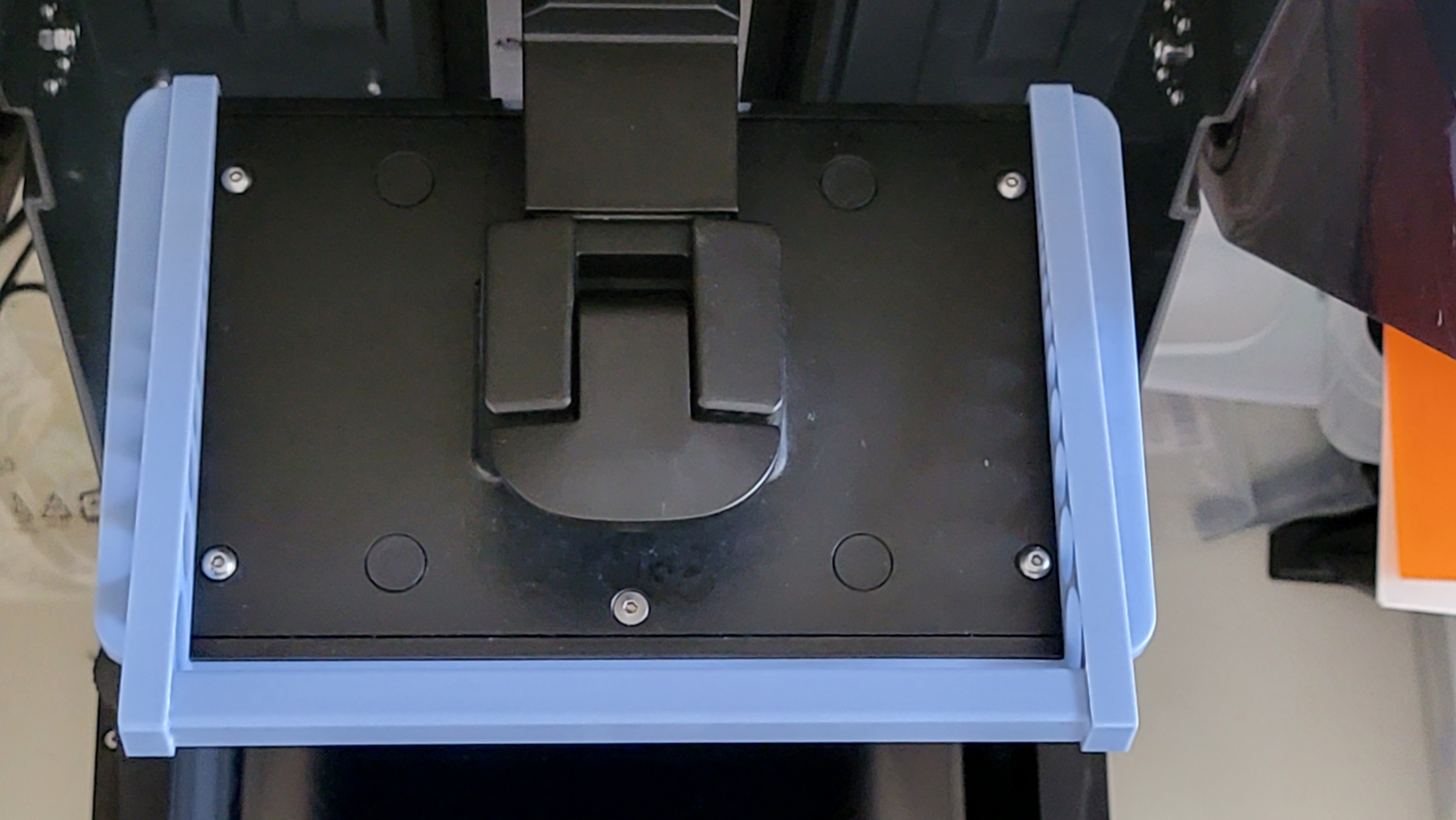

3. Handles: the plate already has them, the lid doesn't

The 16K plate ships with ears — two tabs on the sides you can grab. That's one of the confirmed differences from the 12K, alongside the heated vat, the lit camera and built-in Wi-Fi. The catch: almost every drip bracket needs those ears removed, and then there's nothing left to grab. Two solutions exist — a wraparound handle that grips the whole plate, and a part that combines handle and drip bracket in one. Separate story for the hood: there's no handle on it at all, and "an actual handle to open the cover" sits second on the owners' wishlist for a future Saturn 5.

• You grab a dripping plate by a handle instead of the edges resin is running off
• A hood handle breaks the habit of hooking the acrylic by its edge
• Printed M5 threads on 70 mm centres line up with the stock plate holes

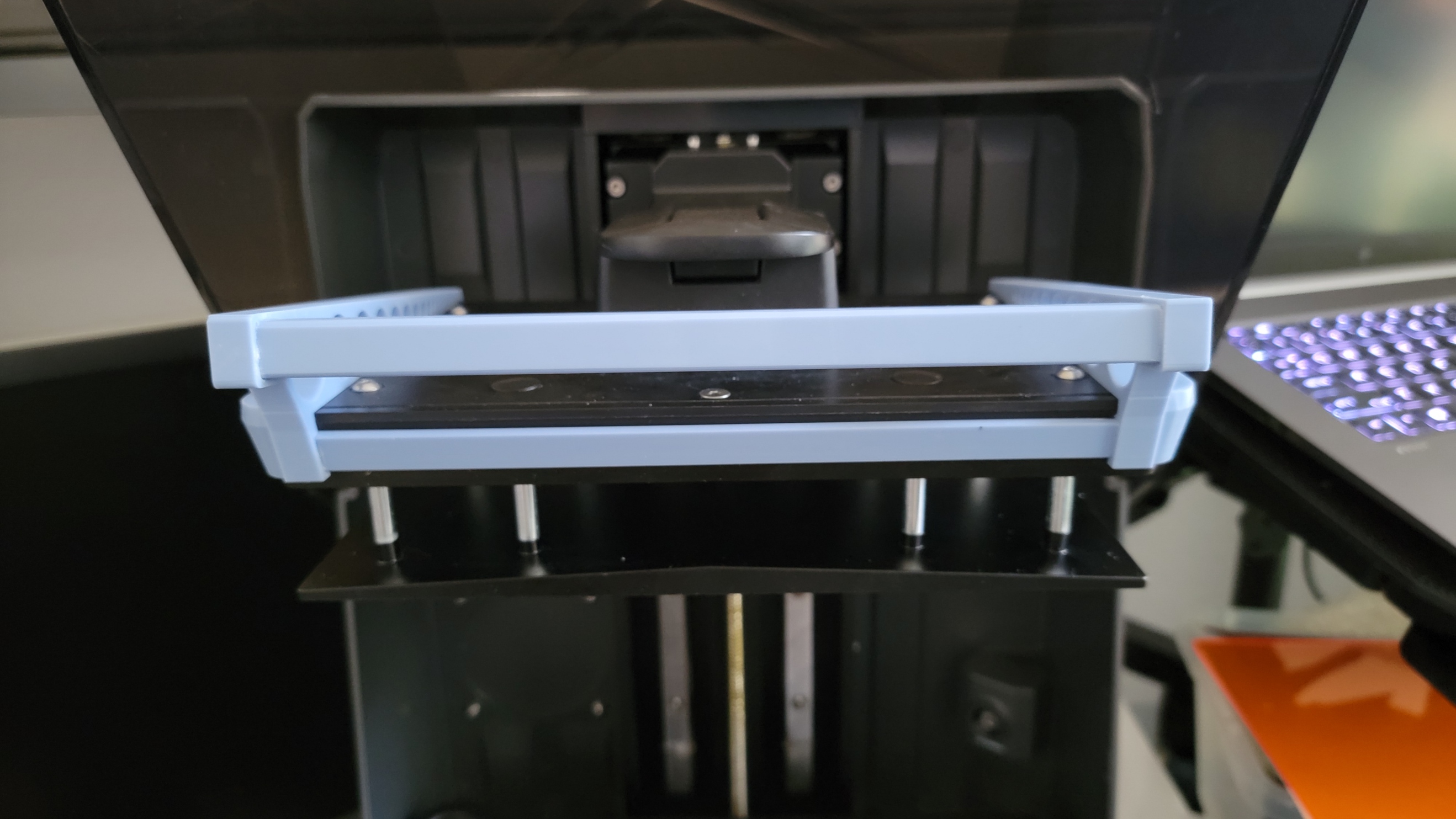

• The wraparound version fits the 12K, the 16K and the plain Saturn 4 alike

Difficulty: easy. Cost: nothing if you own an FDM printer. Models: Handle v2 and Build Plate Handle v2.0. Print in PETG or ABS — PLA hazes and cracks after enough isopropyl exposure.

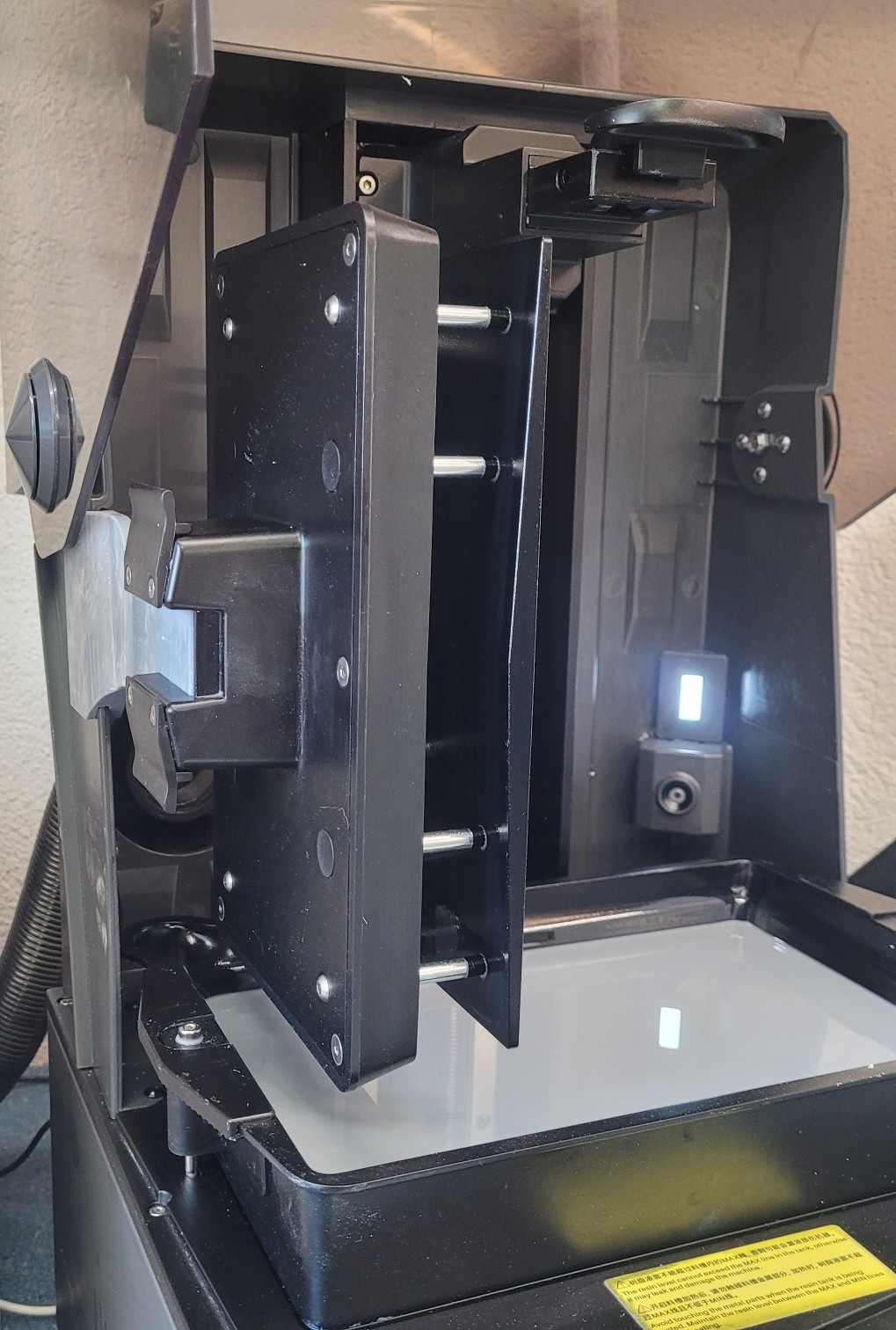

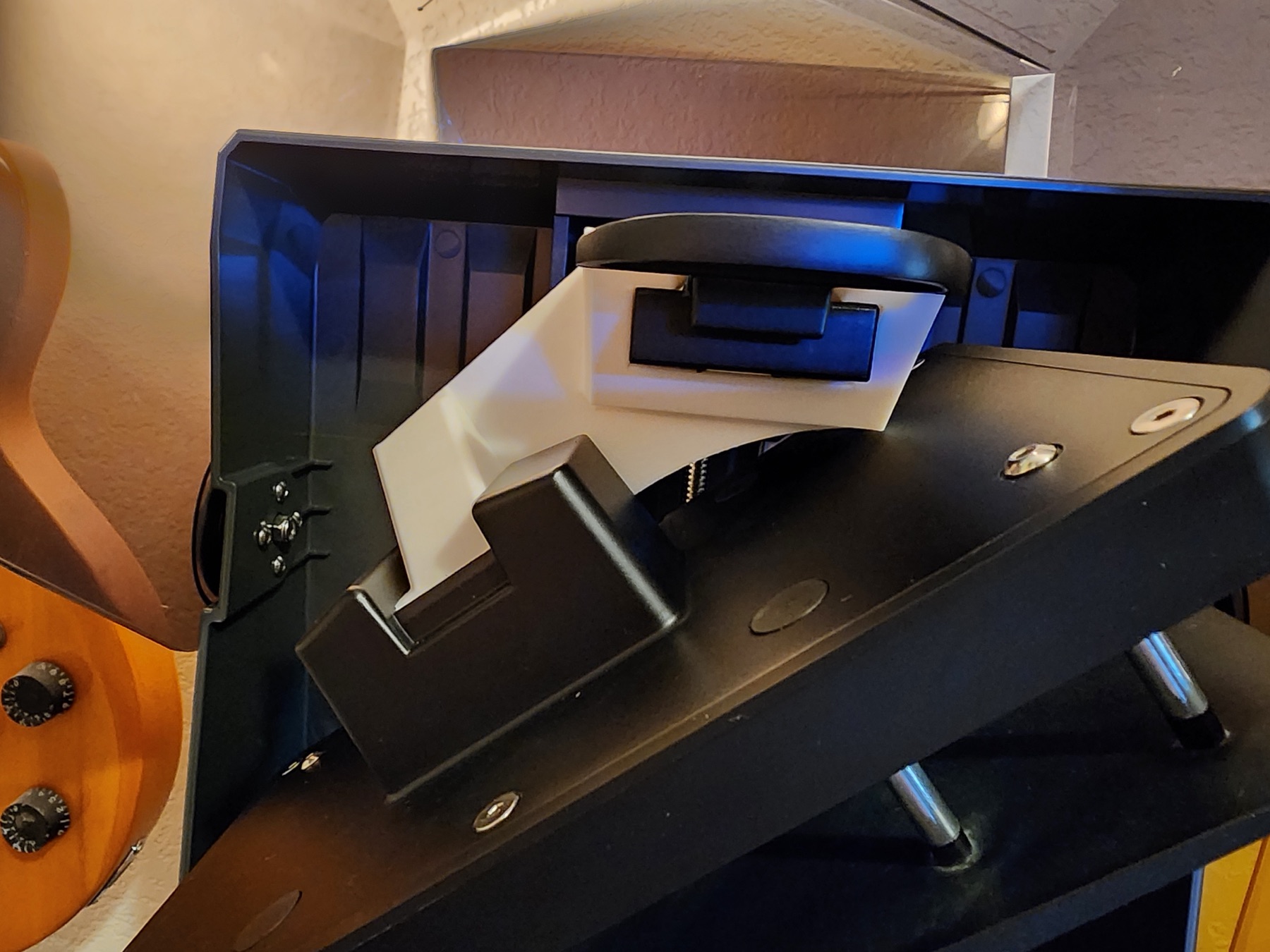

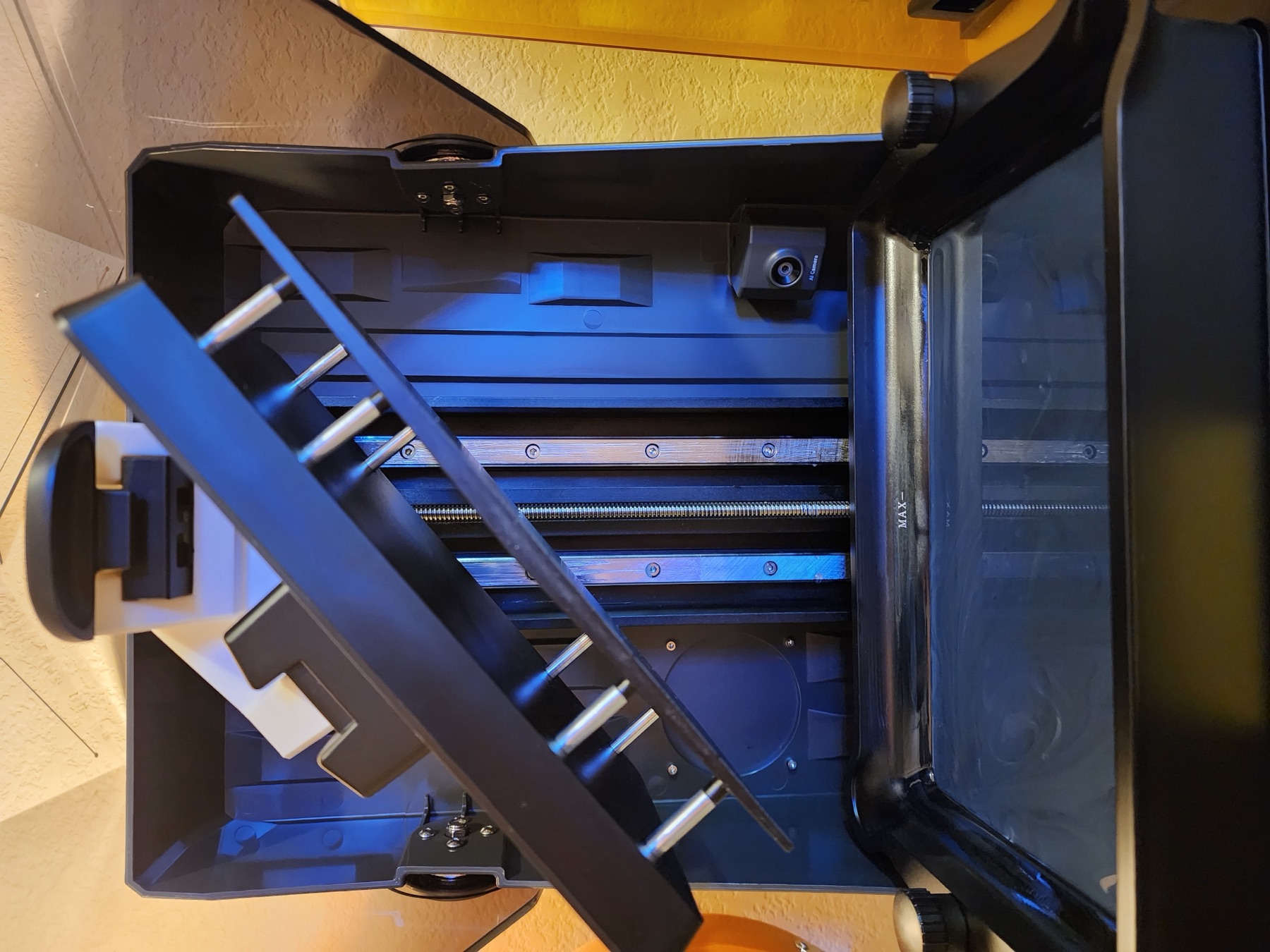

4. A drip arm — and specifically the version cut for eared plates

A plate keeps dripping for 15–20 minutes after you pull it, and you have to park it somewhere — ideally over the vat so the expensive liquid goes back where it came from. 12K brackets physically won't seat on a 16K plate: the updated version has a slot cut for the ears, plus the author shipped a mirrored copy for hanging the other way and shifted the arm further left so a taller print still clears the vat while it drains. Nice 16K bonus: the mounting holes for this bracket already exist in the case, whereas 12K owners had to drill and tap them.

• Recovers a real share of the resin — at current resin prices that pays for itself quickly
• Your desk stays clean: no tray needed under a dripping plate
• Hands free — no holding the plate with one hand while hunting for paper towel with the other
• The base bracket in this family has 7,803 downloads and 382 likes, so it's been vetted by thousands of owners

Difficulty: easy. Cost: nothing. Print in PETG with 100 % infill around the hook — a plate with a print on it isn't light. Model: Drip Arm, updated for 16K.

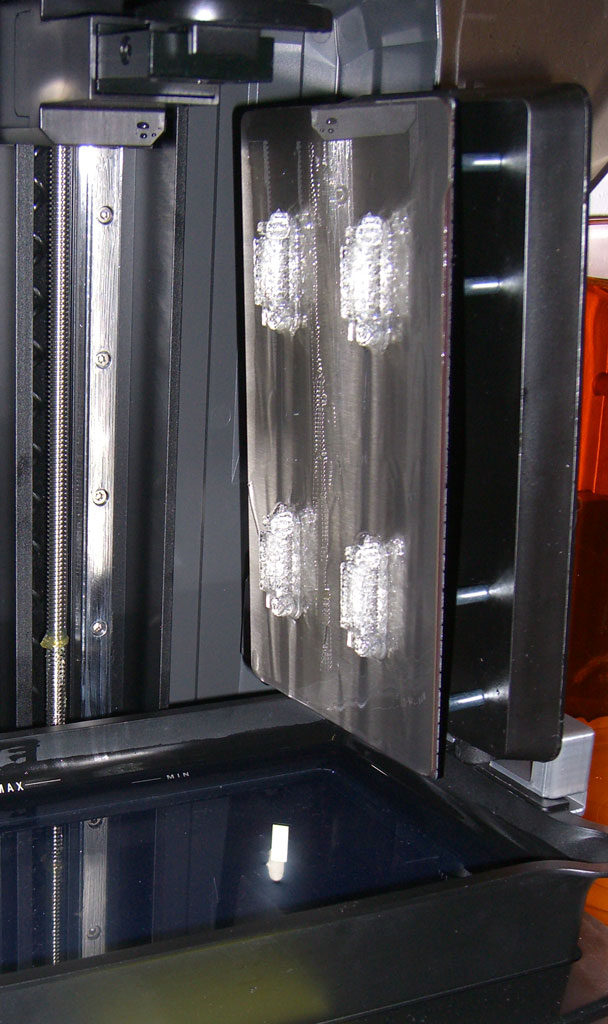

5. Three drip geometries: 90°, angled and fully inside the printer

No single geometry covers everything. Vertical hanging drains the most, but nothing tall can be sitting under the plate. A 5° tilt toward the rear corner is friendlier when you remove the plate: you bring it in at the same angle and stop dripping outside the vat. There's a version that stays inside the printer and handles a large volume — in two flavours, one for the stock 16K vat and one for the quick-release Chitu Systems Hoopat X4H. And if it's the vat you're draining rather than the plate, there's a stacking tower that prints together with a filter funnel; a regular funnel, the author warns, blocks the filter's drain holes.

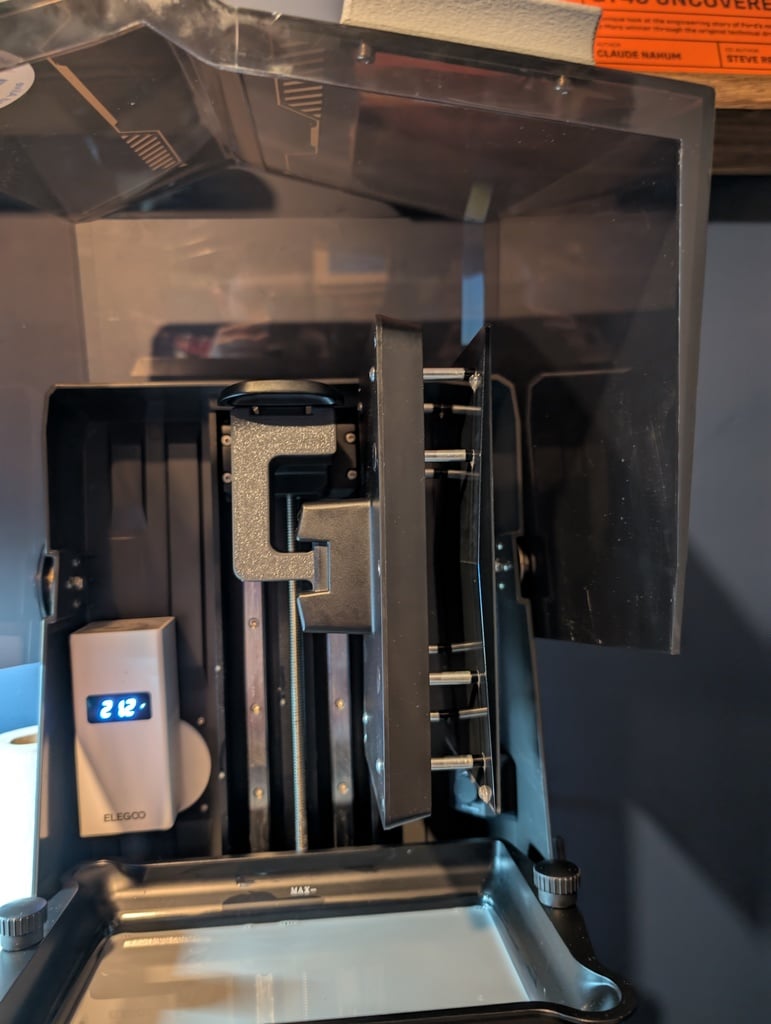

• Vertical — for flat prints and maximum resin recovery
• 5° tilt — for tall models that need to clear the vat rim

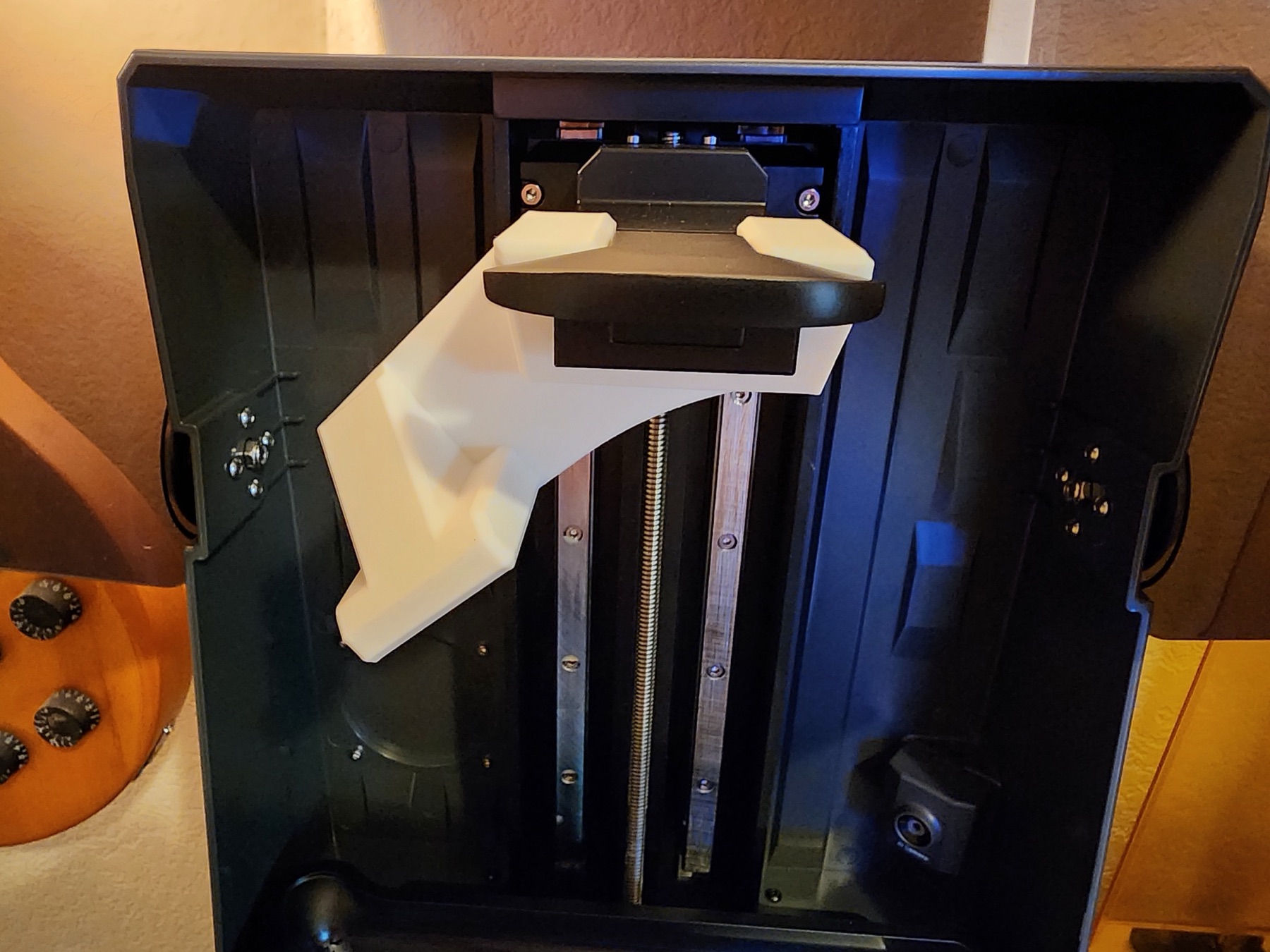

• Inside-the-printer version — when your bench is full and there's nowhere to park the plate
• The combined handle-bracket replaces the ears and locks in with the same screws

Difficulty: easy. Cost: nothing. Models: 90° bed drip, combined handle and 5° drip bracket, mount for stock and Hoopat X4H vats, stacking drain tower.

6. A silicone spatula and the Tank Clean routine instead of a scraper

PFA release film scratches on contact with metal, and after that prints start failing on files that ran fine for months. An owner who killed a film in three months describes the tell: triangular dents from support tips all over the film, then outright failures. The community routine goes like this — run the built-in Tank Clean, then press a scrap of used support into the bottom corner. It welds itself into the cured sheet and becomes a handle you pull the whole layer off by, without ever touching the film.

• Film lasts far longer: careful owners reach 300,000 layers against the printer's 60,000-cycle reminder
• Debris comes off the bottom in a minute with no risk of cutting the film
• A silicone spatula costs pocket change and leaves no marks on film or plate
• The stock plastic spatula must never touch the film — it's for popping prints off the plate, and that's all

Difficulty: easy. Cost: a few dollars for a kitchen silicone spatula. Do this after every failure, however small: a leftover chunk of cured resin on the film is a future failed print and a permanent dent. The general mechanics of failures and sticking are covered in our resin printing troubleshooting guide.

Vat and film: where the 16K costs more to run

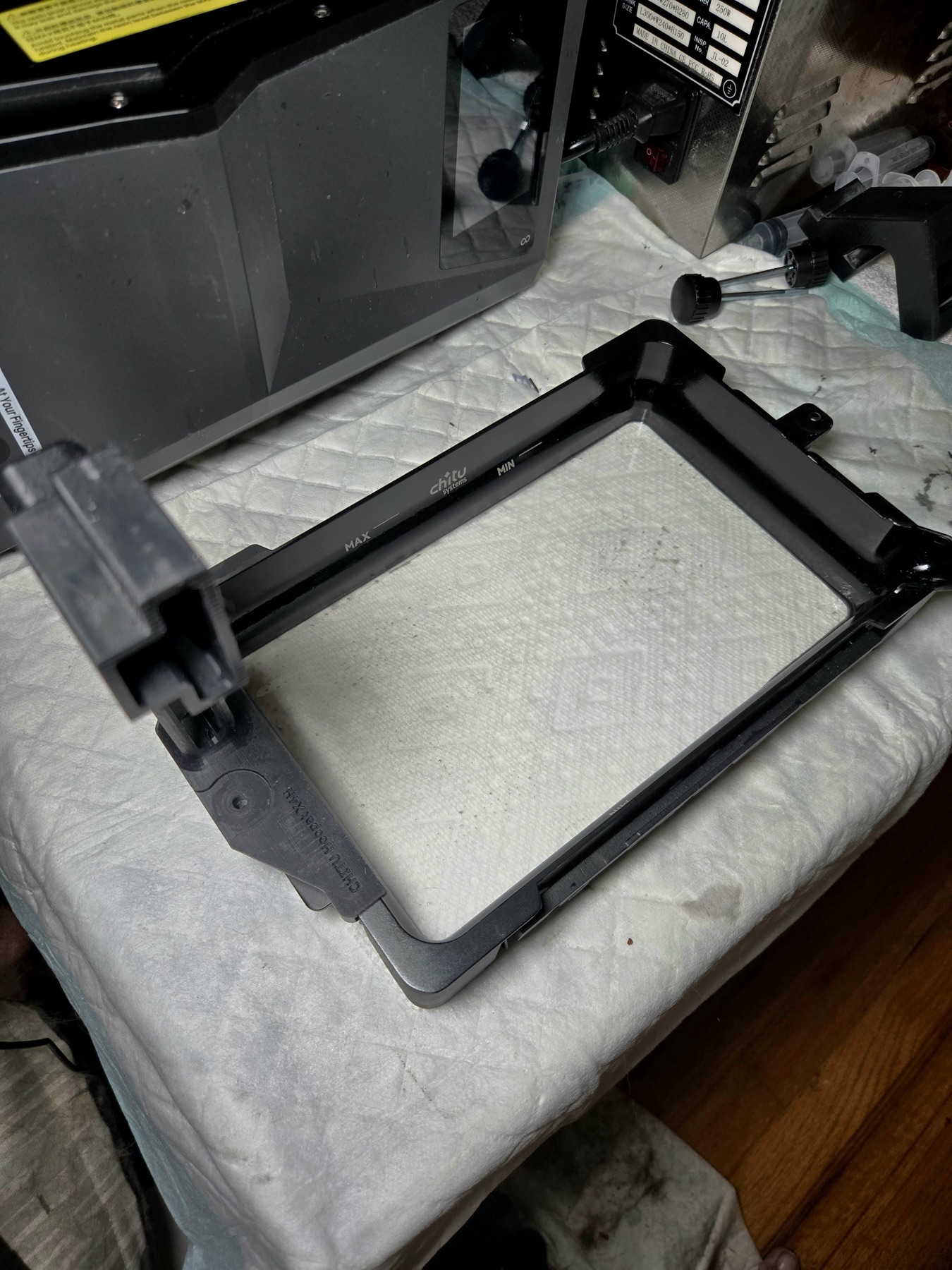

7. Chitu Hoopat quick-release vat — the 16K needs the X4H

Changing film on the stock vat is this machine's least-loved chore. It isn't the screw count so much as the clamp frame having no keying at all: you can genuinely assemble it upside down, flip one side, or block the pogo-pin openings — and only find out once everything is torqued. The Chitu Systems quick-release vat exists to fix exactly that: film swaps in about 30 seconds, no screws. Get the version right — per the manufacturer's compatibility table the Hoopat X4 covers Saturn 4 and Saturn 4 Ultra, while the Saturn 4 Ultra 16K takes the X4H. They are not interchangeable.

• Film changes without screws and without the risk of assembling the frame wrong
• All-metal build with a silicone seal ring — fewer reasons for corner leaks
• Replacement film packs run $37.99 for five, in PFA or ACF

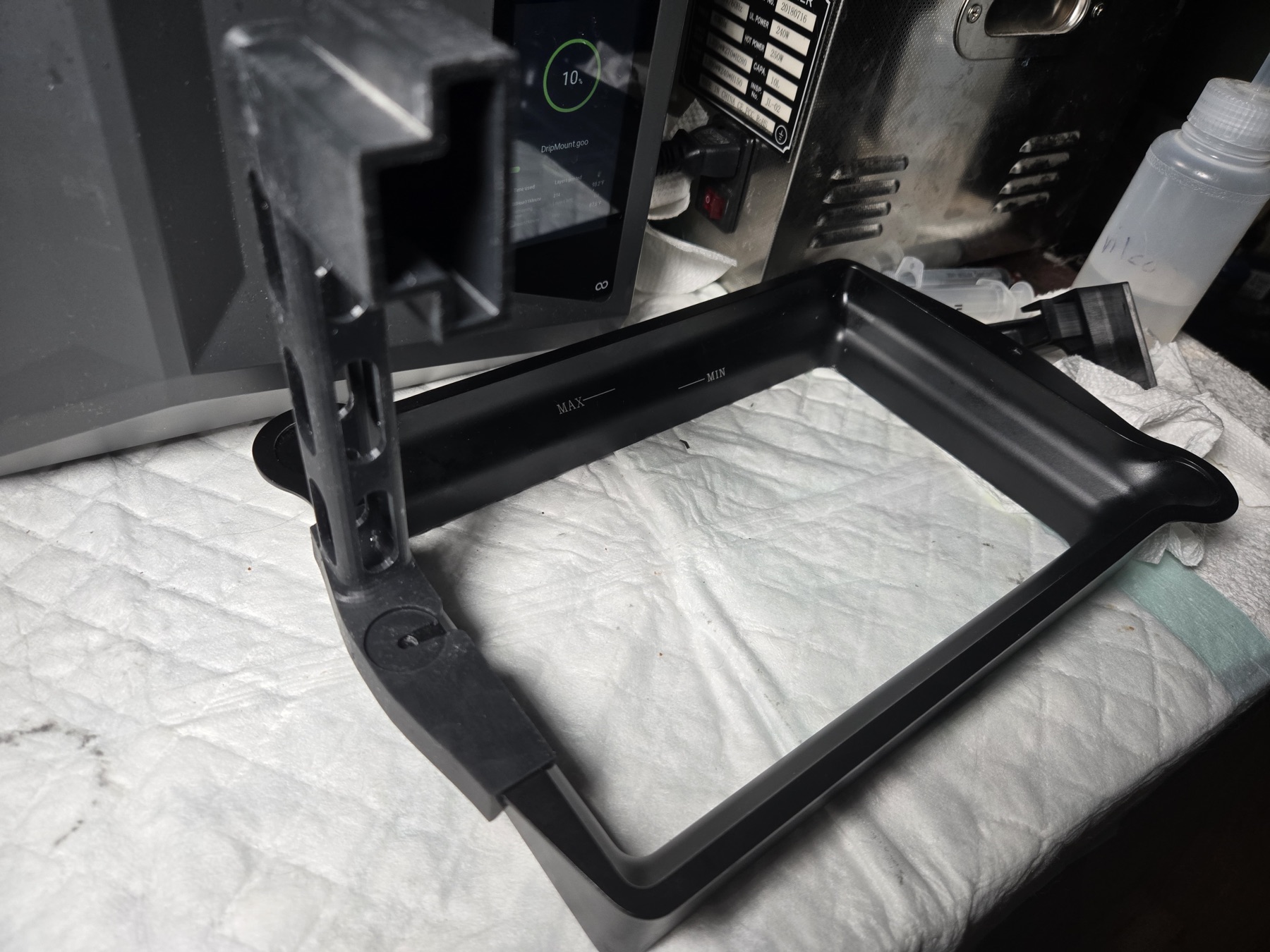

• Printed drip mounts for the X4H already exist, so you don't choose between quick-release and easy draining

Difficulty: moderate — it drops into the stock position, but recheck your profiles after any film change. Cost: $79.99 for the vat with one film, $99.99 for the kit with three spares; the X4 for 12K machines is ten dollars less. One detail from the maker's instructions that people miss: the silicone seal ring goes ON TOP of the film, otherwise you lose the seal. Sources: the Hoopat product page and its installation instructions.

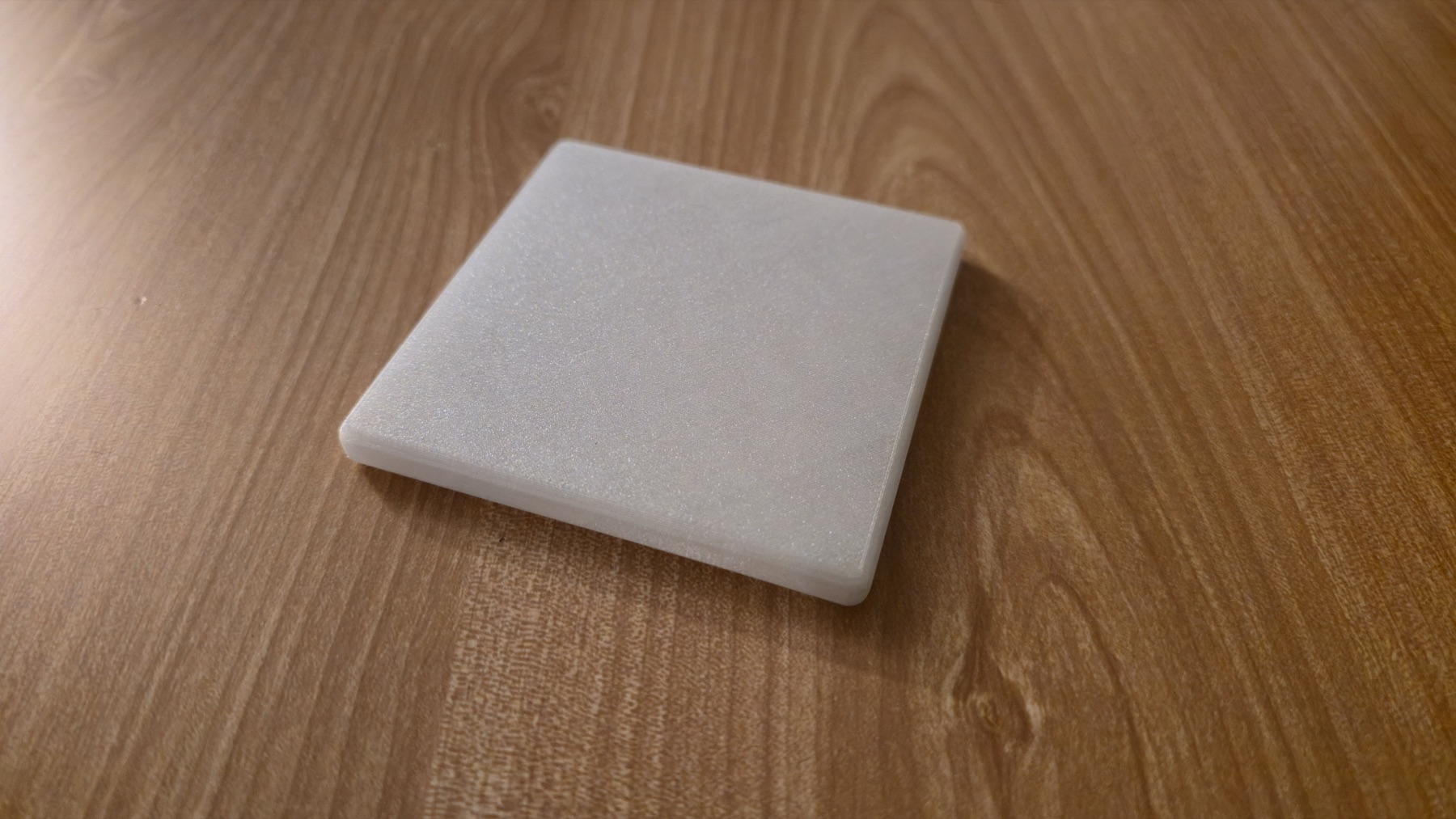

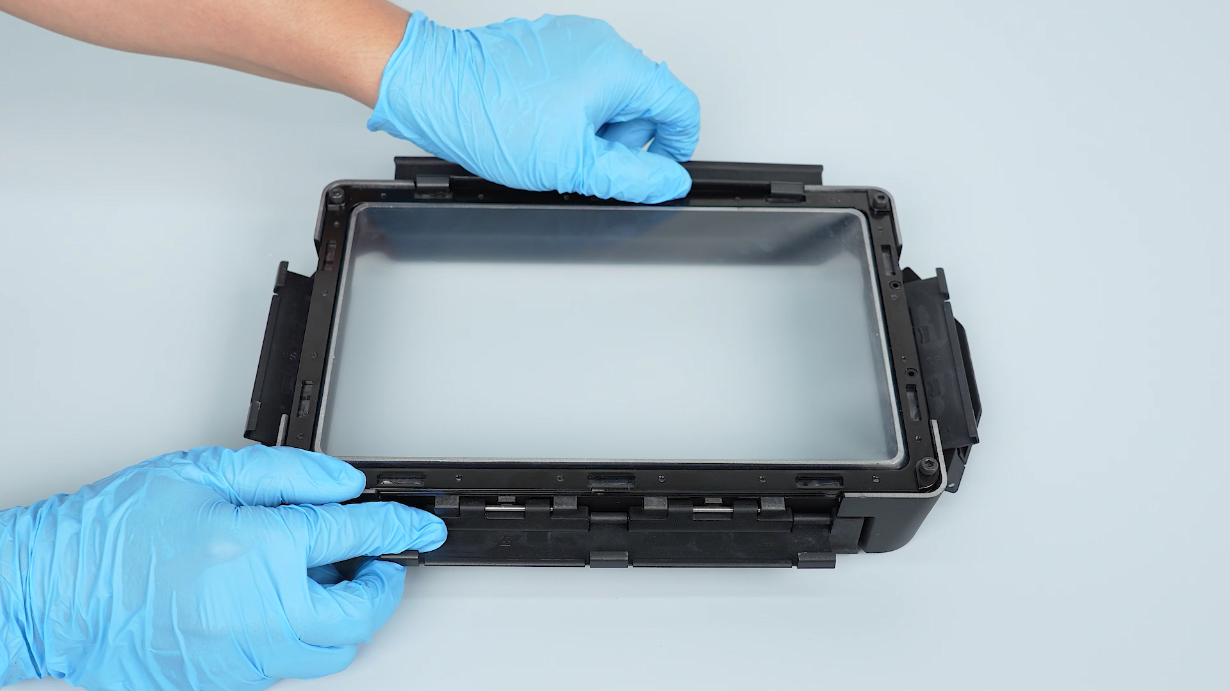

8. A spacer for even film tension

Unevenly tensioned film behaves predictably: the slack side is where failures start. Owners debugging delamination on the 16K keep landing on the same theory — the tension went off on one edge after the last film change. The fix is simple: rest the frame on a spacer while you tighten it, an 80 × 80 × 8 mm box with chamfered edges, so the film pulls evenly all the way around. The author prints his in TPU at 5 % gyroid infill so it leaves no marks at all; the chamfers keep even a rigid print from marking the film.

• Equal tension on all four sides — no weak corner
• Prints in half an hour and lasts for years
• Works for other 10-inch resin printers too
• Soft TPU leaves no impressions on fresh film

Difficulty: easy. Cost: nothing. Model: PFA/FEP Film Spacer; the official step-by-step film kit replacement is in the Elegoo wiki.

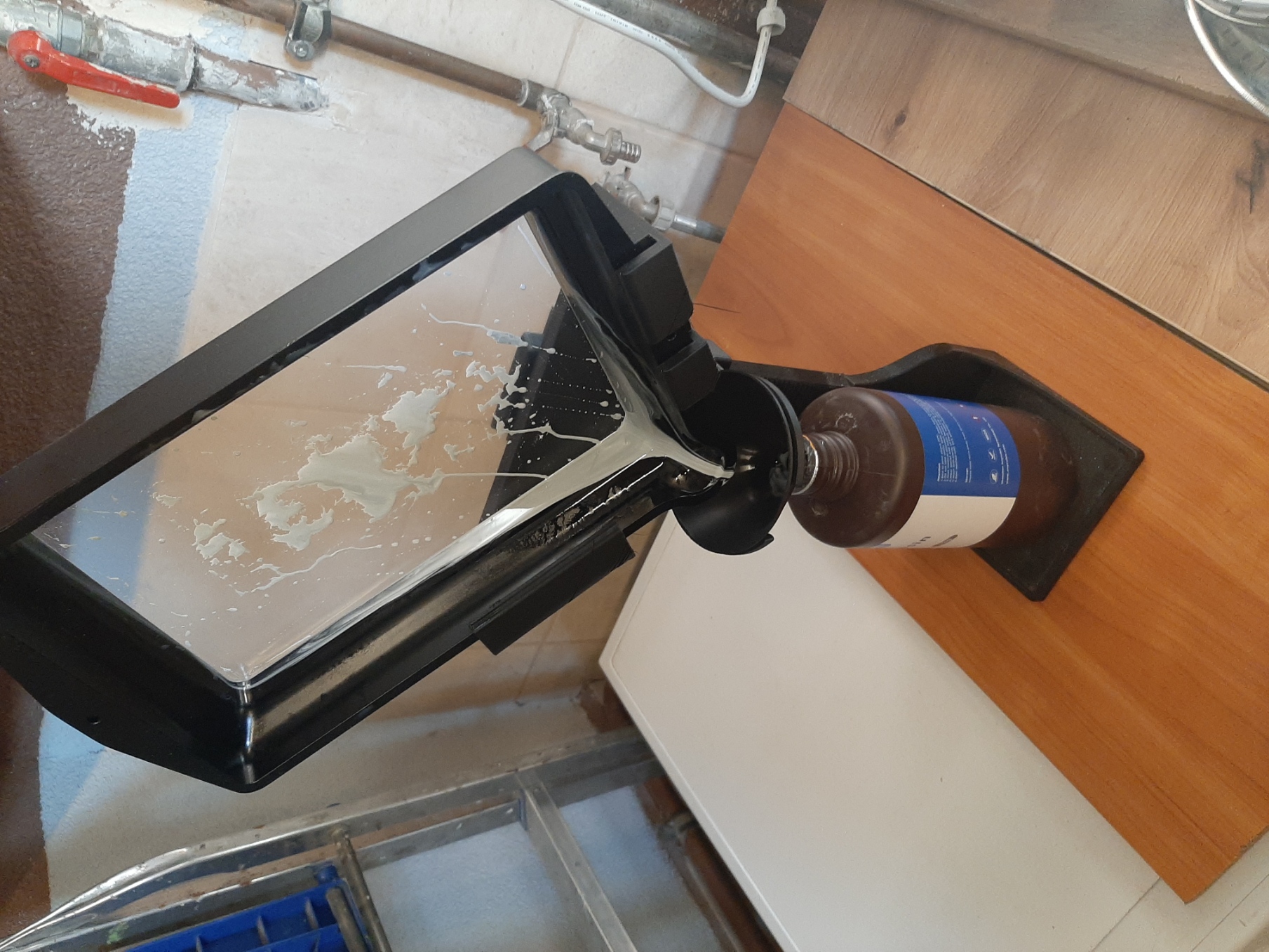

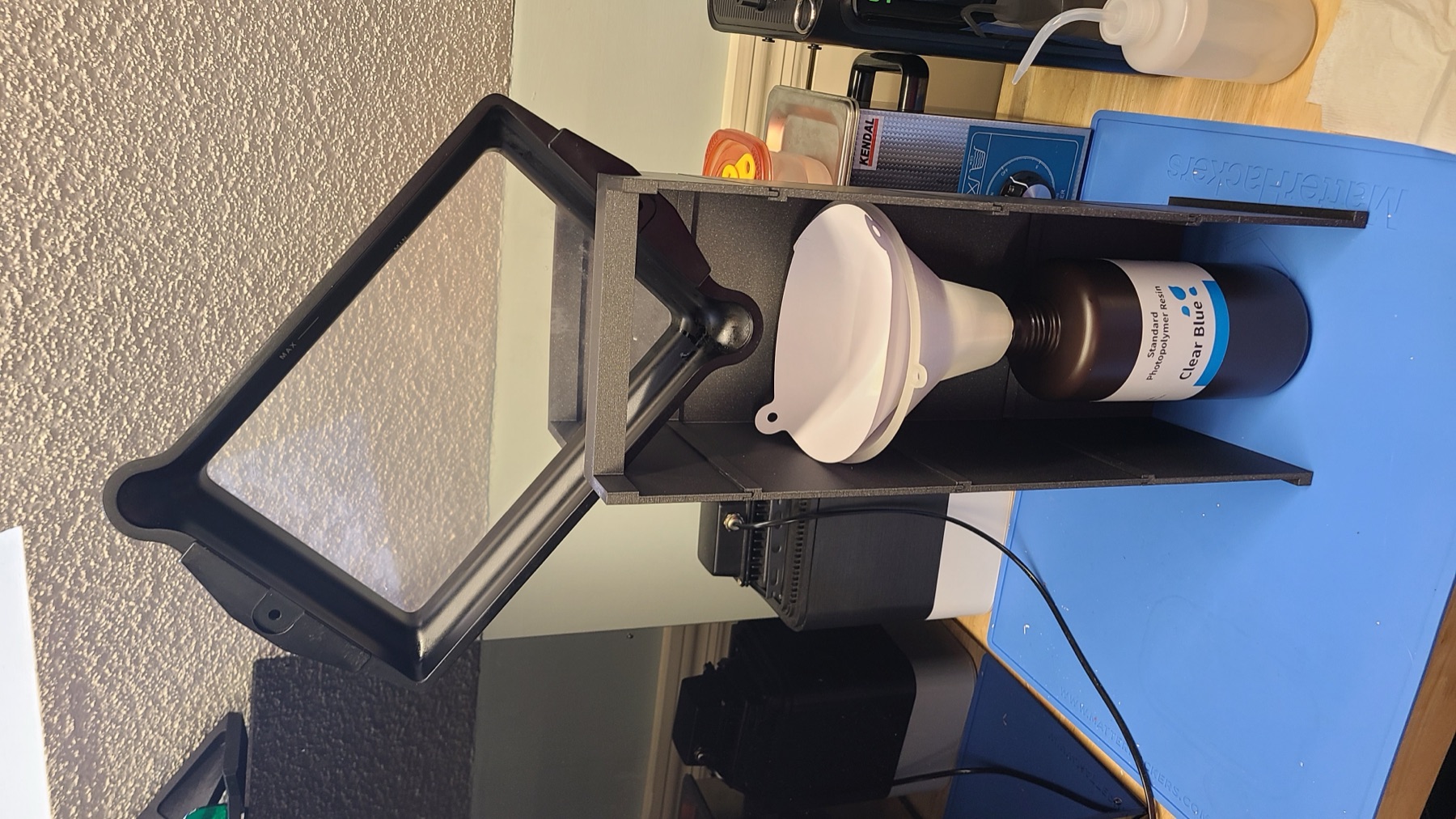

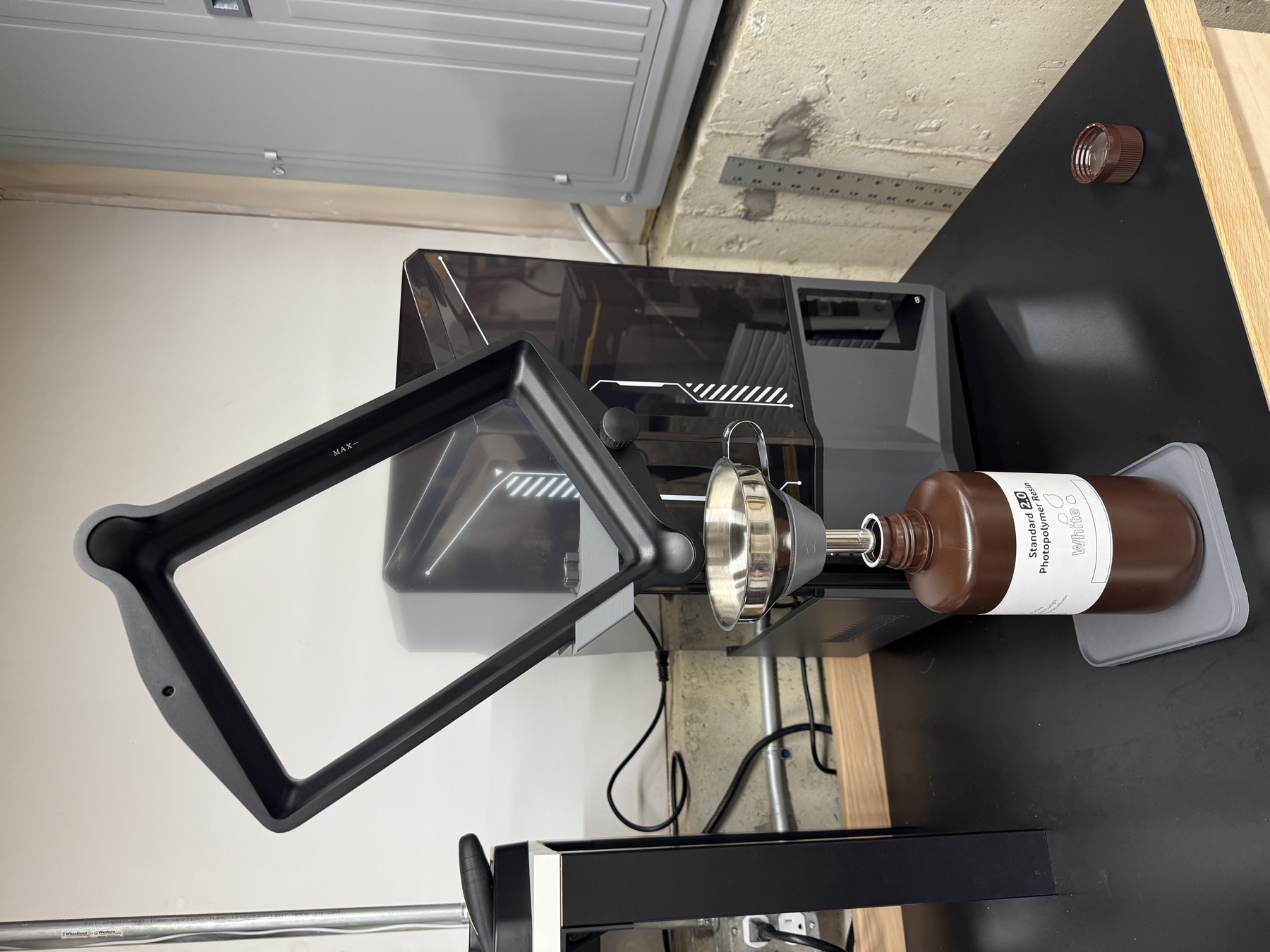

9. Drain stand, funnel and a reusable strainer

Pouring resin back into the bottle by hand without spilling is harder than it sounds: the vat is heavy and the last few millilitres need chasing into a corner with a spatula. A stand holds the vat tilted and frees both hands. Two add-ons follow. A reusable printed strainer replaces paper filters — it separates cured chunks and flakes from liquid resin and washes with the rest of your kit. And the right funnel: a regular kitchen one blocks the strainer's drain holes, which is why these sets print them as a pair. The base stand is often remixed for aluminium extrusion — the original takes 20 × 20 mm, the remix 30 × 30 mm.

• Draining without spills and without needing a third hand
• A reusable strainer pays for itself in a dozen cycles versus paper filters
• Tilted, the vat drains nearly dry — the rest goes with one pass of a spatula
• Elegoo's stainless funnel costs a couple of dollars and shrugs off isopropyl

Difficulty: easy. Cost: free to print plus the funnel. Models: drain stand, reusable strainer, 30 × 30 mm extrusion version.

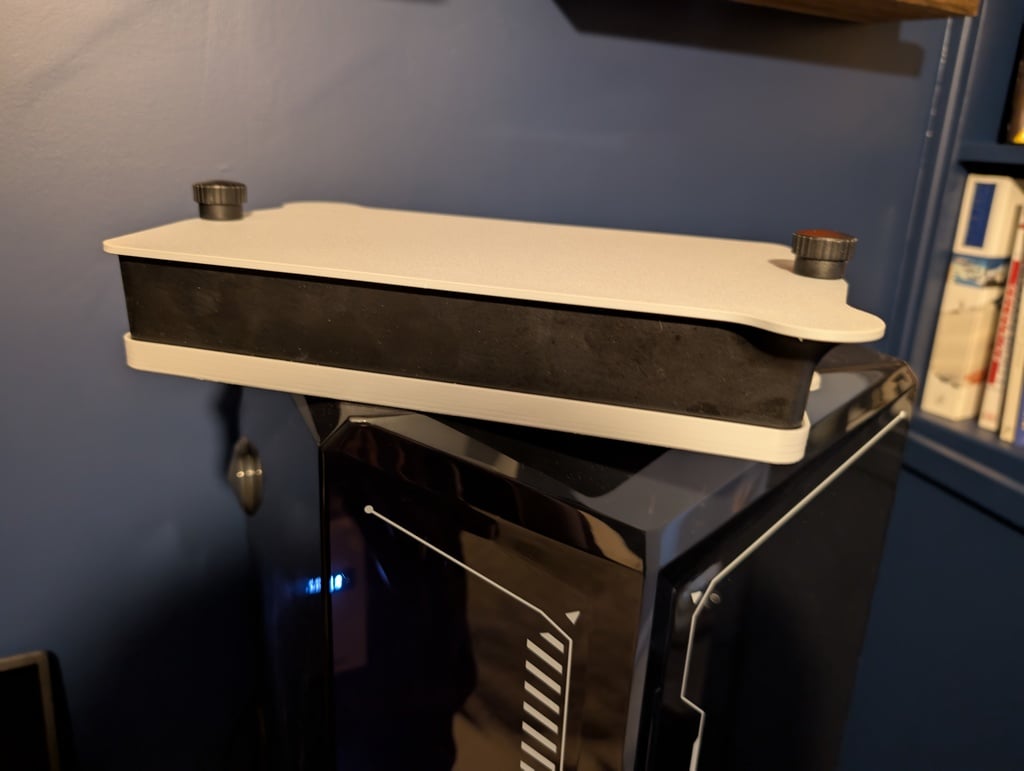

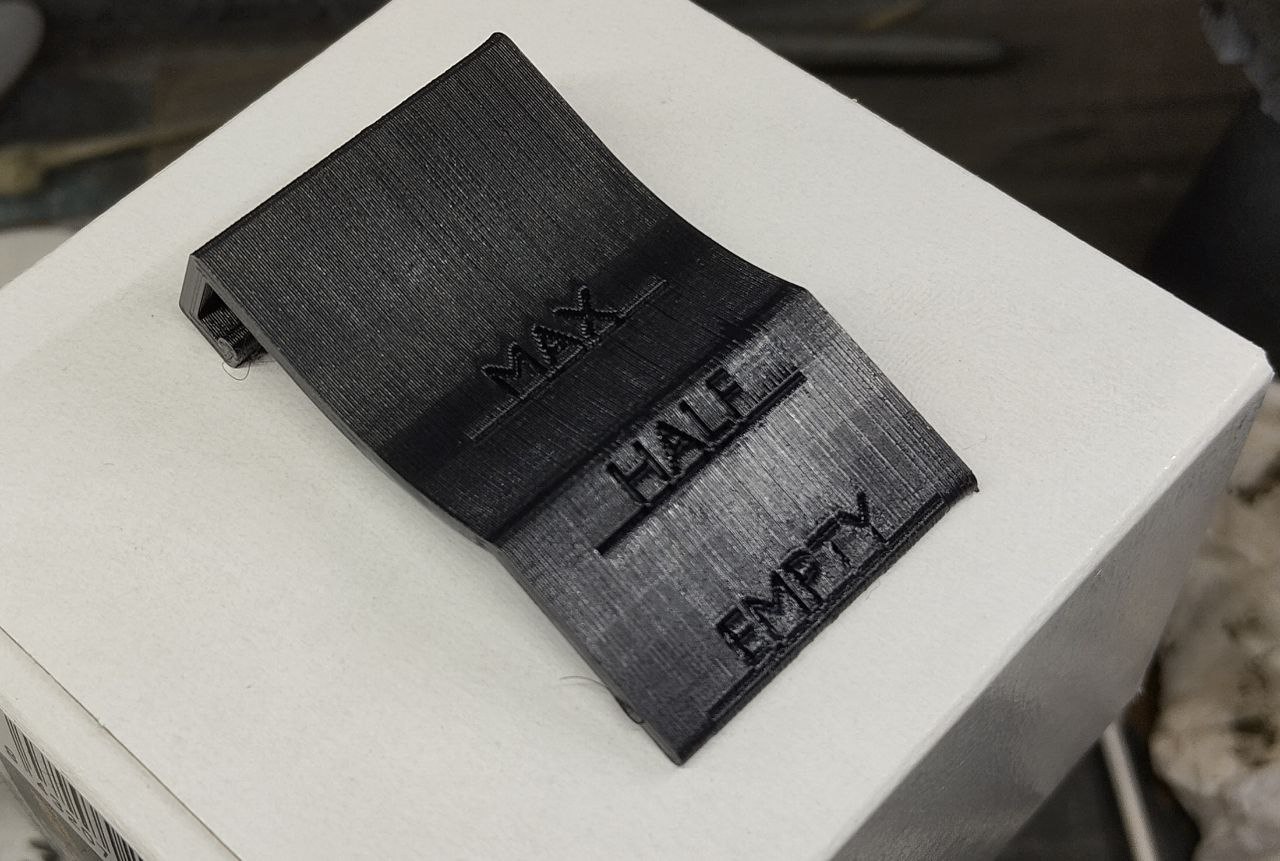

10. Vat protection for storage and a level gauge

A vat with leftover resin sitting on a shelf eventually gets a hole in the film — from a box corner, a screwdriver or its own build plate. Protection goes on both sides: a top cover and a bottom tray, with the bottom half bolted together using M4 nuts. A related small win is a printed level gauge on the vat wall: it shows how much resin is in there without opening the hood. And third, a bib that clips onto the vat pegs and catches drips as you lift the plate out.

• You can store the vat with resin in it without fearing a punctured film
• The gauge saves the "is there enough for this print" check every time
• The bib catches drips where the drip arm can't help — while carrying the plate
• The cover also shields resin from ambient room light

Difficulty: easy. Cost: nothing plus four M4 nuts. One separate note on filling: with the printer powered off the vat rests tilted, so overfilling past MAX is easier than you'd expect — pour with the machine on and the vat level. Models: 16K vat protector, level gauge, drip bib.

11. ACF instead of PFA: no payoff on this machine

The "switch to ACF and print faster" advice comes from machines with vertical lift, where the film releases the whole layer area at once. The Saturn 4 Ultra 16K peels by tilting: the vat swings away from the print at an angle, so ACF's advantage has nowhere to apply. An owner of two 16K units who tested ACF on an earlier machine in the series is blunt about it — no speed gain, and it often adds vertical line artifacts on the sides; the only real use left is printing parts directly on the plate. Saturn 3 Ultra ACF sheets fit physically, as do third-party ACF films, which cost more and are harder to find.

• The series ships on PFA, and Elegoo's own spec table lists PFA for both the 16K and the 12K
• A ten-pack of PFA costs less than a five-pack of ACF
• On Hoopat vats the PFA-or-ACF choice is just a kit option at the same price, and it doesn't add speed either
• Money saved on ACF is better spent on a second vat or a stack of PFA

Difficulty: nothing to discuss — this is a mod worth skipping. The numbers: $13.98 for ten stock PFA sheets against $37.99 for five ACF from Chitu. Hands-on discussion lives in the ACF-for-16K thread.

12. A second vat for a second resin

Every resin change means draining, wiping, washing and an hour of downtime. A second vat turns that into a swap. For the 16K, get the right part number: the Saturn 4 and Saturn 4 Ultra vat won't do, because the 16K has a heater and thermistor inside it, fed through spring-loaded contacts on the case. Owners who alternate between opaque and clear resins call a second vat one of the first purchases after the printer itself.

• Switching resins takes a minute instead of an hour
• You can change film without rushing, because the other vat stays ready
• A dedicated vat for clear resins spares you a permanently stained vat
• The printer's peel-cycle counter lives in diagnostics — note the reading each time you change film

Difficulty: easy. Cost: $44.59 for the metal 16K vat. Strictly model-specific — there is no universal vat across the Saturn 4 family.

The heater: the 16K's headline feature and its rules

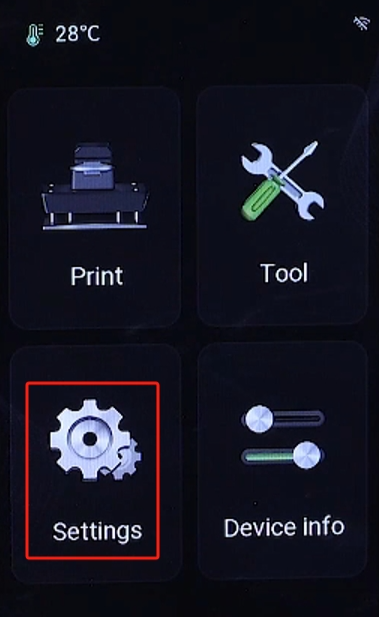

13. Turn the heater on so you stop forgetting it

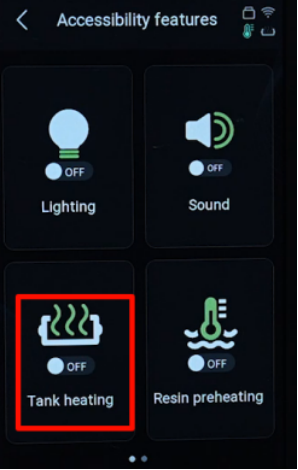

Elegoo filed the machine's headline feature under Accessibility features — the menu where lighting and sound live. The official path is Settings → Accessibility features → Tank heating. Once it's on, the printer brings resin to 30 °C before it starts printing, which takes roughly 30 minutes. Next to it sits a second toggle, Resin preheating: confirm it and the vat holds 30 °C for 24 hours, so you're not waiting before every job.

What annoys owners most isn't where the setting lives — it's that it resets when you power the printer down. An owner coming from Formlabs machines says it outright: this is a primary function, it belongs on the first level of the menu and it shouldn't switch itself off, because sooner or later you forget it and eat a failed build. Here's how it looks from the network side: a protocol capture on firmware V1.5.6 shows the print starting while the layer counter sits at zero for minutes as the vat warms — in one capture 0 of 1113 held for about three minutes. The queueing comes down to power: iXBT measured the vat heater at 128 W and the UV array at 100 W against a 144 W supply, so the firmware runs them in turn.

• Preheating removes the half-hour wait before every print
• Warm resin cuts both base-layer failures and the load on the film
• Heating also stirs: the plate drags warmed resin around the vat as it moves

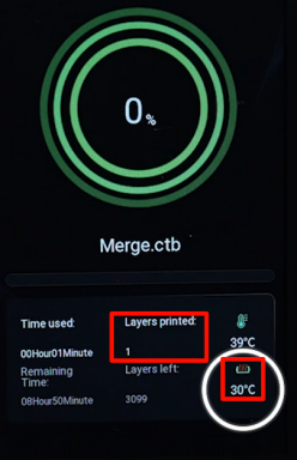

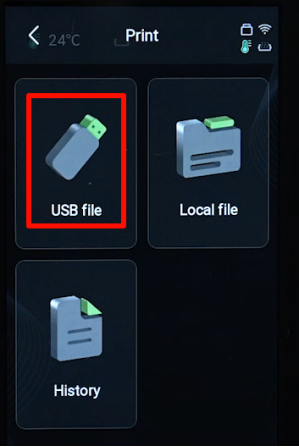

• Both temperatures show right on the print screen — room and vat
• External heaters, cables routed through the lid and DIY wiring are all unnecessary here

Difficulty: easy. Cost: nothing. Build the habit: switch Resin preheating on as the first thing you do after powering up, before you even open the slicer. The official description of the function is in the Elegoo wiki.

14. The MIN line is the heater's limit, not the printer's

Nobody writes this down — not the manual, not the reviews — and it explains half of the heater's odd behaviour. An owner worked out the layout: the heating element sits in the upper part of the vat, well away from the panel and film, and the warmed resin gets stirred by the plate itself as it moves. Below the MIN line the element ends up above the liquid with nothing to heat, so heating is blocked. You can still print below that line, just without heating: the same owner spent a summer finishing off vats with the heater switched off manually.

• A long print that eats resin below MIN runs its second half cold — plan for that
• Just reaching the minimum takes nearly a litre; one 16K owner discovered this on day one and couldn't print
• Staying above MIN helps even without heating: the plate has something to stir, and the layer under it refills faster
• Fill with the machine powered on — with it off the vat rests tilted and overfilling past MAX is easy

Difficulty: moderate — not in your hands, in your planning. Cost: nothing. Practical rule: before a long overnight job, check the slicer's resin estimate and top up so the level never drops below MIN by the end.

15. A cold room: what to do beyond the built-in 30 °C

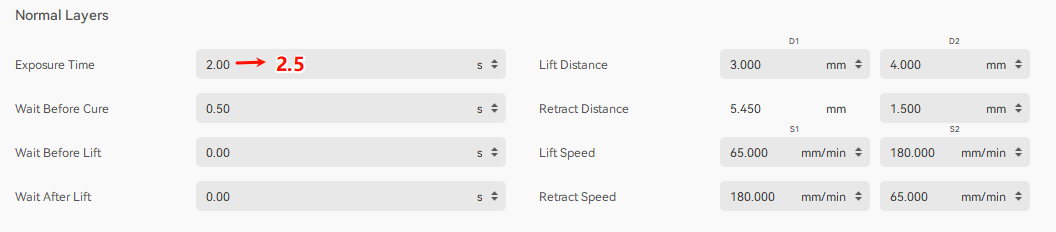

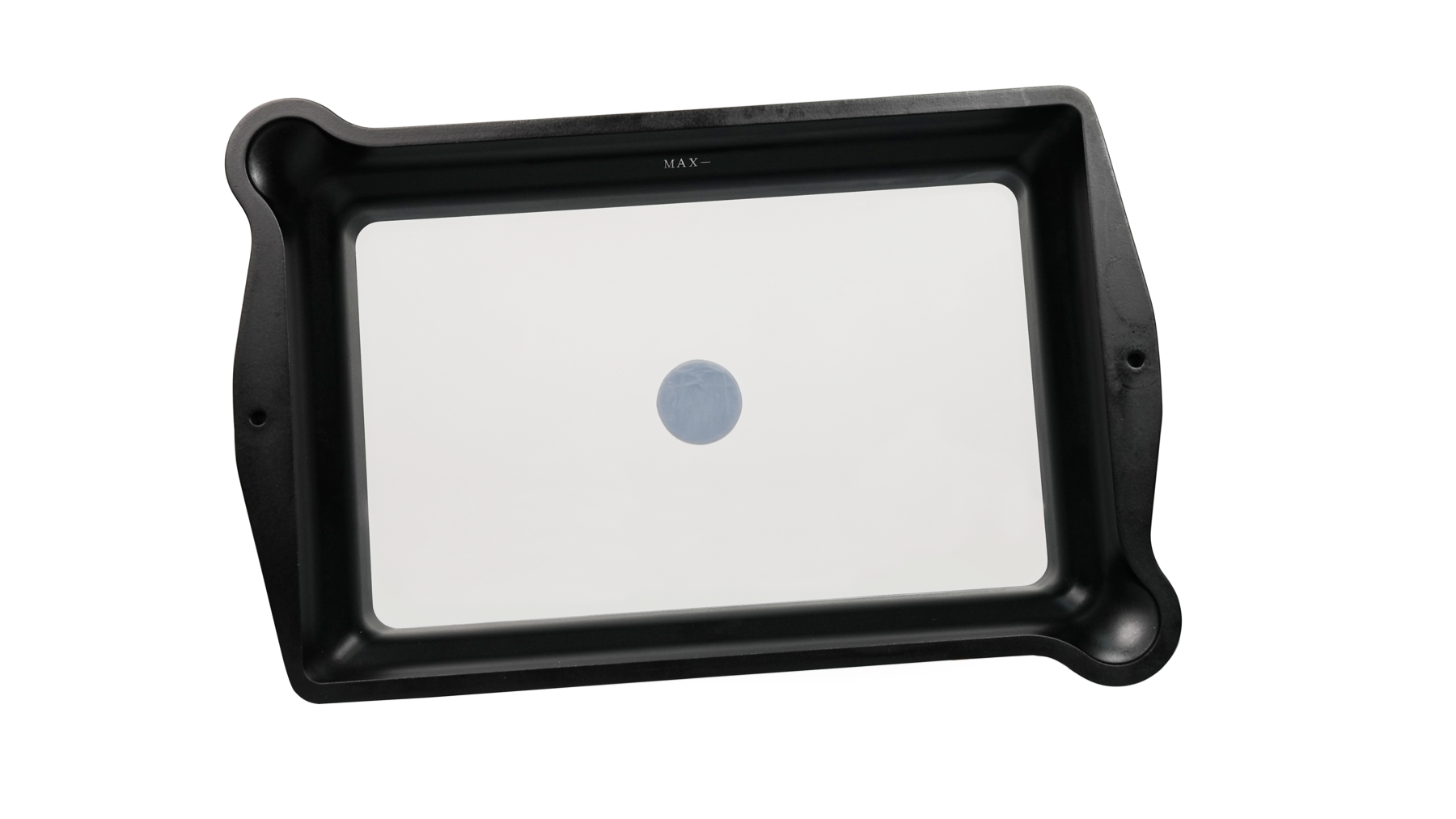

The heater warms resin, not the chamber air and not the machine. Elegoo's own cold-weather note sets the frame: the sweet spot for ambient temperature is 25–35 °C, and below 20 °C prints start failing. The same note gives the fix for thickened resin — warm the bottle in roughly 60 °C water so the resin itself reaches 30–40 °C. And the profile edit: add 5 seconds to bottom exposure, 0.5 seconds to normal exposure, increase rest time before cure and lift distance, and lower lift and retract speeds.

• A warmed bottle rescues viscous resins the self-test otherwise flags as foreign matter in the vat
• An owner running resin above 2100 mPa·s only got prints to start after a hot water bath
• The profile edit works without a heater too — it's the universal winter kit for any MSLA machine
• A Swedish owner got an honest answer from the community: the vat heater helps, but an unheated storage room in winter is beyond it

Difficulty: moderate. Cost: nothing. Numbers from Elegoo's cold-weather printing note. How this ties into delamination and base-layer failures is covered in our resin printing troubleshooting guide.

16. Enclose the whole workflow, not just the printer

Fumes don't only come from the printer: prints smell, the vat smells, rags smell, and the isopropyl in your wash station smells worst of all. So owners enclose the whole cycle rather than one machine. The one ready-made option owners have actually fitted a 16K into is the YOOPAI "2-Double Space" enclosure — printer and wash station both fit inside, with a vent kit, lighting and a UV-blocking window. The dimensions to design around: the printer is 327.4 × 329.2 × 548 mm, and with the hood fully open you need about 735 mm of headroom. That last number is what most home-built cabinets get wrong.

• A tent or cabinet holds in both smell and heat — the second way to raise ambient temperature in a cold room
• Wham Bam's dedicated Resin HotBox runs $109 and solves the heat side specifically
• A grow tent plus an inline fan costs less than a purpose-built enclosure and goes together in an evening
• Owners who put a purifier inside a sealed cabinet report they can open it and smell nothing at all
• Always budget the 735 mm for the open hood, or the lid hits the cabinet ceiling

Difficulty: moderate. Cost: from about $50 for a grow tent to $109 for the branded thermal enclosure. What exactly needs filtering and why is covered in our guide to 3D printing fumes and ventilation.

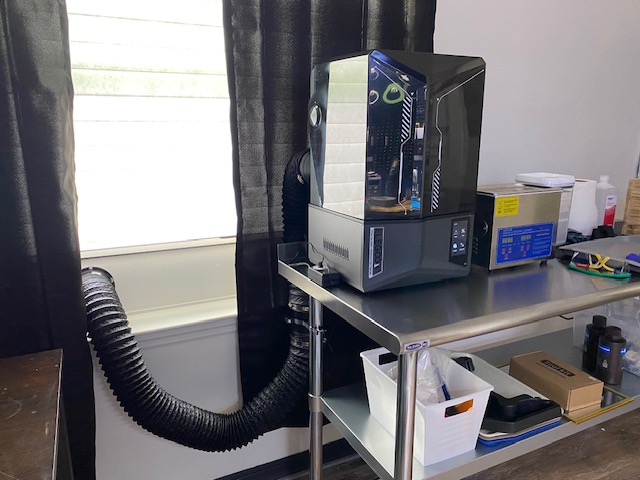

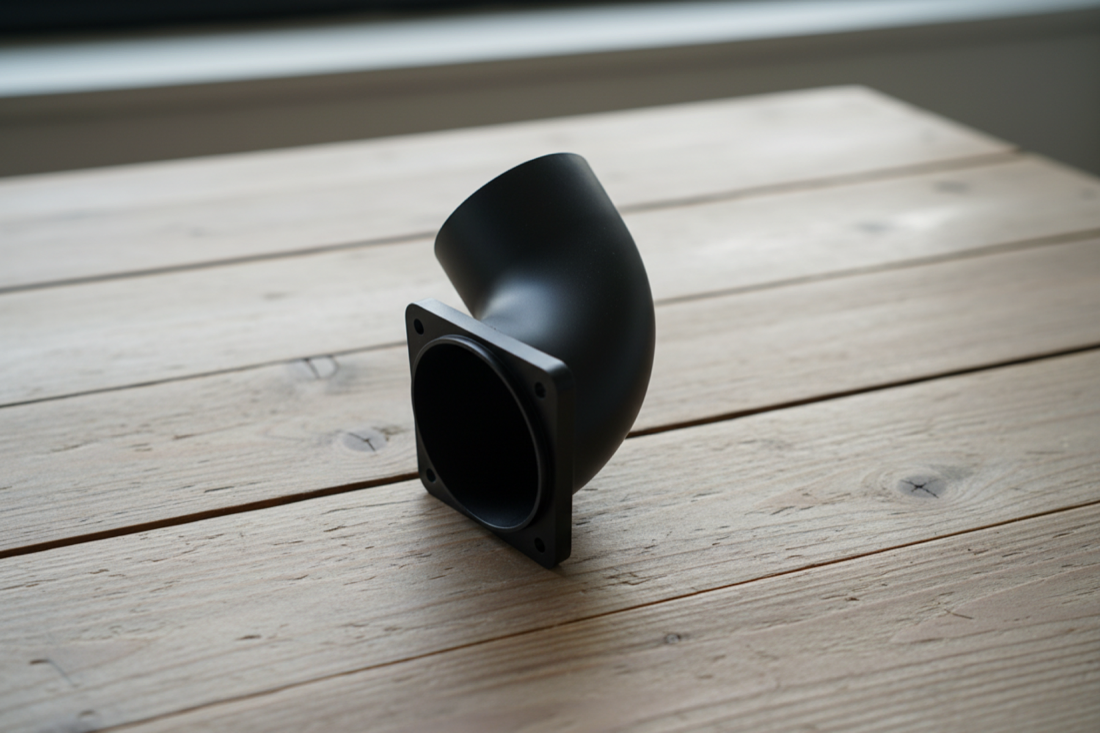

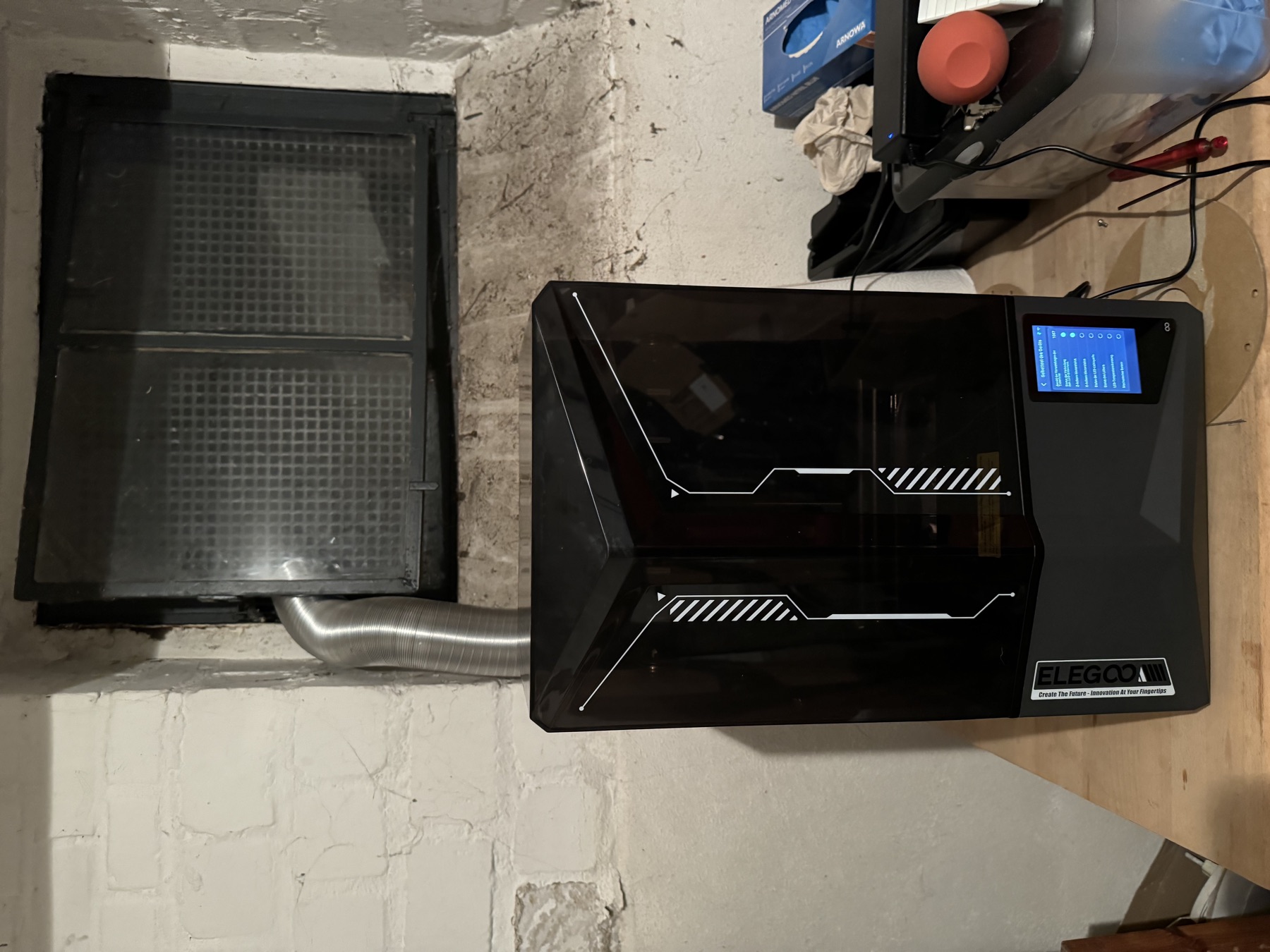

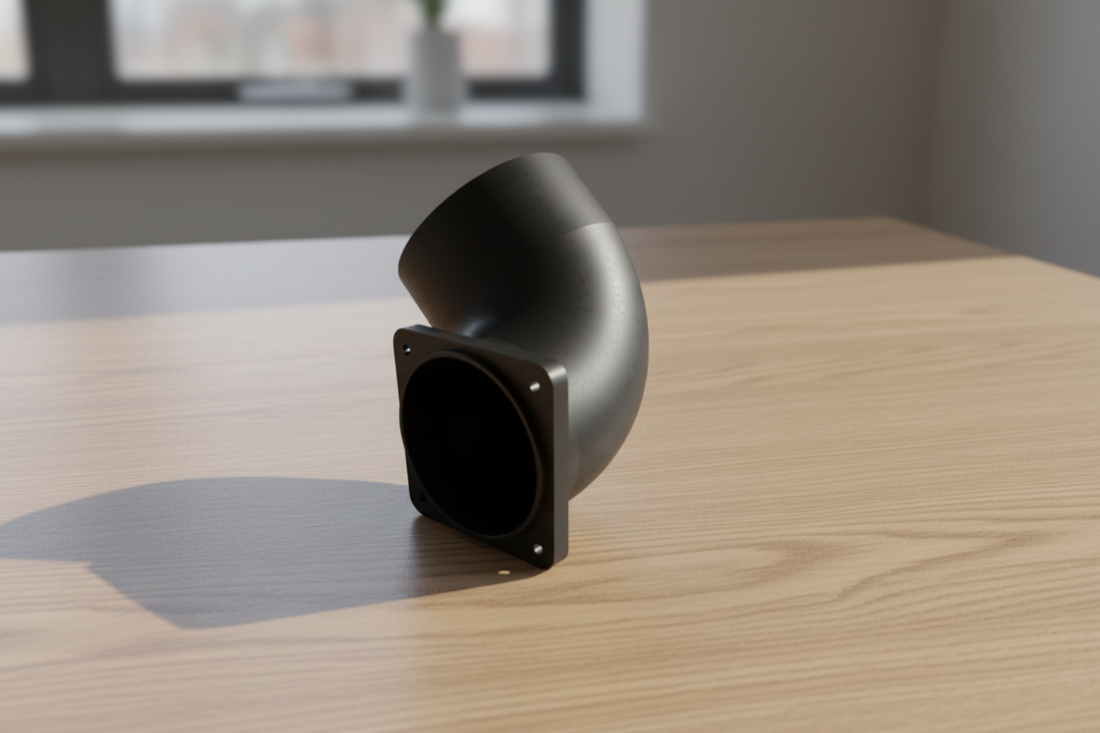

17. Ducting the 75 mm port: 45° adapters and an inline fan

There's a 75 mm exhaust port on the back of the printer — and this is where 16K specifics kick in. A straight spigot fouls the flip-up hood, so you end up disconnecting the duct every time you open the lid. Hence the 45° adapters designed for this machine, which route ducting up and away; they take ordinary M3 hardware, with one version keeping 75 mm and another stepping up to 100 mm for household duct. The second lesson from practice: a duct alone isn't enough. A Swedish owner says it plainly — a 4-inch run out the window did nothing until he added an inline fan rated 220 m³/h at 30 W, about £25.

• A 45° bend lets you open the hood without dismantling the ducting
• An inline fan turns a duct from "a hole in the wall" into actual extraction
• Budget route: adapters for an 80 mm PC fan and 80 mm duct, powered off a phone charger
• Magnetic mounting pops off in one motion when you need to pull the printer from the wall
• A window port with a fan beats an open window: otherwise the breeze pushes fumes back into the room

Difficulty: moderate. Cost: free to print, $30–50 for an inline fan. Models: 75 mm 45° adapter, 100 mm version, magnetic exhaust system, budget PC-fan build.

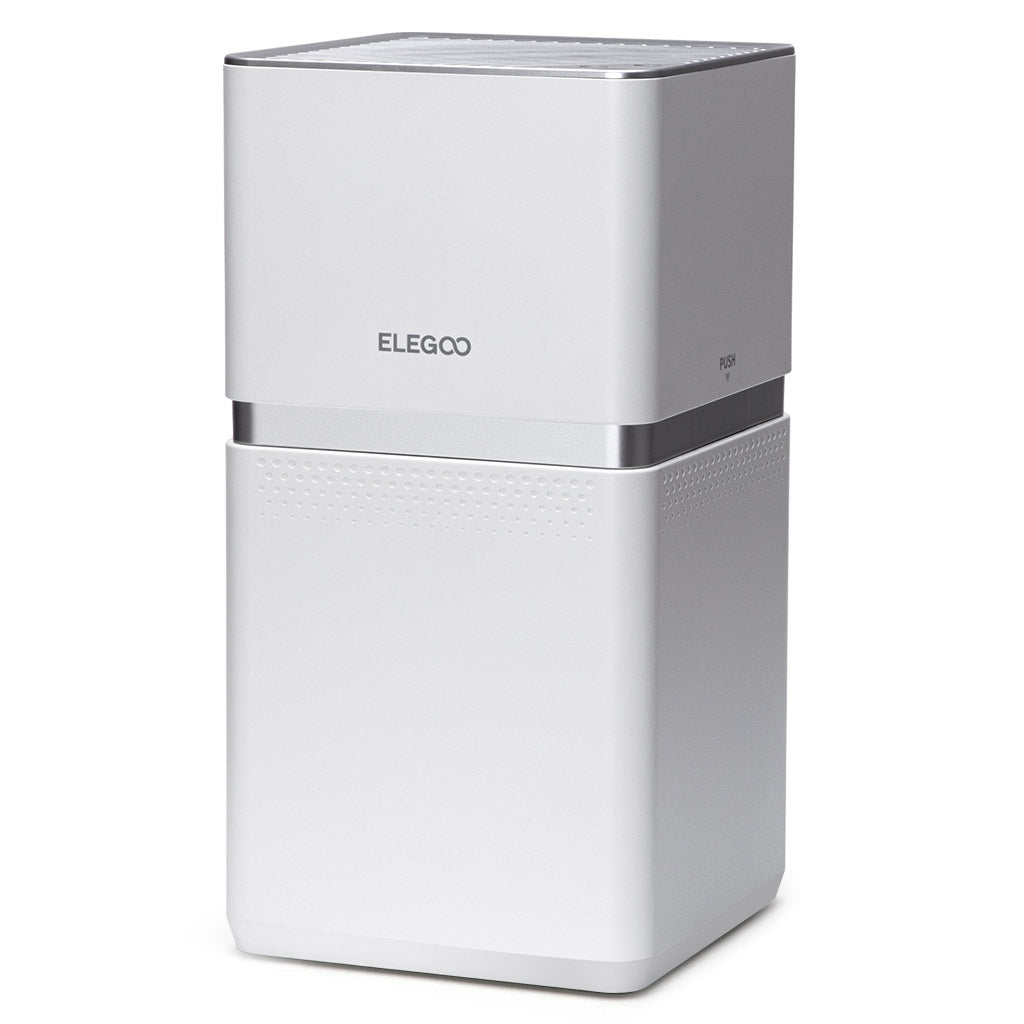

18. Mars Mate: the only purifier this machine can talk to

Elegoo sells compact USB purifiers that hang inside the chamber and draw power from the printer. They won't connect to the 16K: the official spec table says exactly that under Air Purifier — USB unavailable, compatible with Mars Mate. Mars Mate is a separate floor-standing box with a carbon filter that runs off its own outlet. An owner who put one inside a sealed cabinet says he can open it now and smell nothing at all.

• The only Elegoo purifier the documentation lists as 16K-compatible
• Noticeably cuts smell inside an enclosed cabinet or tent
• The carbon filter is a consumable and gets replaced separately
• It does not replace ducting: a purifier recirculates air, it doesn't push it outside

Difficulty: easy. Cost: $85.28. Sensible order of operations: duct outside first, purifier second — it mops up what the duct didn't take and works on smell, not instead of extraction.

Panel and exposure: where the 16K stops behaving like a 12K

19. The screen protector is already installed — the question is what to replace it with

Half of new owners buy a second screen protector without realising the first one is already on the panel from the factory — owners and Elegoo's own support both confirm it. The question arrives later, when the protection needs replacing and Elegoo doesn't sell it separately. Community practice: buy a generic 10.1-inch part and replace like with like — tempered glass for tempered glass, film for film. The black border gets rebuilt with Kapton tape, and here the 16K has its own wrinkle: skip ordinary electrical tape, because it goes gooey above 40 °C — and on this machine the vat heats by design.

• Border thickness doesn't matter mechanically: it sits outside the area the plate presses into
• Factory protection can be carefully transferred off a dead panel onto a new one — a trick from older Saturn owners
• Owners of older Saturns reckon running without protection is safe as long as the panel itself isn't cracked: leaks start at a punctured release film
• The official way to lift cured resin off the panel is an alcohol-soaked swab, five minutes to soften, then a scraper — and it only applies to panels with tempered glass

Difficulty: easy but fiddly — owners do sometimes damage the panel while peeling the old protection off. Cost: $6–16 for a generic, $7.32 for the branded Saturn 3/4 film. The official cleaning procedure is in the Elegoo wiki.

20. Turn the UV power down on bottom layers only

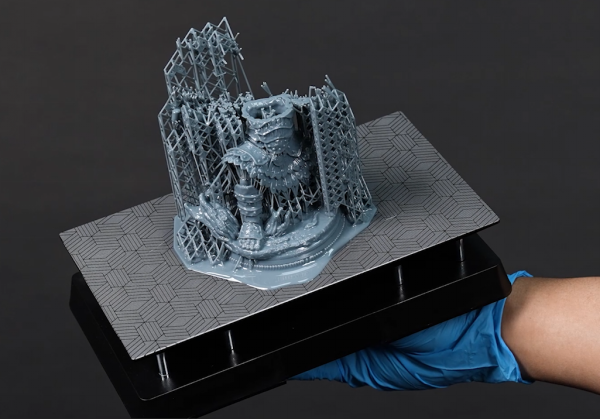

The classic 16K complaint sounds like a humblebrag: prints stick too well. The raft bonds to the plate so hard that instead of popping off in one piece it shatters into chunks. One 16K owner fixed it with brightness rather than exposure: he dropped the UV power on bottom layers only to 65 %, with 30 seconds of exposure and 30 seconds of wait before print. Prints started releasing normally and print time barely moved. He calls out the second effect separately — lower brightness on bottom layers extends panel life, and normal layers need no change at all.

This isn't one person's quirk. Another thread on excessive adhesion recommends dropping light output to 75–80 % and recalibrating exposure. An owner debugging a blurry validation matrix recalled a video arguing the 16K's UV output is simply too high and suggesting 75 %. And a reviewer who spends his time helping people tune these machines puts it harder: the 16K's UV overexposes, and holding dimensions is trickier than on the 12K. In the stock profile both brightness values sit maxed out — bottom and normal are both set to 255.

• Prints come off whole instead of chipping away in pieces
• A $91 panel wears more slowly — bottom layers are where it shines longest
• Normal layers stay at full brightness, so detail doesn't suffer
• The same owner prints on 5 mm supports rather than directly on the plate, because of layer compression on the sprung plate
• After changing brightness you have to recalibrate exposure — old profiles no longer match

Difficulty: advanced — you're changing a parameter that affects every dimension on the print. Cost: nothing. Order of operations: drop bottom-layer brightness to 65–80 %, rerun a calibration test, and only then print anything you care about. Why this matters on the 16K and not the 12K: the pixel got smaller while the light output is still sized for a bigger one.

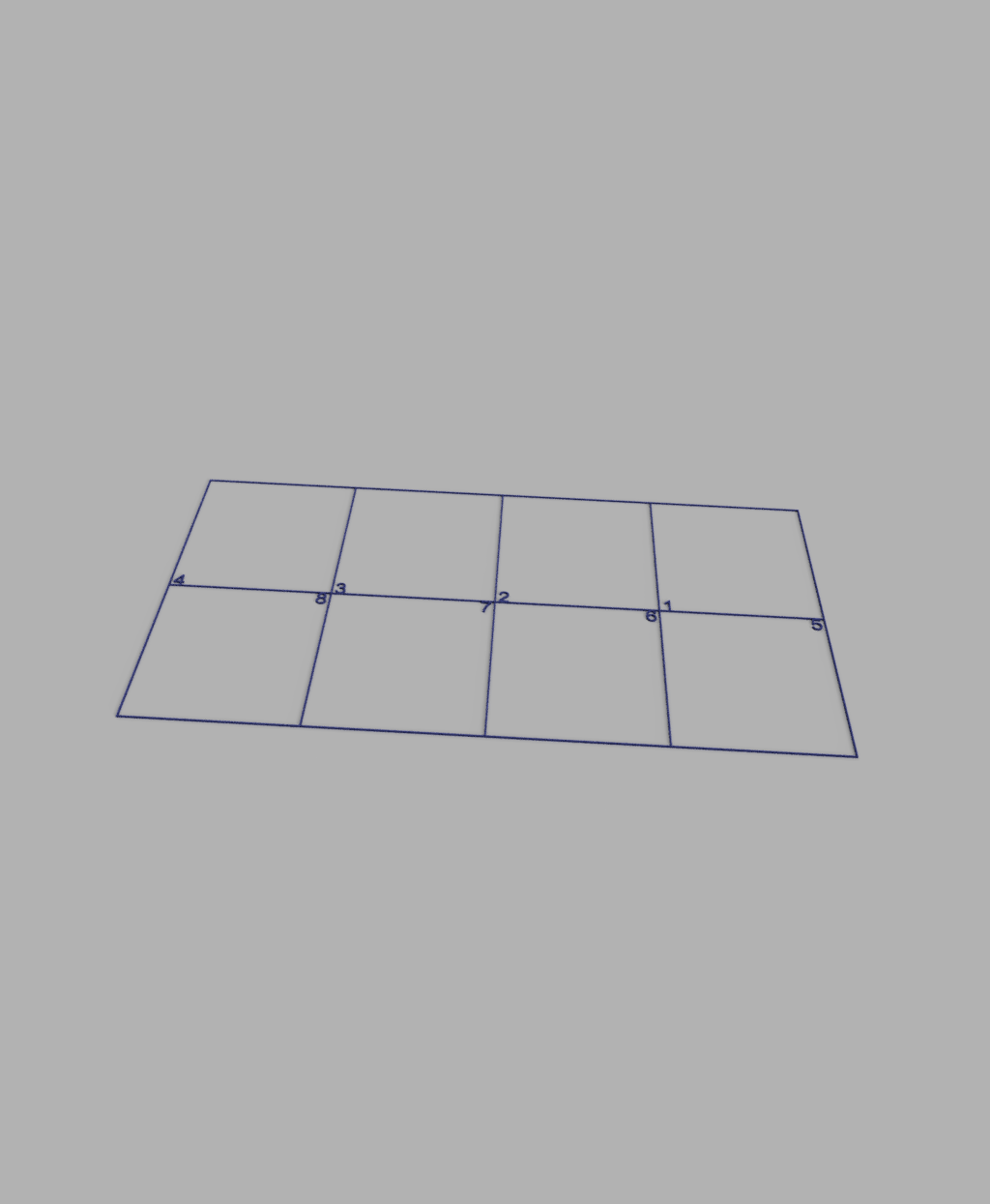

21. The section-based exposure test: a positioning grid and zero transition layers

The 16K's exposure test is section-based: the plate splits into 4, 6 or 8 zones and each prints at its own exposure. The catch is that test objects must not cross zone boundaries — otherwise a single part gets two different exposures and the result is unreadable. Someone printed a helper grid for this: an outer frame that traces the plate, with inner dividers marking the boundaries. Important warning from the author: delete the grid from the scene before slicing, or the exposure series won't run.

The other half of the problem is transition layers. The riddle of the blurry validation matrix turned out to be arithmetic: the validation matrix itself starts at 0.20 mm of height, so at a 0.03 mm layer it begins around layer seven. If your profile has ten transition layers, the entire matrix prints inside the overexposed ramp and no section looks different from any other. The working recipe from that thread: zero transition layers and four to five bottom layers, so they end below where the matrix starts. A concrete profile posted there for the 16K with Anycubic ABS-like Pro 2: 0.04 mm layers, 15 s bottom exposure, 1.9 s normal, brightness 225.

• The positioning grid removes the main cause of unreadable tests
• Zero transition layers and 4–5 bottom layers are mandatory for flat validation matrices
• Recalibrate on every resin change: one owner's exposure moved from 2.1 s to 1.6 s purely by switching brand
• The usual alternative to the built-in test is Cones of Calibration v3, which doesn't ask you to eyeball anything

Difficulty: moderate. Cost: nothing plus a few millilitres of resin. Grid model: Positioning aid for exposure test; the test itself: Cones of Calibration v3.

22. Rest times instead of exposure: per-layer Wait Before Cure via UVtools

Elephant's foot and fat bottom layers on auto-leveling machines aren't an exposure problem, they're a time problem. A Saturn owner mapped out the mechanics: as the vat returns to level it squeezes resin under the plate, the plate springs compress, and the liquid needs time to escape that thin gap. Until it does, the layer comes out thicker than you asked for no matter what you do to exposure. The classic measurement of this effect gives the scale: viscous resin can resist with up to 200 N, and the printer's frame flexes under it.

The same source gives a working recipe: about 40 seconds of rest for the first 0.5 mm of the print, ten bottom layers at 10 seconds, then drop the rest time. 16K owners confirm it in practice — generous wait before cure on bottom layers lets even the thickest resins print. The snag is the slicer: ChiTuBox applies one rest value to the entire print, which is why people edit it per layer in UVtools after slicing. Numbers from the excessive-adhesion thread: 20 seconds usually does it, but that poster runs 40.

• Rest time removes the cause rather than the symptom: layers print at the thickness you set
• Viscous resins stop ripping off supports in the first few millimetres
• Per-layer edits in UVtools work around ChiTuBox's single global rest value
• UVtools is actively maintained: release 6.2.0 landed on 6 August 2026
• 16K owners with consistently good results describe the same habit — every file goes through UVtools before printing

Difficulty: advanced. Cost: nothing, UVtools is free. One caution: after editing a sliced file, page through the layer preview instead of sending it blind. Project: UVtools on GitHub; the physics writeup: Honza Mrázek on resin viscosity.

23. Anti-aliasing is crippled on the 16K: what to use instead

The familiar combo of "switch on anti-aliasing, print at 0.05 mm" performs worse here than on a 12K. A reviewer who helps the community tune these printers explains why: anti-aliasing does work on the 16K, but it's cut down to a 3-bit grey scale. Hence his counterintuitive conclusion — a 12K with AA on resolves more detail than a 16K with it off. Owners' practical answer isn't anti-aliasing, it's layer height: they print 0.03 mm and finer, and at the right orientation you need a magnifier to find layer lines.

• A 0.03 mm layer instead of anti-aliasing is the working substitute for miniatures you'll paint
• If the model ships as an STL with supports baked in, don't enable AA — it'll smooth the supports too
• In a slicer format where supports stay separable, AA can be applied selectively
• Plenty of owners never enable it and notice nothing — keep the gap between "painting these" and "display piece" in mind

Difficulty: moderate. Cost: nothing, though print time grows noticeably going from 0.05 to 0.03 mm. The discussion with numbers is in the 12K-versus-16K anti-aliasing thread.

24. Orientation for a non-square pixel and for peel-line length

On the 16K, how you rotate a model matters more than on an ordinary machine, for two separate reasons. First, the pixel isn't square: 14 μm on one axis and 19 μm on the other, because 15120 × 6230 pixels sit across 211.68 × 118.37 mm. On the 12K the ratio is different again, 19 × 24 μm. The direct consequence is that the same surface rotated 90° lands on a grid with a different pitch, so detail isn't isotropic. Second — specific to a tilting vat — peel force scales with the length of the peel line, not with layer area. A rotation that shortens that line does more for film life than shrinking the cross-section does.

• Don't leave flat faces parallel to the axes — on a non-square grid they render differently by direction
• A 30–60° tilt is the baseline recommendation for this machine in published settings roundups
• A short peel line spares the film and lowers the odds of tearing a model off its supports
• From the same source: 0.8 mm support tips at 70 % density and up to 5 s of rest before cure for clean side walls; the lift height from those same tables is ignored by this machine

Difficulty: advanced — this is a habit of thinking about orientation before slicing, not a setting. Cost: nothing. A per-resin settings roundup for this machine is published here. General orientation and finishing technique is in our post-processing guide.

Software, network and automation

25. Fast mode is a touchscreen-only switch

The gap between fast and normal mode is roughly a third of your print time, and there's no switch for it in the slicer at all. A protocol capture on a live machine running firmware V1.5.6 confirmed it: the toggle exists only on the touchscreen, with no network command and no flag in the file. The measurement from that same capture: about 5.5 seconds per layer in fast mode against roughly 8 seconds in normal. The UVtools profile bakes in the same figures as tilt timings — 5 seconds fast, 8 slow, 10 for high-viscosity resins.

• Check the mode on the printer's screen before starting, not in the slicer
• Lift height, lift speed and retract speed from the file are ignored by firmware — the tilting vat handles release itself
• Which means you literally cannot "tune lift speed" on this machine: rest times and exposure are your levers
• For thick resins, leaving normal mode on makes sense — 2.5 extra seconds per layer is cheaper than one failed print

Difficulty: moderate — the action is trivial, but knowing which slicer fields do nothing on this machine saves hours. Cost: nothing. Primary source: the protocol capture on a live Saturn 4 Ultra 16K.

26. Printing over the network: SatelLite, ChiTuBox and the real channel limits

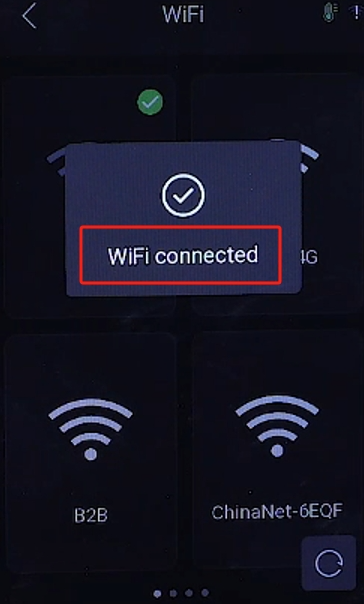

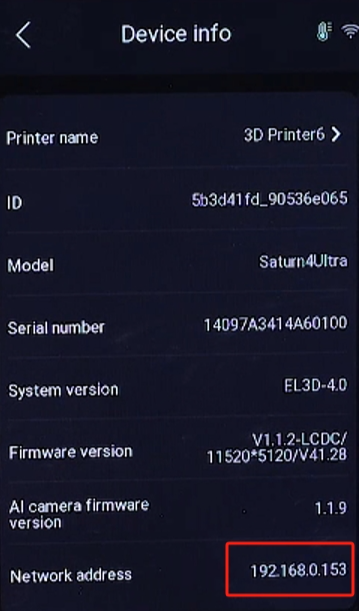

No need to shuttle a USB stick around: the 16K accepts files over the network from both stock slicers. In SatelLite the flow is Device → Add Device, pick the printer, slice, Network Transmission → Confirm, pick the printer, Send Files, then Print. ChiTuBox does the same through ChituManager: add the printer by the network address from Device info, slice, Network Sending, wait for the transfer, Print. A small 16K perk — the Wi-Fi module is built in, so there's no antenna to screw on.

Then comes what the manual leaves out. Measured on a live machine: uploads go in 1 MB chunks at roughly 170 KB/s, so a 66 MB file takes about seven minutes. And the trap from the same capture: the file already shows in the printer's list, but the start command comes back busy. You need to wait about 15 seconds after the upload for the printer to leave its file-transferring state. Second rule — enable timelapse BEFORE starting the print, because the firmware won't backfill it.

• No more USB stick, and no more "printer doesn't see the drive"
• Send big files ahead of time: 66 MB means a seven-minute wait
• A 15-second pause between upload and start clears most busy rejections
• Timelapse goes on before you hit Print, or there's no video
• The same printer pairs with the Elegoo Matrix app — the phone version of the same thing

Difficulty: easy. Cost: nothing. Official guides: printing over LAN from SatelLite and ChiTuBox and remote printing through ChituManager. For remote control of printers generally, see our roundup of remote access options.

27. The camera: a two-stream cap and a counter that never resets

One day the live feed simply stops opening, and no amount of restarting the app helps. A protocol capture on a live machine running firmware V1.5.6 explains the mechanism: the printer counts open camera sessions, capped at two. A client that shuts down cleanly sends an RTSP TEARDOWN and the counter drops. A client that gets killed hard never closes its session — the counter climbs and never comes back. In the author's observation it went 3, 4, 5 over a few days of process restarts. Software can't fix it: the disable command is refused exactly like the enable command. Only a power cycle clears it.

• Stop the client with a graceful signal instead of killing the process
• Don't let your process supervisor kill the client before it can tear the stream down
• Don't connect during the first few layers: while the printer sets up per-layer capture, the stream wedges — wait until layer three
• One reviewer hit hangs with timelapse and a live feed running at once, and Elegoo shipped him a fixed firmware
• If the feed already refuses to open, pull the plug — there's no other way to reset the counter

Difficulty: expert — this is about how you wire the printer into your own monitoring stack. Cost: nothing. Full writeup with measurements: the video-stream counter leak note.

28. Home Assistant over SDCP and the local proxy

The printer lives in its own app, and you'd rather see it next to the rest of your smart home and get progress notifications there. The Elegoo Printers integration for Home Assistant does exactly that: installs through HACS, supports both resin and FDM machines, and exposes status, the current print's thumbnail, the camera and print control. The key detail for networked Elegoo machines is the built-in local proxy — these printers cap simultaneous connections and the video stream eats one on its own, so the proxy routes every command and the stream through a single connection. A ready-made automation blueprint for notifications ships with it.

• The printer shows up in your smart home dashboard with status, camera and progress
• The local proxy works around the connection cap
• Print-finished notifications land wherever the rest of your home notifications do
• The project is alive: the latest commits in the repo date to 30 July 2026
• Spec versus reality: on resin firmware some commands return nothing at all rather than an error, which trips up clients written strictly to the documentation

Difficulty: expert — you need a working Home Assistant and to know what you're doing on your network. Cost: nothing. Project: Elegoo Printers for Home Assistant; protocol spec: SDCP V3. For self-hosted print servers in general, see our overview of self-hosted options.

29. A flex plate: why it's harder here than on a Mars

Chiselling prints off a steel plate gets old fast, and a flex plate is the obvious answer. On the Saturn 4 Ultra it's harder than on a Mars because of auto leveling. The answer 16K owners give each other: a flex plate needs a gcode edit, or the system reads it as foreign matter in the vat or crushes the panel with the extra thickness. The screen protector, by contrast, doesn't affect leveling — it's factory-fitted and already accounted for. The other route is a plate that replaces the stock one entirely and carries the correct thickness itself: one 16K owner fitted one and started a print with no washers and no edits, only discovering by trial that the top half seats one specific way or it won't latch.

• Prints pop off by flexing a sheet instead of chiselling, and they don't shatter
• Some factory plates arrive concave, so replacing solves two problems at once
• Recalibrate height and run a test print afterwards — one owner's first rook test print failed, and after resin calibration he had no failures at all
• Pick a version with positive retention rather than a glued-on magnetic sheet: some owners reported flex plates shifting as the vat tilts
• Wham Bam lists no plate for the Saturn 4 Ultra 16K, so owners either buy a kit that replaces the whole plate or source a sheet in the right size elsewhere

Difficulty: advanced, with a real risk of crushing the panel if the height is wrong. Cost: roughly $30–40 for a kit. Mandatory sequence: fit it, recalibrate height, print a small test object, and only then commit a full plate.

30. Trim the build plate to fit the Mercury XS washer

Being able to drop the whole plate into the washer with the prints still on it is a feature owners rate highly. The problem is that in the Mercury XS bundle the 16K plate doesn't fit the bucket — its plastic resin shield catches on the sides. The mod comes down to removing roughly 6 mm of thickness from both sides of that shield. The author verified it doesn't affect auto leveling: the shield is purely mechanical, with no sensors or electronics in or near it. A printed 225 × 134 mm jig sets the cut line and fits most desktop FDM printers.

• Prints and plate wash in one cycle instead of two passes
• Fewer trips across the bench with a wet plate means fewer drips on the floor

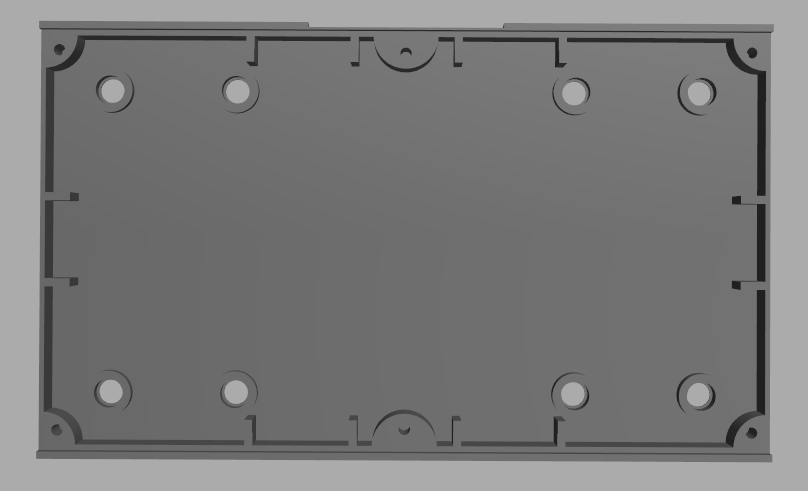

• The jig keeps the cut straight, so the result looks factory rather than hacksawed
• The flip side: some owners refuse to submerge an auto-leveling plate at all, to keep isopropyl out of its mechanics

Difficulty: moderate, and irreversible — you can't put the material back. Cost: nothing. Jig model: Saturn 4 Ultra Build Plate Mod. How to wash and cure prints properly is covered in our washing and curing guide — the procedure is the same on any resin machine.

31. Clearing onboard storage when the file list starts getting in the way

The local file list piles up over months until finding the right one takes longer than reslicing. There are two official ways. First: Print → Local file, long-press a filename, Select All, Delete. Second, the blunt one: Settings → App Settings → Format the files → Local Formatting; the printer reboots and wipes onboard storage. Worth knowing first: you cannot download a file off the printer over the network — the protocol only supports uploads. The single exception is the timelapse video, which is fetched over a plain link.

• You find the file you want in seconds instead of paging through dozens of screens
• Formatting also clears up the hangs that show up when picking files on full storage
• Confirm your sliced files still live on the computer first — you can't pull them back
• Another protocol quirk: deleting a nonexistent path returns success, so the printer's reply proves nothing about the file existing

Difficulty: easy. Cost: nothing. Official guide: clearing onboard memory files. Where to find models worth keeping is in our roundup of 3D model repositories.

32. What not to do: bolting an external mini heater onto a 16K

The "grab the Elegoo mini heater too" advice migrates from 12K reviews into 16K articles where it's redundant. The mini heater is a fix for machines without a heated vat: it has its own installation guide for the Saturn 4 Ultra and Saturn 3 Ultra. A 12K owner also describes its built-in flaw: it mounts on the rear wall, so if an air purifier already hangs there you can't fit both and end up resting the heater inside the chamber. First-hand comparison from that same owner: he routes the external heater's cable through the lid and says he'd rather have the vat itself heated. On the 16K, it is.

• An external heater warms chamber air, while the 16K heats the vat directly — the problem is already solved
• The built-in heater tops out at 30 °C; in a freezing room that's not enough, but the answer is the environment, not a second heater
• The machine has 144 W total, and the firmware already alternates the vat heater with the UV array
• That rear-wall real estate is better spent on ducting, which handles smell and part of the heat question at once

Difficulty: not applicable — this is a mod worth skipping. If you genuinely need higher ambient temperature, the tent, cabinet or thermal enclosure from item 16 is the answer, not a second heater inside the chamber.

What doesn't carry over from the 12K

Where to start

1. Water-test the vat and retighten its screws — five minutes before resin ever goes in. The one mod that can save a $91 panel on day one.
2. Drip bracket and handles — your first hour on an FDM printer, if you have one. Returns resin to the vat and removes half the mess from your bench.
3. Enable Tank heating and Resin preheating — the reason you bought a 16K instead of a 12K. Leave it off and you paid for a disabled feature.
4. Duct the 75 mm port with an inline fan — before the first long print, not after. A printed 45° adapter means you never disconnect it to open the hood.
5. Calibrate exposure using the positioning grid, with zero transition layers and four to five bottom layers. Skip this and everything downstream is tuning noise.
6. Drop bottom-layer brightness to 65–80 % and recalibrate exposure. Fixes rafts welded to the plate and extends panel life.
7. Per-layer wait before cure via UVtools — once you hit fat bottom layers and elephant's foot that exposure won't fix.
8. The Hoopat X4H quick-release vat — when you're tired of the stock clamp frame. Not before: until your first film change you won't know what you're paying for.
9. Network, camera and smart home — last, once everything else prints reliably.

On maintenance: a resin machine's routine is shorter than an FDM printer's, but skipping it costs more. Clean the vat after every failure, check the film for dents every few prints, wipe the plate after each removal, and keep an eye on the peel-cycle counter in diagnostics — that's enough to avoid replacing the panel early. The general approach to keeping a home printer alive is in our maintenance guide, and if something has already gone wrong, see the Saturn 4 Ultra 16K known issues writeup and the general resin defect troubleshooting guide. New to resin? Start with the beginner's guide to resin printing.

Sources

• Official Saturn 4 Ultra 16K product page — the full spec comparison against the 12K
• Elegoo Wiki: resin preheating function — menu path, 30 °C, 24-hour hold
• Elegoo Wiki: printing in cold weather — 25–35 °C, water bath, profile edits
• Elegoo Wiki: replacing the release film kit
• Elegoo Wiki: printing over LAN from SatelLite and ChiTuBox
• SDCP V3 capture on a live Saturn 4 Ultra 16K — channel speed, camera stream cap, fast mode
• UVtools — sliced-file editing and per-layer rest times
• Elegoo Printers for Home Assistant — integration with a local proxy
• Chitu Systems Hoopat — compatibility table and pricing for the X4 and X4H
• Drip Arm for the 16K plate and the 16K vat protector on Printables
• 45° vent adapters and the exposure test positioning grid
• r/ElegooSaturn: first weeks with a 16K — the MIN line, Tank Clean, leaking vats
• r/ElegooSaturn: what to expect from a new machine — vat screws, film frame, viscous resins
• r/ElegooSaturn: prints won't come off the plate — 65 % brightness on bottom layers
• r/resinprinting: validation matrix on the 16K — transition layers and profile settings
• Honza Mrázek on resin viscosity — 200 N of resistance and 40 seconds of rest
• iXBT review of the Saturn 4 Ultra 16K — measured draw of the vat heater and UV array
• Print settings for the Saturn 4 Ultra 16K — exposure tables by resin brand
• FauxHammer: Saturn 4 Ultra 16K video review and OleBrogger: Saturn 4 Ultra leveling guide
