23 QIDI Q1 Pro Mods: Firmware, Bed Probe and the MCU Heat Fix

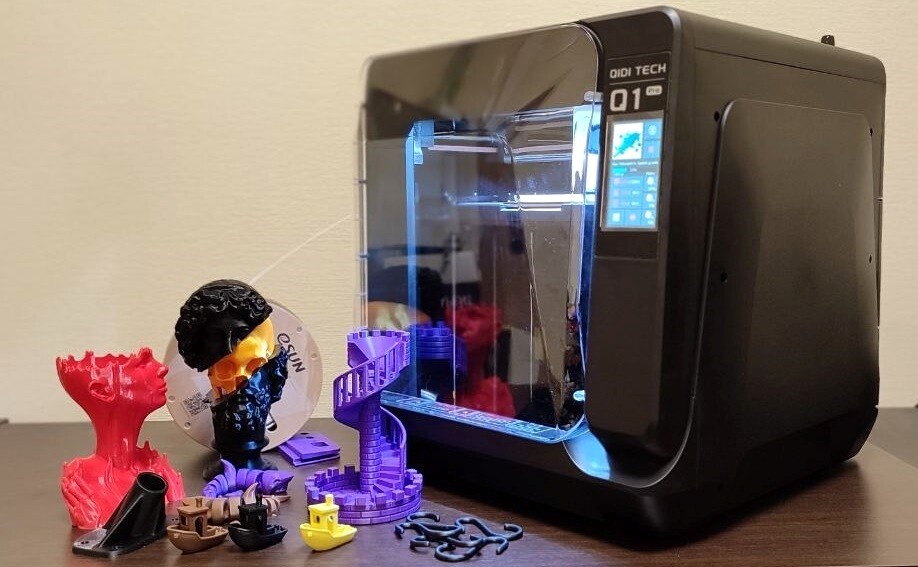

The QIDI Q1 Pro is an enclosed CoreXY printer with a 245×245×240 mm build volume, a 350 °C hotend, a 120 °C bed and an actively heated chamber that hits 60 °C. It launched in 2024 running Klipper. That combination is rare: a 300 W chamber heater in an entry-priced machine. The catch is a forked Klipper build that stopped getting updates, an inductive probe that drifts when things get hot, and electronics that cook in the printer's own chamber heat. Below are 23 mods people actually run, from five lines in printer.cfg to swapping the firmware and the bed probe.

One thing to know as of August 2026: the Q1 Pro is discontinued. QIDI's own product page says the model is no longer in production and points to the QIDI Q2 as its direct replacement — same 600 mm/s toolhead speed and CoreXY motion, but a 65 °C chamber instead of 60, a 370 °C hotend instead of 350, and a 270×270×256 mm build volume. QIDI's store now lists it at $499 down from $599 and marks it sold out, but states that spare parts and support for existing owners stay available. Two takeaways: buy the critical consumables now, and don't feel weird about investing in mods — this machine has years left in it. Still shopping? See our Q1 Pro vs Q2 comparison and the Q1 Pro review.

This article is about improvements. What breaks and misbehaves out of the box is covered separately in QIDI Q1 Pro known issues — heat creep, probe failures, hotend play, error codes. If your machine is acting up, start there and come back here once stock behaves predictably.

1. Put board, MCU and driver temperatures on the dashboard

Cheapest mod on the list and arguably the most useful. The stock UI shows you exactly zero electronics temperatures, and MCU overheating is precisely what causes those random reboots during long heated-chamber prints. 3DWork put a number on it: past 85 °C the machine starts falling over. Until you can see that number, you'll blame the firmware, the filament and the weather instead.

The fix is adding temperature_sensor sections to printer.cfg over SSH — one for the host, one for the mainboard MCU, one for the toolhead MCU. You can throw in the X and Y TMC driver temperatures while you're there. Ready-made config snippets live in the Q1 Pro community wiki and in the Russian teardown on K3D.

• You see the MCU creeping toward 85 °C and can drop chamber temp before the print dies
• Owners on r/QidiTech3D report the MCU sitting around 62 °C with the stock fan at a 60 °C chamber
• You also get motor temps: X and Y run 90–108 °C on long jobs against a 140–150 °C rating
• It gives you a real baseline to judge whether mod #11's heatsinks and extra airflow actually did anything

Difficulty: medium — you need SSH and a feel for Klipper config structure. Cost: nothing. Compatibility: any firmware, stock included. Do this one first.

2. Speed up print start: adaptive meshing instead of a full probe

Stock Q1 Pro maps the whole bed before every single print. Owners on the 3DToday forum put it bluntly: ten minutes of prep for twenty minutes of printing. On small parts that's half your machine time burned, plus needless wear on the leveling probe and the wiper felt.

Rewrite PRINT_START: run the full mesh on a schedule (weekly, or after you reseat the plate) and build an adaptive mesh covering only the model footprint before normal prints. Purge as a line next to the part instead of sending the head to a far corner. Ready macros live in q1pro-mods and inside the third-party firmware builds from mods #4 and #5. If your first layer gets fussy afterward, the bed is almost always the culprit, not the macro — see our first layer guide.

• Pre-print prep drops from about 10 minutes to one or two
• Fewer cycles on the leveling probe and the nozzle wiper felt
• Adaptive meshing is more accurate for small parts — points land where you're actually printing
• You keep the full mesh, it just stops running on every single job

Difficulty: medium — macro editing and knowing what each start line does. Cost: nothing. Heads up: q1pro-mods hasn't been touched since August 2024, so port config sections by hand and diff them against your firmware version rather than dropping the files in wholesale.

3. Re-tune Input Shaper and Pressure Advance, add OrcaSlicer profiles

The Q1 Pro does have automatic resonance calibration, but 3DWork rated the result "improvable": after manually tensioning the belts and re-running it, things got noticeably cleaner, though Y-axis vibration never fully went away. Separate annoyance — the stock profile set has no PETG, TPU or ASA at all, on a printer marketed for engineering materials.

Order matters: mechanics first (mods #16 and #17), then Input Shaper, then Pressure Advance via a tower. OrcaSlicer profiles for the Q1 Pro are on the official QIDI wiki, with discussion and fixes in issue #97 of the official repo. For the slicer side see our OrcaSlicer guide, and if ripples survive calibration, read up on ghosting and layer shifts.

• Kills the ghosting on vertical faces that survives the factory auto-calibration
• Stock Pressure Advance runs high and leaves gaps at corners — a tower fixes that
• You end up with working PETG, TPU and ASA profiles that simply don't ship with the printer
• Real-world flow on this machine is 10–15 mm³/s, not the advertised 30–35, and your profile should respect that

Difficulty: medium — a couple of test prints and some patience. Cost: nothing. Compatibility: any firmware. And a small reality check: that 600 mm/s in the spec sheet is toolhead travel speed. Actual printing on a Q1 Pro happens at 200–300 mm/s.

4. OpenQ1: a modern Linux and the full Klipper toolset

Here's where it gets good. Stock Q1 Pro firmware is a Klipper fork on a locked-down system, and it's frozen: the last commit to the official QIDI repo is dated 23 September 2024, and V4.4.24 is still the current release. There's no supported way to downgrade, and updates replace your configs and force a recalibration. Free space for your own additions is around 500 MB.

OpenQ1 swaps all that for Debian Bookworm on kernel 6.6 LTS with a proper stack: Klipper, Moonraker, Fluidd, Crowsnest, moonraker-timelapse, Shake&Tune and QIDI Auto Z Offset, plus reworked Q1 Pro configs and macros. 142 stars and 22 forks on GitHub.

• Current Klipper and Moonraker instead of a two-year-old fork
• Shake&Tune for honest resonance diagnostics instead of press-and-pray
• Working timelapse and Crowsnest instead of the stock low-framerate camera with no settings
• Opens the door to the scanning bed probes in mods #9 and #10

Difficulty: high — the image goes onto the eMMC, so you need an adapter. Cost: firmware is free, adapter runs a few dollars. Honest downsides: the stock touchscreen isn't supported, power-loss recovery is gone (the author considers the stock implementation hacky at best), and he states outright that the project is still in testing. On maintenance status: the code hasn't been updated since 21 April 2025, though the author still answers issues as recently as July 2026. Treat it as maintained, not actively developed.

5. FreeDi: mainline Klipper with the stock touchscreen still alive

If you do one serious thing from this whole article, do this. FreeDi has 480 stars and fresh commits (latest 14 June 2026). It installs Armbian plus official, unmodified mainline Klipper, with its own touchscreen firmware layered on top. So you get Klipper 0.13.0+, Moonraker 0.9.3+ and Mainsail 2.14+, and you can still drive the printer from the panel like before. Supported models are the X-Max 3, X-Plus 3, X-Smart 3, Plus 4 and Q1 Pro.

On the Q1 Pro the install is easier than it sounds: you need a plain USB breakout cable (USB, not a UART converter) and a zip tie. Pull the four screws on the toolhead's back cover, find the serial pins on the right side of the board and hook up black to GND, green to D+, white to D− and leave the red 5 V wire disconnected. Some cables use a different color code, in which case green and white swap. Zip-tie the wires down gently and let the FreeDi wizard do the rest. Once it's done, you never need the breakout cable again.

• Unmodified mainline Klipper means Cartographer, Beacon, Shake&Tune and Spoolman all work
• Roughly 2.6 GB of free space versus about 500 MB on stock
• The stock touchscreen keeps working — the big difference from OpenQ1
• Updates arrive over the air instead of a full eMMC reflash

Difficulty: high but not expert — no soldering. Cost: free firmware, pocket change for the cable and zip tie. Risks: the author calls FreeDi a hobby project to be used at your own risk and warns it may void your warranty. The rollback path is documented separately and goes through QIDI's recovery image plus the official .tft screen file — read that page before you start, not after.

6. Q1Libre: refresh the software stack straight from a USB stick

Both OpenQ1 and FreeDi mean opening the machine. Q1Libre tries the same thing the easy way: patches install from an ordinary USB stick, no eMMC adapter and no pin breakout cable, stock look and behavior preserved, simple rollback. It updates Fluidd, Klipper and Moonraker, and the author's announcement on r/QidiTech3D states the motive plainly: the stock firmware shipped, in his words, about a year and a half ago.

The repo was created on 24 March 2026 with its most recent commit on 16 July 2026. It's alive but tiny — three stars at the time of writing. The author is upfront that it's a personal project with no promises of support.

• No eMMC adapter and no cracking open the electronics bay
• Current Fluidd, Klipper and Moonraker without losing the familiar interface
• Rollback to stock is advertised as straightforward
• Fastest way off firmware that hasn't been updated in two years

Difficulty: lower than its neighbors here, still not beginner territory. Cost: nothing. Reality: this is the youngest and least battle-tested of the three. Take it if you're happy being an early tester and comfortable fixing your printer with a rollback. Want predictability? Go FreeDi.

7. Get the bed genuinely flat: screws, shims and plate limiters

Mesh compensation hides bed curvature well, but it doesn't remove it. 3DPrint.com's first auto-calibration measured 1.64 mm of deviation front to back; after manual adjustment they got the whole plate inside 0.05 mm. Owners on 3DToday report 0.4–0.5 mm that also shifts as the bed heats. Until that's sorted, every Z-offset tweak is treating a symptom.

The K3D method has two stages. First bring the height spread under 0.2 mm with the adjustment screws, re-running the mesh after each pass. Then slip thin tape under the bed sticker to knock residual curvature below 0.15 mm. Separately, print the official PEI plate limiters — 3DWork note they're easy to place slightly off, and then the plate lands a little differently every time, which hits adhesion directly.

• First layer stops depending on which corner the part sits in
• The mesh goes flat, so you can safely move to adaptive meshing from mod #2
• Limiters give you repeatable plate placement after every part removal
• Less chance of shrinkage lifting a plate corner on high-temp materials

Difficulty: low but tedious — expect several iterations. Cost: tape plus a bit of filament for the limiters. Tip: degrease both sides of the plate, especially after handling the screws. There's a side-by-side on r/QidiTech3D of two identical prints where the only variable was how clean the plate was.

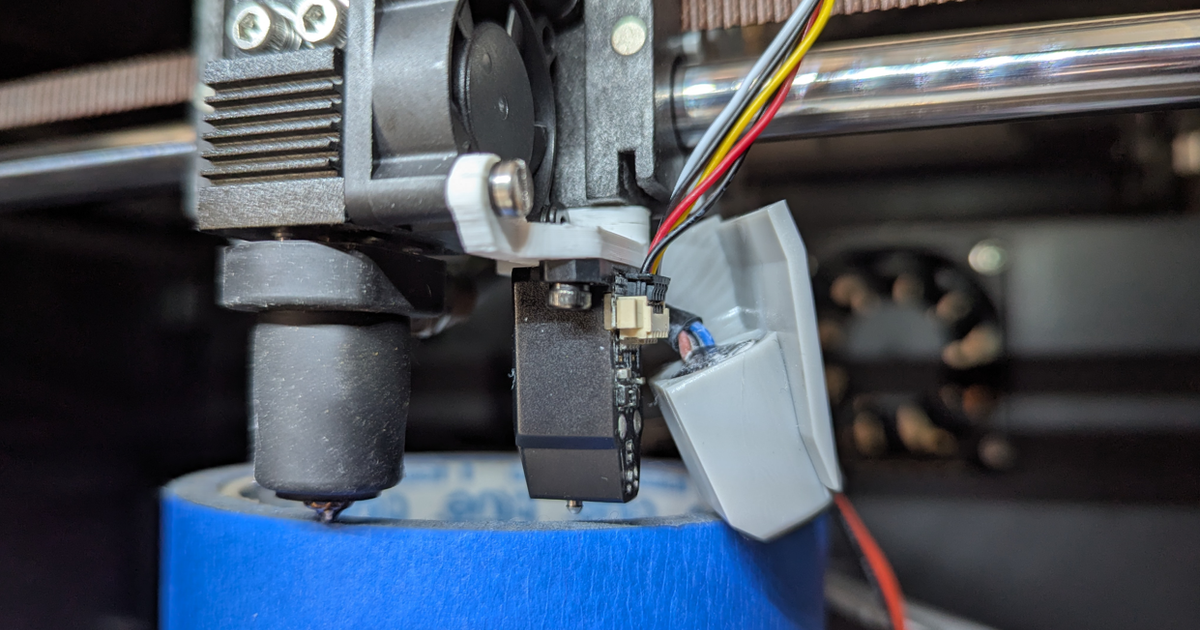

8. BIQU MicroProbe in place of the inductive sensor

The stock inductive probe drifts with heat. The failure pattern is described almost word for word on r/QidiTech3D: PLA is fine, you switch to ASA, and up comes "probe sample exceeds sample_tolerance, retrying" — the probe eventually settles on a value it likes and drives the nozzle into the plate. A mechanical MicroProbe doesn't care about temperature at all.

The mount is on Printables and the full procedure is written up on K3D. Short version: remove the stock wiper assembly and the toolhead cover, mount the probe on its printed bracket, run the wiring (you'll want Ø5×1 magnets and XH2.54 connectors), flash the config, then calibrate Z-offset and max Z. K3D also suggest sticking a heatsink on the MCU while you're in there.

• Reliable auto-leveling on ASA, ABS and nylon where the inductive probe lies
• Shorter pre-print routine
• Cooler electronics — K3D flag this as a side effect of the toolhead rework
• Opens up Volcano nozzle compatibility if you want more flow later

Difficulty: medium — a soldering iron helps but isn't mandatory. Cost: roughly $20–30 for the probe plus bits. What you lose: the stock automatic nozzle wipe — you'll need a separate mount or you go without. If your original probe still works, keep it as a spare: this machine is discontinued.

9. Cartographer V4 or Beacon: a full bed map in a minute

The tier above MicroProbe. An inductive probe touches the bed point by point, slowly; a scanning probe sweeps over the plate and captures the whole map in one pass. An owner on r/QidiTech3D who's fitted Cartographer to several machines summed up the Q1 Pro install in one line: full bed scan in about a minute, easy and clean to install.

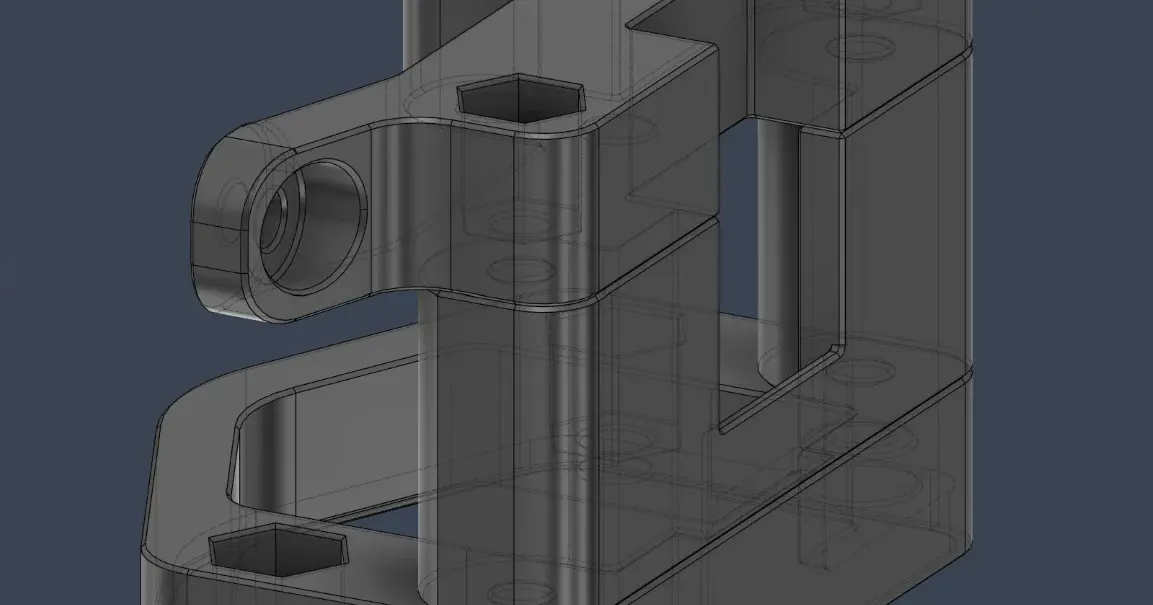

A mount for the Cartographer V4 Standard was published on Printables in November 2025. For Beacon RevH there's a dedicated q1pro_beacon repo with configs, a fan shroud and a mount — the author built it following the Plus4 guide from QIDI's community wiki and openly says the printed parts aren't the best.

• Full bed map in roughly a minute instead of slow point-by-point probing
• Stable Z-offset — the probe doesn't care how hot the plate is
• You can mesh before every print without paying for it in time
• Pairs perfectly with adaptive meshing from mod #2

Difficulty: high. Cost: from roughly $100 for the probe. Prerequisite: mainline Klipper, so do mod #5 or #4 first. Reality: the mount fights the stock nozzle wiper for space — it comes up in every thread and gets solved case by case. Also note q1pro_beacon hasn't been touched since February 2025, so it's a starting point rather than a maintained product.

10. BTT Eddy Duo with eddy-ng: tap instead of point-by-point probing

The budget alternative to Cartographer. An eddy-current probe also scans the bed, and through the third-party eddy-ng driver it can detect the moment the nozzle touches down. The driver is alive and well: 410 stars with commits through May 2026.

The numbers aren't hand-wavy. A Q1 Pro owner posted a tap series: −0.026, −0.033, −0.029, −0.025 and −0.029 mm with a standard deviation of 0.003 mm. Configs for the Q1 Pro on top of OpenQ1 — homing, probing and automatic Z-offset — are collected in the OpenQ1pro branch of straga's repo, with a separate set for eddy-ng.

• Cheaper than Cartographer at comparable mesh speed
• Tap repeatability in the hundredths of a millimeter
• Automatic Z-offset — no more eyeballing it after every plate swap
• Q1 Pro configs already exist, so you're not writing them from scratch

Difficulty: high. Cost: around $60–85. Caveat: eddy-ng itself moves fast while straga's configs were last touched in June 2025 — diff the parameters against the current driver or you'll get a pile of cryptic startup errors.

11. Separate the chamber from the electronics: heatsinks, tape, airflow

This is the core engineering complaint about the Q1 Pro. The chamber heater points straight at the control board's mounting area, and there are sizeable gaps along the sides of the rear inner panel leading into the electronics bay. Result: the MCU pushes past 85 °C and the printer reboots in the middle of a long ABS or ASA job. 3DWork called it random problems and restarts, and fixed it with a combined set of changes.

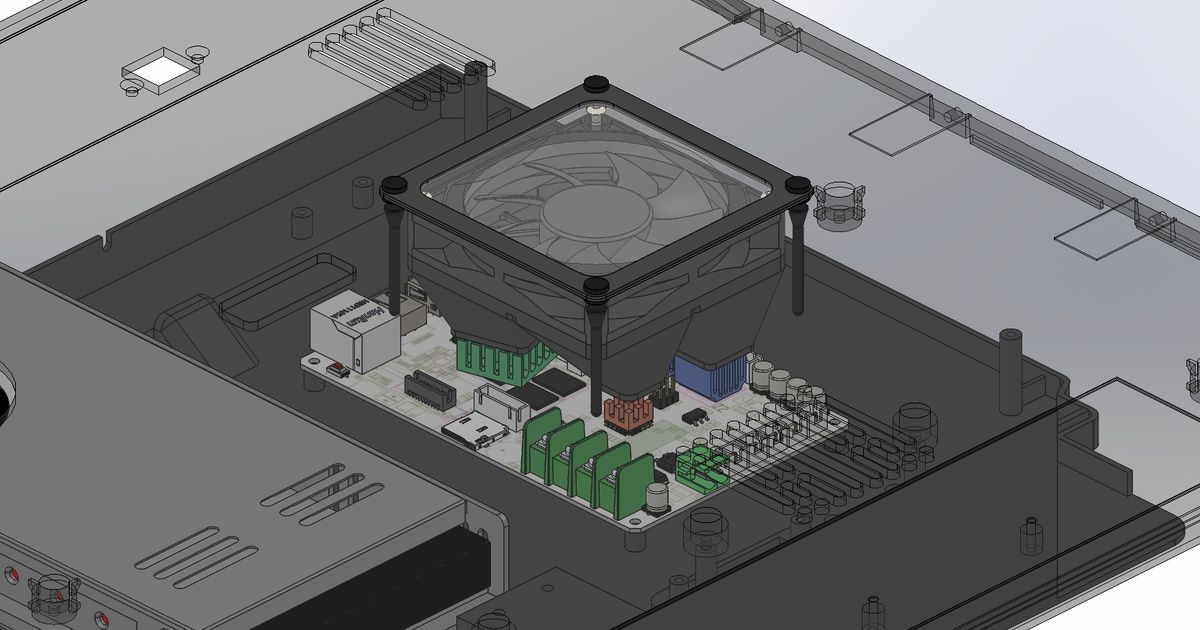

The working set of measures, pulled from three independent sources: high-temp foil tape plus PTFE tape over the board area, the board lifted on nuts and bolts, the circulation fan relocated to the electronics bay cover with a config edit, heatsinks on both the mainboard and toolhead MCUs, and either a 40×10 mm 5 V fan or printed ducts feeding an 80×15 mm fan. The r/QidiTech3D thread author now holds 60 °C in the chamber overnight, and 3DWork report zero faults during 24/7 operation after their changes.

• No more reboots on long heated-chamber prints
• The chamber reaches 60 °C noticeably faster — the heat goes into the chamber, not the electronics
• The MCU stays well clear of the risky 85 °C mark — owners report figures around 62 °C
• Less accelerated wear on drivers and capacitors

Difficulty: high — you're opening the case, editing configs and working next to a mains heater. Cost: $6–18 for tape, heatsinks and a fan. Trick from the thread: set the chamber to 59 °C rather than 60, the firmware struggles to hold the ceiling value. And do mod #1 first, otherwise you have no way to tell whether any of this helped.

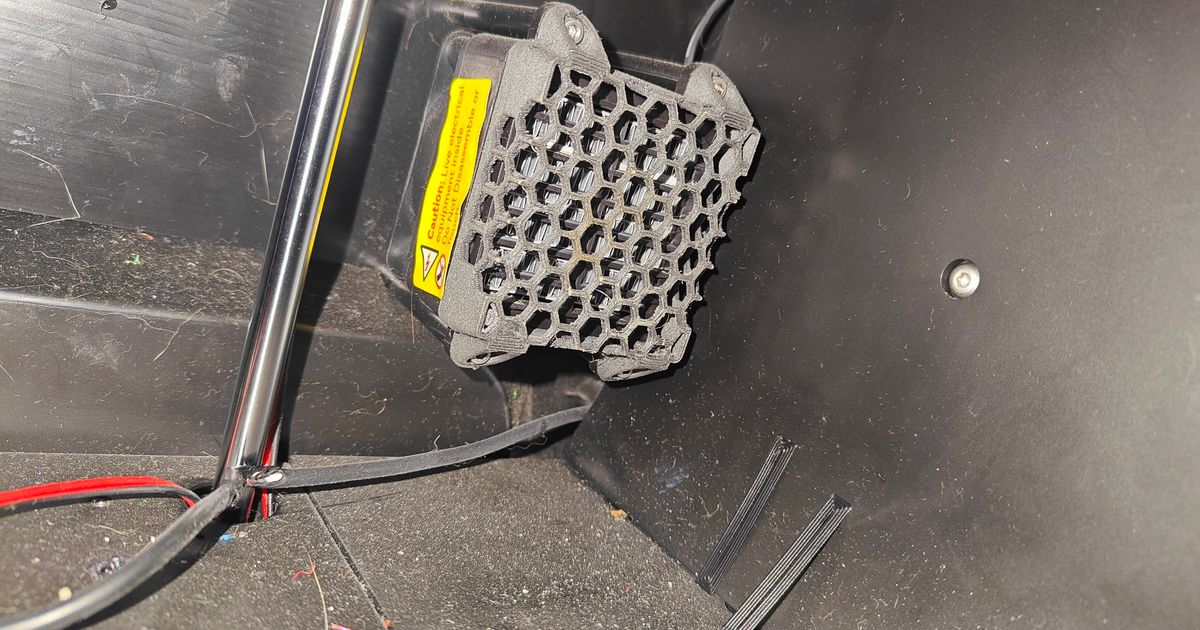

12. Chamber heater cover: shield the exposed mains

Shortest and most important mod here. The Q1 Pro chamber heater runs off mains and the current passes through the radiator — 3DPrintBeginner and 3DWork both flag this as a real hazard, not a theoretical one. Touch that radiator with the printer on and you get a shock. QIDI stuck a warning label on it but never added a physical guard.

So print one. QIDI has an official model in their printable components section with an explicit requirement to use PAHT-CF or something more heat-resistant. The community has its own version calling for PET-CF, nylon or another 120 °C-capable material.

• Physically blocks access to the live radiator
• One part, prints in about an hour
• Especially worth it if kids are around or you reach inside while it's hot
• Both an official and a community version exist — pick by the filament you have

Difficulty: low. Cost: about 50 g of heat-resistant filament. Absolutely do not print this in PLA or PETG. It sits right against the heater and will deform — instead of a guard you get a puddle of plastic on live hardware.

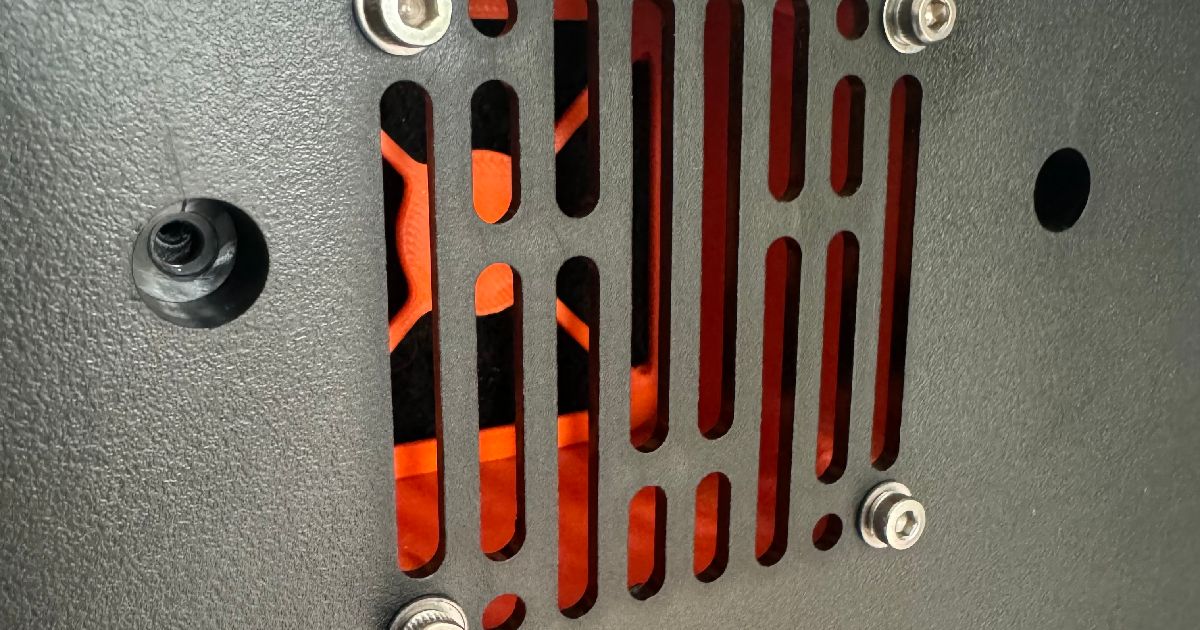

13. Filtration: bigger carbon box, HEPA and venting outside

Stock filtration doesn't keep up with ABS and ASA. But there's a second, less obvious reason to care: part of the hot exhaust finds its way back into the electronics bay. 3DWork link venting the filter outlet outside directly to their board no longer rebooting. So filtration here isn't just about smell, it's about machine stability.

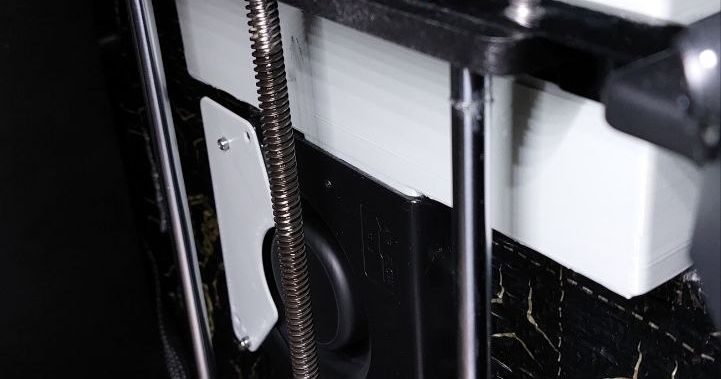

Four escalating steps. First, print QIDI's official activated carbon box from the wiki — there's an internal and an external variant. Second, the reworked box from 3Dwork: closer to the rear cover, more carbon volume, less cross-flow between chamber and electronics. Third, a holder for a 2-in-1 HEPA plus carbon filter that press-fits into two existing holes with no tools. Fourth, an exhaust duct venting out of the room — print that one in ABS, ASA or PC. For the wider picture on what printing actually emits, see our fumes and ventilation guide.

• Kills that distinctive ABS and ASA smell in the room
• Venting outside also solves hot air recirculating into the electronics
• HEPA catches the ultrafine particles carbon doesn't
• Carbon is a consumable — refilling every few months beats buying whole cartridges

Difficulty: low for the boxes, medium for outside venting. Cost: carbon $4–10, HEPA filter around $12. Material: anything sitting in the hot airstream needs to be ABS, ASA or PC.

14. Lid risers: dump the excess heat when running PLA and PETG

An enclosure is a gift for ABS and a nuisance for PLA. Heat builds up, overhangs sag, small parts never get a chance to set. "Can I print PLA with the door closed?" is one of the most-asked questions on r/QidiTech3D, and the honest answer is: you can, but crack it open.

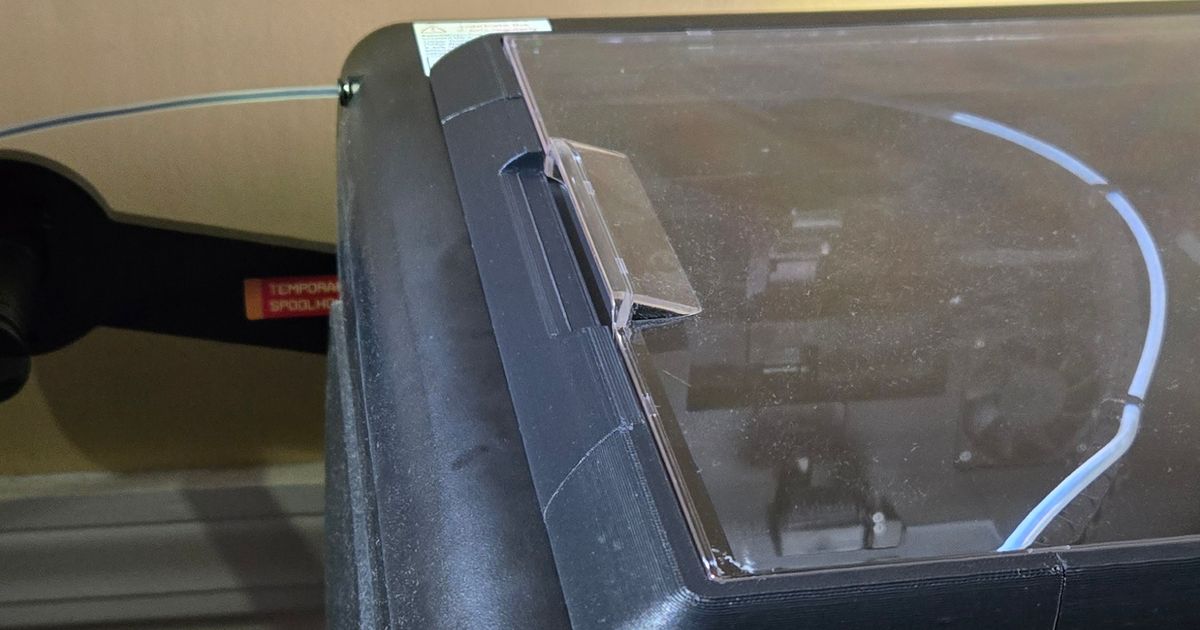

A spacer prints in half an hour. There's a simple one that just props the lid open for PLA, PETG and TPU, and a V2 with reworked corner brackets and finger grips. If warping shows up on ABS afterward, pull the risers off — the details are in our warping guide.

• PLA overhangs stop sagging
• Small parts get time to cool between layers
• Goes on and comes off in seconds, no modification required
• The V2 is compatible with the LED ring from mod #22

Difficulty: low. Cost: about 30 g of filament. Don't forget: take the risers off for ABS, ASA and nylon, or you've thrown away the whole point of an enclosure.

15. Quiet the PSU: run its fan off a thermistor

The Q1 Pro's power supply fan runs flat out permanently, even when the printer is idle. The machine isn't quiet to begin with: 3DPrint.com measured around 60 dB while printing, and the 3Digital review logged roughly 44 dB with the door and lid closed in chamber-heating-only mode, over 50 dB with the door open, and past 60 dB with every fan running.

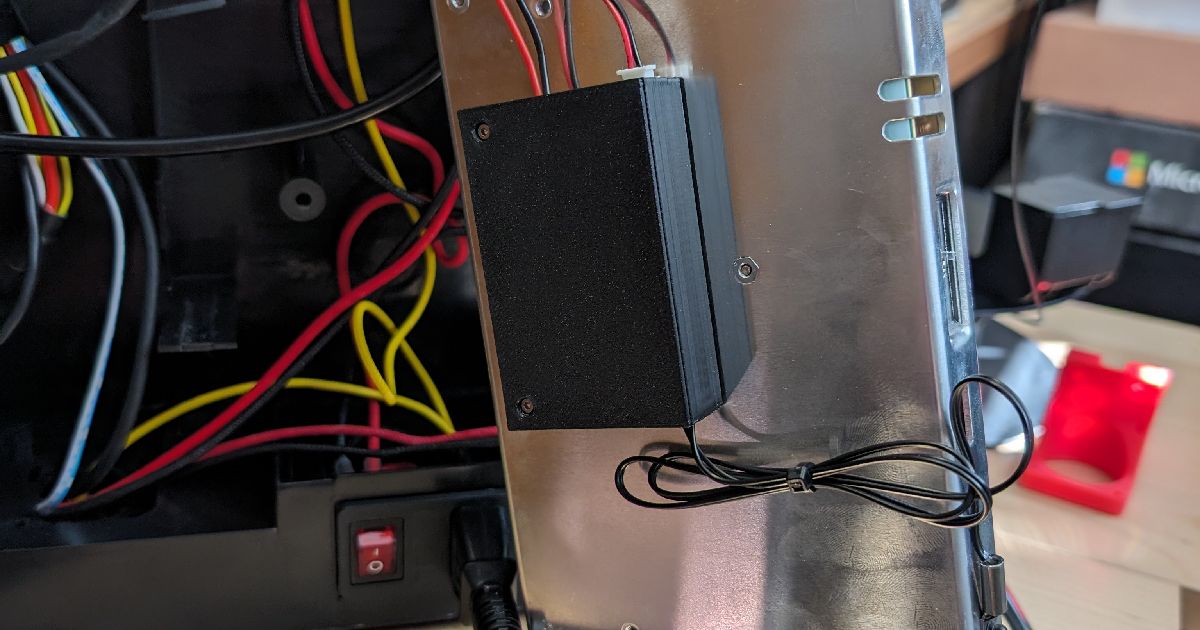

The fix is a fan controller board with a 10 kΩ thermistor plus a printed enclosure — there's a ready mod on Printables. The author of the flaviutamas blog built something similar. While the printer warms up or sits idle, the fan stays quiet; under load it spins up as before.

• The printer stops droning while idle and during warm-up
• Noticeable if the machine lives in a living room or next to your desk
• Fan lifespan goes up when it isn't spinning around the clock
• Doesn't compromise cooling — under load the RPM is the same

Difficulty: high — soldering and working inside the power supply. Cost: $4–12. Safety: mains voltage and charged capacitors live in there. Unplug the printer and give it a few minutes. If soldering isn't your thing, skip this one entirely.

16. A washer under the frame screw that's chewing your top belt

Check this today even if you do nothing else from this article. On some Q1 Pro units a frame screw contacts the top belt and slowly grinds it away. The right-hand screw got a washer at the factory; the left one didn't. It was raised on r/QidiTech3D in January 2025 for machines bought from roughly May 2024 onward, and the person who found it leans toward assembly error rather than a design flaw.

Diagnosis is easy: pull the top off and look for one-sided wear on the belt. If it's there, slip a thin washer under the screw. Commenters in that thread also traced a mystery noise to that exact corner. If the belt is already eaten, replace it rather than putting it off — the consequences are layer shifts and ghosting.

• Five minutes and one washer saves the belt
• That odd noise from the top corner goes away
• Belts aren't a casual purchase on a discontinued machine — worth protecting
• Good excuse to check tension on both belts while you're up there

Difficulty: low. Cost: one washer. Who should care: early-batch owners first and foremost. The tensioning procedure itself is on QIDI's official wiki under Q1 Pro Belt Adjust.

17. Re-torque the hotend screws: why quality "suddenly" got worse

A Q1 Pro owner's find that explains a good share of "it printed great, then after a hundred hours everything went sideways" posts. The rear screws holding the hotend mounting plate work loose over time — chamber heat plus the nozzle wipe cycle do it. A loose hotend shifts on all three axes at once, while the owner blames belts, probe and filament.

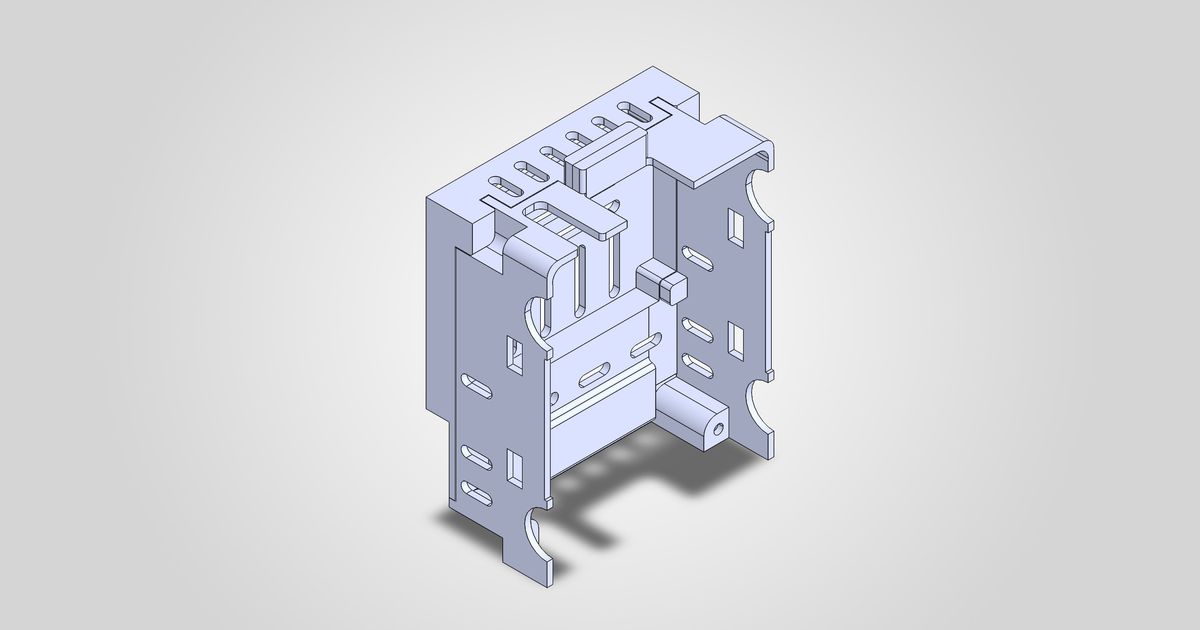

The cure is mundane: check and re-torque those screws every few dozen hours. The person who found it specifically warns against threadlocker, since the part comes off regularly and you'd never get it back apart. To avoid a teardown every time, fit a two-piece magnetic back plate. QIDI's full maintenance schedule is on the official wiki; the universal principles are in our 3D printer maintenance guide.

• Fixes a drifting first layer and unexplained X, Y and Z shifts
• Takes a couple of minutes during routine maintenance
• The split plate turns the check into off, look, back on
• Saves hours chasing a nonexistent firmware or slicer problem

Difficulty: low. Cost: nothing unless you print the plate. Schedule: while you're at it, QIDI's official manual calls for greasing the Z lead screws every three months (monthly if you print a lot), cleaning and oiling the X and Y shafts with a light oil, and blowing out all four fans.

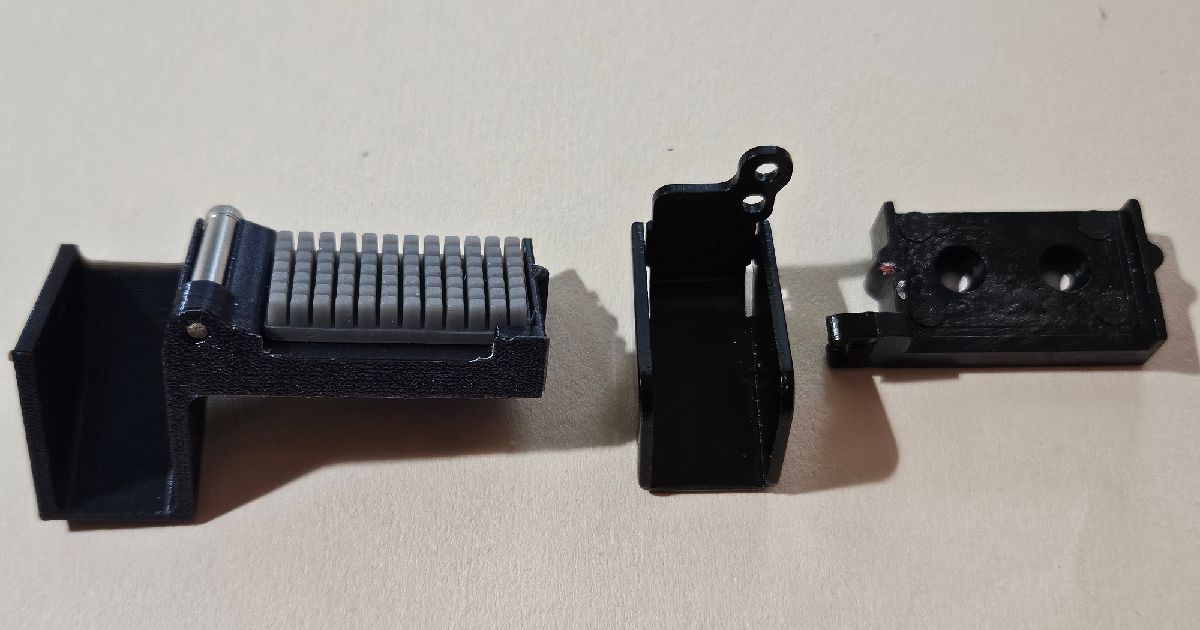

18. A sturdier nozzle wiper base

The nozzle wiper and the spool holder are the two parts Q1 Pro reviewers call flimsy almost in unison. 3DPrint.com singled out exactly those two after 300 hours and 15 kg of filament. The stock wiper base develops play over time, so the nozzle misses the felt and drags leftover plastic onto your part.

There's a reinforced base replacement, and it lets you move from felt to a silicone brush that lasts longer. Nice touch: QIDI published open design files for the stock nozzle wiper, toolhead and camera stand in the open-source section of their wiki, so modeling around them is easy. If the nozzle actually clogs, that's a different story — see our clogging guide.

• The nozzle stops missing the brush
• A silicone brush instead of felt lasts considerably longer
• Less chance of dragging a blob onto your part's first layer
• Official source files exist if you want to roll your own

Difficulty: low. Cost: about 20 g of filament plus a silicone brush. Caveat: if you've fitted the MicroProbe from mod #8 or a scanning probe from mod #9, the stock wiper probably has to go — those parts compete for the same space.

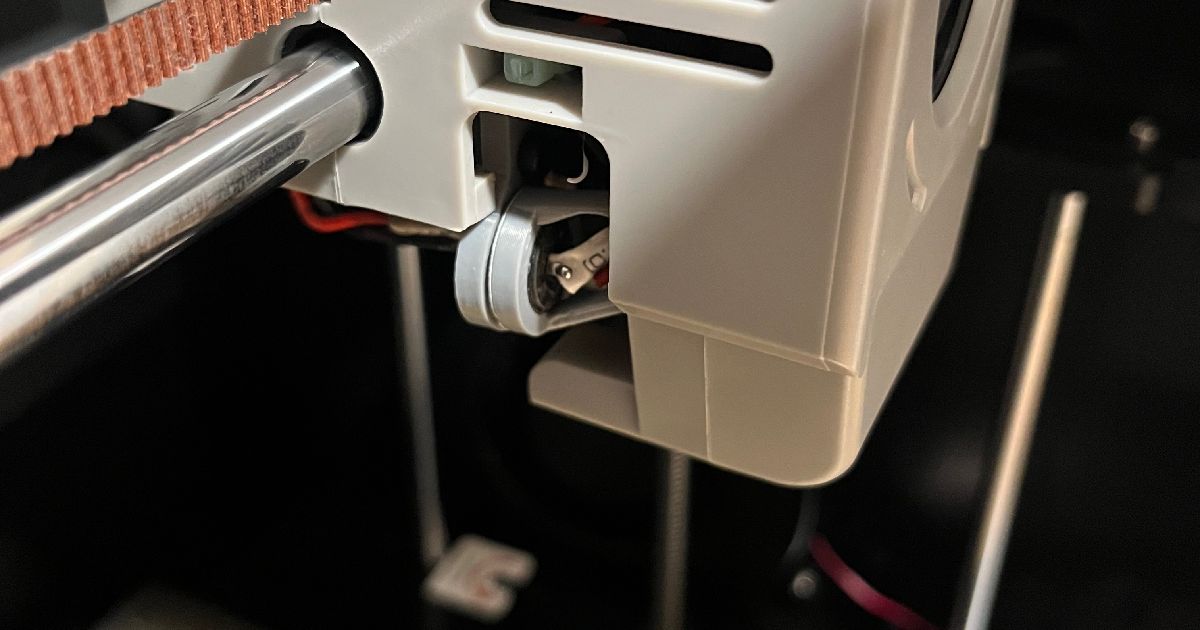

19. Removable part cooling cover: stop tearing fan wires

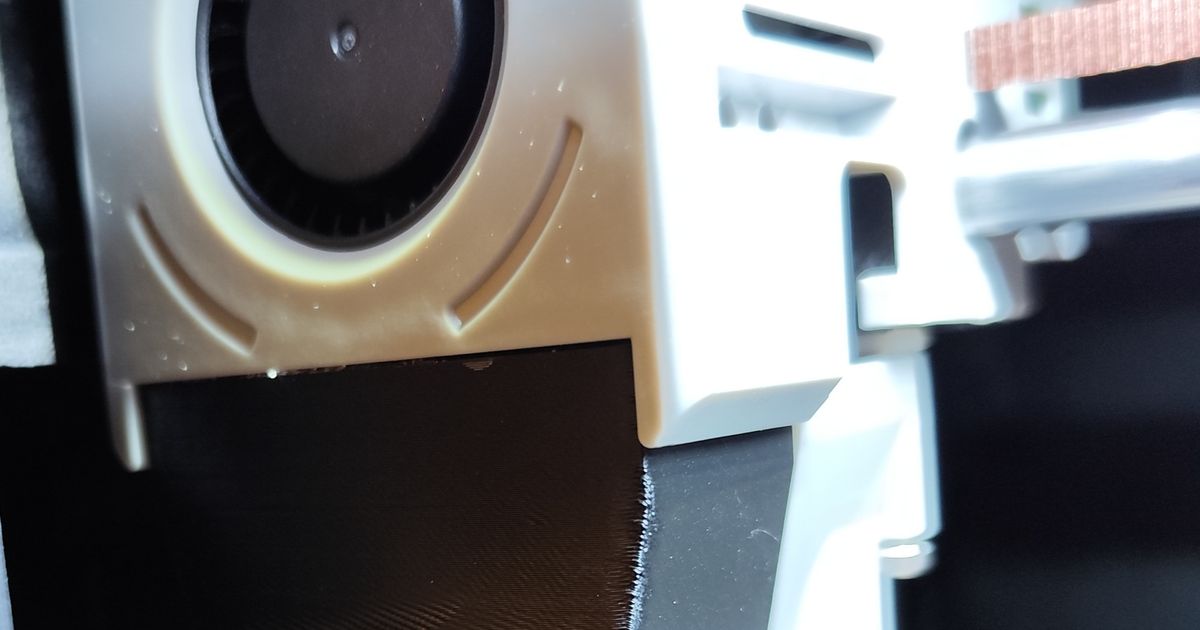

The stock part cooling cover only comes off with the 5015 blower's wires attached. Every bit of toolhead maintenance means flexing thin wires right at the connector, and sooner or later one gives up. This mod swaps the mount for magnetic pogo contacts: the cover lifts off by hand and the wiring stays put.

The original is on Printables. There's a simpler route too: a cover with snap-fit posts for the 5015 and no screws at all. An owner on 3DToday took a third path and spliced a Molex MicroFit 3.0 connector into the stock wire, so the cover now disconnects in a second.

• Toolhead maintenance stops being a wire-snapping exercise
• Nozzle swaps and duct cleaning get dramatically faster
• Three options at different effort levels: pogo contacts, snap fits, or just a connector
• Worth it for anyone running abrasives and swapping nozzles often

Difficulty: medium — the contacts need careful wiring. Cost: $4–8 for pogo contacts, or pennies for a Molex connector. Tip: the cheapest and most reliable of the three is the connector splice, if you can crimp.

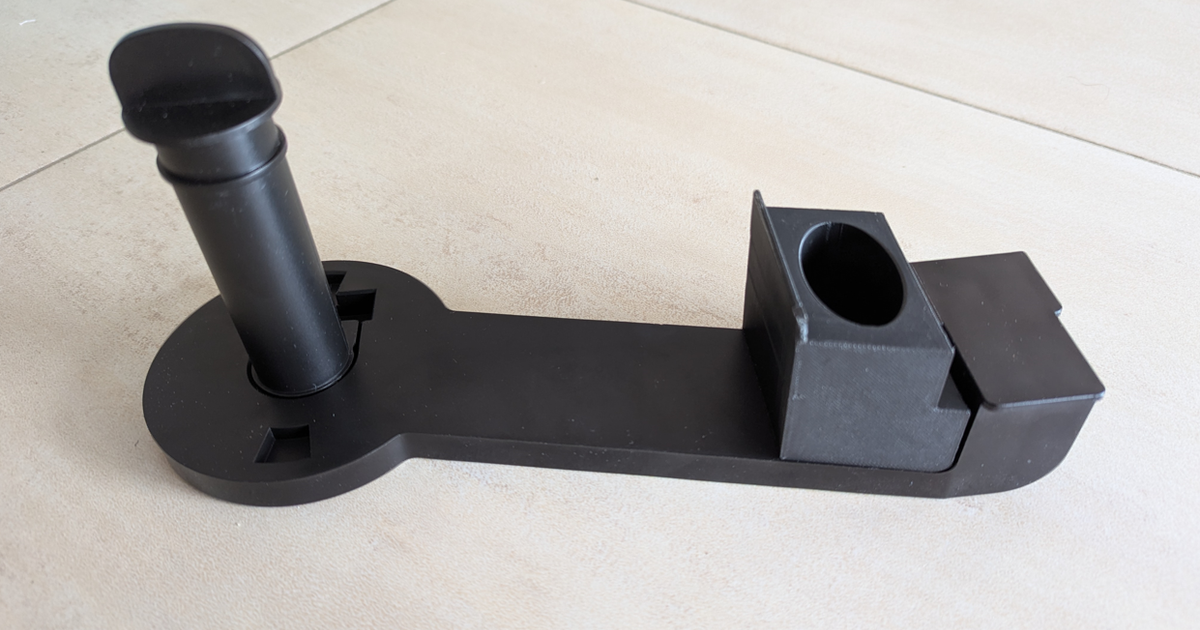

20. Spool holder: stiffener, bearings and the official options

The other part reviewers unanimously call flimsy. The author of the Printables stiffener didn't bother with diplomacy in his description — he calls the stock Q1 Pro spool holder crappy and flimsy outright. Beyond feel there's a practical side: a wobbling holder is noisy, and with flexibles any extra feed friction shows up in the print immediately.

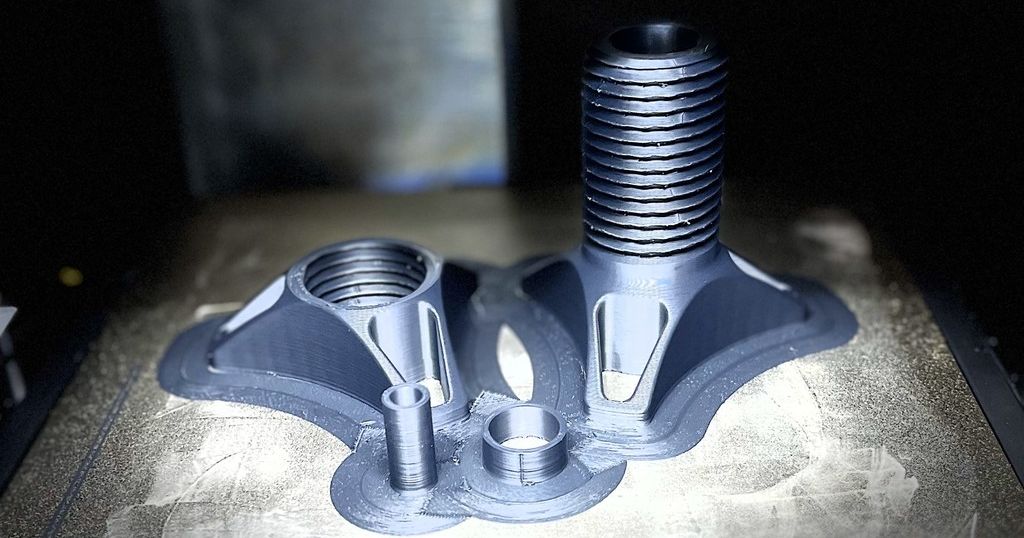

Three tiers. Minimum: a printed stiffener for the stock holder, fifteen minutes of work. Next: a bearing spool holder that fits the Q1 Pro, Plus4, X-Max 3, X-Plus 3 and Q2. Top tier: QIDI's official top and side filament holders from the wiki, including a dedicated flexibles version contributed by a community member. On which spools are worth buying at all, see our filament guide.

• Smoother feed and a lot less spool rattle
• Bearings make heavy 2 kg spools noticeably easier to pull
• The official flexibles holder solves the TPU feed problem specifically
• Top and side mounts let you fit the printer onto a shelf

Difficulty: low. Cost: $3–6 for bearings, the rest is filament. On TPU specifically: the Q1 Pro has no adjustment for extruder idler pressure, which is where flexibles owners get stuck. A low-friction holder helps more here than any slicer setting.

21. Dry the spool inside the chamber, or mount a dryer on the lid

The most elegant trick on this list, and it's free. An owner printing Ultem 9085 and nylon on a Q1 Pro found that a spool on rollers fits between the door and the build plate. It heats to chamber temperature — up to 60 °C — and dries while you print. For scale: Ultem picks up enough moisture to matter in about ten minutes of open air. Industrial high-temperature machines use the same trick.

If putting a spool inside doesn't appeal, there's a mount for the SUNLU FilaDryer S2 on the lid, feeding straight from dryer to extruder. General rules and per-material temperatures are in our filament drying guide.

• Nylon, PA-CF and PC don't have time to absorb moisture during a long print
• No separate dryer needed if you already have 60 °C chamber heating
• A lid-mounted dryer frees up desk space
• It works precisely because the Q1 Pro chamber heat is active, not bed-driven

Difficulty: low. Cost: nothing, or the price of a dryer. Limitation: this only works with chamber heating on, so ABS, ASA, PA and PC. PLA doesn't want a hot chamber, and there you need a regular dryer.

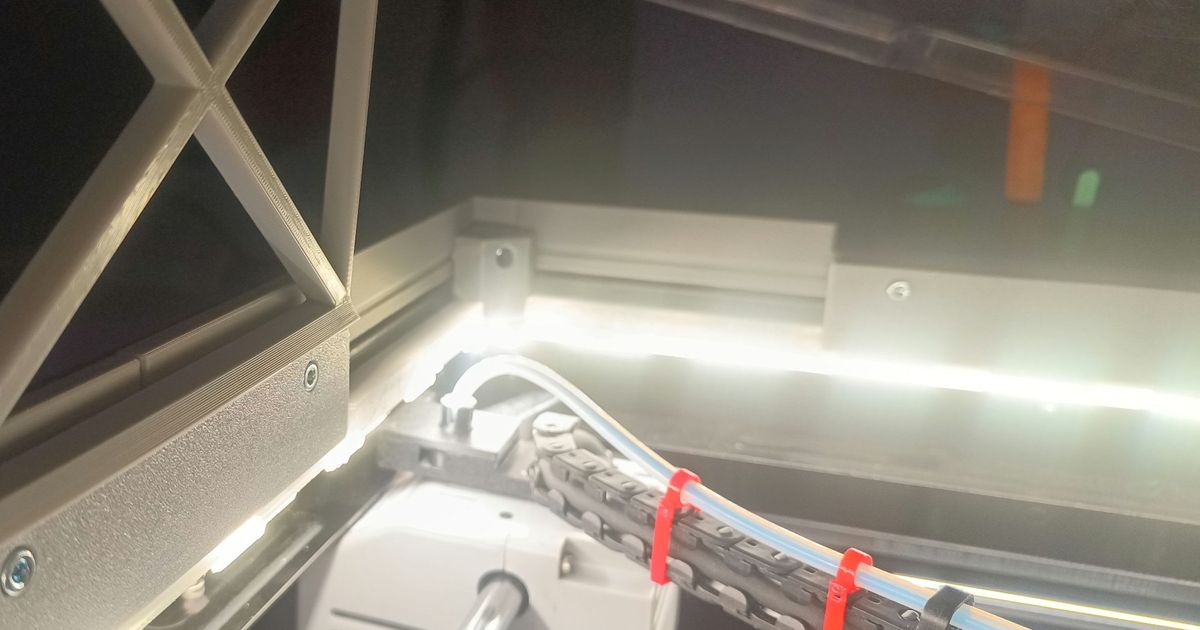

22. Lighting, a camera hood and a front power button

Three small things that change how the machine feels day to day. First, lighting. A 3DToday owner's stock LED strip overheated, flickered and partially died. He replaced it with a printed ring holding two identical 12 V strip segments wired to the stock 24 V output, then enabled PWM in [output_pin caselight] in printer.cfg and dropped the power from 1.0 to 0.8. Strip temperature fell by more than 10 degrees at almost the same brightness, and the camera feed got better.

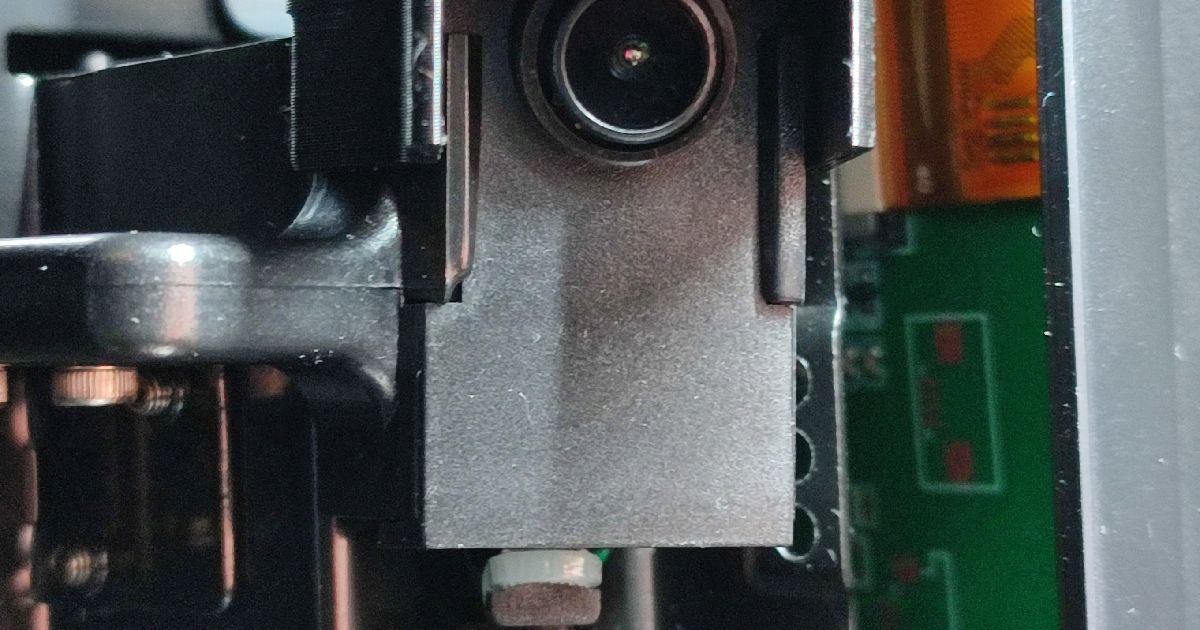

Second, the camera. The stock lighting shines straight into the lens, so auto-exposure meters off the white toolhead cover rather than your part. A printed hood fixes it; the flaviutamas blog went further and repainted the toolhead cover black, after which exposure finally metered correctly. Third, power: a Sonoff Mini R2 relay (about $6) with an input for an external switch, plus an illuminated button on the front. Two contacts go to the relay, two straight to the PSU for the indicator. Now you can power on remotely and preheat the chamber before you walk in — and you can finally push the printer against the wall, because the rear rocker switch no longer matters.

• The strip stops burning out: over 10 degrees cooler at 0.8 power
• The camera starts showing your part instead of a blown-out white cover
• You can start the 60 °C chamber preheat remotely, before you get to the workshop
• A front button frees up the rear panel so the printer sits flush against a wall

Difficulty: medium — config editing plus low-voltage wiring. Cost: relay around $6, strip and button $4–9. Important: the relay switches mains, so mount it externally and follow its instructions. The LED ring comes in a variant compatible with the lid risers from mod #14.

23. Nozzles and a spare hotend: buy while parts are still stocked

The Q1 Pro hotend is proprietary, there are no third-party equivalents, and the machine is discontinued. The logic writes itself: buy the critical consumables now, while QIDI is still supporting owners. The stock bimetal nozzle handles abrasives only so-so — for carbon and glass-filled materials people fit hardened steel, and for heavy abrasives tungsten carbide. Official torque is 1.5–2.0 N·m, and you tighten it hot.

The hotend has a trap almost nobody writes about. A 3DToday owner tore down the updated revision and found that the new hotend is rated to 280 °C while the original handled 350 °C. The ceramic heater changed, the thermistor moved from the top to the side about 4 mm deep, the heatbreak became a plain tube inside a new radiator, and the silicone sock dimensions changed. If you print PAHT-CF, PET-CF or PC at 300–320 °C, moving to the new revision simply takes those materials away from you. Check which version you're buying.

• Hardened steel is the minimum for carbon and glass-filled materials
• Tungsten carbide lasts markedly longer on heavy abrasives
• A spare hotend of the same revision is insurance on a discontinued machine
• A Volcano nozzle raises flow but needs a longer cooling duct

Difficulty: low. Cost: $20–43 per nozzle set, $30–43 for a hotend. If you go Volcano, you'll need the 1.8 or 3 mm extended 360° cooling duct, otherwise the stock airflow cools the nozzle itself.

What not to bother with: three popular myths

"I'll add a QIDI Box and get multicolor." You won't. The QIDI Box officially supports the Q2, Q2C, Plus4 and Max4; the Q1 Pro was never on that list. The question comes up on r/QidiTech3D regularly and nobody has ever answered "works out of the box". There is a theoretical path: the Q1 Pro runs Klipper, so it's compatible with the open Happy Hare driver that handles ERCF, Box Turtle, BTT ViViD and a dozen other units. But as of August 2026 no verified Q1 Pro guide exists. That's a multi-evening project, not a purchase. If you need multicolor now, look at Q2 mods where it's handled natively.

"The new hotend is newer, so it must be better." Covered in mod #23: the updated revision tops out at 280 °C against 350 °C for the original. For PLA and PETG it makes no difference; for engineering materials it's a step backwards.

"I'll grab q1pro-mods and get current configs." That 54-star repo hasn't been updated since August 2024. The ideas hold up — temperature sensors, tidy macros, the split bed guide — but don't drop the files in wholesale, because your firmware version almost certainly differs. Port them by hand and diff every section.

Where to start: a priority order

Nobody does twenty-three mods at once. Here's a sequence where each step builds on the last instead of undoing it.

1. Chamber heater cover (#12) and the frame screw washer (#16). Safety and saving a belt. One evening, almost no money, and the only two items I'd call mandatory for everyone.
2. Temperatures on the dashboard (#1). Without them you can't evaluate a single thermal mod. Five minutes in the config.
3. Flat bed and PEI limiters (#7). The foundation for everything else — while the bed is warped, probes and profiles only treat symptoms.
4. Hotend screws (#17), then Input Shaper and Pressure Advance (#3). Mechanics first, calibration second; the reverse order is pointless.
5. Thermal separation of chamber and electronics (#11). The highest-value mod for anyone actually printing ABS, ASA and nylon. This is where step 2's numbers pay off.
6. FreeDi (#5). Current Klipper with a live screen. Unlocks everything below and removes the machine's biggest limitation.
7. A scanning bed probe: Cartographer or Eddy (#9–10). Only after mainline Klipper. This is luxury, not necessity.
8. Quality-of-life bits: spool holder, lighting, power button, lid risers, removable fan cover. Any time, any order.

And about upkeep. QIDI's official manual asks you to grease the Z lead screws every three months (monthly with heavy use), clean and oil the X and Y shafts with a light oil, blow out all four fans with compressed air (nozzle fan, part cooling blower, chamber circulation fan and the bottom fan), and refresh the hotend thermal paste, because high-temperature printing eats it. The universal side of this is in our 3D printer maintenance guide. No amount of modding replaces half an hour a month.

Sources

• Official QIDI Q1 Pro page — full spec sheet and the discontinuation notice
• QIDI Wiki: printable components for the Q1 Pro — official models and open design files
• QIDI Wiki: Q1 Pro maintenance manual — lubrication, fans, nozzle torque
• FreeDi — mainline Klipper with a working screen for QIDI printers
• OpenQ1 — custom Q1 Pro firmware on Debian Bookworm
• Q1Libre — Q1 Pro firmware patches installed over USB
• eddy-ng and straga's Q1 Pro configs — eddy-current probing with tap detection
• q1pro_beacon — Beacon RevH environment for the Q1 Pro
• 3DWork: Q1 Pro review — MCU overheating past 85 °C and the full cooling rework
• 3D Print Beginner: Q1 Pro review — heat-up times, belt tensioners, plate lifting
• 3DPrint.com: Q1 Pro review — 300 hours of runtime, 1.64 mm bed deviation, 60 dB noise
• K3D: QIDI Q1 Pro mods — bed flattening and a step-by-step MicroProbe install
• 3DToday: small Q1 Pro upgrades — lighting, Sonoff relay, power button, fan cover connector
• 3DToday: the updated Q1 Pro hotend — teardown of the 280 °C revision
• flaviutamas: Q1 Pro changes — diffused lighting, black toolhead cover, PSU fan control
• r/QidiTech3D: fixing the chamber heater — tape, fan relocation, motor temperatures
• r/QidiTech3D: frame screw versus top belt — diagnosis and the washer fix
• r/QidiTech3D: loosening hotend screws — the cause of "suddenly worse" quality
• r/QidiTech3D: drying a spool in the chamber — the Ultem and nylon trick
• Q1 Pro community wiki — SSH, temperature sensors, KAMP troubleshooting
• 3Digital: Q1 Pro review — noise measurements of 44, 50 and 60 dB in different modes
