Creality Ender-3 V3 Mods That Actually Work on a CoreXZ

The Creality Ender-3 V3 is an open-frame FDM printer with CoreXZ kinematics, a 220×220×250 mm build volume, up to 600 mm/s at 20,000 mm/s² acceleration, and Klipper-based Creality OS with official root access.

Here's the thing you need to understand before your first mod: the base V3 is not the SE and not the KE. It has a die-cast aluminum gantry, two belts driving X and Z, both motors bolted to the base, and a completely different toolhead. That KE linear rail upgrade with 948 likes, the dual 5015 duct with 189, the dual-Z tensioner with 200 — all of them are built for the SE and KE and won't bolt onto a CoreXZ. The most popular mod made specifically for this machine has 79 likes. There aren't many owners, and five different printers share the Ender-3 V3 name, so half the advice you'll find in search results points somewhere else entirely.

Below are 27 upgrades, each one checked against Creality's own documentation, repos with live commits, or CoreXZ owner posts from 2025–2026. If the machine isn't dialed in yet, start with calibration and with the model's known quirks: Ender-3 V3 known issues and fixes. No mod will fix a bad first layer.

1. Fluidd over your LAN — port 4408, no root needed

The most underrated mod: a full Klipper web interface is already on the machine and works out of the box. Check the printer's IP in the network menu on the screen, then open something like 192.168.1.50:4408 in a browser — Fluidd comes up with temperatures, console, file management and axis control. No root, no SSH, no soldering.

• Send jobs without a USB stick and without Creality Cloud
• Klipper console — read logs and fire commands by hand
• Tweak Z-offset live and view the bed mesh right in the browser

Difficulty: beginner. Cost: zero. Source: the official Creality Wiki guide. Your computer or phone has to be on the same Wi-Fi network.

2. Root access and SSH

Root opens up the printer's filesystem: custom macros, Moonraker, Mainsail, config backups. It's built in — no exploits required. Go to Settings → Root account information, read the disclaimer, tick the agreement box, wait 30 seconds and hit OK. Then SSH in with user root and password creality_ender3v3.

• Access to printer.cfg and the Creality OS system config
• Unlocks the Helper Script and everything it installs
• Config backups before a firmware update

Difficulty: intermediate — you need to be comfortable in a terminal. Cost: zero. Heads up: a factory reset turns root back off and wipes everything you installed, so you'll have to redo it. The full procedure is in the Creality Helper Script wiki.

3. Creality Helper Script: Fluidd, Mainsail and macros

Guilouz's script is a text menu that installs an updated Moonraker, a newer Fluidd, Mainsail, Entware, M600 (filament change pause) and Save Z-Offset macros, Git config backups, Moonraker timelapse and Nebula camera settings control. The repo is alive: 342 stars, last commit May 21, 2025, not archived.

• Mainsail and a newer Fluidd instead of the stock web UI
• M600 macro — pause and swap color mid-print
• Save Z-Offset — store the offset in the config instead of dialing it in every single print
• Config and Moonraker database backups before you start experimenting

Difficulty: advanced. Cost: zero. Sources: Creality Helper Script on GitHub and the discussion about base V3 support.

4. KAMP — adaptive bed meshing and purging

CoreXZ owners complain about the long start sequence: it homes twice, heats up, cools down, heats up again and wipes the nozzle in two different spots. KAMP (Klipper Adaptive Meshing & Purging) probes only the area under your part and lays the purge line next to the model. On small prints the prep time drops noticeably.

• The mesh is probed only where you're actually printing
• Purge happens next to the part instead of across the whole bed
• Less probe wear and less waiting before the first layer

Difficulty: advanced — the Helper Script installs it, but you have to add the calls to your START_PRINT macro by hand. CoreXZ owners adapted the K1 / K1 Max macro structure. Cost: zero. If your printer stops passing the boot self-check after hardware mods, Creality documents the bypass: a debugmode_JumpSelftest file in the root of a USB stick, or over SSH sed -i 's/"self_test_sw":1/"self_test_sw":0/' /usr/data/creality/userdata/config/system_config.json.

5. Re-run input shaper calibration after every mod

The G-sensor for vibration compensation is built in — you don't need to buy an ADXL345. But every mod changes the resonances: move the spool to the top, add gantry rods, swap the toolhead, and your old coefficients are wrong. Re-run calibration after each mechanical change or you'll see ringing at 600 mm/s where there wasn't any before.

Difficulty: advanced with the improved calibrations from the Helper Script; intermediate with the stock menu option. Cost: zero. If ringing and waves showed up after a mod, the full diagnosis is in our guide on fixing layer shifting and ghosting.

6. OrcaSlicer instead of Creality Print

OrcaSlicer ships a stock Creality Ender-3 V3 profile for 0.4 and 0.6 mm nozzles, with processes from 0.12 mm Fine to 0.36 mm Draft. Creality even has an official guide for pairing the two. In return you get the whole built-in calibration suite — Pressure Advance, flow, temperature tower, retraction and stringing tests.

• Ready-made processes: 0.12 Fine, 0.16 Optimal, 0.20 Standard, 0.24 Draft for the 0.4 mm nozzle
• For 0.6 mm — 0.24 Optimal, 0.30 Standard and 0.36 Draft
• A permanent Z-offset lives in the profile instead of being dialed in every print

Difficulty: intermediate. Cost: zero. Catch: the base V3 has no 0.2 or 0.8 mm profiles in Orca, even though the SE and KE do — an owner who bought a 0.2 mm nozzle built the profile himself and posted it on MakerWorld. Step-by-step setup is in our OrcaSlicer guide.

7. Remote access without Creality Cloud

On a rooted machine the Helper Script installs OctoEverywhere, Moonraker Obico, GuppyFLO, Mobileraker Companion and SimplyPrint. That's access to your printer from any network without port forwarding and without depending on whatever state Creality Cloud is in today.

Difficulty: intermediate, a couple of clicks once you have root. Cost: the free tiers cover home use. Pick one service — running several at once loads down the printer's modest CPU.

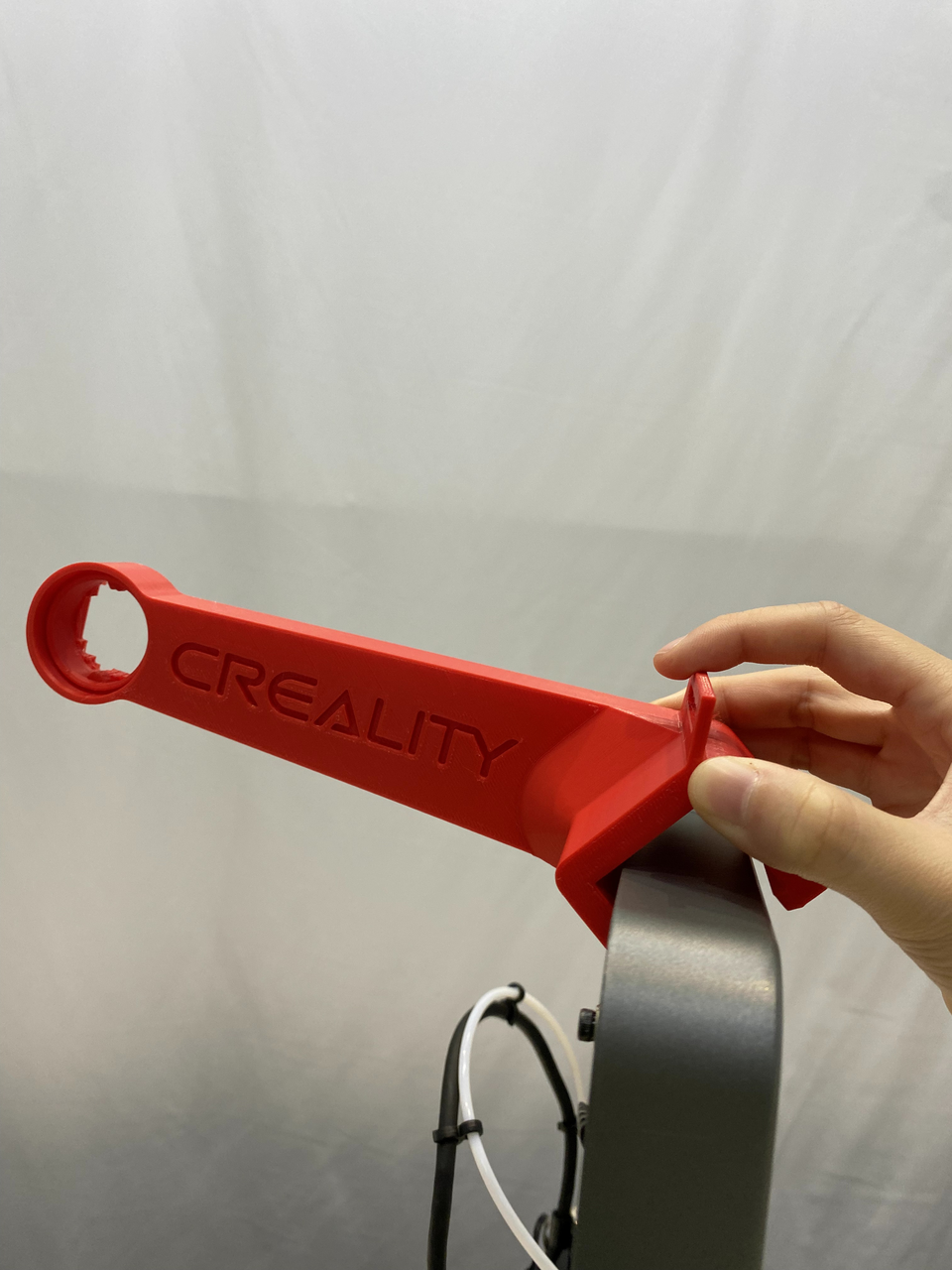

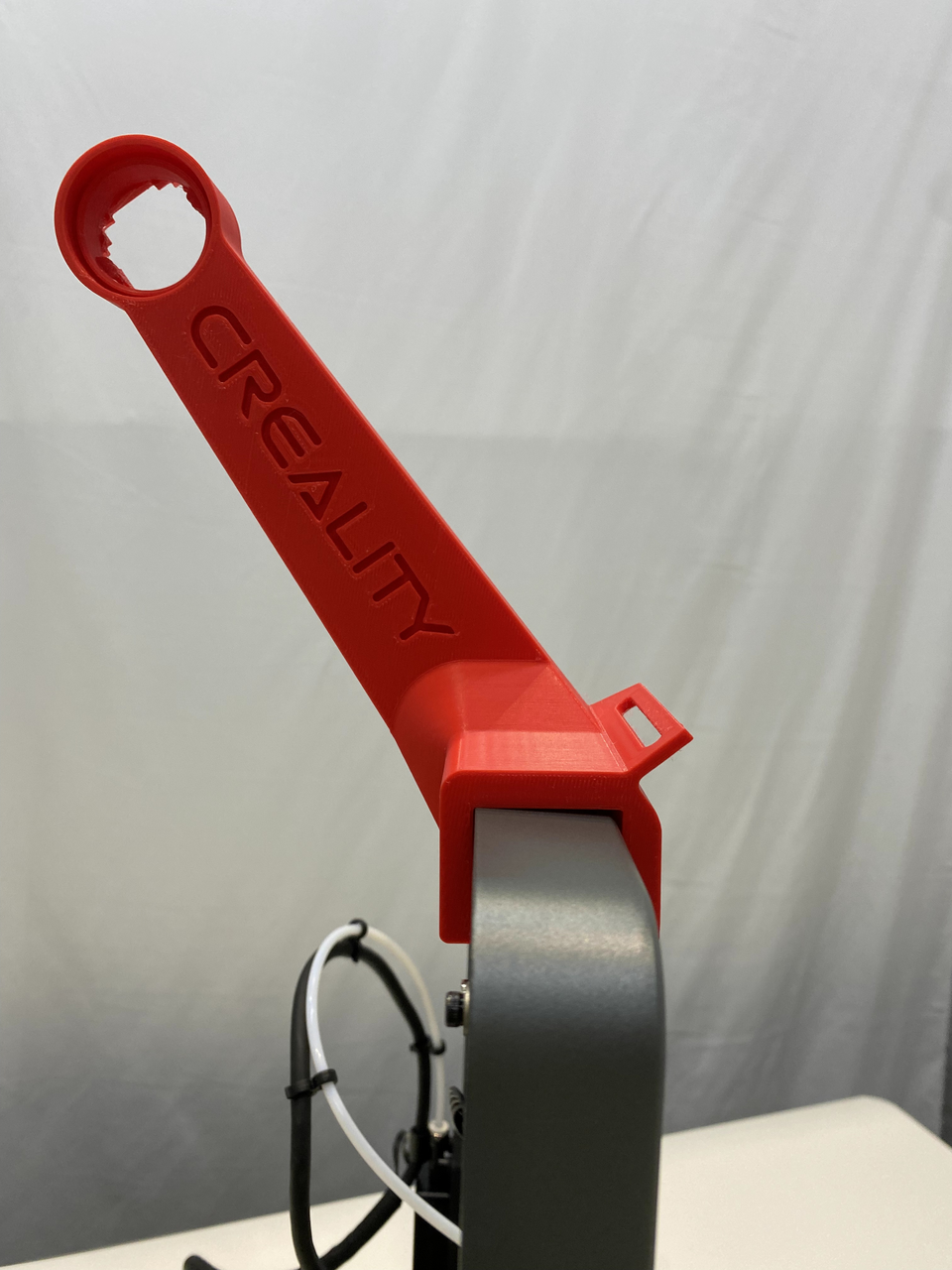

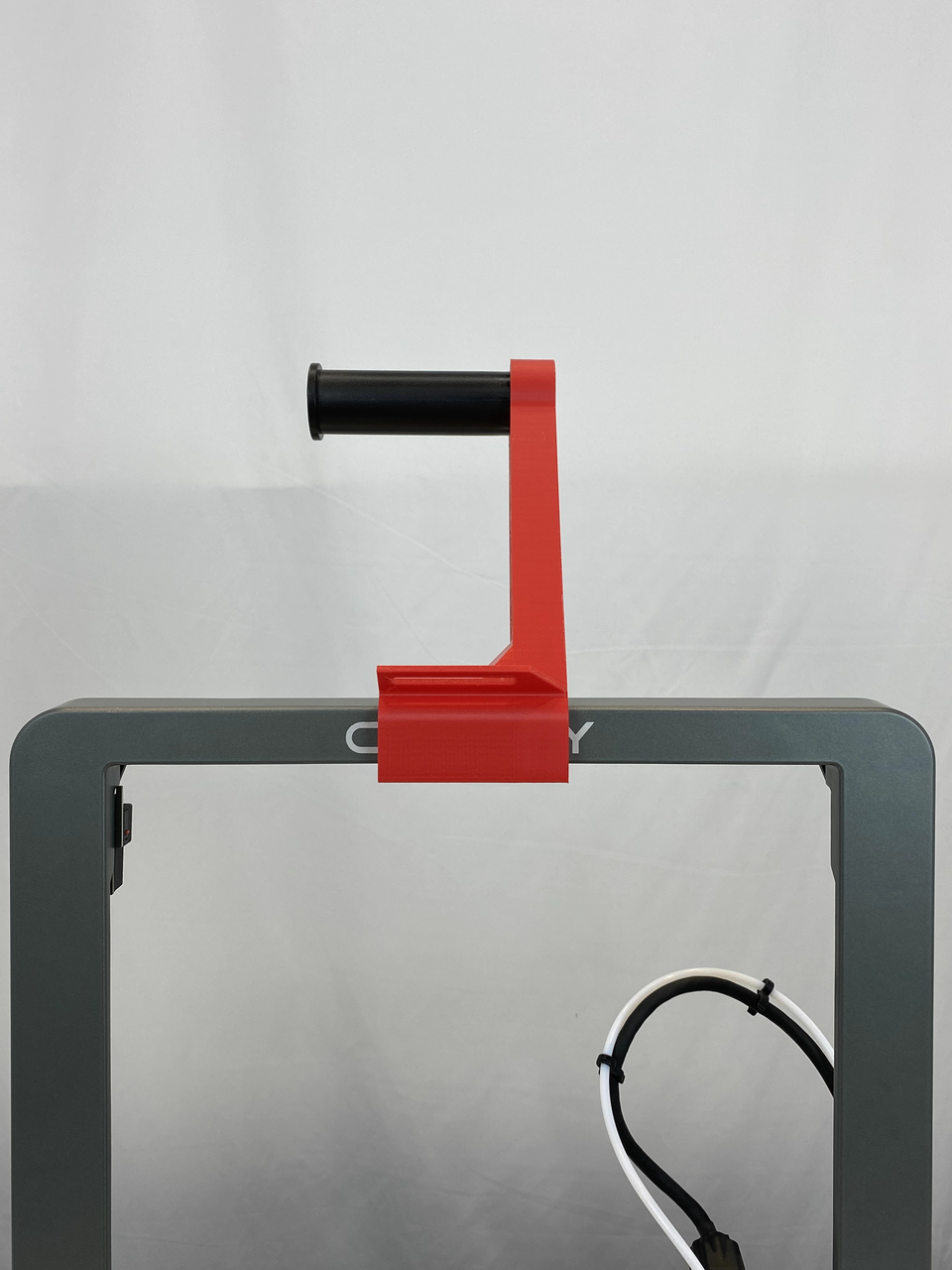

8. The stock top spool holder

The side-mounted spool is the V3's main design compromise. During Z homing the gantry travels up and down and yanks the filament, and the strand has to run across the whole frame. Creality shipped the fix inside the machine: top-spool-holder.stl sits in the printer's local files, prints in an evening, slides into the top beam from the side and shifts to the middle. After that the filament feeds straight into the extruder and the PTFE tube comes off the toolhead.

• The filament drops straight down instead of being dragged across the frame
• The printer takes up less desk space — no spool sticking out the side
• The file is stock, prints from the printer's own menu, nothing to buy

Difficulty: beginner. Cost: about 60 g of filament. Source: the official top spool holder installation guide.

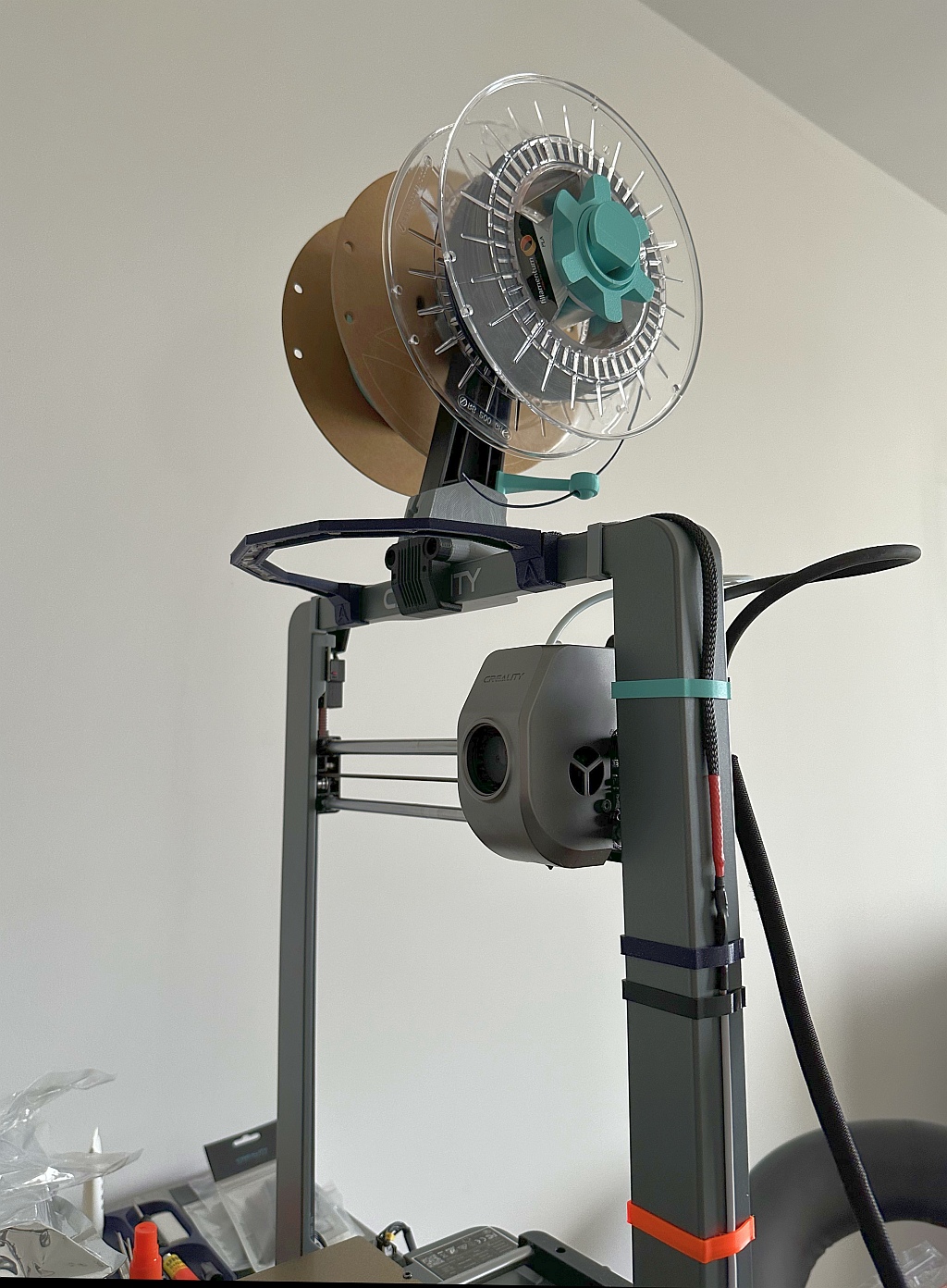

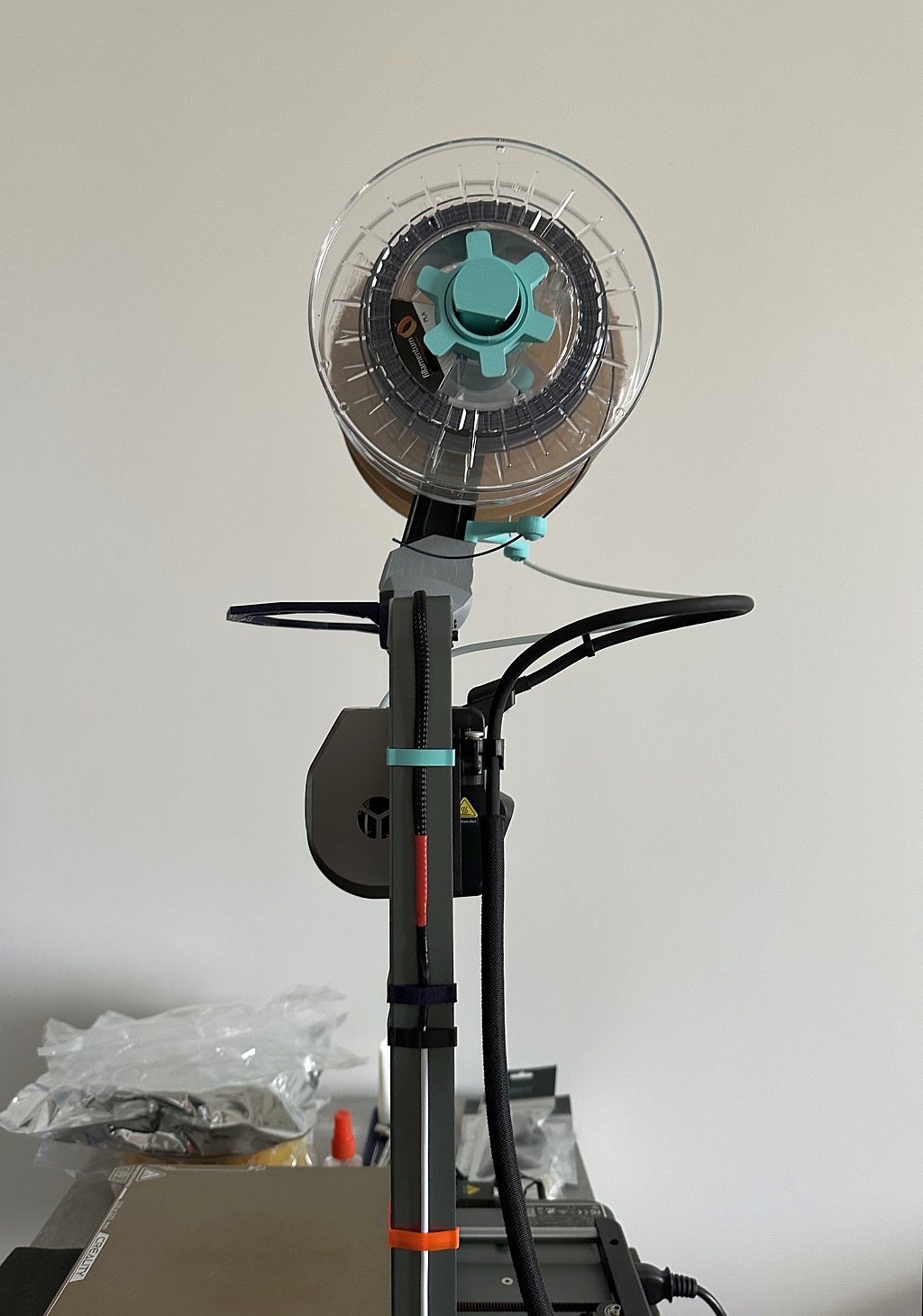

9. Willys — a top spool holder with a cable channel

The stock holder solves the spool, not the wiring. eXthemaX's Willys splits into two halves with the cable routed between them, and there's a separate add-on that gives the runout sensor a home. It sits at 18 likes and 102 downloads on Printables, and sTiKyt published a refined remix with a simpler assembly.

Difficulty: beginner. Cost: filament only. Source: Willys the Ultimate Top Spool Holder on Printables.

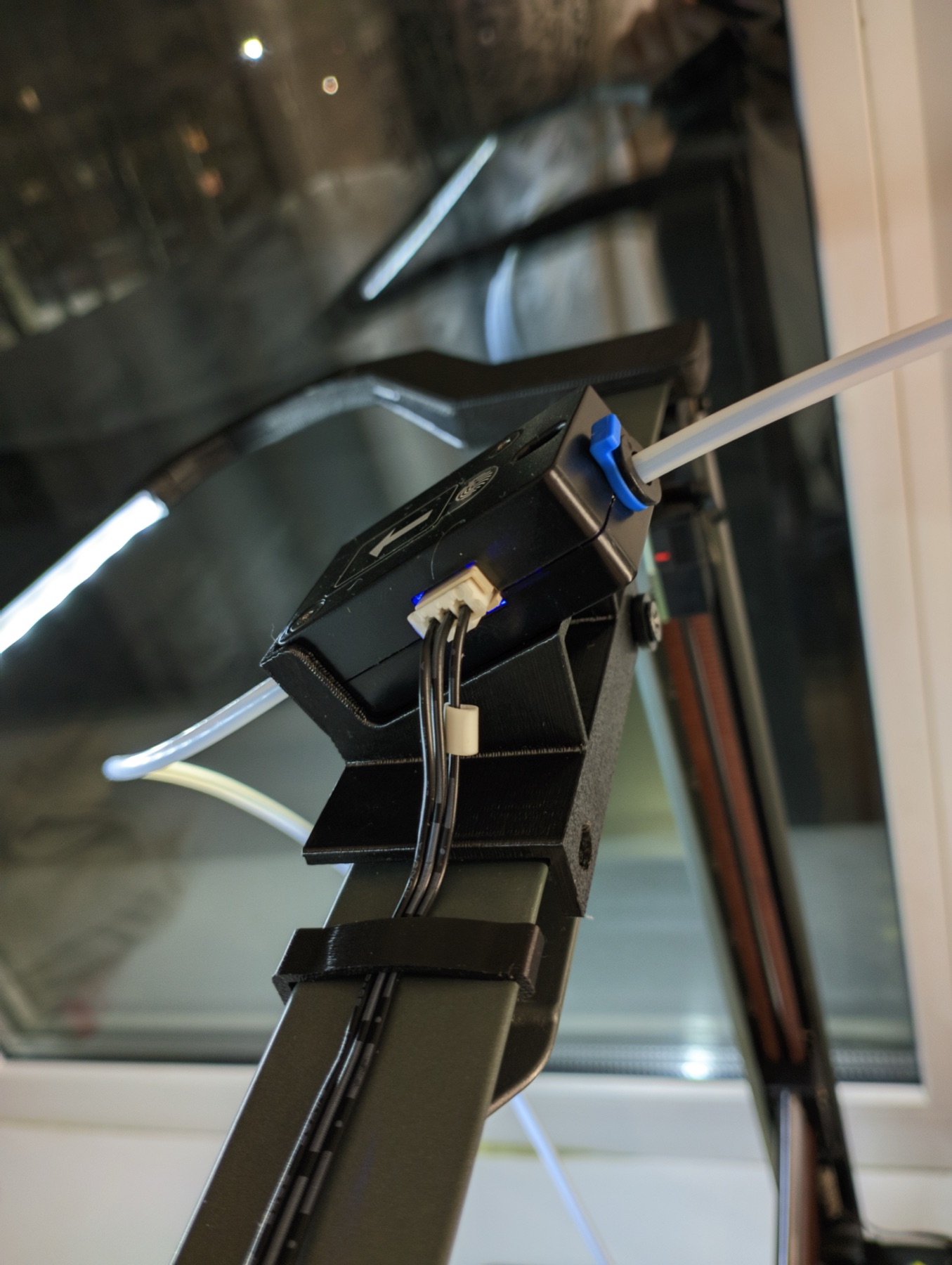

10. Move the filament runout sensor up top

You pull the sensor off the side bracket and give it a printed mount next to the top holder. A guy who refurbishes and resells these machines posted an important detail on Reddit: the sensor cable is short, so mount the bracket a little lower or the harness won't reach. He also recommends not feeding through a PTFE tube at all — that keeps the toolhead free to move.

• Runout pause comes back — no more 8-hour prints into thin air
• Uses the stock sensor, nothing to buy
• Designs exist for both top and side placement

Difficulty: intermediate — you'll be rerouting a harness. Cost: filament only. Sources: top-mount sensor bracket and a side mount with PTFE retention.

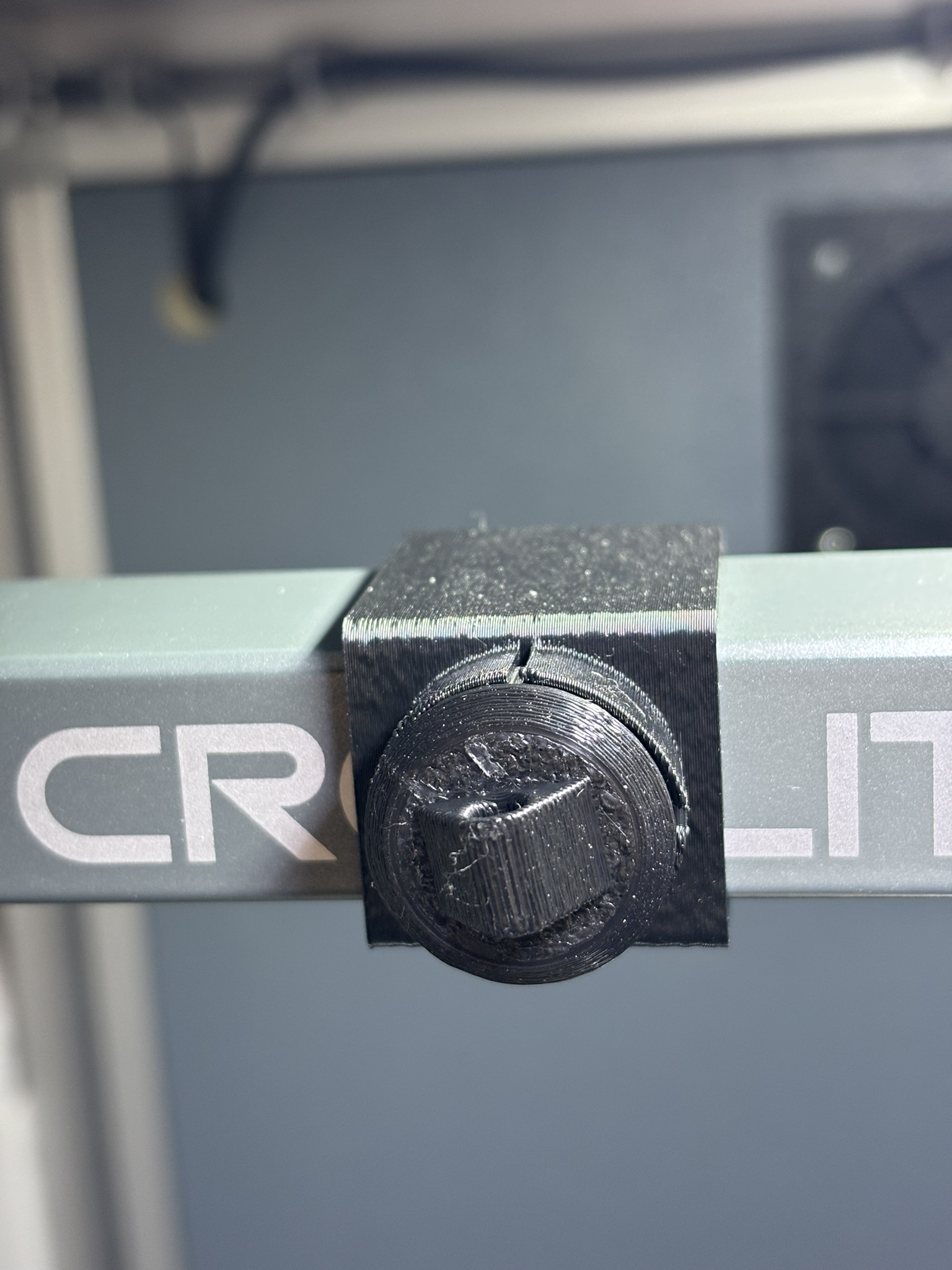

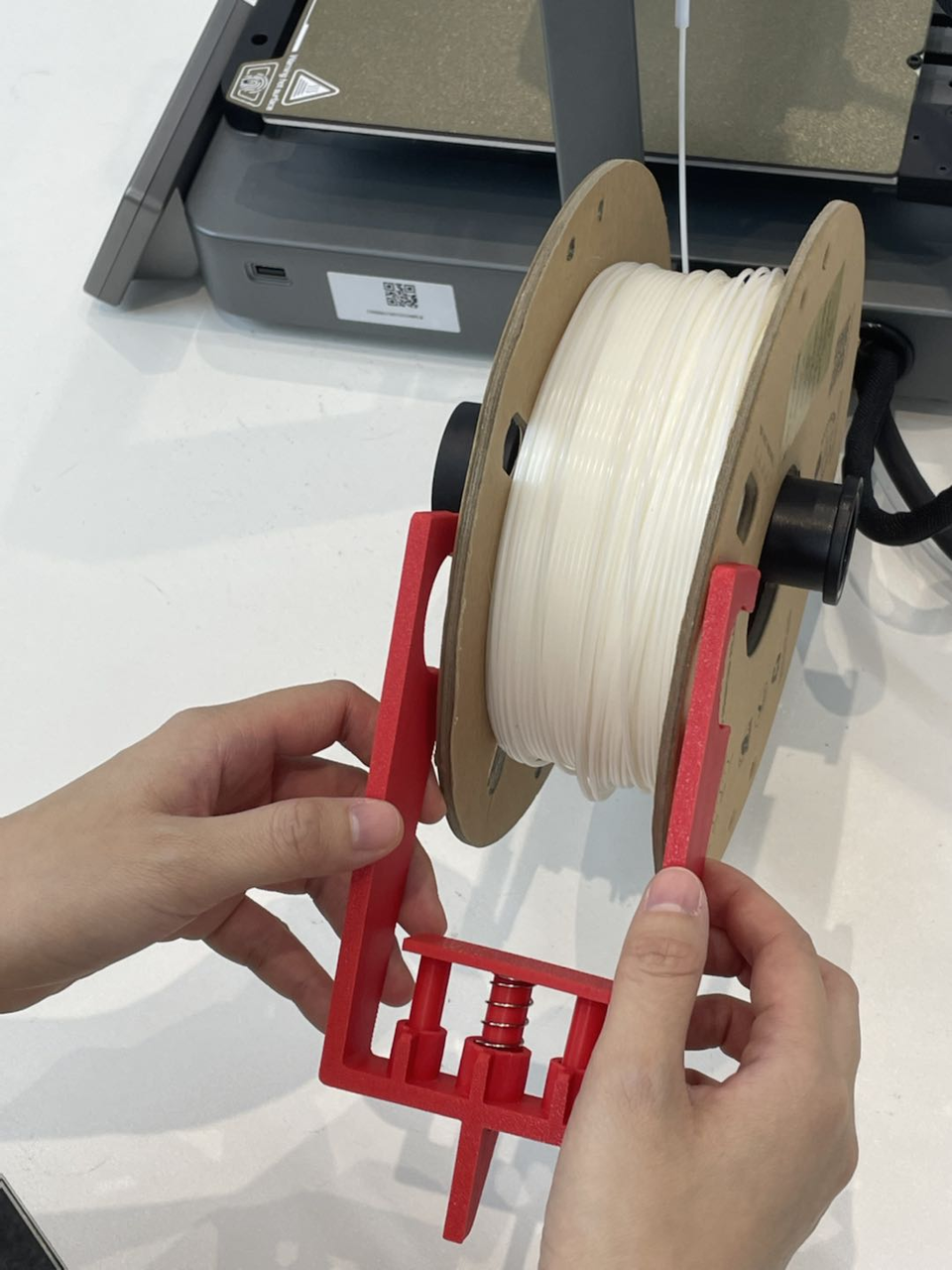

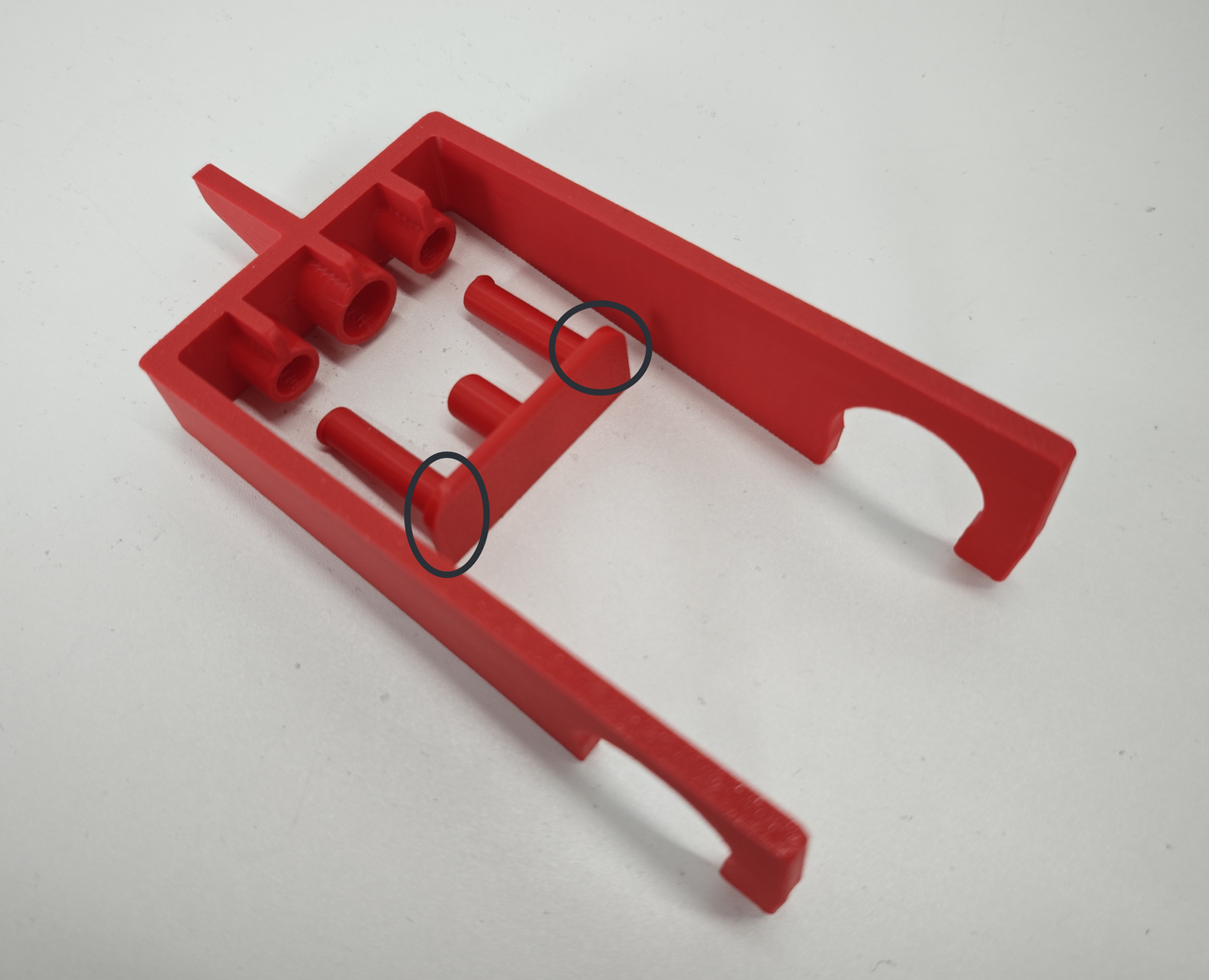

11. Anti-tangle bracket and a bearing filament guide

Classic failure: the filament slips off the spool, traps itself under a neighboring wrap, and the print stalls. The V3 ships with a spring-loaded anti-tangle bracket, and if yours breaks you can print it from the local files (Anti-tangle material rack-A.STL and B.STL). The spring goes on part B, and B clips into A with the rounded corner facing up. Pair it with a 608-bearing clip on the top beam so the filament rolls instead of rubbing on the frame.

Difficulty: beginner. Cost: filament plus one 608 bearing. Sources: Creality's anti-tangle bracket guide and the bearing filament guide on Printables (published February 2026).

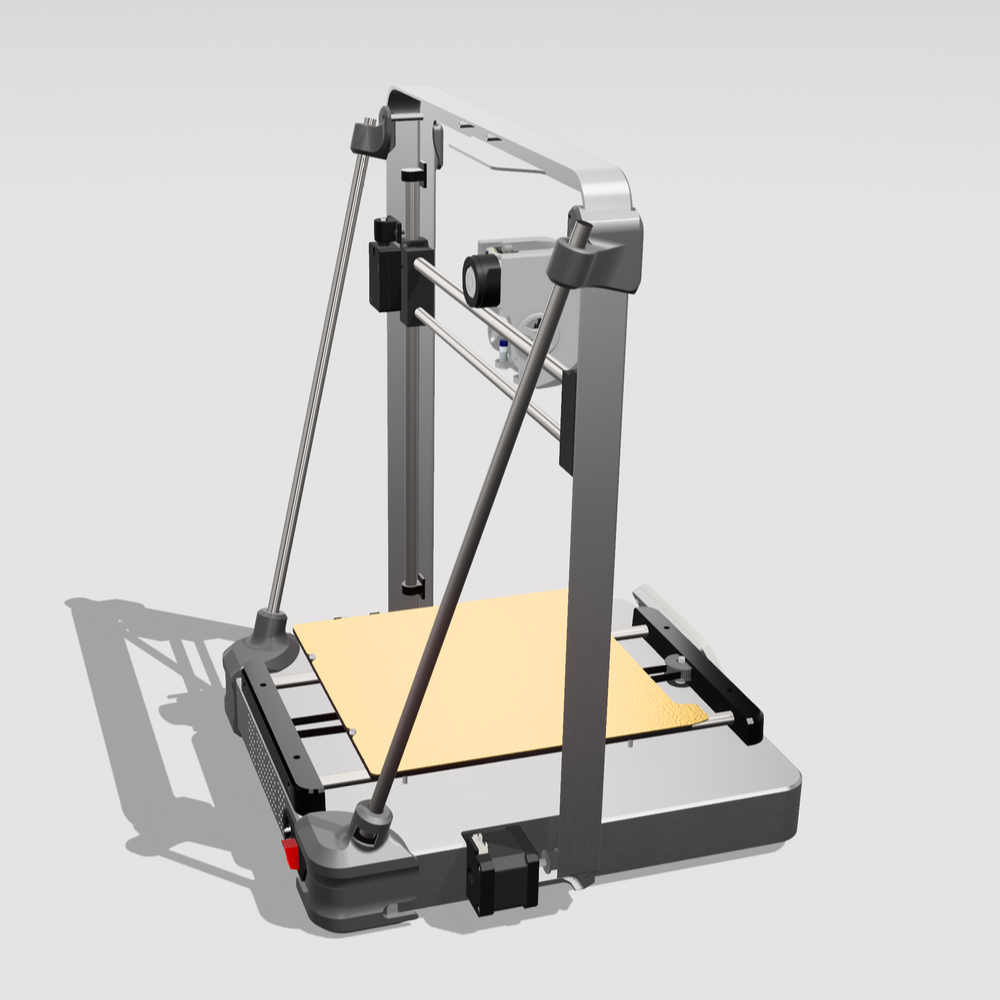

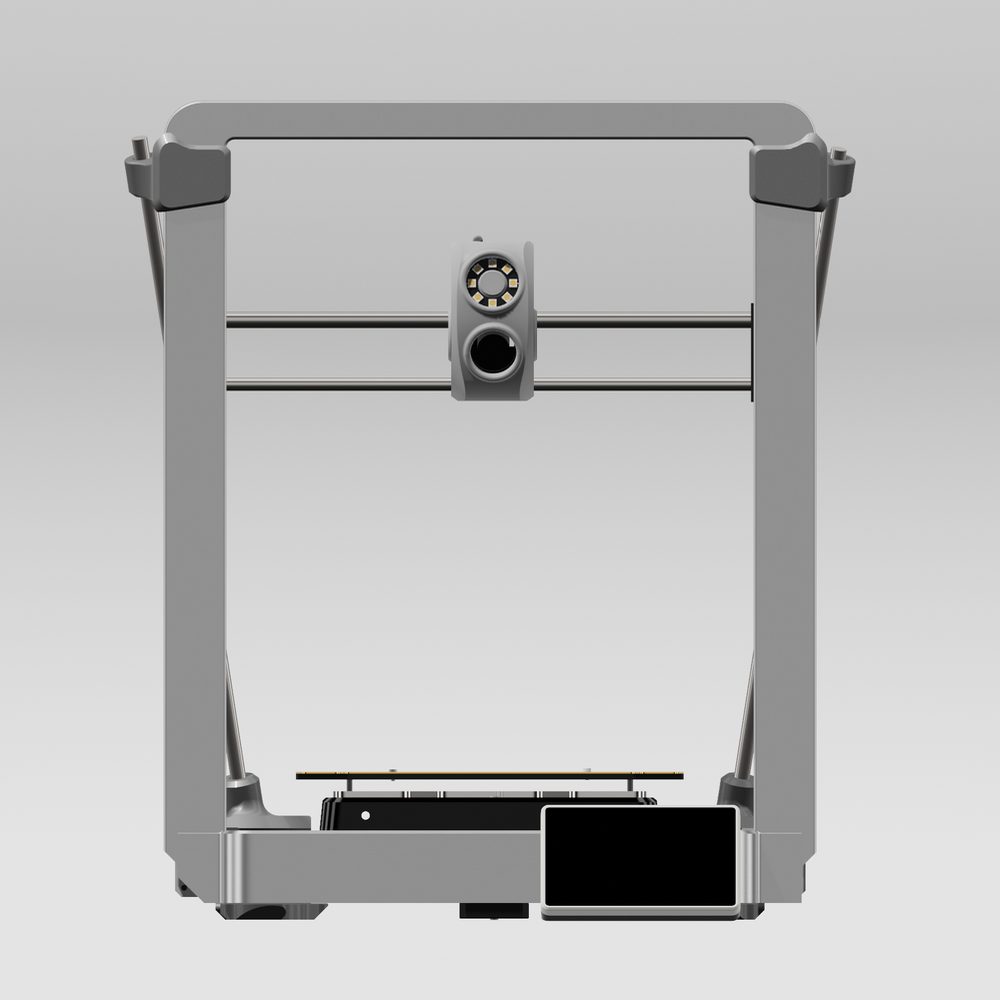

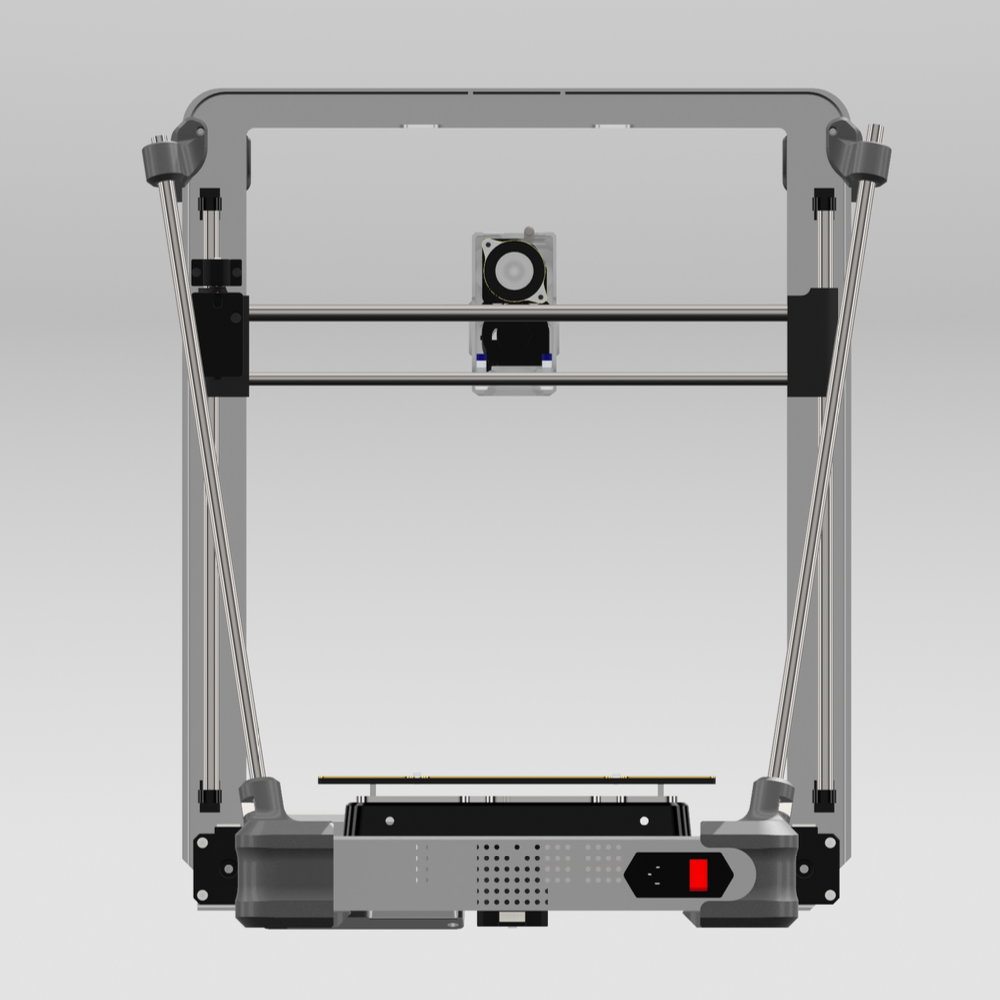

12. Gantry stabilizer support rods

The one genuinely popular mechanical mod for the CoreXZ: 79 likes and 263 downloads on Printables. Printed bases snap onto the printer's rubber feet, M10 (or 3/8") threaded rods slot into them, and up top you add two washers and a cap nut tightened by hand. The gantry stops swaying and some of the ringing on tall prints goes away.

• Less gantry sway at speeds anywhere near the spec sheet
• Most noticeable on tall parts where the top of the model already wobbles
• Comes back off in five minutes, nothing gets drilled

Difficulty: intermediate. Cost: two threaded rods and hardware store nuts. Source: Gantry Stabilizer Support Rods on Printables, mirrored on MakerWorld. Re-run input shaper calibration once they're on.

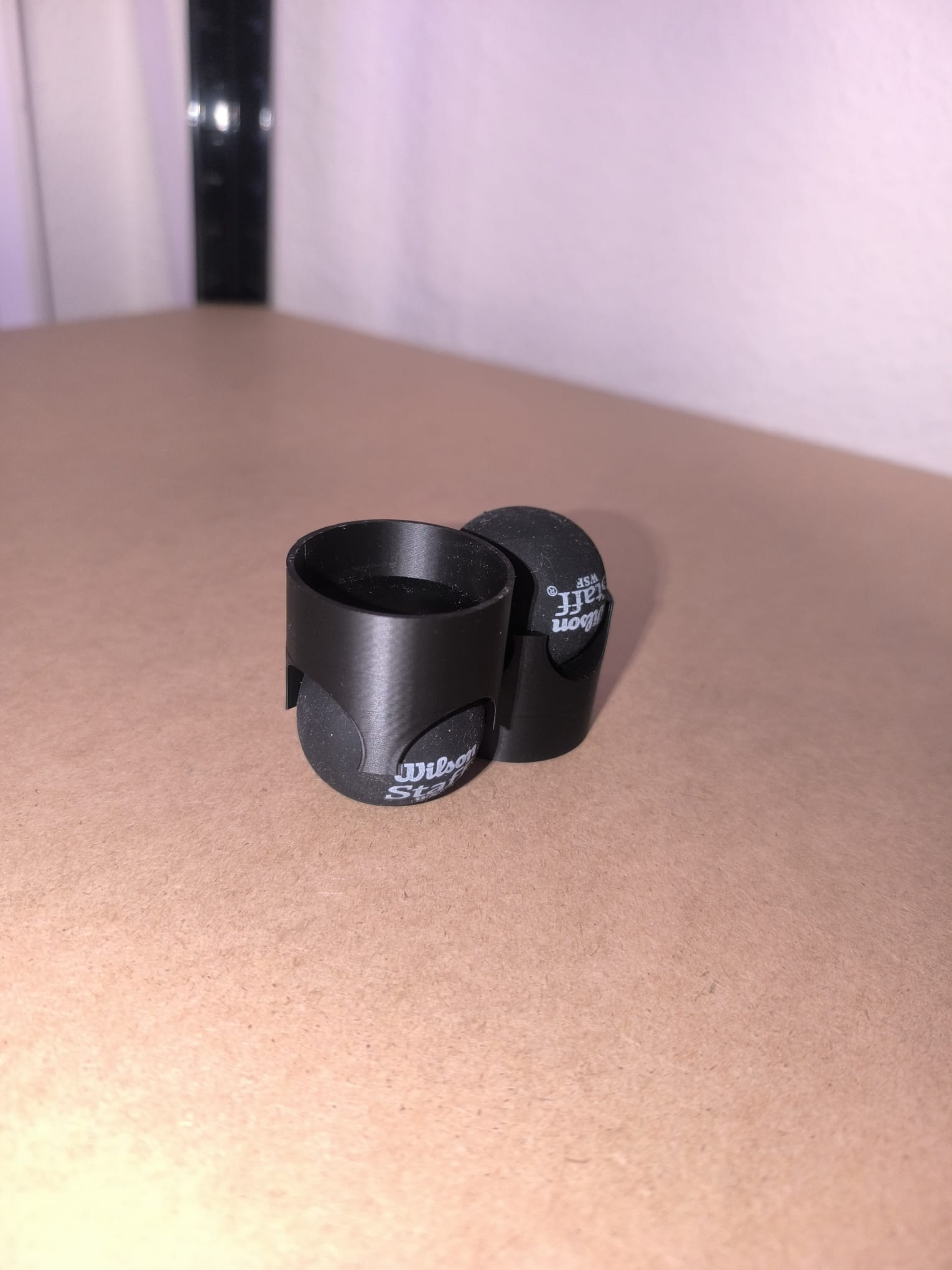

13. Vibration damping under the feet

The V3 is still a bedslinger: the bed shuttles along Y and shakes whatever the printer stands on. Two options — buy silicone anti-vibration feet, or print cups that hold squash balls. The second one is cheaper, but it raises the printer.

Difficulty: beginner. Cost: pocket change. Note: if you already installed the gantry rods, their bases sit on those same rubber feet and the balls won't fit. Pick one or the other. Source: Feet Squash Ball on Printables.

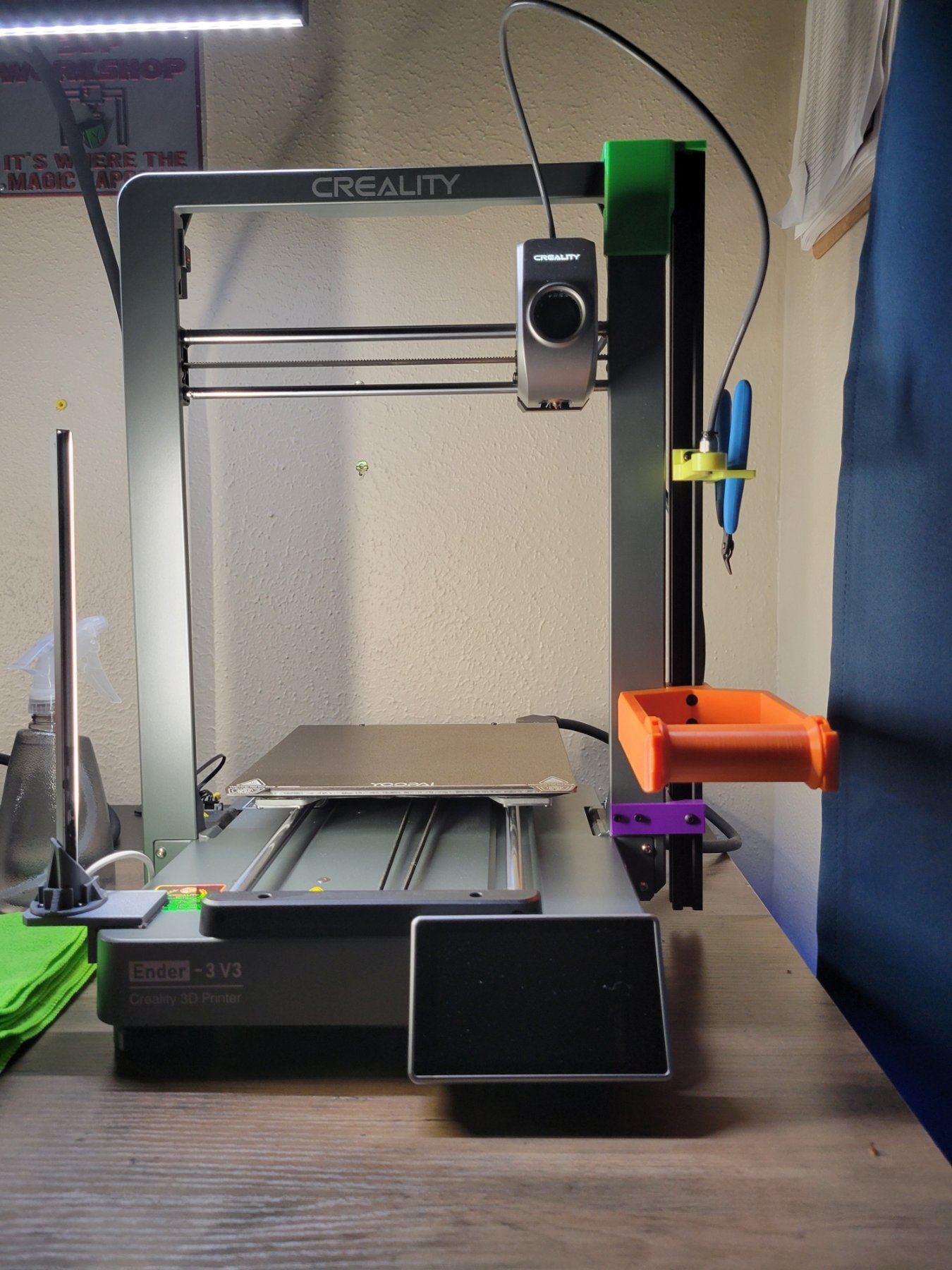

14. A 2020 extrusion on the frame — somewhere to hang things

The die-cast CoreXZ frame looks great but gives you nothing to mount to — there are no slots. Earl Alston's mod bolts a plain 2020 aluminum extrusion to the printer, and suddenly the entire ecosystem of 2020 accessories fits: tool holders, lights, bins, spool arms. That's exactly how the printer in the photo at the top of this article is built.

• Opens up every printable 2020 accessory ever made
• Holders slide and reposition without reprinting anything
• Solves the spool placement question at the same time

Difficulty: intermediate. Cost: a length of 2020 plus hardware. Source: Ender 3 v3 2020 Upgrade (Core XZ) on Printables.

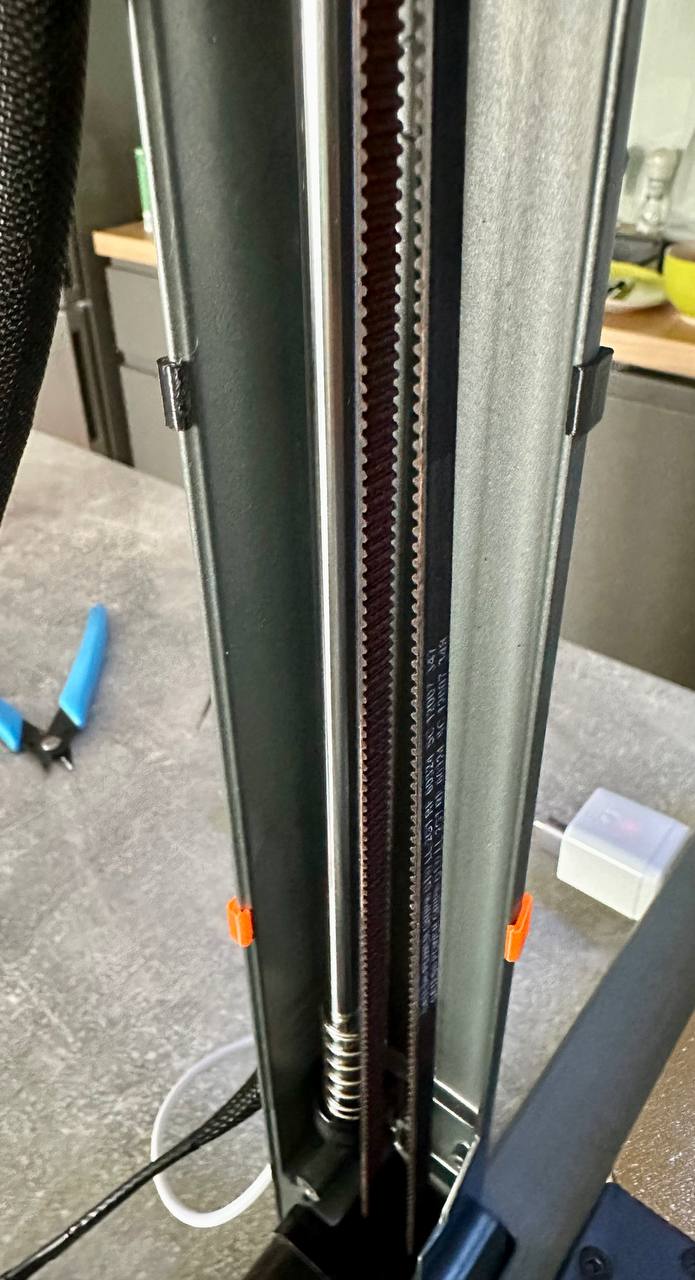

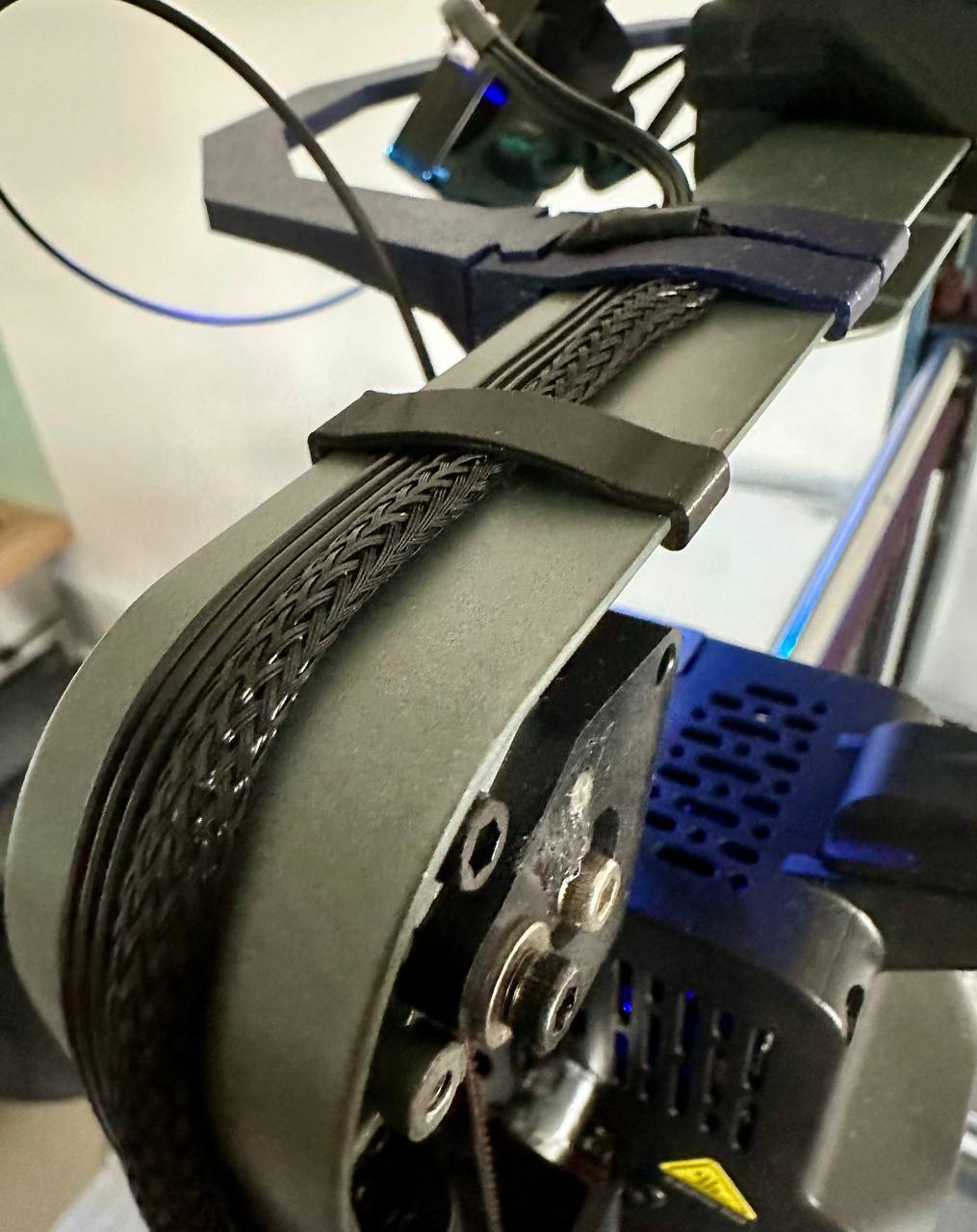

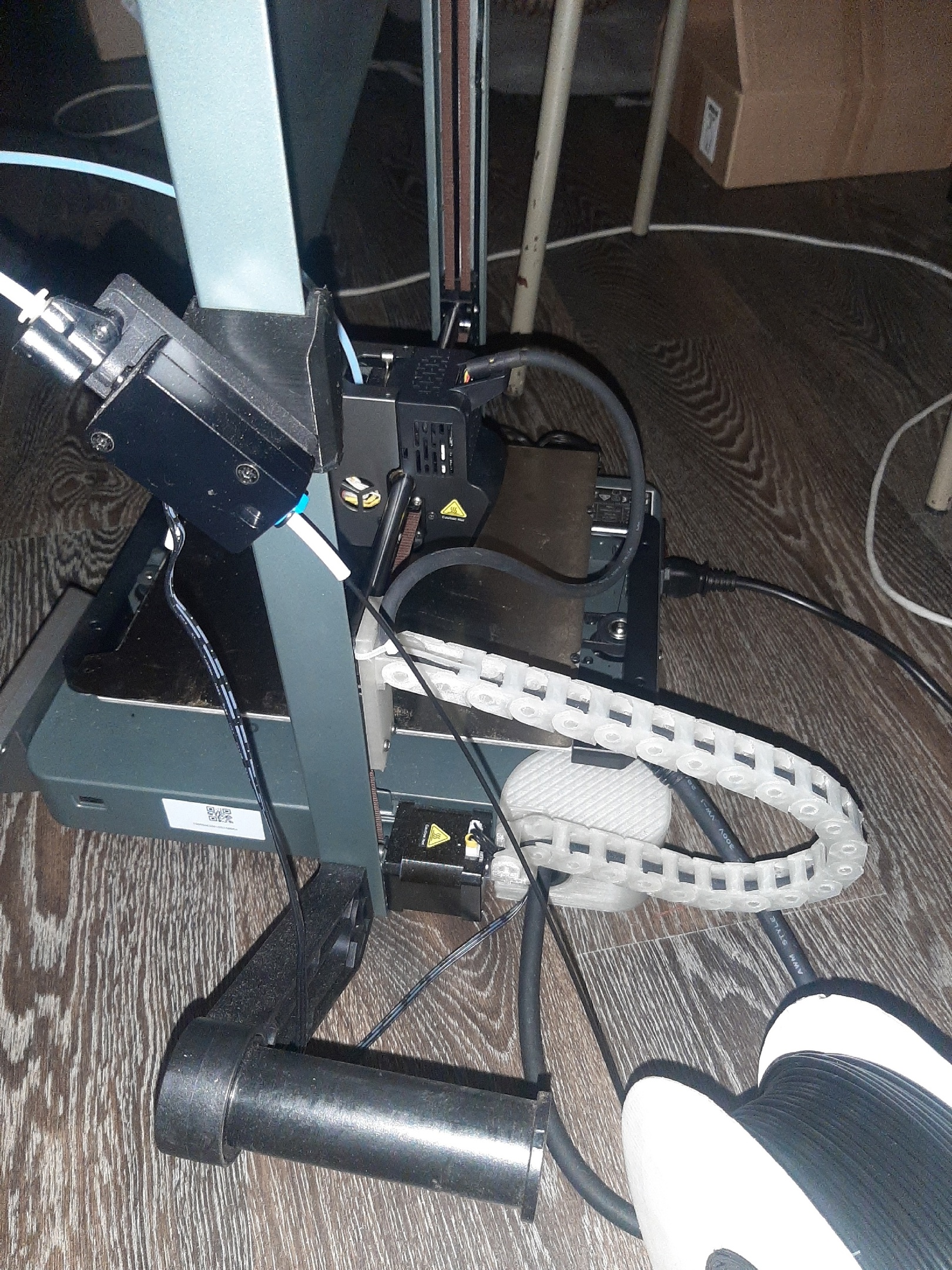

15. Cable chain and clips for the toolhead harness

On a bedslinger the toolhead harness lives in permanent flex and eventually breaks. Three designs that actually fit the CoreXZ: eXthemaX's clips (33 likes, 247 downloads) tie the wires down along the top and side, Kpa6ac's cable chain ships with a filament sensor bracket and is compatible with the gantry rods, and Goose's guide specifically protects the toolhead harness.

Difficulty: beginner. Cost: filament only. Sources: cable clips and the cable chain with sensor bracket.

16. Spare Unicorn nozzles: 0.6 mm and a replacement set

The Unicorn nozzle swaps out as one piece together with its heatbreak — no hotend teardown, no firmware edits. It's tri-metal: a copper alloy body at 330 W/(m·K), a titanium heatbreak, and a hardened tip at 7.8 on the Mohs scale. Flow tops out around 30 mm³/s. Compatible with the K1C, Ender-3 V3, Ender-3 V3 Plus and K1 SE.

• 0.6 mm makes big functional parts noticeably faster
• A spare on the shelf saves the evening when the stock one clogs solid
• Cold swap — no hot tightening, no stripped threads

Difficulty: beginner. Cost: low. If it does clog, the full unclogging procedure is in our nozzle clogging guide.

17. Micro Swiss FlowTech hotend

A rare case of a serious third-party part built for the CoreXZ: Micro Swiss makes a FlowTech specifically for the Ender-3 V3 and V3 Plus. Nozzle and heatbreak are one permanently sealed assembly, so leaks past the threads are off the table, and you swap tips cold with one hand. The kit includes a 24 V 60 W ceramic heater, a copper thermal adapter, a plated 0.4 mm brass nozzle, two titanium screws and a silicone sock. The melt zone is 28.6 mm and it's rated to 300 °C.

• Stock Z height, build volume and firmware are unchanged — no config edits
• Tip options: plated brass, CM2, CHT High Flow and DiamondBack
• Nozzle changes without preheating and without stripping threads

Difficulty: advanced — you're taking the toolhead apart. Cost: $64.99 direct. Source: the FlowTech for Ender 3 V3 product page. A CoreXZ owner who fitted one with matching FlowTech nozzles posted about it on Reddit in November 2025.

18. Keep a spare ceramic heating block

The stock toolhead runs a ceramic heater, and that's a consumable: lose the heat or crack the block and the machine is simply down. Creality's own schedule says replace the nozzle every 500 cumulative print hours, heat to 200 °C before removing it, and hold the heater block with a wrench so you don't twist anything. The kit for the Ender-3 V3 and V3 Plus is sold as a complete assembly.

Difficulty: intermediate. Cost: low. CoreXZ spares are thin on the ground — owners on Reddit can't even source a Y carriage, since shops only stock the SE and KE versions. Buy consumables before you need them.

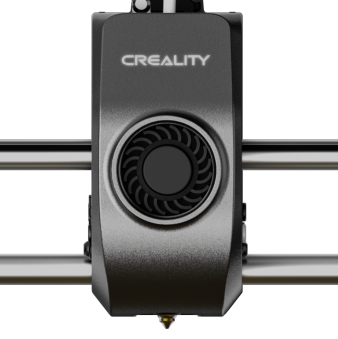

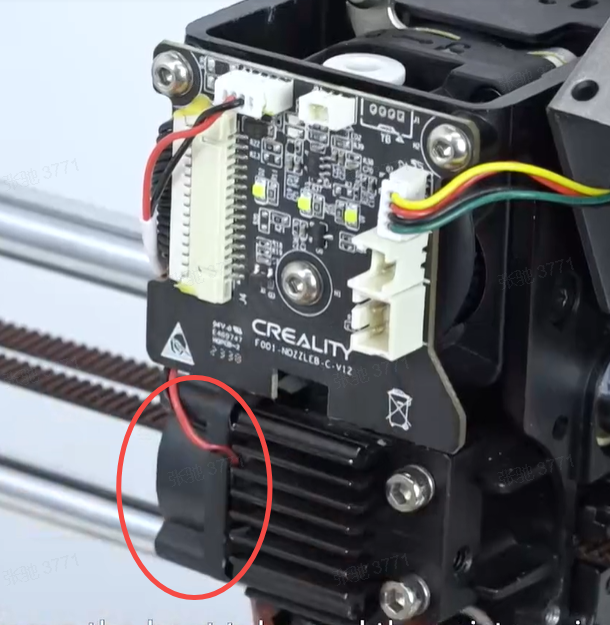

19. Fans: find the one that's actually screaming

"One of the loudest, most annoying fans on a 3D printer I have encountered in a while" is a typical CoreXZ owner review. Before you change anything, figure out which one it is: the V3 has four fans and Creality's documentation separates them by position and behavior. The 2510 axial on the hotend heatsink spins up to 13,000 rpm and kicks in once the nozzle heats — that's your high-pitched whine. A 4020 blower in the shroud cools the part, a second 4020 handles auxiliary cooling behind the nozzle (off by default, enabled by the slicer or from the screen), and a 6015 axial underneath cools the mainboard, running during prints or whenever the chip passes 45 °C.

• Pull the suspect fan and spin it on its own — if the noise stops, it was rubbing on the shroud
• Check the blades for filament debris and chips
• Replace only the guilty one, not all four

Difficulty: intermediate. Cost: one fan. Source: Creality Wiki on abnormal fan noise. 3DGearZone measured 65 dB while printing and 50 dB idle and called the part cooling fan loud — an enclosure will do more for the noise than swapping a single fan.

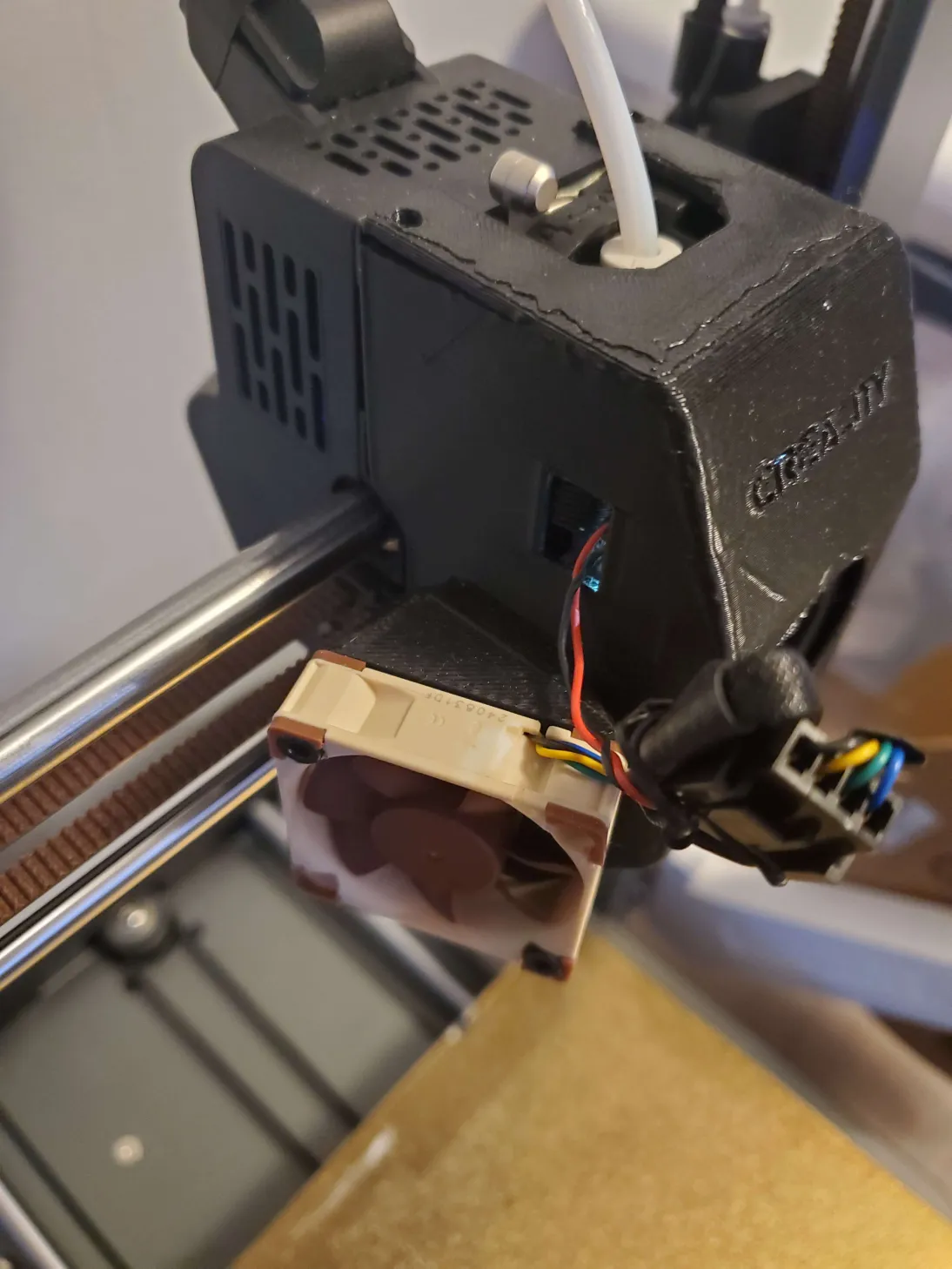

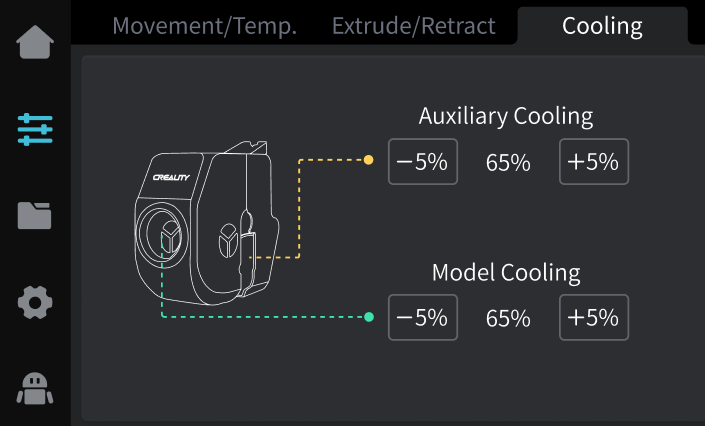

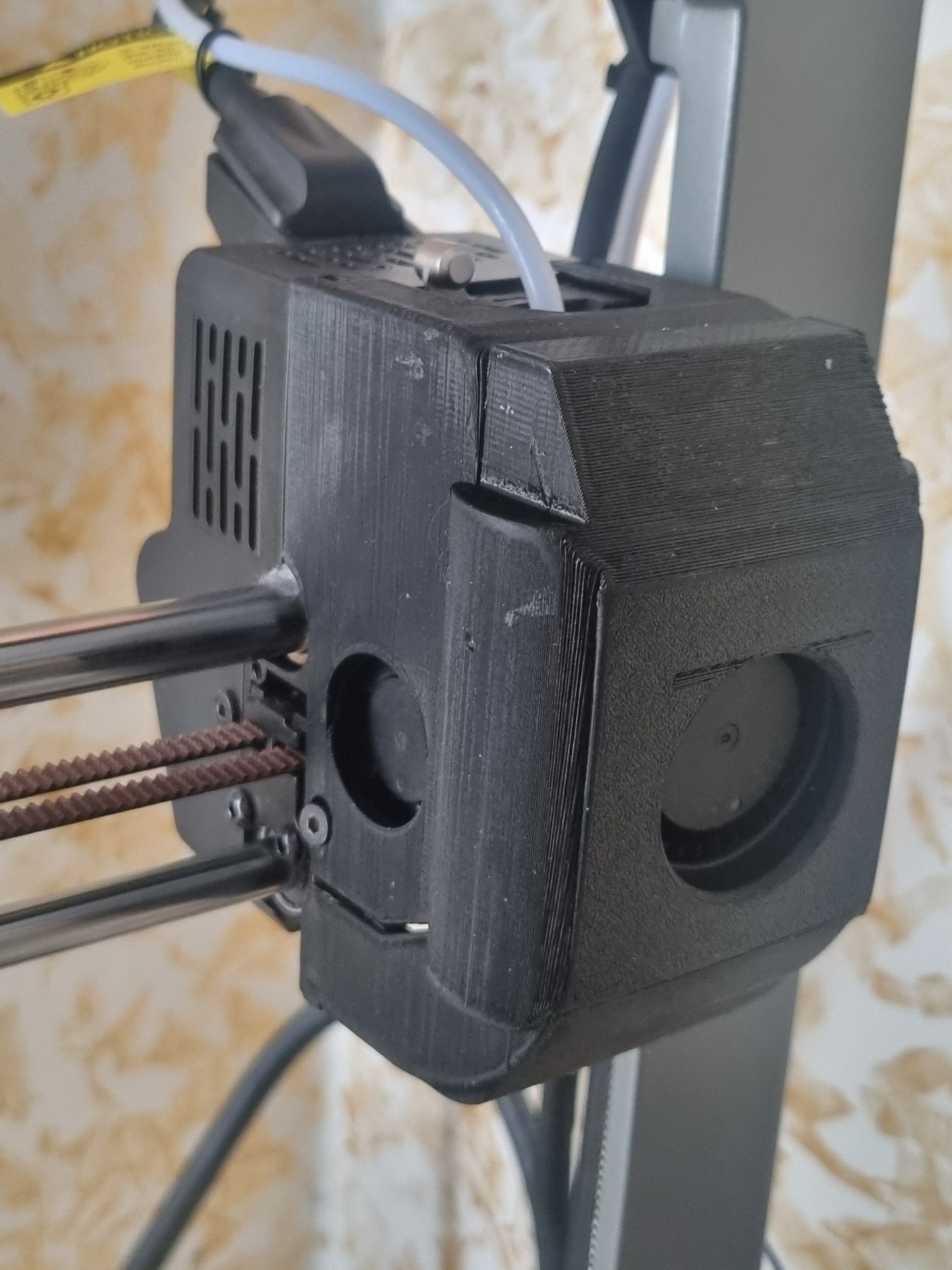

20. Rebuilding the toolhead cooling

Two different takes from two different designers. The first is a toolhead cover that accepts a 40 mm fan in place of the stock 25 mm axial: more air on the heatsink at lower rpm, so it's quieter. The second is a fully printed toolhead housing with a duct built around a 5015 blower instead of the stock 4020 — stronger part cooling on overhangs and bridges. The second one was published in May 2026 and is very fresh: 6 likes and 11 downloads.

Difficulty: advanced. Cost: one fan. Sources: 40 mm fan toolhead cover and the 5015 blower toolhead.

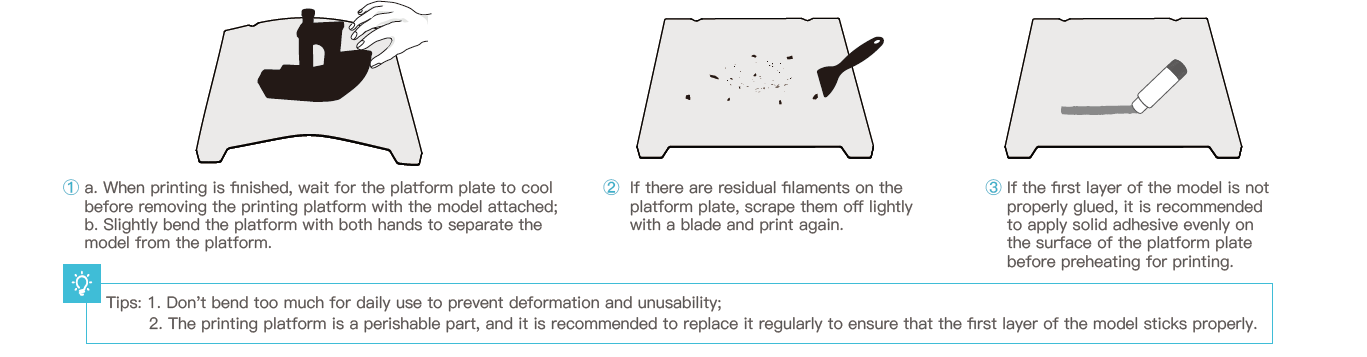

21. A second build plate: PEI or textured

Per Creality's own parts list the V3 uses a 235×235 mm spring steel plate — the same size as the SE, KE and K1C — even though the build area is 220×220 mm. That means the entire 235×235 aftermarket is open to you. A double-sided PEI sheet gives you a smooth side for glossy bottoms and a textured side for PETG, and a dedicated plate per material saves you the glue stick dance.

• A second plate is also a spare: coatings wear out and first layers start letting go
• Different surfaces for PLA, PETG and TPU without glue
• Pop a part off and start the next print without waiting for the plate to cool

Difficulty: beginner. Cost: low. If parts still let go on a fresh plate, the plate isn't the problem — see our first layer troubleshooting guide.

22. An enclosure for ABS, ASA and nylon

The open frame is this machine's hard limit. Creality's fireproof 550×650×750 mm tent lists the Ender-3 V3 as compatible, and the printer's 358×374×498 mm footprint fits with room to spare. An enclosure holds a stable temperature around the part, kills drafts and muffles some of the noise while it's at it.

Difficulty: beginner. Cost: low. For lifting corners and split layers see our warping guide, and for extraction and fumes read up on 3D printing fumes and ventilation. ABS in a sealed enclosure with no extraction in a living room is a bad idea.

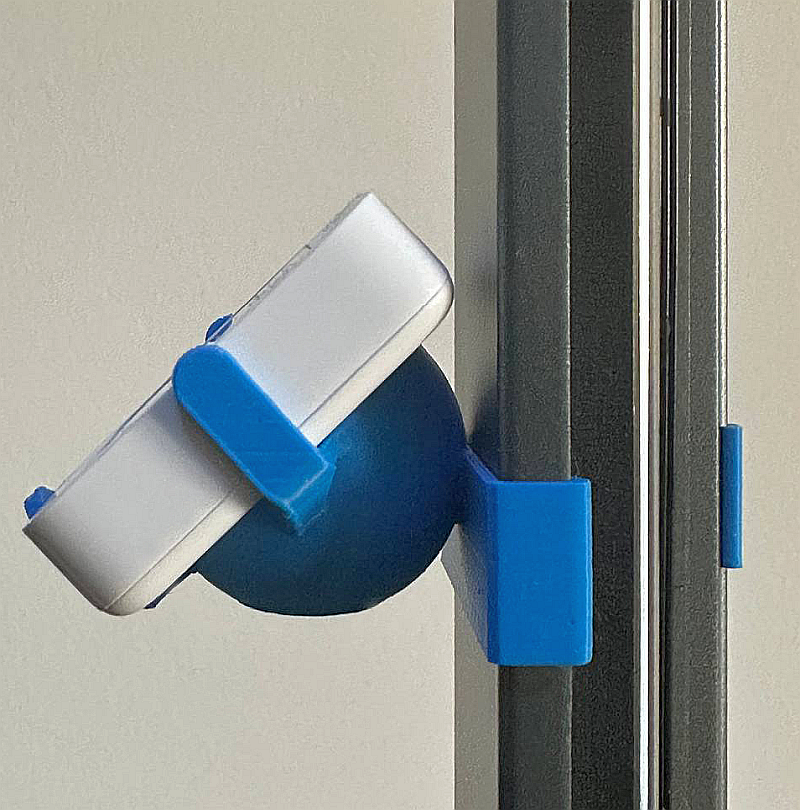

23. Filament dryer and a humidity sensor

Wet PETG strings and pops in the nozzle, wet TPU gives you porous walls, and printing nylon without drying it is pointless. CoreXZ owners run an active dryer — the Creality Space Pi shows up in a lot of their builds — and clip a temperature and humidity monitor near the print area. Between prints the spools go into vacuum bags.

Difficulty: beginner. Cost: anywhere from a pack of bags to a full dryer. More: temperatures and timings in our guide on drying filament properly, material properties in the filament guide, and if you're already fighting wisps, the stringing guide. Mount: sensor holder on Printables.

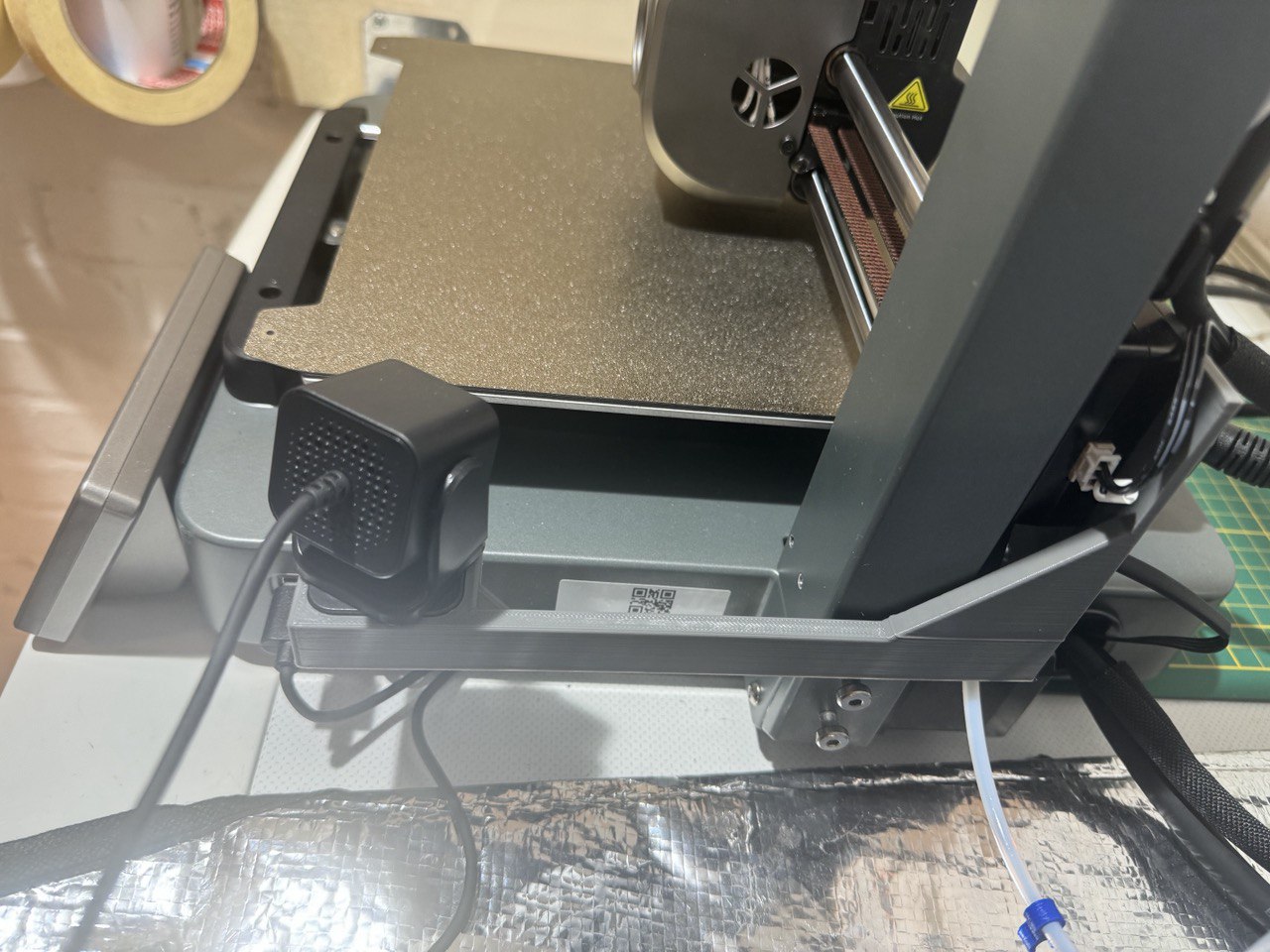

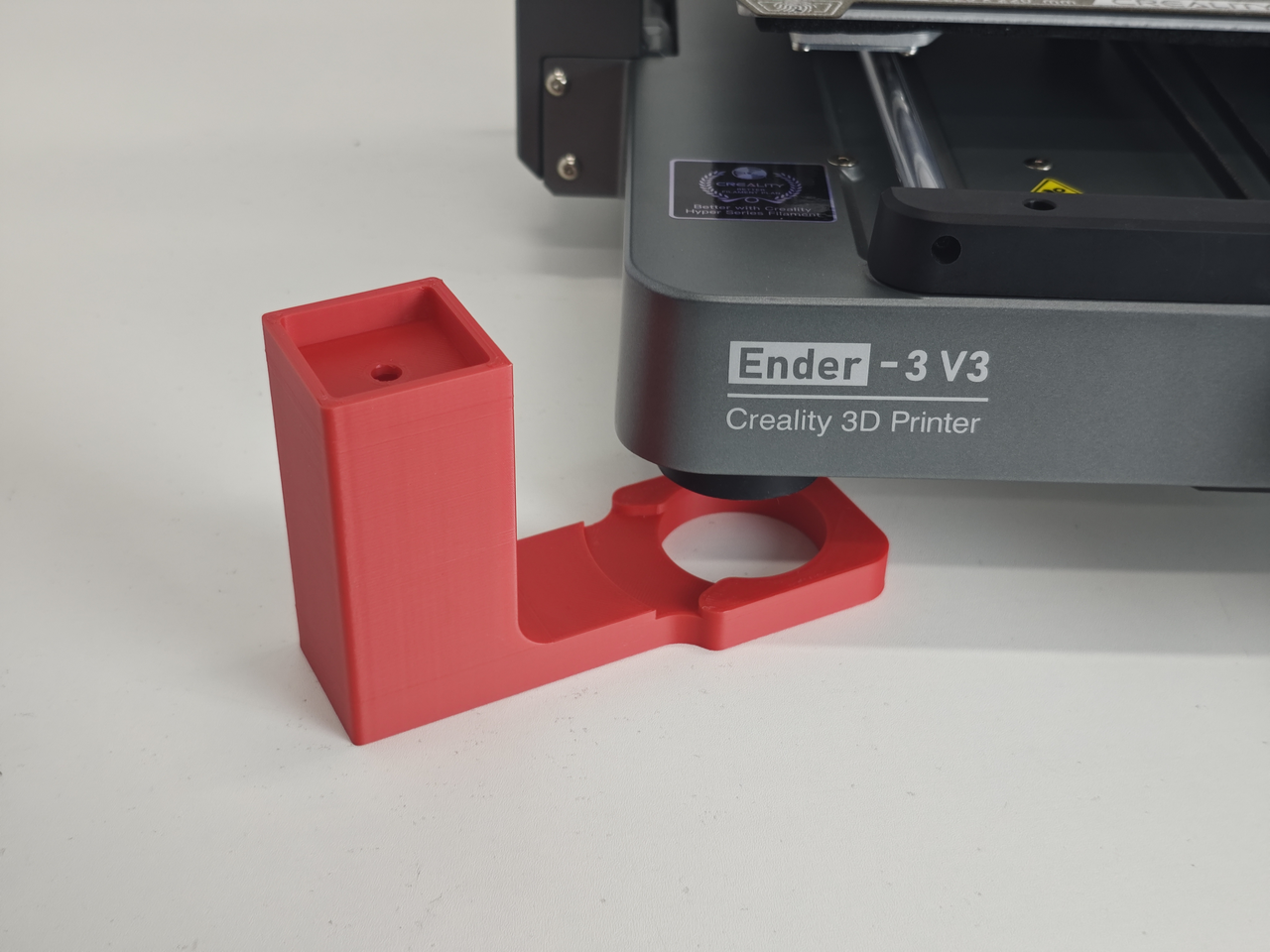

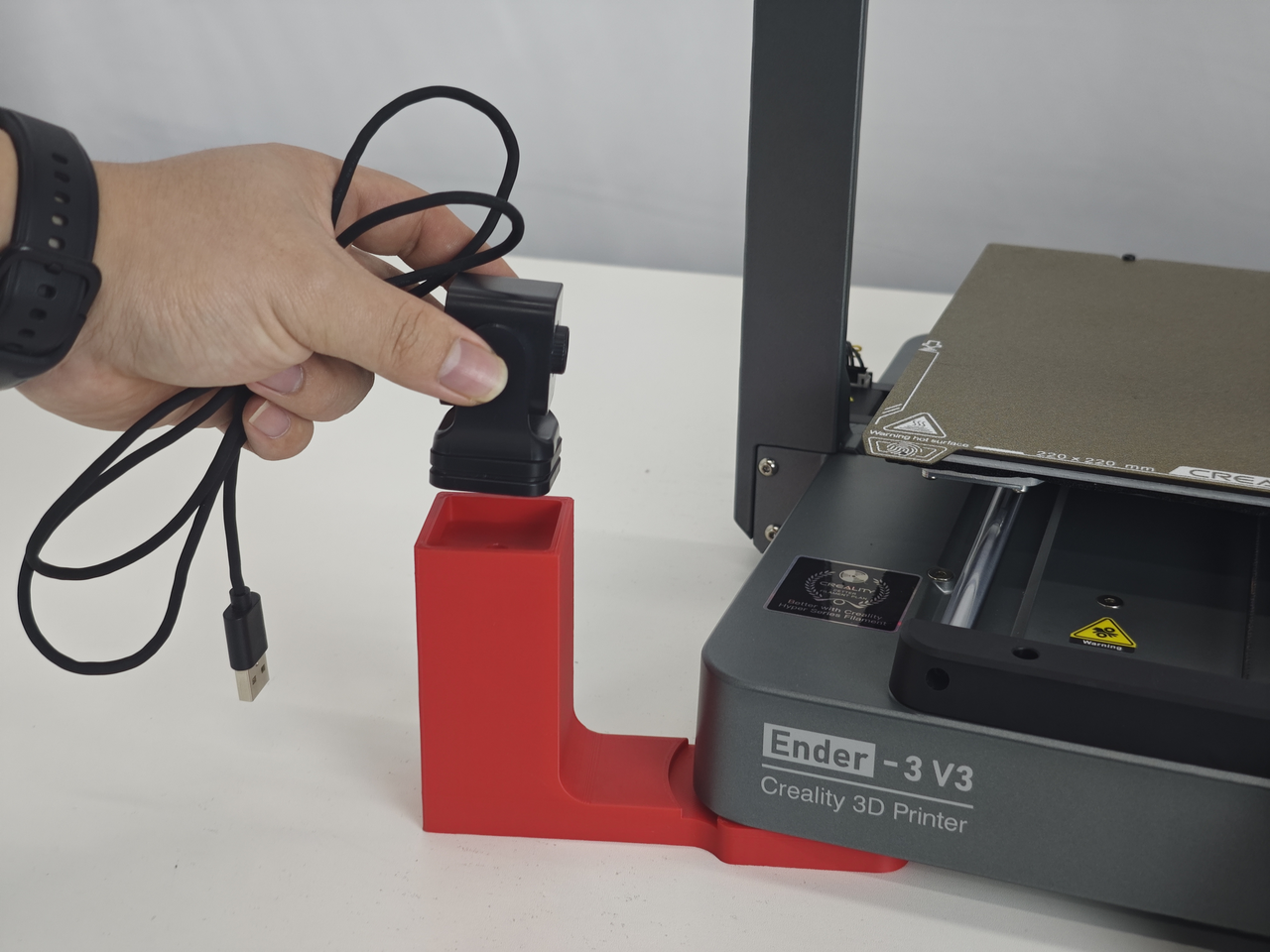

24. Nebula Camera — monitoring and failure detection

No camera in the box, and Creality is explicit: the Ender-3 V3 is only compatible with the Nebula Camera. Kits like the WiFi Smart Kit 2.0 were built for older Enders and won't work here. The stock bracket sits on the printer's foot and the cable goes into the machine's USB port; the community has printed better mounts — a gantry mount, for instance, that sees both the nozzle and the whole part.

• Remote monitoring and timelapse
• Spaghetti detection — the print stops instead of extruding half a spool into the air
• On a rooted machine the Helper Script adds a dedicated Nebula settings menu

Difficulty: beginner. Cost: low. Sources: Creality's Nebula installation guide and a community camera mount (40 likes).

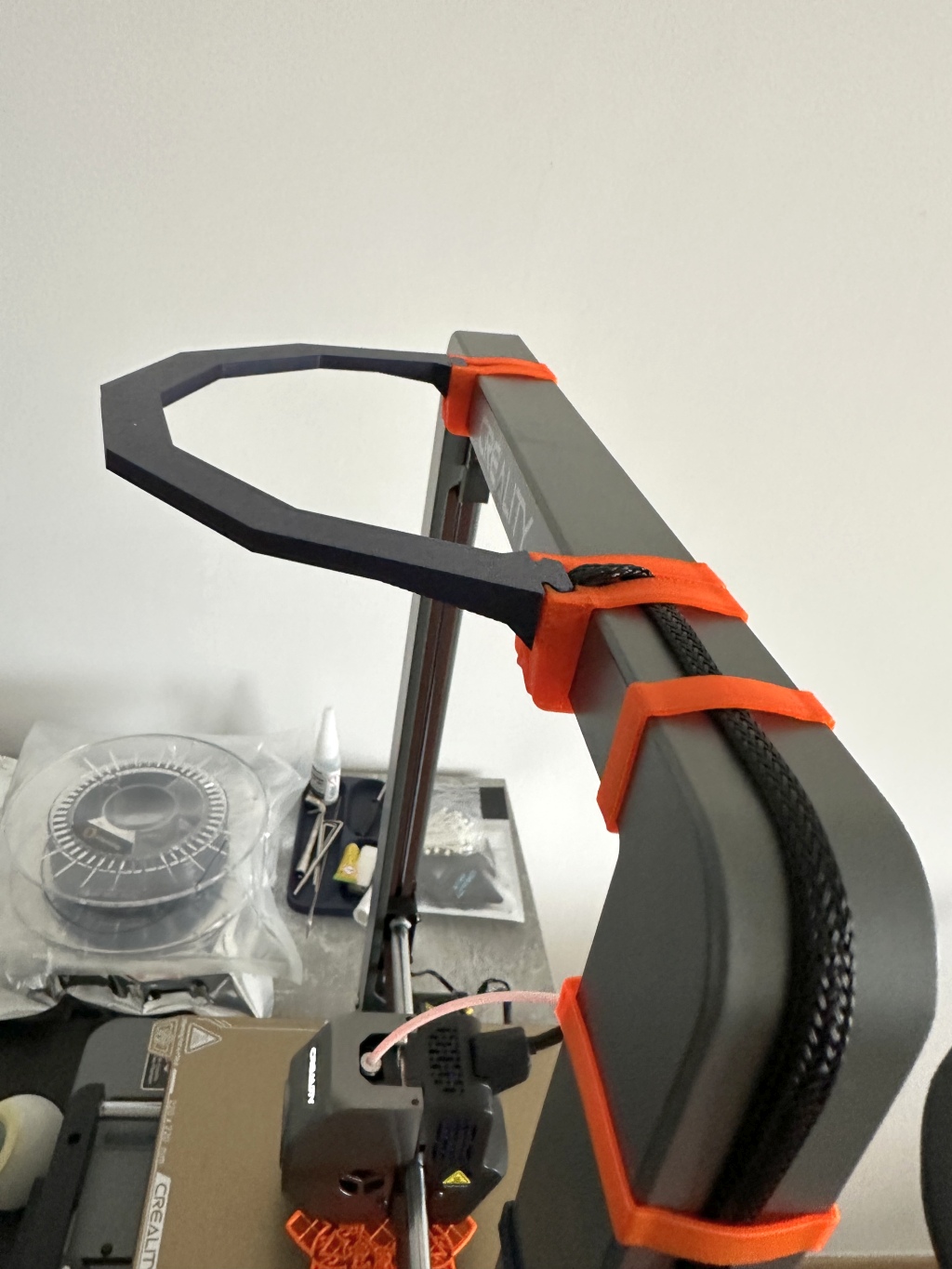

25. Lighting the print area

You can't judge a first layer in the dark, and a camera in a dim room produces mush. There's an original Creality LED bar made for the Ender-3 V3, and there's a path for anyone who already owns a strip: printed clips adapt the Ender-3 V2 Halo Light holder to the CoreXZ gantry.

Difficulty: beginner. Cost: low. Printed option: Halo Light LED Strip Holder Clips on Printables.

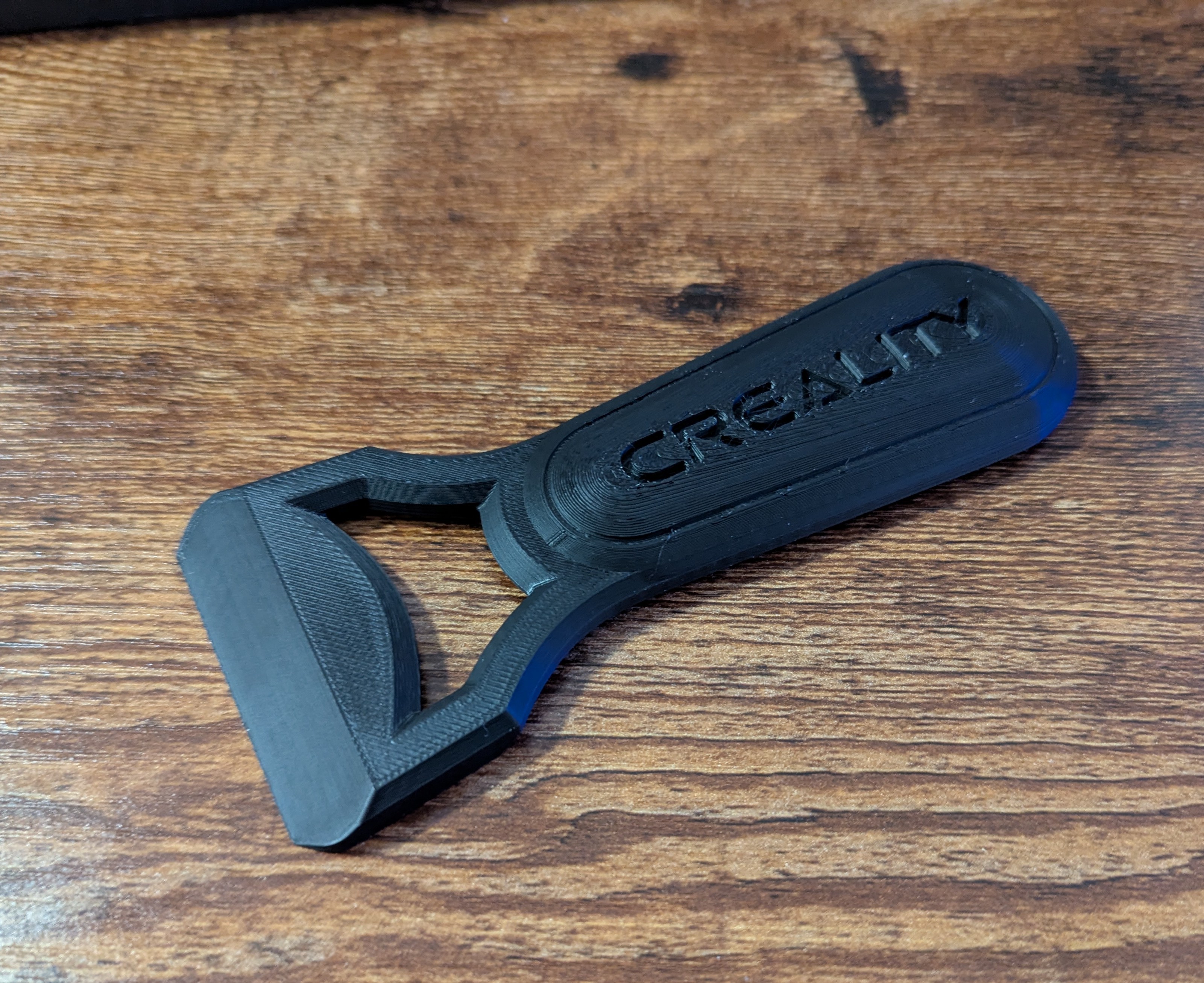

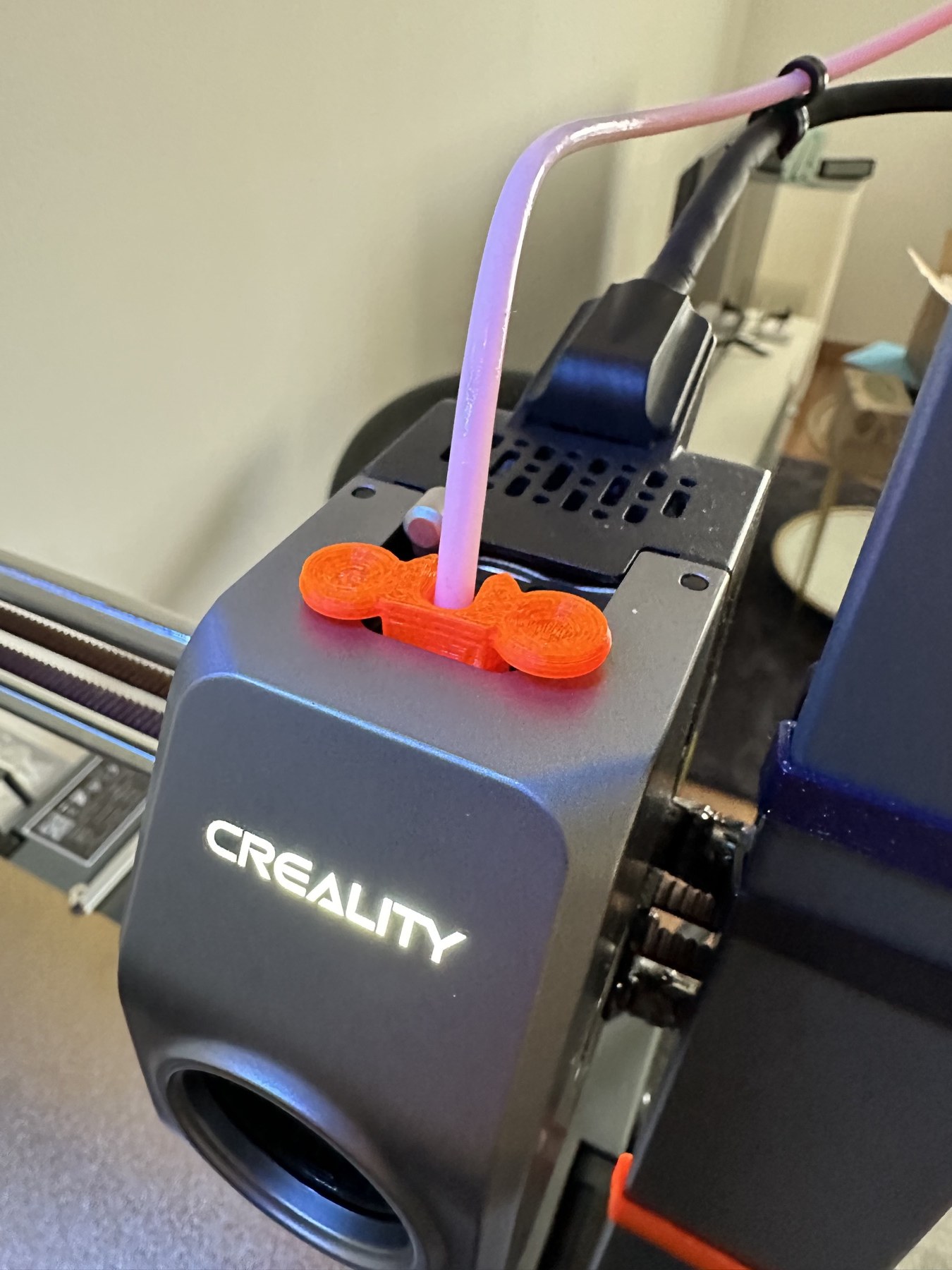

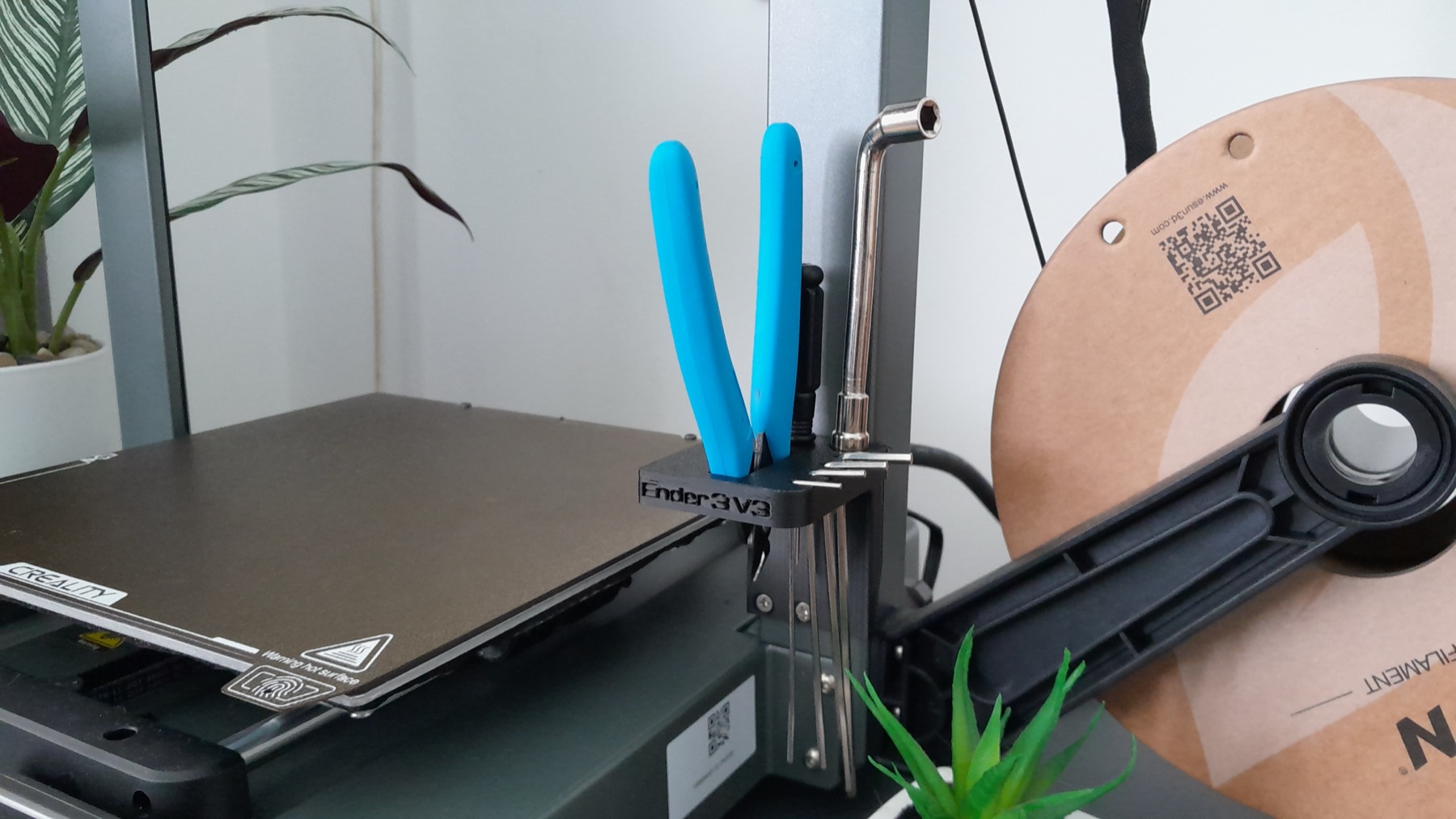

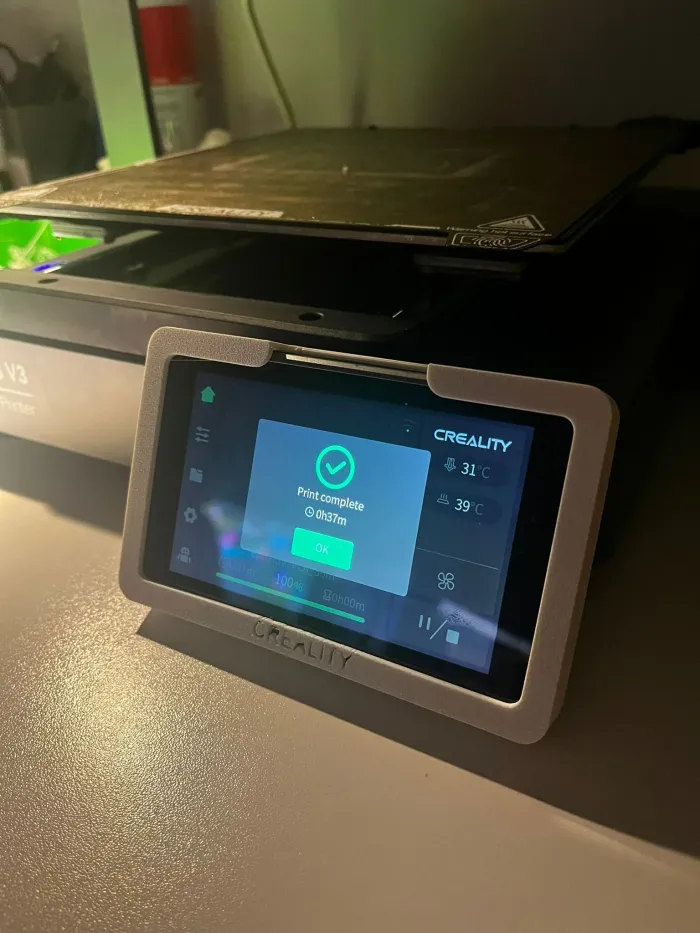

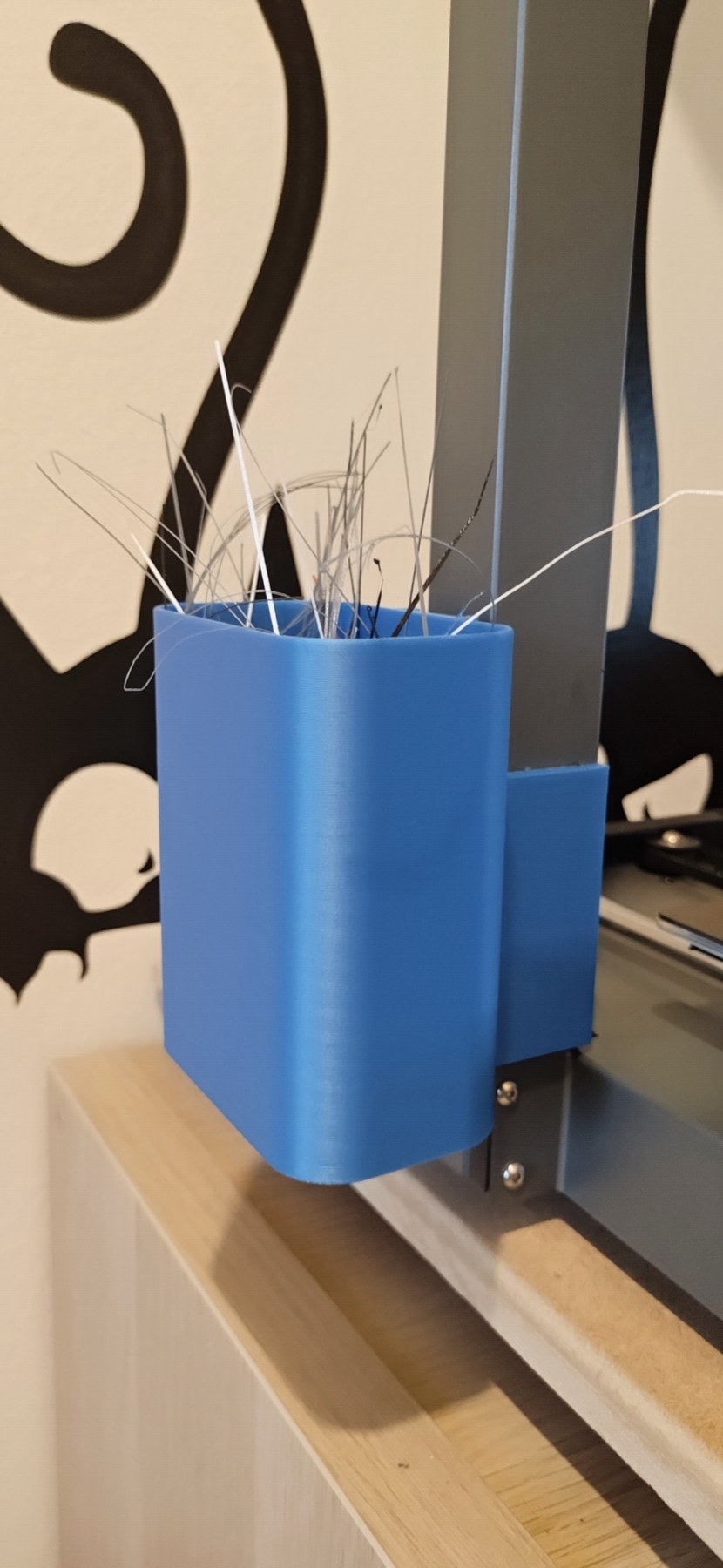

26. Small parts you can print in one evening

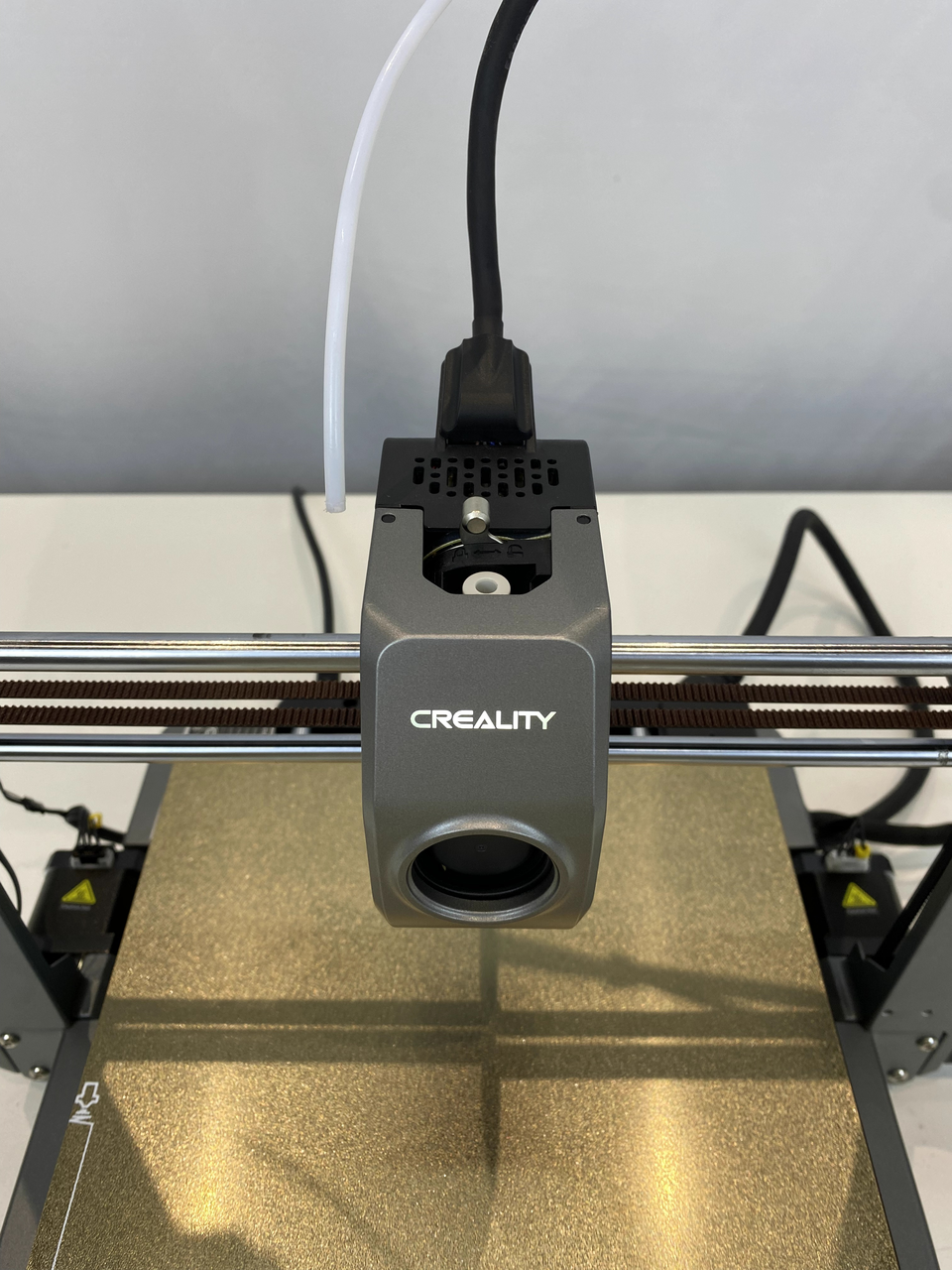

Five parts that cost nothing and make daily use noticeably better. The PTFE tube remover (42 likes, 355 downloads) clips onto the toolhead so you stop poking the white collet with a fingernail and hunting for tweezers. The trash bin catches purge blobs. The tool holder with an Ender 3 V3 badge hangs off the frame. A printed frame protects that forward-facing touchscreen from parts and scrapers. And the stock Creality scraper — the one in the box — is on Printables too, with 658 downloads, for when yours goes missing.

Difficulty: beginner. Cost: one evening of printing. Sources: PTFE remover, trash bin, tool holder, screen protector and the scraper.

27. Multicolor printing: the Co Print KCM set

The Ender-3 V3 has no multi-filament system of its own, and the CFS won't help — that one is built for the K series and the Hi. The official answer is different: on January 17, 2025 Creality and Co Print announced a partnership and the KCM set, and multicolor Ender-3 V3 combos landed in Creality stores. KCM is an external feeder for Klipper printers: base versions with 4 or 8 channels, plus an ECM module that adds four more.

• 4, 8 or more colors on a machine that started out single-material
• Designed for Klipper printers, which the V3 is
• €299 in Creality's EU store against a €499 list price

Difficulty: advanced — this is a weekend project, not a five-minute install. Cost: comparable to the printer itself. Sources: the kit in Creality's EU store and Co Print's compatibility guide.

Six myths about Ender-3 V3 mods

Where to start: ordered by payoff

The top answer in the r/ender3 thread about upgrading this machine got 12 votes and said: leave it stock until you hit its limits. That's sound advice — the V3 ships with things people used to mod onto older Enders. But if you can already see the ceiling, here's a sane order.

1. Fluidd on port 4408. Zero risk, zero cost, completely changes how you drive the printer
2. Top spool holder plus sensor relocation. Removes the machine's biggest design compromise without losing runout detection
3. OrcaSlicer and real calibration. Honest Pressure Advance and flow numbers beat any piece of hardware
4. A second plate and a dryer. Worn coatings and wet spools are the two most common causes of "my printer got worse"
5. Camera and lighting. Overnight prints stop being a gamble
6. Gantry rods. The first mod worth picking up a wrench for — and re-run the shaper calibration right after
7. Root and the Helper Script. Once the stock interface isn't enough: macros, KAMP, remote access
8. Enclosure, FlowTech, Co Print KCM. Big spends aimed at a specific goal — engineering materials or multicolor

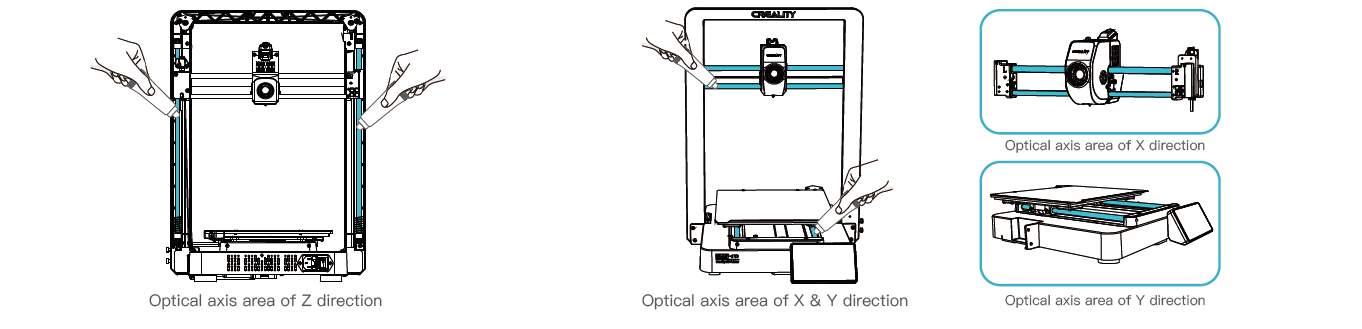

Maintenance: so mods don't turn into repairs

Creality recommends in plain text that you buy lubricant and service the rail areas regularly, and wipe the frame and rails with a dry cloth after powering down. Evenly spaced horizontal bands running the full height of a model are a classic CoreXZ complaint, and the investigation starts exactly there — lubrication and belt tension (a 1.8 m kit for X and Z plus a separate 1 m Y belt). The full routine is in our 3D printer maintenance guide.

If you're still choosing between models, we have separate mod roundups for the Ender-3 V3 SE, Ender-3 V3 KE and Ender-3 V3 Plus, plus a breakdown of the whole Creality lineup.
