Bambu Lab X2D: Known Issues and How to Fix Them

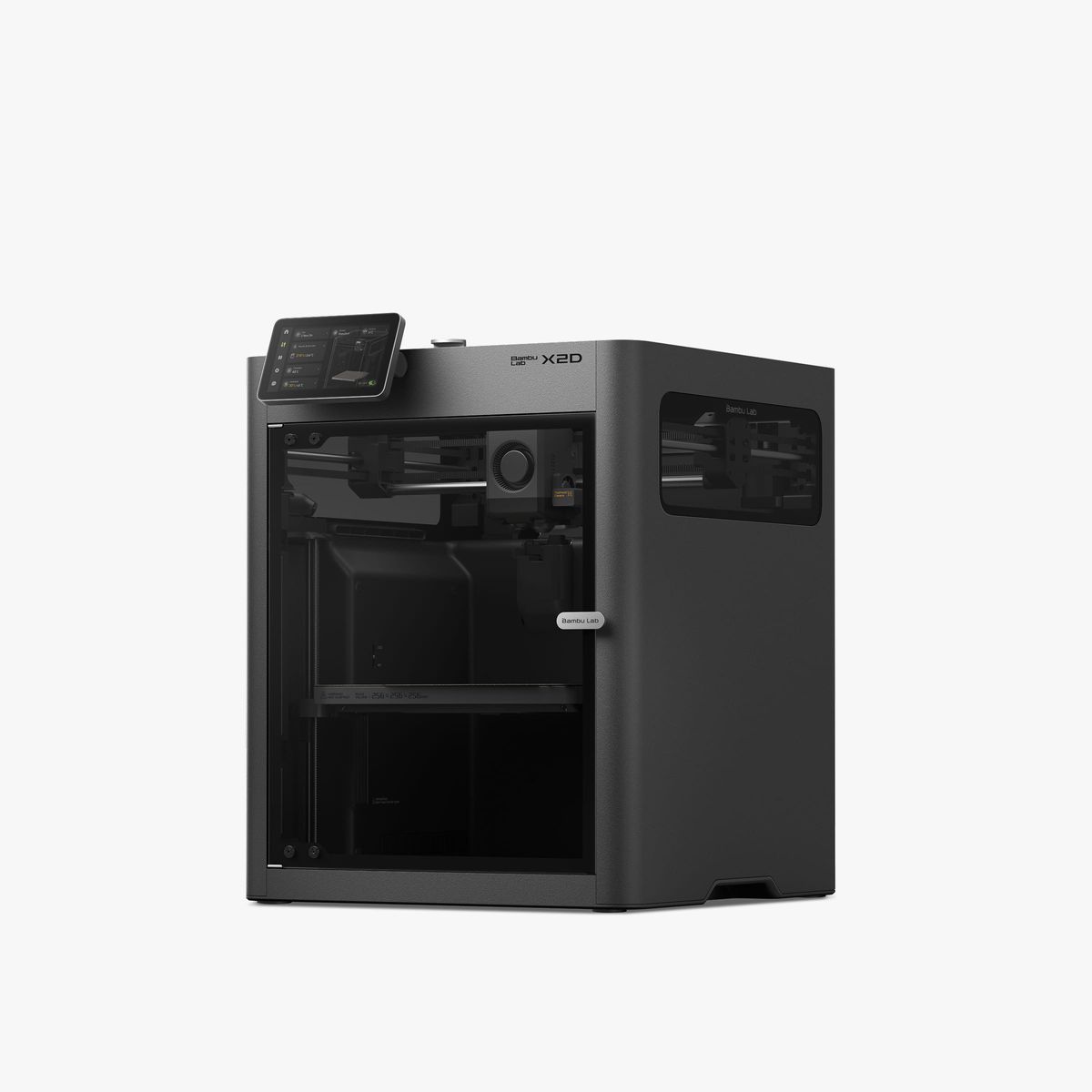

The Bambu Lab X2D is a $649 enclosed CoreXY printer with two nozzles, an actively heated chamber up to 65 °C and a 256 × 256 × 260 mm build area. It launched on April 14, 2026, and the first few months produced a very specific list of early-batch headaches. What follows are the problems that belong to the X2D alone: failed nozzle switching, a factory PTFE tube routed with too tight a bend, aux nozzle clogs inside a hot chamber, and fifteen more — each backed by the official wiki or a live owner thread.

Generic FDM problems — first layer, warping, stringing, clogs — live in their own guides, linked at the end. This article sticks to what the X2D's hardware creates: a mechanical nozzle switcher, a Bowden-fed aux extruder and an actively heated chamber.

1. Extruder switching failed

This is the X2D's signature failure because nozzle switching here is mechanical. The toolhead drives back and knocks the switching lever against a rod at the rear of the chamber while a Hall sensor tracks the lever angle in real time. If the angle doesn't match the target after several attempts, you get "Extruder switching failed" on screen.

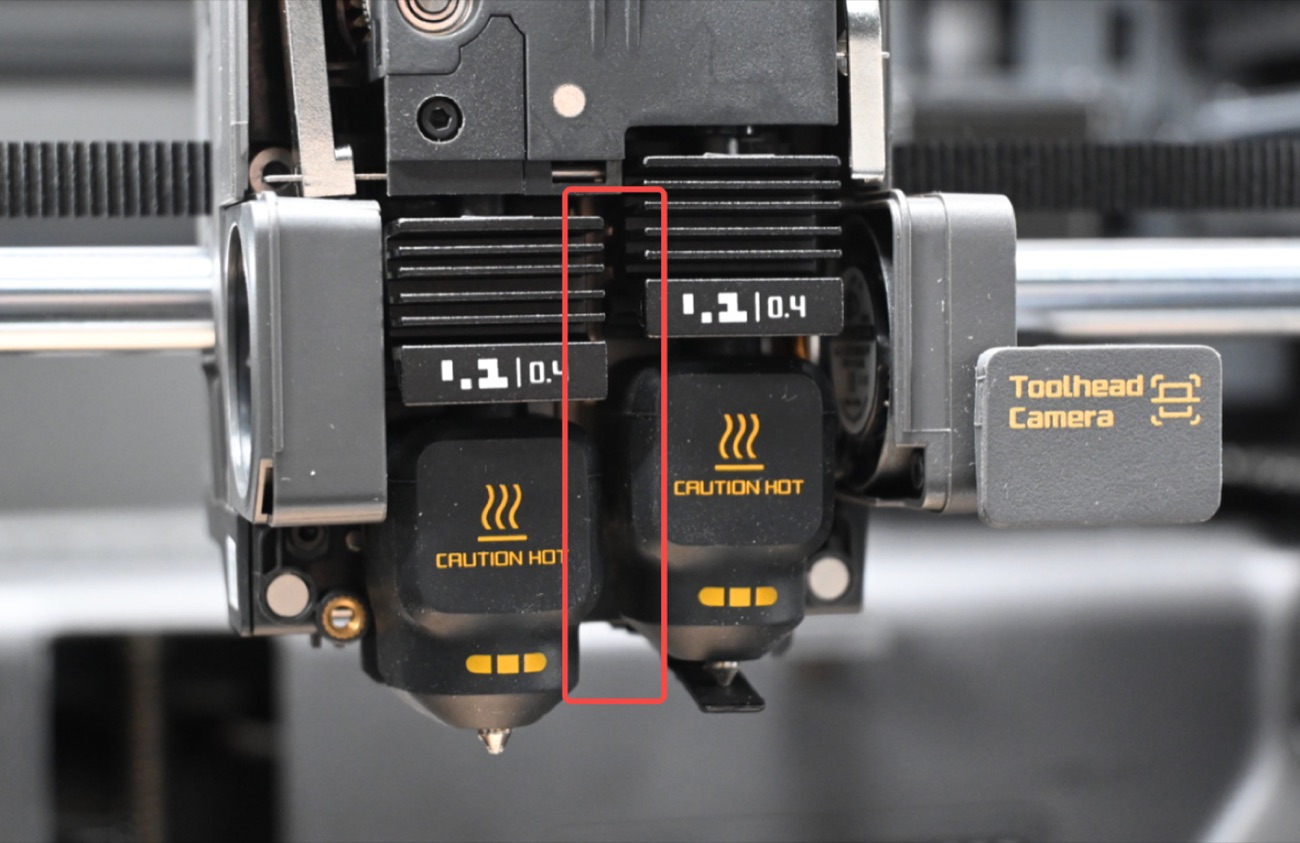

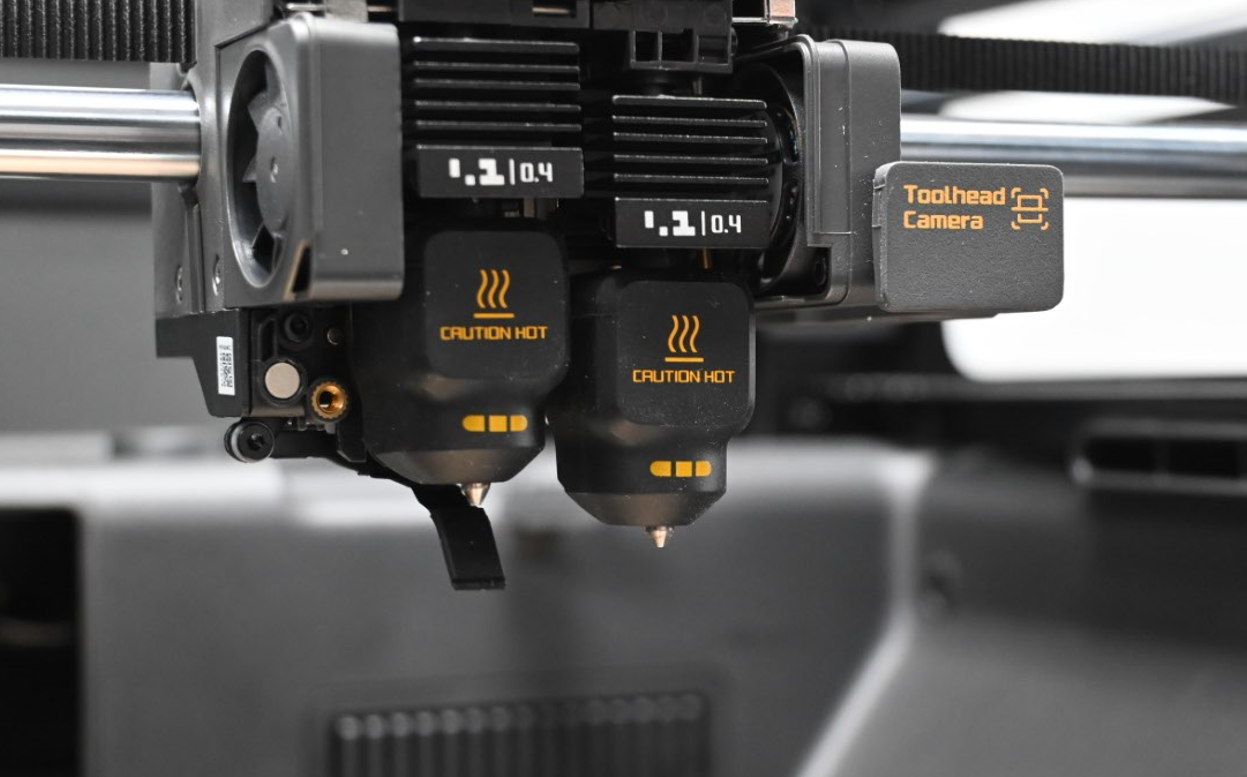

The culprit is almost always the flow blocker — the sliding plate that seals the idle nozzle so it doesn't ooze. Per Bambu's own documentation it either jams, gets knocked out of alignment, or is blocked by filament stuck inside the toolhead. There's a second code too, 07FE-8000-0002-0002: the lever never hit the rod at all, which points to XY step loss, a dropped drag chain cover or a PTFE tube fouling the toolhead's travel.

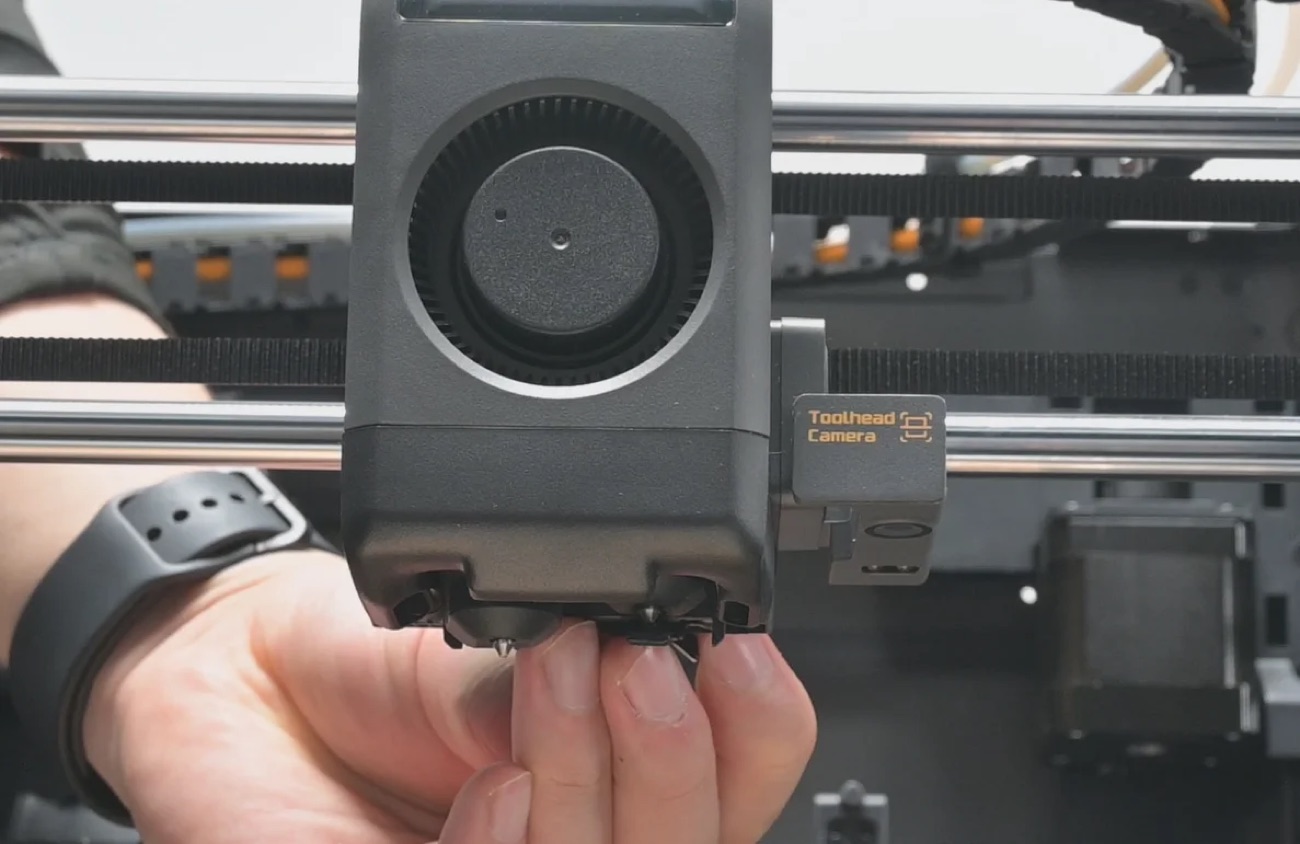

1. Power the printer off and toggle the lever at the rear of the toolhead side to side. The flow blocker should travel freely right under the hotend, with no knocking or binding.
2. Inspect the blocker itself. A slight misalignment can be nudged back by hand; a badly deformed plate is a replacement job.
3. Check both nozzles for oozing. Scrape hardened filament off the hotends and off the track the blocker slides along.
4. Look into the gap next to the hotend — filament fragments and debris jam the mechanism just as effectively as a bent plate.

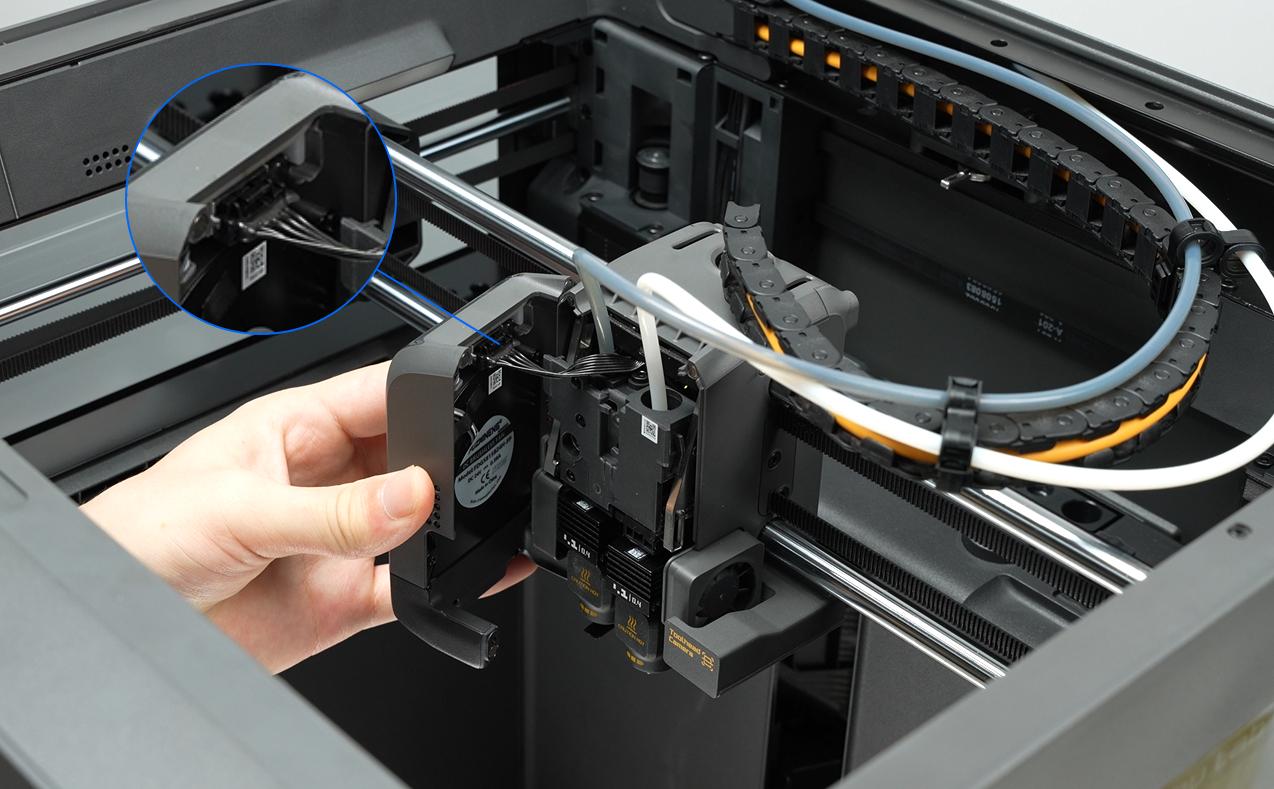

5. For code 07FE-8000-0002-0002, check the drag chain cover and PTFE tube: make sure nothing has come loose or catches the toolhead at the far end of travel.

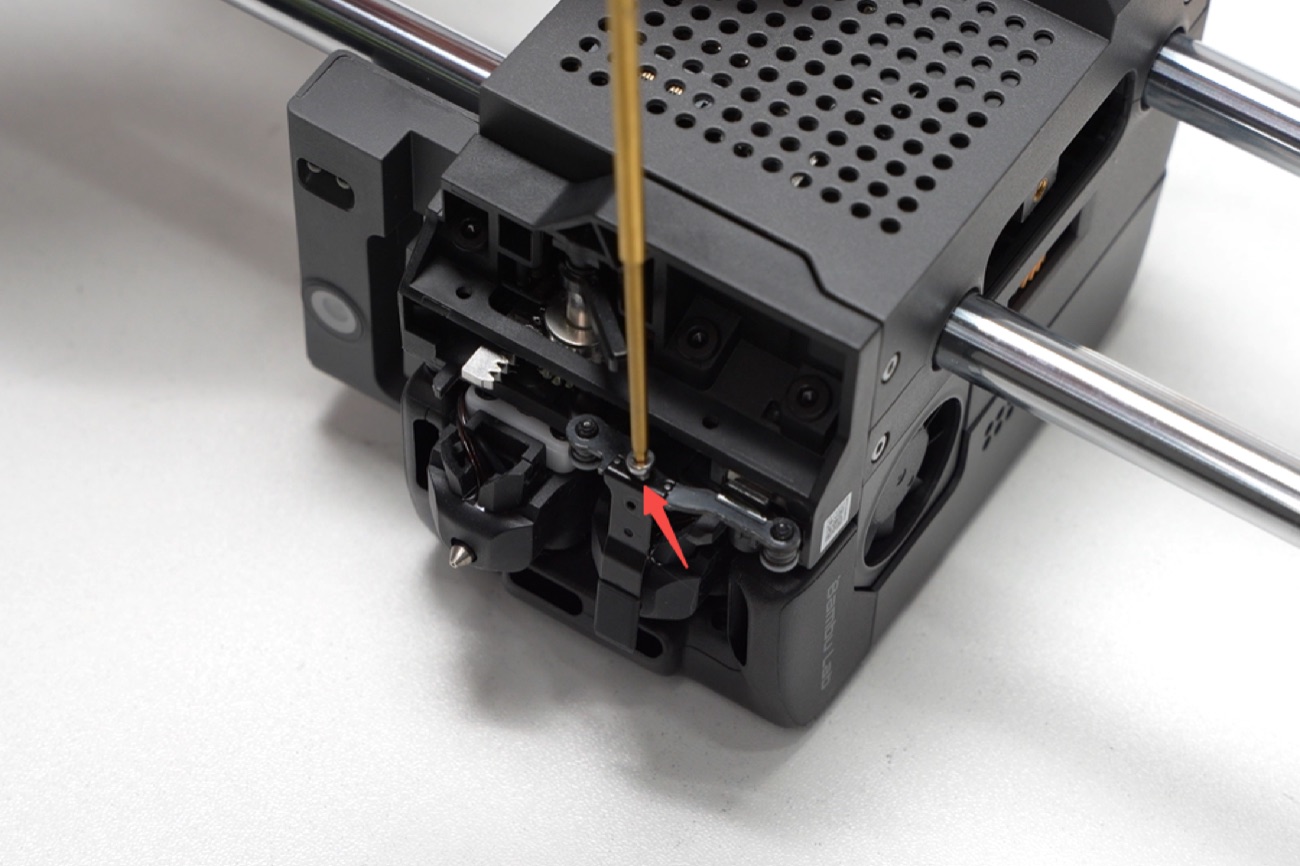

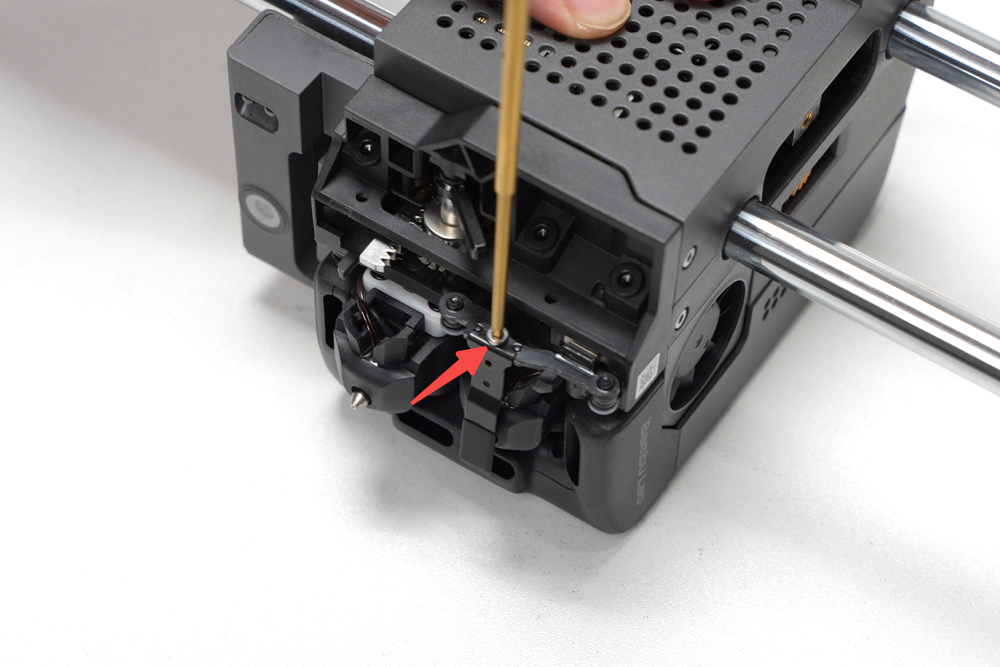

6. Still failing? Replace the flow blocker. A spare ships in the accessory box and the procedure is documented in Bambu's official replacement guide.

There's one non-obvious workaround owners found in the failed hotend switching thread: pull the silicone socks off the nozzles. One owner saw roughly a 50% failure rate with socks on and 60+ clean switches in a row with them off — the blocker simply gets more clearance. If yours stops 1-2 mm short of its end position and the printer loops through retries, that's a factory defect, and Bambu Lab has been shipping advance replacements for it.

2. Filament won't reach the main extruder, AMS assist motor overloads

The most-read thread in the X2D forum section is bluntly titled "There is something seriously wrong with the X2D" — 47 replies, over 11,000 views, and still active since April 25. The symptom: filament reaches the extruder but the gears never grab it; on multi-color prints it loads, purges, then immediately unloads again. On screen you get "Filament will not load" plus an AMS assist motor overload. It's almost always the left, main hotend.

The cause is mechanical: on some units the PTFE tube to the main toolhead leaves the factory with a very sharp bend, and inside the drag chain it drags hard enough to stall the feed. Officially this shows up as 0700-2000-0002-0026 (excessive resistance in the tube between the AMS and the filament track switch) and -0027 (between the track switch and the buffer).

1. Verify every PTFE tube is seated fully in its coupler, not halfway — this alone kills a lot of first prints.
2. The fix multiple owners confirmed: remove the clip closest to the toolhead, move it back two segments and swap it with the aux tube's clip. The bend relaxes and drag drops.
3. Deburr the tube ends — a 2.5 mm center drill does the job — and cut them square.
4. Reposition the AMS so the tube runs in a smooth arc with no kinks. With three or more AMS units, add the 4-in-1 PTFE adapter.

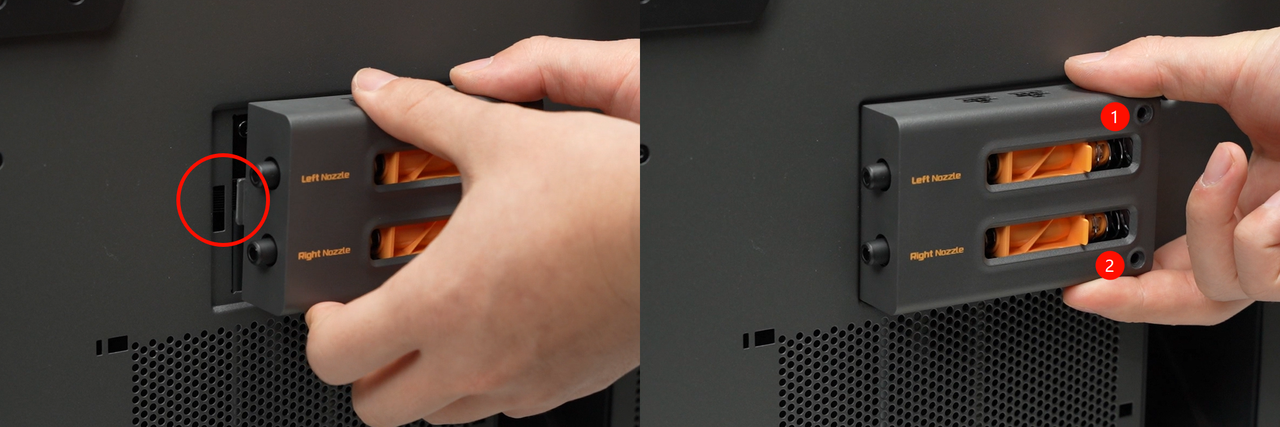

5. Check the buffer: press the black button, pull out any stuck filament, clear debris inside.
6. New AMS 2 Pro units ship with an overly stiff hub spring. Owners either back the hub screws off 2-3 turns or print a shim that relieves the tension.
7. If the error repeats across every spool after all of the above, ask support for a buffer replacement — that's how these cases have been closed.

Firmware 01.01.01.00 softened the warning threshold but didn't remove the mechanical cause — you still have to route the tube yourself. If the trouble sits in the AMS rather than the tube run, see our AMS troubleshooting guide.

3. Aux nozzle clogs when printing supports in a hot chamber

This is the exact use case people buy the X2D for: ABS on the main nozzle, Bambu's own Support for ABS on the aux. It's also what breaks most often. One Reddit owner racked up 5 clogs in under 50 hours across three different 0.4 mm nozzles, two of them brand new — every single one on the Bowden side, meaning the right nozzle.

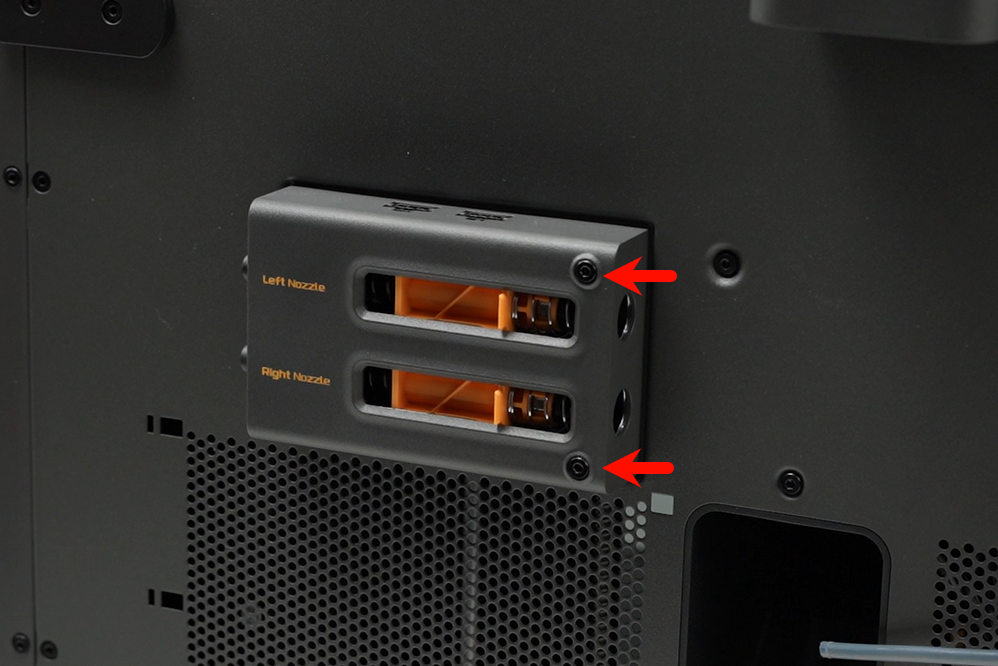

It's a geometry problem. The buffer sits right against an opening into the heated chamber, so at 65 °C it bakes, and soft support filament softens before it ever reaches the extruder. The author of the 200+ hour review thread adds a second detail: a pocket of hot air forms between the two nozzles with nowhere to escape, holding 65-70 °C, which softens PETG on the cold side of the hotend. His conclusion is simple — turn the chamber heater off entirely when running ABS or PETG supports.

1. For ABS and ASA with soft support material, switch the active chamber heater off and let the enclosure hold residual heat. In practice this is the single most effective change.
2. Keep support filament dry: 12 hours in the dryer before printing, AMS 2 Pro auto-dry above your humidity threshold.
3. Hit Unload and watch whether filament retracts out of the toolhead. If it does, the clog is in the hotend; if it doesn't, it's stuck in the extruder. That's Bambu's own diagnostic fork.

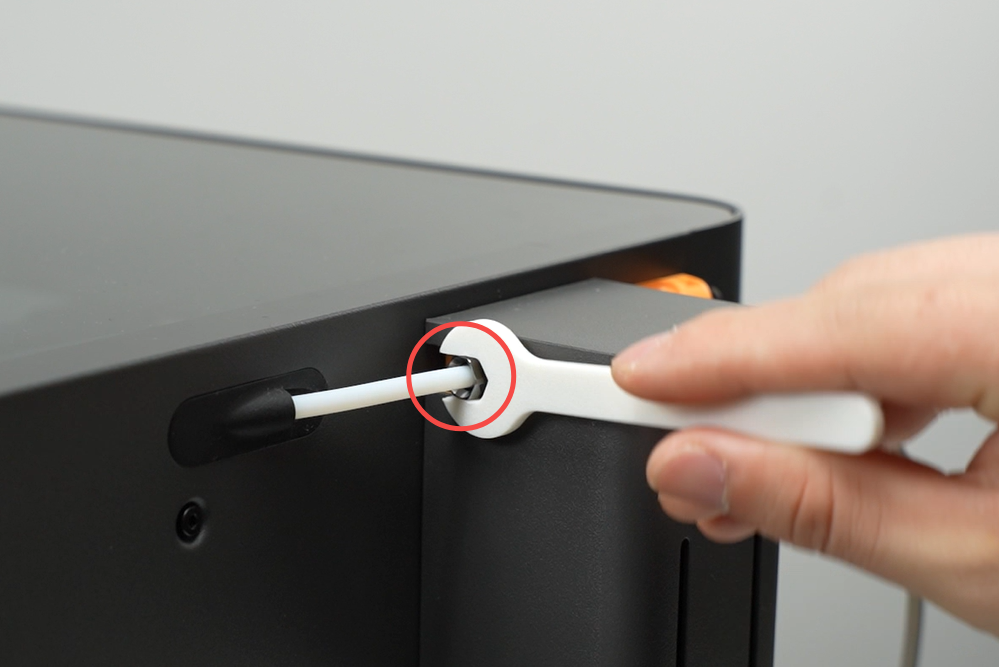

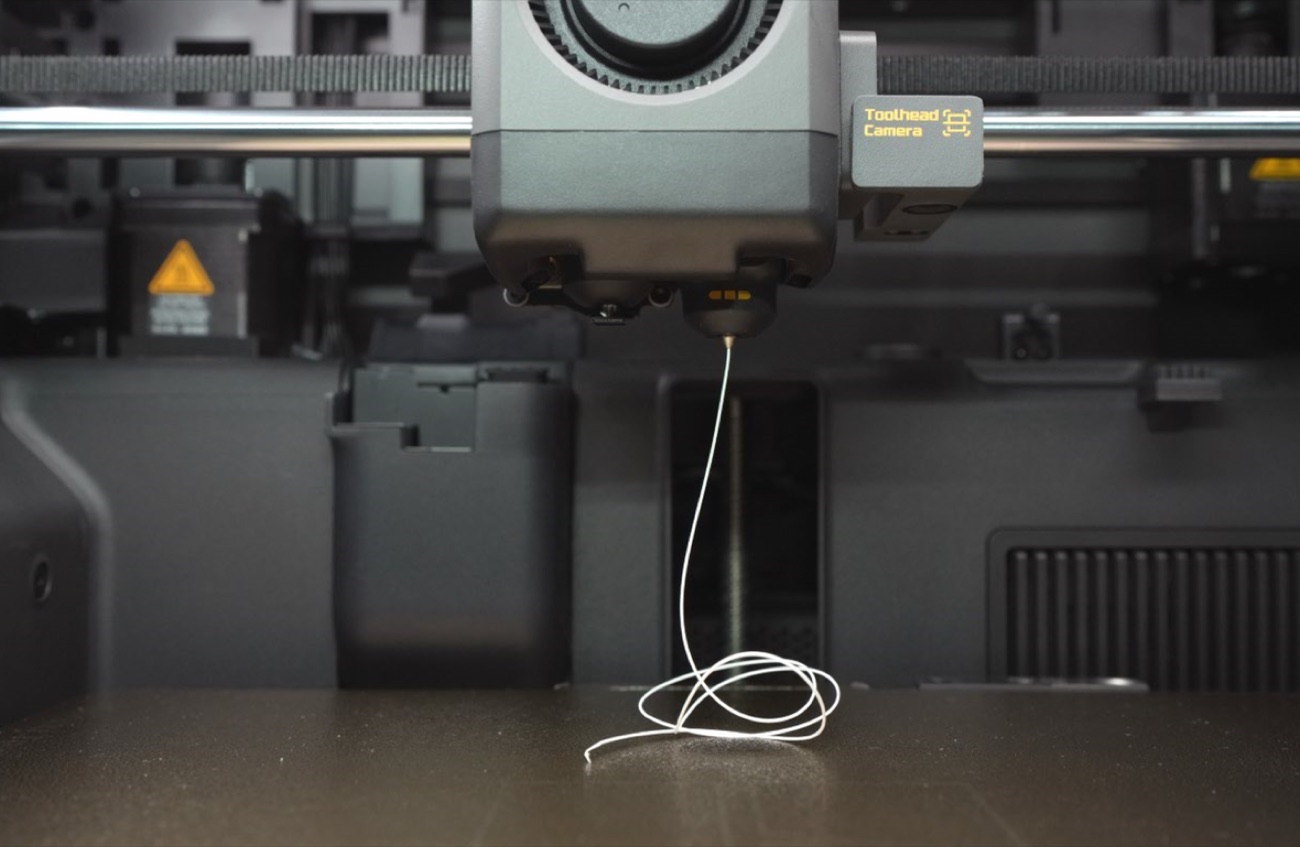

4. Test the extruder on its own: pull the PTFE off the top, feed in a piece of filament and hit Load. If it extrudes, the extruder is fine and the hotend is the problem.
5. Quick trick: swap the hotends left to right. They're identical and interchangeable on the X2D. If extrusion is fine after the swap, the extruder is at fault, not the hotend.

For clogs in general — heat creep, cold pulls, cleaning technique — see our complete nozzle clogging guide.

4. Left side panel bulges from chamber heat

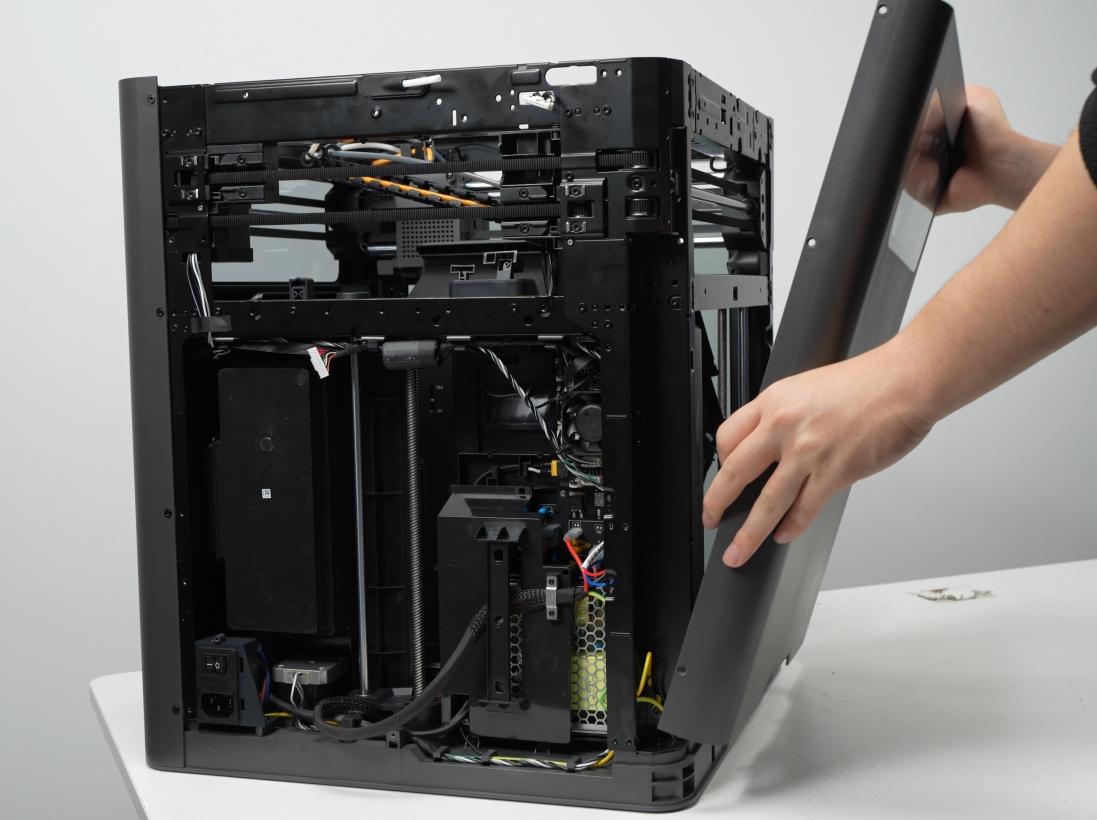

The X1 Carbon had metal side panels. The X2D uses PC+ABS plastic — that's straight from Bambu's FAQ. Run the chamber around 60 °C and on some units the left panel bows outward into a permanent bulge. The side panel warpage thread is 81 replies deep: one owner's panel deformed after a 3.5-hour ASA print, and others report the same on the H2D.

You can push the bulge back in while the panel is warm, but it pops out again the moment you let go. It doesn't affect print quality or frame rigidity — the community treats it as purely cosmetic. Still, a $649 printer shouldn't look inflated on one side.

• Don't max the chamber out when you don't need it — 45-55 °C usually covers ABS just fine instead of 65 °C.
• Don't push the printer against a wall. Bambu specifies 500 × 700 × 600 mm of clearance; without it the hot air has nowhere to go.
• Check that the left chamber heater vent isn't blocked — blocking it trips over-temperature protection and throws code 0300-9100-0001-0008.
• If the bulge bothers you, request a panel under warranty; the left panel replacement has its own wiki guide.

5. "Right hotend cooling fan speed is too slow"

The message "The right hotend cooling fan speed is too slow or stopped" fires as soon as the chamber reaches 40 °C or above — which means every ABS and heated PETG job. The fan is physically spinning, just noticeably slower than the left one, and it reproduces reliably print after print.

In the 26-reply thread a firmware update didn't fix it, support suggested reseating the connector, and several owners simply returned their printers to the retailer, calling it a manufacturing defect. The official codes are 0300-2A00-0001-0001 (fan stopped or too slow, stuck or connector unplugged) and 0300-2A00-0002-0002 (running slow, needs cleaning).

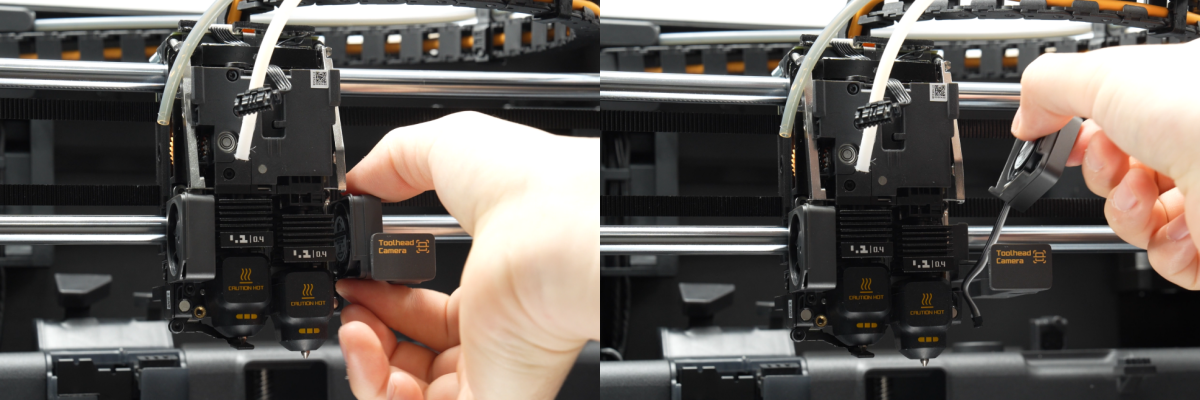

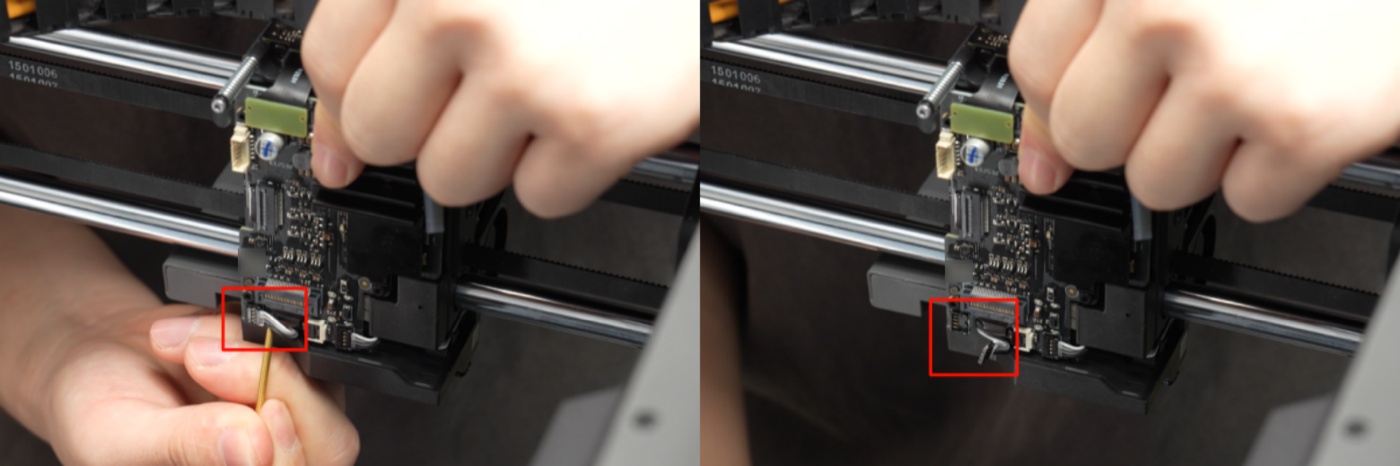

1. Power down, remove the toolhead front cover and reseat the fan connector — that's where support starts too.
2. Blow the fan out. Dust and plastic shavings slow an impeller down just as well as a defect does.
3. Update to 01.02.00.00 and rerun a heated-chamber print.

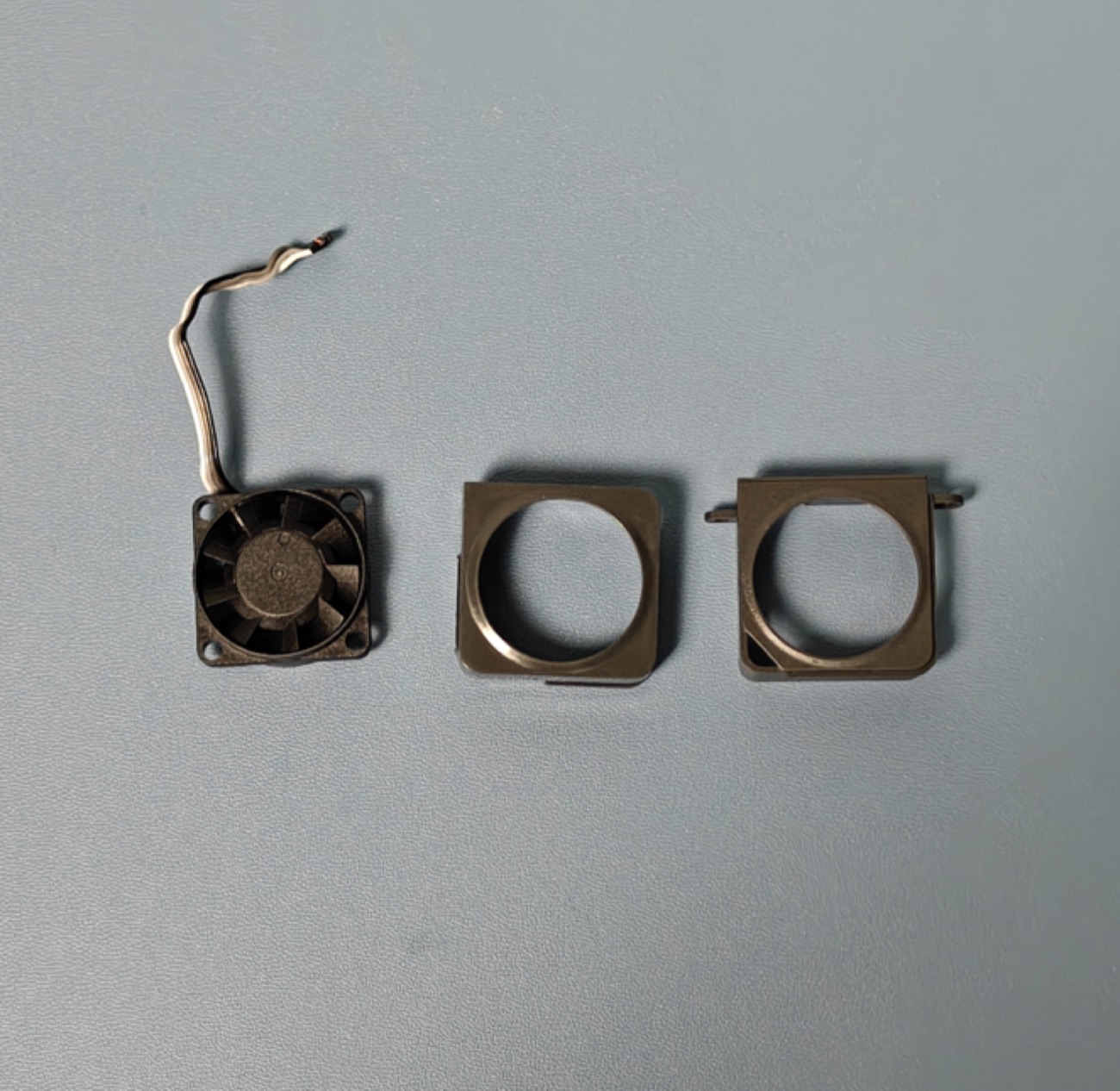

4. If the error returns on every chamber heat-up, the fan is bad. Replace it per the wiki guide or push for a warranty swap — this one is common enough to argue.

6. Auto-cooling blasts PETG off the plate

Owners whose PETG ran fine for years on an X1C or P1S suddenly get warping and detached parts on the X2D. The reason lives in the machine start G-code: the line M142 P6 R30 S40 U0.3 V0.8 enables chamber auto-cooling for PLA, TPU and PETG. On every filament change both aux fans spin up to roughly 90%, and as one participant in the 38-reply thread put it, the fans are strong enough to blast parts right off the plate.

The annoying part: the system resets manual fan settings on every layer and every filament change. You cannot dial in a fan speed and have it stick. Owners in the layer-lines thread say it flatly — it's a cooling problem, and you can't turn the X2D's aux fans off.

1. Start simple: raise bed temperature by 10 °C and take the top lid off. Chamber sits around 36 °C with the lid on and about 26 °C with it off, and PETG behaves far better.
2. Switch grid infill to cubic or gyroid — fewer jolts and fewer chances for the nozzle to catch already-laid plastic.
3. Print and fit deflectors on the aux fans. Owners rate this the best fix after removing the lid.
4. Try PCTG instead of PETG — on the X2D it tolerates the aggressive airflow better.
5. The nuclear option: clone your printer profile in Bambu Studio and comment out the M142 lines in the machine start, layer change and filament change G-code. Fan control becomes fully manual — no more resets, but no more automation either.

If your warping is the ordinary kind — ABS shrinkage, cold plate, a draft — head to our warping guide.

7. Flow calibration only covers the main nozzle

This isn't a bug, it's an official limitation buried in the store page fine print: Flow Dynamics calibration on the X2D applies to the main nozzle only. The aux nozzle is calibrated manually in Bambu Studio. The same fine print also states that the PMSM servo motor is fitted to the main extruder only, and that aux nozzle print quality is "slightly lower" in actual testing.

That's where the top-surface complaints come from. The 30-reply top layers thread describes a crisscross pattern with pinholes at flow rates anywhere from 0.975 to 1.05, on both nozzles — so it's systemic. The same thread found a ceiling: artifacts appear at 22 mm³/s and disappear at 20 mm³/s. And an X1C owner who moved over summed up the auto flow test perfectly: it squirts a short blobby line, declares it good enough, then prints trash.

1. Update to 01.02.00.00 first — Bambu retuned extrusion compensation for several filaments there, which is an admission the issue is real.
2. Calibrate flow and Pressure Advance by hand for the aux nozzle. The automation never touches it.
3. Don't trust the built-in flow test. Print a 35 × 35 mm square exactly 8 layers tall and inspect it at an angle with a flashlight — micro-gaps between lines only show up that way.
4. Step through 0.94 → 0.98 → 1.02 and stop where the gaps close. The owner who finally nailed ironing this way landed on 1.02.
5. If artifacts only show at speed, drop max volumetric flow from 22 to 20 mm³/s.
6. Measure the filament with a micrometer. Real-world 1.69-1.73 mm instead of 1.75 explains under-extrusion with no calibration involved, and such spools have turned up more than once.

The mechanics of under- and over-extrusion are covered in our extrusion guide, and profile tuning in the OrcaSlicer guide.

8. You still need a prime tower — and it eats filament

The buyer's logic makes sense: two nozzles, so no prime tower needed, each material stays in its own nozzle. In practice the tower still gets built, and Bambu explains why in the FAQ — a little filament remains in the nozzle during travel and switching, and the tower clears that residue while restoring internal pressure.

The scale of the waste, from a forum breakdown: 42 cm of tower per layer when hollow, 160 cm when filled. Across 227 layers roughly two meters of filament went into the tower alone — on a model printed in a single color with the second nozzle only running supports.

• Shrink the tower footprint and the purge volumes in the slicer first.
• Enable purging into object infill or into supports so the plastic does something useful.
• Batch parts onto one plate — a single tower serves the whole plate, so waste is shared.
• Confirm your manually measured Pressure Advance values are actually assigned to the filament profile; without them the cold start on supports is harder to tame.

9. Filament sensor sees filament that isn't there

The printer insists you pull filament out of the left extruder when it's empty, and Bambu Studio shows the slot green as if it's loaded. On screen you get 07FE-2000-0002-0004 and 07FE-8003. While the sensor lies you can't print, can't run a cold pull and can't factory-reset the machine.

Three confirmed causes. First, a defective filament sensor — in a July 29, 2026 thread Bambu shipped a replacement, though fitting it is tedious. Second, a filament fragment in the path: filament likes to snap above the extruder on multi-color jobs and the broken piece jams the sensor. Third, the exotic one: a piece of the push-fit connector's metal collar broke off and stuck to the magnetic sensor.

1. Heat both nozzles to 250 °C, cycle heat and cool three times, and clear the nozzle with the cleaning needle while hot.
2. Pull the PTFE tube and remove filament fragments by hand — that's the usual culprit.
3. Check extruder status on screen: a green square means the sensor detects filament. Green on an empty extruder means the sensor is lying.
4. Inspect push-fit connectors for wear, especially if you switch between AMS and external spool often.
5. If it still misreports after cleaning, request a new sensor. The left filament sensor replacement is documented in the wiki.

10. Heat creep and a hotend that won't come out

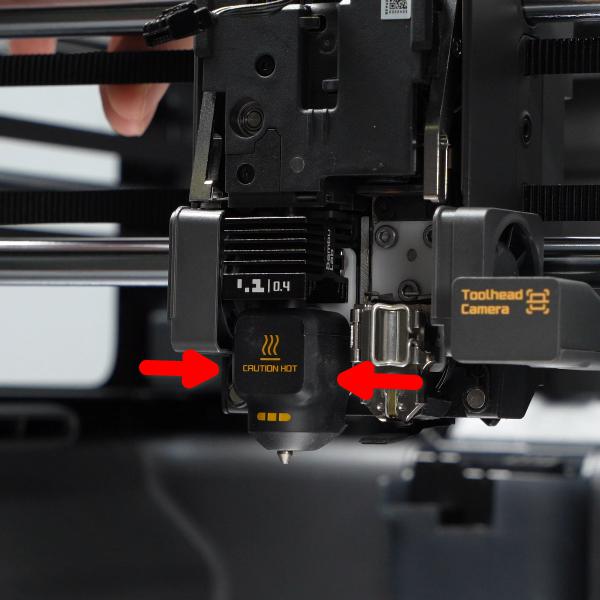

Heat creep on the X2D looks like this: filament seeps into the silicone sock and onto the hotend heater block, and parts stop sticking to the build plate. One case was documented on the forum in July 2026: it happened after 636 hours of use, roughly two months into ownership. Bambu replaced the heating assembly but declined to cover the flow blocker and build plate — both are on the warranty exclusion list.

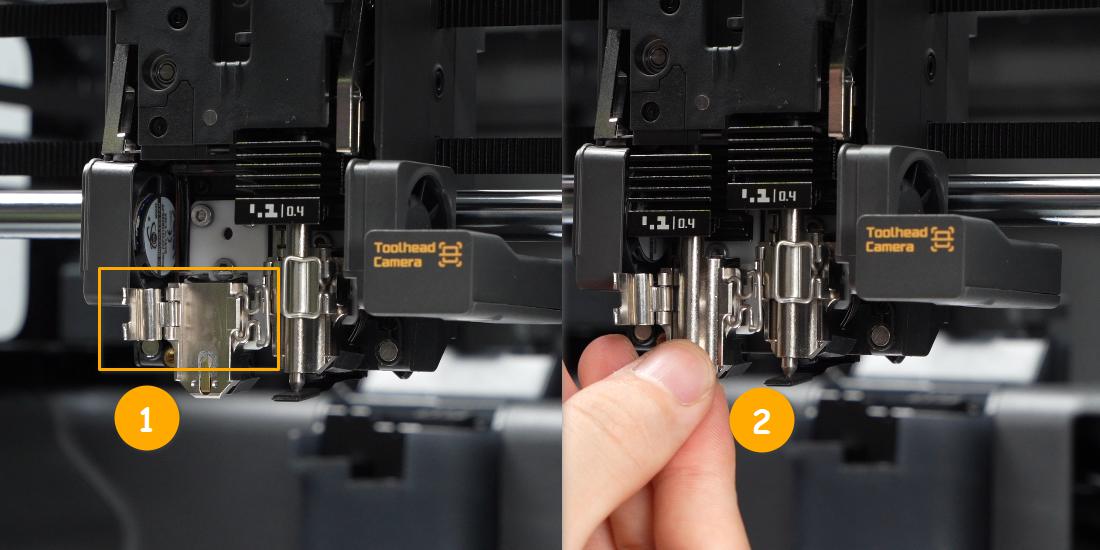

Far more common is the related problem: a hotend baked in place. The left hotend won't come out even with the sock off and the latch released, because leaked plastic has cured into the seat's surface imperfections. Don't force it cold — that's how people bend the flow blocker and break the latch.

1. Heat the nozzle to at least 140 °C — you need to exceed the glass transition temperature of the cured plastic. For ABS and ASA owners go to 200-250 °C.
2. Put a heat-resistant glove on, then remove the hotend. Never pull it cold.
3. Once it's out, clean plastic residue off the seat and off the flow blocker's travel path.
4. After any toolhead work, run calibration and watch the first bed touch: a misaligned flow blocker gets slammed into the plate and bent. That's exactly how the owner above lost his.
5. Keep the spare flow blocker handy — it ships in the accessory box.

11. Printer disappears from Bambu Studio and Handy

On July 20, 2026 X2D units went dark in Bambu Studio and Handy for owners across the UK, Germany, Poland, Sweden, Norway and the US. The printer still answered pings and showed a router connection on screen, but the cloud link never came up, with code 6020 — "failed to connect to cloud service" — on the display. The cause named in the thread was a failure in one of Bambu's MQTT service nodes.

Wi-Fi is its own story. The X2D is dual-band, 5 GHz and 2.4 GHz, but it has no wired networking at all. Owners agree 2.4 GHz is the more stable choice, and splitting the bands into separate SSIDs cures most dropouts.

1. Check Bambu's service status first. If their nodes are down, there's nothing to fix on your end.
2. Power cycle the printer and regenerate the access code — that helped during the outage.
3. Split 2.4 and 5 GHz into separate SSIDs and put the printer on 2.4 GHz.
4. Disable band steering / "smart connect" on your router. It's the usual suspect behind Bambu dropouts.
5. During an outage, switch to LAN-only mode and print from internal storage or a USB drive.

Updates, rollbacks and LAN-only across the whole lineup are covered in our Bambu Lab firmware guide.

12. Filament Track Switch: dust in your colors, conflicts with external spools

The Filament Track Switch is an add-on for dual-nozzle printers: two inlets, two outlets, any AMS routed to either nozzle. Useful, but it brings its own quirks. One Reddit owner hit color contamination on multi-color prints — the switch scrapes dust off the filament and it travels downstream. Pulling the unit and blowing it out with compressed air produced a satisfying cloud of debris.

The second common annoyance is the message "The Filament Track switch installed on the Printer does not match the slicing file. Please re-slice to avoid print quality issues" — that thread alone has over 1,700 views. And a fresh limitation from July 31, 2026: with the switch installed, firmware blocks the external spool, so printing TPU through the feed assist module means physically unplugging the switch's own 6-pin cable.

1. For color contamination: remove the switch, blow the housing out with compressed air, clean the AMS internal hub and cut off the scuffed section of filament.
2. Relieve the AMS 2 Pro hub spring or fit a shim — an overtight spring grinds the filament and the shavings travel down the path.
3. On the configuration mismatch message, run AMS auto-detection on the printer, sync in Bambu Studio and re-slice.
4. Never connect or disconnect the switch during a print or during AMS initialization — there are dedicated codes for that, 0700-7400-0002-0006 and -0007.
5. To print TPU from an external spool, temporarily unplug the switch's 6-pin cable.

13. Nozzle scratches the plate with third-party build surfaces

The nozzle digs into the plate and leaves gouges. The July 29, 2026 thread pinned the cause quickly: auto bed leveling was off and probing was done on a third-party plate without recalculating height for the main bed. A second owner hit the same thing on an aftermarket plate and went back to the stock textured PEI.

Worth knowing: the X2D recognizes every current 256 × 256 Bambu Lab plate but does not detect first-generation plates. If plate type doesn't register, select Ignore in settings or disable plate detection — don't just hit print and hope.

1. Turn auto bed leveling on before printing on any new plate.
2. Probe on the exact plate you're going to print on, not "a" plate.
3. For thick aftermarket plates, set nozzle height with the paper method.
4. Check the nozzle for buildup and the flow blocker for deformation — there's a dedicated code for that, 0300-2500-0001-0008.

14. Stringing on the aux nozzle: a Bowden running direct-drive settings

The aux nozzle is Bowden-fed, yet stock profiles hand it the same retraction as a direct drive. The result is predictable: stringing and oozing. In a thread running from June 5 to August 1, 2026 owners dug out the real numbers: 0.8 mm as the filament profile override, 2 mm in printer settings for the aux nozzle, 20 mm/s retract and deretract speed. The practical verdict — 2 mm is "really short for a Bowden", and 4-6 mm is the sane range.

1. Open printer settings and find the retraction value for the aux nozzle specifically — it's separate from the main one.
2. Raise it to 4-6 mm and run a stringing test.
3. Save the change to the filament profile, not the global profile, or it'll follow you onto the main nozzle where that much retraction hurts.
4. Before you fight retraction, check filament dryness and temperature. On PETG, temperature often matters more.

The full anti-stringing playbook is in our stringing guide, and drying is covered here.

15. The 300 °C ceiling and "unsupported" filaments

Max nozzle temperature on the X2D is 300 °C. That covers PLA, PETG, ABS, ASA, PC and nylon comfortably, but owners printing PPA-CF and PPS-CF point out those materials hit best layer adhesion around 320 °C. In the 18-reply, 3,000-view thread the community reads the cap as product segmentation — "this is how they get you to spend more on an H2". No official response from Bambu appears there.

The other half of the story is "unsupported" filaments in Bambu Studio. Many third-party spools get flagged simply because there are no Bowden-extruder profiles for them and the slicer doesn't know upfront which nozzle you'll use. The official restrictions are worth memorizing too: TPU for AMS is off-limits on the aux nozzle, while PLA Silk, PETG-CF, ASA-CF, PA6-CF and Support for PA/PET are flagged "print with caution" and recommended on the main nozzle.

• Don't plan on engineering polymers that need more than 300 °C — that's H2 territory.
• Add third-party filament manually: clone the closest Bambu profile and calibrate per nozzle.
• Send anything soft or abrasive to the main nozzle — it has the direct drive and the servo motor.
• Print TPU from an external spool per the official guide, or through the TPU Feed Assist Module.

16. Purge blobs fall onto the build plate

On multi-color prints purge material clumps into an oversized blob that topples forward onto the plate instead of dropping down the waste chute. It recurs every few hours and reliably kills long jobs. Three causes: purge volume set too high, wet filament (the purge comes out sticky and stringy) and a misaligned nozzle purge position.

1. Reduce purge volumes in the slicer — the most common fix.
2. Dry the filament for 12 hours and enable AMS 2 Pro auto-dry above your humidity threshold.
3. Run the nozzle purge position calibration — Bambu publishes a dedicated procedure for the P2S and X2D.
4. Use a bigger waste bin and keep the chute clear.

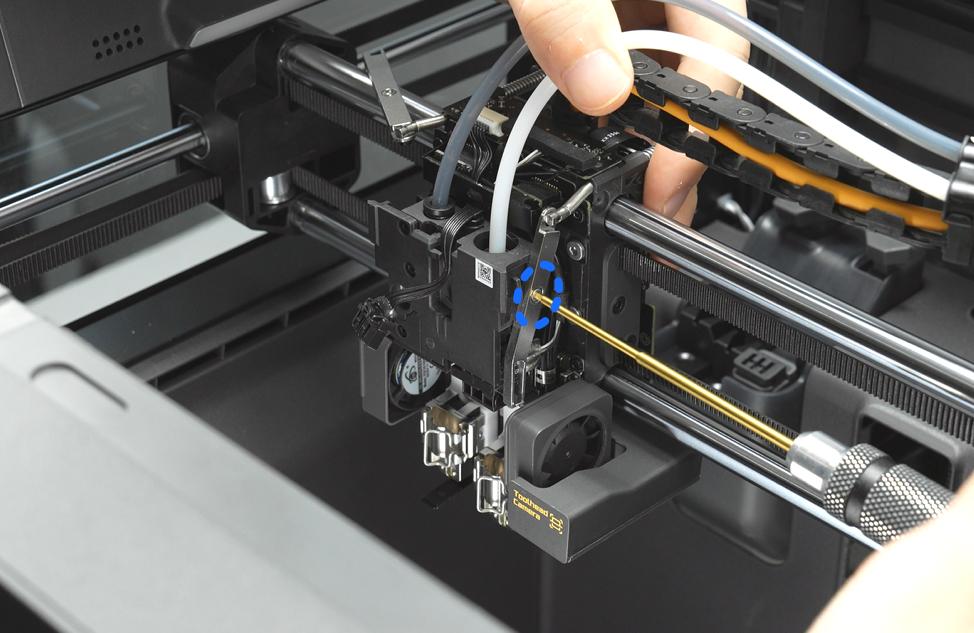

17. Extruder cleaning is a half-day job, and the cutter lever binds

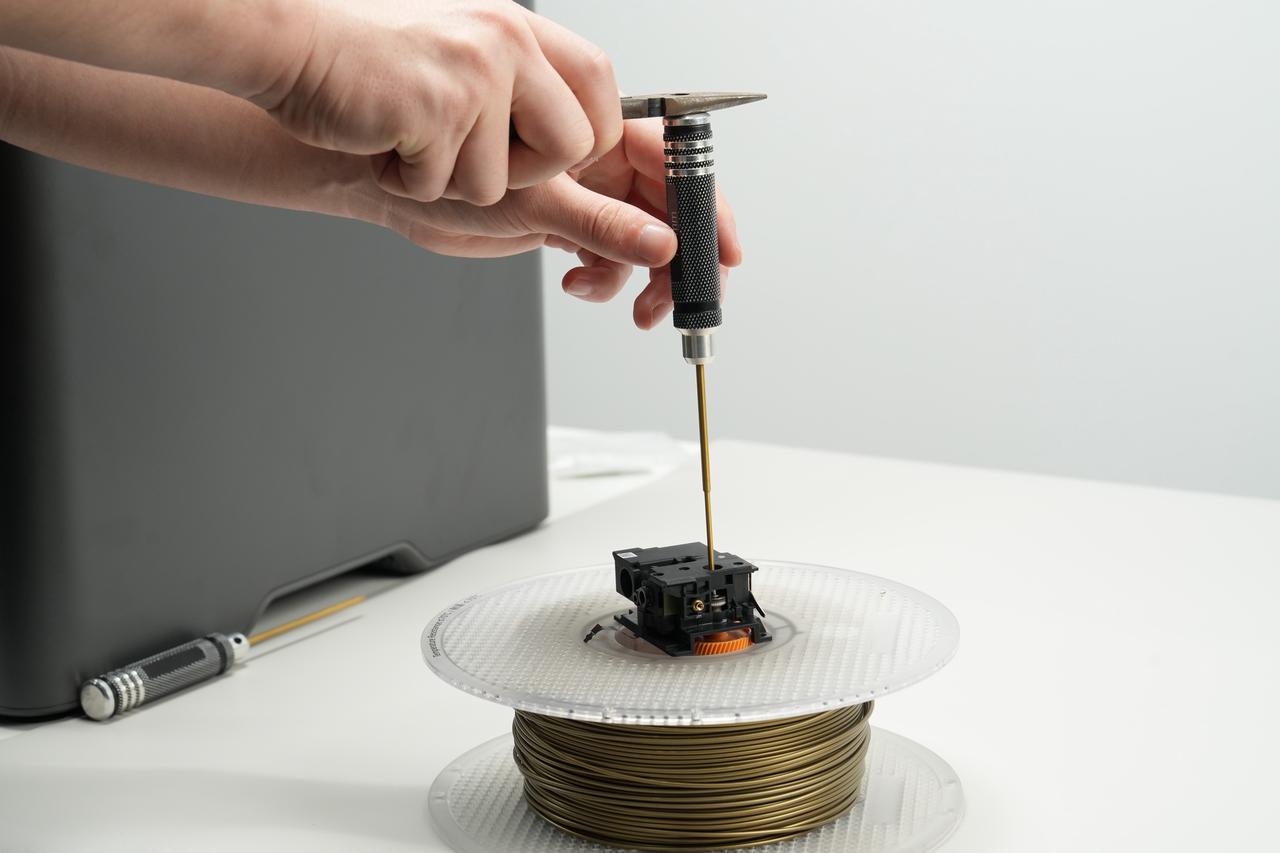

An owner with 7,000 hours on an X1C spent 3 hours clearing a single blob of plastic sitting just behind the main extruder's cutter head. Then, after reassembly, the aux nozzle wouldn't seat — less than a millimeter short because the Hall sensor assembly wasn't quite right — and nearly everything had to come apart again. The 200+ hour reviewer put it more bluntly: extruder disassembly looks horrendous for a machine sold on ease of use.

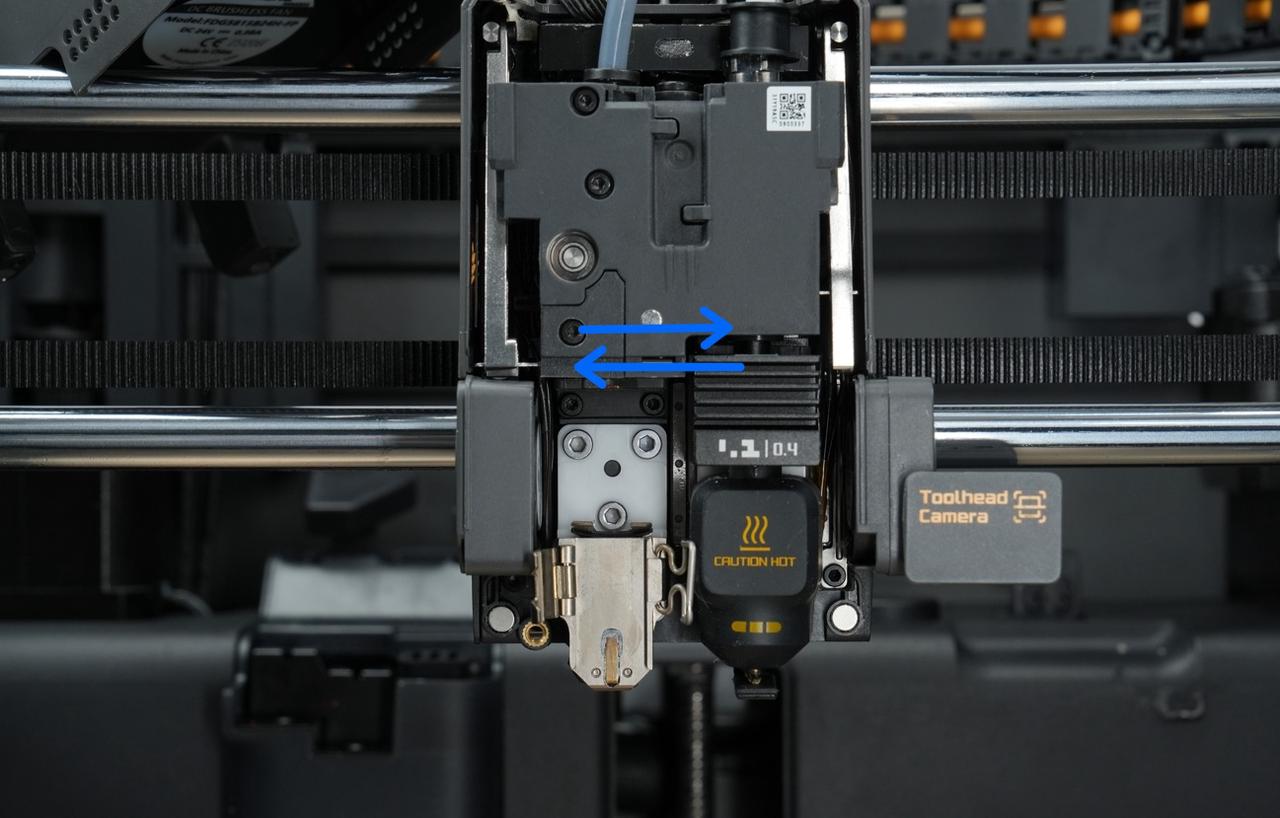

There's a specific reassembly trap too. The X2D has no external cutter lever on the side of the toolhead: the head parks in the middle of the chamber and a stopper at the rear pushes the internal levers forward to cut. The right cutter lever binds inside the toolhead middle housing near the magnet, and the owner who chased it found replacement parts didn't help — the correct assembly order did: middle housing first, back cover second.

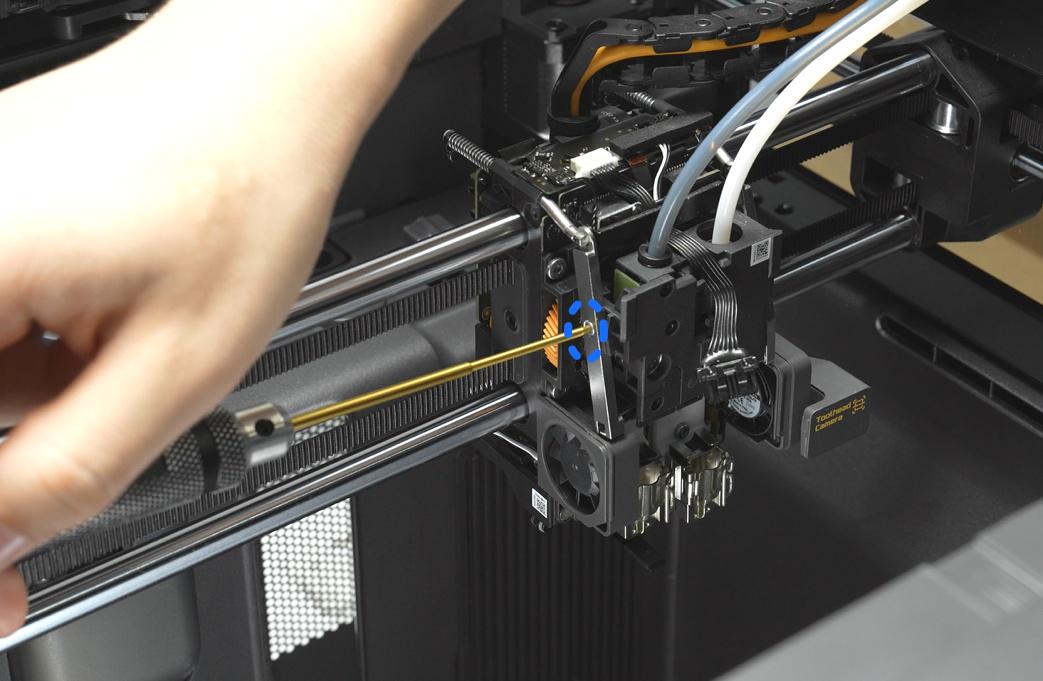

1. Power the printer off before disassembly — Bambu's docs require it and it isn't a formality.
2. Run the quick diagnostic first: Unload, extruder-only test, hotend swap. Often you won't need to open anything.
3. Follow the X2D-specific guide, not a P1S or X1C teardown video — the assemblies are different.
4. Get a flashlight, tweezers, a screw tray and a magnifier ready. Budget 2-3 hours for your first attempt.
5. Reassemble in the right order: middle housing first, then the back cover, or the cutter lever binds at the magnet.

Preventive maintenance that keeps you out of three-hour teardowns lives in our 3D printer maintenance guide.

18. Curve Planning silently disables Arc Fitting

Curve Planning arrived with the X2D's launch firmware 01.01.00.00: the printer smooths path transitions on the fly and rounded features genuinely come out cleaner. The catch is that Bambu Studio auto-disables Arc Fitting when Curve Planning is available, without asking. Owners asked for a plain checkbox instead — and with reason: reverting to Arc Fitting cut print time by about 20% (5 hours versus 4), and in another case the gap between modes on one part reached 6 hours.

• After enabling Curve Planning, check whether Arc Fitting turned itself off in Bambu Studio.
• On rounded parts, compare both modes for time and surface finish — there's no universal winner.
• Pick by goal: Curve Planning for arc quality, Arc Fitting for print time.
