QIDI Q1 Pro Known Issues and How to Fix Them

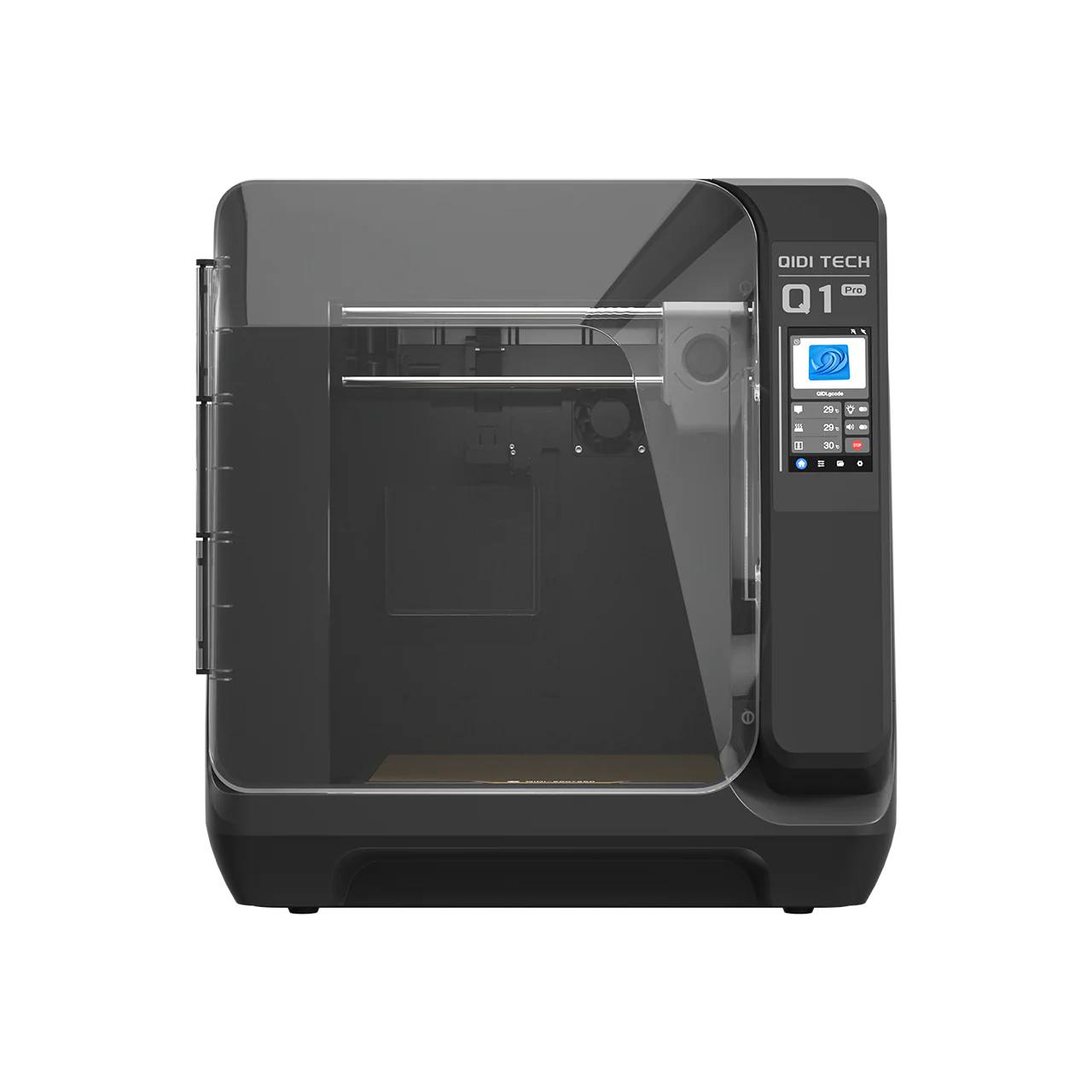

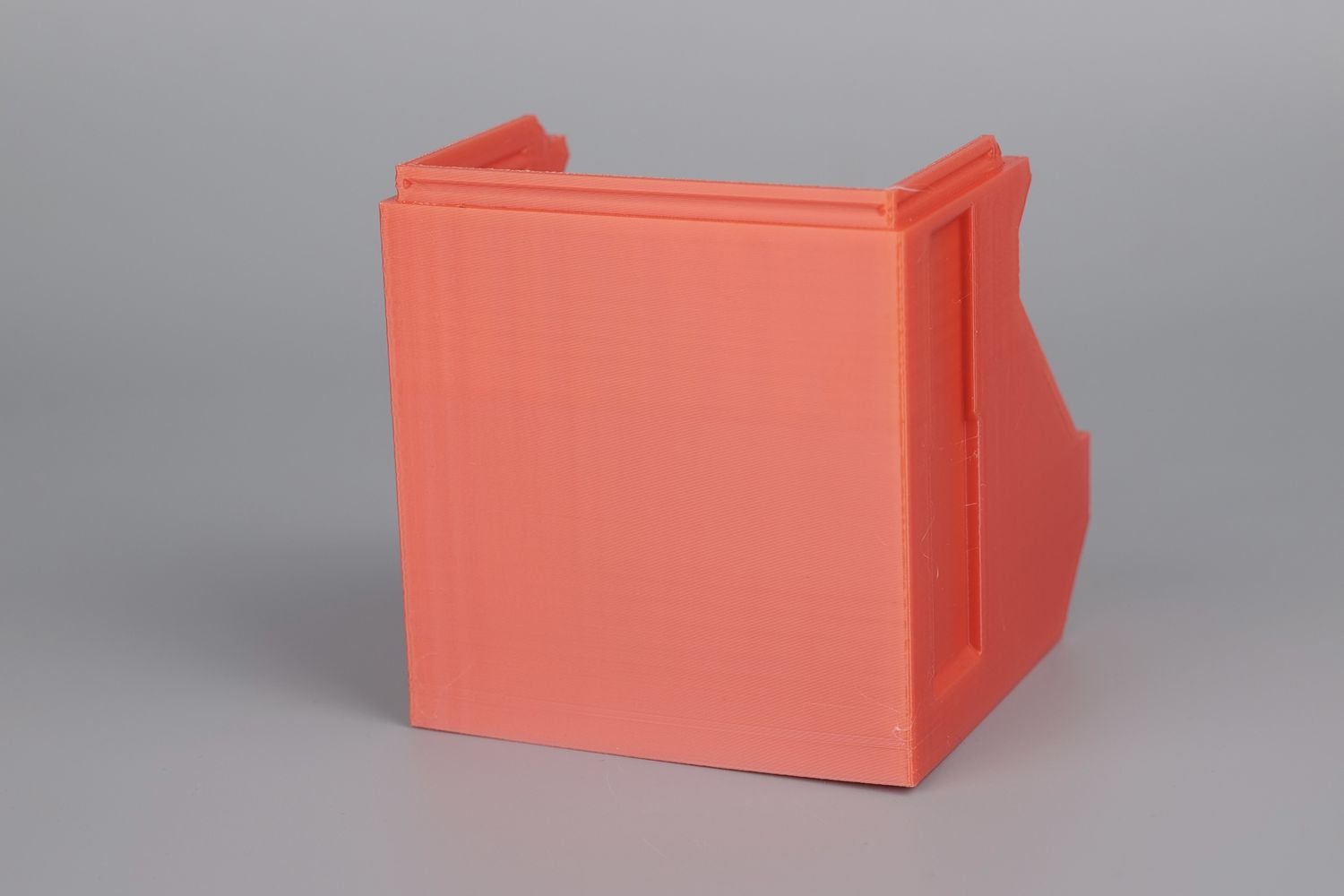

The QIDI Q1 Pro is an enclosed CoreXY printer with a 245×245×245 mm build volume, an actively heated chamber up to 60 °C, a direct-drive extruder, a 350 °C hotend and a 120 °C bed, all running on open-source Klipper. For around $377–469 it's one of QIDI's best-value machines, and marketplace owners genuinely love it for reliable ABS, ASA and PC printing. But the Q1 Pro has its own set of quirks, and nearly all of them bite during advanced use and high-temp materials — not the beginner running PLA. Still shopping? Read our full QIDI Q1 Pro review. This article is about what actually breaks and how to fix it.

Below are 12 problems Q1 Pro owners actually run into, from the most common (PLA heat creep) to the niche. Generic FDM headaches — stringing, warping, layer shifts — live in their own deep guides, linked at the end, so we don't repeat them. Here it's only what's specific to the Q1 Pro.

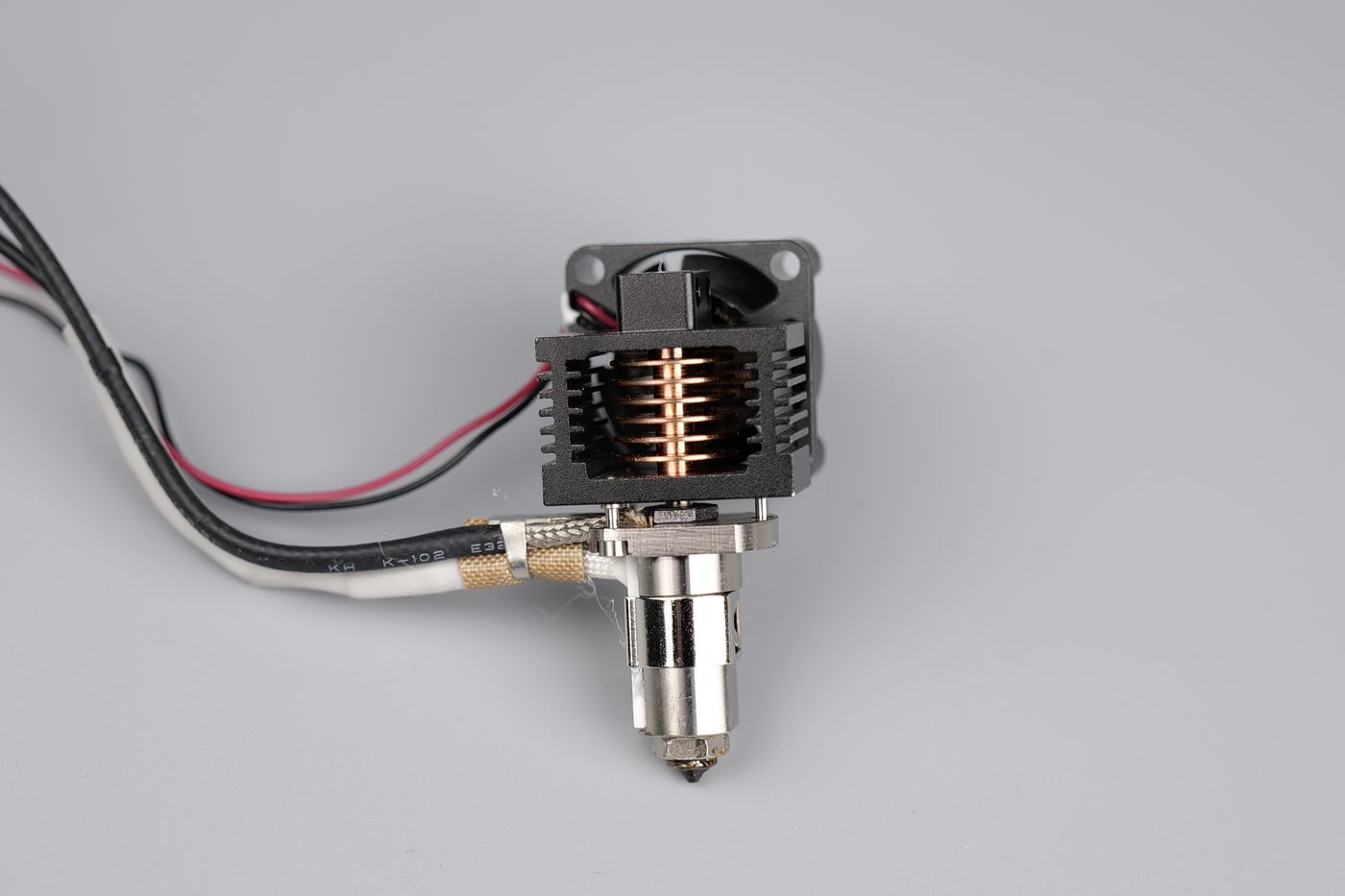

1. Heat creep and clogs when printing PLA, PETG and TPU

The most common rookie failure on a Q1 Pro: a print starts fine, then 1/3 to 1/2 of the way up it under-extrudes, the extruder clicks, and you get a full clog. The culprit is the enclosure. Heat from the chamber (worse with the heater on) rises to the heatbreak and softens filament above the melt zone — classic heat creep. PLA, PETG and TPU are not meant to be printed in a closed, warm box on this machine.

1. For PLA, PETG and TPU, remove the top cover and crack the front door to let chamber heat escape.
2. Bump part cooling and the aux fan to 50% or more.
3. To clear an existing clog: heat the hotend, remove the front toolhead cover, undo the 2 hotend screws and pull the hotend down.
4. Cut the filament at the inlet and push the clog out from the top with a cleaning needle. The path isn't perfectly straight, so reassemble loosely, feed the needle through to align it, then tighten.
5. Or do a cold pull with heated-then-cooled filament instead of tearing it down.

Not hard, and the tool costs nothing. This isn't a faulty unit — it's enclosure physics. Owners jam the hotend constantly when they run PLA with the lid closed and the heater on. For root causes and prevention, see our nozzle clogging guide.

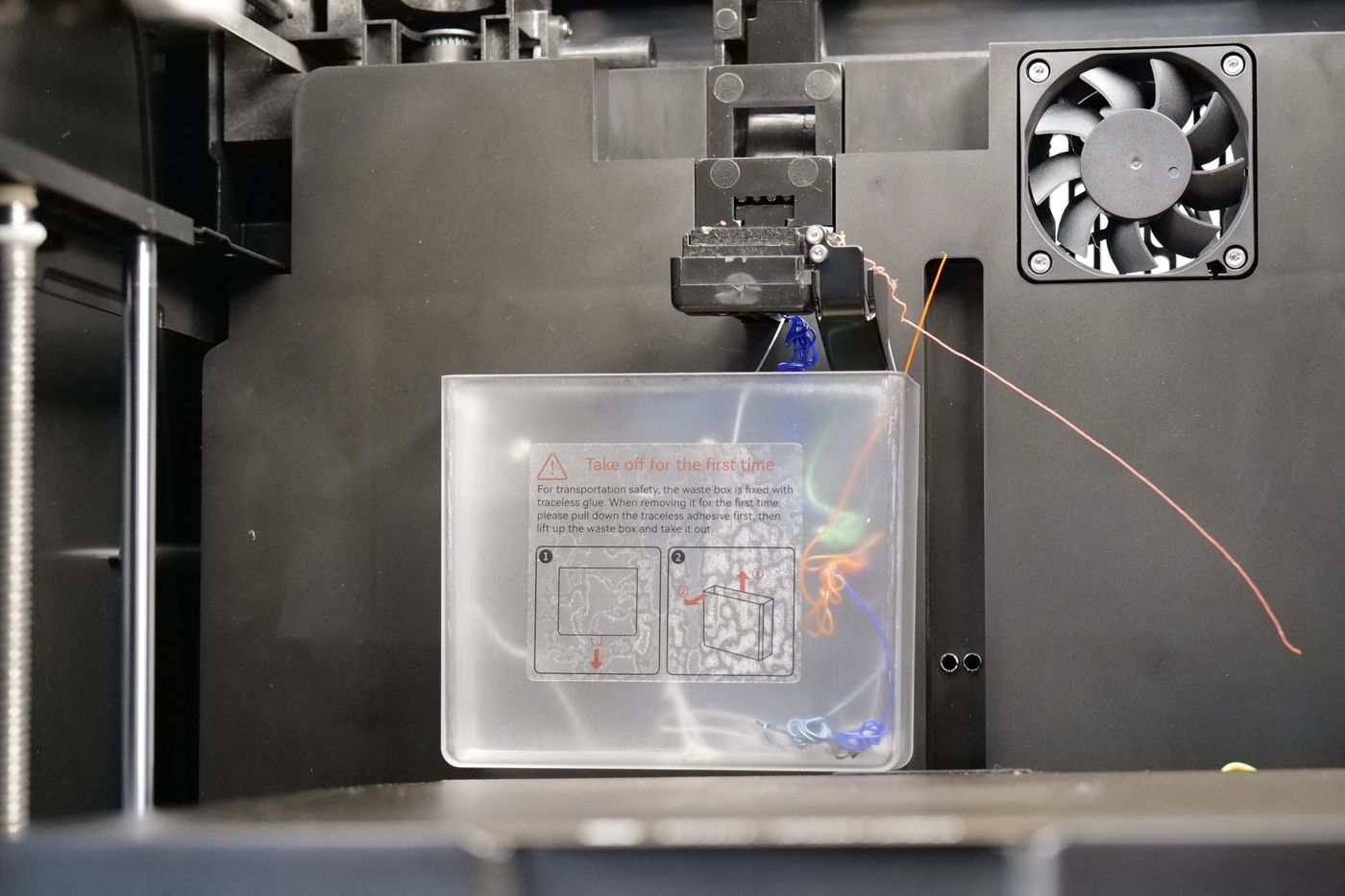

2. Nozzle wipe: felt wear, missing the wiper, and how to disable it

Before each print the head moves to the cleaning station, purges a little plastic and wipes the nozzle on a felt pad so the sensor can set Z-offset cleanly. Two things go wrong. First, after a run of prints the felt wears a groove the size of the nozzle tip, a ~0.1 mm blob stays on the nozzle, and the sensor sets the wrong gap — first layers drift. Second, sometimes the wipe arm doesn't move at all and the purge lands in front of the pad. That's because the Q1 Pro zeros its home in X and Y off the toolhead cover surfaces, so any burr or misaligned cover throws off the wipe-station coordinates.

1. Check the front toolhead cover sits flush with the rear cover, with no burrs — your X/Y zero depends on it.
2. Shift the nozzle's contact point onto a fresh part of the felt, or swap the felt — it's a cheap consumable.
3. Clean and lube the X rods (see problem #3) — dirty rails also throw off the wipe.
4. To disable the wipe entirely: over SSH (mks / makerbase), comment out CLEAR_NOZZLE HOTEND={hotendtemp} inside the PRINT_START macro in gcode_macro.cfg, then FIRMWARE_RESTART. The edit survives until the next firmware update.
5. The permanent fix: remove the stock cleaner and fit a BTT/BIQU MicroProbe (~$25). Z-offset is set once by hand and no longer depends on a clean nozzle.

Disabling the wipe is one of the most-searched Q1 Pro requests. The CLEAR_NOZZLE macro name is confirmed right in QIDI's official config on GitHub, and the felt wear and missed wipe are discussed on r/QidiTech3D. If your first layer is still off after wiping, see our first layer guide.

3. X-axis sensorless homing fails on dry, dirty rods

Homing on X fails or stops early, and the head crashes or stalls. After that the nozzle wipe also misses and the bed mesh drifts print to print. It can happen after just a couple of months of light use. The reason: there's no endstop on X — homing is sensorless, inferring 'home' from rising resistance to motion. And the X carriage rides on an oilite bushing, not bearings. When the rods get dirty and dry, friction along the travel mimics the home stop and homing triggers early — wrong zero, and everything downstream goes wrong.

1. Wipe the black residue off the X rods with a dry cloth.
2. Apply a thin film of light machine oil to the smooth shafts (not the belts!).
3. Drop the bed, move the head to the rear-left, and re-run platform calibration and auto leveling.
4. If the head is about to crash, kill power immediately. This is recurring maintenance, not a one-time fix.

Low difficulty, but few people know about it up front. The oilite-bushing and sensorless-homing diagnosis is laid out in this r/QIDI thread, and QIDI explicitly tells you to keep the rods clean and oiled — see our printer maintenance guide.

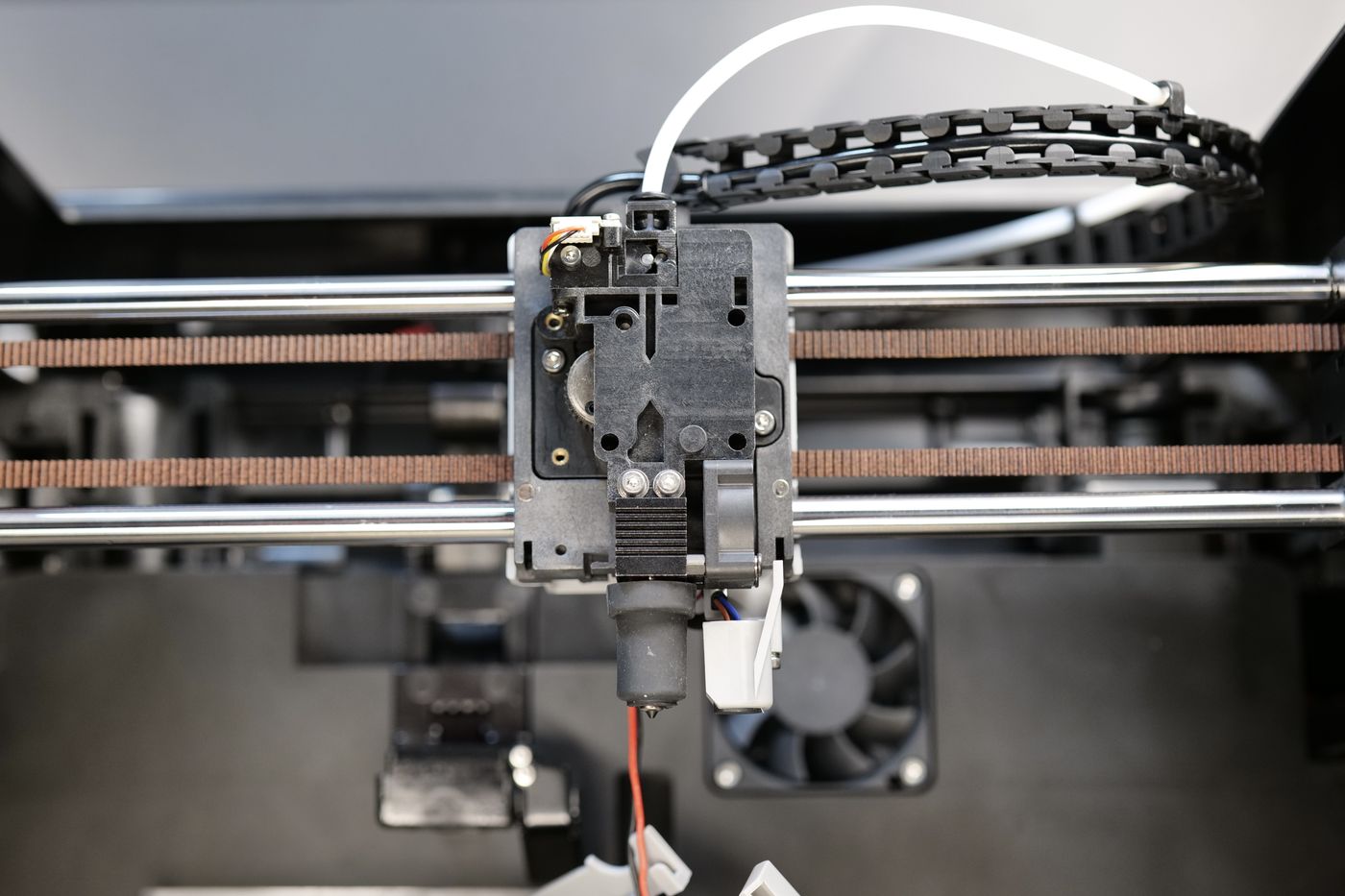

4. Drifting first layer from a loose hotend

You get a different mesh on every leveling run, the touch-off numbers in the console jump from run to run, and the first layer sticks one time and not the next. Tweaking Z-offset fixes one print and the next is off again. The cause: the four screws holding the front half of the extruder to the back plate back out of their brass inserts over time, so the hotend develops play — it wiggles up, down and sideways. Since the Q1 Pro zeros Z by tapping the nozzle on the bed, any play shifts the touch-off point and Z-offset drifts. It usually shows up around 300 print hours.

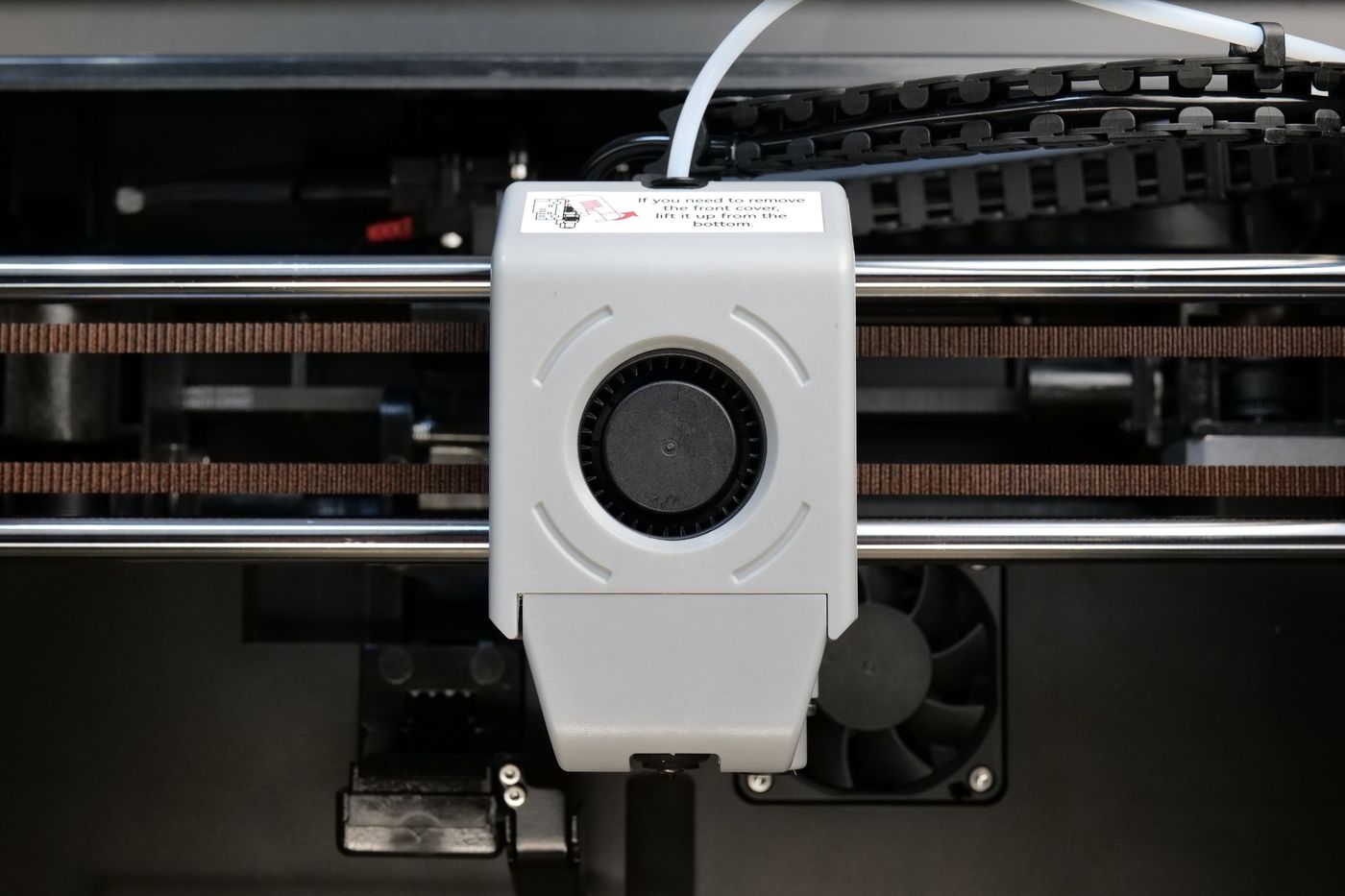

1. Remove the front gray toolhead cover (pull from the bottom, lift up; mind the turbo-fan wires).
2. Unplug the small black ribbon cable at top-left and free it from its clip.
3. Remove the 2 screws holding the extruder to the carriage (top-left and bottom-right, with M3 lock washers).
4. Tilt the assembly forward and tighten the FOUR rear screws into the brass inserts.
5. Reassemble, re-run leveling and Input Shaper. Use blue threadlocker so it doesn't recur.

Medium difficulty, about half an hour. The full write-up with photos of the exact screws is in this r/QidiTech3D thread: after tightening, the owner's touch-off readings matched to the third decimal. If your first layer misbehaves for other reasons, see our first layer guide.

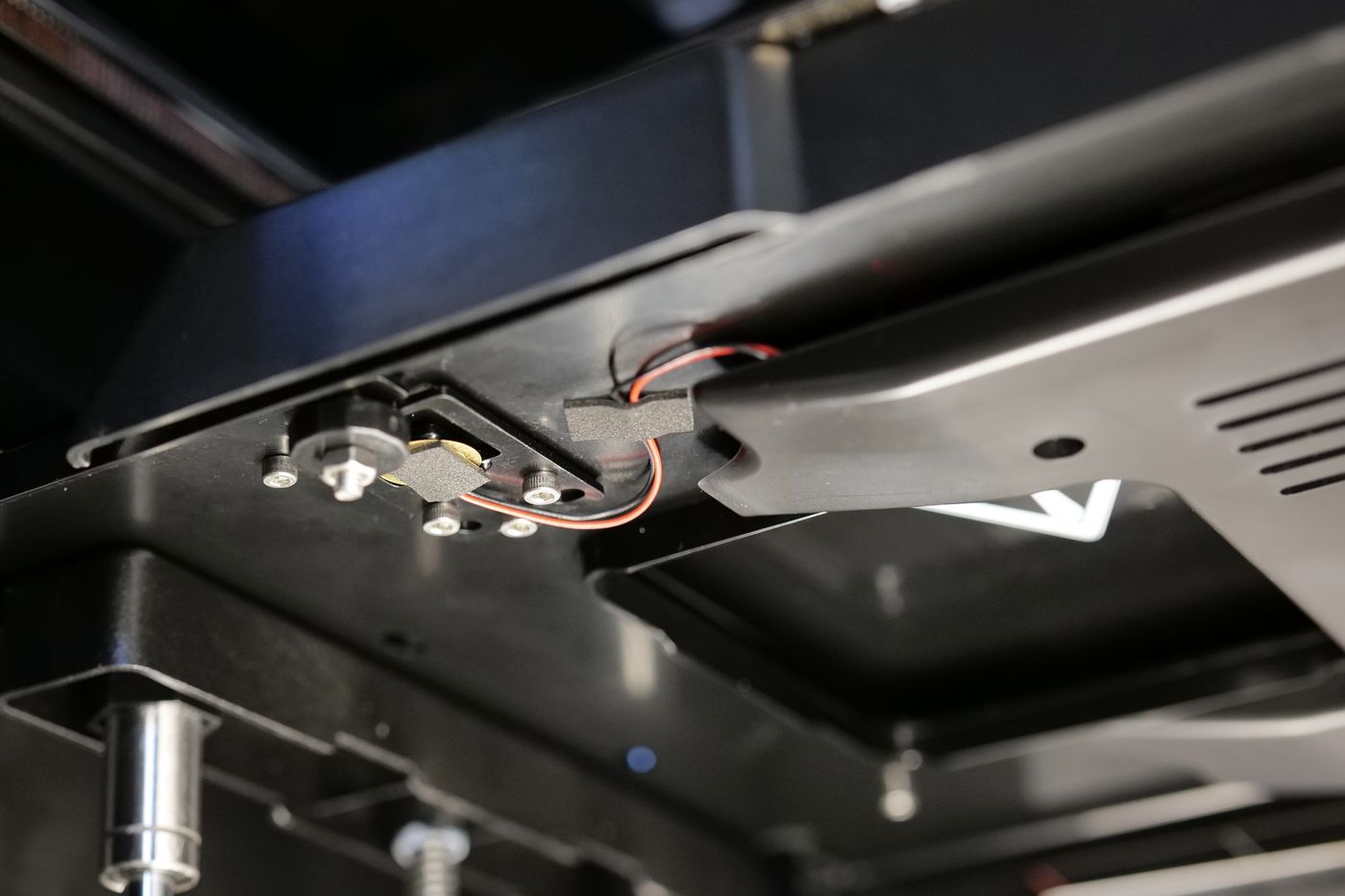

5. Auto-leveling errors: 'Probe failed' and endless probing

The screen shows 'Probe failed'; the Klipper console says 'no trigger on probe after full movement' or 'Probe samples exceed samples_tolerance, retrying'. The bed cycles up and down endlessly, sometimes pushing into the nozzle. The Q1 Pro's auto-leveling uses piezo bed-pressure sensors plus a nozzle tap, and it's sensitive to small things: a misseated PEI plate, bed tilt, vibration from a wobbly table, over-tight Z screws, electrical interference nearby, and a degrading sensor.

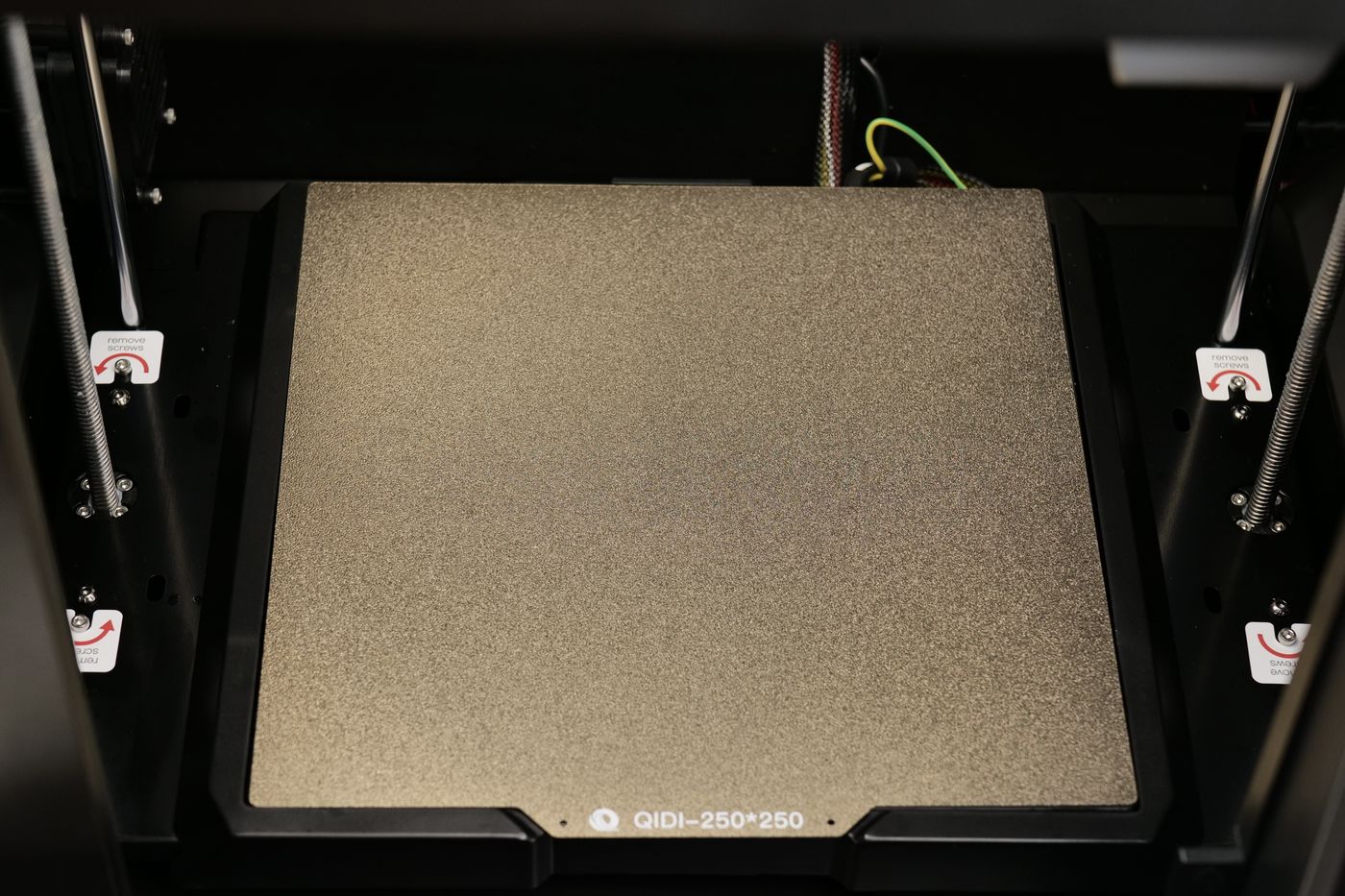

1. Reseat the PEI plate squarely on the center tab and clear crumbs and plastic from under the bed — this is QIDI's official fix.
2. Run Z_TILT_ADJUST from the web console; if the bed is visibly tilted, true it with the manual screws.
3. Put the printer on a solid, low surface (even the floor) and remove nearby interference — one owner traced it to a fluorescent lamp above the machine.
4. Revert manual Z-offset tweaks or reset settings to factory.
5. If the nozzle won't reach the bed, set max print height to 245 (not 240) mm in the slicer.
6. Never home without the PEI plate. If the piezo sensor is faulty, QIDI replaces it under warranty.

Note one behavior change: from firmware 4.4.19 up, QIDI removed the per-print tilt compensation and moved it into the first step of manual platform calibration — which is why many think 'leveling stopped working'. The errors are documented on QIDI's Probe wiki page, with live cases on r/QidiTech3D (2026) and r/QIDI. General first-layer theory lives in our dedicated guide.

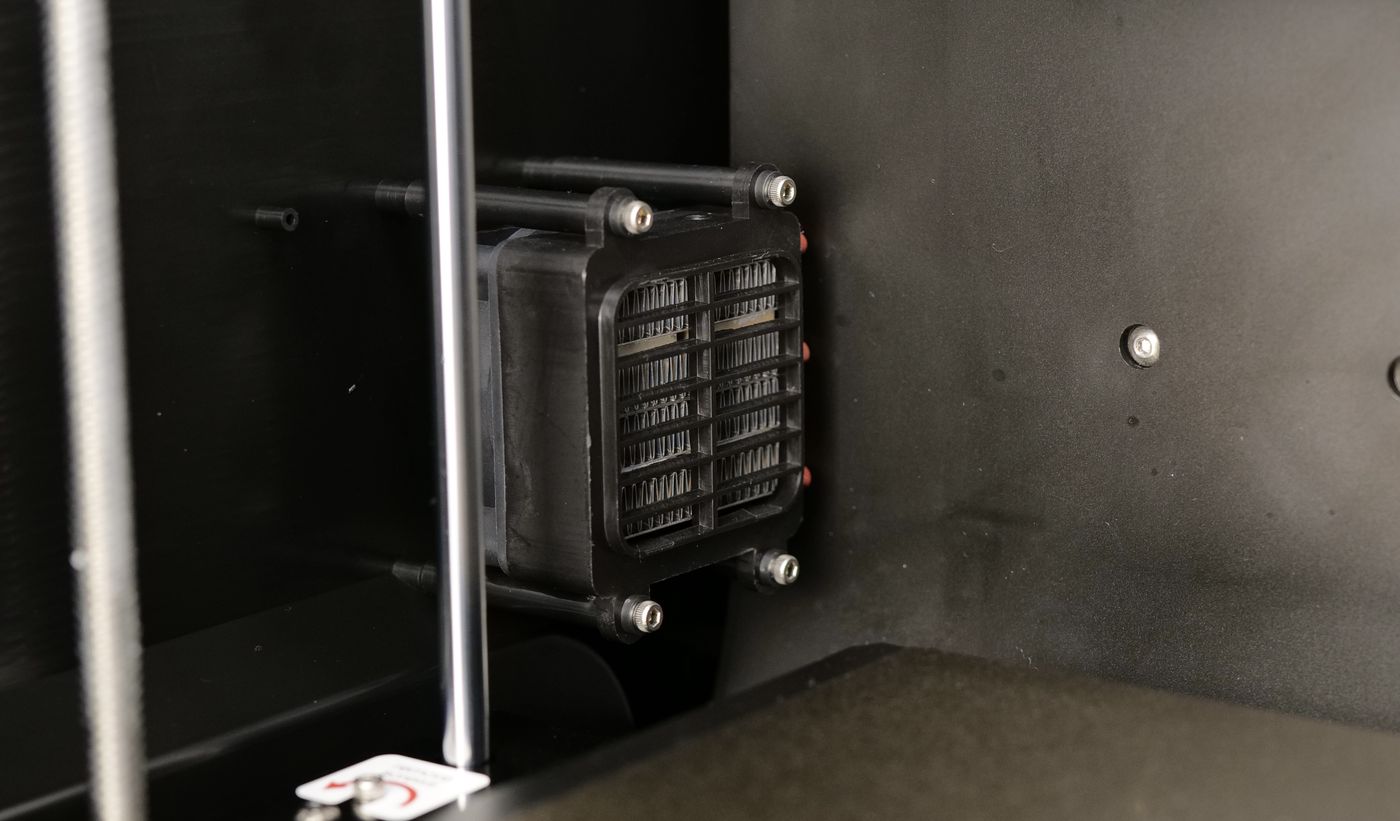

6. The chamber heater exposes live mains voltage

This is the one complaint nearly every independent reviewer raised — Tom's Hardware, 3DPrintBeginner, Vector 3D. The ceramic/PTC heater in the chamber corner is wall-powered (110/230 V), its live contacts sit behind a grille and nothing is labeled. Reach in with a hex key while it's running and you're risking a shock. A separate, isolated issue: the ceramic heater element sometimes arrives cracked from shipping.

1. Never reach into the heater area with a tool while the printer is powered.
2. Install QIDI's official printable Chamber Heater Cover — print it in PAHT-CF or another high-temp filament.
3. Community safety grilles exist, but only print them in flame-retardant / high-temp material, or you risk a fire.
4. If the ceramic element arrived cracked, claim a warranty replacement.

This is a safety issue, not a print-quality one. Tom's Hardware and 3DPrintBeginner broke the story; QIDI responded that it keeps FCC/CE certification and would provide a printable part to current owners.

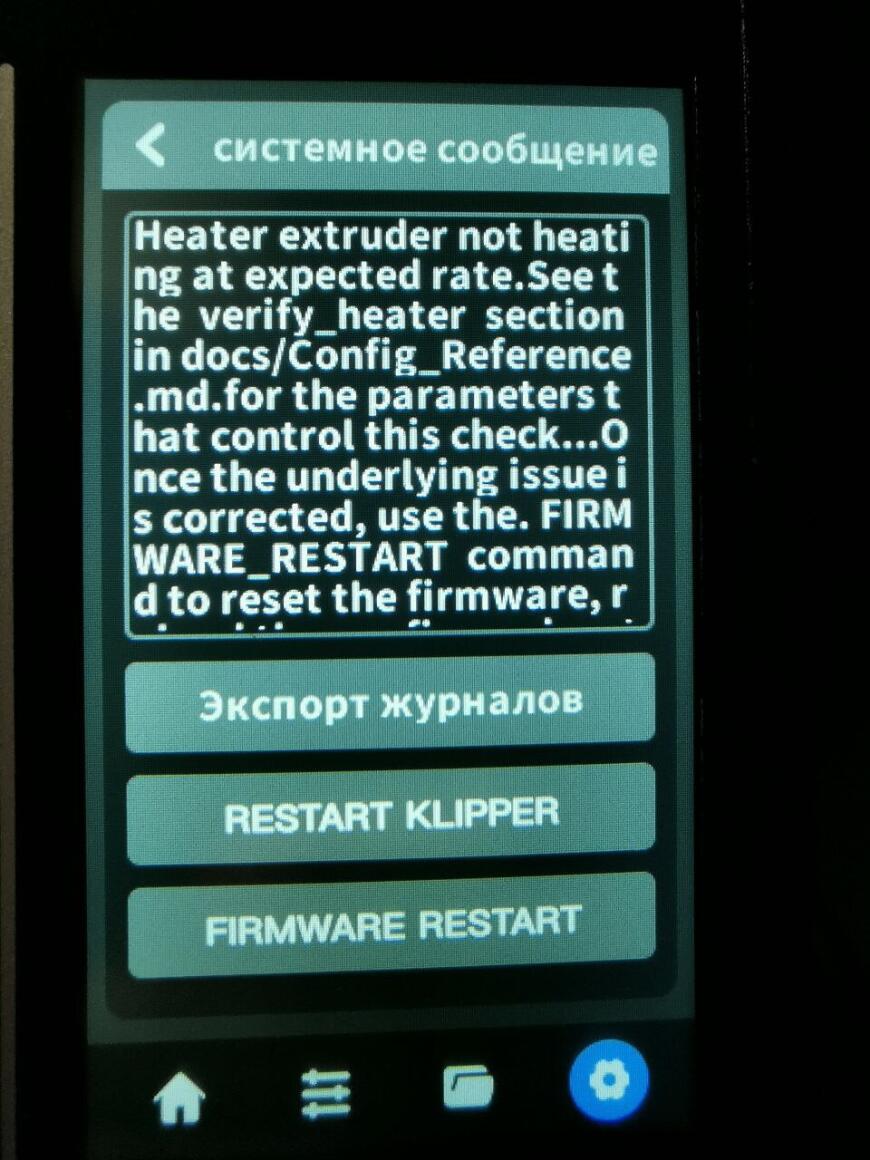

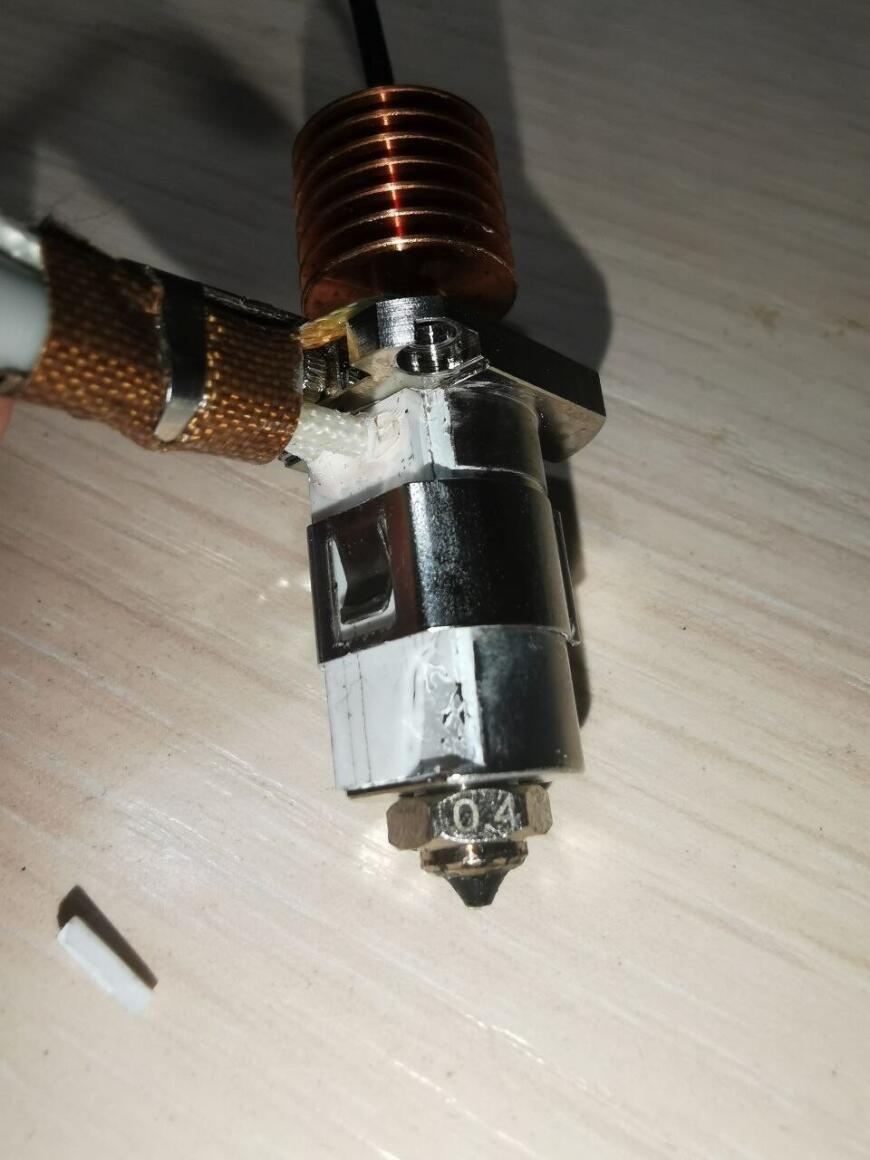

7. Breaking the hotend heater during a nozzle change, and heating errors

After a nozzle change the printer throws 'Heater extruder not heating at expected rate' or 'Lost communication with MCU MKS_THR'. Sometimes the hotend heats to 250 °C during the cleaning cycle but refuses to heat for a print. The root of the common breakage is the hotend's shape: the round block with flats invites you to clamp it by the back with a wrench, and the ceramic heater sits right there and snaps. Worth knowing too: the updated stock hotend is rated only to 280 °C (the old one to 350 °C), which matters for high-temp materials.

1. Don't clamp the hotend by its back — unscrew the nozzle hot, holding the block by its body.
2. For 'Heater extruder not heating', use QIDI's diagnosis: swap in another hotend to test. New one heats — RMA the old hotend; neither heats — replace the toolhead adapter board.
3. For 'Lost communication with MCU MKS_THR', replace the toolhead Type-C cable or the adapter board.
4. If you cracked the heater, replace the element. Owners fit a cheap Bambu Lab P1P heater (~$6) by re-soldering the stock connector; the QIDI original is about $12.

Above-average difficulty — be careful with the electronics. A photo walkthrough of the heater swap is on serg-228's 3dtoday blog, and QIDI's official heating-error diagnosis is on its Wiki page.

8. The extruder clicks and skips

The extruder clicks and skips and you get under-extrusion. The telltale sign: it clicks even with the hotend removed, when there's no flow resistance at all. In order of frequency, the causes are: debris in the extruder gear teeth; wet or too-soft filament (TPU); leftover high-temp material that needs a 300 °C purge; and a tangled spool causing jerky pulls. Less often, the extruder stepper itself has failed — visually fine, gears clean, but it can't pull.

1. Turn the gear by hand and clean the teeth with IPA and canned air.
2. Dry the filament — wet plastic is a common cause of slipping and clicking.
3. Purge leftover high-temp material by pushing fresh filament through at 300 °C.
4. Check the spool for under-loops and knots.
5. If everything's clean and it still clicks with no load, suspect the stepper. A new hotend or extruder won't help — QIDI replaces the motor under warranty.

The hotend-removed diagnosis and the warranty motor swap are covered in this r/QidiTech3D thread. For drying filament, see our drying guide, and for extrusion in general, our under/over-extrusion guide.

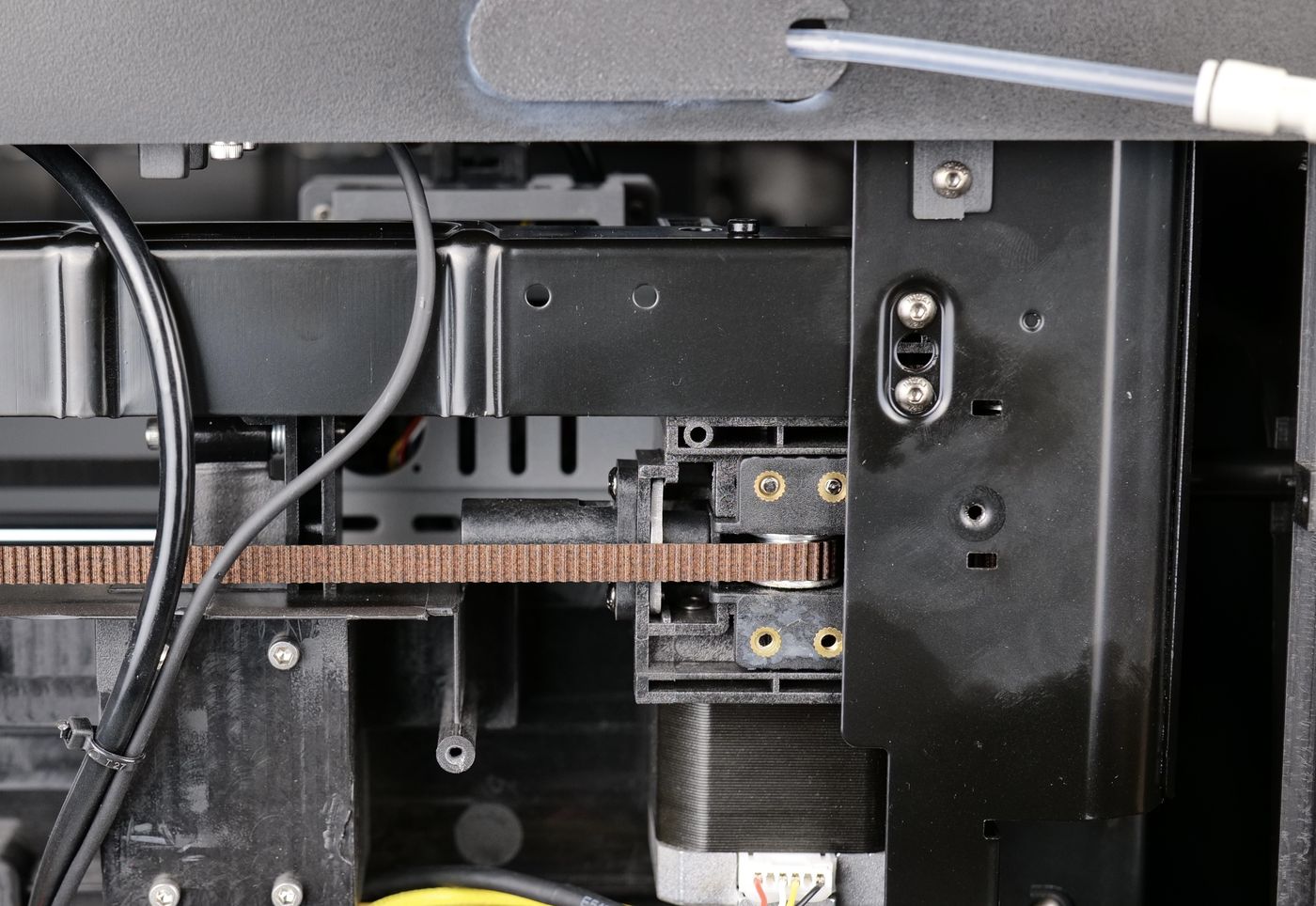

9. Flimsy belt tensioners cause ghosting and ripples

You see ghosting and vertical ripples (VFA) on the walls, especially at speed — reviewers caught them on PC, ABS, PETG and PLA. The teardown reviewers' top hardware gripe: the auto belt tensioners are held by only two top screws (the stepper pulleys block the bottom), so the block flexes during printing. An imperfect Input Shaper auto-tune adds to it — QIDI runs it without graphs, and the Y axis defaults to a low 39.8 Hz.

1. Re-tension the X and Y belts by hand and make sure the tensioners aren't loose.
2. Re-run Input Shaper calibration. For real graphs instead of a black box, install Shake&Tune (bundled in OpenQ1) or run TEST_RESONANCES manually.
3. For critical parts, drop accelerations and speed if ripples remain.
4. Damp the panels — they resonate at speed and add ripple.

Above-average difficulty. The tensioner-flex teardown is at 3DPrintBeginner and 3DWork; 3DPrint.com cut the ripples by re-tensioning belts and re-running input shaping. General ghosting and layer-shift theory is in our dedicated guide.

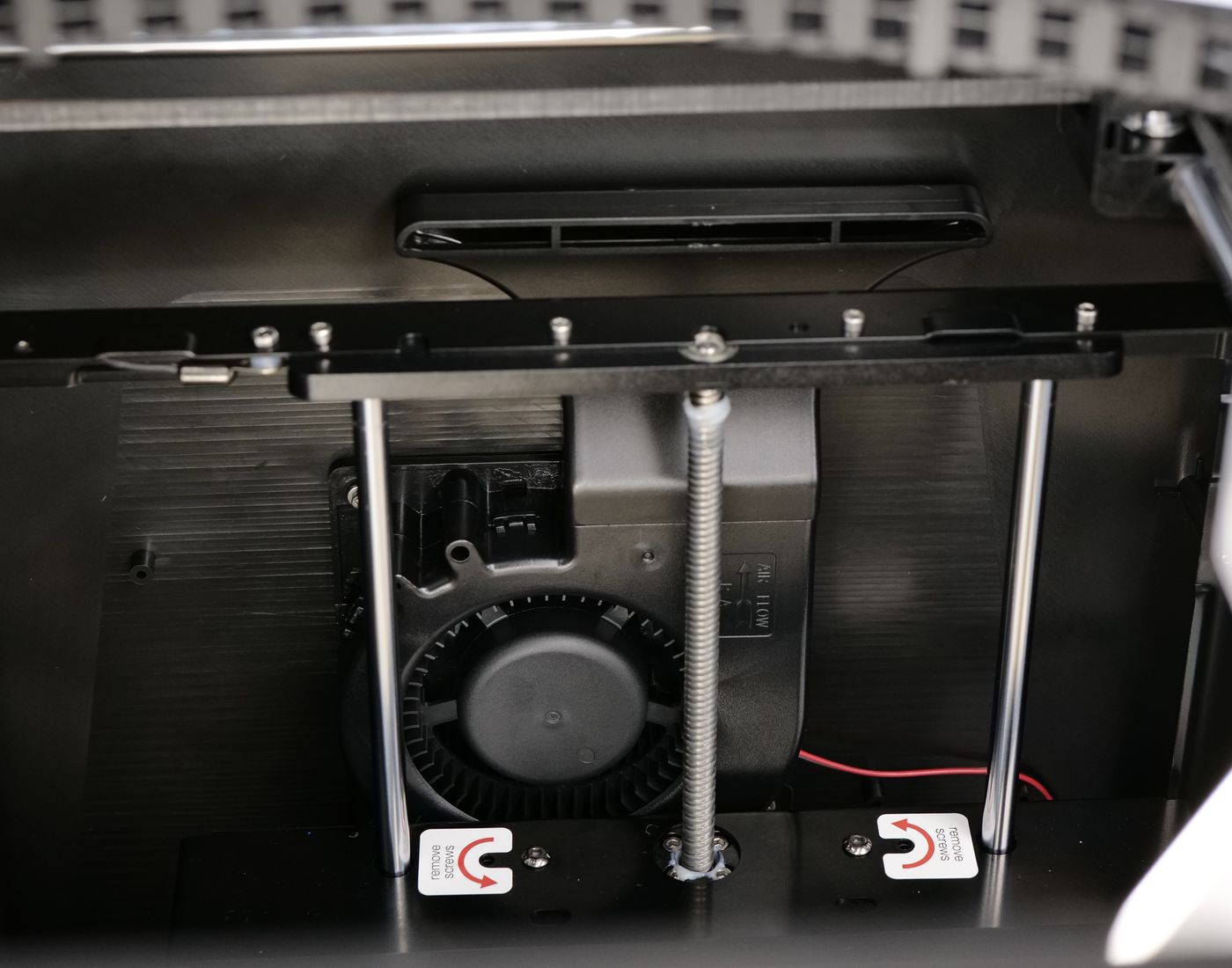

10. Weak, uneven part cooling hurts PLA overhangs

PLA overhangs and bridges come out rough. The cooling doesn't reach the whole model — mostly the right side — and on the stock PLA profile the side fan never even kicks in for some owners. The closed, warm chamber (needed for ABS and ASA) also fights PLA cooling. That's why so many aftermarket cooling ducts exist for the Q1 Pro.

1. For PLA, remove the top cover and crack the door to let chamber heat out.
2. Raise the part-cooling and aux fan percentages in your profile — that's QIDI's own advice for poor overhangs and bridges.
3. Fit an aftermarket duct (a 360° cooler or a lengthened side cooler with a front port) — it cures most complaints.
4. To mix the chamber air, owners add a recirculating duct with a carbon filter.

Low (settings) to medium (duct) difficulty. The cooling dead zones are noted by 3DWork and 3DPrintBeginner; K3D describes the recirculating-filter mod. Printing PLA on an enclosed machine without overheating is also worth keeping in mind when you pick a filament for the job.

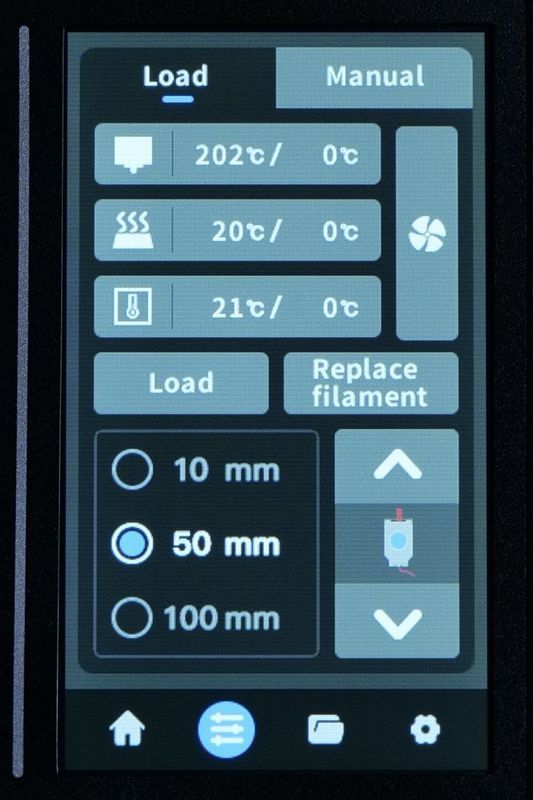

11. Old locked Klipper, missing profiles, and a speed mismatch

The Q1 Pro runs open Klipper — but a branch about three years behind mainline, and you can't update it from the web UI. At launch the stock slicer was missing ready profiles for PETG, TPU and ASA. And the headline 20,000 mm/s² and 600 mm/s are travel figures: real print profiles cap around 10,000 / 270 mm/s, and at 400 mm/s ABS goes matte with weaker layer bonding. On top of that, Windows Defender often flags the firmware files as a virus (a false positive).

1. Create the missing PETG, TPU and ASA profiles by hand (the carbon-fiber profile is a good base) and dial in temps.
2. Keep real print speed around 200–300 mm/s — don't chase the marketing 600.
3. If you want a modern stack, flash OpenQ1 (current Klipper, Moonraker, Fluidd, KAMP, Shake&Tune). It needs SSH and a QIDI firmware update can wipe it.
4. Update stock firmware locally from the official GitHub or USB only. After updating, re-level the bed and re-run Input Shaper — the config gets overwritten (the old one is backed up).

A reality check on the mods: the alternative firmware OpenQ1 and the qidi_auto_z_offset tool are alive and maintained (commits in 2025–2026). But some popular update guides are over a year old — treat them as reference and verify compatibility with current firmware, not as turnkey fixes. And don't port Plus4-Wiki fixes onto the Q1 Pro — it has different geometry and a different leveling system. Vector 3D and 3DPrintBeginner are honest about the dated Klipper and the speed mismatch.

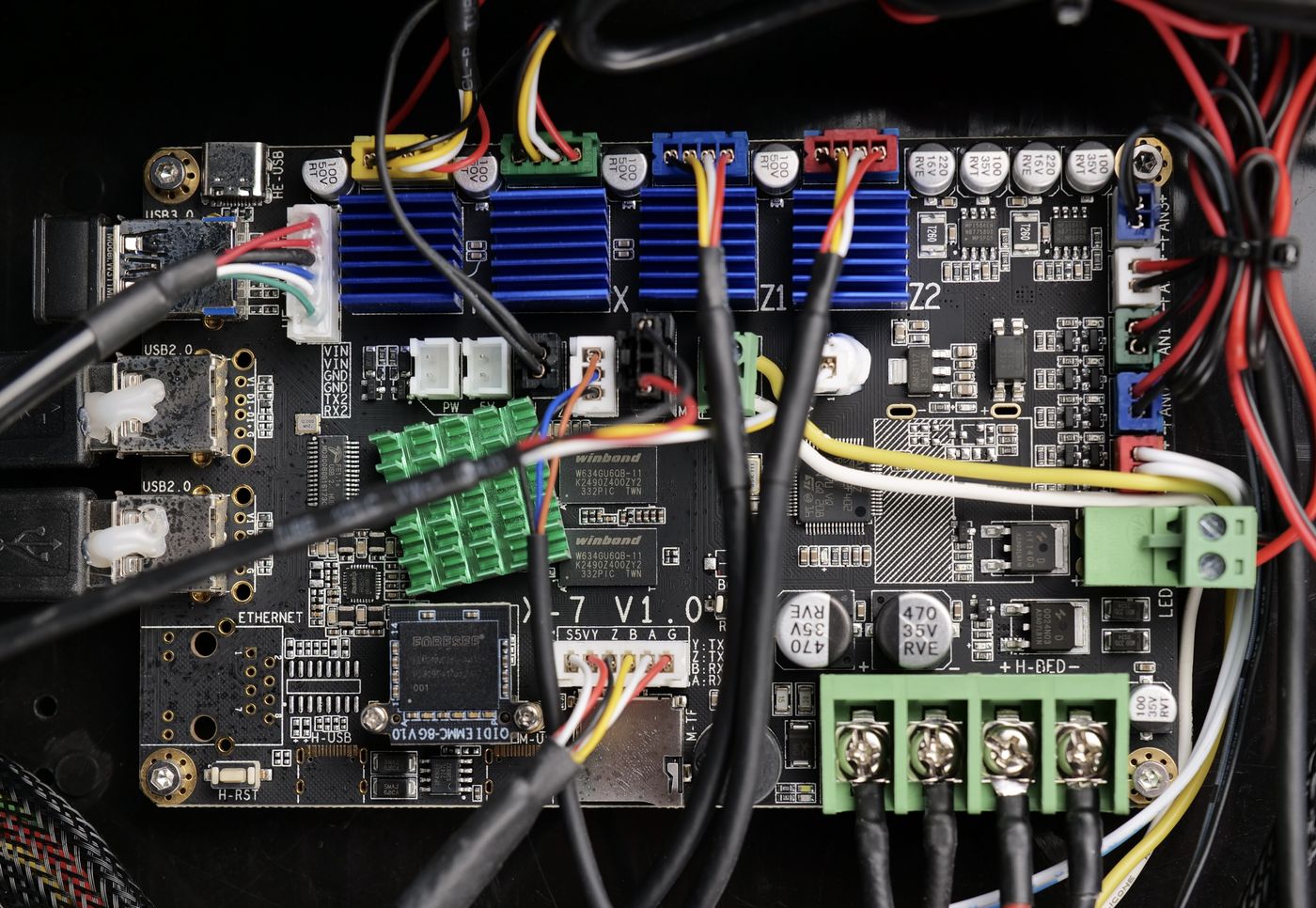

12. Wi-Fi drops after firmware updates, and the phantom Ethernet port

After a firmware update, some machines lose Wi-Fi entirely or bring it up then drop it, and the UI gets sluggish. On some units, Wi-Fi state depends on whether an Ethernet cable is plugged in (it holds steadier with the cable). A separate oddity: you can't open the Fluidd web UI directly by IP — you have to launch the stock slicer first. And the Ethernet port listed in the specs isn't physically populated on early boards.

1. Reboot the printer and router; if the loss is persistent, do a system restore and reflash the latest firmware.
2. Where the Ethernet port is fitted, run over the cable for now — the link is steadier.
3. Reach Fluidd through the stock slicer or QIDI Link instead of by IP.
4. The radical fix is moving to the modern network stack in OpenQ1.

Low (reboot) to high (firmware swap) difficulty. The Wi-Fi-depends-on-Ethernet behavior is documented in QIDI GitHub issue #122, and the unpopulated port and Fluidd-by-IP limit were reported by 3DPrintBeginner and Tom's Hardware.

Error message reference

The Q1 Pro runs Klipper, so it shows text messages, not numeric codes like Bambu's HMS. Here are the ones you'll actually see. Messages from QIDI's official Wiki are marked 'official'; the rest are common community cases.

Smaller but common gripes

These aren't failures, just rough edges worth knowing about up front:

• The camera is monitoring/timelapse only, with no AI spaghetti detection; the stock LED shines straight into the lens and washes out the image — fixed with a printed hood.
• The spool holder is flimsy and wobbles.
• The door has no handle — many print their own.
• One 40×40 mm fan runs constantly, even when the printer is idle.
• The filament runout sensor occasionally leaves a mark or seam on the part (K3D's recommended config disables it by default).
• The power button is on the back panel — awkward to reach.
• With the chamber heater on, the electronics warm up: in one test the controller hit 85 °C, prompting added heatsinks and a fan (isolated cases, for advanced users).

Honest verdict: should you buy the Q1 Pro

Despite the long list above, the Q1 Pro is a good machine. Marketplace reviews are mostly positive, and most 'problems' cluster in two areas: advanced use (config edits, nozzle changes, speed) and high-temp materials. A regular owner printing PLA, PETG and ABS — with the top off for PLA — usually never hits anything serious. The printer's real value is the active 60 °C chamber heater at this price, which kills warping on ABS, ASA and nylon.

The golden rule: don't fix what isn't broken. Don't disable the nozzle wipe if your first layer is already flat; don't dive into configs chasing 'fresh Klipper' if your prints are fine. And routine maintenance (cleaning and oiling the rods, checking the toolhead screws) heads off half the problems in this article before they start — see our printer maintenance guide.
