This is a guide for owners who've already outgrown the stock Creality K2 or K2 SE. Basic mods like a PEI plate and silicone sock aren't enough — here are 22 deeper upgrades, from the k2-improvements root stack and Cartographer probe to a kinematic bed mount and a CFS-based active dryer. If you just unboxed the printer, start with our K2 known-issues writeup and the separate K2 Plus bug list — half the mods here exist to fix problems on those pages. Some mods only apply to the K2 Plus with CFS; others are K2 / K2 SE only. Difficulty ranges from "follow the README" to expert-level — rooting voids the warranty and very rarely bricks the board.

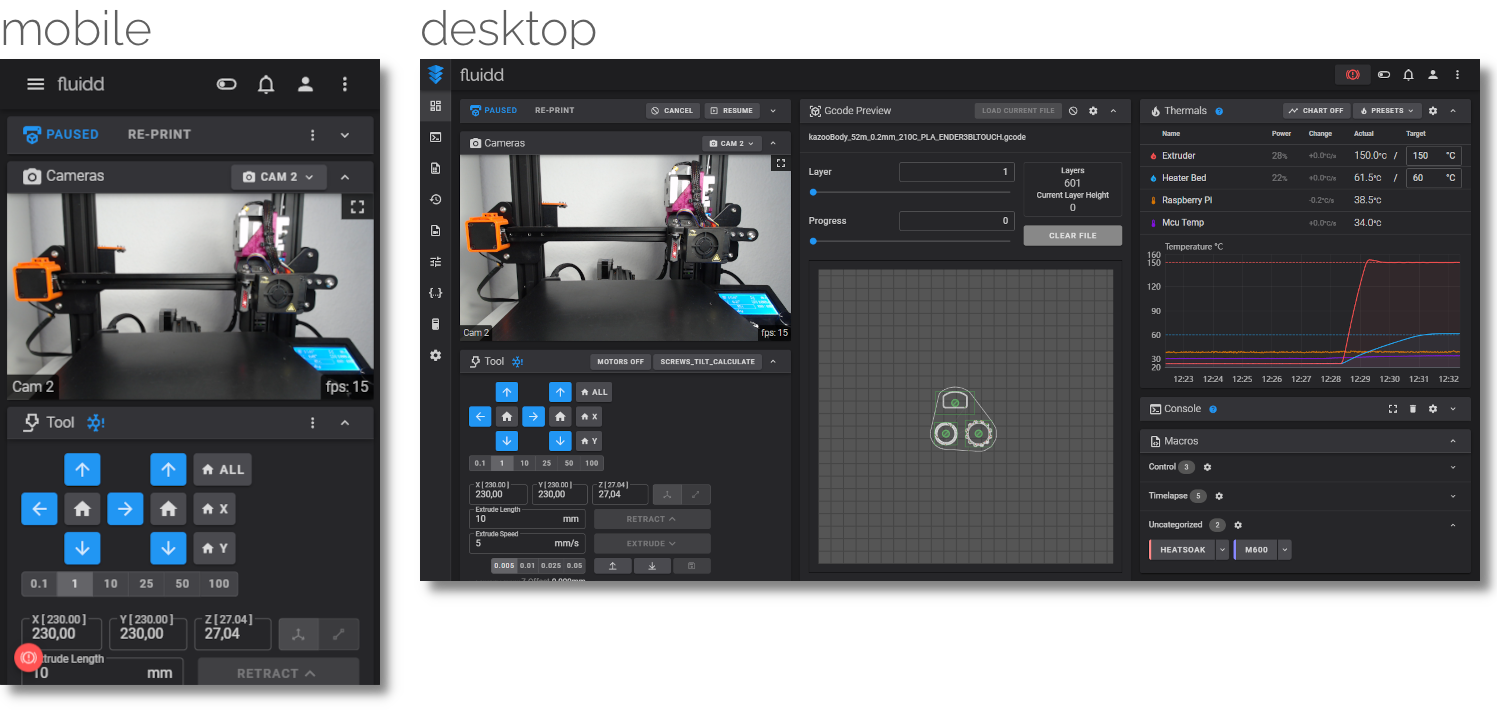

1. Full Root Stack: k2-improvements + Mainsail-K2 / Fluidd-K2

Creality OS on the K2 is a locked-down Klipper fork — no SSH, no editable printer.cfg out of the box. The Guilouz Helper Script that K1 owners rely on doesn't support K2 (the author dropped it). The actual path is k2-improvements by jamincollins plus Mainsail-K2 or Fluidd-K2: root with one command, modern UIs, full Moonraker and Entware access.

• Full root SSH (login root, password creality_2024)
• Up-to-date Mainsail and Fluidd instead of the stock UI
• Fresh Moonraker and Entware for Linux packages
• axis_twist_compensation, screws_tilt_calculate, direct printer.cfg edits
• Ready-made macros MESH_IF_NEEDED, START_PRINT, M191
• Opens the door to OctoEverywhere, Obico, Cartographer probe

Difficulty: expert. Cost: free (voids warranty, brick risk). Models: K2 / K2 SE / K2 Plus. Source: github.com/jamincollins/k2-improvements.

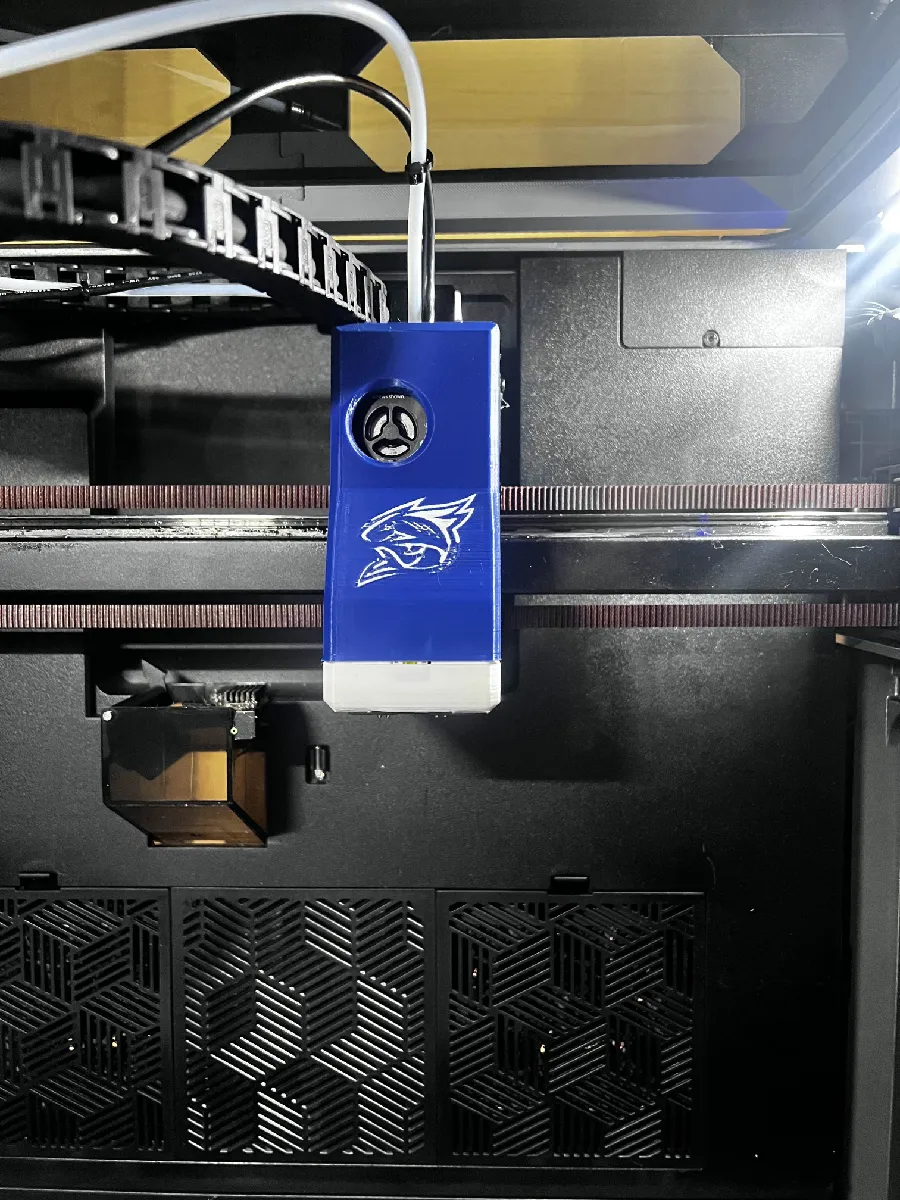

2. Cartographer 3D Probe Upgrade

The stock prtouch (sensor in the nozzle) is slow, gets false hits on a dirty nozzle, and does nothing for bed warp. Cartographer is an inductive scanning probe: a 25×25 mesh in a minute, accuracy independent of nozzle gunk, and combined with axis_twist_compensation it cancels gantry tilt too. Mount it via the Printables 1211161 bracket — 4× 4×2 mm magnets, M2.6×20 screws, y-offset −13 mm. Helps both with ghosting and layer shift and first-layer tuning.

• 25×25-point mesh in under a minute (vs 5+ min stock)
• Accuracy independent of nozzle gunk and oozing
• Works with axis_twist_compensation to cancel X-rail twist
• 1 mm step between points exposes local bed defects

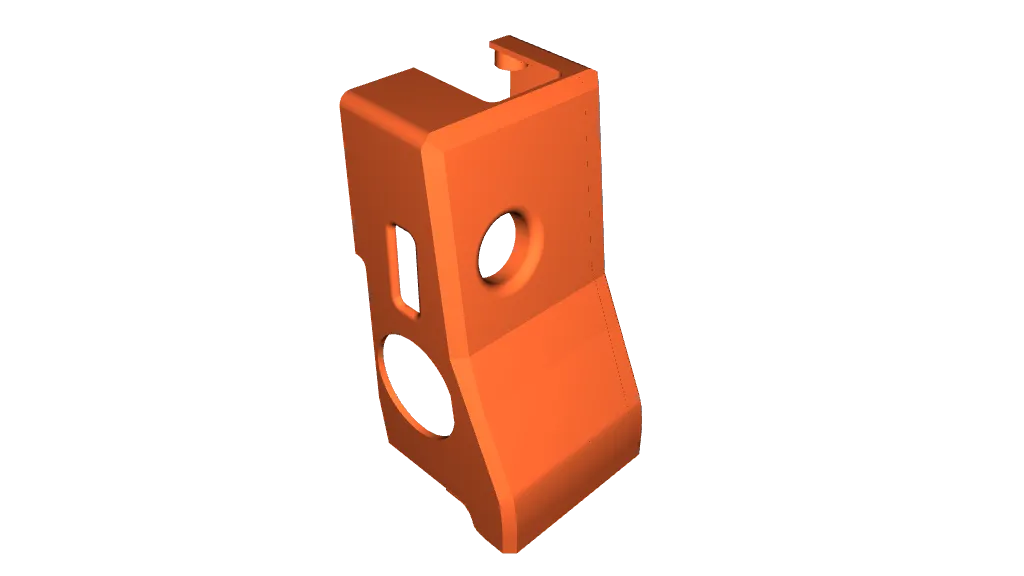

• Printed Shinu mount: 4 magnets, fixed −13 mm y-offset

Difficulty: hard. Cost: ≈ $80–110. Models: K2 / K2 SE. Source: www.printables.com/model/1211161-creality-k2-cartographer-mo.

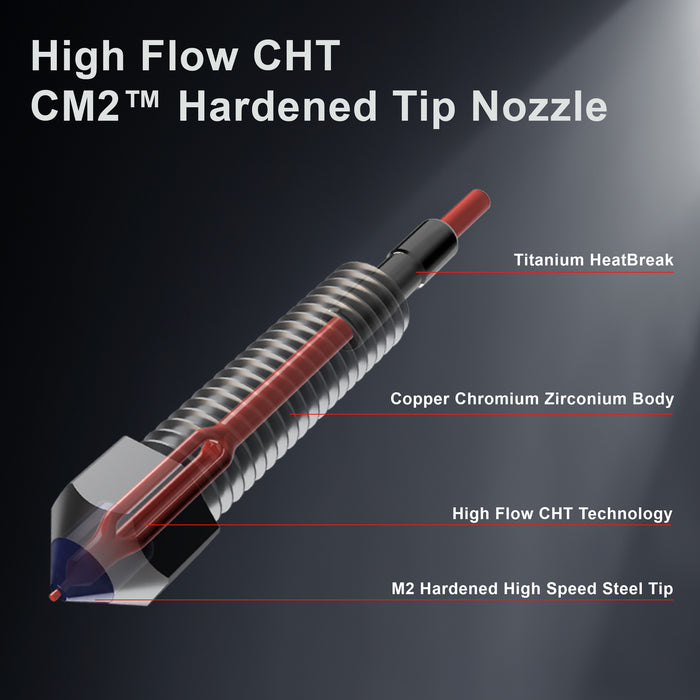

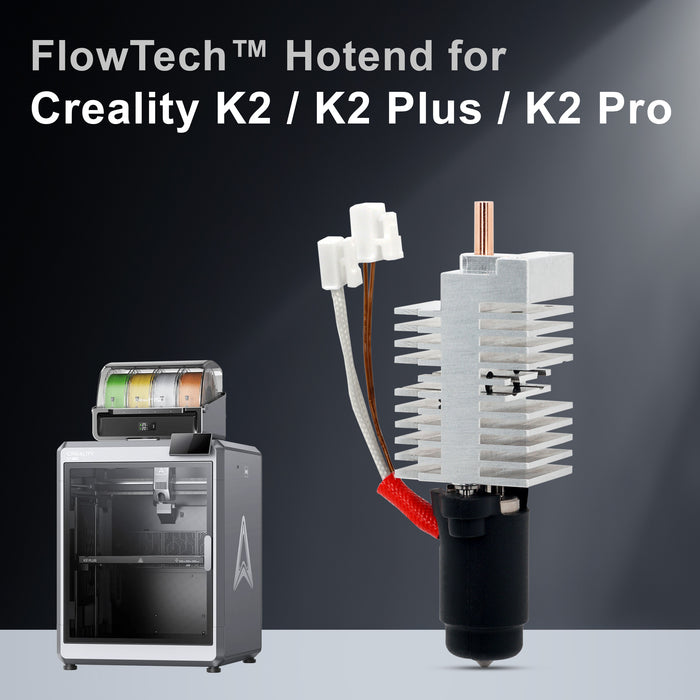

3. Micro Swiss FlowTech Hotend (Bondtech CHT, up to 50 mm³/s)

The stock K2 ceramic block tops out around 30 mm³/s — a hard ceiling for 600 mm/s at a thick layer. Micro Swiss FlowTech with a Bondtech CHT 0.4 mm nozzle lifts that to 50 mm³/s (+66%). All-metal, integrated heat break, no hot tightening required. It also kills most clog causes — no PTFE liner in the hot zone, much higher heat-creep margin.

• Up to 50 mm³/s flow vs 30 mm³/s stock
• Tool-free nozzle swaps, no hot tightening
• Works with brass / CM2 / CHT / DiamondBack
• Less heat creep on long retraction profiles
• Plug-and-play, no soldering required

Difficulty: medium. Cost: ≈ $84.95 (US store). Models: K2 / K2 SE / K2 Plus. Source: store.micro-swiss.com/products/flowtech-hotend-for-creality-.

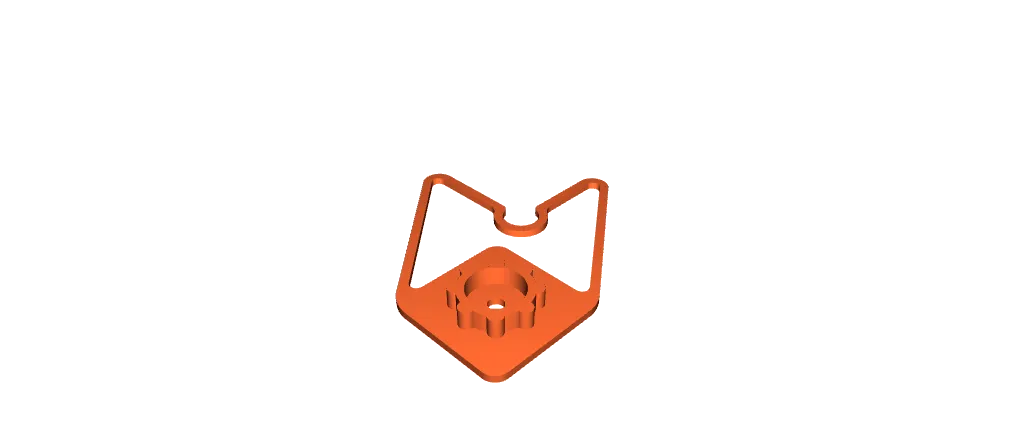

4. Kinematic 3-Point Bed Mount (Taco Bed Fix)

Heat the bed to 100 °C+ for ABS/PA-CF and the aluminium plate folds like a taco shell — 0.6–0.8 mm diagonal warp. The community calls it taco bed: the stock 4-point mount clamps the plate too hard for free expansion. The kinematic 3-point mount from Printables 1332137 (fixed / axial / planar) lets it expand freely — warp drops to ~0.40 mm. Also helps with warping on big ABS prints.

• Bed warp drops from 0.80 mm to 0.40 mm at 100 °C
• Plate expands freely — no first-layer skew
• Reuses stock springs and adjustment wheels
• 25×4 mm magnets available cheap in bulk
• Stacks well with Cartographer + axis_twist_compensation

Difficulty: hard. Cost: ≈ $20–30 (magnets + M4 ball studs + M3 inserts). Models: K2 Plus. Source: www.printables.com/model/1332137-k2-plus-kinematic-style-bed.

5. OctoEverywhere — Remote Access + AI Failure Detection

Creality Cloud is slow from outside China and gates camera streams behind a sub. OctoEverywhere is the free alternative: Gadget AI failure detection, Telegram/Discord/Slack push, iOS and Android apps. One curl command over the k2-improvements root stack and you're done. Obico (open-source) and Mobileraker are solid alternatives.

• Unlimited remote access and live camera
• Gadget AI failure detection included free
• Push to Telegram, Discord, Slack, email
• One-line curl install over k2-improvements
• iOS and Android apps

Difficulty: medium. Cost: free (requires root). Models: K2 / K2 SE / K2 Plus. Source: blog.octoeverywhere.com/free-remote-access-advanced-ai-for-t.

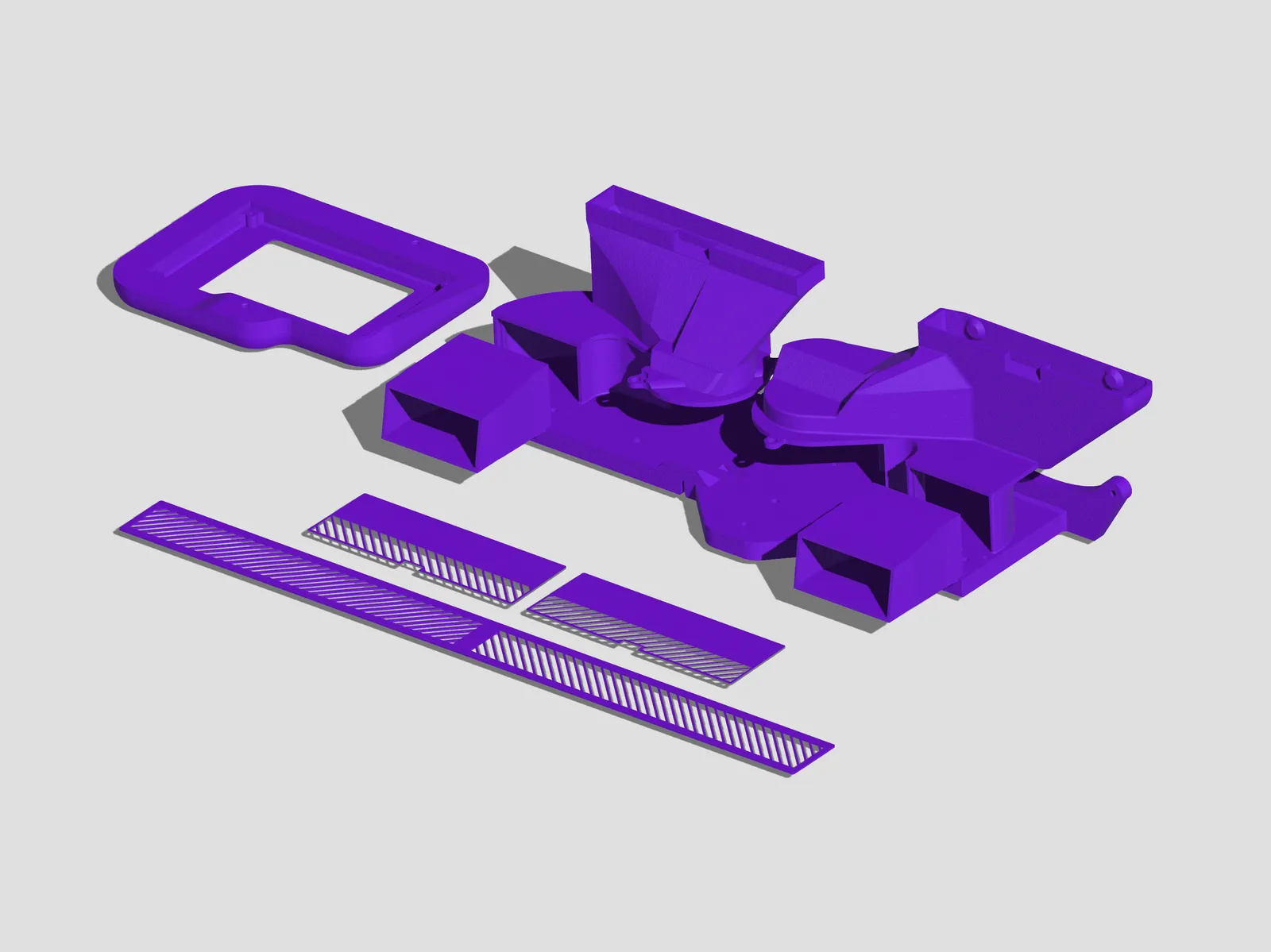

6. CFS as Active Dryer (Space Pi Double Mod)

The stock CFS is a passive box with single-use CaCl₂ desiccant — no heat, no air flow, useless for PETG/PA/ASA in humid weather. Ice992's mod drops a Creality Space Pi Double inside the CFS shell — turning it into an active dryer for 4–8 spools: 45 °C for PLA, 54 °C for ABS/ASA/PA, drying while printing. Details in our filament moisture guide.

• Active drying while printing (PA-CF, ASA, nylon)
• Adjustable 45–54 °C
• Real chamber temp runs +11 °C above display
• CrealitySpacePiAutomation: 4 h drying when RH > 30%
• Handles 4–8 spools at once

Difficulty: expert. Cost: ≈ $130 (Space Pi Double + wiring). Models: K2 Plus. Source: www.printables.com/model/1127714-k2-plus-cfs-mod-heated-cham.

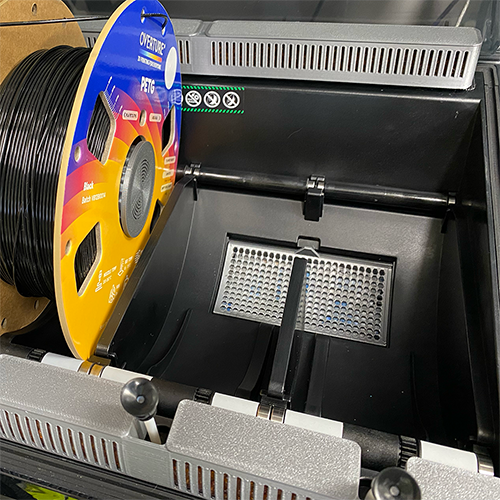

7. CFS Humidity Killer — Printable Desiccant Boxes

If a full Space Pi mod is too much, there's a lazy fix — printed silica boxes. Front/Rear Desiccant Holder and a Silica Gel Container Velcro inside the CFS shell. Forum measurements show RH dropping from 25–30% to 8%. Use indicating silica — it changes colour so you know when to bake it.

• RH drops from 25–30% to 8%
• Indicating silica shows when to dry it
• Rejuvenates in a 120 °C oven for 2 h
• Extra weight steadies feed near the end of a spool
• Zero electronics work — pure print-and-Velcro

Difficulty: easy. Cost: ≈ $10–20 (silica gel + Velcro). Models: K2 Plus. Source: forum.creality.com/t/simple-cfs-mods-upgrades-for-massive-hu.

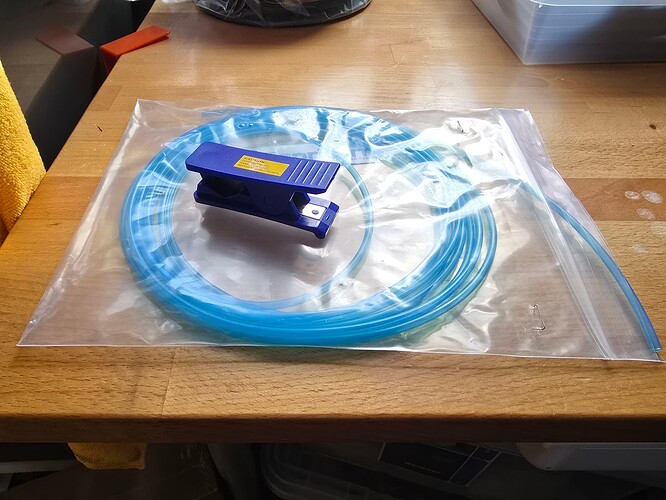

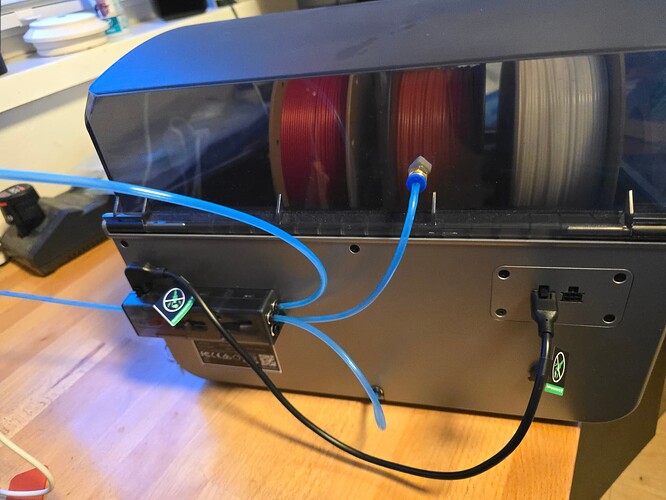

8. Replace CFS PTFE Tubes with Capricorn / Bambu AMS

Stock CFS PTFE tubes have a 1.95 mm ID — friction kills feeding for matte PLA, wood, silk. Capricorn (or Bambu AMS) tubes with a 3 mm ID drop the friction and let those finicky filaments print cleanly. Bonus: while you're at it, relocate the CFS buffer to the back of the shell for easier access. See our filament guide.

• 3 mm ID vs stock 1.95 mm — much less friction
• Matte PLA, wood, silk feed without skipping
• Capricorn (blue) is rated for years of service
• Lets you relocate the CFS buffer to a sane spot
• Standard PC4-M6 fittings drop right in

Difficulty: easy. Cost: ≈ $15–25 (~5 m tube). Models: K2 Plus. Source: forum.creality.com/t/k2-cfs-modifications-the-extruder-and-c.

9. Tuned Orca Slicer Profile (PA / IS / Flow)

Creality Print can't fine-tune purge volume and has no built-in Pressure Advance / Input Shaper calibrators. OrcaSlicer plus a ready profile (e.g. Combo Profile v2) ships PA / IS / Flow / Temperature Tower tests out of the box and trims color-change purge by 30–40%. After tuning you can hold 22 mm³/s at 203 °C on Elegoo PLA. A no-brainer once you're rooted.

• Per-brand Pressure Advance (delta 0.02–0.08)
• Adaptive PA tied to acceleration
• Flow Rate calibration kills over-extrusion
• Color-change purge cut from 965 mm³ to 400–500 mm³
• 3MF profile files import in under a minute

Difficulty: medium. Cost: free. Models: K2 / K2 SE / K2 Plus. Source: www.printables.com/model/1228192-creality-k2-plus-combo-prof.

10. Axial-Tech Quiet Toolhead Fan Kit (40% Quieter)

The stock toolhead motor fan is the main idle-noise source on the K2. Creality's official Axial-Tech Fan Kit with an integrated 66×65×50.4 mm duct cuts noise by ~40% at the same airflow. Critical for overnight prints in small apartments. Plug-and-play, no soldering, no PWM tuning.

• ~40% quieter than stock
• Integrated 66×65×50.4 mm PBT+30%GF V0 duct
• Plug-and-play, 3-minute install
• No soldering, no PWM tweaking
• Fits K2 / K2 Pro / K2 Plus / Sermoon M300

Difficulty: easy. Cost: ≈ $25–35. Models: K2 / K2 SE / K2 Plus. Source: store.creality.com/products/k2-plus-axial-tech-fan-kit.

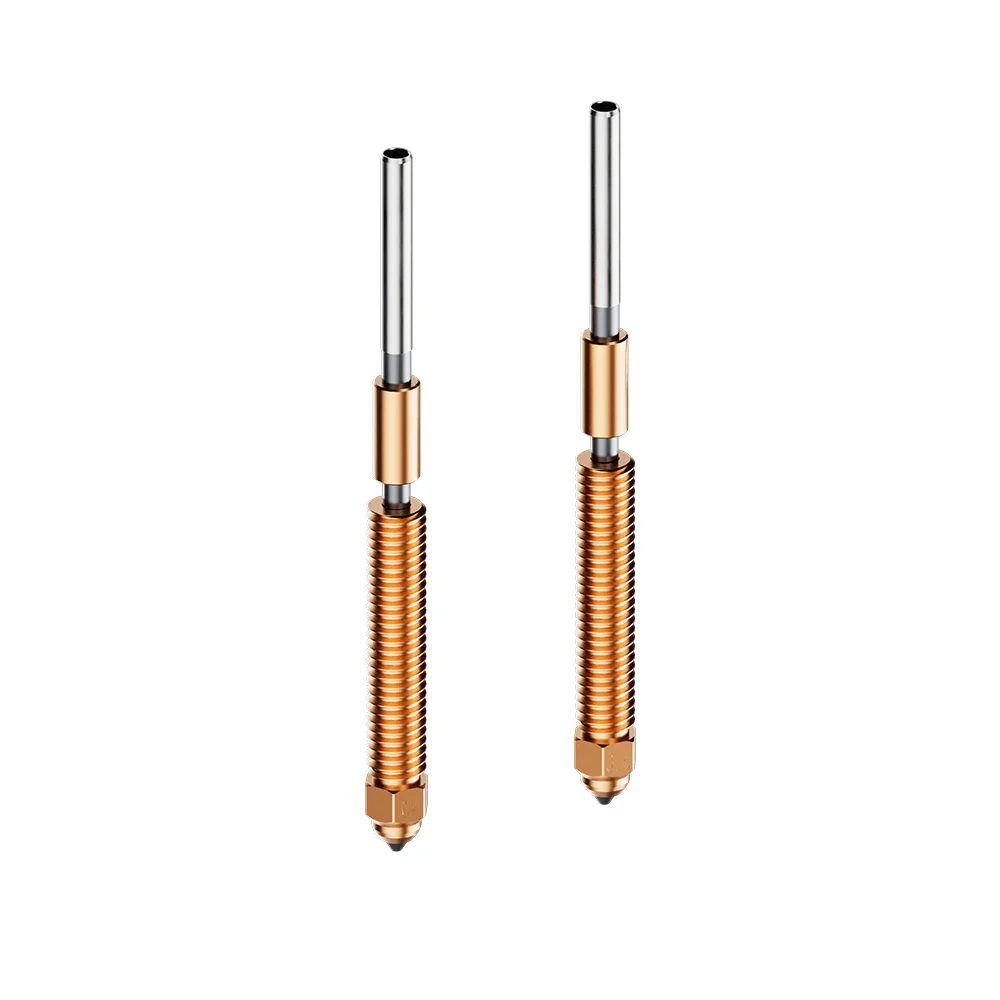

11. Silicon Carbide Nozzle

A brass nozzle dies in 50–100 hours of carbon-fiber filament. Phaetus' silicon-carbide (SiC) nozzle is 9.8 on the Mohs scale and lasts up to 7× longer than hardened steel. Carbon, glass, wood, metal-filled — no visible wear. Pair it with our clogging guide.

• 7× more wear-resistant than steel
• Up to 30 mm³/s at 600 mm/s
• Quick-swap — no hotend disassembly
• Eats CF, GF, wood, metal-filled — no wear

Difficulty: easy. Cost: ≈ $30–45. Models: K2 / K2 SE. Source: www.phaetus.com/en-us/products/silicon-carbide-nozzle-k2-ser.

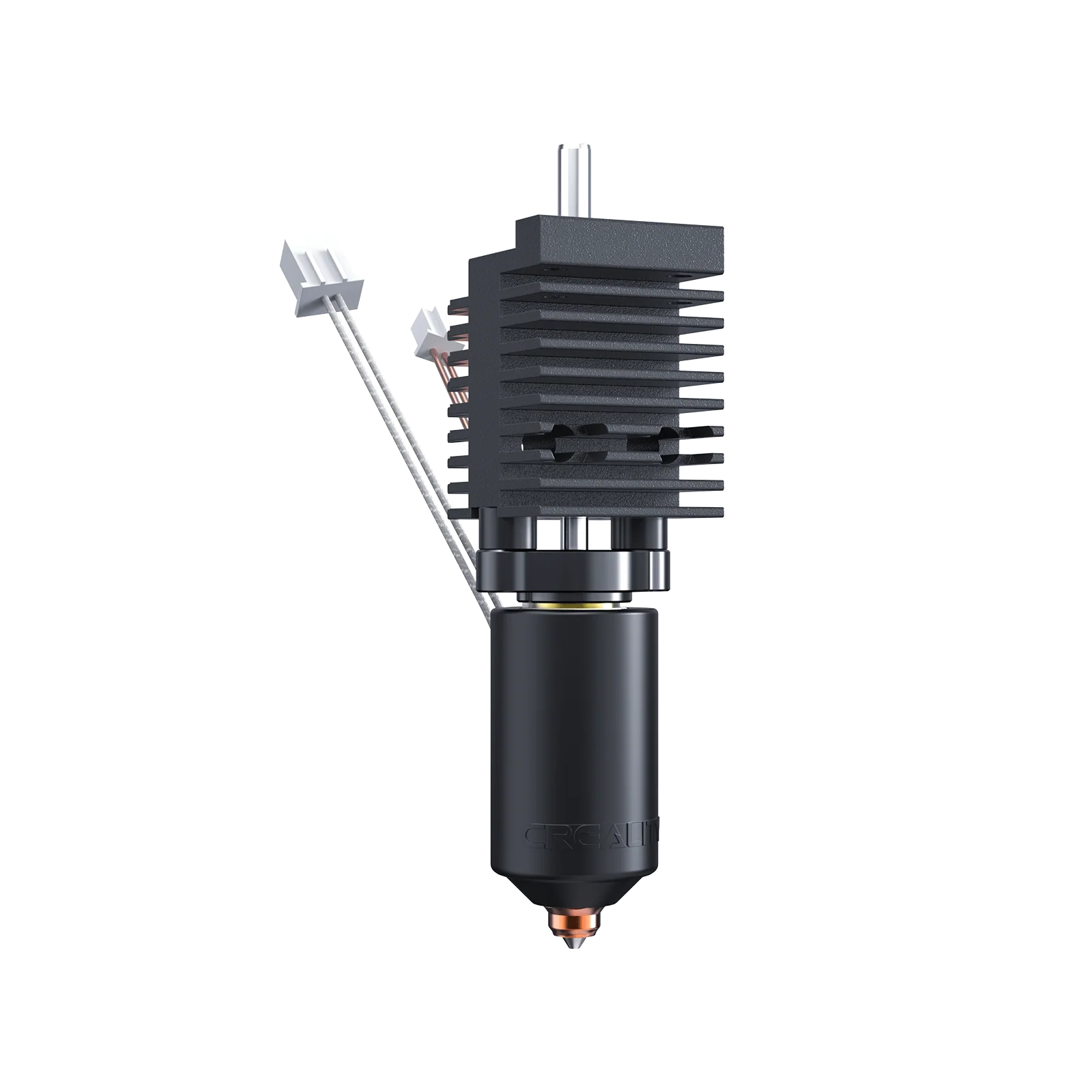

12. Ceramic Heating Block v2

The stock block heats slowly and droops at high flow. The ceramic v2 holds 300 °C steady even past 30 mm³/s — usable for PA-CF and PEEK. 25 °C → 200 °C in about 40 seconds. It's an either/or with FlowTech: pick the ceramic block or the Micro Swiss hotend, not both.

• 25 °C → 200 °C in ~40 s
• Steady 300 °C at 30+ mm³/s flow
• Less wobble on ABS, ASA, PA-CF
• A FlowTech alternative without third-party parts
• Available via Creality Store and TriangleLab

Difficulty: medium. Cost: ≈ $55–75. Models: K2 / K2 SE. Source: store.creality.com/products/k2-ceramic-heating-block-kit.

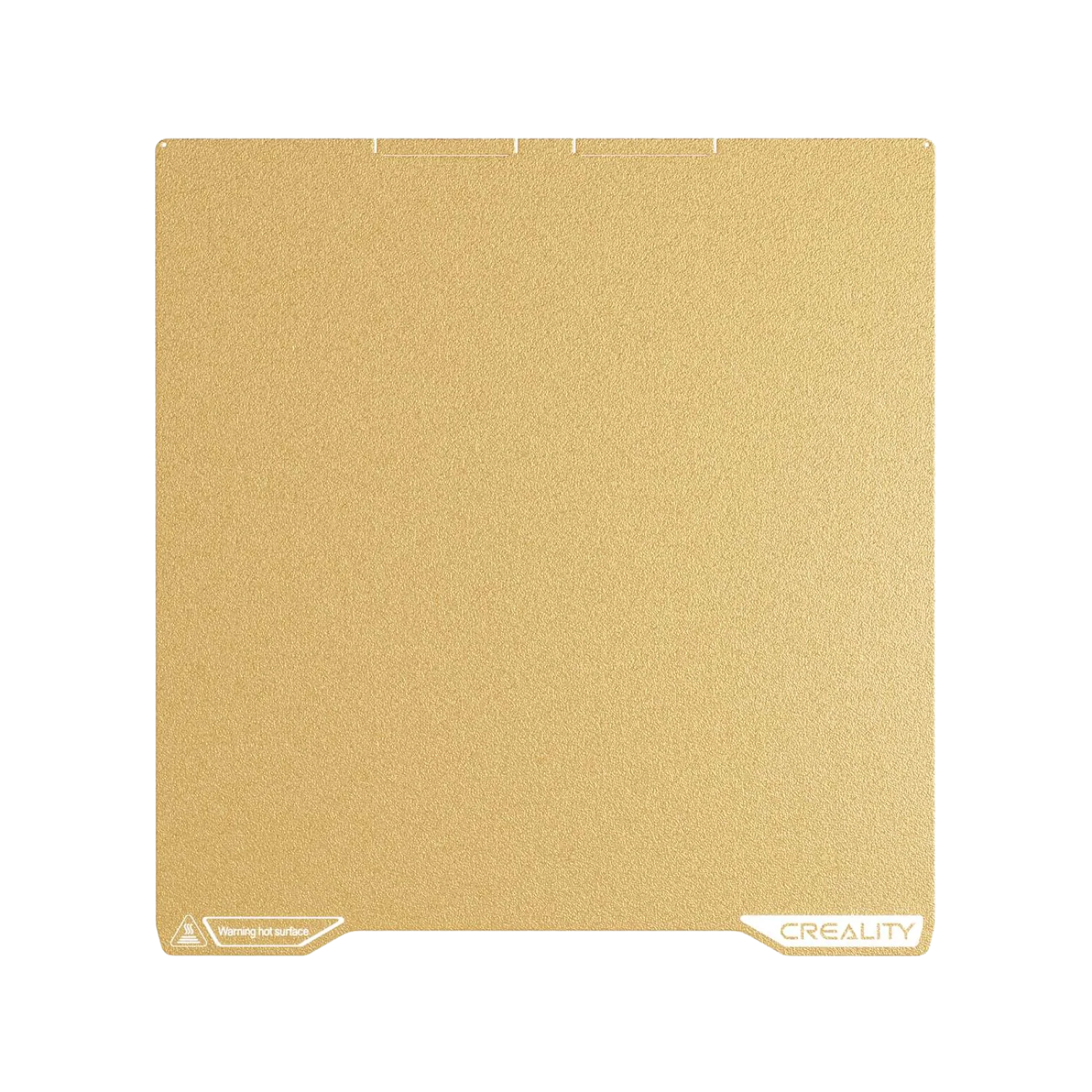

13. Double-sided Frosted PEI Plate

The stock build surface scratches and loses adhesion in 2–3 months. The double-sided PEI plate gives texture on both sides — flip and keep going. Solves most first-layer pain — see our first-layer guide.

• Two working sides — flip and keep printing
• Glue-free adhesion for PLA, PETG, ABS
• Frosted texture on the part bottom
• Magnetic mount — pops off in one motion

Difficulty: easy. Cost: ≈ $40–55. Models: K2 / K2 SE. Source: store.creality.com/products/k2-pei-double-sided-frosted-buil.

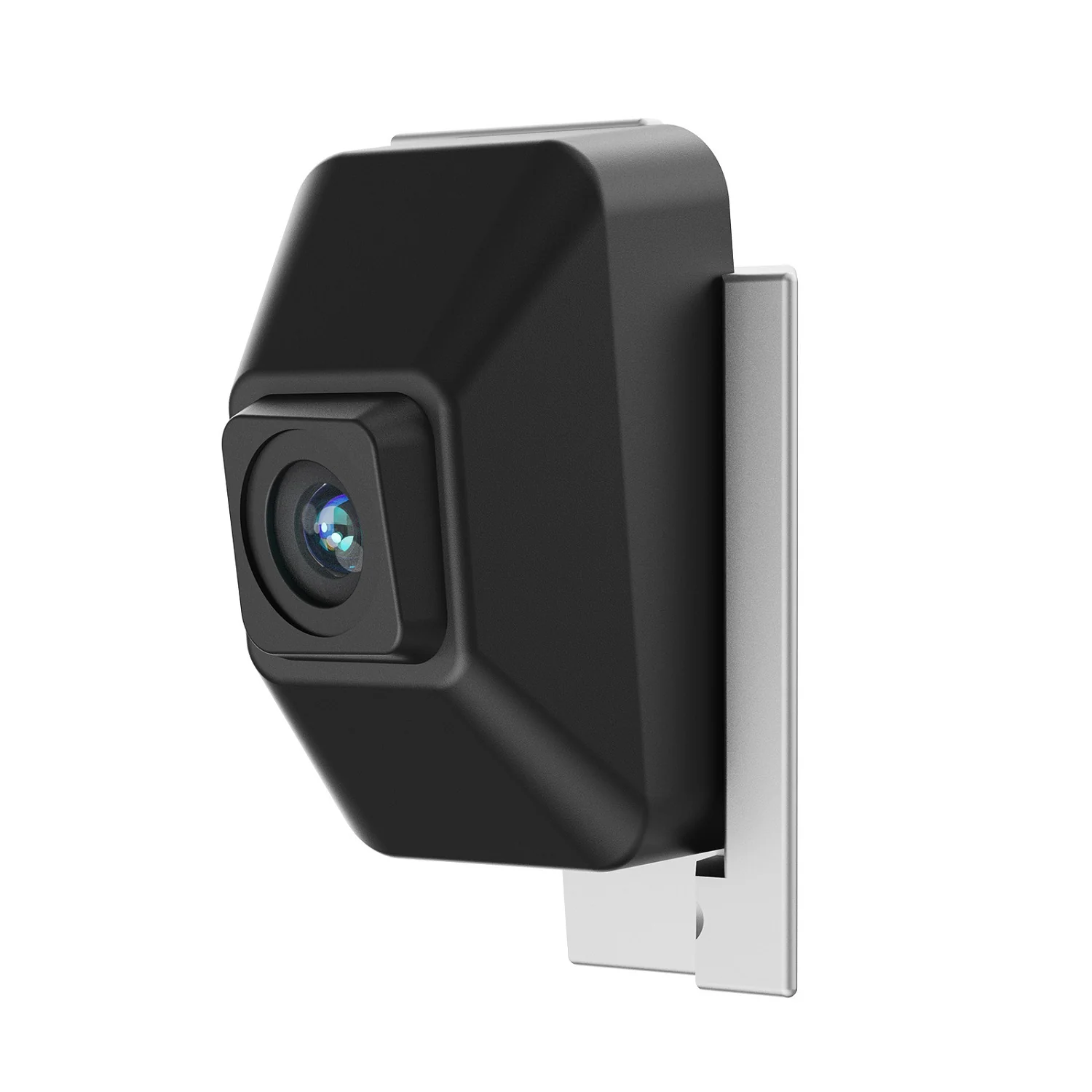

14. AI Chamber Camera

K2 SE ships without a camera — no time-lapses, no remote watch, no spaghetti detection. Mounting is one clip plus a single ribbon. Once rooted, you can pipe the stream into OctoEverywhere or Obico over Moonraker.

• FullHD stream in Creality Cloud
• AI catches first-layer fails and spaghetti
• Layer-synced time-lapses
• Remote watch from anywhere
• Rooted: pipe stream into OctoEverywhere / Obico

Difficulty: easy. Cost: ≈ $70–95. Models: K2 SE. Source: store.creality.com/products/chamber-ai-camera.

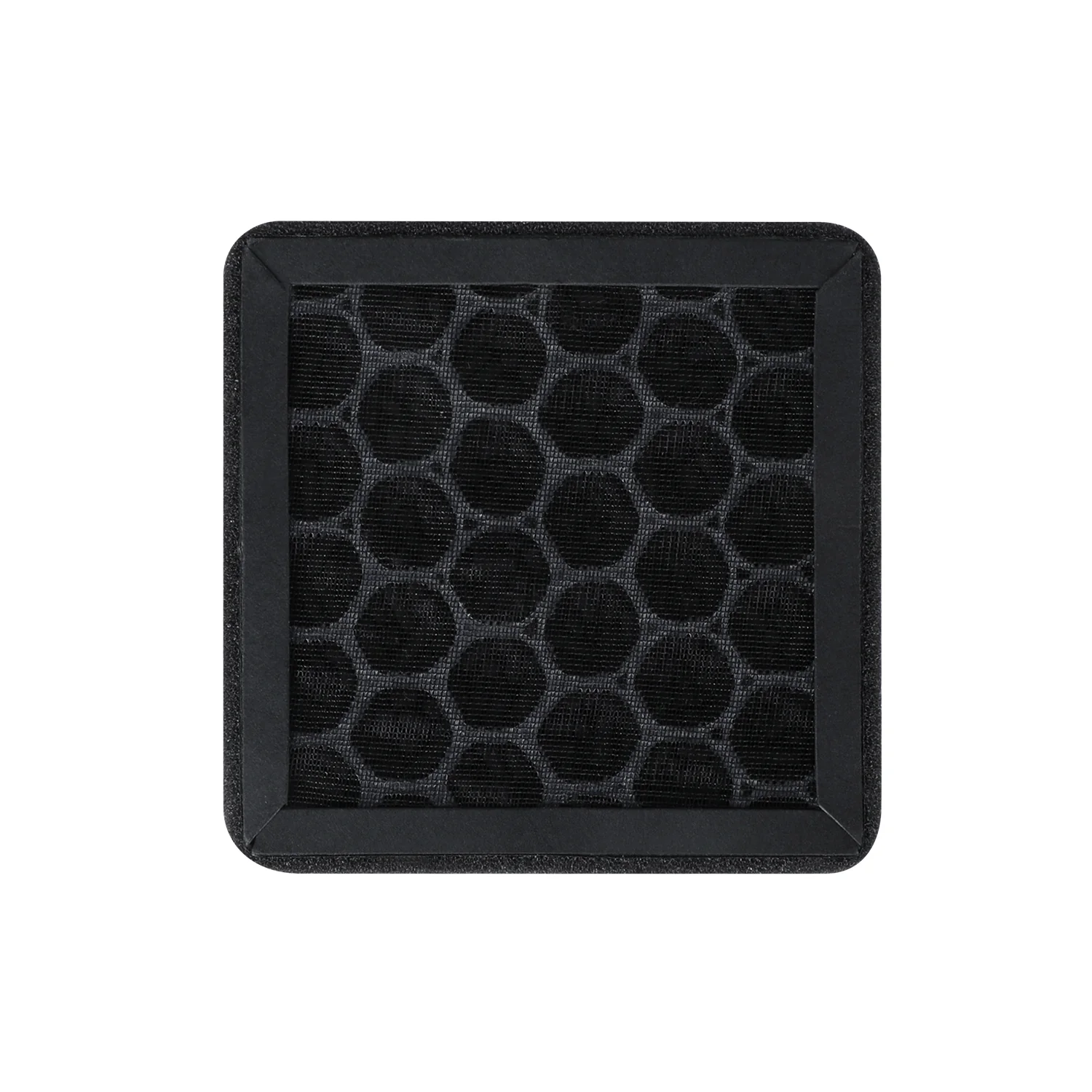

15. HEPA + Carbon Air Filter

ABS, ASA and carbon fiber emit ultrafine particles (UFP) and VOCs. The stock carbon filter only kills ~70% of the smell — HEPA H11 traps UFPs down to 0.3 μm. If the printer lives in your bedroom, this is a health issue, not a comfort one. See our fumes and ventilation guide.

• HEPA H11 + activated carbon
• ~90% reduction in ABS odor
• Replace every 6–12 months
• Fits K2 / K2 Pro / K2 Plus (101×101 mm)

Difficulty: easy. Cost: ≈ $20–30. Models: K2 / K2 SE. Source: store.creality.com/products/k2-k2-pro-k2-plus-air-filter.

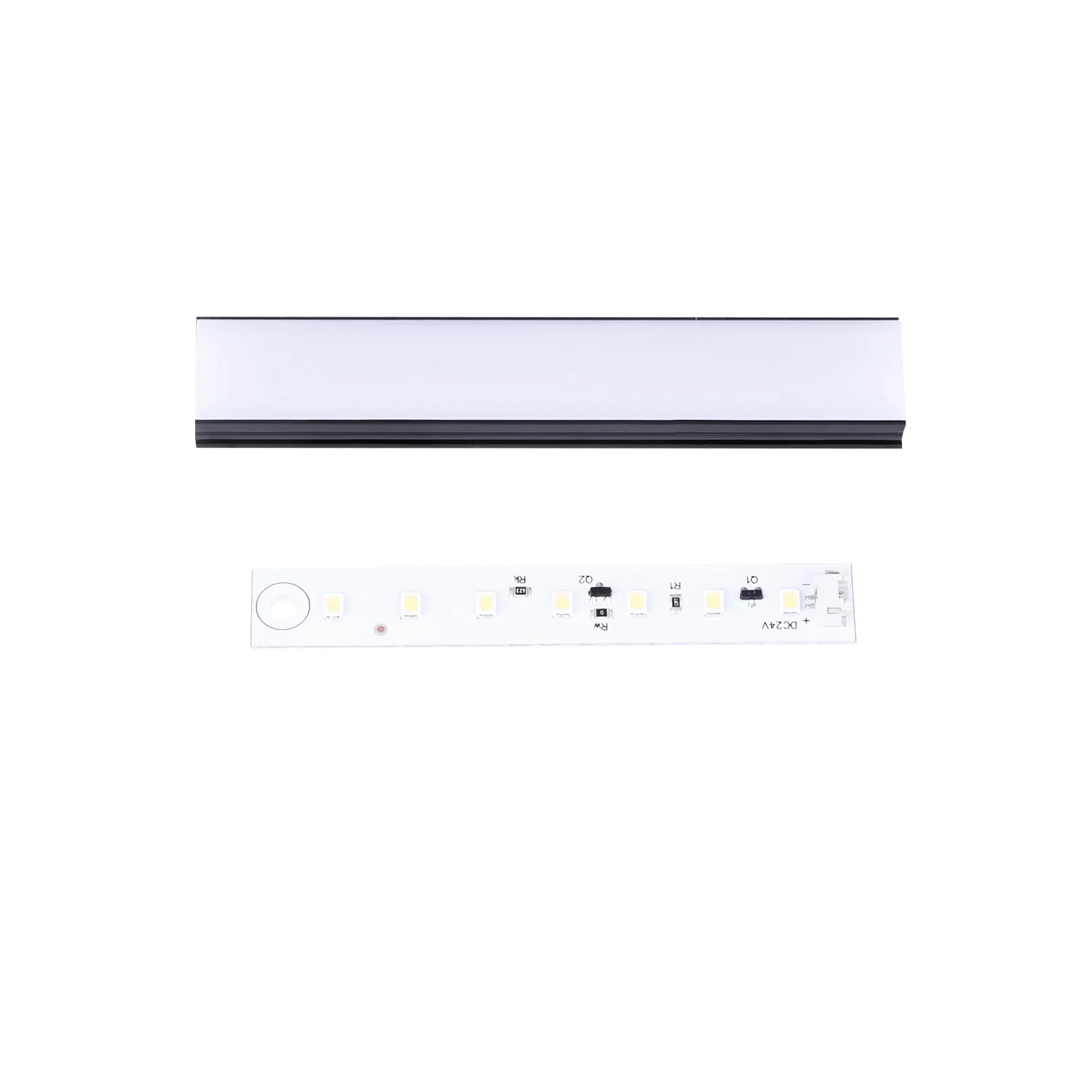

16. LED Chamber Light Kit

Stock K2 SE lighting is dim and the camera image looks washed out. An extra LED strip makes monitoring comfortable and meaningfully bumps AI detection. Plugs into the existing 24 V connector. DIY install: use 200 °C silicone adhesive — ordinary 3M tape peels off when the hotend hits 220 °C.

• Bright, even chamber light (1175 lux on the BoBL build)
• Better video and time-lapse quality
• Plugs into the stock connector
• DIY alternative: LED strip + printed riser

Difficulty: easy. Cost: ≈ $15–25. Models: K2 SE. Source: store.creality.com/products/k2-plus-k2-pro-k2-led-light-kit-.

17. Hotend Silicone Sock

Without a sock the heating block crusts up, temps drift, and oozing smears the print. The sock is a 2–3 month consumable. PA-CF and glass-filled burn through it faster. The stock sock won't fit a Micro Swiss FlowTech — buy a FlowTech-geometry one.

• Steadier temps (less heat loss)
• Clean hotend, no oozing on the part
• Crash protection on collisions

Difficulty: easy. Cost: ≈ $7–12. Models: K2 / K2 SE. Source: store.creality.com/products/k2-k2-pro-k2-plus-hot-end-insula.

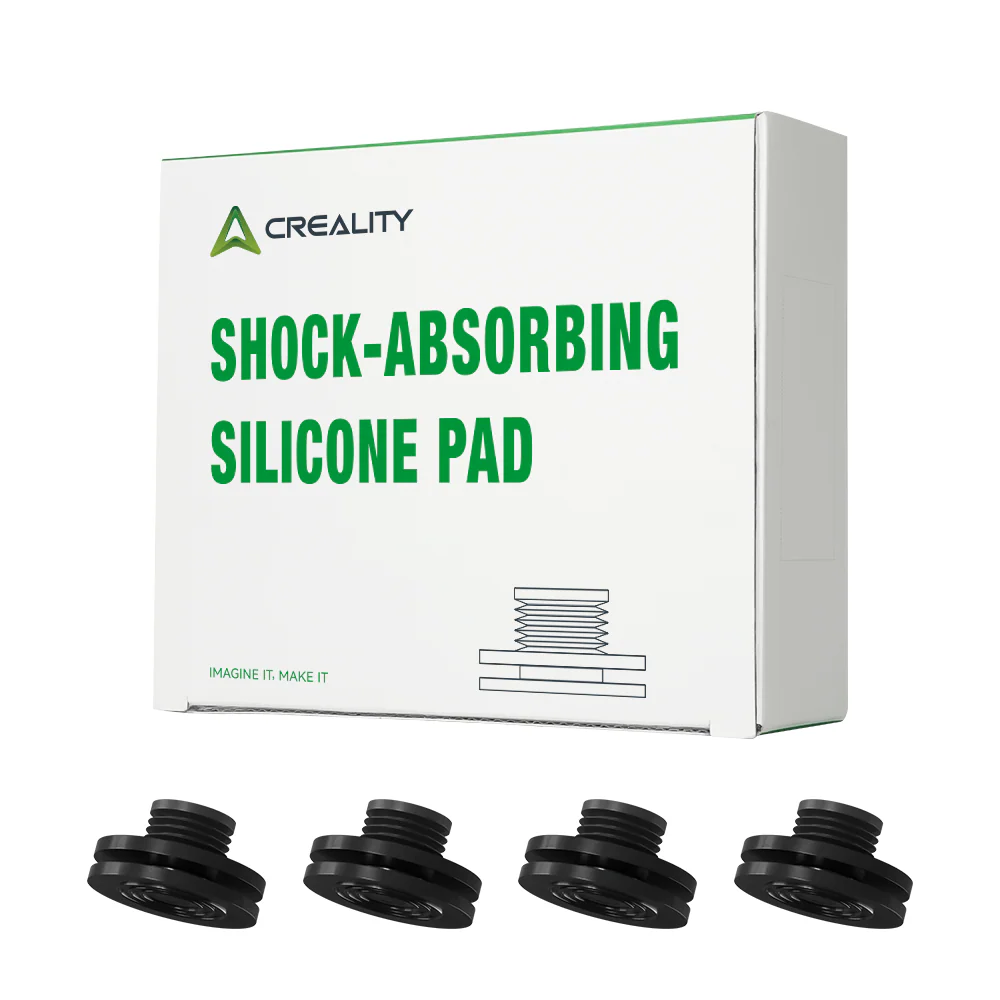

18. Vibration Damping Feet + Dampener

At 600 mm/s the K2 rattles the desk, the furniture booms and ghosting shows up on large walls. Pairing vibration feet with a HULA-style dampener kills the low-frequency resonance. More on this in our ghosting and layer-shift guide.

• 3–5 dB noise reduction
• Less ghosting on large walls
• Won't scratch furniture
• HULA acts as a real desk decoupler

Difficulty: easy. Cost: ≈ $10–30 (HULA ~$15). Models: K2 / K2 SE. Source: store.creality.com/products/shock-absorbing-silicone-pad-4pc.

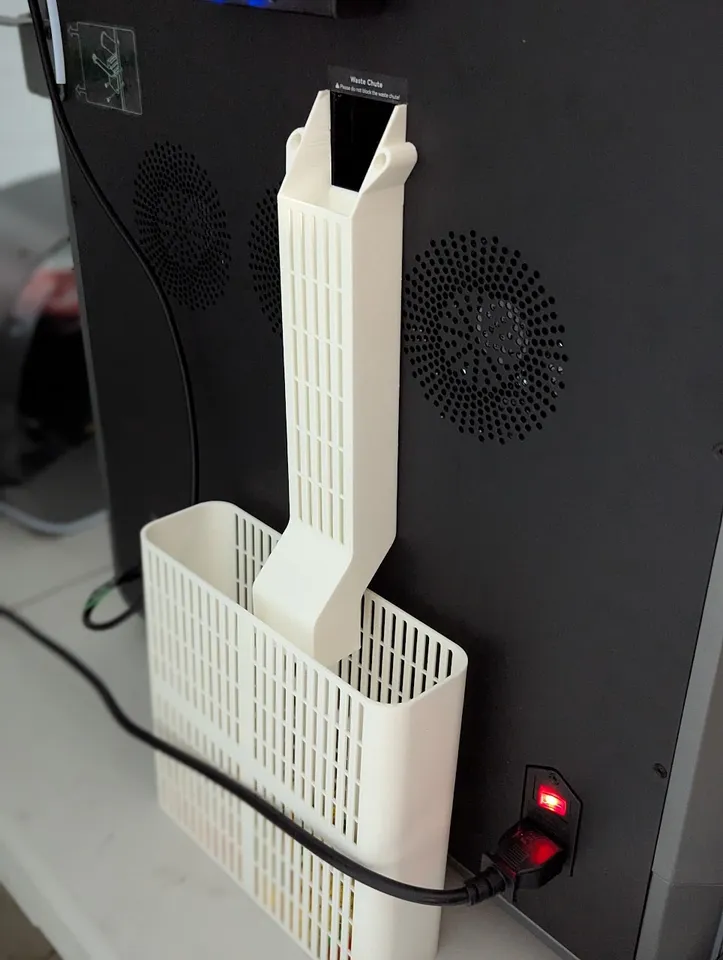

19. CFS Waste Chute

On color changes the CFS spits filament scraps onto the floor and under the printer. The chute from Printables 1102666 sends them into a box. No supports, 0.2 mm layer, 100% infill, mounts on stock screws — no drilling.

• All scraps in one box, not on the floor
• No supports, 0.2 mm layer, 100% infill
• Mounts on stock screws — no drilling

Difficulty: easy. Cost: free (~150 g PETG print). Models: K2 Plus. Source: www.printables.com/model/1102666-creality-k2-plus-poop-chute.

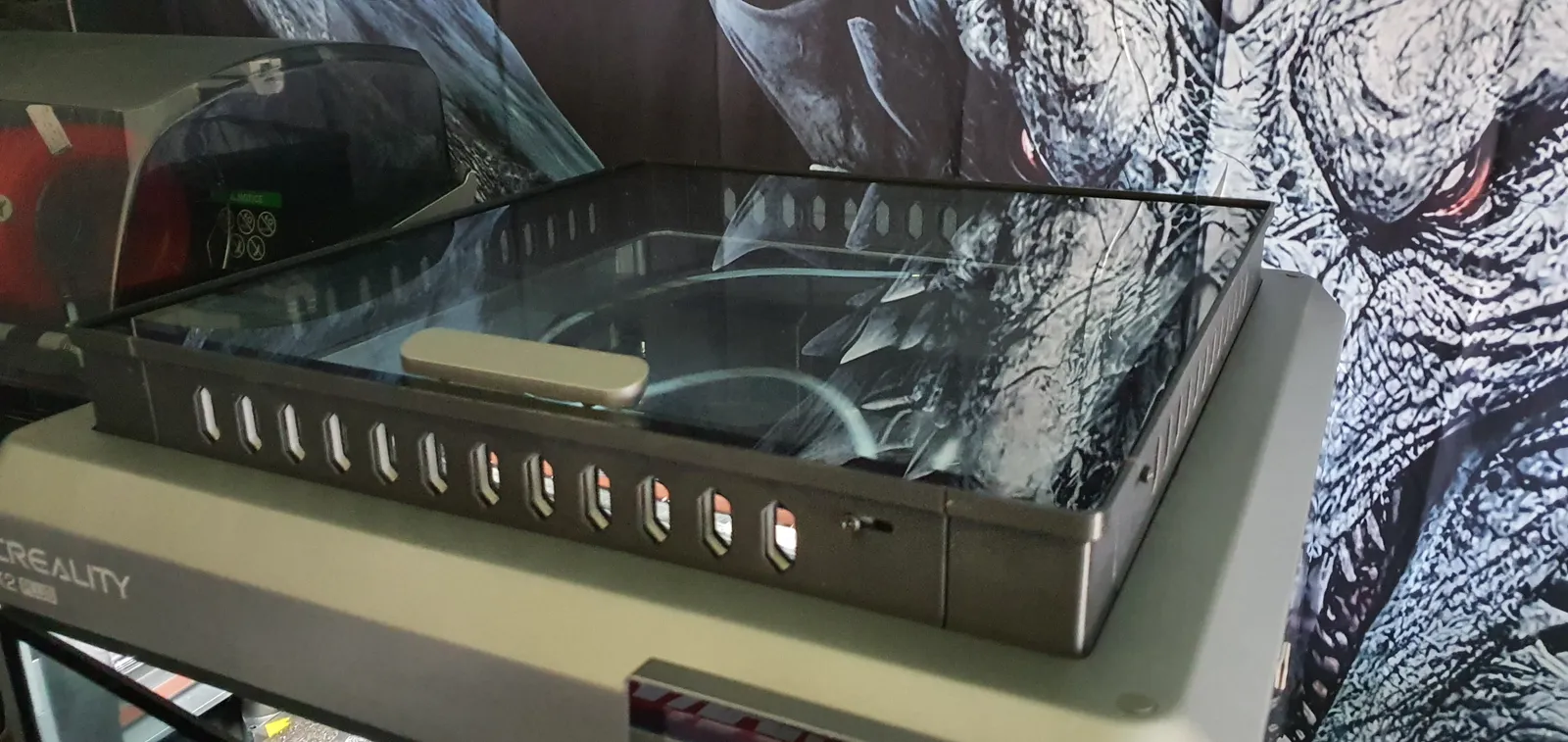

20. Lid Riser

The PTFE tube rubs the glass lid, wears out, and leaves artifacts on prints. The Printables 1256249 riser lifts the glass 25 mm — friction gone. Also fixes PLA over-heating with the lid closed. Print in ASA or PETG, 10% Gyroid infill, 3 walls.

• No more PTFE-on-glass friction
• Better airflow for PLA
• Optional LED-strip channel
• Optional vent block for ABS prints

Difficulty: medium. Cost: free (print + 4× M3 bolts). Models: K2 / K2 SE. Source: www.printables.com/model/1256249-lid-raiser-for-creality-k2-.

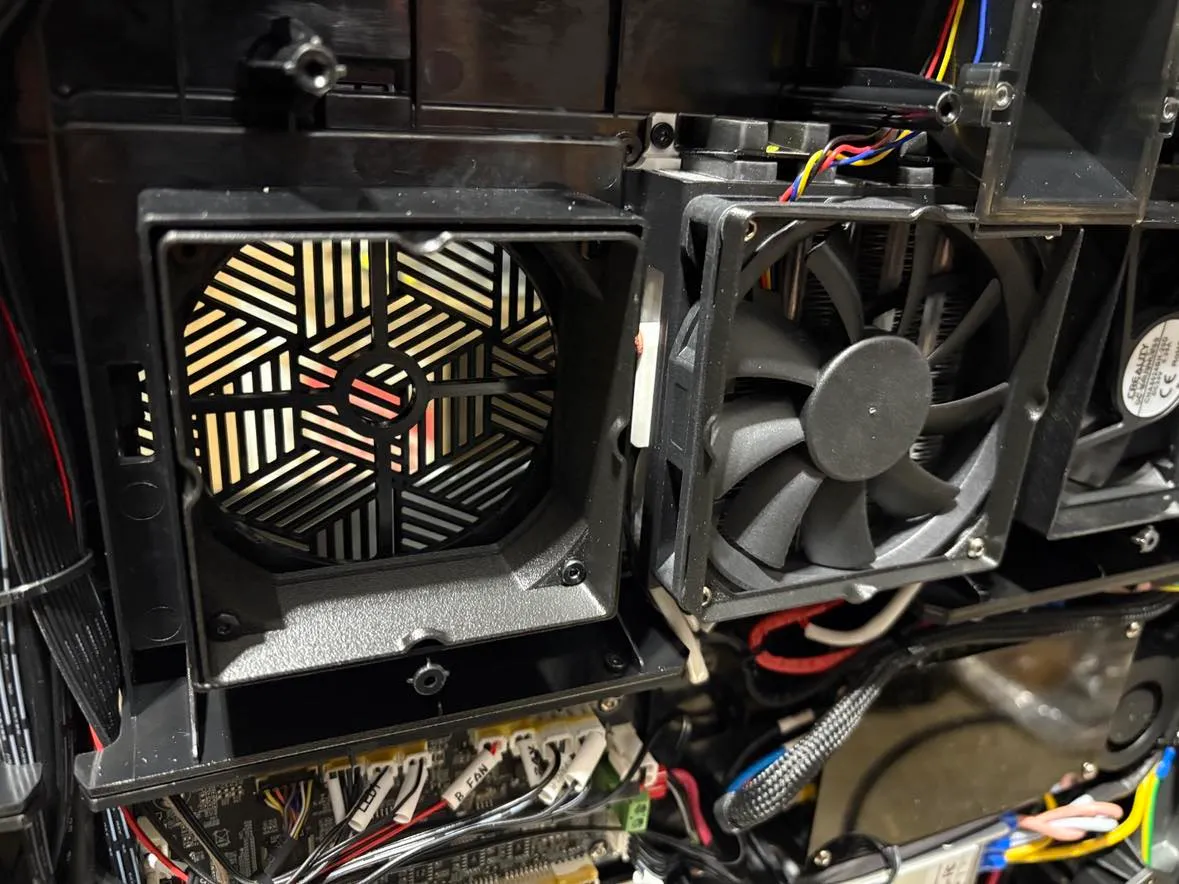

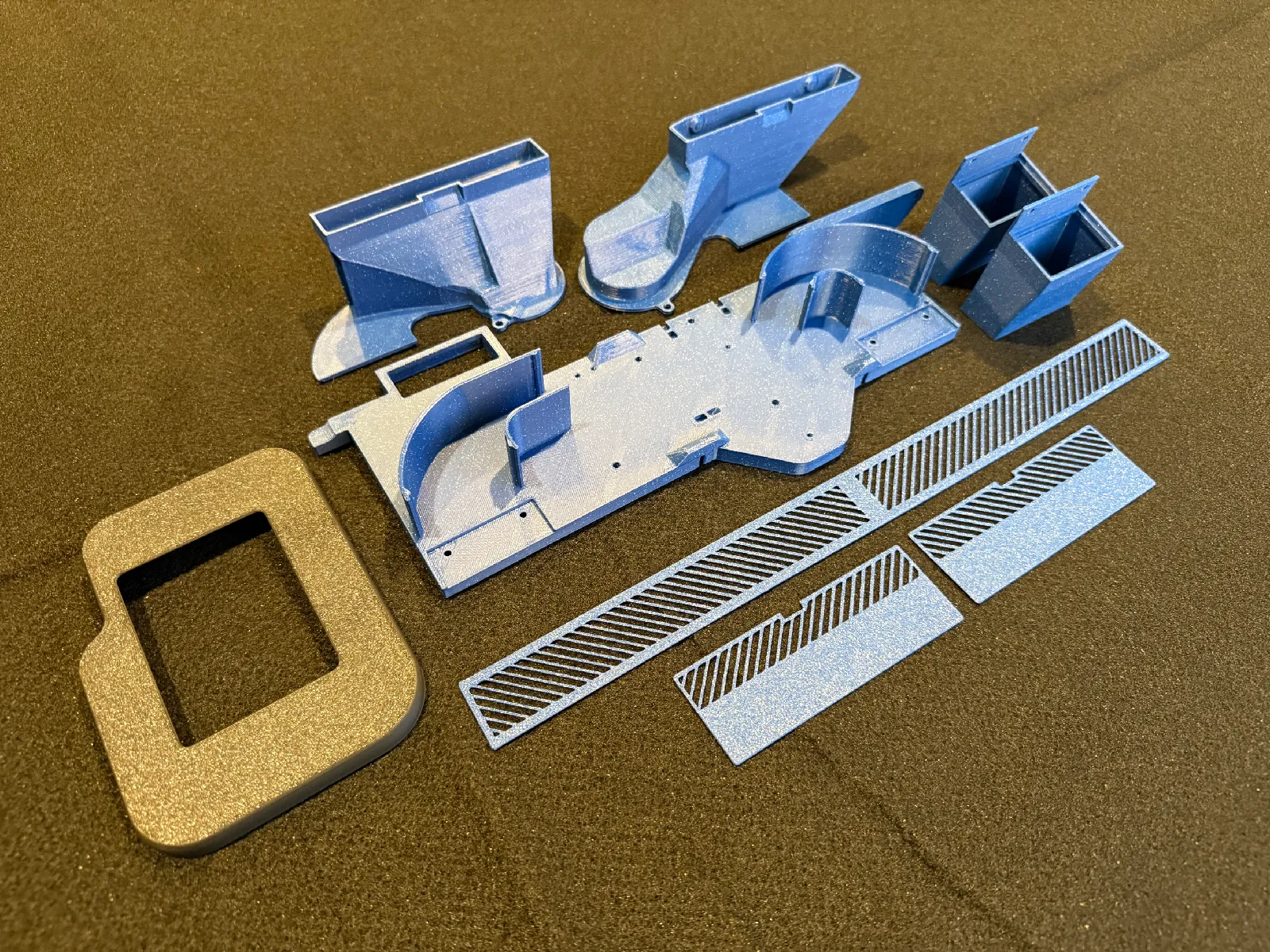

21. Chamber Heat Recirculation Mod

The stock K2 heats the chamber passively from the bed — 30–40 min to reach 50 °C in a cold room. The Printables 1193116 mod flips the chamber fan into recirculation: hot air loops, heat-up is 2–3× faster. A poor man's K2 Pro (400 W active heater). Helps with warping on big parts and stabilizes ABS/ASA.

• Chamber at 50 °C in 12–15 min vs 30–40
• Holds temp better against drafts
• Less warping on big ABS parts
• No electric heater needed

Difficulty: hard. Cost: free (print + M2×6 screws). Models: K2. Source: www.printables.com/model/1193116-creality-k2-plus-chamber-he.

22. Extended Side Spool Holder

On the K2 SE the spool sits on the side, but the stock holder is too short for 2 kg reels. The extended holder takes two standard spools or one 2 kg roll. Add a Y-splitter to run side and CFS at once. With a long Bowden, install Capricorn tubes from the start — otherwise feeding skips.

• Holds spools up to 2 kg
• Two standard spools at once
• 2–3 h print in PETG

Difficulty: easy. Cost: free (~80 g print). Models: K2 SE / K2. Source: www.printables.com/model/1241853-creality-k2-plus-spool-hold.

Wrap-up: where to start

1. PEI plate + silicone sock + vibration feet. Basic hygiene you feel immediately — better adhesion, less crud, quieter printer.
2. HEPA filter and LED light kit. Health and quality of life, especially if the printer lives in a bedroom or kid's room.
3. Waste chute and lid riser. Two evening prints that fix the most annoying daily papercuts.
4. Axial-Tech quiet fan and a tuned OrcaSlicer profile. A noticeable jump in noise and print quality without touching the hardware.
5. Capricorn PTFE tubes and CFS desiccant boxes. If you have a K2 Plus / Combo, these are the two cheapest fixes for finicky feeding and chronic CFS humidity.
6. k2-improvements root stack + Mainsail-K2 + OctoEverywhere. Opens up printer.cfg, modern UI, and proper remote access. Everything else builds on top.
7. Cartographer probe + kinematic bed mount + Micro Swiss FlowTech. The end-game upgrade — accurate mesh, no taco bed, 50 mm³/s flow. These need root and some real engineering chops.

Whatever mods you stack, don't skip the maintenance schedule — rail lube, extruder gear cleaning, belt tension checks. Full checklist in our 3D printer maintenance guide. For context, the K1 mod scene runs on a different software stack — worth comparing, see best Creality K1 mods.
