Creality K1 Max: Known Issues & Fixes

This article covers issues unique to Creality K1 Max. Generic bugs you'll find on any FDM printer (bad first layer, stringing, warping, plain clogs) live in separate deep-dive guides — links at the bottom. Here, only what actually hurts on K1 Max: LiDAR, the spaghetti-detecting camera, the CFS multicolor system, PLA vs. closed-chamber heat, and the stock brass that dies on composites.

Error 506 — LiDAR Calibration Failure

LiDAR refuses to calibrate — 'AI LiDAR calibration failure' error 506 pops on screen. The printer either won't start or prints with a broken first layer, wrong bed mesh, and bad Z-offset. Without working LiDAR, the K1 Max signature feature — auto-calibration via the QR sticker on the bed — is dead weight.

1. Remove the plate and inspect the white rectangular sticker on the chamber floor (the LiDAR 'QR code'). It must lie flat, no curls, no stains. If it lifted off — glue it back on the original marks.
2. Wipe the LiDAR module window on the toolhead with a dry microfiber cloth. Blow off dust; don't use alcohol — it strips the anti-reflective coating on the glass.
3. Measure the distance from the sticker top to the plate surface with a ruler — it must be under 3 mm. Bigger than that — tighten all 4 bed mount screws crosshair style, the plate will sit lower.

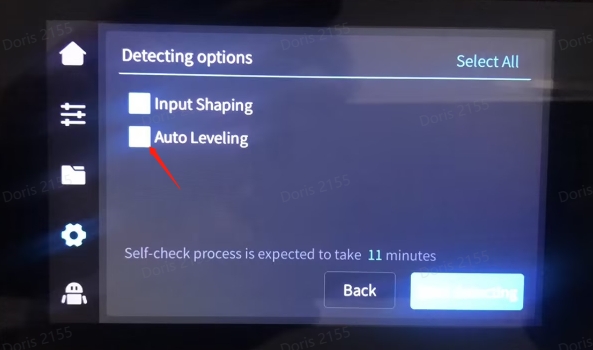

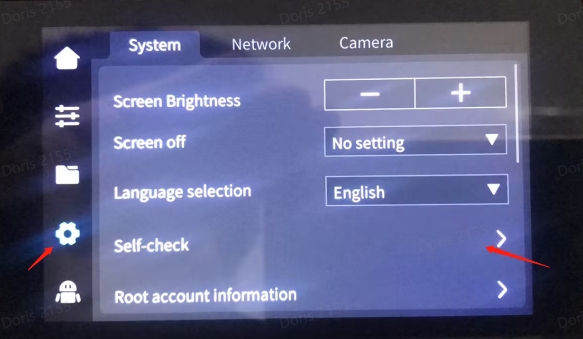

4. Go Settings → Device Self-check → Auto Level and run calibration again.
5. If the error persists — replace the AI module or the LiDAR sensor itself. The OEM part is in our catalog, card below.

Nozzle Crashes Into Bed During Calibration (Error 2526)

The most painful K1 Max failure. During auto-calibration or self-check the printer slams the nozzle into the plate, punches through the PEI, and scars the coating. Error 2526 — Z-axis malfunction — shows instantly. Often followed by 506: the LiDAR took the hit and died. The PEI either flips to side two or gets replaced.

1. Pull the plug right after the crash and let the printer sit for about 5 minutes. This clears accumulated firmware state.

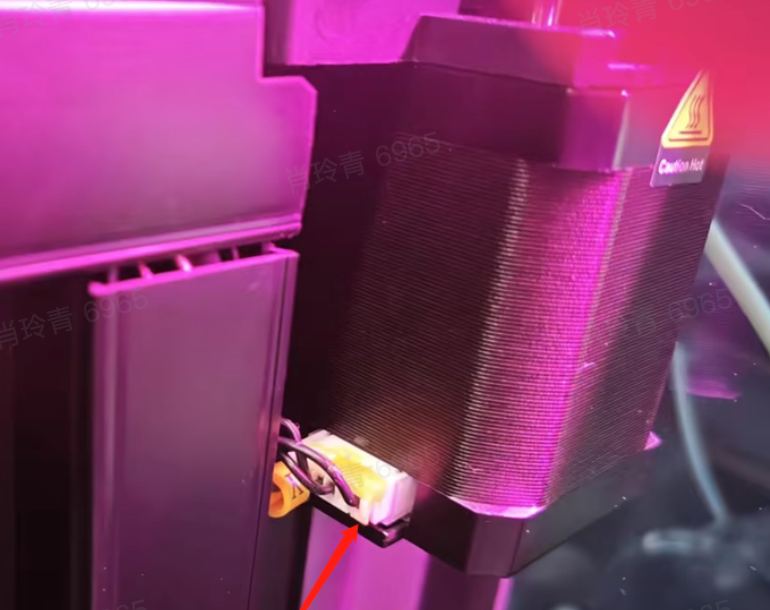

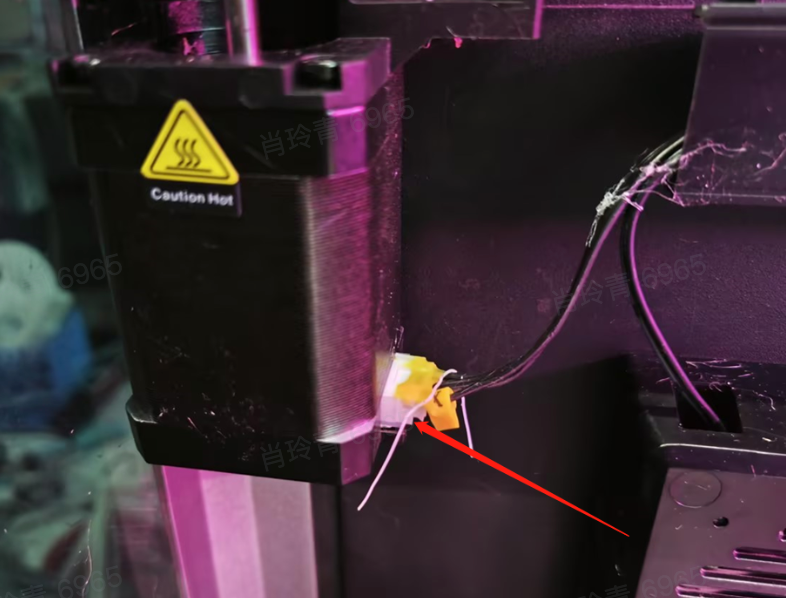

2. Remove the toolhead rear cover and inspect the X and Y motor connectors. Both must be fully seated, no cocked pins. Reseat both sides. Same applies to K1 — see the Creality K1 known issues guide.
3. Pull the cable chain that runs to the toolhead and run your fingers over the sleeve — it often chafes against the frame edge. If bare wires show — cover with heatshrink.
4. Remove the nozzle and inspect the strain gauge on the toolhead body (Creality OEM #3205990551). A cracked substrate or chipped contact means replacement.
5. If the crash started right after a firmware update — roll back to the latest stable version (firmware 1.3.5.18 section is further down).
6. Re-run self-check on an empty bed: no tools, no filament scraps, and hands off the printer while calibration is going.

Camera Flags False 'Spaghetti' and Pauses Prints

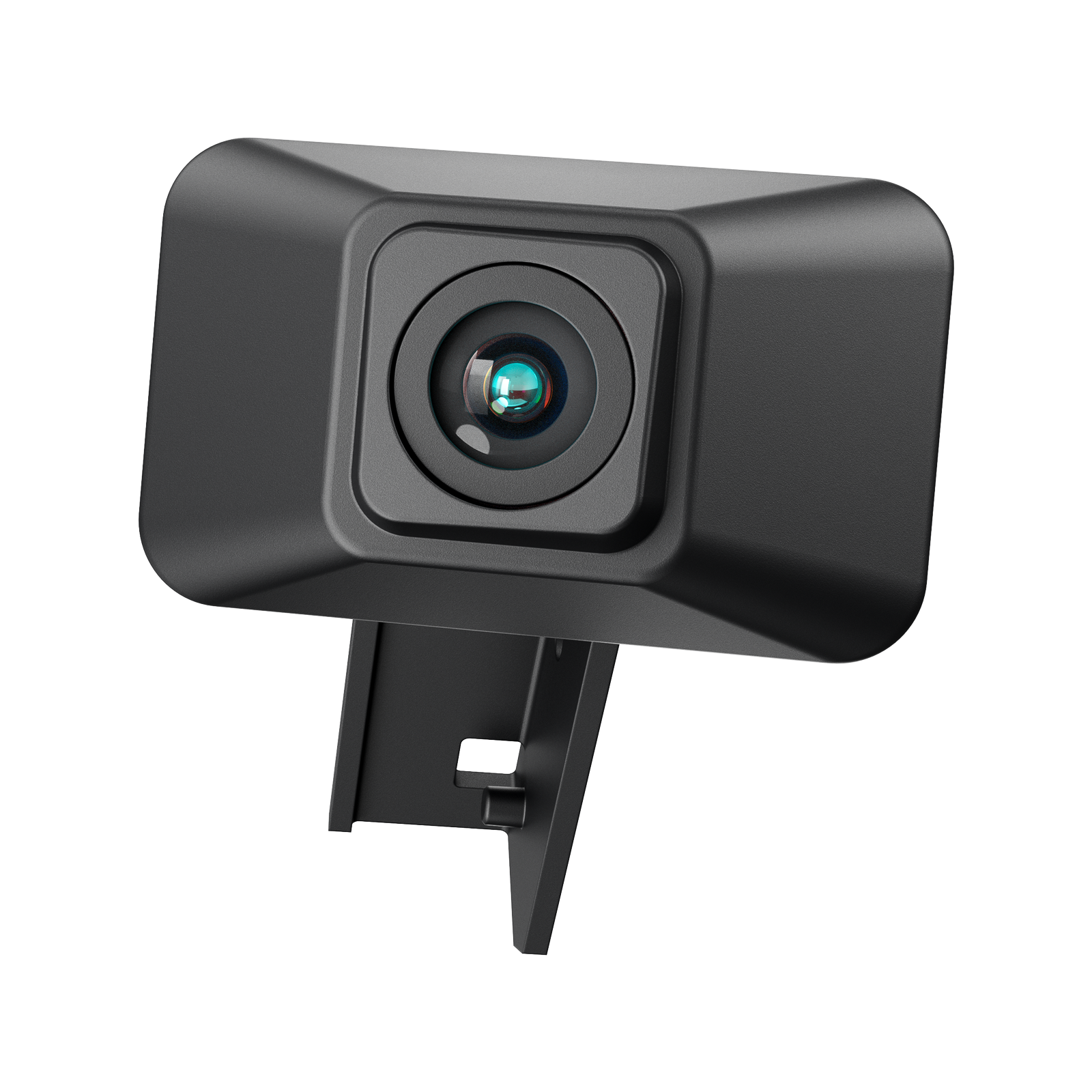

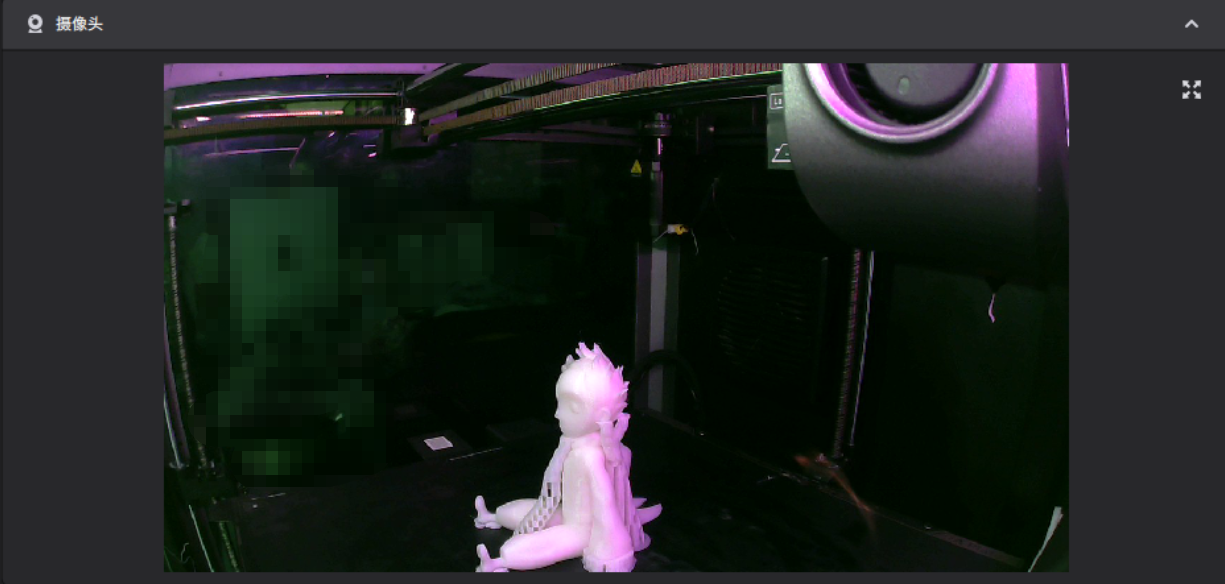

K1 Max has a fun feature — an onboard camera with 'spaghetti' detection (the slang for a print that popped off the bed and the printer keeps spewing filament into thin air). In practice the camera regularly stops a perfectly fine print halfway through. After you resume, a visible seam or a layer shift stays on the model. It gets extra trigger-happy on black filament, in dim chamber light, and on models with lace-like supports.

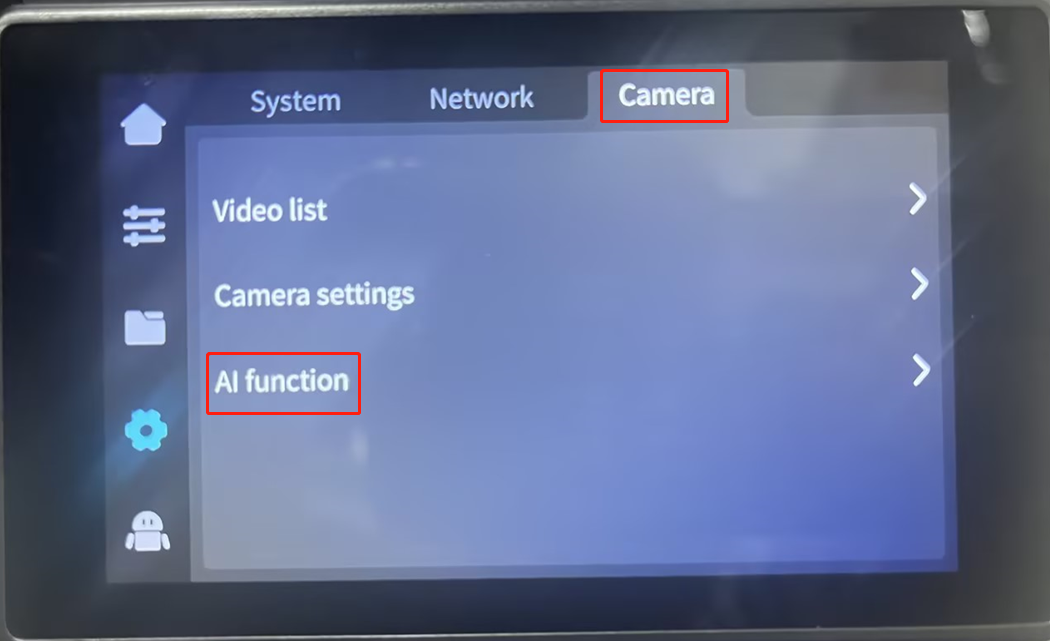

1. Go Settings → Camera → AI function and uncheck 'Push Pause Printing'. The camera keeps watching but stops auto-pausing — you just get a notification.
2. To kill detection entirely — uncheck 'AI Detection' in the same menu.
3. Confirm the chamber light is on during prints. Without light the camera mistakes shadows for spaghetti.
4. Wipe the camera window with a dry cloth: plastic haze and dust actually break recognition.
5. On tricky prints (black PLA, thin supports, translucent filaments) disable the camera for that one job — switch it back on afterwards.

Clogs on PLA from a Hot Closed Chamber

K1 Max was designed around engineering plastics — ABS, ASA, nylon, polycarbonate. When you push PLA in the closed chamber at 300+ mm/s, the chamber banks heat. Filament softens before the melt zone, swells, and jams above the nozzle. The print stalls with an extruder error or clicks in the feeder. Typical pattern: 40–60 minutes in, the print under-extrudes, then the printer gives up.

1. Remove the top glass. This is Creality's documented PLA mode, and it's in the manual. The chamber stops banking heat.
2. Open the front door or leave it cracked 2–3 cm.
3. Verify the 3010 hotend cooling fan runs at full speed while the nozzle heats. If it's not spinning or rattles — see the fan failure section below.
4. For long PLA runs (6 hours and up) — either remove the top or switch to PETG.
5. If clogs keep happening — swap the hotend for an E3D Obxidian or Creality Unicorn. Their heatsink and PTFE liner hold heat better.

How to Clear a Hotend Clog After Heat Creep

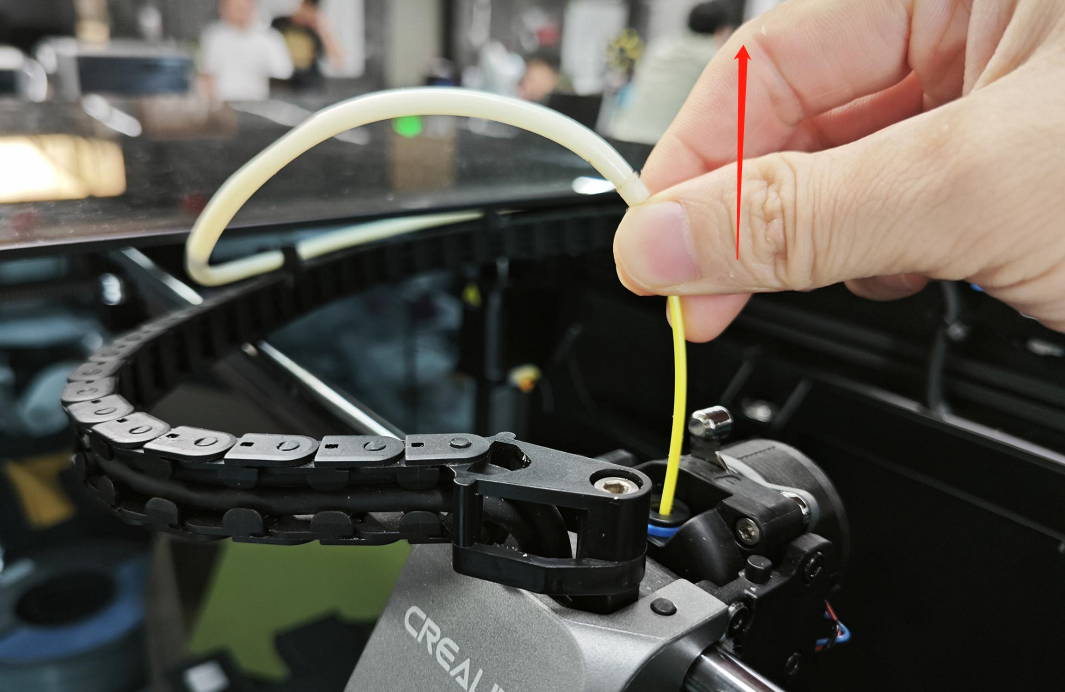

If heat already reached the heatsink and filament jammed — a plain unload won't help. The trapped chunk needs to be heated and physically pushed out, otherwise it cools above the nozzle and locks the channel solid.

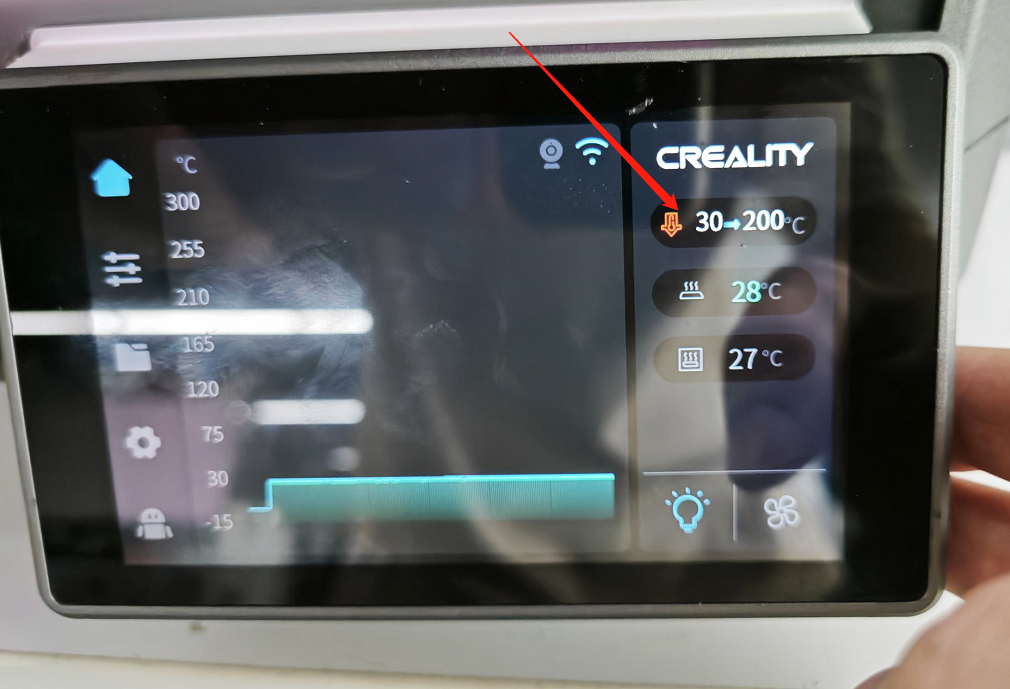

1. Heat the nozzle to 240 °C for PLA, 250 °C for PETG, or 260 °C for ABS.
2. Under Prepare → Extrude, try to push 20 mm of filament. If it flows — keep going until a clean line comes out.

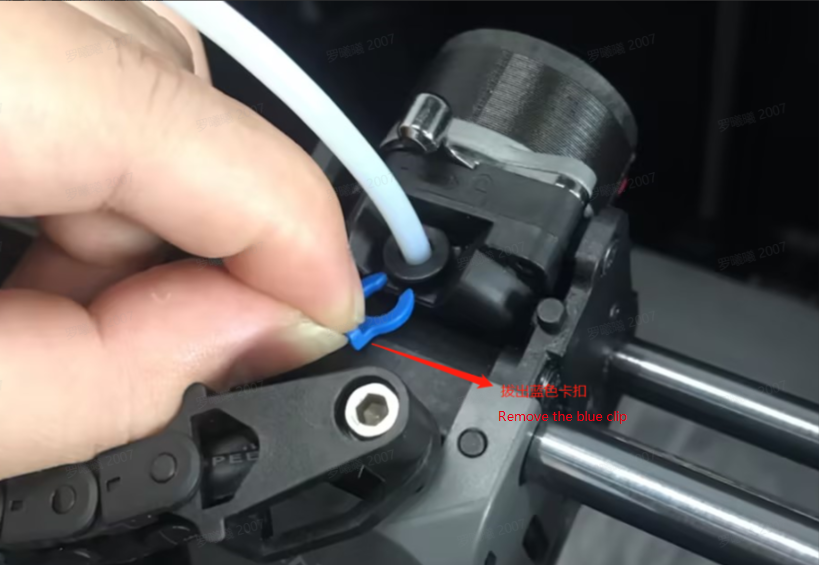

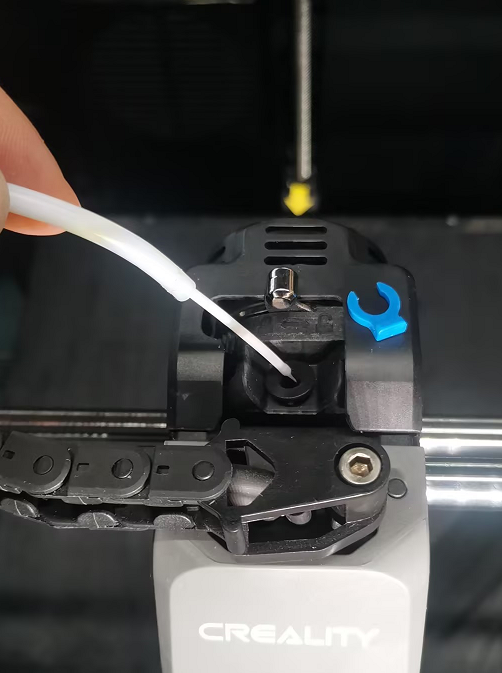

3. If nothing moves — pull the blue PTFE clip at the top of the hotend, yank the tube, and run the 0.4 mm cleaning needle from the stock kit through the nozzle.
4. If the needle still won't pass — remove the full nozzle and replace it. A nozzle is a consumable.
5. After reassembly always do a cold pull with cleaning filament: heat to 230 °C, soak, cool to 90 °C, tug hard. That clears residue in the heat zone.
6. Full theory of clogs with examples — in our complete nozzle clog guide.

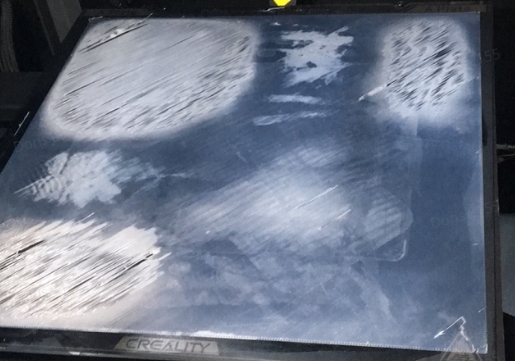

Stock PEI Plate Wears Out in 1.5–2 Months

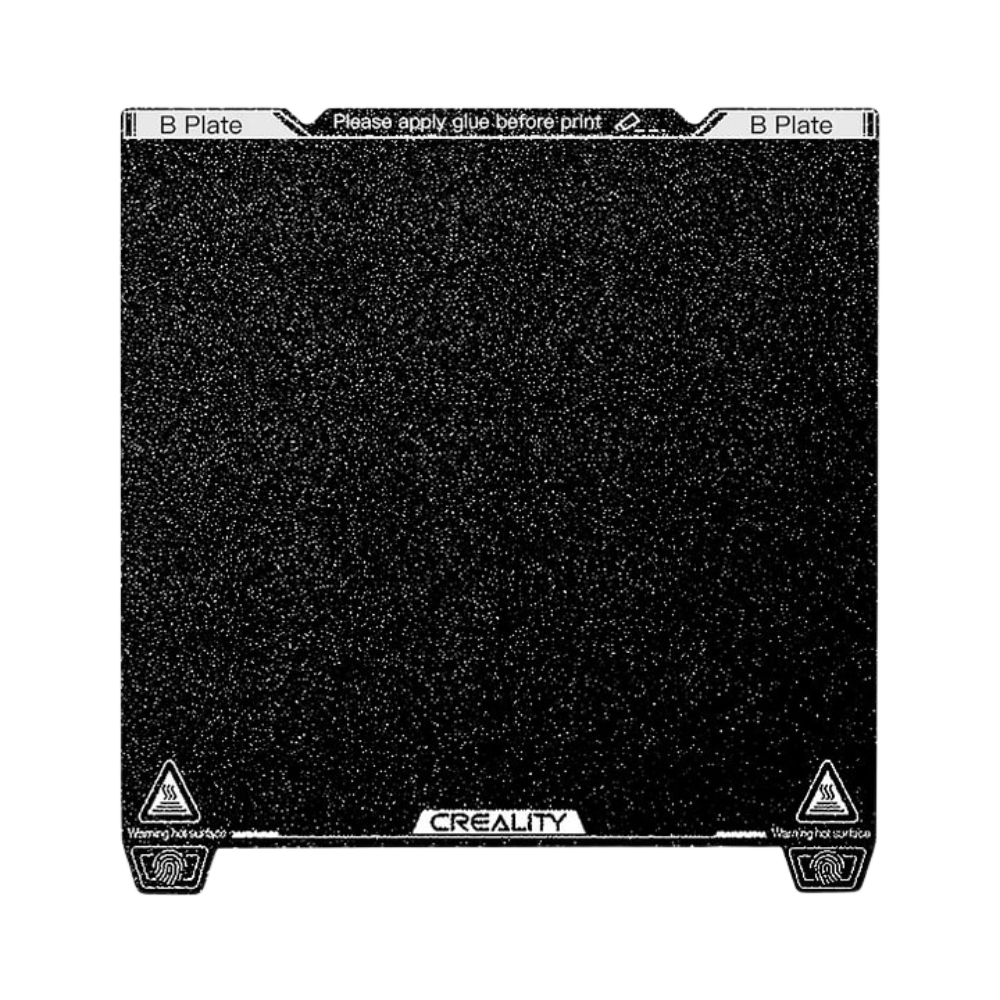

The dual-sided PEI plate that ships with K1 Max is a consumable, not a lifetime accessory. After 200–400 hours of PETG and ABS printing the coating wears through in the middle of the bed, where most prints live. New parts won't stick there, older ones rip off with PEI attached. Some batches wear even faster.

1. Only pop prints off when the bed is fully cool — PETG releases on its own and doesn't tear the coating.
2. For PETG lay a thin layer of glue stick or Magigoo before each print. It acts as a buffer between plastic and PEI. The catalog has a first layer adhesion guide.
3. At the first sign of local scuffing — flip the plate to the second side.
4. Replace with a quality dual-sided plate (smooth PEI or PET-coated).
5. Drop metal scrapers from your toolkit. Plastic only, or just wait for the bed to cool.

Brass Nozzle Wears Out on Composites in 2–4 Hours

The stock 0.4 mm brass nozzle on K1 Max won't survive abrasive filament — carbon-fiber, glass-fiber, wood-filled, GF-nylon. Abrasive particles wear the orifice open not in days, not in weeks, literally in 2–4 hours of printing. Diameter opens up to 0.6–0.8 mm, lines get wider, surfaces turn fuzzy, the first layer stops matching the slicer plan. If you bought K1 Max to print carbon — the brass in the box isn't enough.

1. For composites run a hardened steel or bimetallic nozzle. Keep brass for clean PLA, PETG, and ABS only.
2. Run two separate nozzles: one 'clean' for regular plastic, one 'dirty' for composites.
3. Every 100 hours of composite printing run a single-line test on an open layer. If real width is 30 % above planned — nozzle's done.

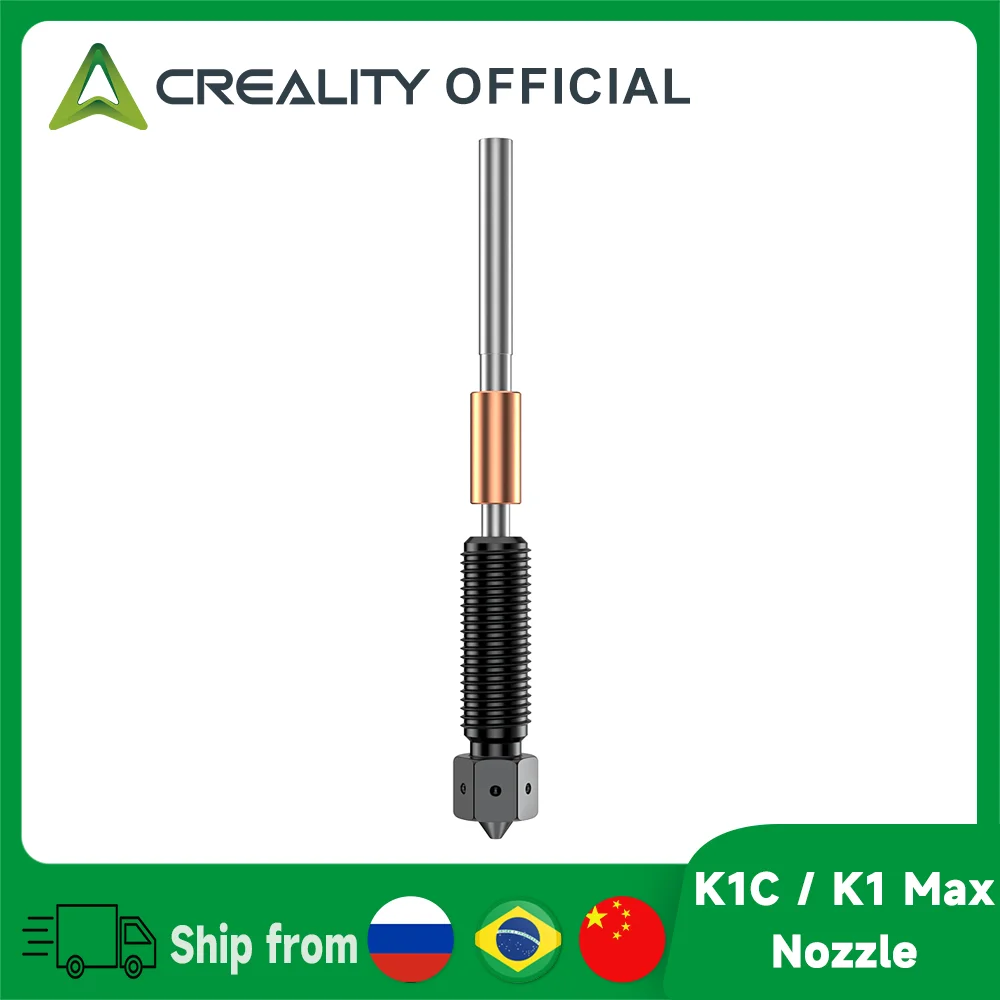

4. For serious carbon marathons get an E3D Obxidian — its diamond coating survives hundreds of hours.
5. Don't 'save money' on generic brass nozzles off marketplaces when you print GF-nylon — it's cash straight into the reprint drain.

3010 Hotend Cooling Fan Failure

The stock 3010 fan that cools the hotend heatsink is a K1 Max weak spot. After 500–1000 hours it either stops spinning or rattles. The controller throws 'fan failure' (code 2001) and halts the print. Without airflow the heatsink overheats in minutes and catches a clog. Important detail: early K1 Max and newer K1 MAX 2025 use different 3010 fans — a generic one off a marketplace often won't fit.

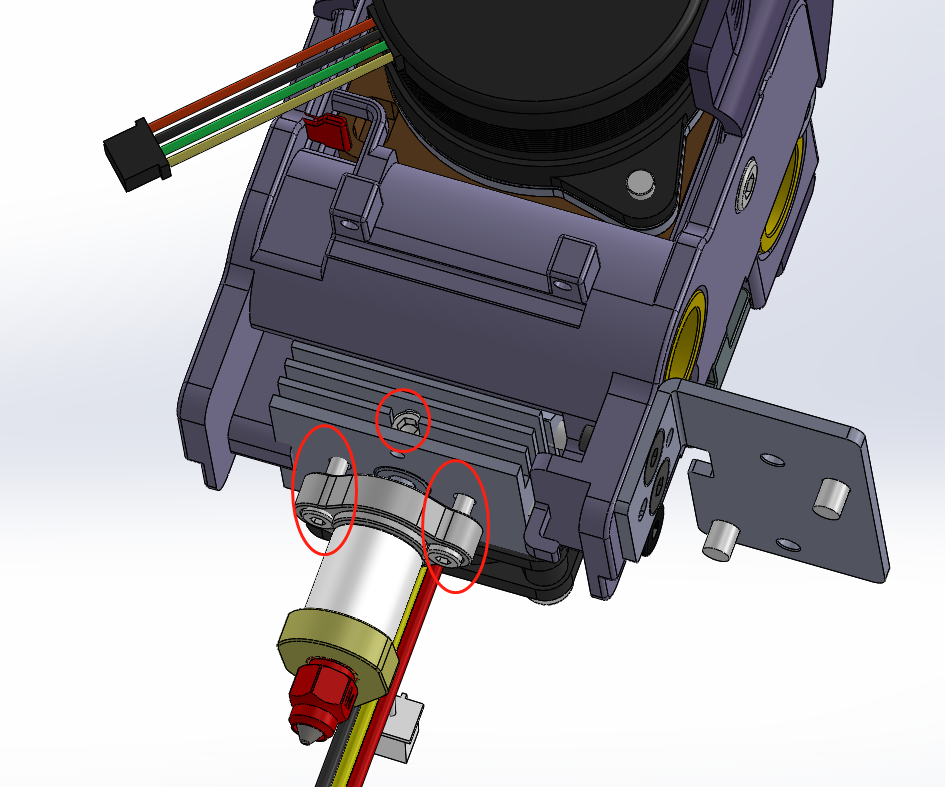

1. Remove the toolhead front cover (2× T10 screws), unplug the fan connector from the toolhead board.
2. Blast the fan with compressed air. A seized bearing can sometimes be saved. A drop of machine oil on the axle is an emergency fix for a week.
3. If that didn't help — buy the genuine Creality 3010 for your specific revision. Early K1 Max ≠ K1 MAX 2025 ≠ K1C: different connectors and pinouts.

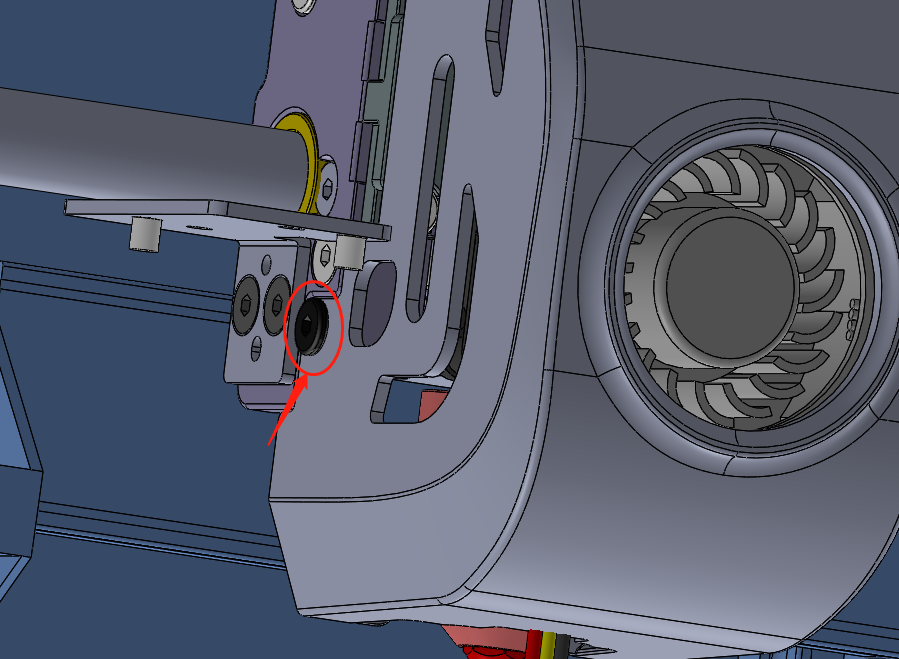

4. Mount the new fan with two screws, plug the connector into the same header on the toolhead board. The silicone gasket stays — it damps vibration.
5. Run self-check under System → Device Self-check, the controller re-probes rotation.
6. If the new fan still throws 2001 — the toolhead board itself is bad. Inspect header contacts, replace the board on oxidation.

CFS: Filament Jams on Retract, Loading Breaks

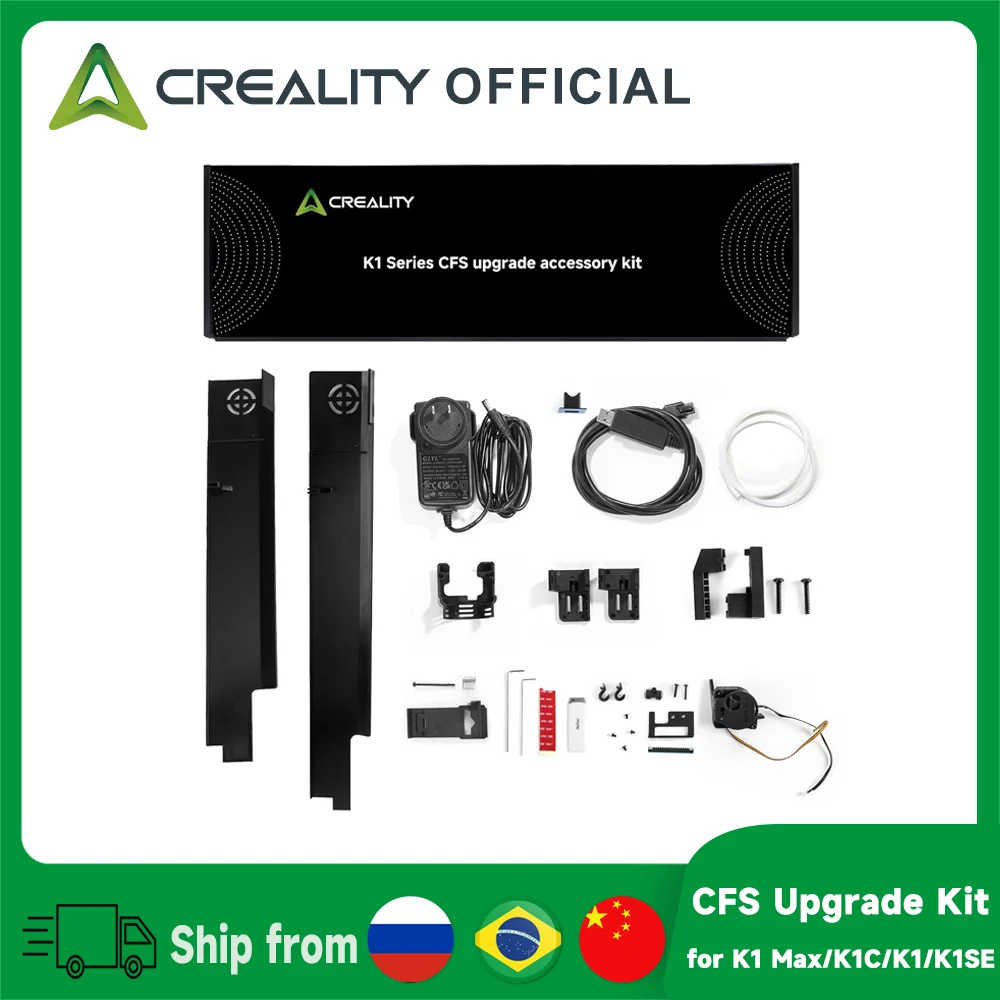

After installing the Creality Filament System (CFS) multicolor kit typical failures appear. Filament feeds to the hotend, then drops straight back through the buffer and jams there. The CFS case glows red, self-check throws a false 'filament detected in extruder', and bed mesh comes back with nonsense values. Color transitions under-extrude. Creality forums are stuffed with these complaints.

1. Check how the PTFE tubes run from CFS to the extruder. They must go straight, no sags, no kinks, no loops around the case.
2. In Creality Print or OrcaSlicer → Printer Settings cut Retract Length to 0.8–1.2 mm specifically for CFS. The factory 2 mm doesn't complete on the long path.
3. Update CFS mainboard firmware via USB to the latest release. Early v1 and v2 have known retract bugs.
4. If the red LED comes on — unplug CFS from the wall, wait 10 seconds, plug back in. Do this after every filament change: workaround, but it works.
5. Don't let post-retract pauses run longer than 5 seconds or filament drifts back into the buffer.
6. Verify the extruder filament sensor is clean. Dust causes false 'detected in extruder' triggers.

TPU Won't Load Through the Runout Sensor

Soft TPU hits the runout sensor ahead of the extruder and won't pass. It folds, slips in the feeder gears, or crumples right inside the sensor body. Without a trick, loading TPU on K1 Max just won't work.

1. Take a 25–30 cm piece of rigid PLA or PETG and feed it through the sensor as a 'leader'.
2. Once the rigid filament reaches the extruder and the feeder gears grab it, push TPU from above down the same channel, butt-jointed to the PLA tail.
3. The extruder pulls TPU through the feeder, the sensor passes it right behind the PLA.
4. For regular TPU printing — remove the runout sensor entirely. It isn't required for operation, it only fires a runout warning. The PTFE adapter mounts straight through.
5. Alternative — upgrade to a Hummingbird direct-drive extruder: different sensor design, soft filaments load without tricks.

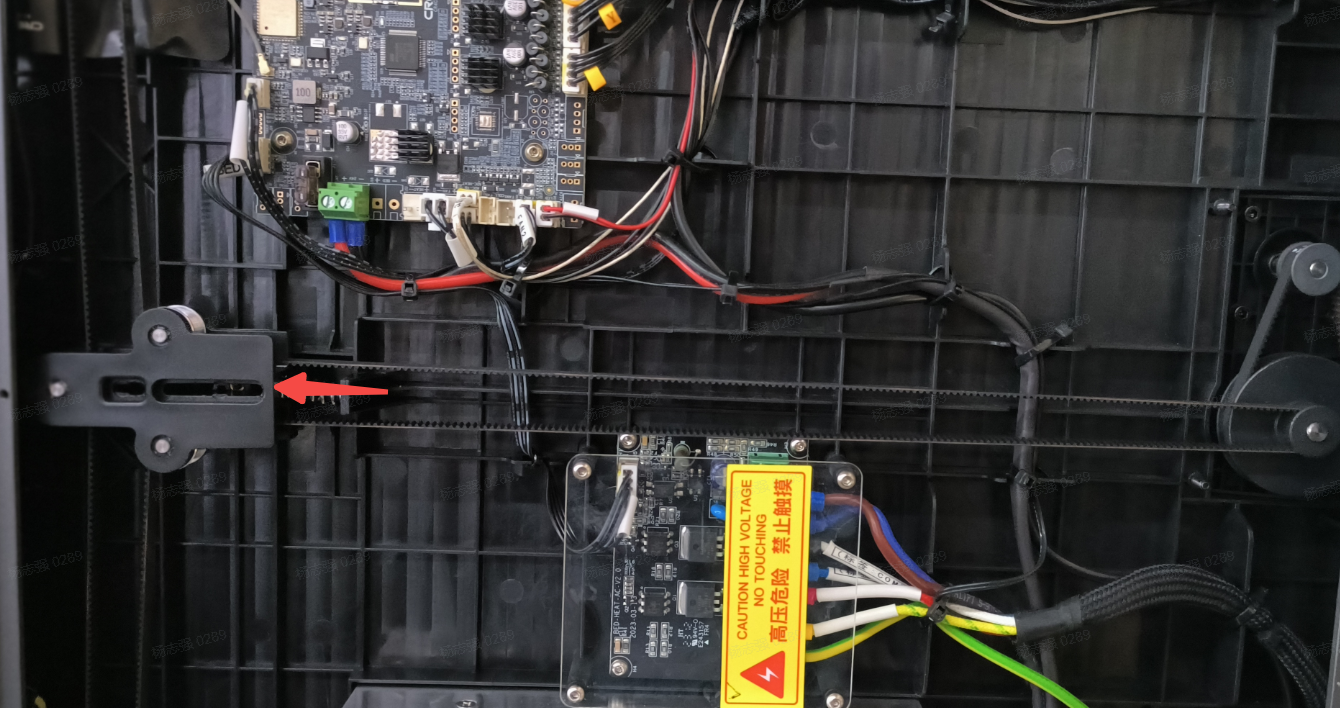

Z-Belt Tooth Skipping — Bed Rises Tilted

During a bed raise one of the two Z motors skips belt teeth: the bed tilts, auto-level throws an error, the print starts angled to one side. A distinctive click during Z travel is the telltale sign.

1. Check both Z belts per Creality's guide: plucked resonance should be 12–13 Hz. Lower — the belt sags; higher — bearings wear faster.
2. With the printer off, raise the bed manually via the leveling wheels. Motion should be smooth, no binding.
3. Blow out Z pulleys with compressed air, clean dust and swarf off the rails.

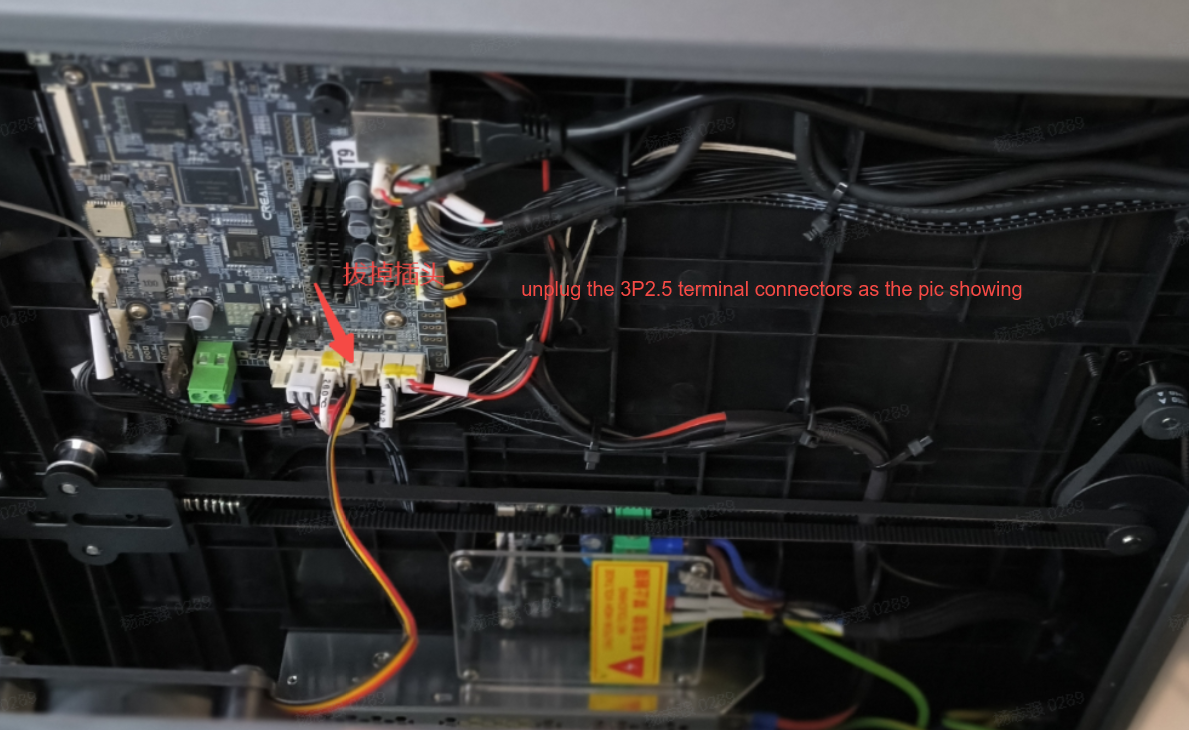

4. If a belt is slack — loosen the Z-rail mount screws on the frame, drop the bed all the way down, tighten back. The belt re-seats evenly.
5. K1 Max Z belts have no tensioner — friction mount. If skipping continues after all of the above — replace the pair (Creality Synchronous Belt Kit).
6. After tightening run self-check: every Z step should pass clean.

X-Carriage Vibration and Vertical Artifacts on Walls

A K1-series family disease, K1 Max included. The carriage moves unevenly along X: diagonal moves shake, and it gets worse over time. On finished models this shows up as fine vertical stripes (VFAs — Vertical Fine Artifacts) across the whole wall height, loudest on glossy PLA and ABS. Input Shaper on a bad carriage calibrates 'off' and won't save you.

1. Lube the XY rails with light oil (PTFE or Super Lube). First aid, works early on.
2. Remove the toolhead side covers and retighten the 4 linear-bushing screws. Loose — retighten crosshair style.
3. Check X-belt tension per Creality's guide: plucked resonance 60–70 Hz. Too loose — tighten the screw on the carriage end.
4. Re-run Input Shaper after lube and tightening — resonance numbers should improve.
5. If vibration persists — disassemble the carriage and lay a metal ruler against the X rail. 0.5 mm sag along the length is a factory defect.
6. In-place repair options: ream the bushing holes, drop in fresh linear bearings, or ask the seller for a warranty carriage replacement.

Firmware 1.3.5.18: Resets, Lost Files, False Consumables Error

CrealityOS firmware 1.3.5.18 (released then pulled from the Creality site) breaks critical K1 Max functionality. Symptoms: printer factory-resets at boot, goes unresponsive in seconds, the web interface can't see files, and any print start throws 'The machine consumables do not match the printed file' on a stock single-spool setup.

1. Grab stable firmware 1.3.3.46 from the Creality Klipper releases page: github.com/CrealityOfficial/K1_Series_Klipper — open Releases, find 1.3.3.46.
2. Copy the .img to a USB stick formatted as FAT32. Clean other files off the stick first.
3. Insert the stick into the printer USB port, go Settings → System → Update and choose 'Update via USB'.
4. Wait 2–3 minutes for the reboot. The printer enters first-run setup — just walk through it.
5. After rollback verify the web interface (printer-IP:4408), SD card print, and self-check. Everything should work again.

K1 Max Error Code Reference

A summary of the error codes that actually show up on the K1 Max screen. Creality's wiki has the full list — we picked the common ones.

General 3D Printing Problems

Beyond K1 Max-specific bugs, you'll also hit typical FDM issues. Each has a full guide:

• First layer won't stick or smears
• Nozzle and hot end clogs
• Stringing and hair between walls
• Warping and corner lifting
• Under-extrusion and over-extrusion
• Layer shifting and ghosting
• Regular 3D printer maintenance

If you run the K1 Max little brother — the regular K1 — check our Creality K1 known issues guide. A lot of K1 Max quirks come straight from the K1.
