Creality Ender-3 V3 Plus: Known Issues and Error Codes

This guide covers unique bugs of the Creality Ender 3 V3 Plus — issues you won't find on the regular V3 or sibling models. The 300×300×330 mm bed, cast aluminium base, and Klipper-based firmware shift the typical problem profile: instead of one set of issues you get a different one. Every error code (2529, 2527, 2243, 2403, 2564, 111, 2000, 2022) is broken down here, plus the Creality Print 6.x softlock, the over-tight auto belt tensioner, TPU jamming, and other quirks. Generic FDM problems — stringing, warping, nozzle clogs — are covered in dedicated guides linked at the bottom.

1. Error 2529: strain gauge / Z-sensor failure

Screen pops Key:2529 — strain gauge chip abnormal. Auto-leveling aborts, often after a knock to the bed or a neighbouring printer running. The strain gauge under the bed is reading noise, or the chip itself is damaged.

1. Move the printer somewhere isolated — floor or a separate desk away from vibration. Re-run self-check.

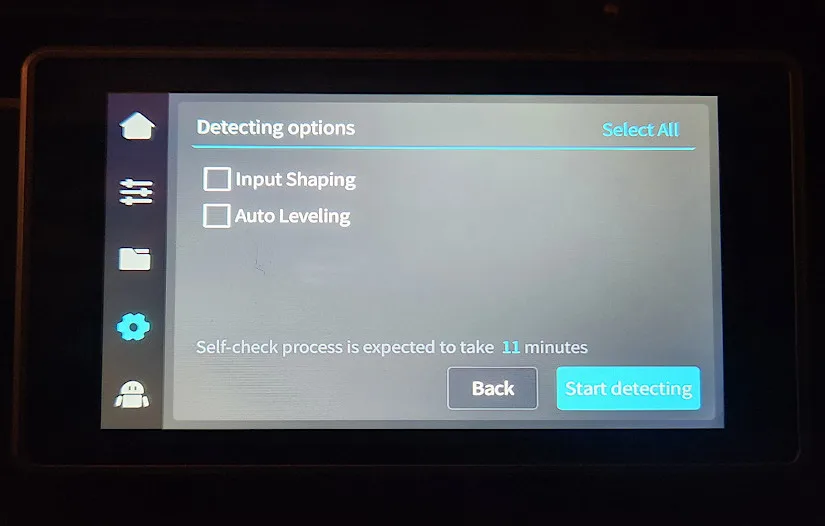

2. Full power cycle (unplug for 30 seconds) and re-run self-check.
3. Make sure nothing is sitting on the bed — weight skews the strain gauge.
4. Still failing → swap strain gauge + leveling plate as a kit through Creality service.
5. Prevention: drop in vibration-damping silicone feet — they cut strain gauge noise noticeably.

2. Error 2527: leveling sensor data transmission abnormal

A milder cousin of 2529 — Key:2527 only fires during self-check. The cause is mundane: another printer running nearby, its vibration optimisation creates resonance, the strain gauge gets blinded.

1. Restart the printer. Move it to the floor or a separate desk.
2. If neighbours are present — wait for them to finish their homing/self-test cycle.
3. Standalone and still recurring → follow the 2529 troubleshooting (strain gauge service).

3. Error 2243: coordinate exception — wrong slicer profile

Print start throws Key:2243 immediately and the printer aborts. Means the G-code is exceeding travel limits. Almost always one cause: the slicer is set to the wrong machine — plain V3 (no Plus), V3 SE, or V3 KE. The build volumes differ, the START_PRINT macro is different, the file dives toward zero coordinate.

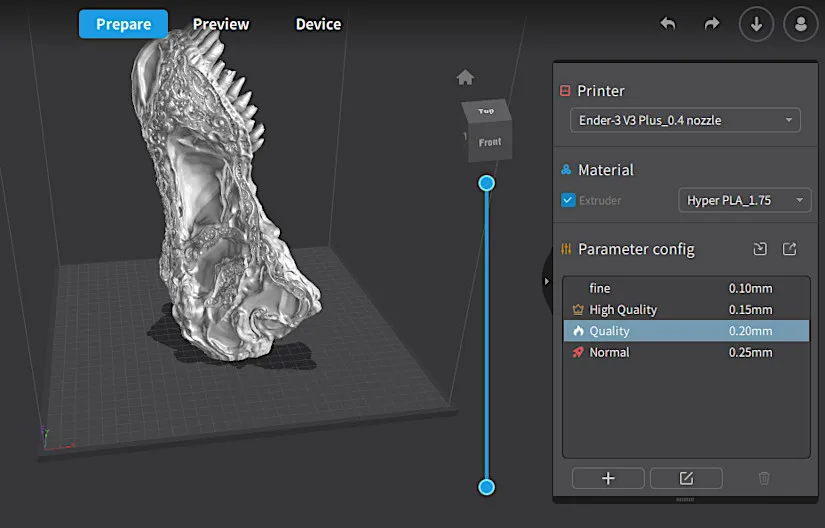

1. In Creality Print: top bar → Printer → pick Ender-3 V3 Plus, not "Ender-3 V3".
2. In OrcaSlicer / BambuStudio / Cura — only use official V3 Plus profiles, never presets from other models.
3. If migrating from another Creality printer — re-slice STLs through the right profile, old .gcodes won't fly.
4. Third-party profiles with custom print_start — verify limits fit inside 300×300×330 mm.

4. Error 2403: Y-axis homing loop

On startup the printer cycles Y back and forth, no homing, screen finally throws Key:2403. A known early-firmware bug on V3 Plus, fixed by a single update.

1. Settings → Firmware Update — upgrade to V1.2.1.0 or newer.
2. OTA fails → grab the firmware from creality.com/download → drop on a USB stick → System → Local Update.
3. Re-calibrate after the update, verify homing on all axes.

5. Error 2564: extruder not heating as expected

Key:2564 «the extruder is not heating as expected» — heat-up stalls or never reaches target. Cause is somewhere along the heating chain: heater cartridge, thermistor, ceramic heating ring, or drag chain wire.

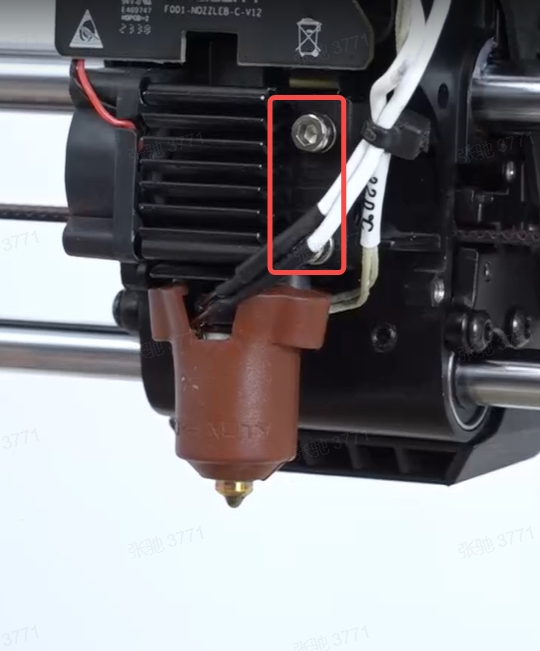

1. Pop the front extruder cover (2 bottom screws). Get to the heater and thermistor connectors.
2. Verify heater and thermistor leads are seated firmly. Tug them — they shouldn't slip out.
3. Inspect the ceramic heating ring for cracks or scorch marks.
4. Wiggle the drag chain — wires must not be pinched, the cable should travel freely.
5. Verify the thermistor and heater rod retainers haven't loosened.
6. Visually fine → swap the heater cartridge (it dies first).
7. Full ceramic heating block kit — PN 4001030134 / Creality Ender-3 V3 Ceramic Heating Block.

6. Error 111: adapter board communication lost

Random Key:111 at startup or mid-print, sometimes paired with 2000. Communication between the mainboard and the adapter board in the hotend is broken. Most often a damaged cable inside the drag chain, or scorch on the adapter board.

1. Pull the drag chain off the printer entirely. Inspect the cable for nicks, kinks, abrasion.
2. Make sure the drag chain isn't over-zip-tied — that pinches wires inside.
3. Open the adapter board (front of the hotend) — look for scorch, melted pins, oxidised contacts.
4. Visible damage → replace the adapter board (PN 4004010253).
5. Adapter board is clean → replace the hotend cable / drag chain assembly (PN 4001020076).
6. Prevention: never zip-tie the drag chain between mainboard and screen — that's the typical kink point.

7. Errors 2000 and 2022: "Unknown exception" (wiring)

Right after unboxing the screen throws Key:2022 «Unknown exception» or Key:2000. Homing fails. Standard cause — something wired wrong during assembly. Bracket screws may be facing INWARDS, the hotend cable may run INSIDE the pull rod, or the endstop cable isn't plugged in.

1. Cross-check assembly against the latest unboxing video (YouTube → "Ender-3 V3 Plus Unbox").
2. Bracket fixing screws must face OUTWARDS — installed inwards they block carriage homing.
3. Hotend cable and PTFE tube must route OUTSIDE the pull rod, not inside.
4. Inspect motor and endstop pin connectors — bent or missing pins.
5. Endstop diagnostic: manually press X and Z endstops during homing — head should stop. If not — endstop or its cable is bad.
6. Motor diagnostic: unplug X motor → home → only Z should move. Plug X back, unplug Z → only X moves. Both static = motor is dead.
7. Only Key:2000 alone → export logs via Fluidd (port :4408) → email cs@creality.com.

8. Softlock after Creality Print 6.x update

The most painful story of late 2024 — Creality Print 6.0.0.1074 auto-pushed a firmware upgrade and bricked the printer. No temperature readings, axes won't move, screen unresponsive, internal USB storage empty, firmware flashing blocked. Fluidd on a hidden port and SSH save the day.

1. Find the printer IP on your router (DHCP table, Creality MAC) or in Settings → WiFi.
2. From a laptop on the same Wi-Fi open http://<IP>:4408 — that's the Fluidd web UI.
3. Fluidd → Jobs / History — delete every recent job.
4. Configuration → remove or rename custom config edits.
5. Reboot from Fluidd → Restart Klipper.
6. Fluidd not loading → SSH in (root / creality_2023), run a factory reset via Guilouz Helper Script.
7. Once recovered — flash the latest firmware from creality.com and pin Creality Print to a known-good version until the official fix lands.

9. Black screen after editing mesh in Fluidd

You opened Fluidd → Tools → Bed Mesh, tweaked a couple of points, saved — printer froze, touchscreen black. V3 Plus firmware before Q3 2025 didn't support direct mesh editing from Fluidd: the Klipper service crashes, taking the screen with it.

1. From a laptop open http://<IP>:4408 — Fluidd is usually still alive.
2. Configuration → remove custom mesh files (saved_variables and any custom mesh include).
3. Restart Klipper or hard power cycle.
4. Run auto-calibration again — let firmware rebuild mesh from scratch.
5. On firmwares older than V1.2.1 — never edit mesh from Fluidd, only the printer screen.

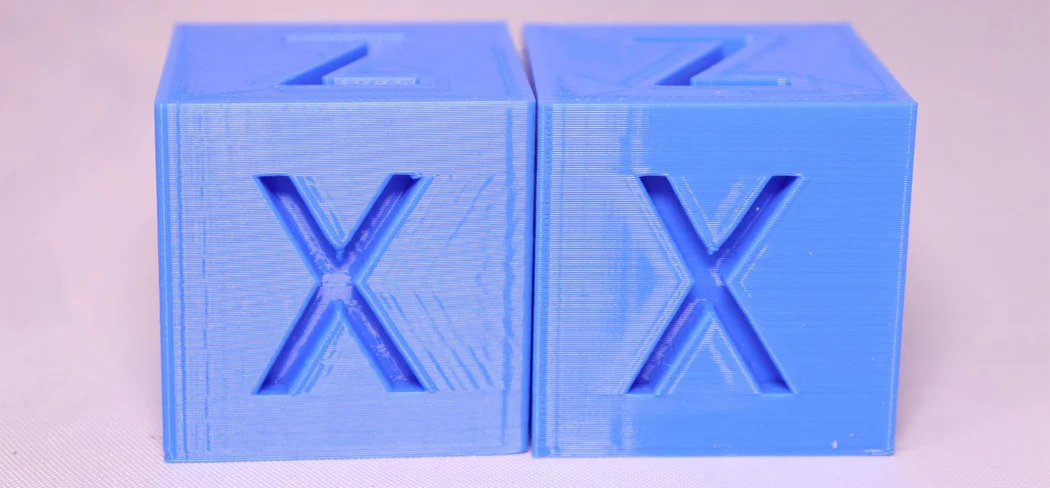

10. Ghosting on walls from over-tight XZ auto-tensioner

Walls show fine vertical pinstripes spaced evenly, most visible at 150–180 mm/s. Looks like ringing from accel, but Input Shaper is dialled in. The culprit is the stock XZ auto-tensioner — its springs over-tension the belt, and belt teeth print themselves into the wall.

1. Power off. Pull the frame top cover — exposes the XZ auto-tensioner.
2. Loosen the corner mounting screws of the tensioner (2 mm hex).
3. Lift the auto-tensioner block 2–3 mm upward (this slackens the belt).
4. Retighten. Finger test: belt should be lightly springy with no droop.
5. Run a 150 mm/s calibration cube — VFA should fade noticeably.
6. If you can't fully kill VFA — generic guide: layer shifting and ghosting.

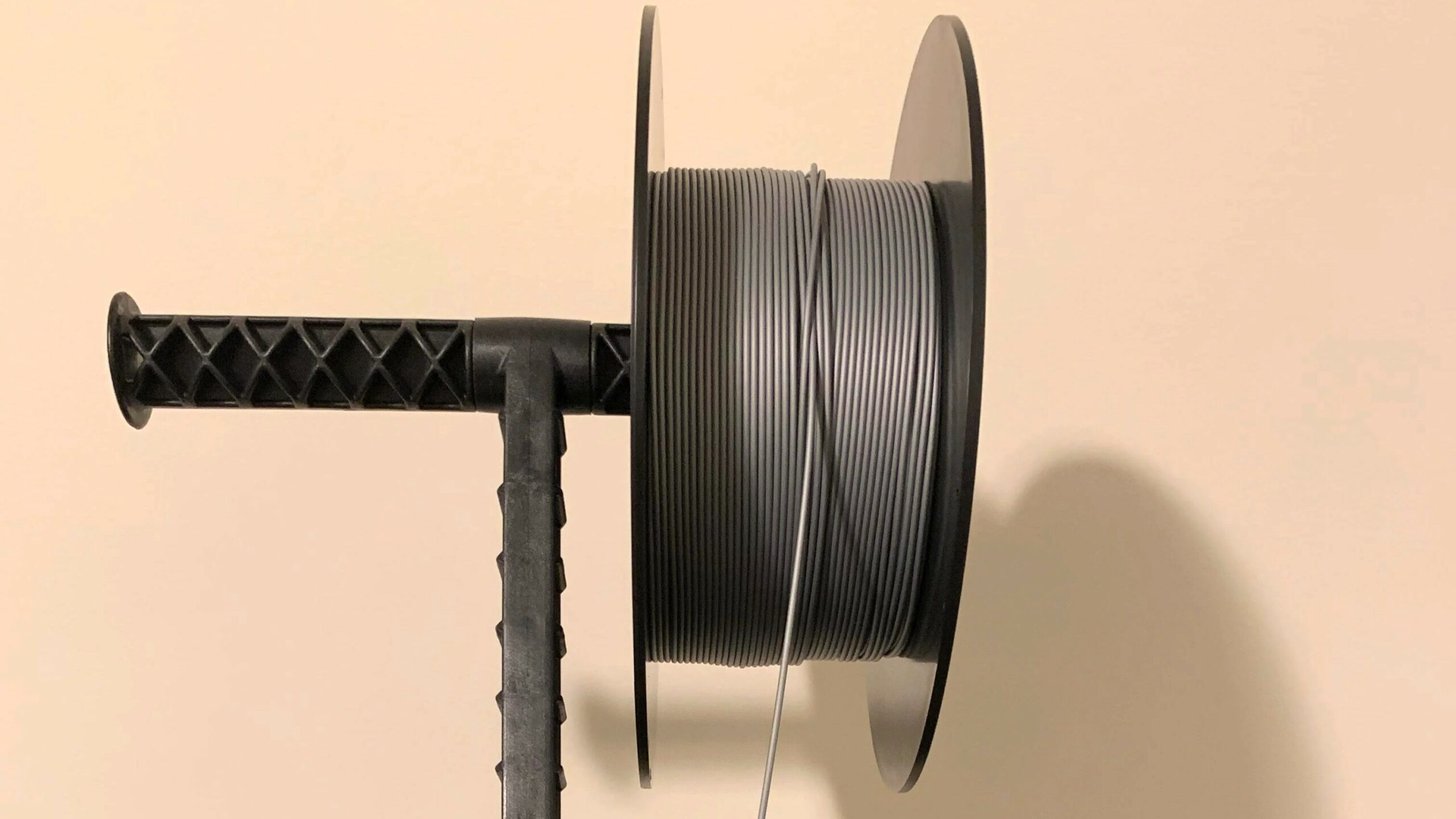

11. Filament tangling caused by 330 mm Z height

During pre-print auto-calibration the spool slackens, the loop snags on the frame or belts — a layer shift mid-print follows. Z = 330 mm means a tall Z travel; on the stock top spool the filament dangles longer than on a regular V3 — plenty of time to catch something. GamingTrend caught this exact bug during a Gridfinity grid test.

1. Print and install the anti-tangle spool holder — Creality ships the STL in the wiki (Anti-Warping Filament Holder).
2. When loading a spool, manually pull tension so the loop doesn't hang slack.
3. Mount the spool holder as close to the extruder inlet as possible — short horizontal travel.
4. Alternative: top-mount the spool with a short PTFE feed straight into the extruder (Printables has files).
5. Before start — rotate the spool a quarter turn against the feed direction to take up slack.

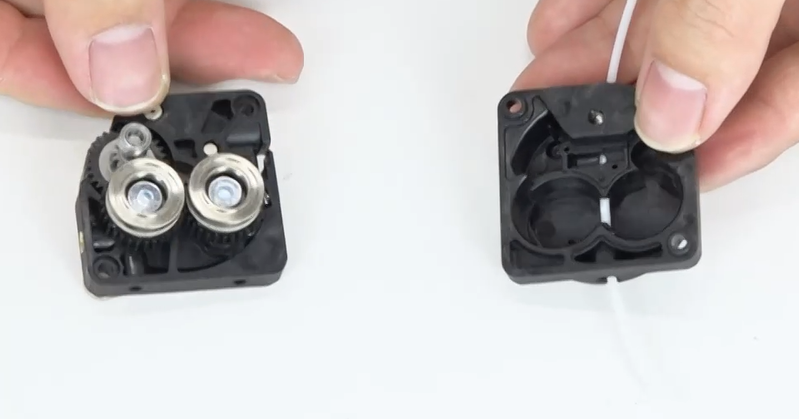

12. TPU jams the extruder (buckling past the gear)

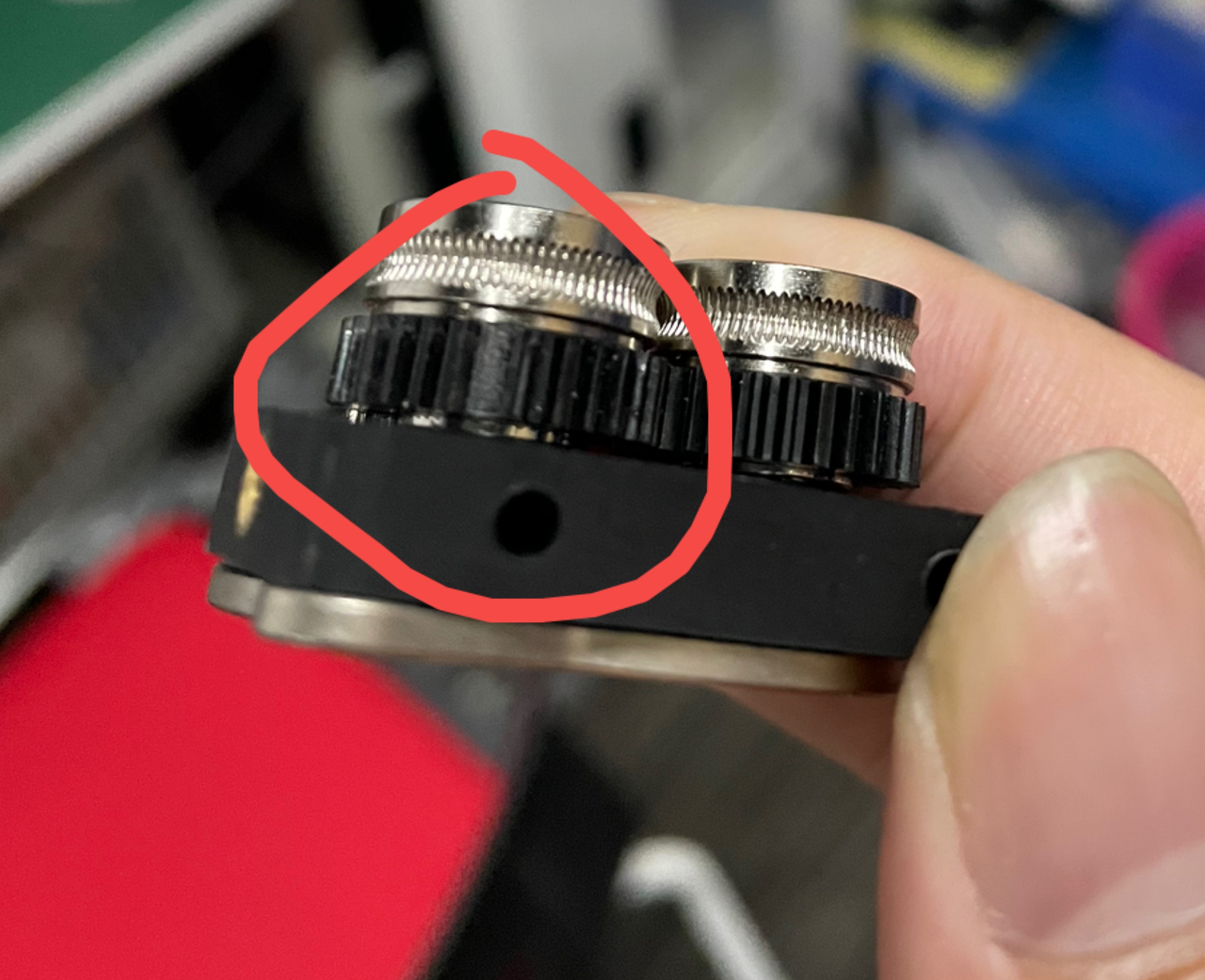

TPU 95A prints for the first 5–15 minutes, then the gear extruder grinds, no flow. Inside the extruder the filament curled into a coil or pushed out through the gap between the housings. PLA and PETG are stiff and don't suffer; soft TPU buckles in the gap between gear and hotend.

1. Cut a 3–5 cm piece of PTFE tube and gently push it into the extruder inlet down to the gear — acts as a guide that stops TPU from buckling.
2. Remove the filament runout sensor — it adds drag, and TPU pulls poorly through it.
3. Mount the spool as close as possible, no long PTFE runs on top.
4. TPU print speed 30–40 mm/s, not 600. Retraction 0.3–1.0 mm. Temp 220–235°C.
5. In Creality Print pick the Generic-TPU profile or set the parameters above manually.
6. Switching materials after TPU — do 2–3 cold pulls to clear the hot zone.

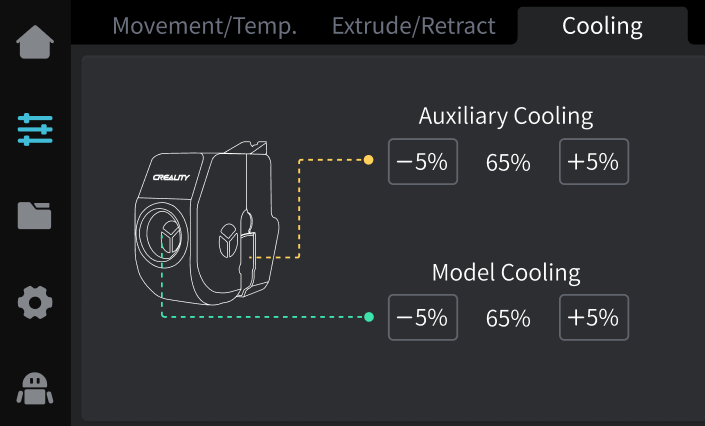

13. Auxiliary fan grinding or not spinning

Grinding noise on overhangs or aux fan stops spinning. The current print is OK but overhangs sag. The V3 Plus has four fans total: throat (heatbreak), mainboard, model (part) cooling, and auxiliary (behind the nozzle, for overhangs/bridges). The aux fan sits BEHIND the nozzle, catching debris straight from the nozzle — 50–100 hours in, a strand of filament jams the blade.

1. Power off and let it cool fully.
2. Remove the auxiliary fan (2 screws at the rear of the hotend), disconnect the cable.
3. Blast with compressed air or pull stuck filament with tweezers.
4. Spin blade by hand — must rotate freely with no axial play.
5. Cracked blade or worn axle → replace (PN 3205010396).
6. Reinstall. Verify with an overhang test print.
7. Stock part cooling is fundamentally underpowered for aggressive overhangs. If you print lots of brackets — a Noctua/Sunon swap with a non-standard connector helps a lot.

14. Mesh slope: one side of X higher than the other (gantry sag)

After a year or two of use the mesh map shows a clear X slope — opposite corners differ by 0.3–0.5 mm. First layer collapses on one half. Cause: X-gantry sag — the printhead lives more on one side, XZ belts stretch slightly. Less common — debris under the spring steel.

1. Lift the spring steel, heat the bed to 80°C, wipe both the steel and the magnetic underlayer.
2. Verify the magnetic underlayer is flat, not bubbled.
3. Loosen the X-carriage screws on both sides, push the gantry up against the lead screw, retighten evenly.
4. Check Z-rod parallelism with a tape measure — distance from frame top to carriage should match within <1 mm.
5. Run auto-calibration — mesh should flatten. Delta > 0.4 mm after all this → strain gauge plate replacement is due.
6. Until repair — compensate via mesh adjustment in Creality Print.
7. If the first layer still wanders after calibration — generic guide: first layer adhesion.

15. Touchscreen dies after extruder disassembly

Printer powers on, screen backlight glows, but touches don't register. Started after disassembling or cleaning the heating block. On the Creality forum one user replaced the ribbon cable and the entire $80 touchscreen kit — no luck. The issue is the touchscreen ribbon that runs through the drag chain: assembly/disassembly often pinches it, or the ribbon connector contacts on the mainboard oxidise.

1. Power off, remove the rear cover under the screen.
2. Find the ribbon connector on the mainboard side — unclip carefully, inspect, re-seat. The ribbon should sit square, no skew.
3. Inspect the full ribbon for kinks, broken traces, abrasion.
4. Visually OK → swap with a known-good unit (PN 4001050073, screen ships with ribbon).
5. New screen doesn't fix → replace the mainboard (PN 4002020071) or its screen-side connector.
6. Prevention: never zip-tie the drag chain between mainboard and screen — that kills the ribbon.

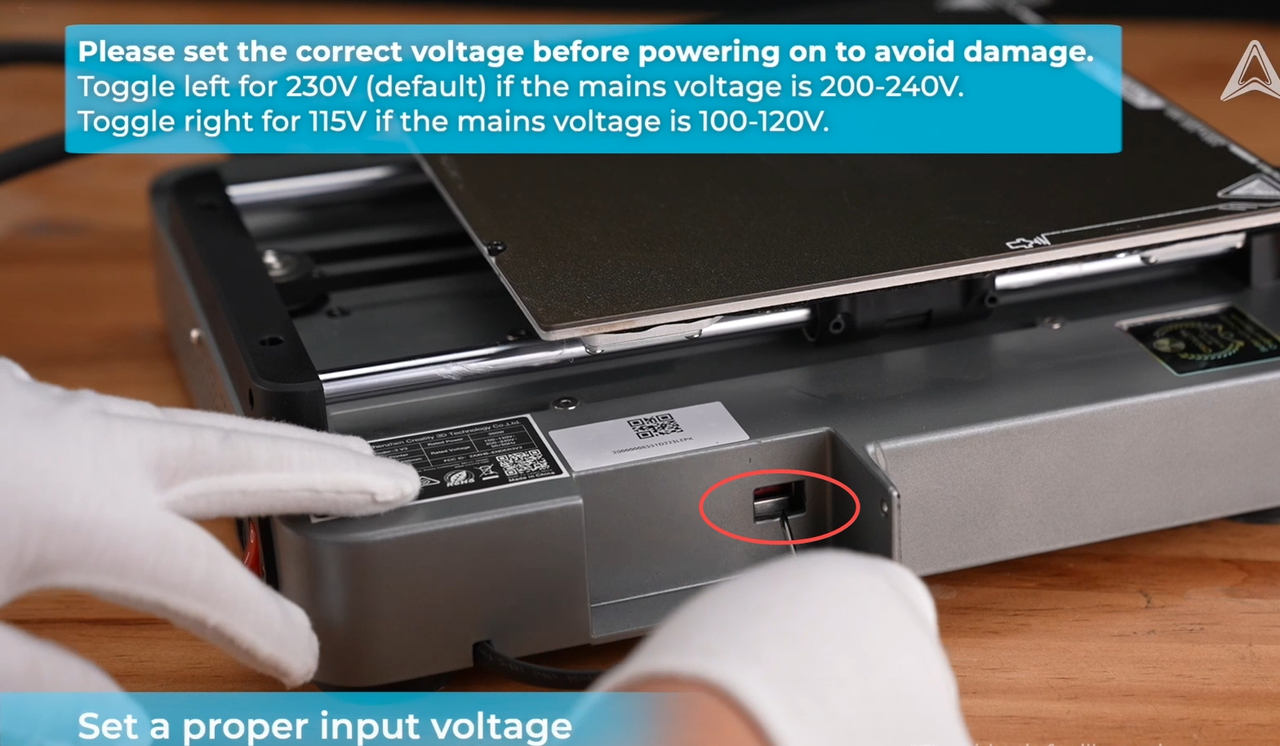

16. Printer reboots during heat-up (110/220 V switch)

Self-check, heat-up starts — printer reboots. Sometimes the screen blacks out for a couple of seconds. 99% of the time the cause is the 110/220 V voltage switch on the PSU set wrong. Heat-up causes a current sag and a reset.

1. Power off and unplug.
2. Flip the printer over. Find the red switch on the PSU (right rear corner of the base).
3. Set to 230V for EU / Russia or 115V for US.
4. Power on, re-run self-check.

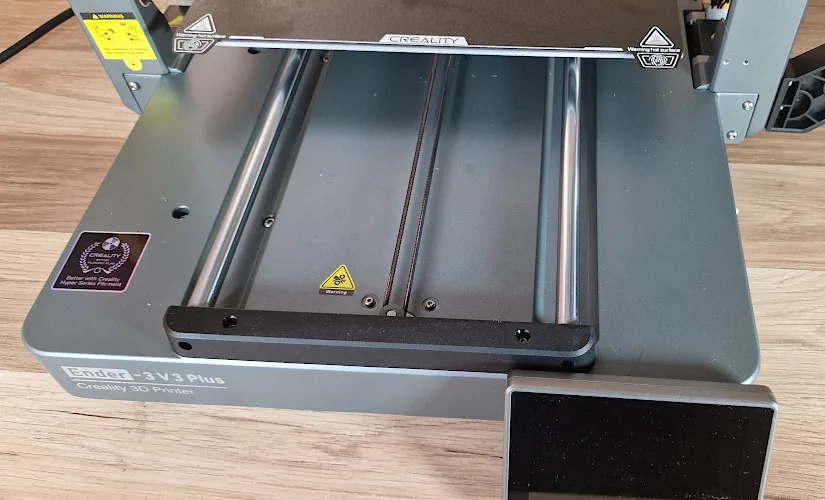

17. Bed slides forward and blocks the screen after print

Print finishes, bed slides forward to make removal easier — and physically covers the touchscreen. Can't tap "Done", start a new print, or view logs. GamingTrend listed this as a key design flaw in their review.

1. Take the model off, manually push the bed back from behind (it should move freely).
2. Edit the end gcode in Creality Print: change G1 Y330 F3000 to G1 Y20 F3000 — bed parks at the back, screen stays free.

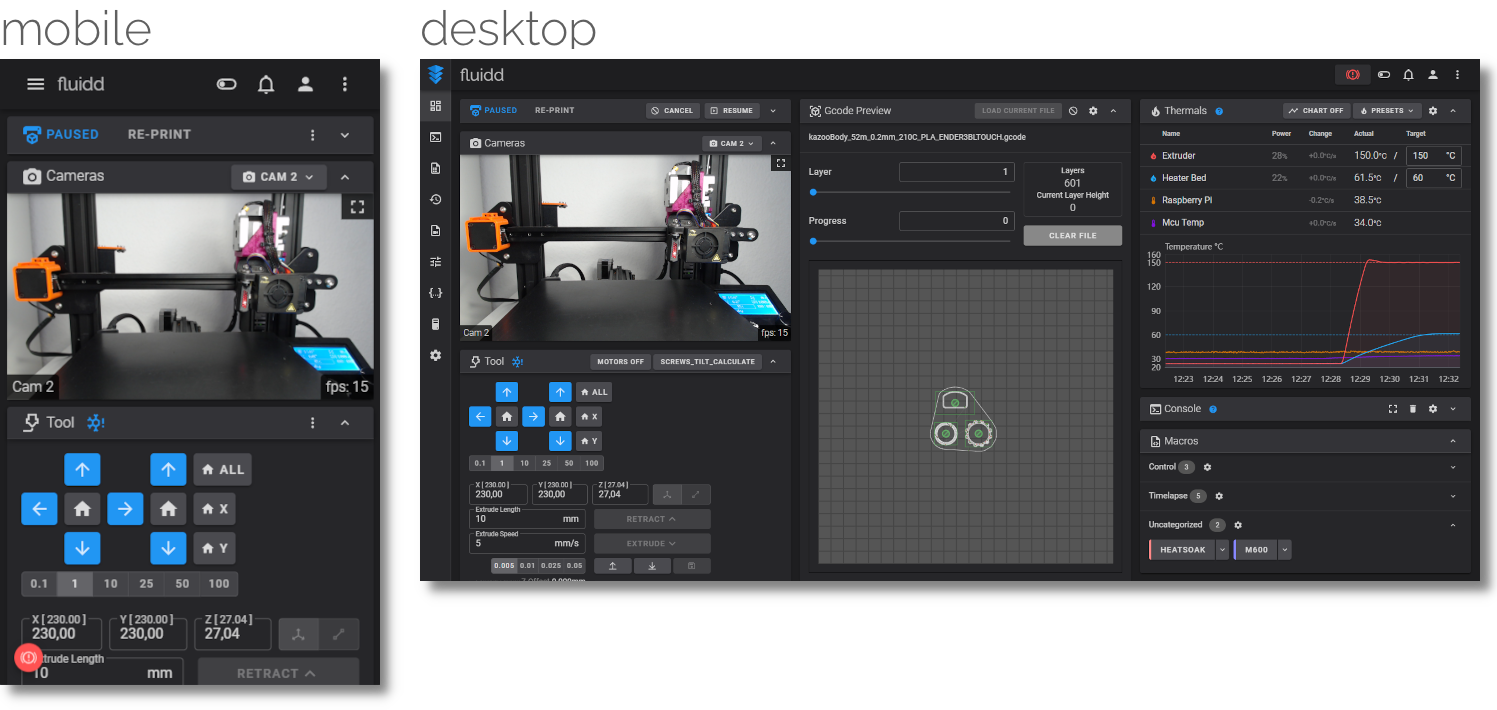

3. Alternative: control over Wi-Fi via Fluidd on :4408 or the Creality Cloud app.
4. Office setup → orient the printer so the screen is on the side, not the front.
5. A remote camera like Nebula also drops the screen dependency.

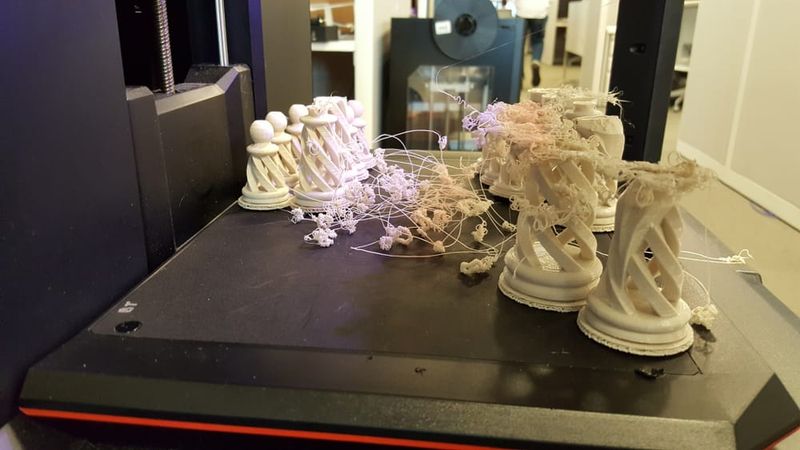

18. Heavy stringing — wrong material profile

Thin webs of filament between parts, missing infill or top layers. Strings persist even after drying the filament. The printer firmware has separate profiles: Hyper-PLA, Generic-PLA, ASA, PETG, TPU. Pick Hyper-PLA while running regular filament and your temp / retraction are wrong — that's the strings and under-extrusion.

1. On the printer screen or in the slicer pick Generic-PLA for third-party PLA, Hyper-PLA only for Creality Hyper.
2. Inspect the PTFE between extruder and hotend — kinks cause the same symptoms.
3. Run Tune → Calibration → Flow Calibration and Pressure Advance via FluidUI.
4. Dry filament 4–6 h at 50°C before PETG/PLA — full guide: how to dry filament.
5. Strings persist after calibration → generic guide: stringing fix guide.

Error code reference

Full list of error codes that show up on the Ender 3 V3 Plus stock screen. Each one is broken down in its own section above — this is the quick-reference table.

Generic 3D printing problems

Beyond V3 Plus-specific bugs, you may run into the usual FDM gremlins — stringing, warping, clogs, layer shifts. Those fix the same way on any printer, and we have a dedicated guide for each:

• First layer adhesion — PEI vs glass, Z-offset, bed materials
• Stringing and whiskers — retraction, temperature, drying
• Corner warping — ABS, PETG, brim, enclosure
• Layer shifting and ghosting — Input Shaper, belts, accel
• Under- and over-extrusion — flow rate, gears, nozzle
• Nozzle clogs — heat creep, cold pull, replacement
• Routine maintenance — what to grease, clean, check, when
• How to dry filament — PLA, PETG, nylon, methods
• Filament guide — PLA, PETG, TPU, ABS, storage
• Ventilation and health — VOC, HEPA, carbon filter

Sibling models in the same lineup: Ender-3 V3 (regular), V3 SE, V3 KE. Each has its quirks — V3 SE skips auto-leveling, V3 KE runs open Klipper, the regular V3 lacks linear rods.
