Creality Ender-3 V3 KE: Known Issues & Fixes

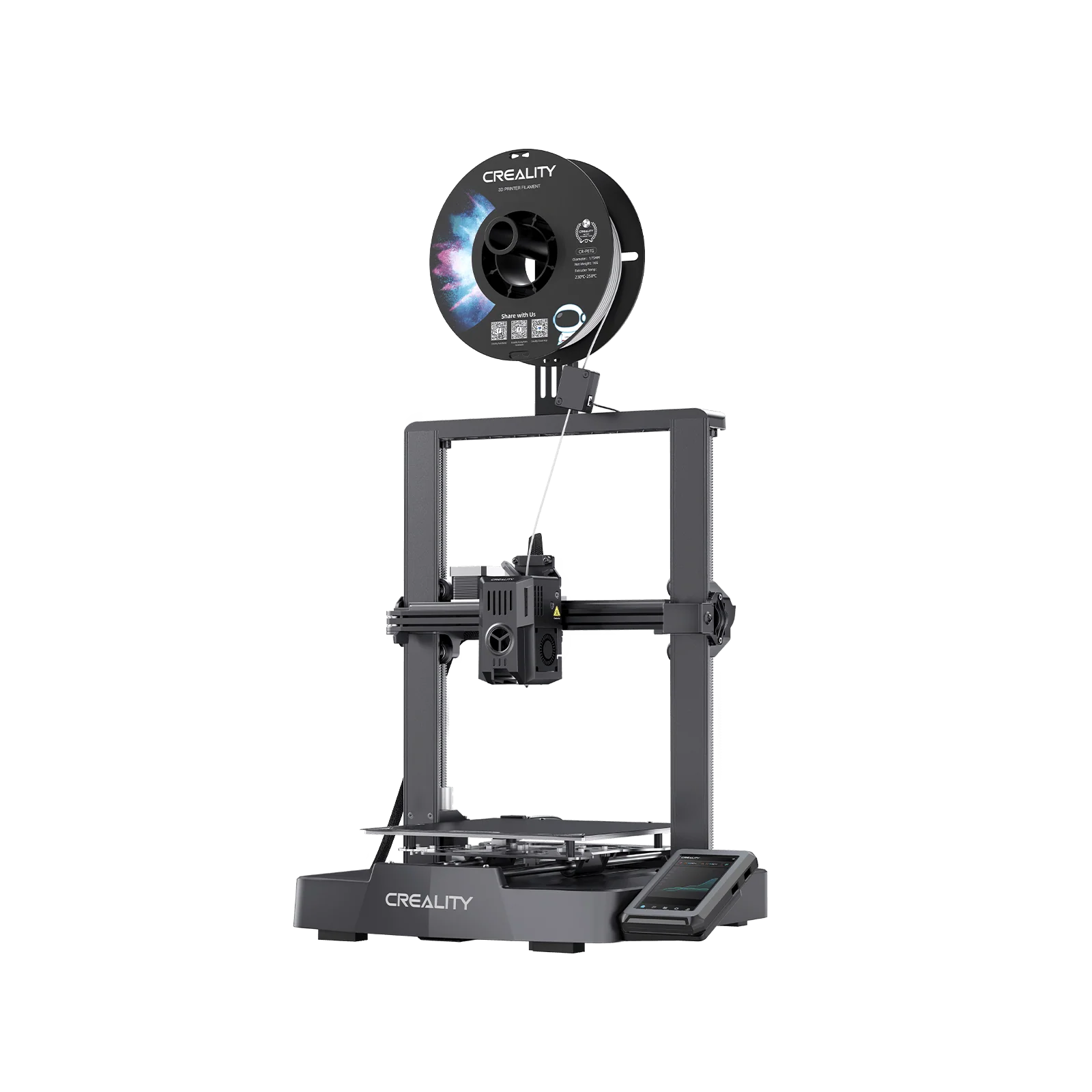

The Ender-3 V3 KE is Creality's fast, Klipper-based budget bedslinger with a strain-gauge Z probe and a Sprite direct-drive extruder. Most of the time it prints out of the box — but it has a handful of quirks you won't find on other Ender-3 models. This article covers only the issues that are specific to the KE: wobbly Z-offset, ghosting because there's no accelerometer, WiFi drops after OTA, and heat creep in the toolhead. For the usual FDM suspects (stringing, warping, clogs) we link to dedicated problem-guides at the end.

Inconsistent strain-gauge Z-offset

The KE uses a CR-Touch and a secondary strain-gauge sensor under the bed for the Z probe. Each run the sensor picks up the 'nozzle touched the bed' moment a little differently, and the reported Z-offset drifts. Symptom: one print lays a perfect first layer, the next smears filament in the air or digs into the PEI sheet.

1. Preheat the bed to the print temperature (60°C for PLA, 70°C for PETG) before triggering auto-leveling.
2. In Creality Print flip on Enable G-code offset under Settings → Advanced → Experimental.
3. Start with Z-offset −0.05 mm, print a 50×50 mm test square at 0.2 mm layer height.
4. Step it in 0.02 mm increments — first-layer lines should sit tight against each other, no gaps, no mashing.

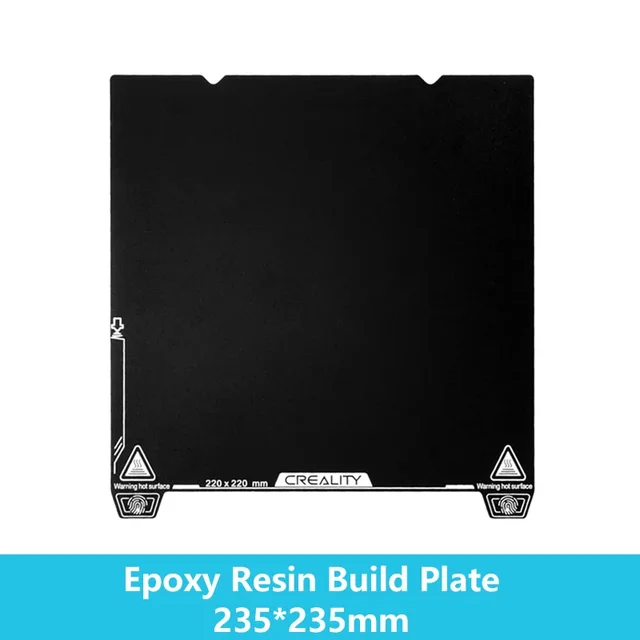

5. If the PEI has shiny spots, scuff it in circles with the supplied 1200-grit pad and wipe down with 91% IPA.

Raised bed corner at the strain gauge

The corner of the bed that houses the strain-gauge mounting plate physically sits 0.05–0.1 mm higher than the rest of the surface. Print a single-layer full-bed test: three corners look fine, the fourth either tears or shows a gap once mesh compensation is off.

1. Pop the PEI plate off and wipe the magnetic backing — a speck of dust in that zone alone adds tens of microns.
2. Double-check auto mesh leveling is enabled: Settings → Leveling → Auto Level → ON.
3. Run Auto Bed Leveling with the bed preheated so the mesh compensation absorbs the corner offset.
4. If the gap persists, bump the mesh offset for that point by +0.03 mm inside Creality Print.
5. Last resort: loosen the 4 screws holding the bed plate, diagonal it flat, retighten crosswise and evenly.

Ringing on walls — no accelerometer in the box

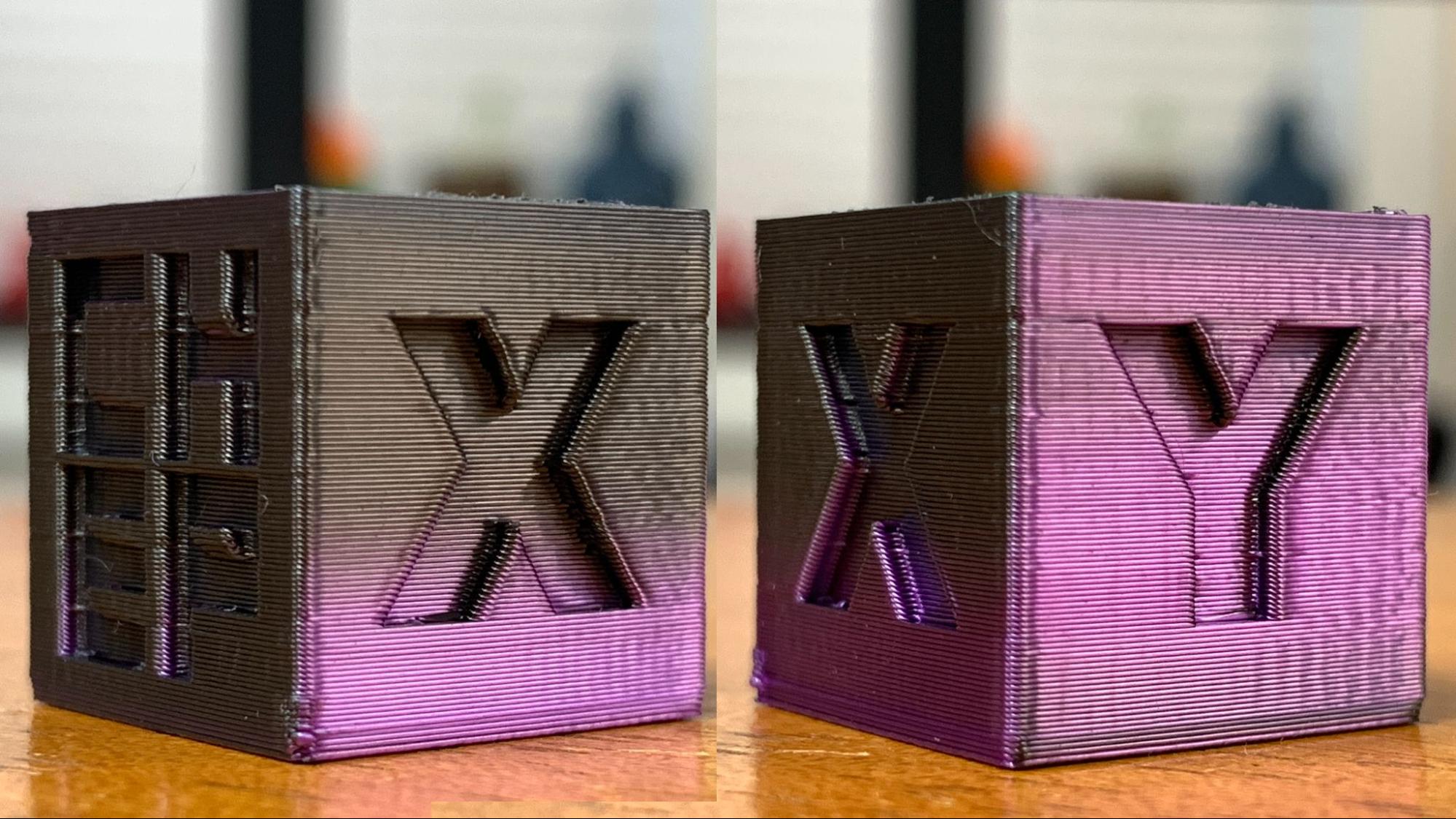

Creality left the ADXL345 out of the KE bundle. Instead of measuring real resonance, firmware ships with an averaged input-shaping profile. On a calibration cube you can see the telltale ghosting along the Y axis — letters and holes echo slightly. Fine for general prints, visible on clean enclosures and detailed models.

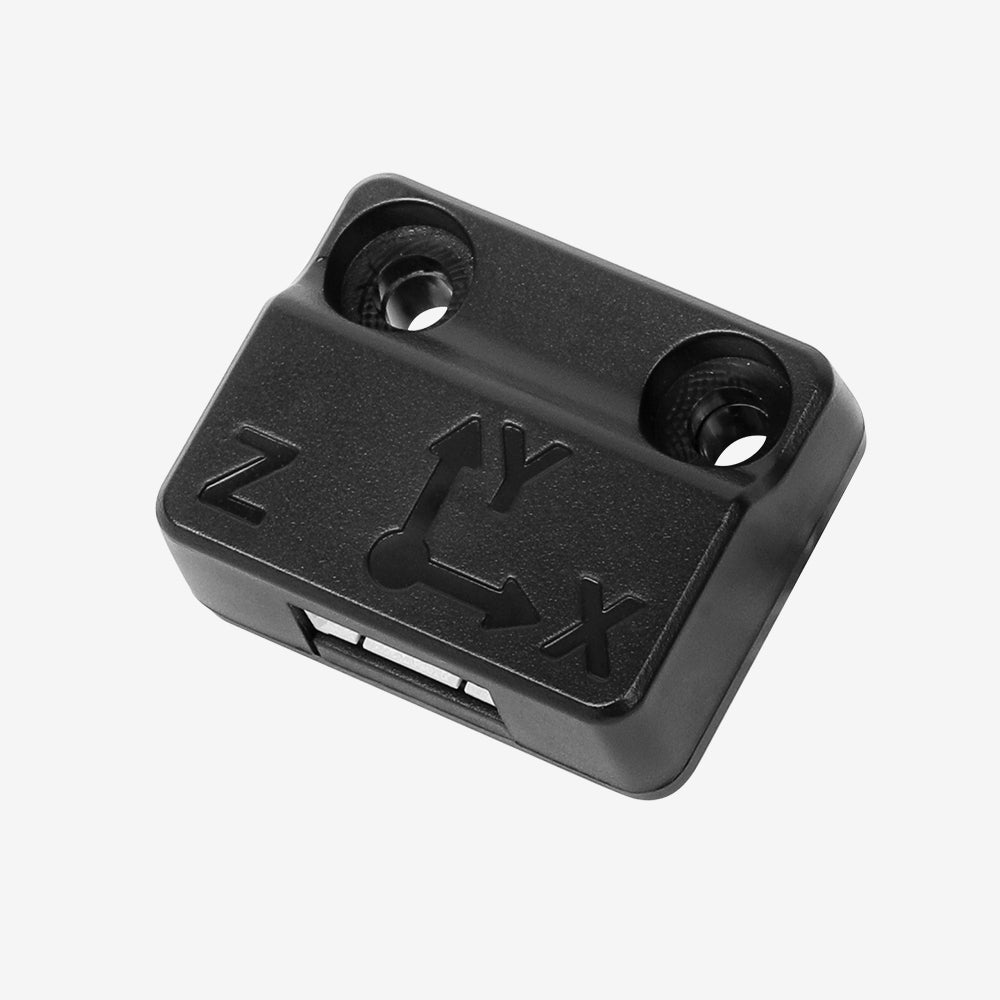

1. Grab the official Creality ADXL345 Vibration Compensation Sensor — plugs into the pad via USB-C.
2. Attach it to the toolhead with a magnet or zip-tie, keeping it isolated from bare metal (avoid a ground loop).
3. Open Settings → Advanced → Input Shaper Calibration. Run the X-axis sweep first.
4. Move the sensor to the center of the bed, rerun the Y-axis sweep.
5. Save — shaper_freq_x and shaper_freq_y auto-write into printer.cfg.
6. Not buying the sensor? Cap acceleration at 3000–4000 mm/s² for display pieces and the ghosting nearly disappears.

AI LiDAR anomaly without the module

Screen throws AI LiDAR anomaly and blocks the print. This happens when the first layer detection and flow calibration toggles are on but the actual AI Lidar add-on isn't installed on the toolhead. Firmware hunts for it and fails the self-test.

1. Go to Settings → Self-Check → disable First layer detection.
2. In the same menu disable Flow calibration (AI).
3. If the toggles keep coming back, hit Settings → Restore Factory Settings.
4. Run Device Self-Test again — the alarm clears.
5. Actually ordered the Lidar? Plug it into the toolhead connector first, then enable the flags — not the other way around.

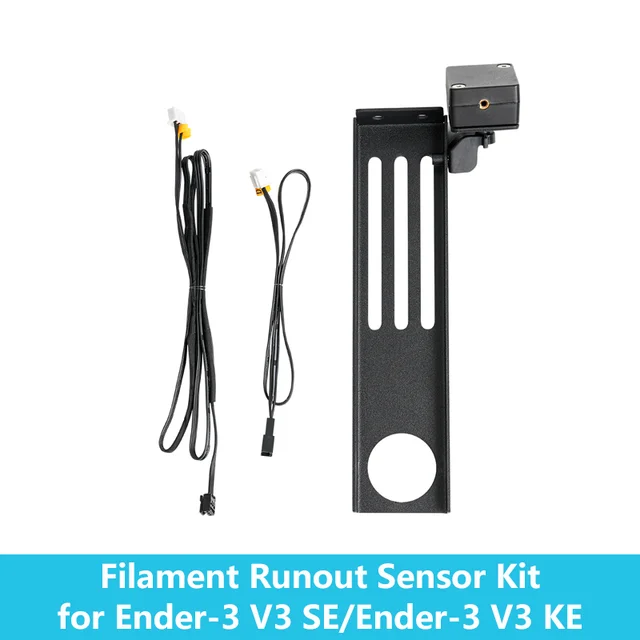

Filament runout sensor false triggers

Mid-print the screen yells Current filament has been used up. Spool is full, the extruder is still pushing plastic, nothing is actually broken. Almost always it's a pinched sensor cable — and fixing it means taking the frame apart.

1. Power off and remove the 4 screws that hold the vertical gantry to the base.
2. Gently lift the gantry and inspect if the ribbon cable is trapped between the extrusion and the chassis.
3. Re-seat the cable on both ends — at the sensor itself (top of the gantry) and on the mainboard (bottom).
4. Reinstall the gantry with the cable moving freely, no twists.
5. If the error comes back, multimeter-check the ribbon for broken conductors.

WiFi drops after a print or after a firmware update

By far the loudest complaint on the Creality forum. The pad loses the network after every finished LAN print, and after an OTA firmware bump the printer flat-out refuses to respond — Creality Cloud shows it 'online', pings to its IP time out. Creality has patched this several times, but the issue keeps resurfacing.

1. Password check: no underscore '_' on the on-screen keyboard. Temporarily rename your password to something without it.
2. Force the printer onto 2.4 GHz — its WiFi module doesn't do 5 GHz. On a dual-band SSID, either add a 2.4-only SSID or pin the device to 2.4 in the router.
3. After a firmware update, run Restore Factory Settings and re-add the network.
4. Turn OFF auto-OTA: Settings → Network → Auto Update → OFF. Keeps bleeding-edge bugs away.
5. If WiFi is dead, grab the previous stable firmware from the official Creality downloads page and roll back.
6. Workaround: the USB-A port on the side of the pad reads normal flash drives — use a thumb drive until a patch lands.

UI freezes when the 8 GB storage fills up

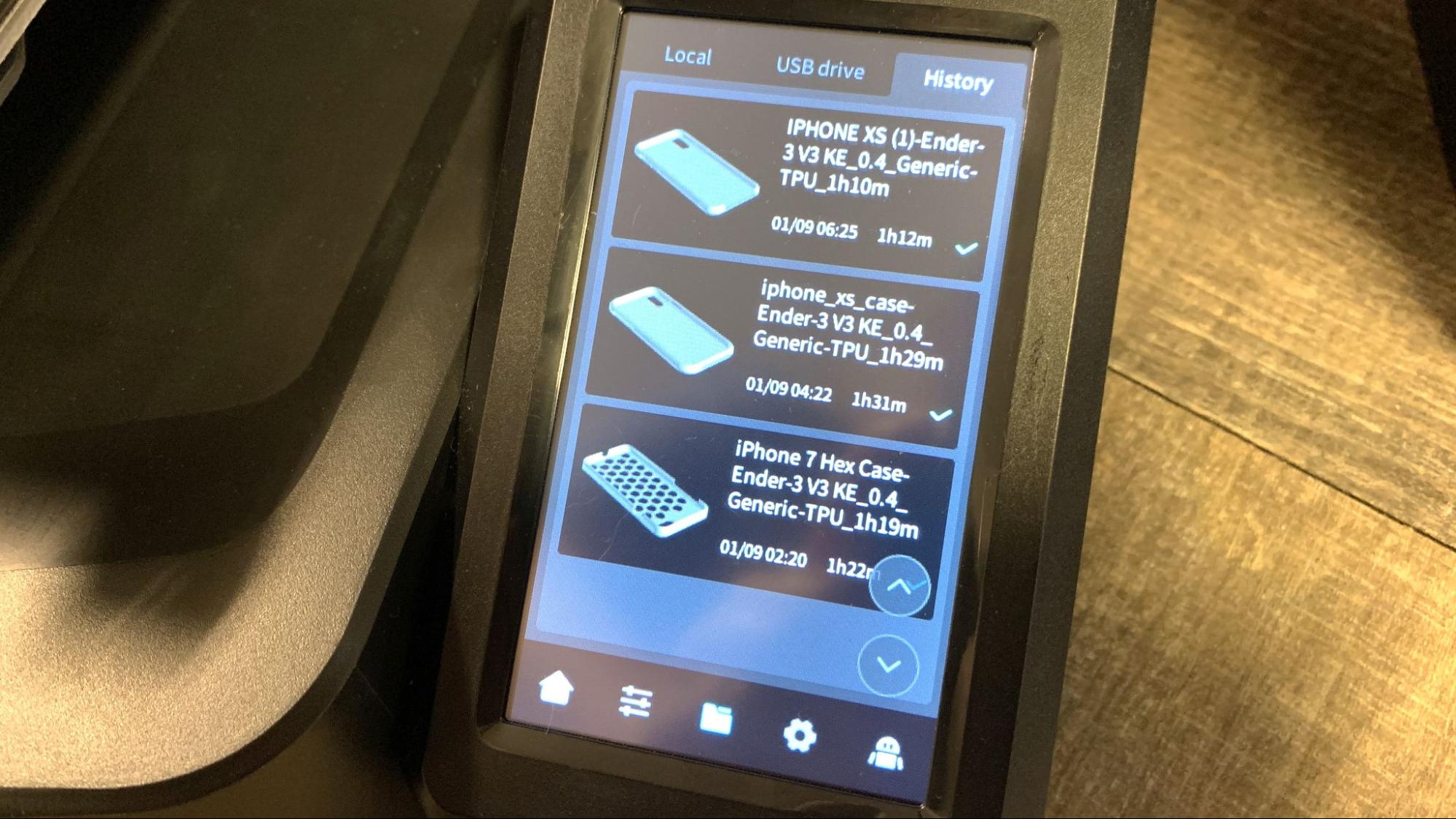

Internal storage on the KE caps at 8 GB. Old G-code files with thumbnails pile up, and eventually the UI locks up whenever you try to upload a new file — pause, return, menu, nothing responds.

1. Hold the power button for 10 seconds — full power cycle.
2. After reboot, open http://<printer-ip> in a browser — Fluidd/Mainsail pops up.
3. Under Files → Local delete the 5–10 oldest prints and previews.
4. Clear the pad cache: Settings → Preferences → Clear Cache.
5. Build the habit: purge local files after each printing session — otherwise it will happen again.

"Motor Drive Anomaly" on screen

Screen shows Motor Drive Anomaly, print halts mid-job. Per Creality's own guide, two root causes: a damaged or shorted stepper motor wire, or an overheated stepper driver on the mainboard because the board cooling fan stopped spinning.

1. Remove the bottom cover (4 screws underneath).
2. Power on — confirm the mainboard fan is spinning. If it's stuck: blow dust out or replace with a 4010 24 V fan.
3. Multimeter-check the X, Y, Z, E stepper wires for breaks or shorts.
4. Re-seat the stepper connectors on the board, verify the locking clips.
5. If the error keeps popping in the same spot — the stepper motor itself is dying, swap it.

Nozzle scratches the bed during auto-leveling

Printer starts auto-leveling, the toolhead drops into the bottom-left corner, and instead of a gentle touch it drives the nozzle into the PEI. You get a deep scratch. This is the classic high module strain-gauge failure — the chip doesn't register the contact in time.

1. Kill the calibration via full power cycle.
2. Remove the nozzle and inspect for carbon buildup — a crusted tip adds slop that fools the strain gauge.
3. Run Settings → Self-Check → strain gauge individual test. Values should visibly shift when you press on the bed.
4. Failing that test? Export logs (Settings → Logs → Export) and send them to cs@creality.com. They usually warranty-replace the strain-gauge mount.
5. Until the replacement arrives — disable auto-leveling (Settings → Auto Level → OFF) and print with a manual Z-offset.

Extruder clicks and under-extrudes after 30 minutes

Symptom: print starts fine, then 30–60 minutes in the extruder starts a dry clicking sound and the model under-extrudes — thin walls, missing lines, pinholes. The PTFE tube above the heat break feels warm, sometimes with a mushroomed blob of plastic sitting right above it. This is textbook heat creep: filament softens above the melt zone (in the heat break, not in the nozzle) and swells. The drive gear hits the swollen plastic and slips — that's the clicking. On the KE it shows up in warm, unventilated rooms or when PLA runs above 220°C.

1. Check the hotend cooling fan — it MUST spin the moment the nozzle crosses 50°C. Silent fan? Hunt down the cause (dust, broken wire).
2. Pop the hotend cover, blow the radiator out with compressed air. Clogged fins are the #1 heat-creep cause in cat-owner apartments.
3. Full teardown: unscrew the nozzle, remove the heat break, clean the threads of burned plastic, apply fresh thermal paste to the heat-break threads.

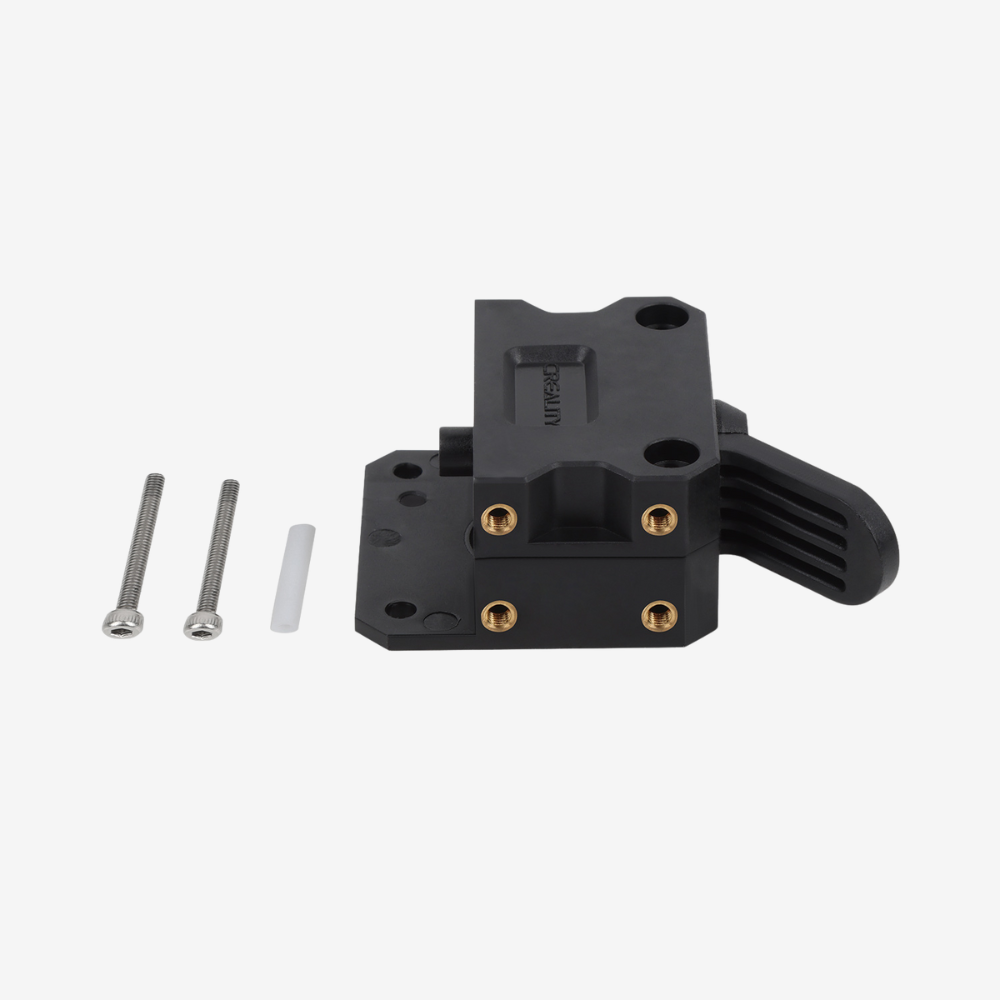

4. Inspect the Sprite idler tension: side screw should leave 2–3 visible spring coils. Too tight grinds filament; too loose slips.
5. For TPU/PETG drop nozzle temperature by 5°C and cap retraction at 0.8 mm — direct-drives need less retract than bowden rigs.
6. If it returns every summer — move the printer to a ventilated spot. Ambient above 28°C kills hotend cooling budget.

Slicer can't find the printer on LAN

Creality Print shows 'connected' for the entered IP but the printer never lands in the device list — you can't push G-code to it. Nine times out of ten it's the model matching checkbox that wasn't flipped.

1. In the Creality Print connection dialog hit Model Matching → pick Ender-3 V3 KE.
2. Verify the PC and printer sit on the same /24 subnet in the router.
3. In OrcaSlicer/Cura add the printer by IP, port 80.
4. Still no LAN? Fall back to Creality Cloud or a USB stick.

Y-axis squeaks and knocks

The bed moves with a squeak or knock, usually right after shipping or a long stand. On the KE it's almost always one of three places: belt tension, dry linear rods, or a loose Y stepper.

1. Dial the Y belt: tensioner screw on the rear of the frame, back off 1/4 turn counterclockwise.
2. A drop of lithium grease on each Y linear rod, slide the bed back and forth 10 times — most squeaks go away.
3. Tighten the 4 screws that hold the Y stepper under the bed (left side).
4. Re-seat the Y stepper cable on the mainboard — an oxidized pin causes knocks and skipped steps too.
5. If the squeak is clearly from below, loosen the 4 bed-plate screws and retighten them crosswise.

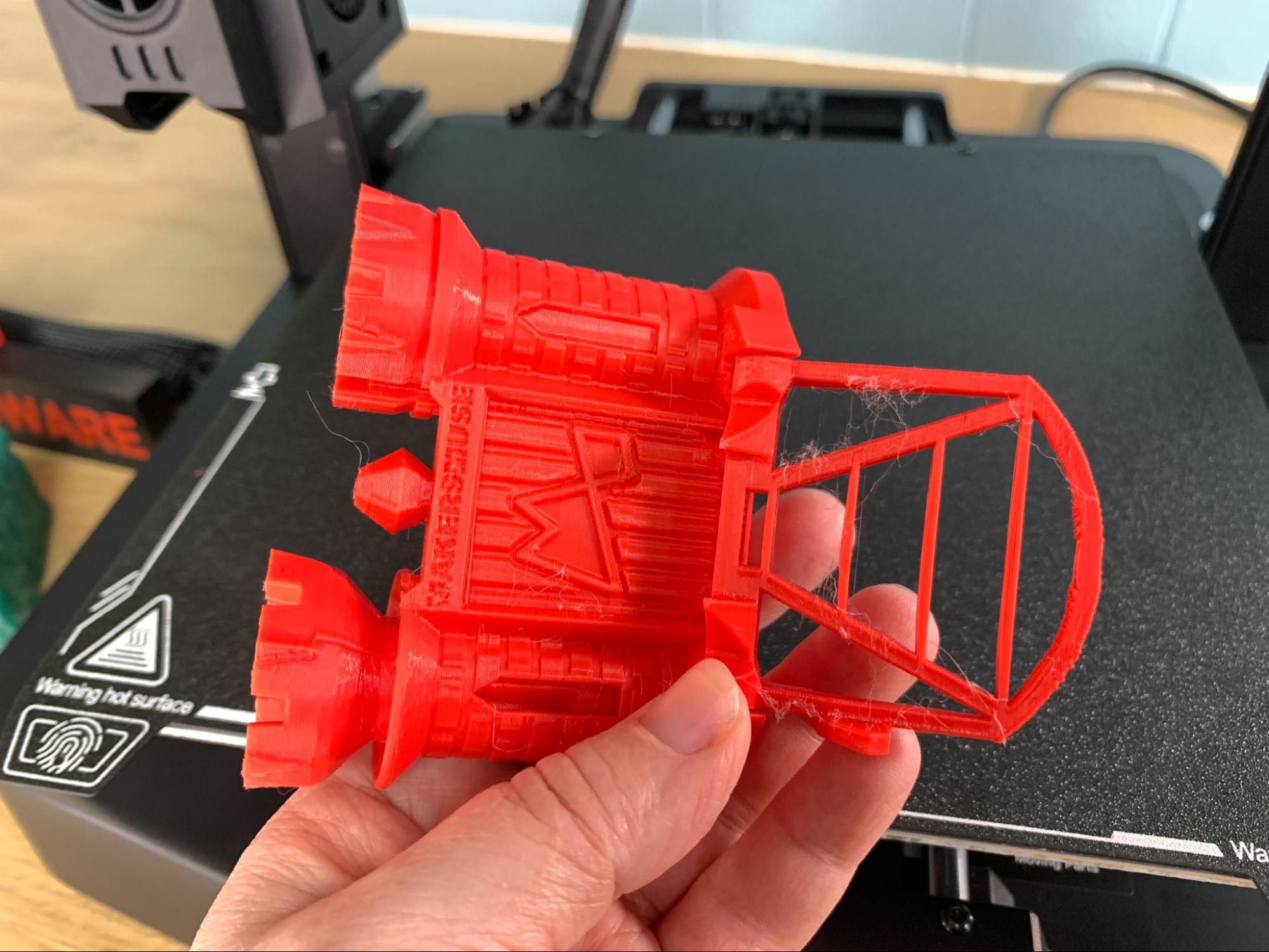

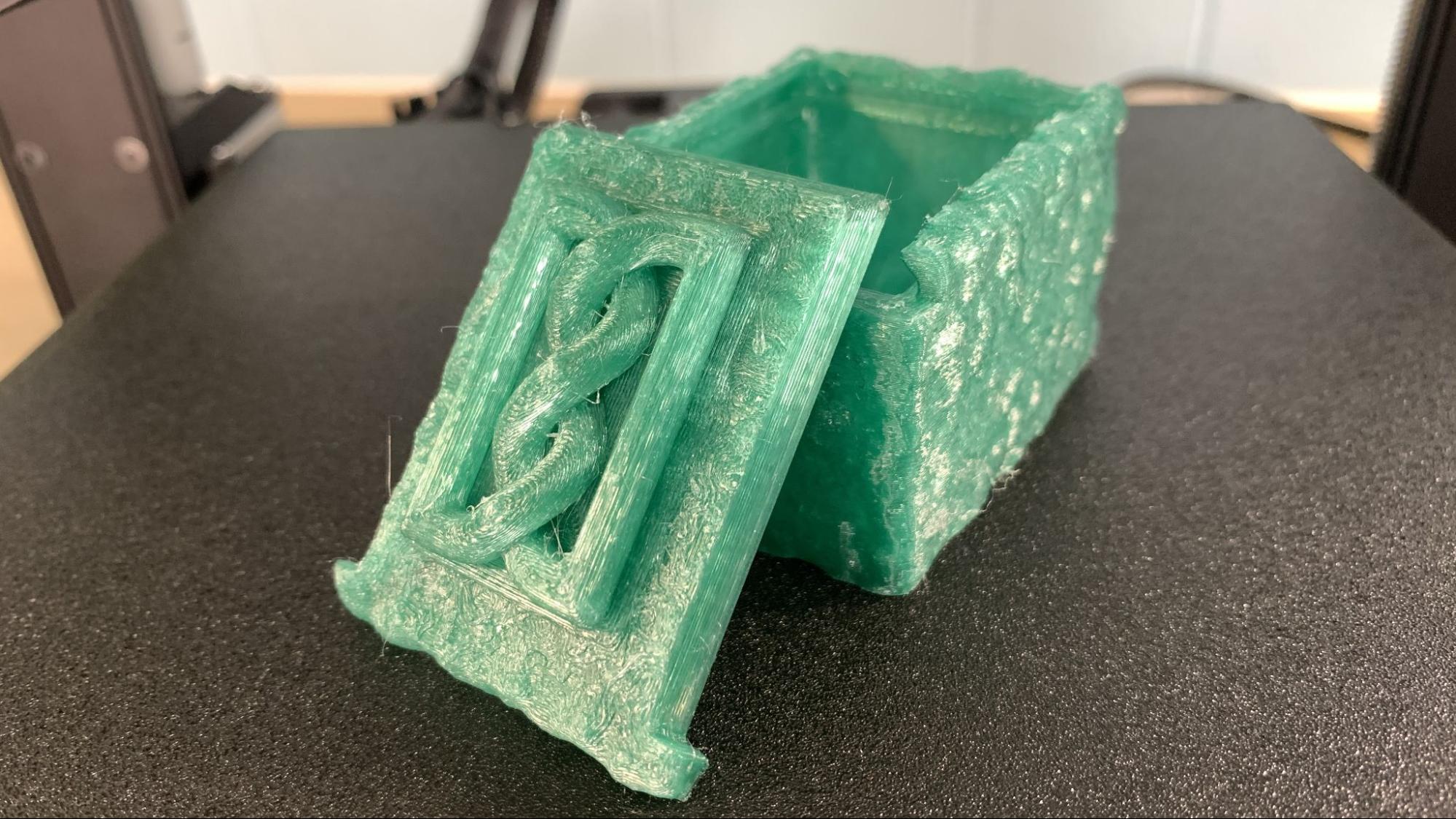

What a happy KE actually prints

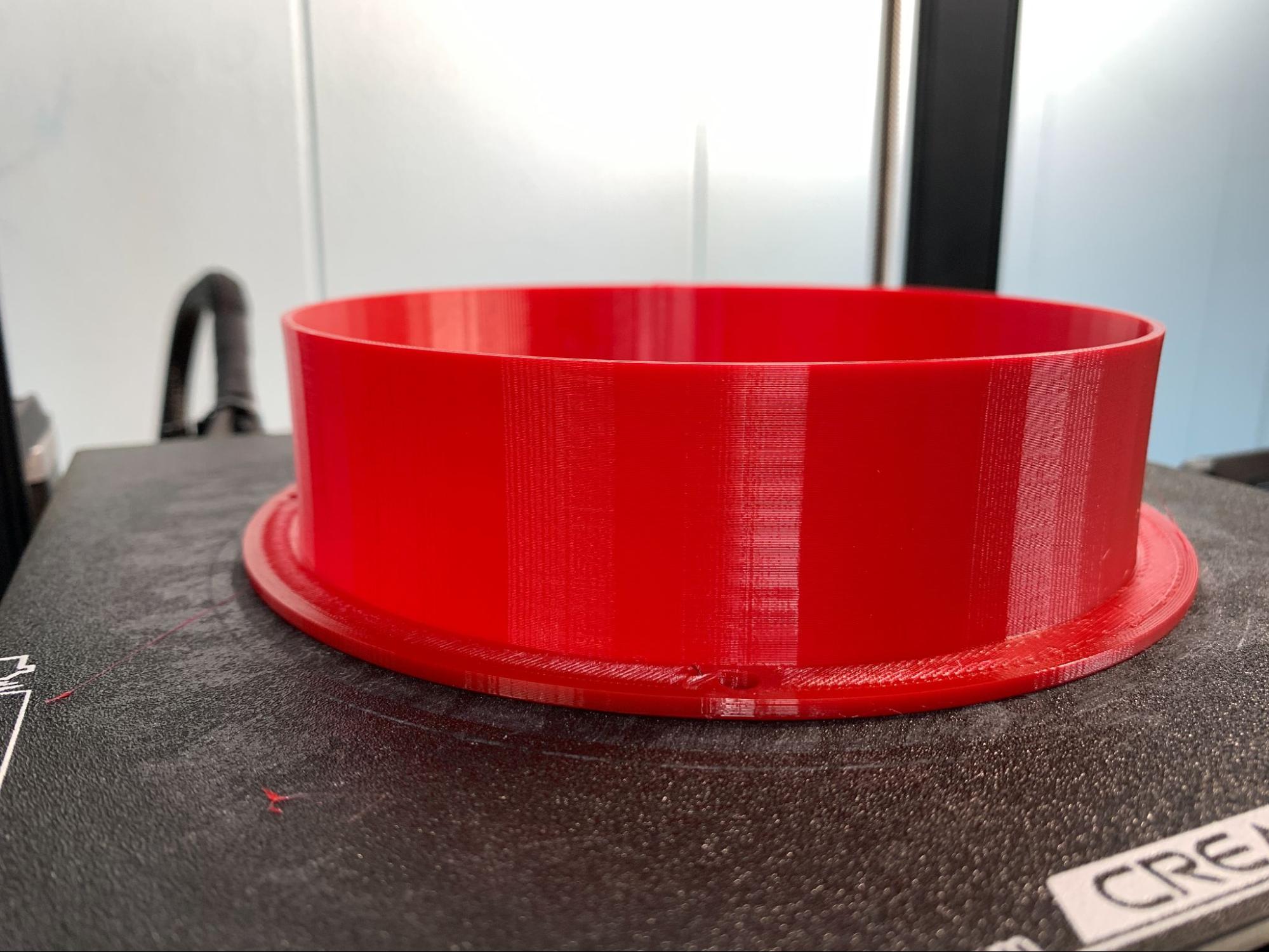

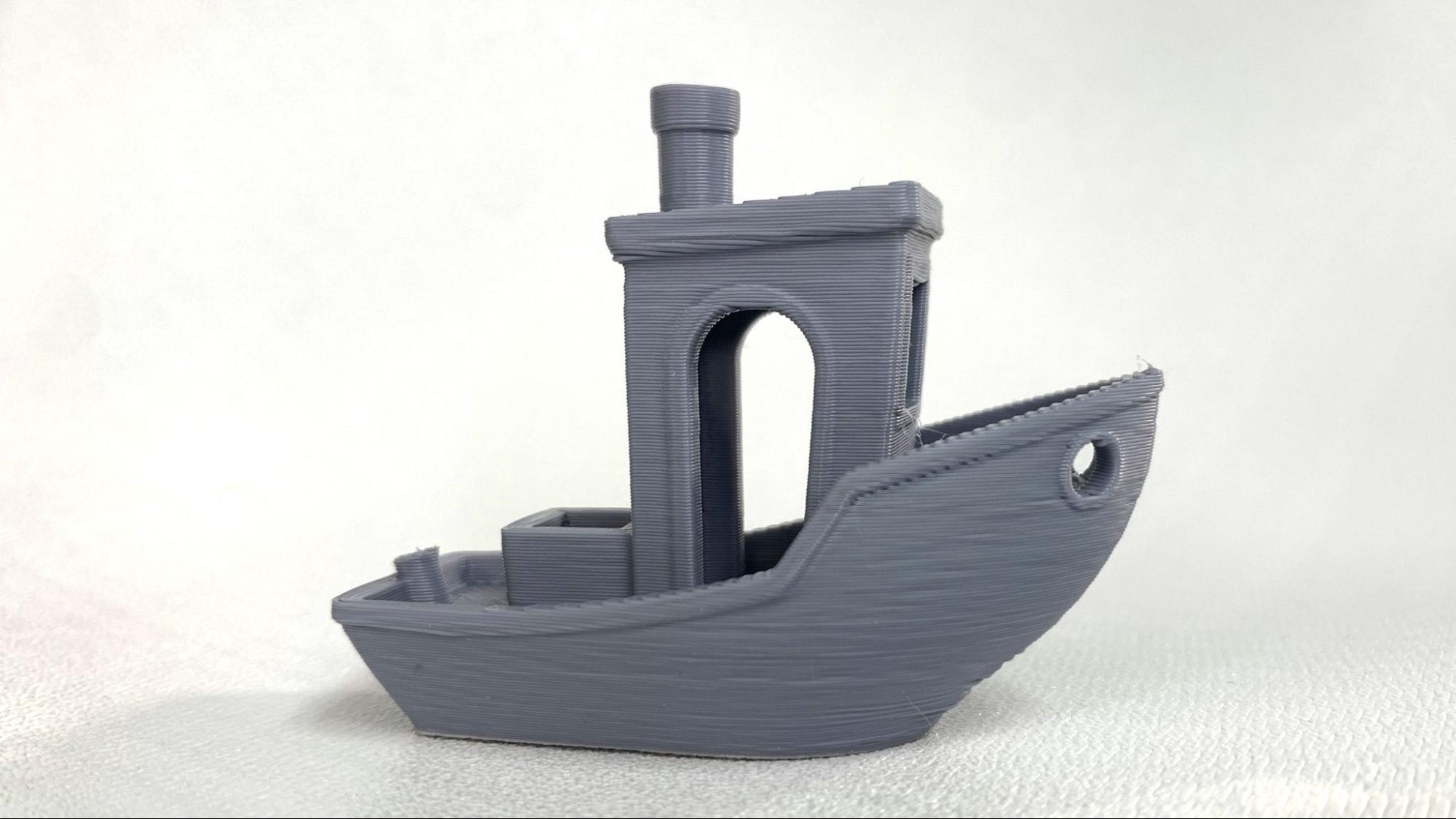

Dial in the Z-offset, calibrate input shaping, kill heat creep — and the KE pumps out clean prints across the board, from 500 mm/s Hyper PLA to flexible TPU.

On-screen error reference

Quick reference for the KE screen messages owners run into most often. Bookmark it for first-pass diagnostics.
