Creality K2 Pro: Known Issues & Fixes

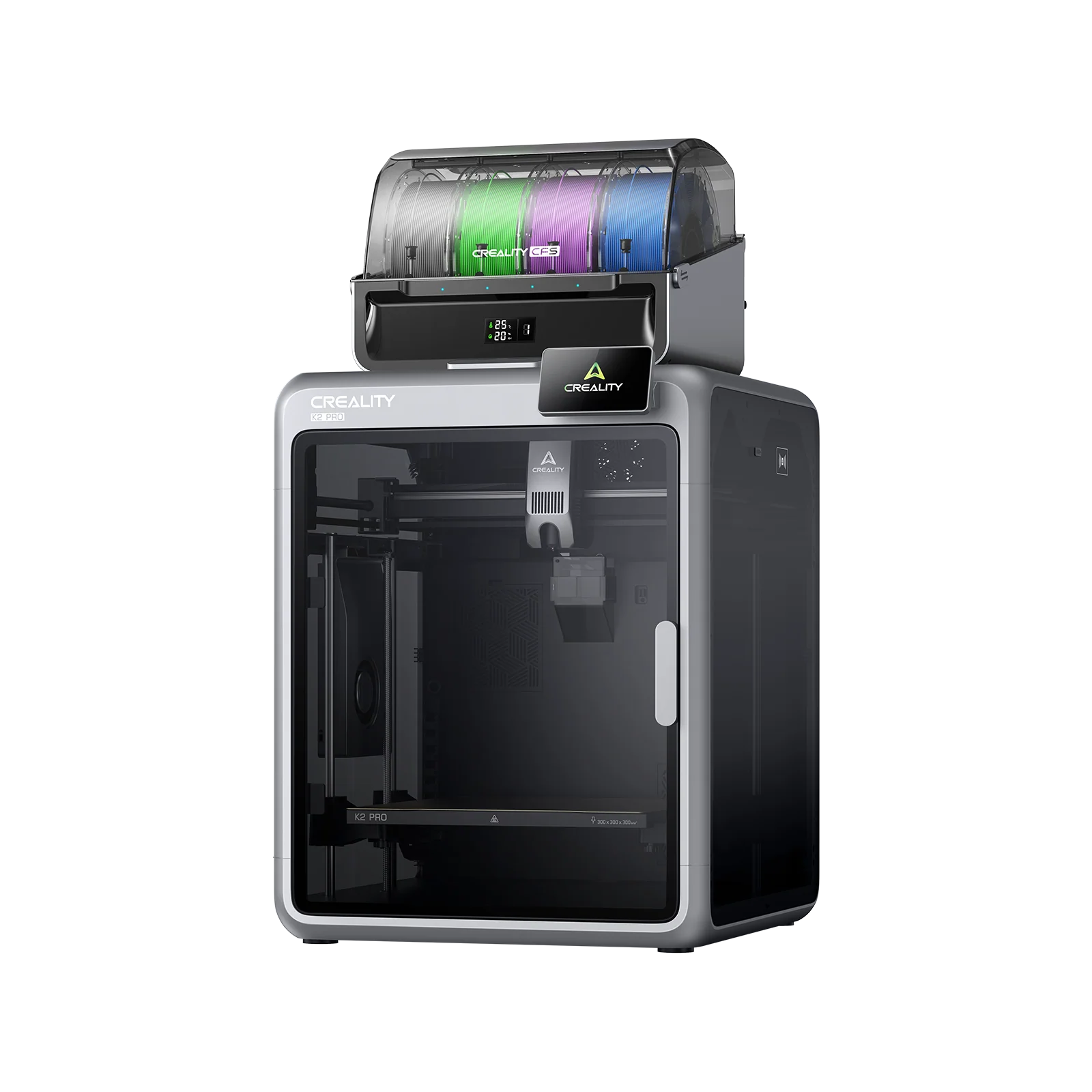

Creality K2 Pro is the mid-sized flagship in the K2 lineup (300×300×300mm, up to 16 colors via CFS, heated chamber up to 60°C). Six months after its August 2025 release, owners and reviewers from Tom's Hardware, Creality Forum, and various long-term review channels accumulated a list of specific bugs: some fix in a minute through slicer settings, others require firmware rollback or component replacement. This article covers only the unique K2 Pro problems — common FDM issues (stringing, warping, layer shifts) are linked at the end as separate guides.

If you're looking for mods after fixing things — see Best Mods for Creality K2 Pro. If you have the bigger K2 Plus or base K2 — see K2 Plus issues and K2 issues. Most firmware bugs are common across the K2 line.

1. CFS jams: TR2852, FR2833, FO2845 errors

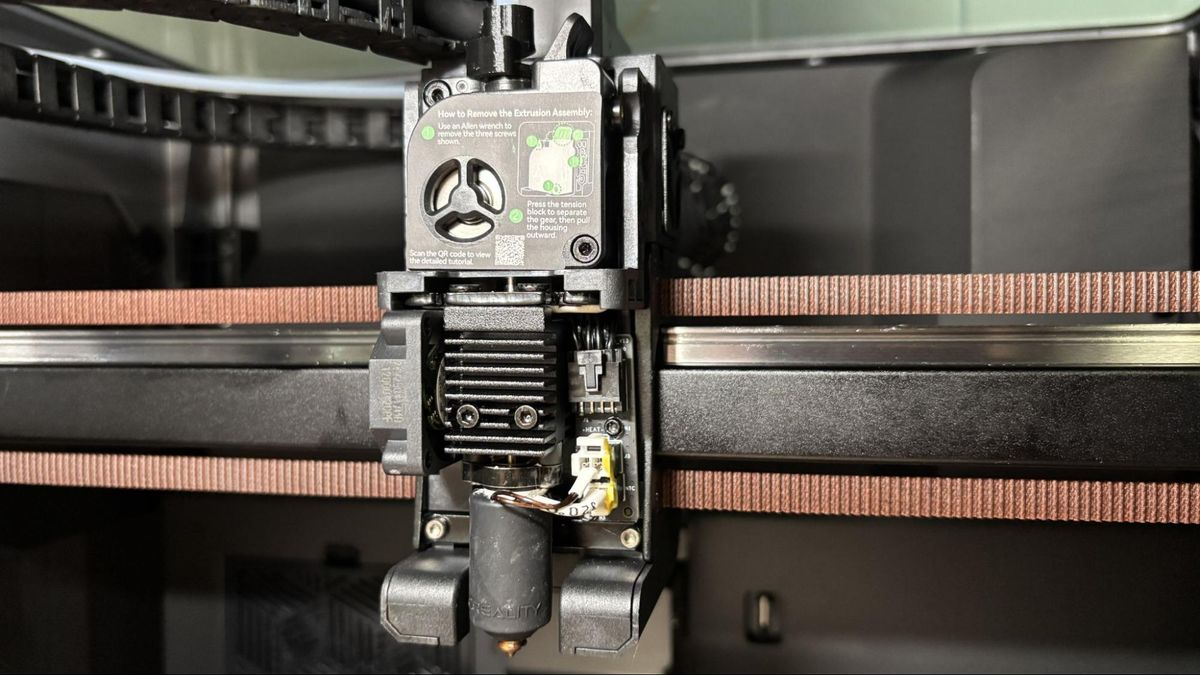

The most common K2 Pro problem and the most common across all CFS-based machines. The screen shows "FR2833 Feed issue", "FO2845 Extruder may be clogged", or "TR2852 Filament sensor triggered abnormally". Print stops, the extruder gear spins on the filament without moving it, you hear grinding noises.

If you disassemble the CFS buffer, you'll see distinctive notch marks on the filament about 2 meters from the spool. That distance matches the path from extruder to the 4-way hub. Root cause: stock PTFE tubing with a small inner diameter (~2mm). It creates high friction and gets pinched at sharp bends, especially with a short cable that forces the tubing into a near-100° turn just before the extruder.

Another factor: during retract, the system pulls filament with such force it gets buried under already-wound coils on the spool — and snags on the next feed. Early CFS units had a bent buffer spring, replacing it solved the issue. For general clog troubleshooting see our nozzle clogging guide.

1. Replace stock PTFE with quality 2.5mm ID tubing (Bambu, Capricorn). Solves 80% of cases. 4-meter roll runs ~$10
2. Shorten the PTFE between CFS hub and extruder — don't leave 4 meters "just in case", extra length adds bend resistance
3. Add 2-3 M3 washers to the CFS spring tension. Do NOT shorten the springs themselves (despite YouTube advice) — that breaks the feed geometry
4. Open the CFS buffer, blow out the optical sensor with compressed air — dust on the sensor triggers false "filament tangled" errors
5. On older CFS units (15+ months) replace the buffer spring — it's a known wear item from early production batches
6. If the error fires specifically AFTER print completion (TR2852) — that's often a firmware bug. Helps: factory reset via System → Restore Default + firmware reinstall

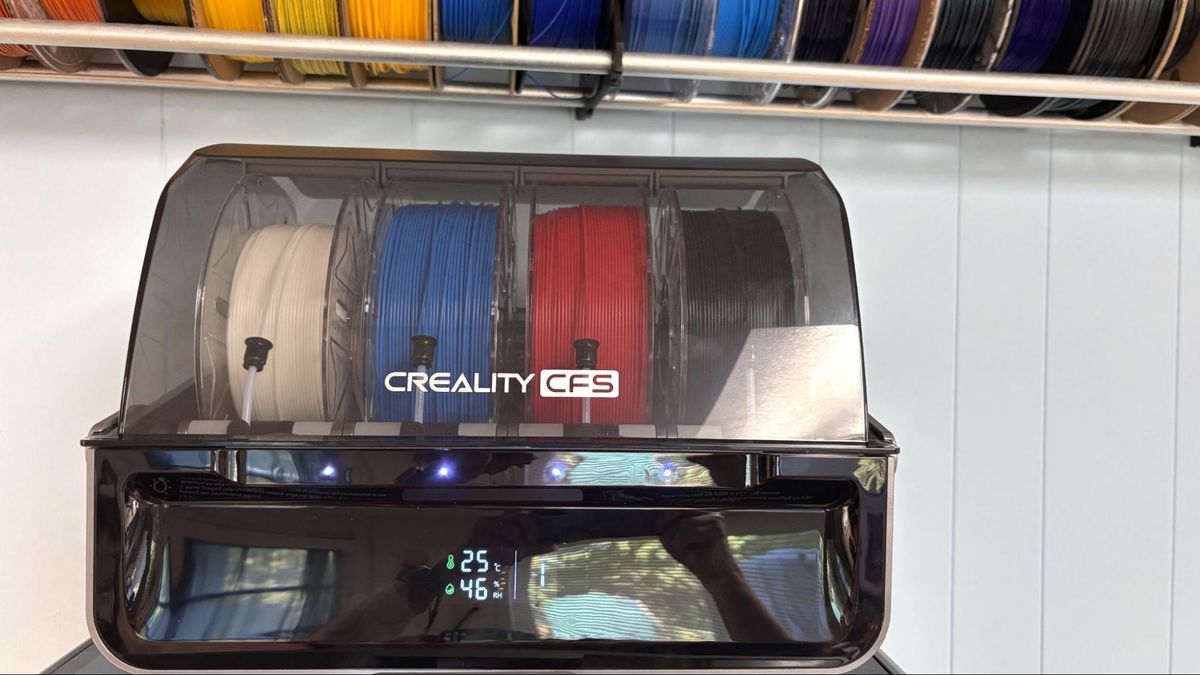

2. Chamber sensor reads 5–8°C below actual temperature

The screen shows 52°C, actual chamber is 60°C. At 35°C reading the actual is 40°C. This isn't a sensor calibration issue — it's a temperature calculation bug in Creality's Klipper firmware on pin PC5. The hardware sensor (EPCOS 100K B57560G104F) is fine, the problem is in software. Confirmed on Creality Forum as of March 2026 — still unfixed in firmware 1.1.4.1.

K2 and K2 Pro share the same firmware branch, so they suffer identically. Danger: users crank the target up to 70°C to get the desired 60°C — but that exceeds the official maximum and shortens chamber heater life. The heater itself isn't designed to run flat-out: Creality's wiki officially warns that "long-term operation at the limit reduces service life."

1. Don't push target chamber above 60°C on screen — actual temperature is already close to 65–68°C anyway
2. Stick a multimeter thermocouple in the chamber and compare with on-screen reading. That tells you your machine's actual delta
3. When printing ABS/ASA/PC, target by delta: for real 60°C in chamber set 52–55°C on screen
4. Apply the three-point calibration via Fluidd (community PDF on Creality Forum). It's a manual workaround, not an official fix
5. Watch each new firmware changelog — Creality knows about the bug, waiting for an official fix

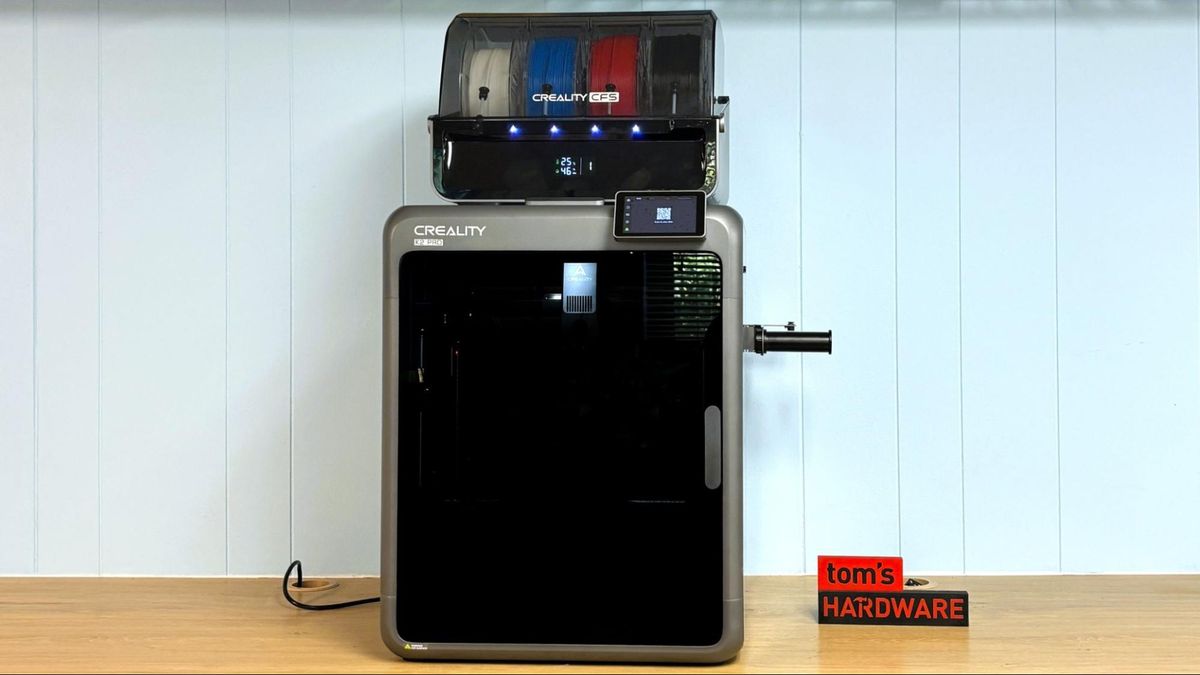

3. Print starts before chamber reaches target temperature

Set chamber temp to 60°C in Creality Print for ABS. Printer heats nozzle and bed, starts the first layer — and the chamber is only 30–35°C at that moment. By mid-print it reaches 50°C, by the end 60°C. Result: first layers delaminate, the bottom of the part warps, the top prints in proper conditions.

Reason: the standard Creality start G-code does NOT contain M191 (wait for chamber temp). The firmware doesn't block print start until chamber heater hits target. For more on warping see our part warping fix guide.

1. Open Creality Print → Edit Printer → Machine G-code → Machine start G-code
2. Add the line: M191 S60 (wait for chamber to reach 60°C before starting)
3. Alternative without editing G-code: manually preheat chamber via Chamber → Preheat to 60°C, 5–10 minutes before print start
4. For long ABS/PC prints consider the Chamber Heater Recirc mod by Zemlin (Printables) — speeds up heating, especially in cold garages
5. If your ambient is below 15°C and mains is 110V, the chamber may physically not reach 60°C. That's a documented Creality limitation

4. Filament purge stuck at 300°C after switching from PA612-CF to PLA

Rare but critical bug on firmwares ≤ 1.1.0.92. Scenario: you printed a part in Creality Hyper PA612-CF (glass-fiber-reinforced nylon, requires 300–320°C). Next in queue: regular PLA. Printer starts the purge process: nozzle holds at 300°C, no extrusion happens, status says "IDLE" on screen, printer doesn't respond to cancel.

Creality's purge logic: first purge at the previous filament's max temperature, then gradually cool to the next material's temp. PA612-CF needs 300–320°C, but the nozzle max is hardcoded at 300°C. When the logic demands 320°C and the hardware caps at 300°C, the workflow stalls.

1. Open http://<printer_ip>:4408 in your browser — Fluidd interface
2. Configuration Files → find printer_params.cfg
3. Raise nozzle max temp from 300 to 320–330°C (one-time only!)
4. Save the file — Klippy restarts automatically
5. After reboot the purge resumes. Right after the successful PLA transition, set max temp back to 300°C
6. Long-term: update firmware above 1.1.0.92 — Creality reworked the purge logic

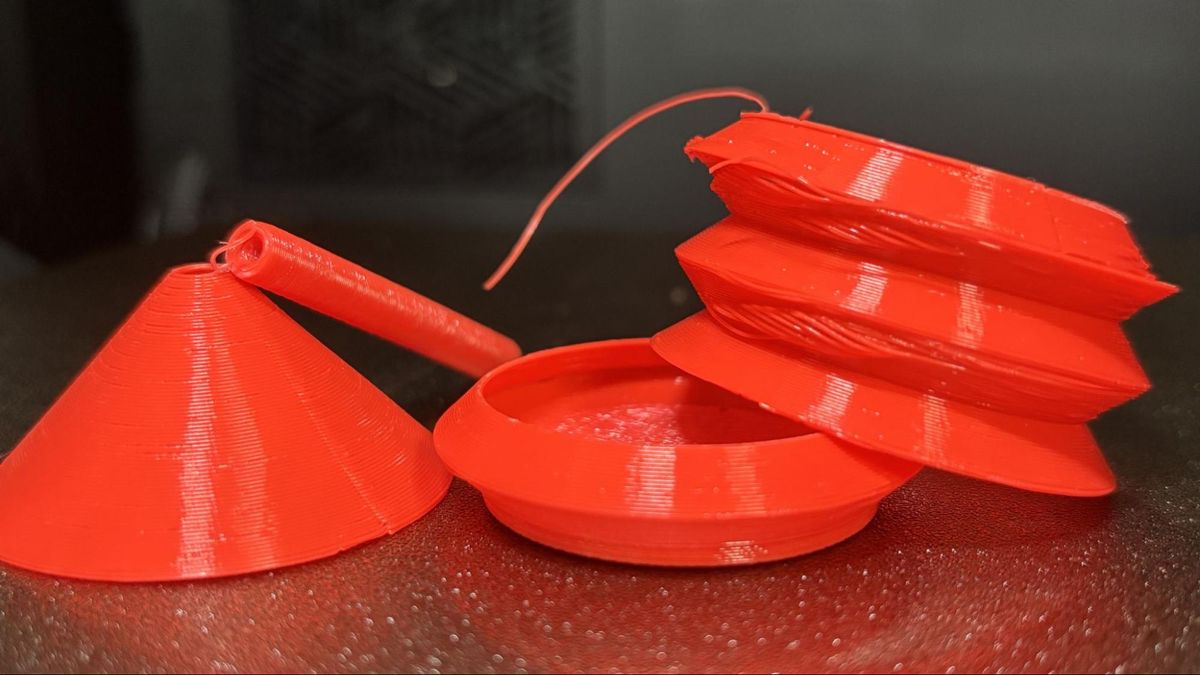

5. TPU prints with severe under-extrusion

Tom's Hardware reviewer Denise Bertacchi tested Bambu Hard TPU for AMS, Inland rainbow TPU, and several others — all printed with holes in walls, filament strands tearing inside the hotend, top surface porous. Bumping flow in the slicer is useless — feed force is limited by the stock extruder spring. The CFS doesn't officially support TPU either.

Root causes: the long melt zone in the high-flow Unicorn hotend has high friction resistance for soft materials; stock extruder tension spring is too weak to consistently push TPU; CFS isn't designed for flexibles — buffer and hub create extra bends; TPU needs a short feed path (direct drive), but CFS routing makes it semi-Bowden. For general under-extrusion troubleshooting see our extrusion guide.

1. Print TPU ONLY from the side spool holder — bypass CFS entirely. The bracket comes in the box, mounts with two M3 screws
2. Replace the extruder tension spring with a stiffer one (community part on Printables "K2 Hard Spring") — without this TPU physically won't feed
3. Lower retraction to 0.4–0.6mm and speed to 30–40 mm/s in the TPU profile
4. Raise nozzle to 230°C (instead of standard 220 for shore 95A TPU)
5. If you want to print TPU primarily — consider Bambu A1 / FlashForge AD5M, designed for TPU out of the box. K2 Pro stays at the edge of TPU feasibility

6. PTFE tube rubs against the glass lid

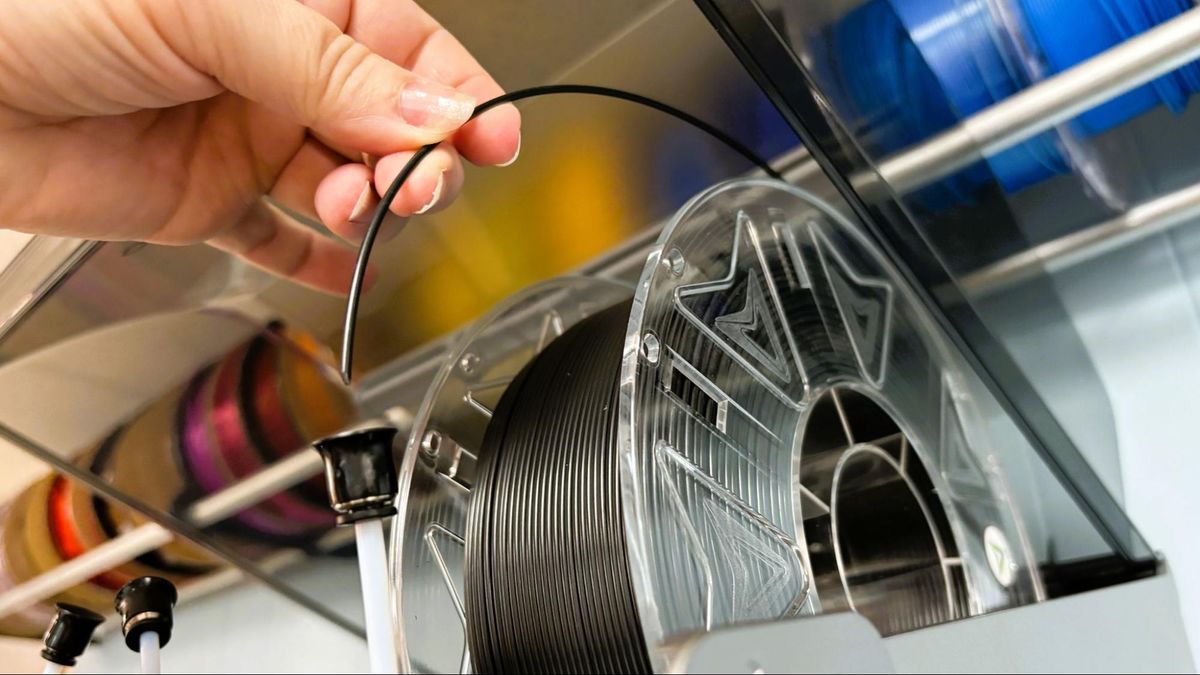

Geometric flaw nearly every K2 Pro owner notices in the first few weeks. As the printhead moves, the PTFE tube from CFS contacts the bottom of the glass lid. Scratches appear on the glass, the protective film wears off in a streak. The glass usually doesn't crack, but it's aesthetically unpleasant — and over time dust from the tube transfers into the chamber.

The gap between top frame and glass is critically small. PTFE bend angle at various toolhead positions pushes the tube into the lid zone. Stock clips don't secure the tube any higher — Creality simply didn't account for this in the design.

1. Print a PTFE Routing Clip from MakerWorld or Printables — routes the tube above the contact point
2. Place soft material (felt, felt tape) between the tube and glass
3. Remove the protective film from the glass entirely — it's getting scratched anyway, cleaner without it
4. Replace stock PTFE with quality 2.5mm ID (Capricorn, Bambu) — stiffer, sags less along its length
5. Long-term: consider replacing top glass with cut acrylic — loses chamber sealing, only do this if you don't print ABS

7. Sequential printing knocks over previously printed tall parts

When sequential printing multiple parts, the tallest object prints first, then the head moves to the next — and rams into the already-printed model, knocking it over. The reason: after finishing a part, Z doesn't lift to a safe height before traveling. It's a logic mismatch between Creality Print and the firmware.

1. Open Creality Print → Edit Printer → Extruder G-code
2. In End G-code add: G1 Z300 F600 (where 300 = K2 Pro max Z)
3. For base K2 (max Z=250) — replace with G1 Z250 F600. For K2 Plus — G1 Z350 F600
4. Workaround: arrange models in the slicer by descending height manually. Then no Z-slam (head crashing into prints) regardless of G-code, because each next object is shorter
5. Long-term: wait for a fix in new firmware and Creality Print, the bug is documented

8. Firmware 1.1.4.8 bricks: XS2001, XS2060, CFS errors

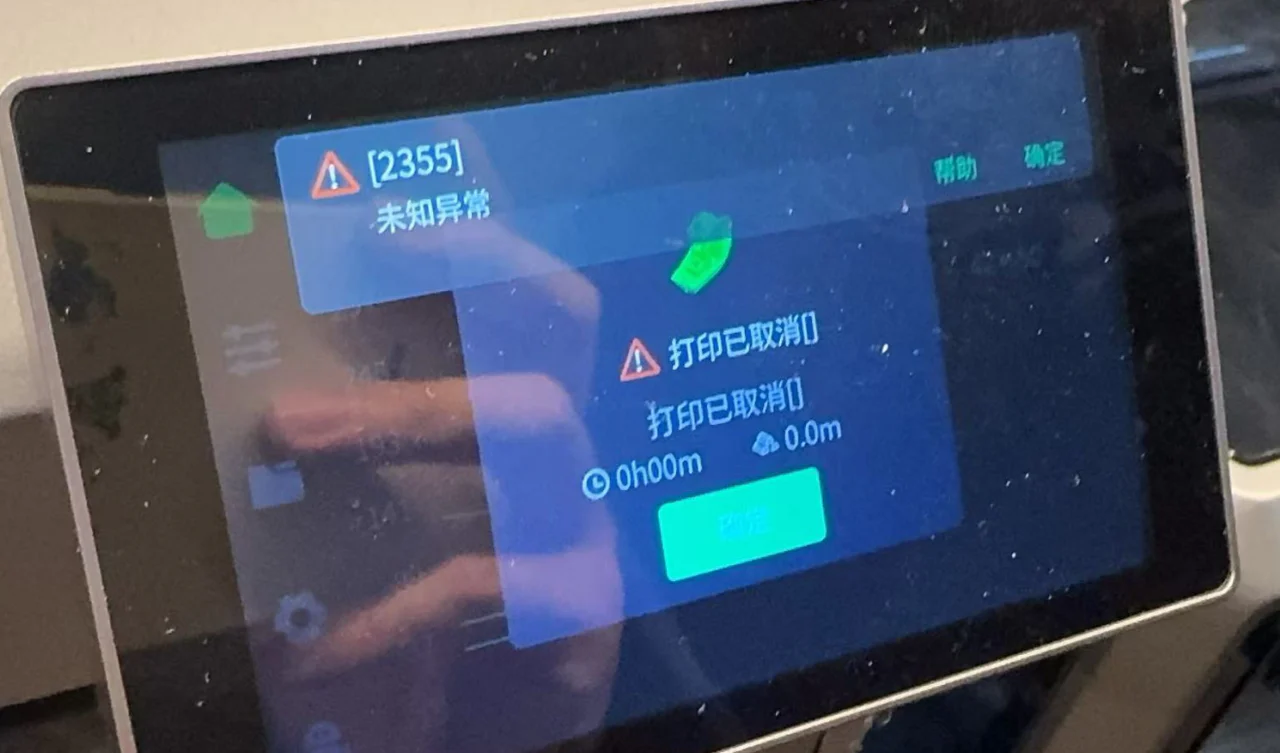

After firmware 1.1.4.8 dropped (winter 2025–2026), Creality Forum saw a wave of complaints: "System error" every 3–5 prints after ~5 minutes, "Error determining color of filament", "Belt Tension", "Cutter not found", XS2001, XS2060. Stable printing becomes impossible. One user: "After tolerating the repeated system error 2060 problem I ended up getting 10 of these in a row so I back graded to 1.1.3.13 and so far so good!"

Suspected culprit — a regression in CFS initialization. The firmware is incompatible with old custom configs, parameters get wiped, the new self-check cycle breaks on previously working machines. Creality didn't officially recall the release but added 1.1.3.13 to the Old Versions section for manual rollback.

1. Go to Creality's download page, expand "Old Versions", download firmware 1.1.3.13
2. Format USB to ExFAT, copy the firmware file to root
3. Insert USB → System → Firmware Update → select "Upgrade" (don't worry — despite the wording, this is a downgrade)
4. After reboot, run full Device Self-Test (configurations are wiped)
5. Re-calibrate bed, extruder, Input Shaper, verify Z-offset
6. Save the USB with 1.1.3.13 for future. Don't rush to update to new versions — let them sit 1–2 months after release while reading forum feedback

9. Nozzle rams into PEI bed during leveling: TE2761, CL2536

Before print start, the head lowers onto the bed for the tap test — and punches through the PEI film. Screen shows TE2761 "Unable to read leveling sensor data" — strain gauge failure, or CL2536 "Leveling Sensor Hardware Failure" — sensor hardware failure. Bed is damaged, sometimes the sensor inside the head deforms too. A Japanese user got Creality to ship replacement parts: distortion sensor + hot end + build plate.

Root causes: broken signal cable between extruder and mainboard; spontaneous shift of the strain gauge inside the nozzle; on K2 SE, firmware 2.3.6.49 had a Z-slam bug — bed jumps up to nozzle on print start; dirt under the sensor leads to false zero. For first layer and leveling generally see our first layer adhesion guide.

1. Power off the printer, wait for the nozzle to cool
2. Wipe the nozzle bottom and strain gauge area with alcohol — debris can throw off the tap calibration

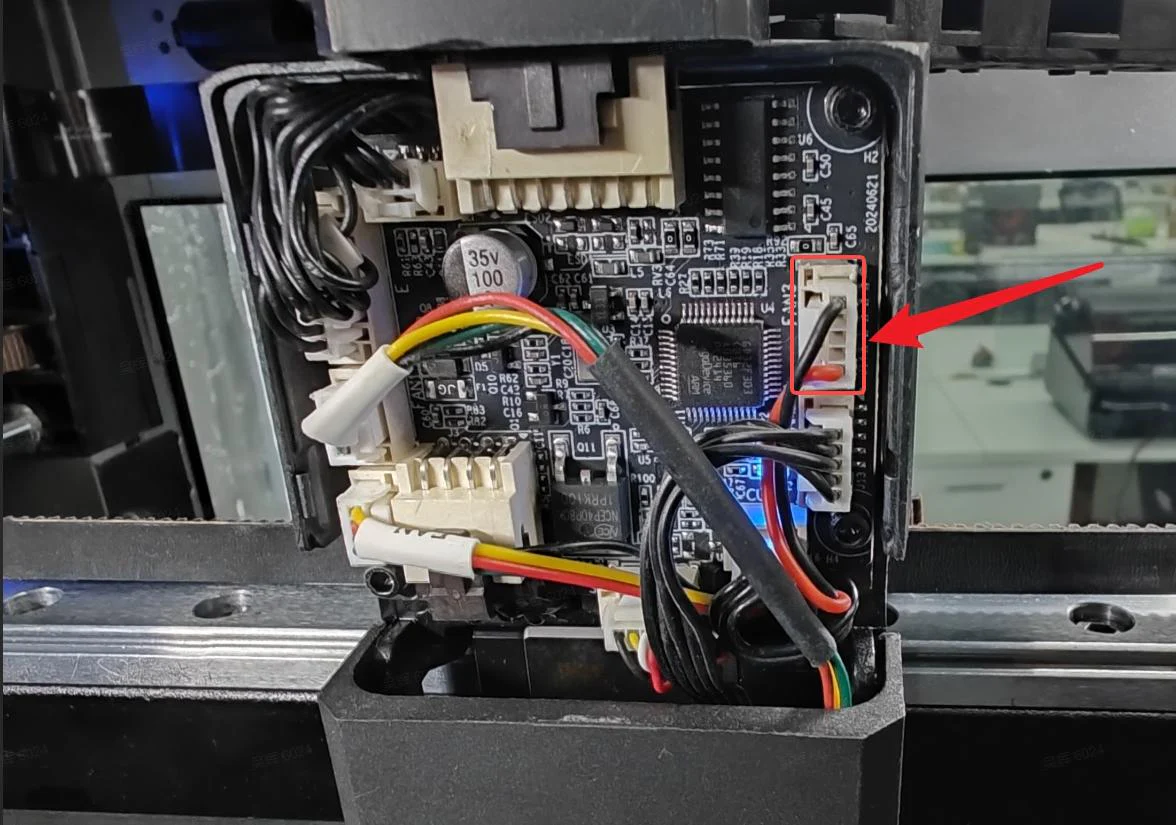

3. Remove the front extruder cover (3 screws) and inspect the ribbon cable — reconnect at both ends
4. If the bed is damaged — file a ticket at support@creality.com (they ship replacement parts under warranty)
5. Don't reuse Z-offset from old firmware — recreate it after firmware change
6. Verify Settings has the correct printer profile and plate type (PEI, Cool Plate, etc.) selected
7. If the symptom recurs — try replacing the leveling sensor (common spare part)

10. AI detection AC0101 spams false positives

Printer pauses print with "AC0101 Print quality issue detected". In reality there's no spaghetti failure — visible by eye or via camera. If you don't tap Continue/Retry, an hour-long print sits idle overnight. Thanks to AI you lose time and material.

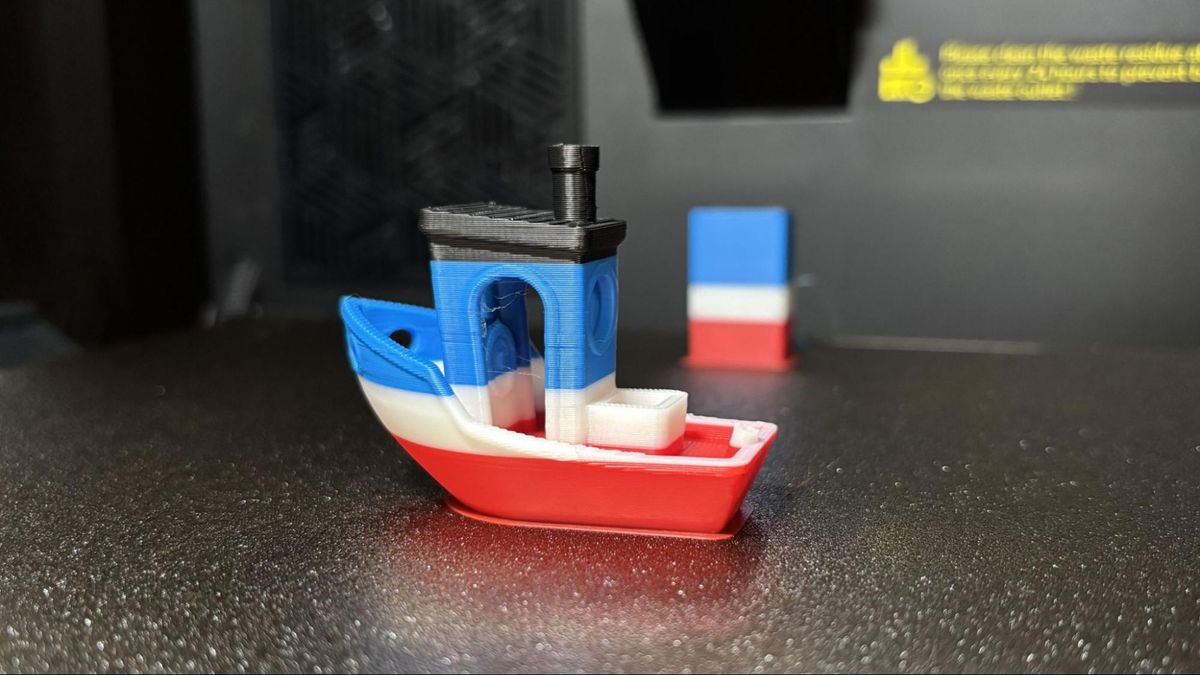

The detector is trained on typical defects and false-fires on dark/metallic plastics, low chamber lighting (stock LEDs are weak), complex geometry (overhangs, lattices). Multi-color complex prints suffer especially — high visual variance triggers it.

1. Settings → Camera → AI Function → Sensitivity → Low
2. If false positives continue — Settings → Camera → AI Function → disable "Pause on fault"
3. Alternative: keep detection on but disable auto-pause — it'll notify without stopping the print
4. Add extra camera lighting (24V LED strip with included plug) — significantly improves detector accuracy
5. If you don't need AI at all — Settings → Camera → AI Function → Disable. Freedom from false alarms is sometimes worth more than potential detection

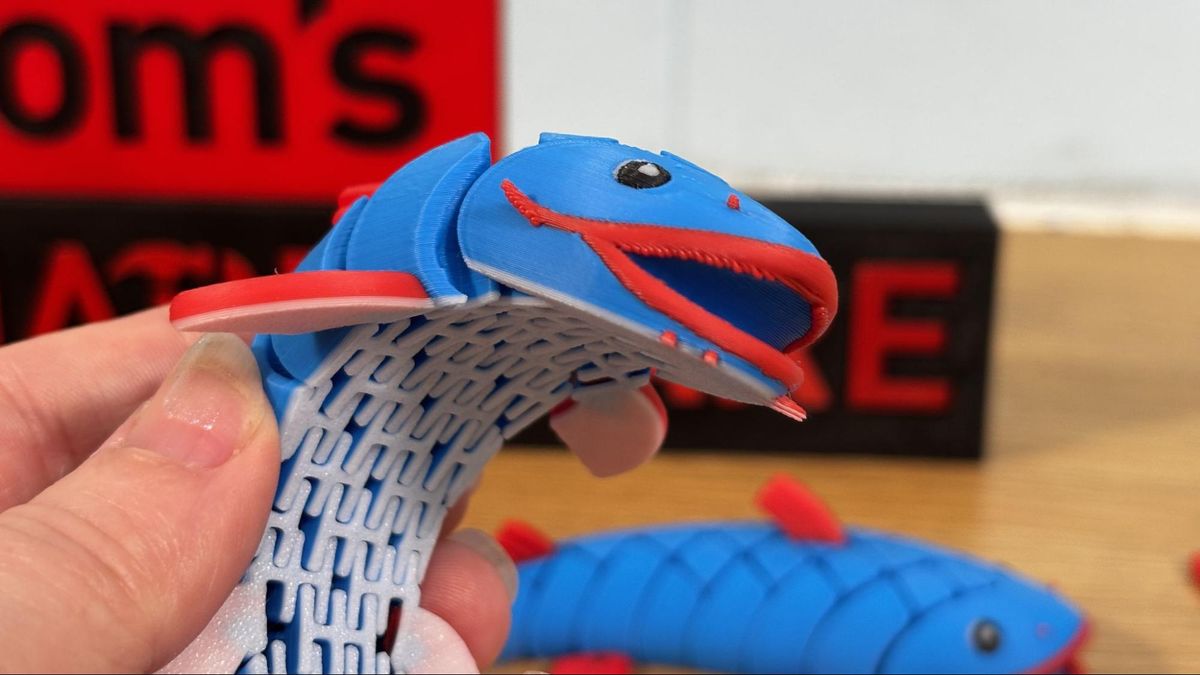

11. Excessive purge waste during multi-color prints

On multi-color prints, 30–40% of filament becomes waste. Printer ejects "sausages" out the back — there's nowhere to collect them (no stock bin). By the end of an average multi-color print there's a pile of plastic on the floor. Adjusting purge volume in the slicer is partially ignored by the firmware — a known bug. Tom's Hardware: "watching 30-40% of your filament become waste is heartbreaking."

Root causes: the long melt zone in the Unicorn high-flow hotend requires large purge volume to flush the previous color; default purge multiplier in Creality Print is set conservatively (with margin); firmware partially ignores manual multiplier edits.

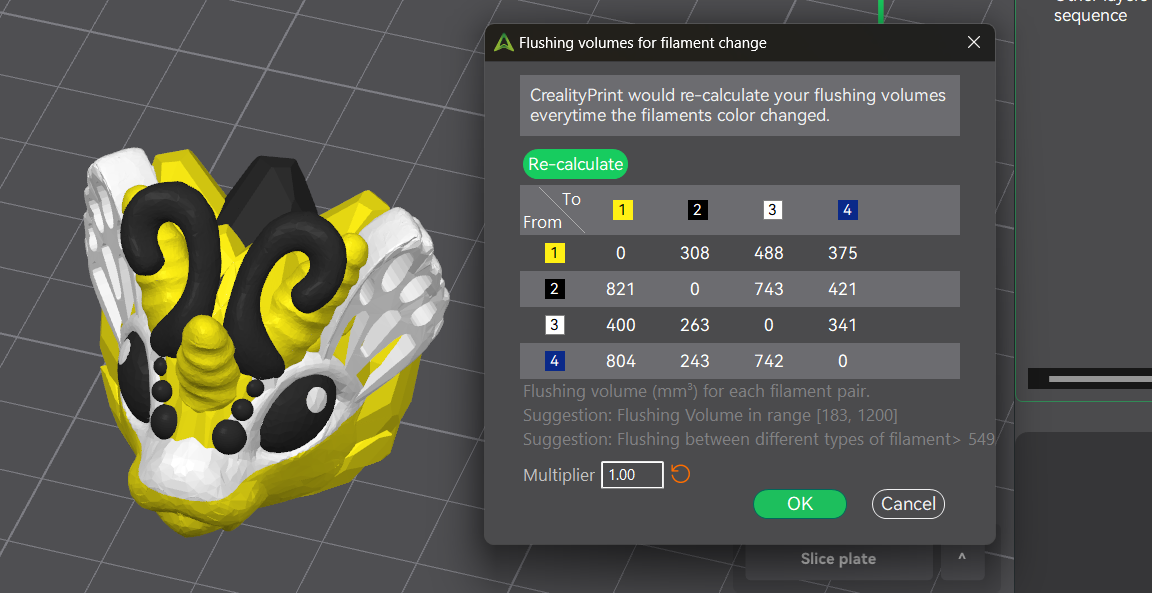

1. In Creality Print: Filament Settings → Purge Volumes Matrix → set lower values for similar colors (white→yellow can be 50–70mm³, not 200 default)
2. Use Purge Tower Wipe — models that use the wipe tower as a useful object (Print-In-Place hooks, hangers, etc.)
3. Print a Purge Bucket Mod from Printables — directs waste into a removable bin. 5-minute install, cleaner workspace
4. Reorder colors in the model in slicer — dark→light transitions need more purge, light→light less
5. If the model has few color transitions — disable wipe tower entirely, use ramming

12. Loud chamber fan — louder than the print motion

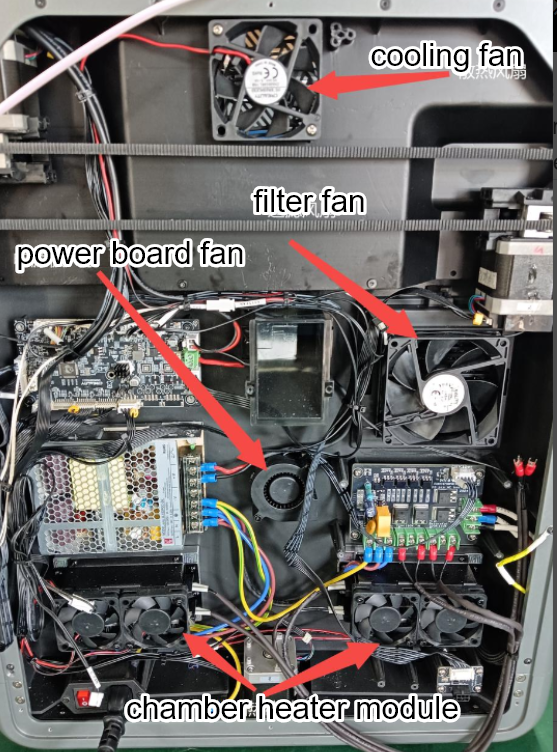

When printing PLA, the printer auto-engages chamber cooling fan at 35°C. The fan is audible through closed doors — being in the same room is uncomfortable. It's NOT the print motion — CoreXY on step-servos is fairly quiet — it's specifically the chamber fan. On long PLA prints, the fan runs almost continuously.

1. Replace stock chamber fan with a quiet 80mm Sunon/Arctic 24V (24V required — Noctua only makes 12V, won't fit)
2. Via Fluidd (http://<ip>:4408) → console: SET_FAN_SPEED FAN=chamber_fan SPEED=0.6 — throttle the fan to 60%
3. Print PLA with the door slightly open — chamber fan won't engage. Counterintuitive but works: chamber stays cool, fan stays off
4. Move the printer to a non-living space (workshop, balcony, basement) — best long-term solution for regular printing
5. Add silicone vibration feet under all 4 corners — won't quiet the fan but will stop resonance from transferring into the table

13. Community repo k2-improvements is archived

The community often recommends installing modded Klipper from jamincollins/k2-improvements: Cartographer probe support, root access, axis twist compensation, updated Fluidd, Entware. If you try it — note: the repository was ARCHIVED on August 6, 2025, read-only, no more updates. The author officially stopped maintaining it.

1. Don't install k2-improvements on a fresh printer — without updates and support, it's a lottery
2. If already installed — back up SD/eMMC BEFORE any changes. That's your insurance against a brick
3. Alternative: wait for SimpleAF/Pellcorp to support K2 Pro — these projects only work on K1/K1C/Ender 5 Max so far
4. For most users: stick with stock Creality OS. It's closed but officially supported with regular updates
5. Debunking community myths: "Just install Klipper on K2" — Creality OS is closed, vanilla Klipper is impossible. "Helper Script (Guilouz) for K2" — officially does NOT support K2

K2 Pro error code reference

The full K2 Pro error table has 100+ codes split by module: Controller (CB/CT/CM/CX/CY/CZ/CA/CL/CP), Mainboard (BM/BS), Toolhead (TE/TR/TF/TC), CFS (FR/FS/FB/FH/FM/FO), AP (XS/XD), AI Detection (AC). Below — the most common codes a regular owner will encounter. Full table at the official Creality page.
