Anycubic Kobra 3 Problems: ACE Pro Errors, Waste, First Layer

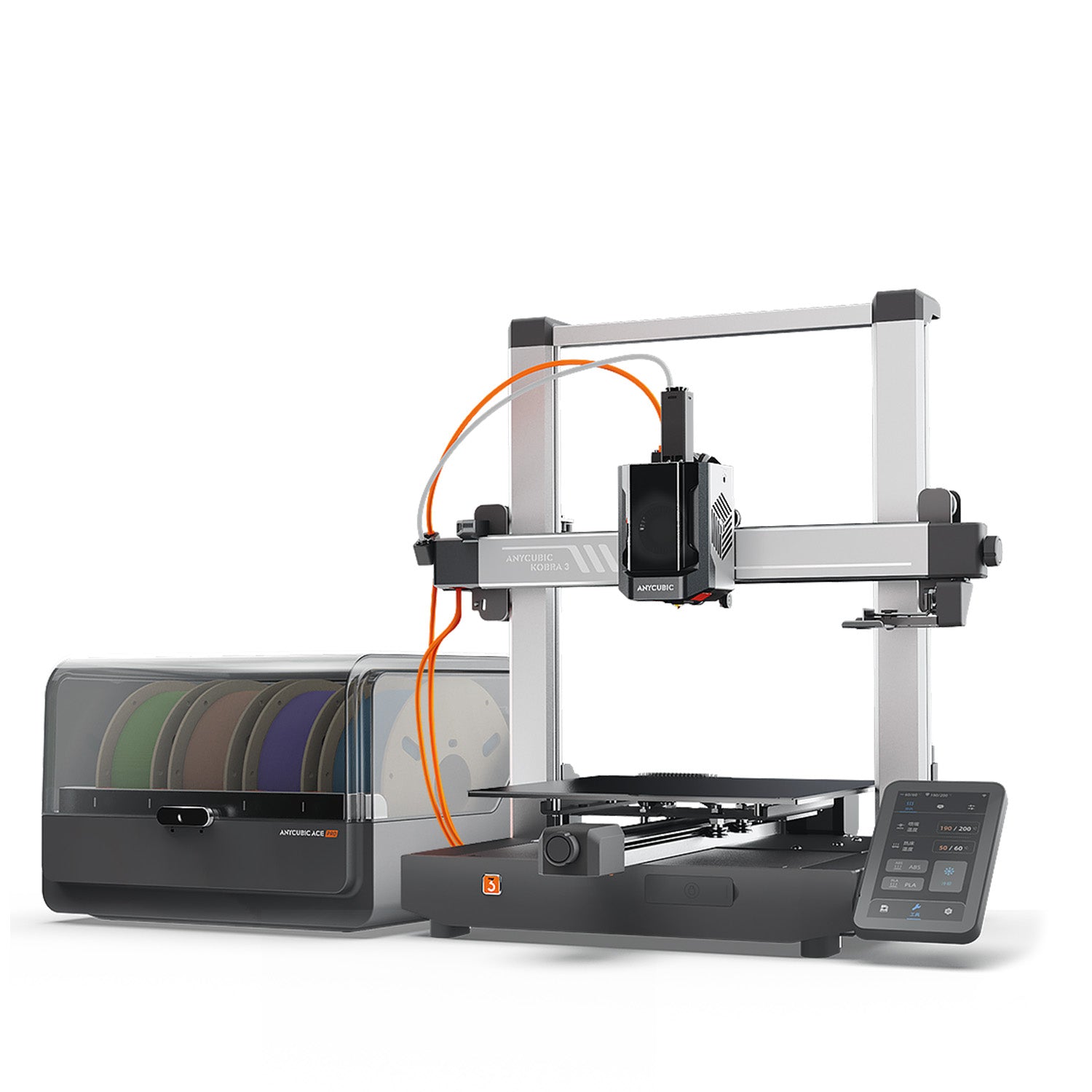

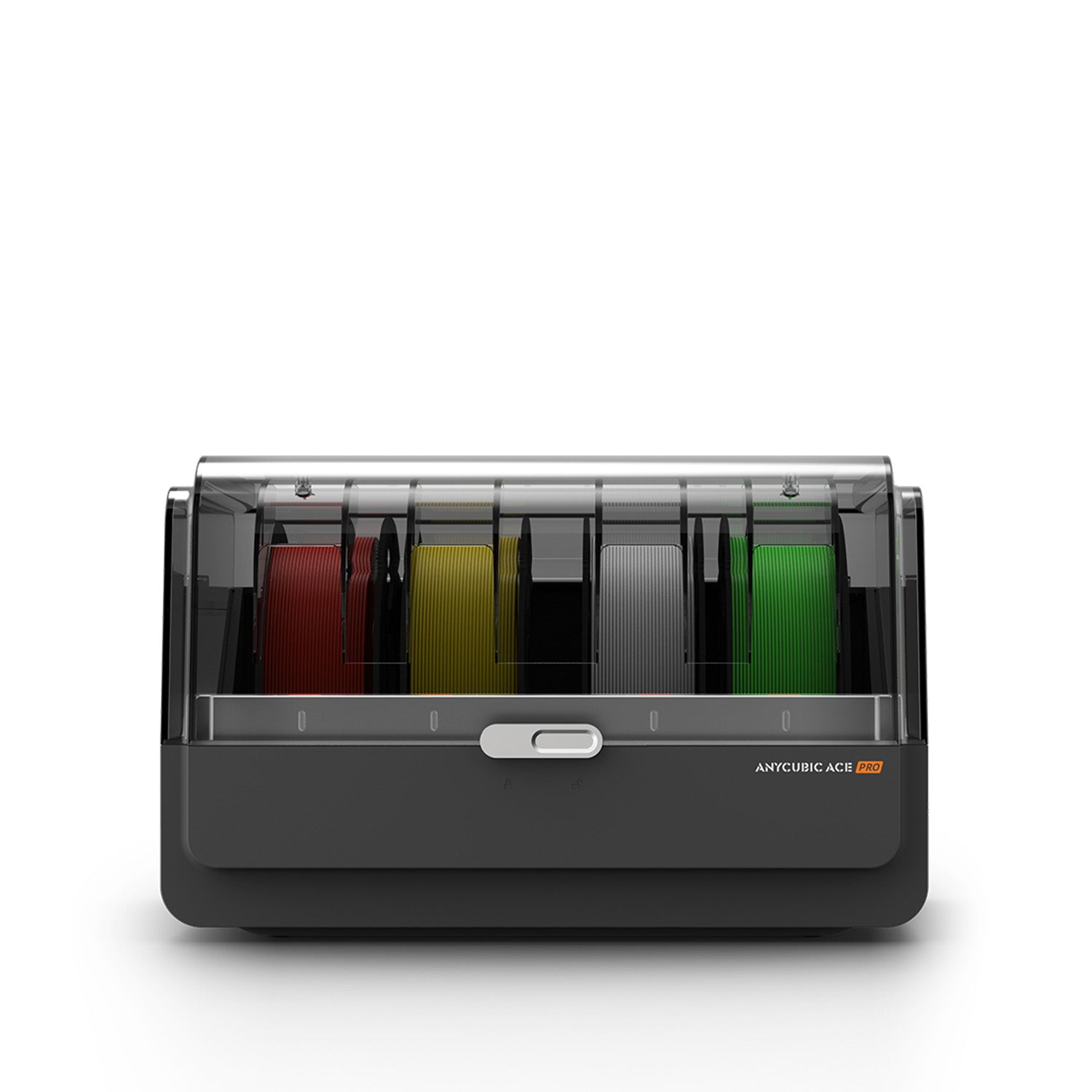

The Anycubic Kobra 3 is a budget 2024 FDM bedslinger with a 250×250×260 mm build volume, up to 600 mm/s speed, a direct drive extruder, and the ACE Pro 4-color multicolor system (up to 8 with two units). In single color it's a very reliable machine — almost all owner headaches trace back to the ACE Pro. This guide covers the issues that are specific to the Kobra 3 and its color unit, with concrete fixes, error codes, and notes on what's already patched in firmware.

One key point up front: per a 4-month Creative Bloq test, roughly 99% of Kobra 3 errors come from the ACE Pro, while single-color printing is nearly flawless. Also, a big chunk of early bugs is already fixed in firmware — so update before you touch hardware. For a full feature rundown, see our Anycubic Kobra 3 review.

ACE Pro: filament tangle (11519), clogs, and false pauses

The most common complaint. The printer pauses and shows a QR code with 11519 "Filament tangle detected" or 11518 "Filament clogging detected". The catch: it's often a false alarm — filament feeds fine from the ACE Pro into the head, yet the print stops anyway. The Creative Bloq reviewer flat-out calls these messages a lie. But real jams inside the ACE Pro gear or buffer do happen too.

1. Tap "Continue" on screen. If printing resumes, it's a false alarm — go to step 5 (firmware).
2. Restart the ACE Pro. On restart the gear returns to zero, leaving a gap to pull the strand out, per the official Anycubic guide.

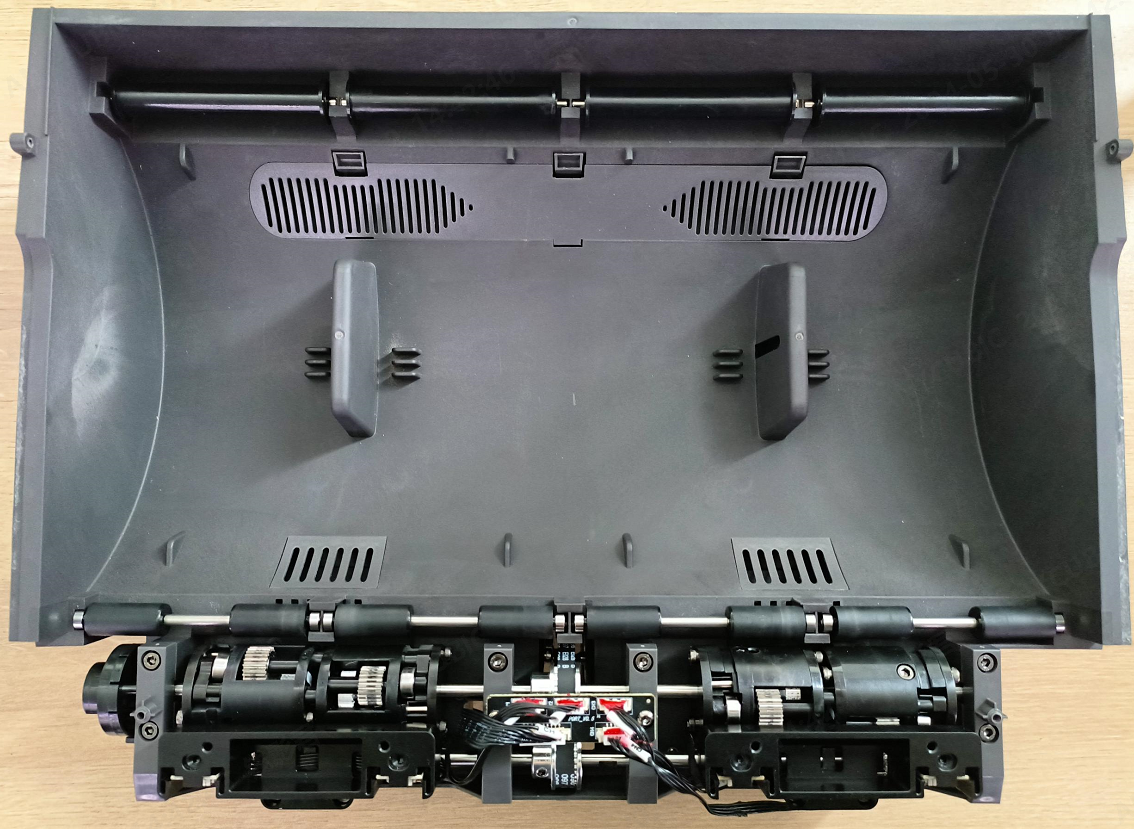

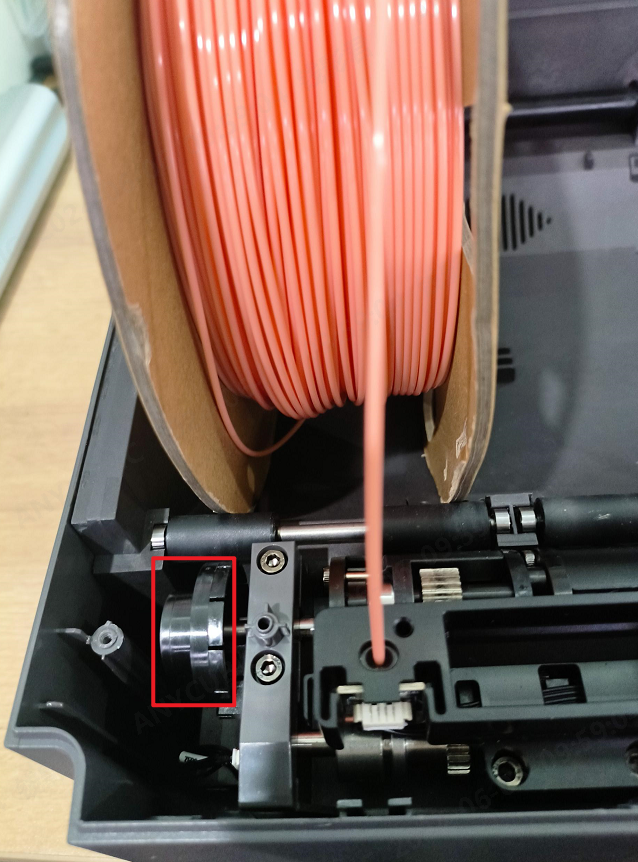

3. If the strand won't come out, remove the cover with an S2.5 hex key, turn the gear by hand and pull the filament at the same time.

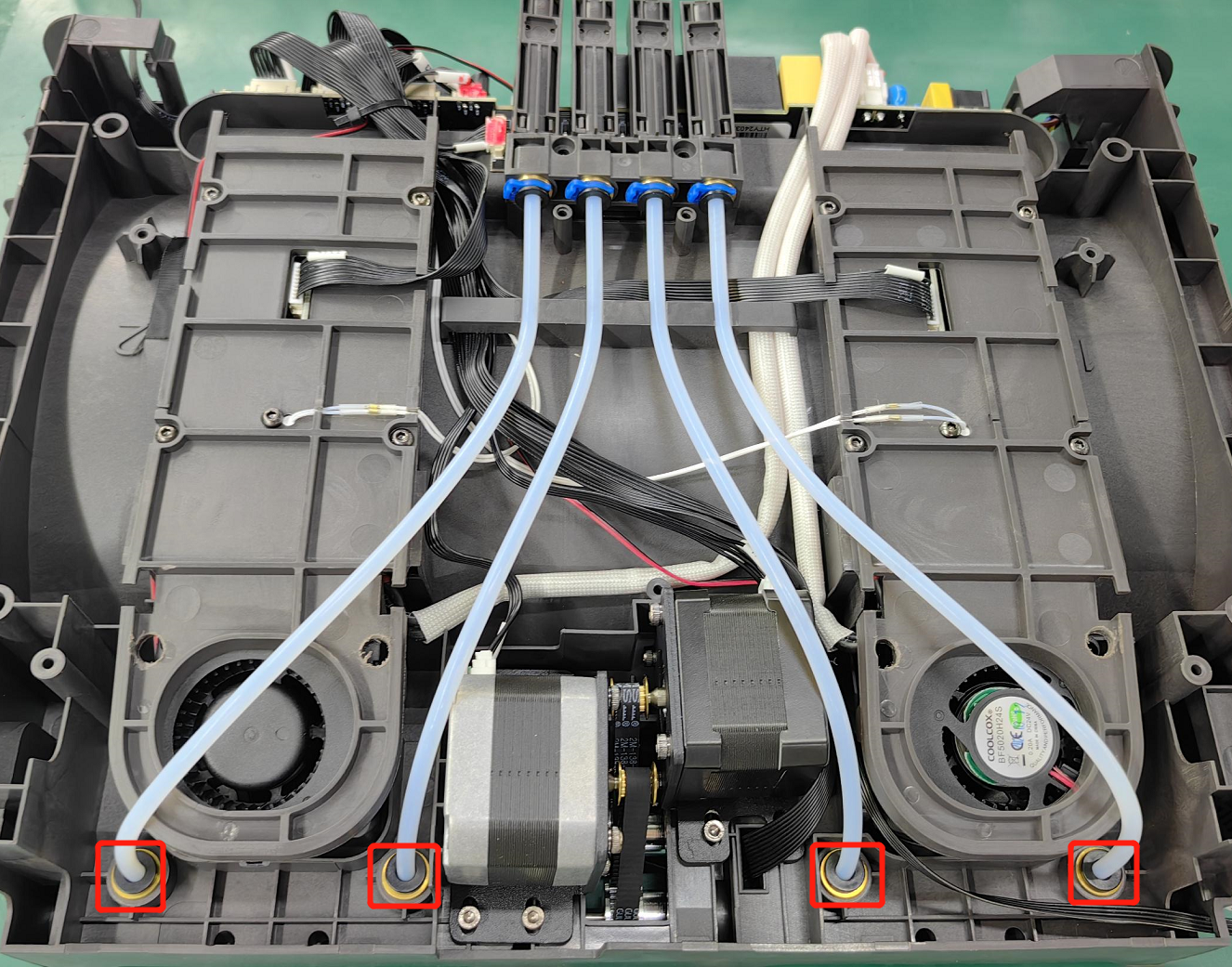

4. Check the buffer: pop the blue collet and PTFE tube, and if clogged, disassemble the buffer mechanism (S2.0/S2.5 hex) and remove the stuck strand.
5. Update the ACE Pro firmware: V1.3.76 and newer reworked the blockage-error logic, cutting down on false pauses.
6. Keep filament dry: wet strands turn brittle and snap during feeding, causing both tangle and break errors. See our filament drying guide.

Massive purge waste: the ACE Pro can't retract filament

The ACE Pro has one shared feed path, and on a color change or spool runout it can't pull the strand back — everything between the ACE Pro and the nozzle gets purged as waste. In the Tom's Hardware review, a single multicolor print wasted about 100 g of filament just on purge. Worse: after every pause or error, the strand purges several times even if the color is the same. A looping false "tangle" pause cost the Creative Bloq tester ~100 g of purple PLA for nothing.

1. In the slicer, lower flush volumes for similar-color pairs — the defaults are too high. Don't lower them for dark → light transitions.
2. Route the purge into a wipe tower or a dedicated purge object, so the waste becomes useful support instead of trash.
3. Design models with fewer color changes per layer: every change equals another purge.
4. Update the printer and Anycubic Slicer Next: the newer software gives more purge control and cuts waste noticeably (officially confirmed in the Anycubic Kobra 3 V2 blog).
5. If a print gets stuck in false pauses, stop it, update the ACE Pro firmware and restart — otherwise you keep losing filament to repeat purges.

The poop chute flings waste onto the bed, plus color bleed

The Kobra 3 ejects purge waste through a chute on the right — at a decent velocity, and it throws waste farther the taller the model gets. Sometimes a purge blob gets stuck on the wrong side of the nozzle and drops onto the bed, which can ruin a print. A separate issue is color bleed: it's especially visible when a light color follows black (the classic muddy result).

1. Put a box or bin under the chute — otherwise waste scatters across the bed and floor.

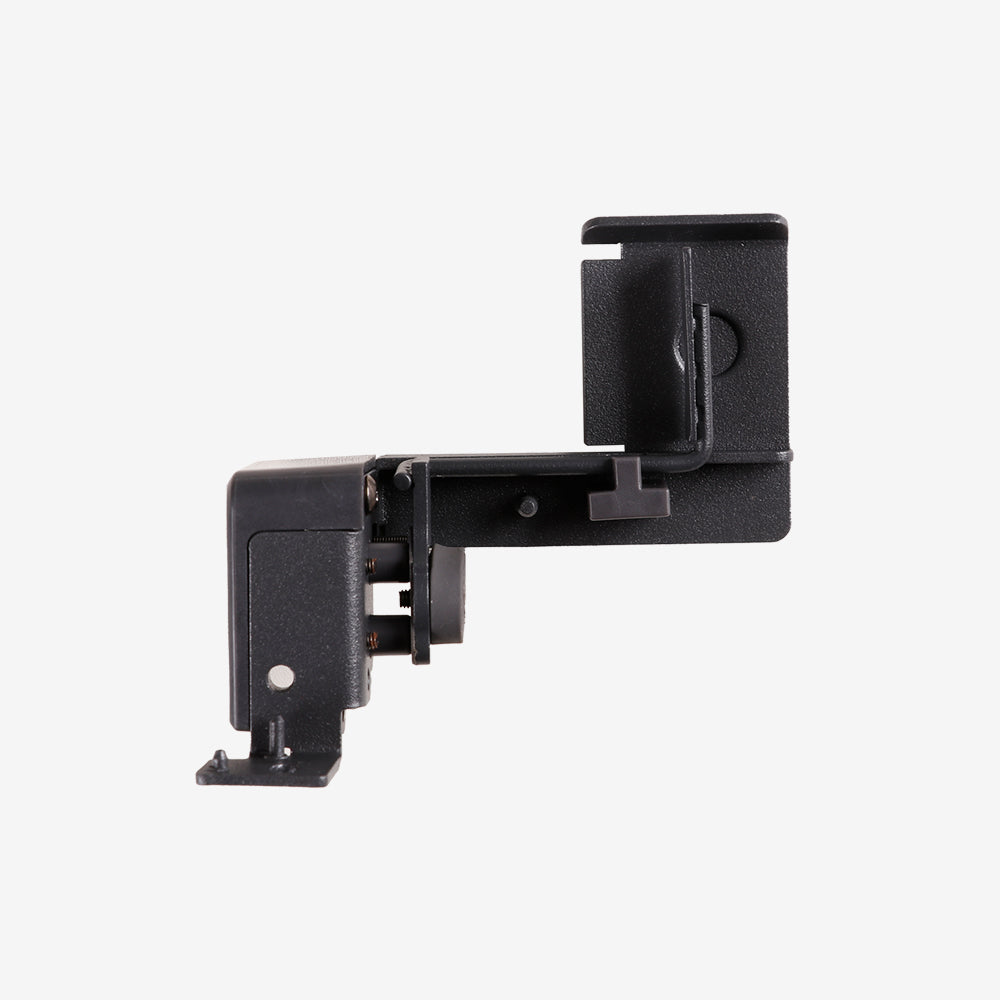

2. Clean the nozzle wiper regularly and make sure the blob goes into the chute, not back to the nozzle.
3. For color bleed, increase flush volume specifically for dark → light transitions and enable a wipe tower.
4. Check that the purge blade/wiper isn't worn — a sticky blob is often caused by that.

Wrong color, snapped filament, and ACE Pro gear wear

By design the ACE Pro is closer to a Prusa MMU than to Bambu's AMS: one feed mechanism loads a single strand at a time, so loading hiccups happen — it fails to grab the strand, feeds the wrong color, or snaps the tip. A separate long-term issue is wear on the drive gears from abrasive filaments (glow-in-the-dark, carbon fiber): per The Industrial Maker, they last about 5–6 spools before feed force drops.

1. Load a straight, slightly pointed tip with no "mushroom" — a bulged end won't clear the buffer.
2. Look through the clear ACE Pro lid: yellow or black shavings mean the gears are wearing and need replacing.

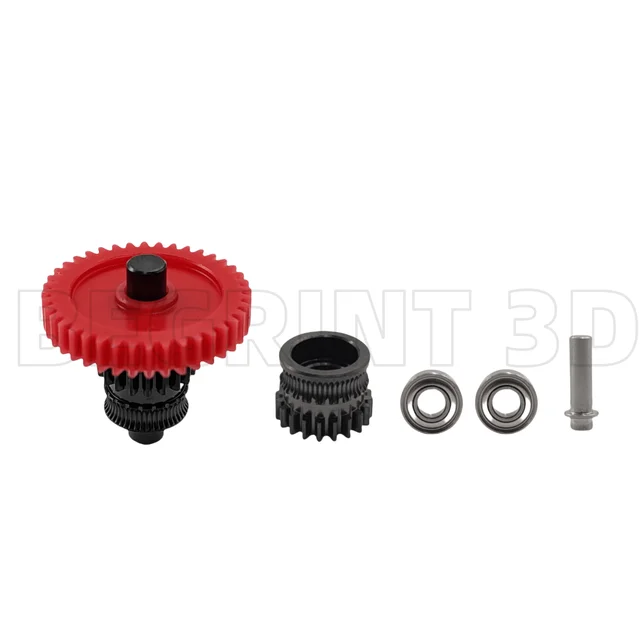

3. Treat abrasive materials (carbon, glow) as a consumable for the ACE Pro and keep spare hardened gears and a nozzle on hand.
4. Wrong color at start — check the color mapping in the slicer and on the printer screen: slots often get swapped.
5. Don't use tiny sample spools, flimsy cardboard spools, or oversized spools — the ACE Pro can't pull them.

Filament leaking from the nozzle — and why you can't unscrew it

On the original Kobra 3, melt sometimes leaks from under the nozzle and cakes onto the hotend — with frequent color changes this speeds up clogs. Anycubic responded two ways: firmware now cools the hotend to 140°C on pause (less leaking and sintering), and on the V2 the nozzle is sealed using the Kobra S1 method. Key detail: the stock 0.4 mm brass nozzle is glued into the block for a tight seal — try to unscrew it and you'll snap the tip. Replace the whole hotend assembly, not the nozzle alone.

1. Update the firmware — cooling to 140°C on pause reduces leaking.
2. If melt cakes on, heat the hotend and gently peel it off; check the silicone sock and replace it if torn.
3. If the nozzle is worn or leaks at the thread, install a new hotend assembly (the nozzle is already glued in).
4. The V2-style hotend fits the original Kobra 3 — that's the official way to eliminate the leak.

First layer drifts: LeviQ levels the plane, but Z-offset is manual

LeviQ 2.0 auto-leveling levels the bed plane, but the exact nozzle-to-bed gap (Z-offset) still has to be dialed in by hand — differently for each filament. Plus the Kobra 3 strain gauge is sensitive to buildup: even a drop of set plastic on the nozzle tip throws off calibration and the first layer goes wavy. We cover the adhesion basics in our first layer fix guide — here it's Kobra 3 specifics only.

1. Clean set plastic off the nozzle tip before leveling (heat and peel it) — otherwise the strain gauge lies.
2. Tune Z-offset live during the first layer, in 0.01–0.05 mm steps: lines should be slightly flattened and fuse together.

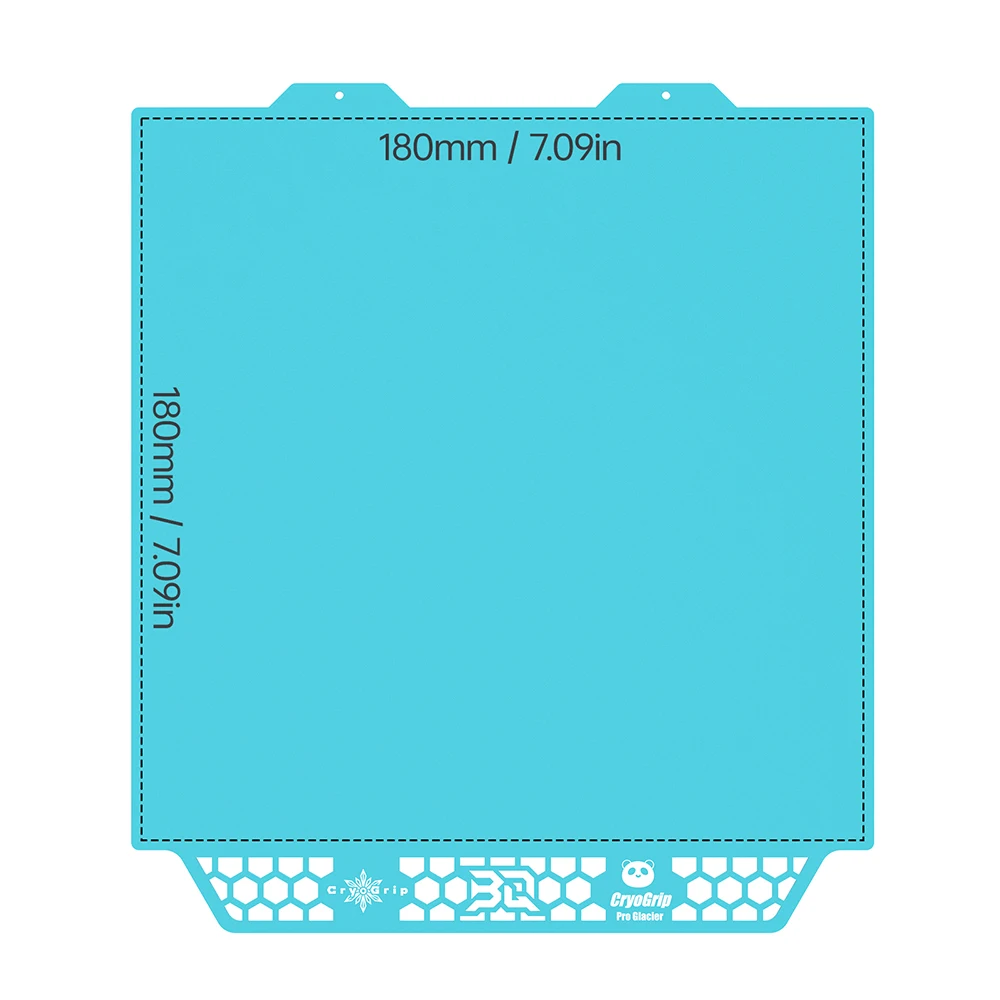

3. Wash the textured PEI plate with warm water and dish soap, and wipe with 90% isopropyl alcohol before printing: finger grease kills adhesion.
4. Starting bed temps: PLA 60–65°C, PETG 70–85°C, ABS/ASA 95–110°C; first-layer speed 15–25 mm/s, first-layer cooling 0%.
5. Make sure the nozzle wiper doesn't leave debris on the tip before the probe.

False AI "spaghetti" detection

The AI spaghetti detection on the Kobra 3 was too sensitive at first and paused prints for no reason — the Creative Bloq tester turned it off after three prints. Good news: firmware V2.4.1.9 added a sensitivity control.

1. Update firmware to V2.4.1.9 or newer to unlock AI detection sensitivity.
2. Lower the sensitivity instead of turning it off — you keep protection against real spaghetti.
3. Give the print area even lighting: shadows and glare trigger false hits on the 720P camera.

Kobra 3 freezes or loses ACE Pro after a firmware update

Owner communities regularly report the Kobra 3 losing sight of the ACE Pro after a firmware update, and the camera asking for new firmware yet failing to start even after you install it. A separate early-machine issue is freezing on the power-on screen when the print head cable is loose. Anycubic added a power-on self-test (firmware V2.3.3.1) that catches exactly that unplugged head cable.

1. Do a full power cycle: unplug the printer and ACE Pro from the wall for a minute, then power on.
2. Update BOTH the printer and the ACE Pro firmware — a version mismatch is what breaks the link between them.
3. Check the ACE Pro signal cable: it plugs into the front of the printer — route it without tension.
4. Freezes at startup — reseat the print head cable firmly, then update the firmware.

Layer skips, drops near print end, and Y-axis noise

Some "the print failed near the end" cases are model-section skips. Per the Anycubic firmware log, they fixed: skips after a power failure and restart (V2.4.5), and skips/collisions in multicolor prints (V2.3.8). Separately, the Y-axis on a bedslinger gets loud at high acceleration and can overheat the motor — up to a layer shift; firmware V2.3.8.9 specifically slowed the Y speed to cut noise.

1. Update the firmware — most power-failure and multicolor skips are already fixed.
2. For Y-axis layer shifts, lower acceleration (e.g. from 20,000 to 10,000 mm/s²) — print time barely grows.
3. Check belt tension every ~200 hours: plucked with pliers, they should sound around 80–90 Hz.
4. Noise or Z-banding with height? Every 3 months, clean the Z lead screw with a lint-free cloth and apply dry lube (not oil — it runs into the motor). See our printer maintenance guide.

The old slicer — why you need Anycubic Slicer Next

Per Tom's Hardware, the original Kobra 3's biggest problem wasn't mechanical at all — it was the slicer: the early Anycubic Slicer "hamstrung the whole ecosystem." It now ships Anycubic Slicer Next, built on OrcaSlicer — a huge step up, and it handles pre-colored 3MF files made for other printers. You can't run vanilla Klipper on the Kobra 3: the system is closed (Anycubic OS), so the thing to upgrade is the slicer, not the firmware.

1. Download the current Anycubic Slicer Next — old versions waste filament and glitch.
2. If you know OrcaSlicer or Bambu Studio, the UI is nearly identical and profiles carry over. Basics are in our OrcaSlicer guide.
3. Pre-colored 3MF files for Bambu now import correctly — no need to recolor the model by hand.

Anycubic Kobra 3 and ACE Pro error codes

On an error the printer shows a QR code linking to the fix. Below are the most common codes from the official Anycubic list, with meaning and the first action to take.

Common 3D printing problems

Beyond the Kobra 3 specifics, you may hit the usual FDM problems. We cover each in a dedicated deep-dive guide that applies to any printer:

• First layer and bed adhesion — when plastic won't stick or lifts.
• Nozzle clogs — heat creep, cold pull, hotend cleaning.
• Stringing and wisps — tuning retraction and temperature.
• Warping and corner lift — especially for ABS/ASA.
• Layer shifting and ghosting — belts, acceleration, Input Shaper.
• Under- and over-extrusion — flow calibration.
• Drying filament — wet strands crumble in the ACE Pro.

Also useful for the Kobra 3: our full Anycubic Kobra 3 review, the ACE Pro multicolor guide, the Kobra lineup comparison, and Kobra S1 known issues (it uses the same ACE Pro).
