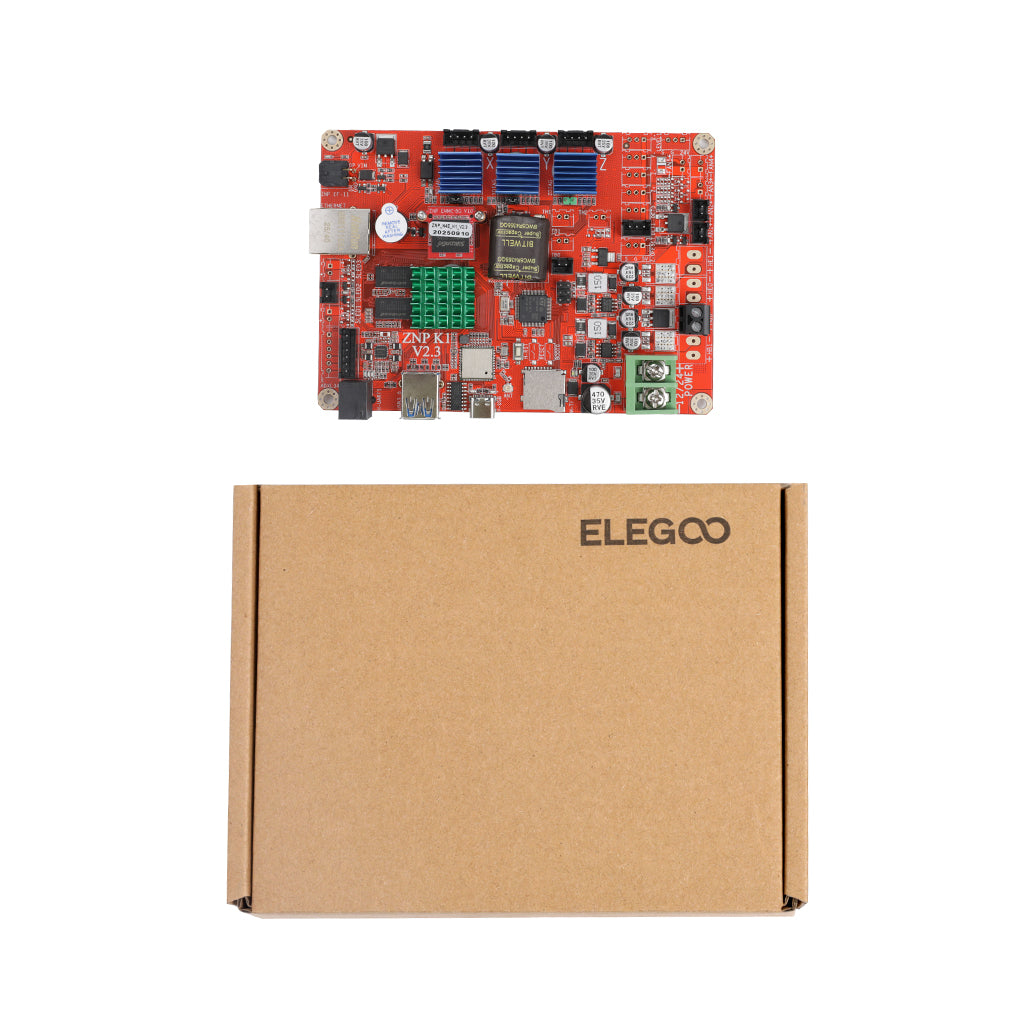

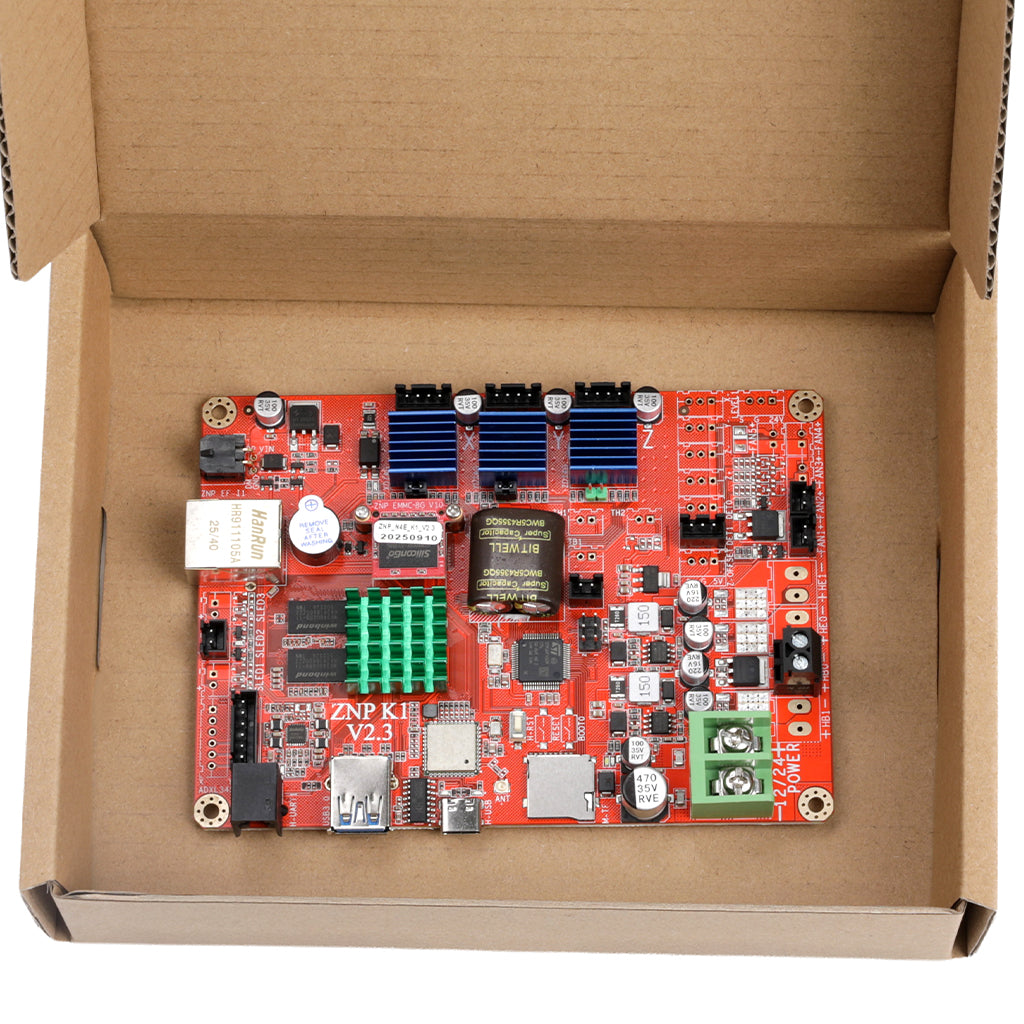

ELEGOO Motherboard for Neptune 4 Plus and 4 Max

The stock board from the larger Neptune 4 machines. A quad-core RK3328 runs Linux and Klipper — that's what serves the web interface and handles Input Shaper — while a dedicated STM32 microcontroller takes care of real-time motion. Splitting the work that way is how the Neptune 4 Plus and 4 Max hold high speeds without dropping steps. Ethernet, USB and a microSD slot sit on the board.

Specifications

• Quad-core RK3328 running Linux and Klipper
• Separate STM32 MCU dedicated to real-time motion
• 8 GB eMMC on board, plus Ethernet, USB and microSD
• Silent X, Y and Z stepper drivers with heatsinks

Compatibility: ELEGOO Neptune 4 Plus and Neptune 4 Max. The base Neptune 4 and the Neptune 4 Pro use their own board, so check your model before ordering.
