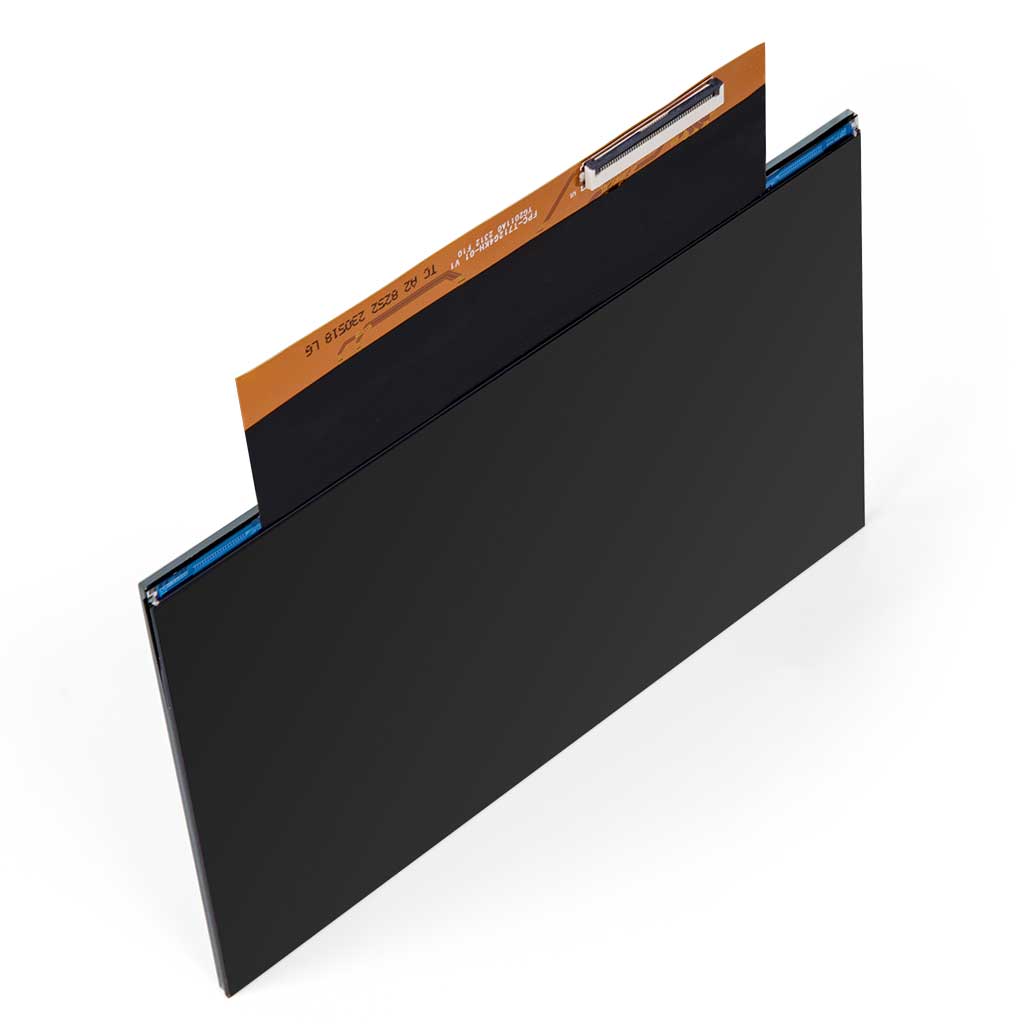

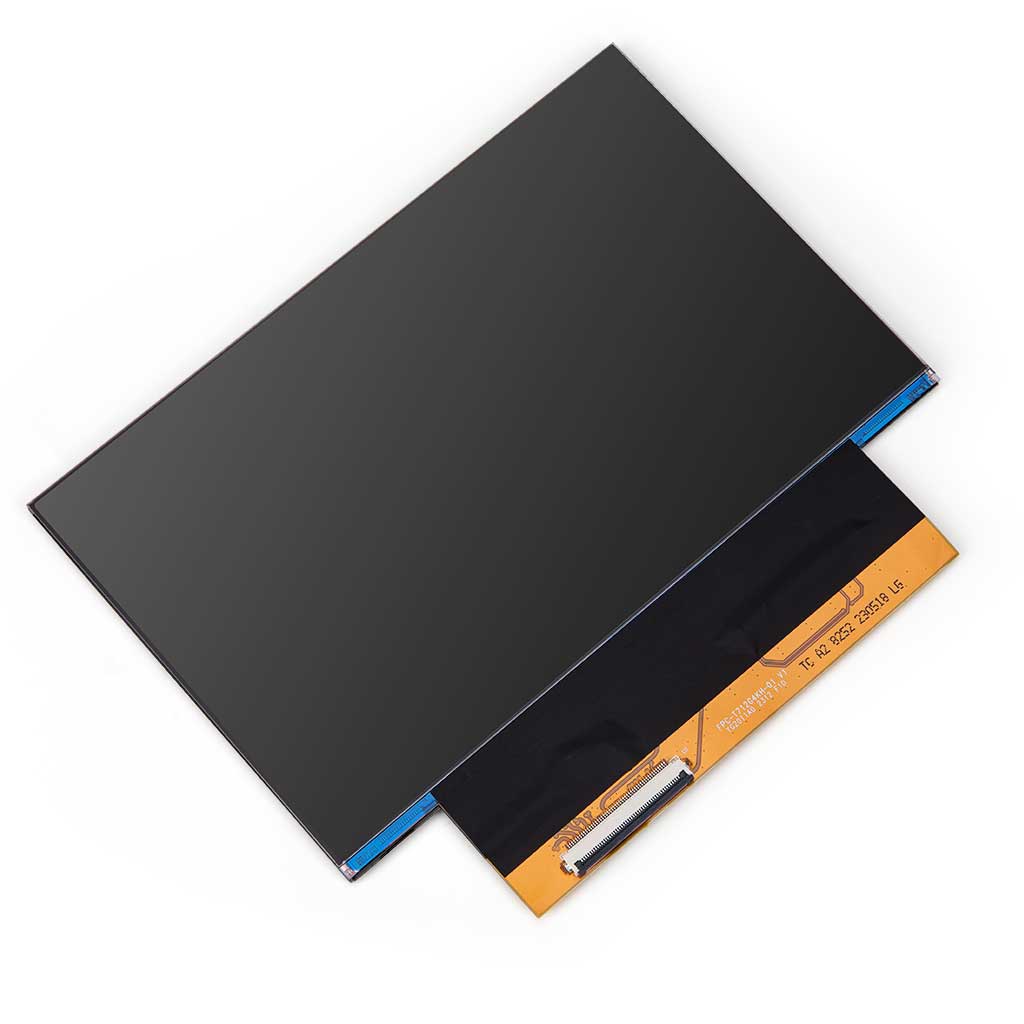

6.6-inch 4K Masking LCD for ELEGOO Mars 5

The masking LCD that UV light passes through to cure each resin layer in the vat — not the printer's touch panel. Panels wear out: dead pixels creep in, the screen clouds over, and fine detail stops curing. A replacement brings the Mars 5 back to spec — 35 microns per pixel across a 143.43 x 89.6 mm area. An extension ribbon and protective film come in the box.

Specifications

• 6.6-inch monochrome LCD panel
• 4K resolution, 4098 x 2560 pixels, 35 micron pixel pitch
• 143.43 x 89.6 mm exposure area

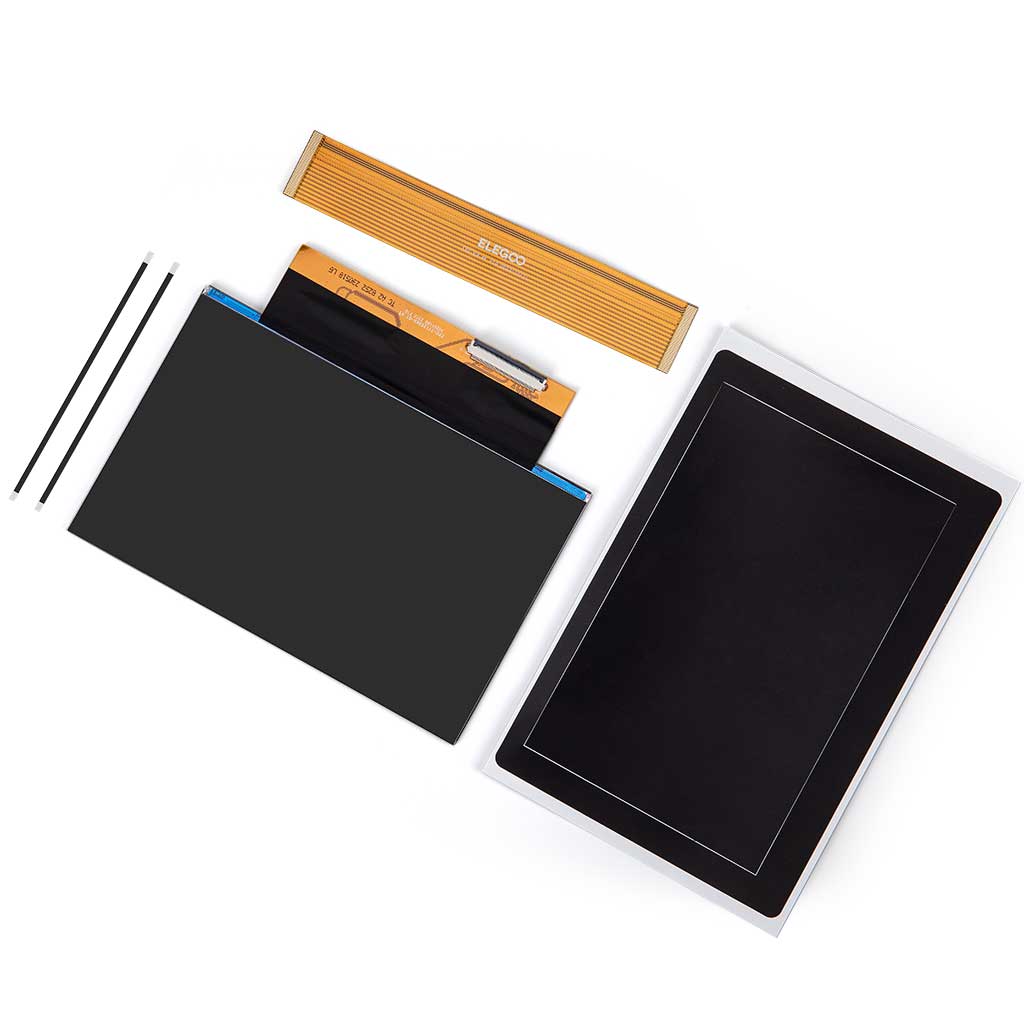

• FPC ribbon cable, cable ties and protective film included

Compatibility: ELEGOO Mars 5, plus the Mars 3 and Mars 3 Pro — all three are ticked on the box. The Mars 5 Ultra runs a different 7-inch 9K panel and will not take this one.
