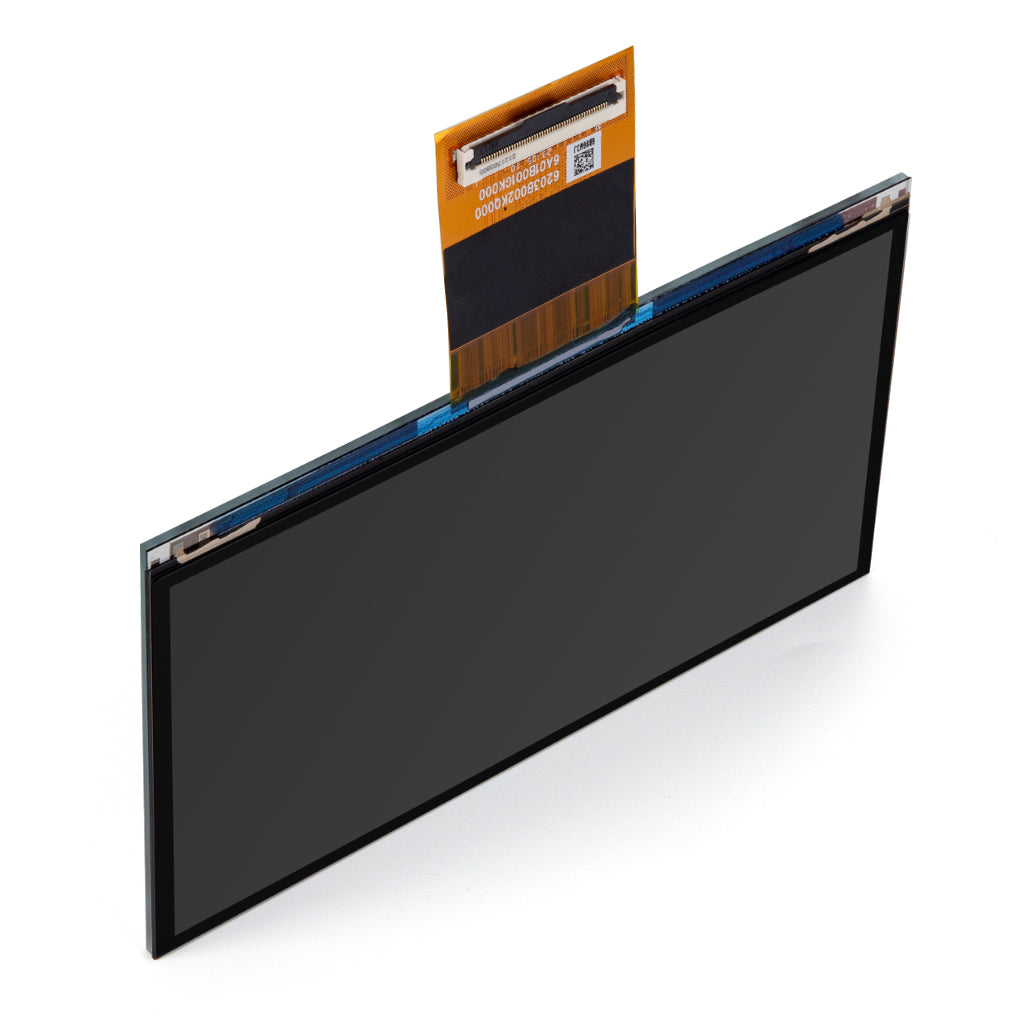

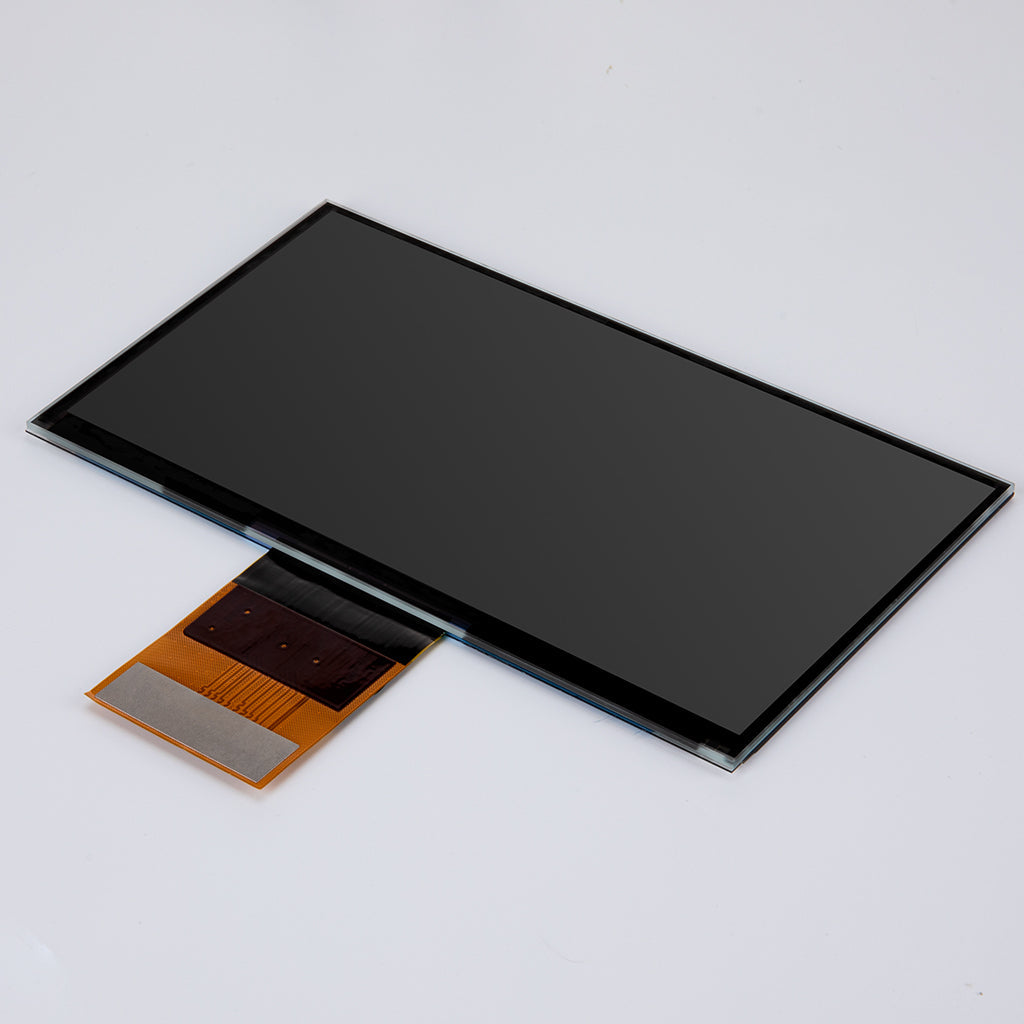

7-inch 9K Masking LCD for ELEGOO Mars 4 Ultra

The masking LCD that UV light passes through to cure each resin layer — not the touch panel on the front. It is a wear item: over 1500 to 2000 print hours the panel clouds, dead pixels appear, and thin features stop curing and stay behind on the film. A 9H tempered glass sheet sits above it to take the resin drips and scraper contact.

Specifications

• 7-inch monochrome LCD panel
• 9K resolution, 8520 x 4320 pixels, 18 micron pixel pitch
• 153.36 x 77.76 mm exposure area

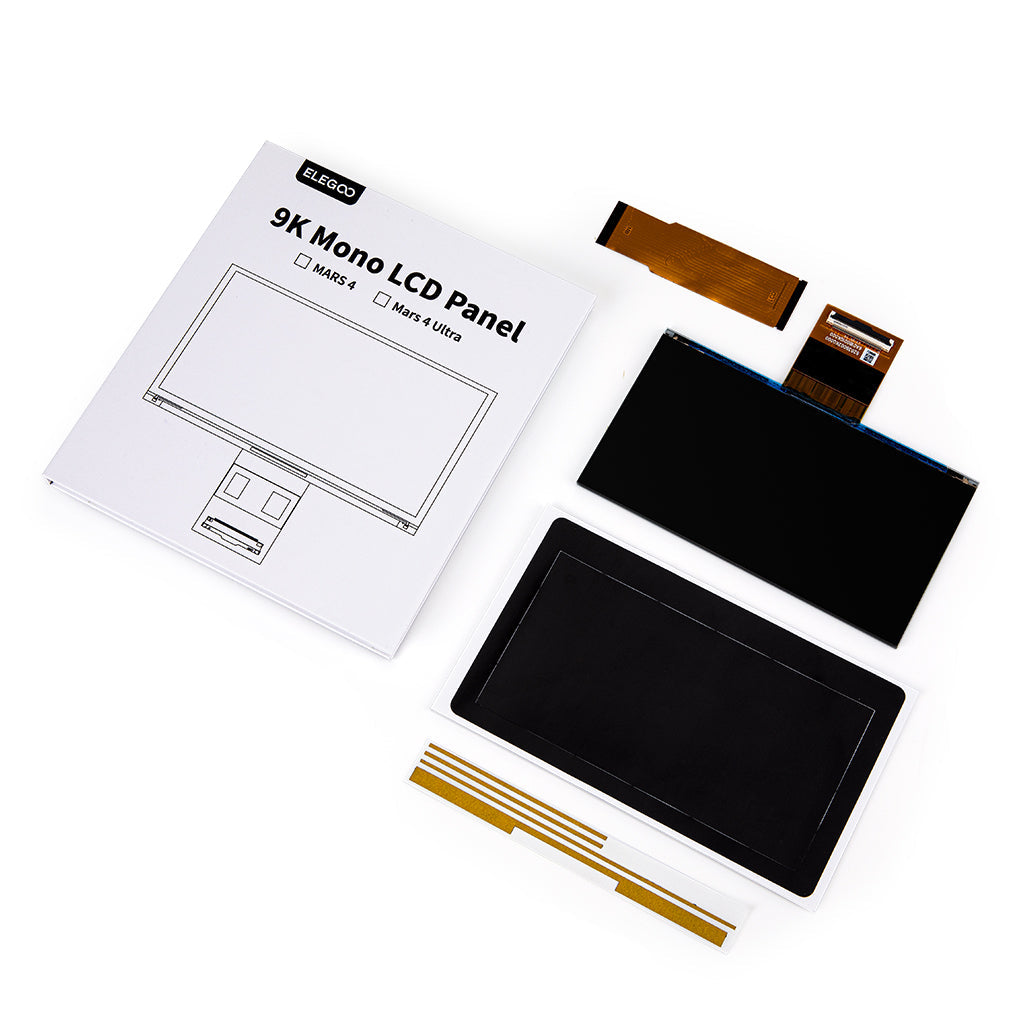

• 9H tempered glass cover and ribbon cable included

Compatibility: ELEGOO Mars 4 Ultra. The Mars 4 uses the same 7-inch 9K panel, hence the shared factory box. The Mars 4 Max takes a 9.1-inch 6K panel instead.
