Bambu Lab X1E: Known Issues & Fixes

The Bambu Lab X1E is a powerhouse built for engineering-grade filaments — but that capability comes with a specific set of quirks you won't find on the X1C or P1S. This guide covers only X1E-specific problems: chamber heating behavior, filtration degradation, end-of-life planning, and a few hardware gremlins unique to this machine. For general FDM issues like stringing or warping, scroll to the cross-links section at the bottom.

Slow Chamber Heating

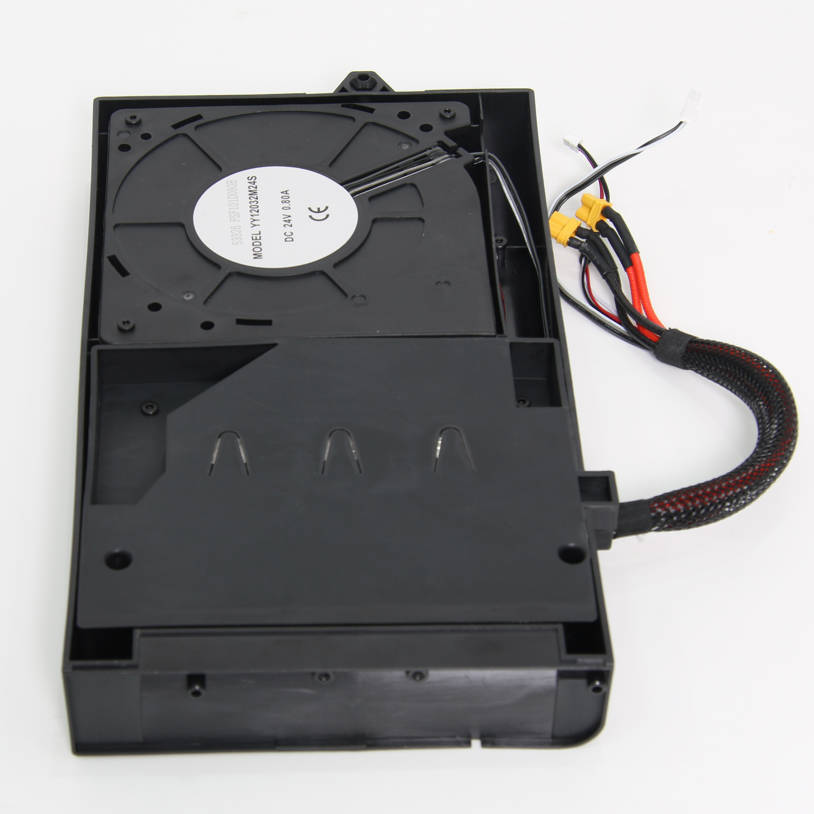

The X1E's active chamber heater is underpowered relative to the enclosure volume — reaching the target 60°C takes 15–20 minutes, and while it's climbing, the PSU fan runs at full speed the entire time. If you're printing PA, PA-CF, PPS, or other engineering filaments, you need to factor this into your workflow: start preheat well before you're ready to send the file. Skipping preheat means your first layers land in a cold chamber, which is a primary cause of delamination and warping with high-temp materials.

1. Start preheat 15–20 minutes before sending the print job — use the touchscreen or Bambu Studio to trigger chamber heating early.
2. Inspect the heater module housing for any physical damage or discoloration that could indicate a thermal issue.
3. Confirm the heater fan is spinning freely and not obstructed by debris or a loose cable.
4. If the chamber fails to reach target temperature, HMS code 0300-9000-0001-0001 will appear — check the heater module and contact Bambu support.

Low-Temp Filament Clogging from Chamber Heat

This is probably the most common user mistake on the X1E: running PLA, PETG, or TPU with chamber heating enabled. At 50–60°C ambient, PLA softens inside the extruder cold zone and the PTFE tube, causing a heat creep clog. Multi-color prints are especially risky — filament sits in the AMS and buffer tubes for extended periods while the chamber is hot. Once it softens in the buffer, you'll get a feed failure or a clog that requires disassembly to clear.

1. Set chamber temperature to 0°C for any low-temp filament (PLA, PETG, TPU, PVA).
2. For multi-color prints, verify the highest required chamber temp is safe for every spool loaded in the AMS — not just the primary material.

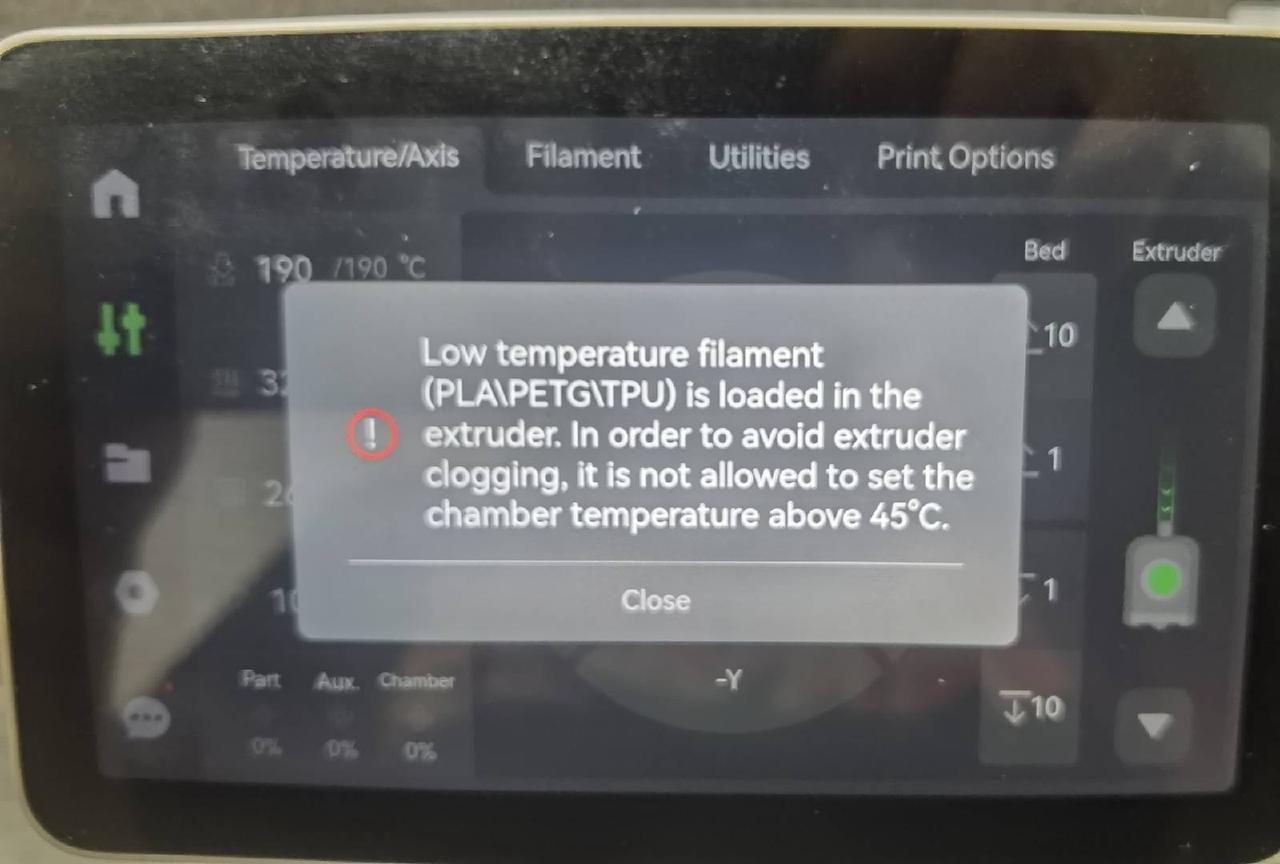

3. Be aware: if the chamber is already above 45°C, the printer will refuse to load low-temp filaments as a safety measure.
4. Always remove low-temp filaments from the AMS before enabling chamber heating for a high-temp print run.

Sporadic Power Shutdowns

Some X1E units have experienced sudden complete power failures mid-print — everything goes dark: fans, display, lights, all at once. This is distinct from a software crash or firmware hang. The X1E has a different internal wiring layout from the X1C, and early replacement power switches sent by Bambu support were incorrectly sourced from the X1C parts inventory. If you receive a replacement switch that doesn't fit cleanly or behaves oddly, this may be why — always explicitly specify the X1E model when requesting warranty parts.

1. Check the power switch — press firmly and check for any mechanical resistance or looseness.

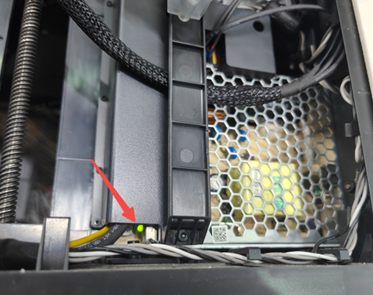

2. Inspect the green LED on the PSU through the rear vent. No LED = no PSU output — this is a hardware issue, not firmware.
3. Check the fuse on the rear panel. Replace with the same amperage rating.
4. Inspect all 24V wiring connectors inside for looseness, corrosion, or heat damage.
5. When contacting Bambu support, explicitly specify the X1E model — the internal wiring differs from the X1C and incorrect replacement parts have been shipped to X1E owners.

Rapid Filter Degradation

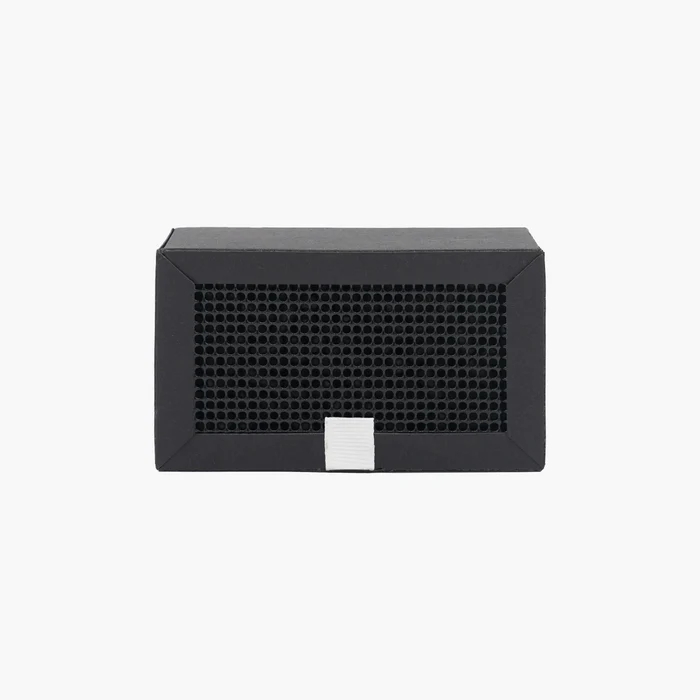

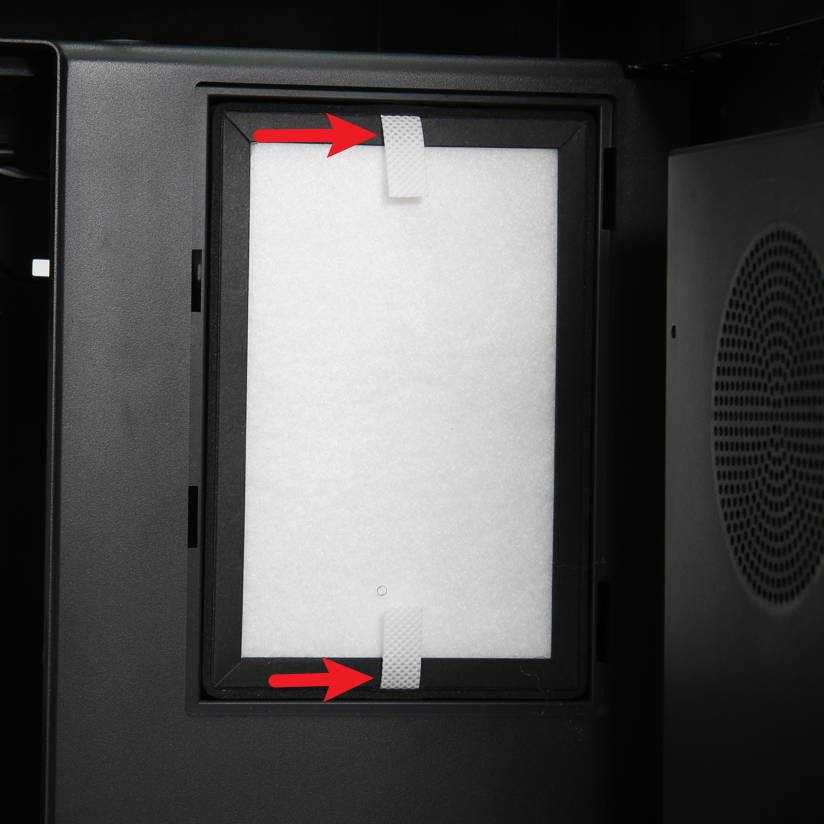

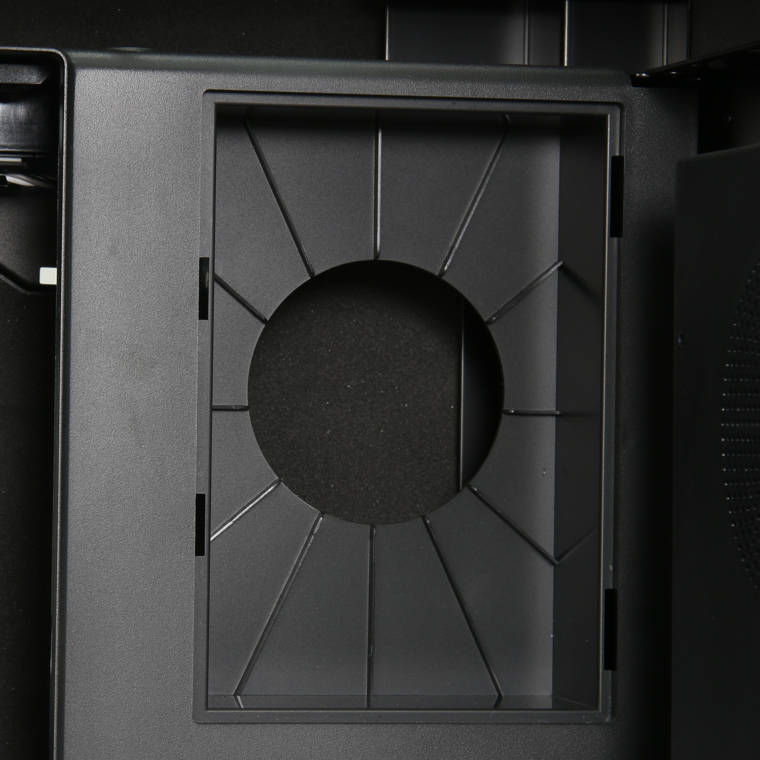

The X1E ships with three-stage filtration: G3 particulate pre-filter, HEPA H12, and activated carbon. This is one of the things that makes it genuinely suitable for office environments. The catch: at high chamber temperatures (50–60°C), activated carbon loses adsorption efficiency much faster than at room temperature, and engineering filaments like ABS, PA, and composites off-gas continuously while the chamber is hot. In practice, this means monthly carbon filter replacement when running engineering materials — not the quarterly schedule that seems intuitive.

1. Replace the activated carbon filter every 30 days when printing ABS, PA, PA-CF, PPS, or other composites with chamber heat enabled.
2. When printing only PLA or PET, every 90 days is acceptable — but inspect the filter visually each month.
3. At high chamber temperatures, check that the enclosure maintains negative pressure — place your hand near vents to feel inward airflow.
4. Never reduce the filtration fan speed below the default setting — the negative pressure system depends on it. See the safety and ventilation guide for more detail.

PTFE Tube Wear from Abrasive Filaments

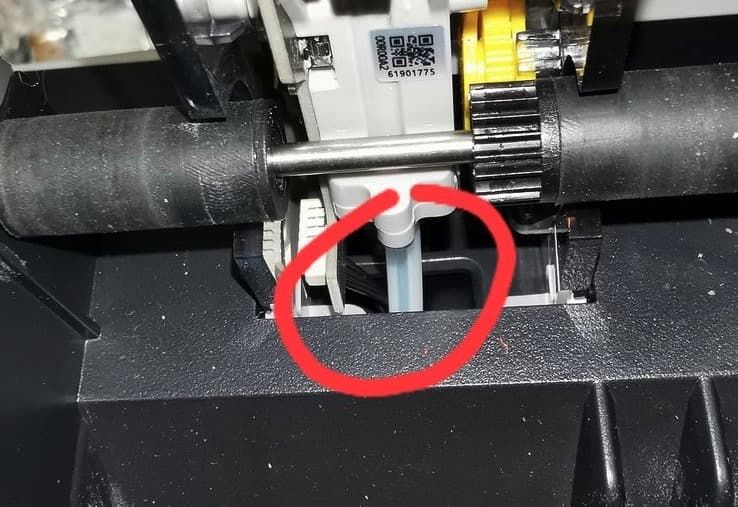

Carbon fiber and glass fiber filaments are abrasive enough to meaningfully wear PTFE tubes within weeks of continuous use. On the X1E, the most vulnerable segment is the AMS-to-printer tube — it sees every filament load and unload, not just active printing. A worn tube develops a slightly narrower or rough interior, increasing feed resistance. You'll notice it as inconsistent extrusion, frequent false filament run-out alerts, or outright feed failures. The degradation is gradual, making it easy to miss until it causes a more obvious problem downstream.

1. Replace PTFE tubes every 30 days when running CF or GF filaments regularly.
2. Check for increased resistance by manually feeding filament through the tube — it should slide with minimal force.
3. Replacement tubes must be 2.5mm ID / 4mm OD — standard Bambu-spec PTFE. Don't substitute generic fittings without verifying inner diameter.
4. Keep spare tubes in stock. Bambu has confirmed spare parts availability for the X1E until 2031.

Filament Cutter Getting Stuck

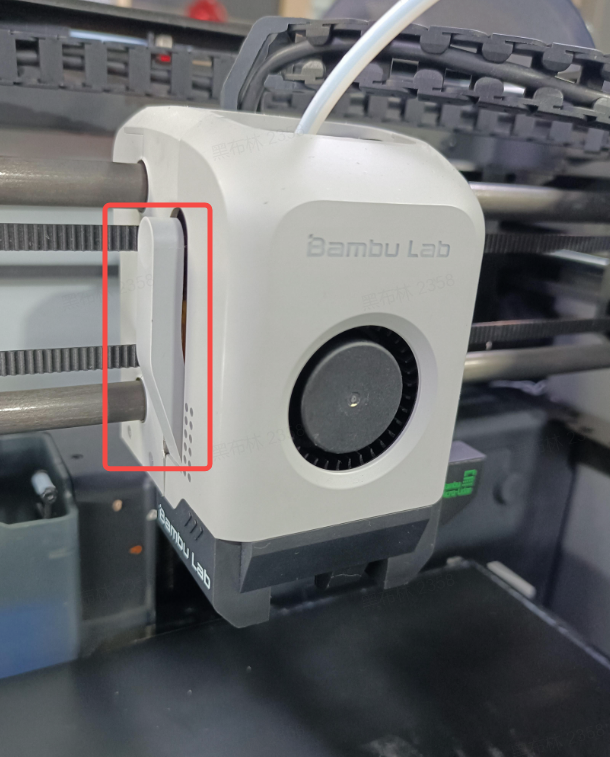

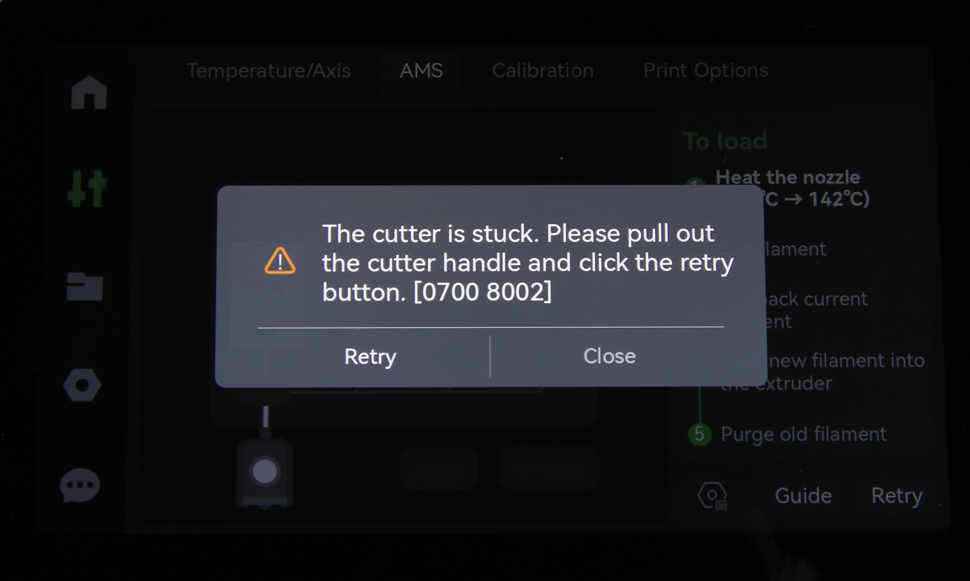

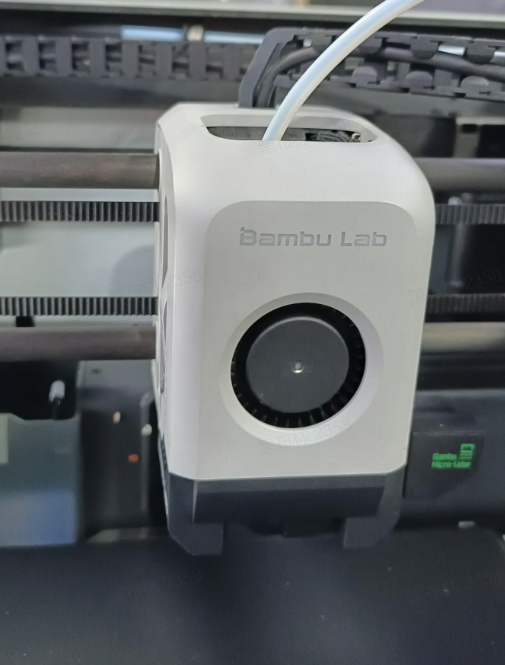

The filament cutter blade occasionally fails to spring back after cutting — it gets stuck in the extended position and the printer throws an error, pausing the print. This happens most often with silk filaments and support materials, which tend to leave more residue on the blade. The symptom is a mid-print pause requiring manual intervention before the print can continue.

1. If the lever has already returned to position, tap Retry on the touchscreen — the printer will re-attempt the cut sequence.
2. Power down, open the enclosure, and clean the Hall sensor and magnet near the cutter with a dry cotton swab. Residue on the sensor causes false "stuck" readings.
3. Re-seat the 10-pin connector on the cutter assembly — it can vibrate loose over time.

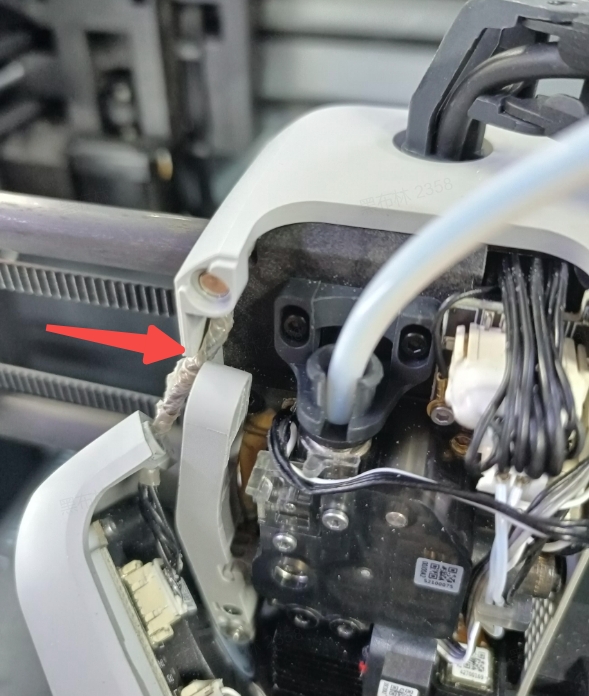

4. Check that no fan cable is routed across the cutter lever's swing path — this is a documented assembly issue on some units.
5. If the blade has visible nicks, lightly sharpen the sides with a fine whetstone — blade geometry affects cut quality.
6. Replace the cutter assembly if the blade is visibly worn or chipped. Bambu stocks these as a separate consumable.

Engineering Plate Adhesion Issues

The engineering plate works great with PA and PA-CF — but only if you use Bambu's glue stick. Without it, PA prints will peel off mid-print or fail at first layer adhesion, especially on parts with small contact area. The glue isn't optional with engineering materials; it actively improves first-layer bonding, not just release behavior.

1. Always apply a thin, even coat of Bambu glue stick before printing PA, PA-CF, or PPS on the engineering plate.
2. Set bed temperature to 80–100°C for PA and PA-CF — check the filament manufacturer's recommended bed temp.
3. Don't enable the cooling fan until at least layer 4 — early cooling causes PA to contract and lift from the plate.
4. Clean the plate with IPA between prints to remove glue residue and any oils from handling.
5. Always let the plate cool to below 40°C before attempting to remove the print — PA releases cleanly when cool, forcibly removing it hot can warp the plate surface.

End-of-Life and Spare Parts Planning

Bambu Lab announced the X1 series end-of-life on March 31, 2026. That doesn't mean your printer stops working — Bambu has committed to a post-EOL support timeline with feature updates through May 2027, security patches through May 2029, and spare parts availability through 2031. If you bought the X1E for long-term production use, that's still a solid runway. But it's worth ordering key consumables now before supply starts thinning out.

• Hotend assemblies — full hotend kits and individual nozzle sets (0.4, 0.6, 0.8mm hardened steel for abrasive filaments)
• PTFE tubes — stock 2–3 sets, especially if you run CF/GF regularly
• Build plates — engineering plate and PEI textured plate
• Cooling fans — part cooling fan and hotend cooling fan
• Activated carbon filters — buy in bulk if you're printing engineering materials long-term

Error Code Reference

The X1E uses Bambu's HMS (Health Management System) for error reporting. Every error code on the touchscreen has a QR code you can scan for the official wiki page with step-by-step diagnostics. The table below covers the most common X1E-specific codes.
