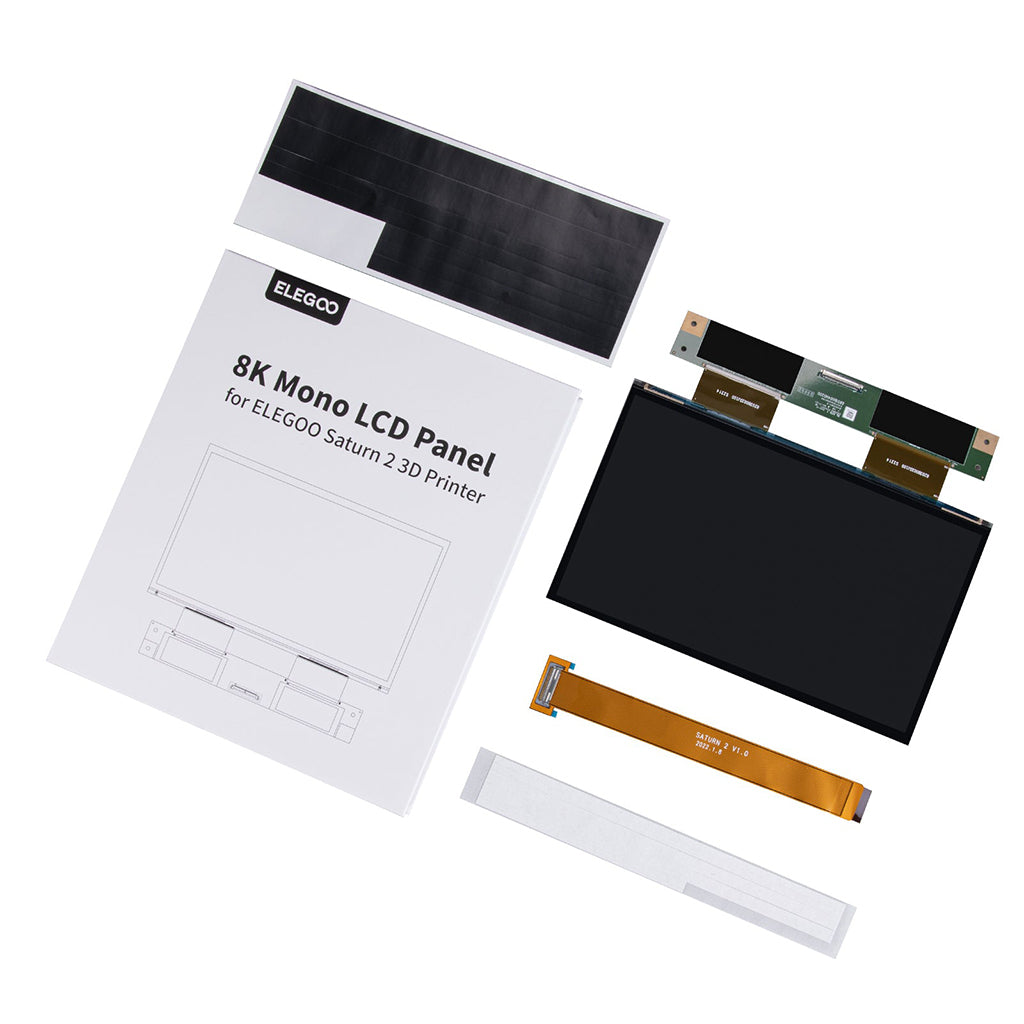

ELEGOO 10-inch 8K Mono LCD for Saturn 2 & Saturn 8K

A 10-inch replacement masking LCD for the ELEGOO Saturn 2 and Saturn 8K. It is the panel the UV array shines through to expose each layer, not the machine's control screen. ELEGOO co-developed it with INNOLUX, and the 380:1 contrast ratio is what keeps edges crisp and corners square. A replaceable 9H tempered glass sheet sits above the panel and takes the resin drips and scratches for it.

Specifications

• 10-inch panel, 7680 × 4320 resolution (8K)
• 28.5 µm XY pixel pitch, 380:1 contrast ratio
• 1–3 s cure per layer, up to 2000 h service life — 4× longer than RGB LCD
• Replaceable 9H tempered glass protector, ribbon cable included

Compatibility: ELEGOO Saturn 2 and Saturn 8K. The Saturn 3 and Saturn 3 Ultra take the 12K panel instead.
